Yosemite DF-EFP148 Installation instructions

Electric Fireplace
Wall
Mount
Electric Fireplace Packing List
1
1
1
2
1
1
1
www.YosemiteHomeDecor.com
Electric Fireplace
Mount
& Recessed
Instruction
Electric Fireplace Packing List
Electric Fireplace
Glass Face
Remote Control
AAA Batteries
Instruction Manual
Wall Fi ing Plate
Fastener Package
Yosemite Home Décor
1-800-305-9872
www.YosemiteHomeDecor.com
Instruction

2 | P a g e
INSTALLATION INSTRUCTIONS
Location
1. The fireplace must not come in contact with any combustible materials.
2. The heater, which is located at the base of the fireplace, must be a minimum of 16 inches
away from any combustible material.
3. It is important that the wall on to which the fireplace is to be installed is of sound
construction. It is recommended that the brackets are installed directly into beams for
support.
4. The fireplace must be installed at a suitable position where at least 20 inches above the
floor.
5. The fireplace must not be installed in an area where there is restricted air flow around
the unit.
6. Yosemite fireplaces are approved for indoor use only.
7. The fireplace must be kept away from any source of damp or moist conditions. Avoid any
close contact with water.
8. This fireplace produces heat. Consequently it is important to ensure that a suitable wall
covering is selected behind and around the appliance. Typical wood frame drywall
construction is suitable.

3 | P a g e
Fireplace Installation – Wall Mount

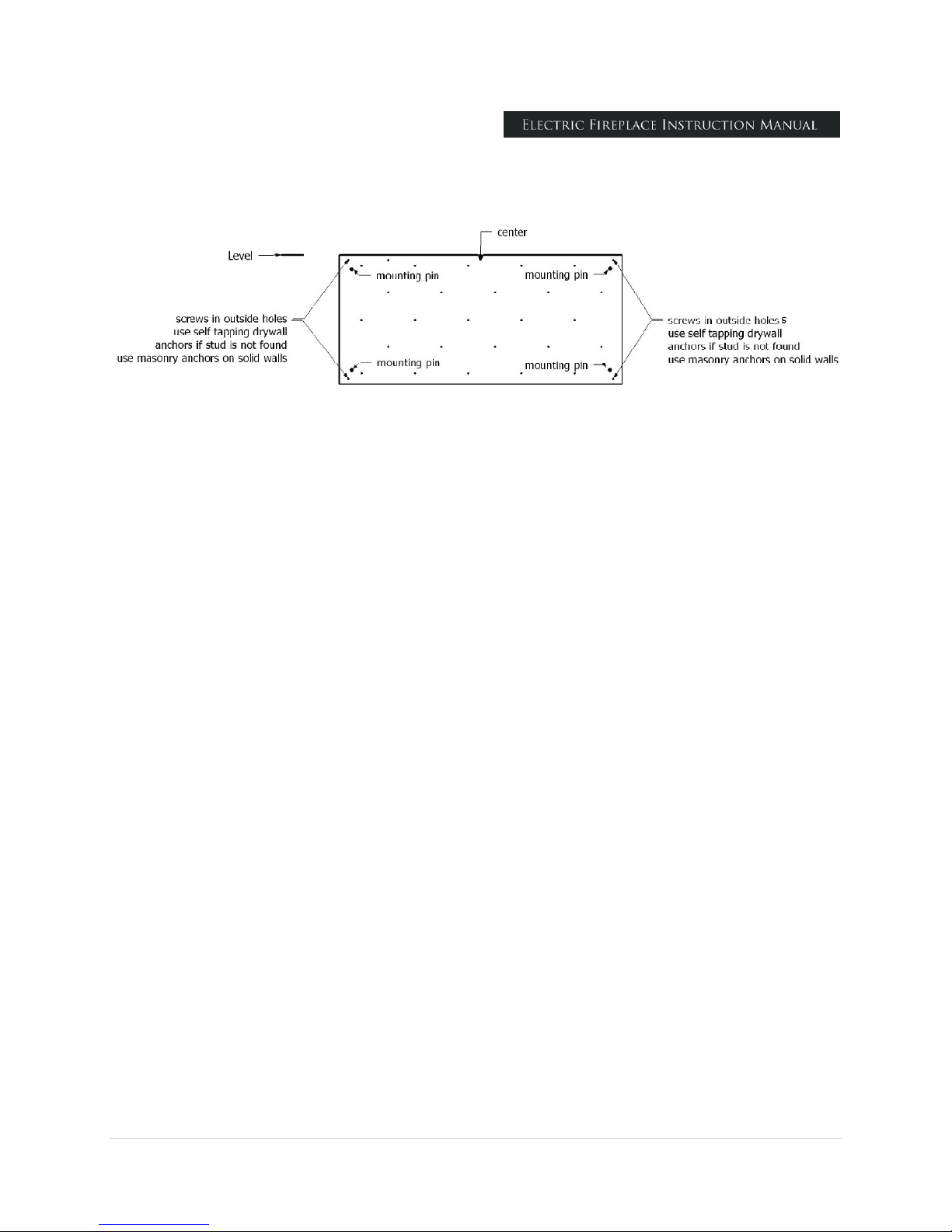

Figure 1
1. Select the position of the fireplace on the wall to which it is to be mounted. Draw a level
horizontal line on the wall at the required height. This line will correspond to the top of
the fireplace so it is important to allow for the e tra height of the glass face.
2. Mark the center line of the fireplace on to the horizontal line.
3. Place the Installation Plate along the horizontal line and line up the center “V” cut out
with the center line. See Figure 1.
4. DRYWALL INSTALLATION
Install screws provided into studs at 4 outside corner screw holes. If studs are not
present, install self drilling hollow wall anchors provided at the 4 outside corners and
find wood studs with at least 4 more screws on the mounting plate (two high and two
low). Holes are offset to allow finding wood studs at normal spacing. Attach more
screws into larger models as needed.
5. MASONRY INSTALLATION
If the wall is of a sound masonry construction the attaching holes should be drilled with
a 5/16” masonry drill. First secure the four outside corners. Use the masonry anchors and
screws provided. Double check that a firm, solid attachment is achieved or add
additional anchors as required.
6. If a firm attachment cannot be achieved it may be necessary to install e tra support to
the framing. It is most important that the mounting plate is firm and solid and that the
structure is capable of holding the weight of the fireplace and glass face.
7. The mounting plate has four location pins, one at each corner of the plate. See Figure 1.

4 | P a g e

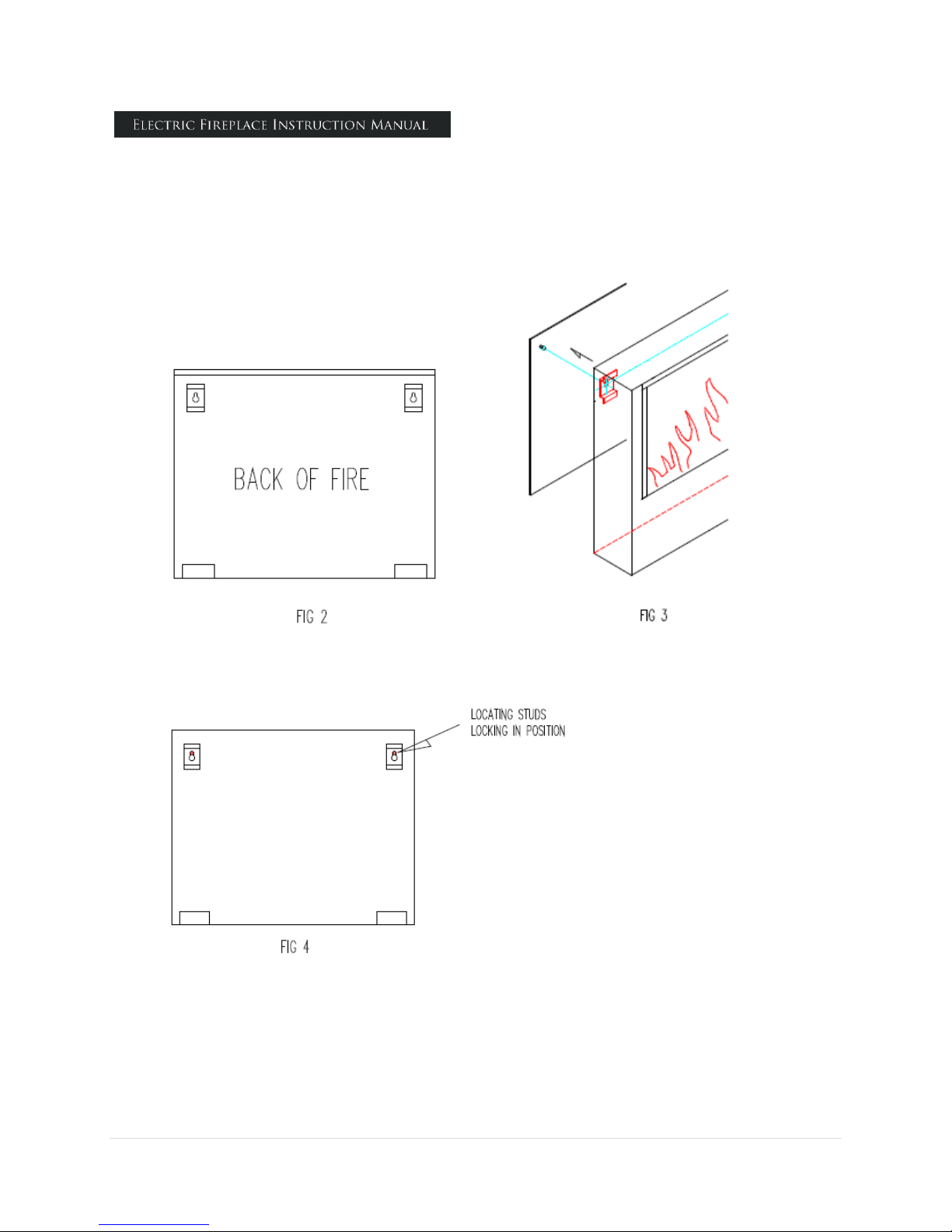

8. Lift the fireplace and place the keyhole slots situated on the back of the fire (Figure ) to
the location pins on the mounting plate. A gentle application of downward pressure will
lock it into place. Make sure all of the pins have been located into the top section of each
keyhole fi ing slot. (See Figures 3 & 4)

5 | P a g e
Electrical Work
This fireplace must be grounded
9. A standard electrical outlet must be close to the fireplace. If the electric outlet is required
to be concealed, it can be located above or on the right hand side of the fire and behind
the glass face.
10. DO NOT INSTALL THE FIREPLACE WHERE THE HEATER IS DIRECTLY
ABOVE AN OUTLET
The fireplace’s vent is located in the center of the fireplace base.
11. If the power supply cable becomes damaged in any manner it MUST be replaced.
12. DO NOT connect the fireplace to an e tension cord or cable. This can create an unsafe
condition.
13. The fireplace must not be modified in any way or used for purpose other than those
recommended by Yosemite Home Decor.
14. If the fireplace shows any signs of damage it is important that it is e amined by a
qualified professional before use is continued.
15. Please observe these instructions as failure to do so may result in electric shock or other
injury.
16. Always ensure that all electrical work complies with the relevant Building Codes. All
electrical work should be carried out by a qualified electrician.
17. If in any doubt contact your supplier or a qualified electrician.

TECHNICAL SPECIFICATIONS
WALL HANG HERA NH
MODEL NAMESERIES
MODEL NUMBER DF-EFP1313NH
VOLTS 120
AMPS 3
WEIGHT GROSS
NET
LAMPS
QUANTITY
WATTS
TOTAL WATTS
NO HEATER 365 watts
9 Candelabra Incandescent
40 watts
360 watts
ROTOR MOTOR 1 at 5 watts
DIMENSION 94 ¾”W x 26 ½” H x 7”D
VIEWING OPENING
SHIPPING SIZE
78 ½”W x 10 ½” H
99” x 30 ¾” x 11 ½”
179 lbs.
158 lbs.
PLUG LOCATION Upper right side
CONTROL BUTTONS LOCATION Upper right side
CORD LENGTH 67”
94 ¾”
26 ½”
78 ½” 10 ½” 19”
¼”
7”
81”
6 ¾”

6 | P a g e
Fireplace Installation – Recess
CAUTION
Two people may be needed to perform this installation
1. Prepare a frame opening according to the dimension of the fire unit. Kindly refer to the
chart. Figure 6
WALL HANG FRAME OPENING
Width Height Depth
DF-EFP1313NH 81 ¼" 19 ¼" 7"
2. Lift fireplace and insert into opening. Adjust the unit to achieve the desired amount of
depth. Figure 7
3. Make sure that the power supply port is not behind the wall.
4. Level the fireplace.
5. Drive mounting screws into mounting brackets. Figure 8

7 | P a g e

8 | P a g e
Attaching the Face
Two people may be required to carry out this installation
1. On each side of the fireplace are two locating studs (Figure 5).
2. On the back of the face there are two brackets which hook over these studs.
3. Lift the face up to the fireplace. Then lower the face into place so that the brackets on the
rear of the face locate either side of the studs on the fireplace. Once in place firmly
tighten the locking bolt. (Figure 6)

9 | P a g e
Side View

10 | P a g e
OPERATING INSTRUCTIONS
CAUTIONS:
1. When the fireplace is in operation certain areas of the fireplace surface will get hot.
Caution must be taken to avoid being burned. Take care not to touch hot surfaces.
2. The fireplace must not be switched on if volatile vapors are present in the room
3. Children must be supervised around the fireplace.
4. Do not obstruct the air flow around the fireplace.
5. Ensure that the fireplace is switched off and disconnected from power source before
cleaning or carrying out any maintenance work.
6. When the fireplace is not in use it should be switched off at the main power switch.
7. Do not push any objects through the vent of the fire as this may result in an electric
shock or could cause a fire.

11 | P a g e
Fireplace Control Panel
The control panel is located on the right hand side of the fireplace (Figure 7).
A Main Power Switch
B On/Off Switch
C Flame Effect Dimmer Switch
D Heater Ma imum Heat 1500 W
E Heater Low Heat 750 W

Remote Control
DIMMER ON/OFF
HIGH
A Infrared Window
B On/Off Switch
C Flame Effect Dimmer
D Heater Ma imum Heat
E Heater Low Heat
1.
Prior to use, the remote control handset requires installation of
batteries (Figure 8).
2.
Remove the cover on the rear of the remote
batteries as shown and then slide the cover back into the original position.
3.
To enable the remote control to function the power to the fire
4.
At a distance of 5 to 6 feet, point the remote co
hand side of the fire
place
B On/Off Switch
Press on/off switch to turn fire on.
C Flame Effect Dimmer
To operate press once to commence dimming cycle. During the
dimming
cycle the fire will slowly
level. Press a second time to stop cycle when the desired brightness level is obtained.
Failure to press dimmer a second time will result in the fire dimming then brightening
repeatedly.
HIGH
\LO W
Prior to use, the remote control handset requires installation of
the two included
Remove the cover on the rear of the remote
control
by sliding backwards. Install the
batteries as shown and then slide the cover back into the original position.
To enable the remote control to function the power to the fire
place
must be switched on.
At a distance of 5 to 6 feet, point the remote co
ntrol directly towards the bottom right
place
. (Figure 9)
Press on/off switch to turn fire on.
To operate press once to commence dimming cycle. During the
cycle the fire will slowly
dim then brighten allowing user to choose suitable
level. Press a second time to stop cycle when the desired brightness level is obtained.
Failure to press dimmer a second time will result in the fire dimming then brightening
12 | P a g e
the two included
AAA
by sliding backwards. Install the
batteries as shown and then slide the cover back into the original position.
must be switched on.
ntrol directly towards the bottom right
To operate press once to commence dimming cycle. During the
dim then brighten allowing user to choose suitable
level. Press a second time to stop cycle when the desired brightness level is obtained.
Failure to press dimmer a second time will result in the fire dimming then brightening

13 | P a g e
D Heater Ma imum Heat (1500 W) Press this once to switch to high heat. The indicator
light will come on as well as the fan. Press again to turn off. (The fan will continue to run
for a few moments until sensors indicate cool condition)
E Heater Low Heat (750 W) Press this once to switch to high heat. The indicator light will
come on as well as the fan. Press again to turn off. (The fan will continue to run for a few
moments until sensors indicate cool condition)
F Indicator Lamps will verify current activity. If you are unsure if heat is on or off check the
lamps on the control panel. If the function is on the indicator lamp will light above the
function switch.

14 | P a g e
MAINTENANCE INSTRUCTIONS
Changing Light Bulbs
Disconnect power supply before beginning any maintenance.
1. Light bulbs need to be replaced when you notice a dark section of the flame or when
clarity and detail of the coal effect disappears.
2. Unscrew the locking nut on the side of the brackets and then remove the face. This is
done by lifting the face up and swinging the face clear of the fire. Care should be taken
not to damage the face. Removal of the face may require two people.
3. On the base of the fire there are screws on both sides. These need to be removed to allow
the cover to slide down.(Figure 10).
WARNING
•Allow at least five minutes for the light bulbs to cool before touching the bulbs to avoid
burning. Make sure power supply is disconnected.
•E amine the bulbs to determine which one needs replacing. Remove the non working
bulb and replace with a new long life bulb. Hold the socket while unscrewing the old
bulb and while screwing in the replacement bulb. (Figure 11)
•The bulbs are 40 watt candelabra bulbs available at most hardware or Do it Your Self or
Lighting stores.
•Once the bulb has been replaced, replace the cover, screws and face.
Cleaning the Fire
Switch off the power to the fire and allow it to cool before cleaning.
Use a soft damp (not wet) cloth.
