YOSUDA X-1-01A User manual
CATALOGUE
CUSTOMER SERVICE .................................................................... 1
ASSEMBLING VIDEO ......................................................................1
IMPORTANT SAFETY INFORMATION ........................................... 2
PRODUCT PROFILE ....................................................................... 5
ASSEMBLY INSTRUCTIONS .......................................................... 7
Step 1 ................................................................................................7
Step 2 ................................................................................................8
Step 3 ................................................................................................9
Step 4 ..............................................................................................10
Step 5 ..............................................................................................11
Step 6 ..............................................................................................12
Step 7 ..............................................................................................13
Step 8 ..............................................................................................14
Step 9 ..............................................................................................15
ADJUST THE RESISTANCE ......................................................... 16
COMPUTER WITH PULSE INSTRUCTIONS ...............................17
EXERCISE INSTRUCTIONS .........................................................19
1
CUSTOMER SERVICE
Feel free to contact our customer service if any needs:
yosudasports@gmail.com
Contact us via Amazon: Login your Amazon account >choose "Your
orders" >find the order ID >click "Contact seller"
ASSEMBLING VIDEO
Download the Amazon Shopping APP
Scan the transparency barcode below or on the packaging
View the assembling video
2
IMPORTANT SAFETY INFORMATION
Please note the following safety warnings and precautions before assembling and using the
equipment. It is your responsibility to ensure that all users of the equipment are informed of
all warnings and precautions.
1. Wear suitable sports clothes and sports shoes while using the equipment, especially the
sports shoes must fit. Avoid wearing loose clothing that may become entangled in the
equipment. Warm up before exercises.
2. Keep children and pets away from the equipment.
3. Please do not store and use the equipment in dusty environment, and maintain a certain
humidity in the room to avoid strong static electricity.
4. Keep the room ventilated when using the equipment.
5. Be aware of your body’s signals. Incorrect or excessive exercise can damage your
health. Stop exercising if you experience any of the following symptoms: pain, tightness in
your chest, irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings
of nausea.
6. Please consult your physician before your exercise, if you are under medical treatment
or suffer from the following Illnesses:
1) Those who have back pain or those who have suffered leg, waist and neck injuries in the
past. Numbness of legs, waist, neck and hands (with disc herniation, spondylolisthesis,
cervical spondylosis and other diseases).
2) Those who have deformed arthritis, rheumatism and gout.
3) Those with abnormal osteoporosis.
4) Those with circulatory system disorders (heart disease, vascular disorders, hypertension,
etc.).
5) Those with respiratory disorders.
6) Those who are using artificial heart rate regulator implanted in vivo medical electronic
equipment.
7) Those with malignant tumor.
8) Those who have symptoms such as thrombosis, severe aneurysm, acute venous
aneurysm and other blood circulation disorders or various skin infections.
9) People with perceptual impairment caused by high peripheral circulatory disorder
3
caused by diabetes, etc.
10) Those with skin trauma.
11) Those who have a high fever (38 degrees or more) due to illness, etc.
12) Abnormal or curved back bones.
13) Women who are pregnant or may become pregnant or are menstruating.
14) Those who feel abnormal in their body and need to rest.
15) Those who are obviously in poor physical condition.
16) Those whose purpose is rehabilitation.
17) In addition to the above conditions, especially those who feel abnormal in their body. ---
Those who may cause an accident or poor physical condition.
7. This machine can only be used by one person at a time.
8. Ensure that all nuts and bolts are securely tightened before using the equipment. The
safety of the equipment can only be maintained if it is regularly checked for damage and/or
wear.
9. Do not place fingers or objects into the moving parts of the equipment.
10. The maximum weight capacity of this unit is 270lbs (122kg).
11. This equipment is designed for indoor and home use only; it is not intended for
commercial use.
WARNING
12. DO NOT use this bike when its outer casing is cracked, cracked and detached (internal
structure exposed) or its welded part is cracked. ---- Otherwise, accident or injury may
occur.
13. DO NOT use or store the equipment in damp places such as outdoors or near
bathrooms.
14. DO NOT use or store the equipment in places exposed to direct sunlight and with high
temperature, such as around stoves, or on top of heating appliances such as electric
heating carpets. ---- Otherwise it may cause damage to the electronic system.
15. DO NOT use it if you can't express your consciousness or you can't operate it yourself.
---- Accident or injury may occur.
CAUTION
16. People who lack of exercise should not suddenly do any violent exercise on the
equipment.
4
17. DO NOT use it after eating, when you are tired, when you have just exercised or when
your physical state is abnormal. ---- May cause damage to health.
18. DO NOT use it while eating or doing other activities.
19. DO NOT use it when your senses blunt after drinking alcohol. --- May cause accident or
injury.
20. DO NOT use it when there are hard objects in your trouser pockets. ---- May cause
accident or injury.
5
PRODUCT PROFILE
6
Main configure list
S/N
Name
Qty
S/N
Name
Qty
S/N
Name
1
Main Frame
set
1
2
Support Tube
set
1
3
Seat Post
set
1
4
Front Stabilizer
set
1
5
Rear Stabilizer
set
1
6
Handlebar with
Hand Pulse Grips
set
1
7
Backrest Support
piece
1
8
Seat Handlebar
set
1
9
Handlebar Support
set
1
10
Seat Cushion
piece
1
11
Backrest Cushion
piece
1
12
Monitor
piece
1
13
Left ＆Right
Pedal (L/R)
set
1
14
Triangle Knob
piece
1
15
Lock Pin
piece
1
16
Left ＆Right
Crank (L/R)
set
1
17
Resistance Band
piece
2
18
Carriage Bolts
(M8*65)
piece
4
19
Wave Washer
φ8*18*2
piece
4
20
Screw M8
piece
4
21
Lock Nut 9/16 inch
piece
2
22
Flat Washer
φ8*19*1.5
piece
3
23
Lock Nut M8
piece
3
24
Flat Washer
φ8*19*1.5
piece
2
25
Screw M8
piece
4
26
Carriage Bolts
(M8*45)
piece
2
27
Half Round Head
Inner Hexagon
Bolt M8*45
piece
4
28
Half Round Head
Inner Hexagon Bolt
M8*35
piece
2
29
Wave Washer
φ6.5*φ13*2
piece
2
30
Flat Washer
φ6.5*13*2
piece
4
31
Round Head Inner
Hexagon Bolt
M6*12
piece
6
32
Cross Recessed
Pan Head Tapping
Screw M5*10
piece
2
33
Socket Head
Screw Wrench S5
piece
1
34
Multifunctional
Wrench S13~15
piece
1
35
Multifunctional
Wrench S17~19
piece
1
36
Half Round Head
Inner Hexagon Bolt
M8*40
piece
2
37
Wave Washer
φ8*φ18*2
piece
2
7
ASSEMBLY INSTRUCTIONS
NOTE: All screws and bolts are preinstalled.
Step1: Install the Front and Rear Stabilizer
Required parts:
1. Pull out the Lock Pin (#15) from the Main Frame (#1) and adjust Main Frame (#1) to the
correct position, then insert Lock Pin (#15) to tighten the Main Frame (#1).
2. Lift the Main Frame (#1) up by hand and attach the Front Stabilizer (with wheels) (#4) to
the Main Frame (#1), the frame holes should align to stabilizer holes for installation, tighten
with Carriage Bolts (#18), Wave Washers (#19), Screw M8 (#20) and Multifunctional
Wrench S13~15 (#34).
3. Repeat the procedure for Rear Stabilizer (#5).
1 Front Stabilizer (with wheels) (#4) 1 Rear Stabilizer (#5 )
4 Carriage Bolts (#18 ) 4 Wave Washers (#19)
1 Screw M8 (#20 ) 1 Multifunctional Wrench S13~15 (#34)
8
Step2: Install the Left and Right Pedal
Required parts:
1. Turn the resistance of the Brake Knob to level 8.
2. Install the Left Pedal (with L mark):
Unscrew the Lock Nut (#21) from the Left Pedal (#13). Align the Left Pedal
(#13) with the Left Crank (#16) at 90°, note to align the threads of the Left Pedal (#13) bolt
to the threads of the Left Crank (#16). Turn the Left Pedal (#13) bolt
COUNTER-CLOCKWISE by hand as tightly as you can, then use Multifunctional Wrench
S13~15, S17~19 to tighten and secure. Then, install the Lock Nut (#21) to the Left Pedal
(#13) axle, turn the Lock Nut (#21) CLOCKWISE as tightly as possible with the
Multifunctional Wrench S13~15, S17~19. Attach the Left Foot Strap (with L mark).
3. Install the Right Pedal (with R mark):
Unscrew the Lock Nut (#21) from the Right Pedal (#13). Align the Right Pedal
(#13) with the Right Crank (#16) at 90°, note to align the threads of the Right Pedal (#13)
bolt to the threads of the Right Crank (#16). Turn the Right Pedal (#13) bolt CLOCKWISE
by hand as tightly as you can, then use Multifunctional Wrench S13~15, S17~19 to tighten
and secure. Then, install the Lock Nut (#21) to the Right Pedal (#13) axle, turn the Lock Nut
(#21) COUNTER-CLOCKWISE as tightly as possible with the Multifunctional Wrench
S13~15, S17~19. Attach the Right Foot Strap (with R mark).
1 Left ＆Right Pedal (L/R) (#13) 1 Lock Nut (#21)
1 Multifunctional Wrench S13~15 (#34) 1 Multifunctional Wrench S17~19 (#35)
9
Step 3: Install the Seat Cushion and Seat Post
Required parts:
1. Screw off 3 Flat Washer (#22) and 3 Lock Nut (#23) from the back of Seat Cushion (#10).
Attach the Seat Cushion (#10) to the Seat Post (#3), tighten with 3 Flat Washers (#22), 3
Lock Nuts (#23) and Multifunctional Wrench S13~15 (#34).
2. Insert the Seat Post (#3) to the Main Frame (#1), fasten with the Triangle Knob (#14).
1 Seat Cushion (#10) 1 Seat Post (#3)
1 Triangle Knob (#14) 3 Flat Washers (#22)
3 Lock Nuts (#23) 1 Multifunctional Wrench S13~15 (#34)
10

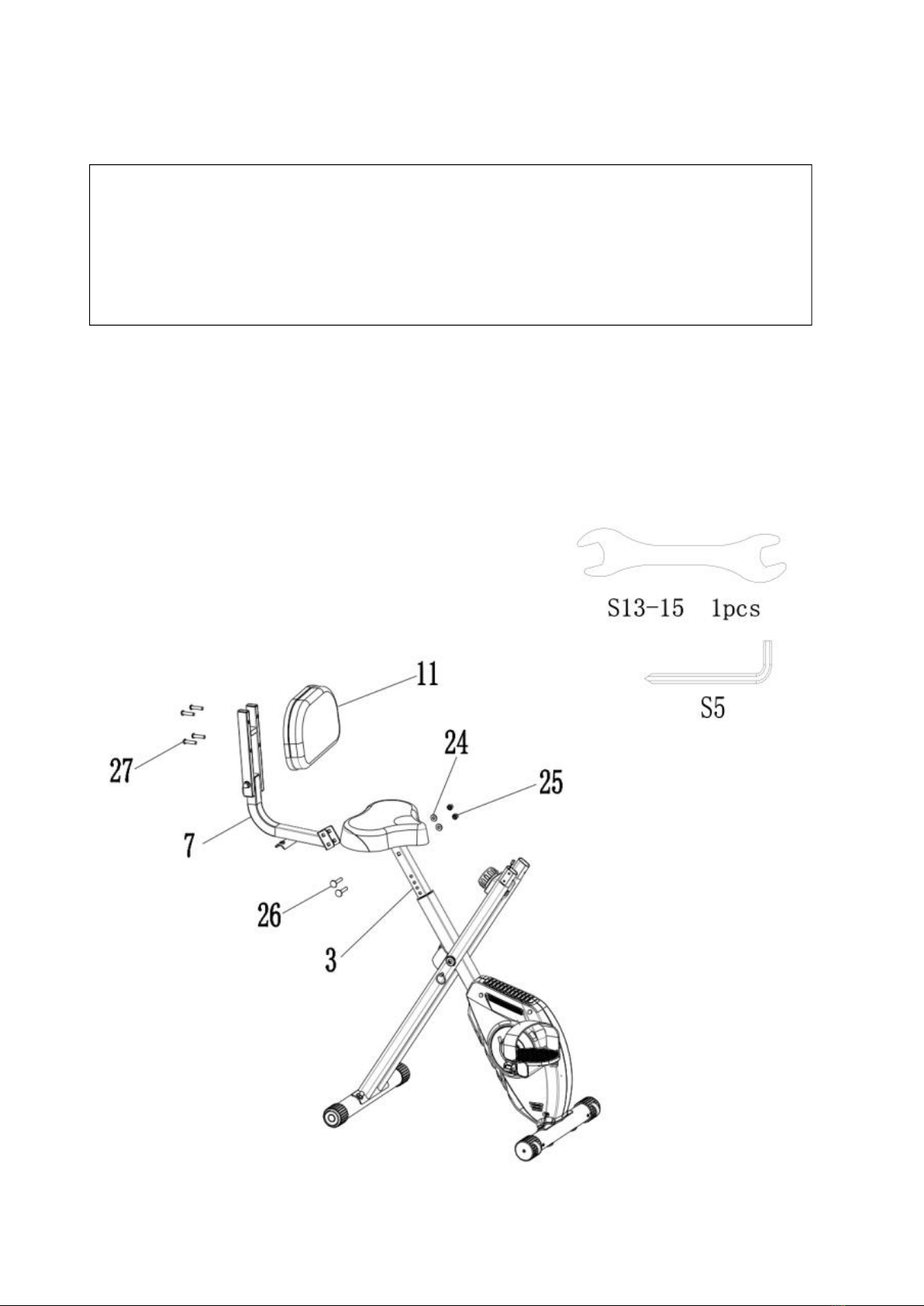

Step 4: Install the Backrest Cushion and Backrest Support
Required parts:
1. Align the Backrest Support (#7) with the two holes on the Seat Post (#3). Use Carriage
Bolts (#26), Flat Washer (#24), and Screw M8 (#25) to secure it, and then tighten with the
Multifunctional Wrench S13~15 (#34).
2. Align the Backrest Cushion (#11) with the four holes on the Backrest Support (#7). Use
the Half Round Head Inner Hexagon Bolts (#27) to secure it, and then tighten with the
Socket Head Screw Wrench S5 (#33).
1 Backrest Cushion (#11) 1 Backrest Support (#7)
2 Carriage Bolts (#26) 2 Flat Washers (#24)
2 Screws M8 (#25) 4 Half Round Head Inner Hexagon Bolts (#27)
1 Socket Head Screw Wrench S5 (#33) 1 Multifunctional Wrench S13~15 (#34)
11

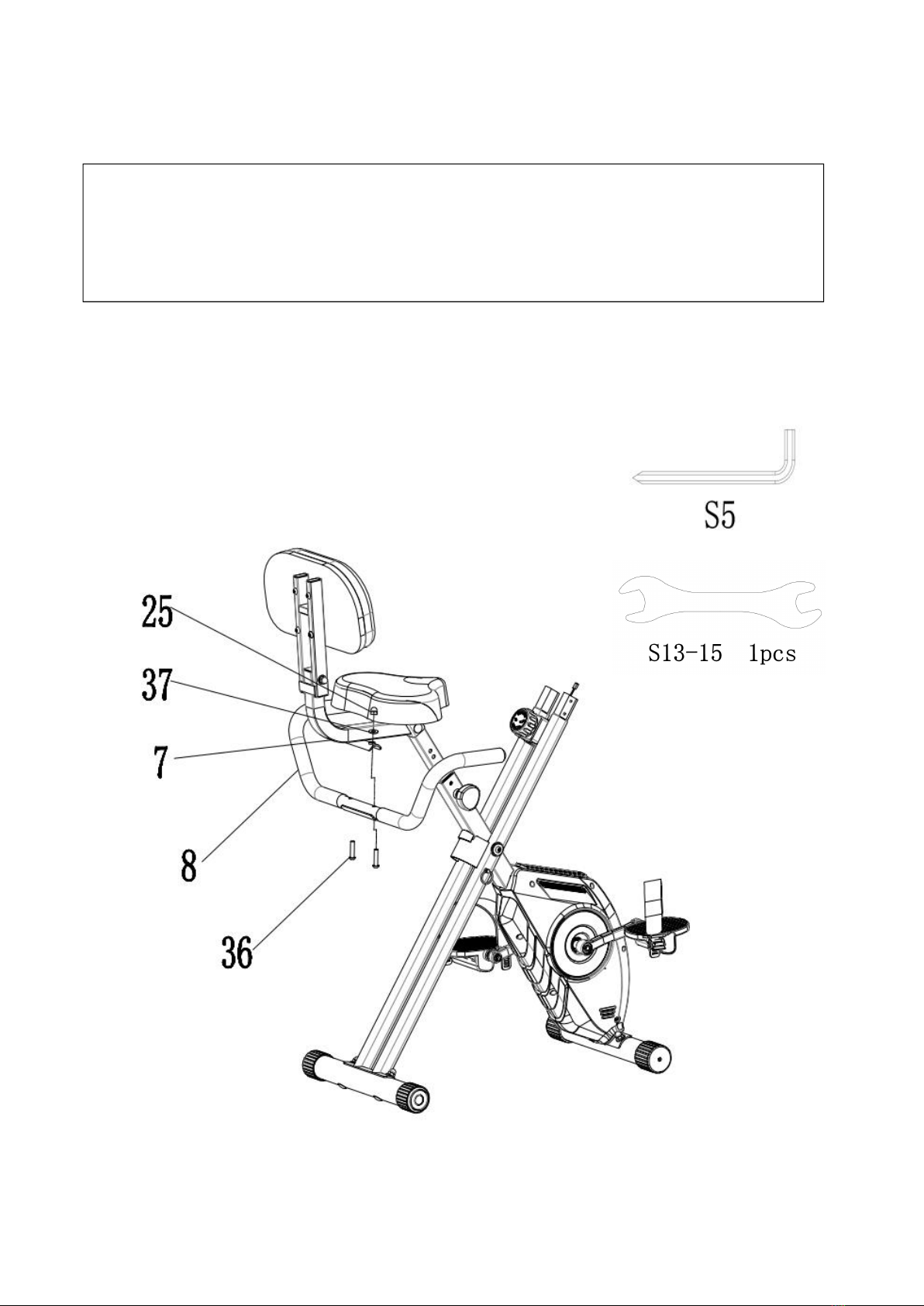

Step 5: Install the Seat Handlebar
Required parts:
1. Align Seat Handlebar (#8) with the two holes on the bottom of the Backrest Support (#7).
Use Half Round Head Inner Hexagon Bolts (#36), Wave Washers (#37), and Screws M8
(#25) to secure it, and then tighten with Socket Head Screw Wrench S5 (#33) and
Multifunctional Wrench S13~15 (#34).
1 Seat Handlebar (#8) 2 Half Round Head Inner Hexagon Bolts M8*40 (#36)
2 Wave Washers φ8*φ18*2 (#37) 2 Screws M8 (#25）
1 Socket Head Screw Wrench S5 (#33) 1 Multifunctional Wrench S13~15 (#34)
12

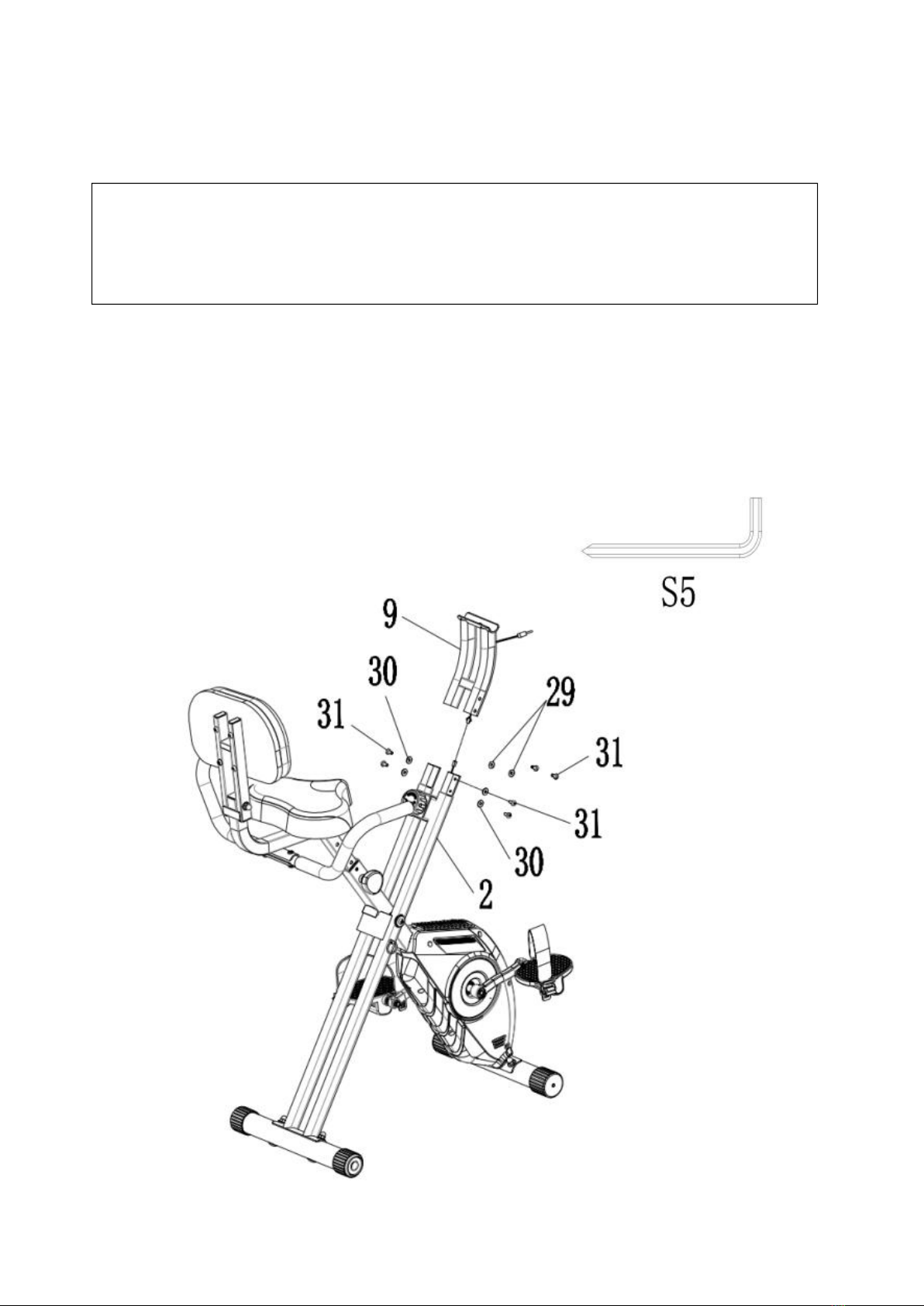

Step 6: Install the Handlebar Support
Required parts:
1. Connect the sensor wire of the bottom of the Handlebar Support (#9) with the sensor
wire of the Support Tube (#2).
2. Insert the Handlebar Support (#9) to the Support Tube (#2), secure with 4 Flat Washers
(#30) at the side, 2 Wave Washers (#29) at the front, and 6 Round Head Inner Hexagon
Bolts (#31), then tighten with Socket Head Screw Wrench S5 (#33).
1 Handlebar Support (#9) 2 Wave Washers (#29)
4 Flat Washers (#30) 6 Round Head Inner Hexagon Bolts (#31)
1 Socket Head Screw Wrench S5 (#33)
13
Step 7: Install the Handlebar
Required parts:
1. Align Handlebar (#6) with the two holes on the Handlebar Support (#9). Secure with 2
Half Round Head Inner Hexagon Bolts (#28), and tighten with Socket Head Screw Wrench
S5 (#33).
1 Handlebar (#6) 2 Half Round Head Inner Hexagon Bolts (#28)
1 Socket Head Screw Wrench S5 (#33)
14
Step 8: Install the Monitor
Required parts:
1. Load two pieces of AAA batteries to the Monitor (#12).
2. Remove the pre-installed 2 Cross Recessed Pan Head Tapping Screws (#32) from the
Monitor (#12), align the Monitor (#12) with the two holes on the monitor support of the
Handlebar (#6), secure with 2 Cross Recessed Pan Head Tapping Screws (#32) that you
just removed, and tighten with Socket Head Screw Wrench S5 (#33).
3. Insert the sensor wire to the holes on the bottom of the Monitor (#12).
1 Monitor (#12) 2 AAA Batteries
2 Cross Recessed Pan Head Tapping Screws (#32) 1 Socket Head Screw Wrench S5 (#33)
15
Step 9: Install the Resistance Bands
Required parts:
1. Locate the 2 Resistance Bands (#17), and lift the Rear Stabilizer (#5) to insert the two
ends of the stabilizer into the rings of the bands.
PLEASE NOTE: For safety, confirm that all the installations are completed according
to the above requirements, and make sure all nuts and bolts are securely tightened
before using this product.
2 Resistance Bands (#17)
16
ADJUST THE RESISTANCE
Turn the resistance knob clockwise to increase the resistance;
Turn the resistance knob counterclockwise to reduce the resistance.
17
COMPUTER WITH PULSE INSTRUCTIONS
Functional Button:
MODE - Push down for selecting functions.If the long time holds down MODE button will
turn completely 0.
SET - To set the values of time, distance pulse and calories when not in scan mode.
RESET - Push down for resetting time, distance and calories.the current data change is 0.
If the long time holds down RESET, besides the ODO position, other data will turn
completely 0.
Functional and Operations:
1. SCAN: Press "MODE" button until "SCAN" appears, monitor will rotate through all the 5
functions: Time, speed, distance, calorie, ODO, and pulse, each display will be hold 5
seconds.
2. TIME:
(1) Count the total time from exercise start to end.
(2) Press "MODE" button until "TIME" appears, press "SET" button to set exercise time.
When the "SET" is zero, the computer will alarm 10 seconds.
3. SPEED: Display current speed.
4. DIST:
(1) Count the distance from exercise start to end.
(2) Press "MODE" button until "DIST" appears, Press "SET" button to set exercise
distance. When the “SET” is zero, the computer will alarm 10 seconds.
5. CALORIES:
(1) Count the total calories from exercise start to end.
(2) Press “MODE” button until “CAL” appears, Press “SET” button to set exercise calories.
When the “SET” is zero, the computer will alarm 10 seconds.
6. ODO: The total distance which this function is refers to from battery capacity period runs.
7. PULSE RATE: Press MODE button until “PULSE” appears. Before measuring your pulse
rate, please place your palms of your hands on both of your contact pads and the monitor
will show your current heart beat rate in beats per minute (BPM) on the LCD after 6～7
seconds.
Remark: During the process of pulse measurement, because of the contact jamming, the
measurement value may be higher than the virtual pulse rate during the first 2～3 seconds,
then will return to normal level. The measurement value can not be regarded as the basis of
medical treatment.
8. ALARM: The computer will “Beep” when press “MODE”, “SET” and “ESET” buttons.
9. AUTO ON/OFF ＆AUTO START/STOP:
Without any signal for 4 minutes,the power will turn off automatically. As long as the
wheel is in motion or press any button,the monitor is in action.
18
Specifications:
FUNCTION
Auto Scan
Every 5 seconds
Running Time
00:00-99:59
Current Speed
0.00～999.9 (ML)KM
Trip Distance
0.00～9999 (ML)KM
Total Distance (ODO)
0.0～9999 (ML)KM
Calories
0.0～9999 Kcal
Pulse Rate
40～240BPM
Battery Type
2pcs of size - AAA or UM - 4
Operating Temperature
0℃～＋40℃
Storage Temperature
-10℃～+60℃
JJD-2633SPEED scan time speed dist cal ODO pulse 3V
Table of contents
Other YOSUDA Exercise Bike manuals
