Youcan Robot BW Space Pro User manual

BW Space Pro
・ User Manual
V 4.0

Contents
Disclaimer and Safety Instructions
Product Overview
Product List
Charging
Preparation
Shut down and Retrieval
Introduction of Youcan Dive APP
Browse and Share
Photos and Videos Exportation
Remote Controller
Technical Specications
Battery Information
Safety Instructions
Contact Us
01
02
04
07
09
12
13
19
20
21
24
26
27
28

01
I . Disclaimer and Safety Instructions
• Disclaimer
l. In order to protect the legitimate rights and interests of users, please read
carefully the instruction book, disclaimers and safety instructions provided with
this product before using it. Please be sure to operate this product according to
instruction book and safety instructions, and Youcan Robot (Shanghai) Co., Ltd.
owns the right to revise the above items.
2. Once you start using this product, you shall be deemed to have read, understood,
recognized and accepted all terms and contents of the instruction book, disclaimers
and safety instructions. The user shall only utilize product solely for legitimate
purposes and be responsible for their own actions and all consequences.
3. In using this product, you're supposed to strictly comply with including but
not limited to requirements we have mentioned in safety instructions. Users
shall shoulder all responsibilities and losses caused by the violation of safety
instructions, including all personal injuries, accidents, property losses, legal
disputes and all other issues that may result in interest conicts, and Youcan Robot
(Shanghai) Co., Ltd shall not bear any responsibility.
4. Youcan Robot (Shanghai) Co., Ltd. shall not be liable for any breach of law
directly or indirectly committed by our users.
• Safety Instructions
1. Please check the product before use, including but not limited to the durability
of the parts, cracks and abrasion of the device body and propeller, battery life,
etc. When any abnormal situations are found, please stop using and replace the
accessories immediately.
2. Please do not use this product in harsh environments, such as strong wind, heavy
rain, thunder, fog, snow, tsunami, low temperature, etc.
3. The product shall not be used in the cases of alcohol drinking, fatigue,
seasickness, medicine taken, physical discomfort, etc.
4. In using this product, please keep away from the environment of high
electromagnetic interference, such as WiFi hot spots and high-power transmission
equipment.
5. In using this product, please ensure your own safety and wear the life jacket
(self-provided), and keep away from dangerous areas and dangerous marine life,

02
such as the tiger shark and the great white shark.
6. When the product gives the low battery notication, you should stop using the
device in time. Please do not panic in case of incidents, such as outages, broken
ropes, etc. BW Space Pro will automatically come to the surface by buoyancy.
7. Minors shall be accompanied by parents to use products or accessories to avoid
dangers.
8. Please do not use this product to take pictures of others or private areas without
permission, and do not use this product for reconnaissance, espionage or military
activities without authorization.
Please visit www.youcanrobot.com for the latest disclaimer and safety
instructions.
II . Product Overview
• Introduction
BW Space Pro is the world's first underwater shooting drone with zoom lens
and with 4K UHD fixed-focus camera, leading a new revolution in underwater
drone once again. With all merits of previous products, including hovering in the
water, one-click for a precise depth, directional straight shooting, auto-adjusting
intelligent lighting system, BW Space Pro is upgraded in underwater positions
and a new four-motor driven design, making it possible a vertical rise, diving, and
tilting upwards and downwards up to 45 degrees. It becomes more stable in motion
to get a clearer image and features in more stable signal transmission. The volume
of upgraded Pro is only 16 * 12 inch, whose tiny and compact body makes it easier
to carry and use. This makes ocean exploration and underwater entertainment a
fashionable lifestyle.

03
• Structure
Protection wing
Protection wing
Protection wing
Protection wing
Horizontal
propeller
Horizontal
propeller
Protecting cover
Camera
Communication/
Charging interface
Vertical
propeller
LED
Light
LED
Light
Vertical
propeller
Safety ring

04
III . Product List
BW Space Pro
Underwater Drone
Remote Controller
WiFi Repeater
Tether Winder
Stand and Handle
Charger
Sealing Lubricant and
Sealing Ring
Wrench
1
2
3
4
5
6
7
8
1
3 4 5
2
6 7 8

05
Working indicator
Power switch
Battery indicator WAN Cable connectorLAN
Type-c charging port Charging indicator
• WiFi Repeater
WiFi repeater supports wireless signal for underwater drone movement with a
maximum transmission distance of 100 meters.
WiFi repeater can NOT operate in the water, so please do not put it into water.
• Tether Winder
Handle
Bearing
Stand
M8 cleat nut
M8 screw nut
M8*1 spacer
A B
M8*1 spacer
M8 screws

06
How to install the Stand
1. M8*1 gasket into the M8 screw from the A side and insert it into the central hole
of the tether winder;
2. Load the M8*1 gasket and bearing from the B side, and then use the M8 screw
nut to lock;
3. Install the bracket on the B side, and use a wrench to lock the M8 cleat nut.
How to install and remove the handle
Insert the handle into the installation hole, insert and press the plastic buckle on the
inside of the winder; when removing, lift the buckle from the inside of the winder,
and then remove the handle.

07
The functions of sealing lubricant：
1. Seal the drone tightly and enhance the waterproof
performance;
2. Act as a lubricant, making it easier to access the
plug and reduce the loss of the sealing ring;
If the sealing lubricant is not applied, the
waterproof depth may not be reached and the sealing
ring may be damaged.
The sealing ring is the spare part of the drone
connector. When the original sealing ring is damaged,
please replace it in time to maintain waterproof.
• Instructions of Sealing Lubricant and Sealing Ring
Apply sealing lubricant evenly to the sealing ring of communication/ charging
interface and thread before using.
· Charging of BW Space Pro and WiFi Repeater
Insert the connector of the charger with 4-pin jacks into the BW Space Pro charging
port, the power indicator turns red, indicating that charging is in progress; when the
power indicator turns green, it indicates that the charging is complete.
IV . Charging

08
Connect the Type-c cable to the charging port of the WiFi Repeater, start charging,
and the red indicator light will turn on; the indicator light will turn oE, indicating
that the charging is fully charged.
Cautions: When connecting the device, align the jack and turn the nut until it
is tightened; when unplugging the connector, unscrew the nut until it can be pulled
off.
Please keep the connector dry. It is prohibited to touch the connector front end with
wet or sweaty hands.
• Cautions: plugging and unplugging of 4-pin connector
Apply sealing lubricant
evenly to the sealing
ring of communication/
charging interface and
thread before connecting.
When plugging the
connector, align the
jack and turn the nut
until it is tightened.
When plugging and
unplugging the connector,
please hold the connector
and do not hold the
tether at the end of the
connector.
Prohibited to touch the
connector front end with
wet or sweaty hands;
water should be dried
if there is water on the
connector.
jack
nut
USB
USB

09
V . Preparation
• Download Youcan Dive APP
iOS
Log in to the App Store to download or scan the QR code
right to download directly.
· Youcan Dive APP supports iOS10.3 and above systems.
iOS
Andriod
Andriod
1.Log in to the Google Play to download.
2.Visit www.youcanrobot.com/support or scan the QR code
right to download directly.
· Youcan Dive APP supports Android 6.0 and above
systems.
• Connect the equipment
Please open the protecting cover, plug the 4-pin hole connector at one end of the
communication tether into the host communication tether socket of BW Space
Pro, plug the other end into the WiFi Repeater, and then tighten the connector
clockwise.
The Safety Ring greatly reduces the load and stress on the cable connector and
can prevent any possible damage to the machine, thus it is mandatory/compulsory
to attach the cable securely and correctly onto the Safety Ring located at the end of
the machine .
tighten the
connector

10
• Connect to WiFi
Access the mobile phone WiFi connection interface,
select Youcan-****-5G(Recommended) or
Youcan-****, enter the password: 12345678. Youcanrobot-5G
Siwimate
Youcan-5F8901-
Wi-Fi
Wi-FiSettings
CHOOSE A NETWORK…
Youcan-*****-5G
Youcan-*****
After the successful boot, BW Space Pro will have the sound of beep which is
normal;
• If the APP connection fails, please conrm whether the access permission of the
Youcan Dive APP is enabled on the mobile phone:
- Android phone, open "Settings", find "Apps and Services" - "Apps " – “APP
info”, and turn on the permissions of the Youcan Dive APP(This path is slightly
different on different models of mobile phones, please find the correct path
according to your mobile phone, and enable access rights for the Youcan Dive
APP);
- iOS phone, open "Settings", nd Youcan Dive, click "Wireless Data", and enable
"Wi-Fi and Cellular Networks" or "Local Network".
• In case of start failure, check the following things:
- If the device is appropriately powered;
- If the jack of the tether is connected to BW Space Pro or WiFi Repeater jack
appropriately;
-Access the mobile phone WiFi connection interface and check to see if the device
is connected. If the connection fails, reconnect the WiFi Repeater.
• Open Youcan Dive App
After the WiFi connection is successful,
open the Youcan Dive APP, connect the
device, select BW Space Pro, enter directly
or log in by account. After the connection is
successful, slide to the right to unlock, and
the boot is successful. At this point, you
can use the APP to control the underwater
movement and shooting of the drone.
Slide to Unlock
Home

11
• Put the BW Space Pro into water
• Crash
Important tips
Boot Upgrade: When connected to the device, please perform steps to prevent the
drone from being unusable due to incorrect operation, if Youcan Dive APP interface
prompts that the boot need to be upgraded. (Note: Please do not disconnect the
tether of drone with the WiFi repeater in upgrading; After upgrading, please
disconnect the tether in order to restart the device).
Control system upgrade: To continuously optimize the operative performance of
BW Space Pro, we will upgrade the control system of BW Space Pro from time
to time. When you open Youcan Dive APP, if the screen prompts upgrading, this
indicates that the device or software is being upgraded, usually for a duration
of about 1 minute. Do not quit from the upgrading. In case of failed upgrading,
please exit the Youcan Dive App, unplug the tether and reconnect and restart the
upgrading.
Camera upgrade: Youcan Robot will upgrade the BW Space Pro camera system
from time to time. If a prompt pops up and requires a camera to upgrade when you
enter Youcan Dive APP, BW Space Pro will start downloading the latest camera
system and upgrade it. This process may take about 5 minutes. Please do not
disconnect the device and keep Youcan Dive under operation in the upgrade.
If the APP or Drone crashed or stuck , try the following steps or methods:
When the APP interface is stuck:
Exit the Youcan Dive APP completely and re-enter the APP to connect the drone.

12
Before unlocking the tether, make sure the peripheral area of the interface is dry
to avoid short circuit.
Lock
Before BW Space Pro is placed in the water, make sure the tether is securely
connected to facilitate the retrieval after using.

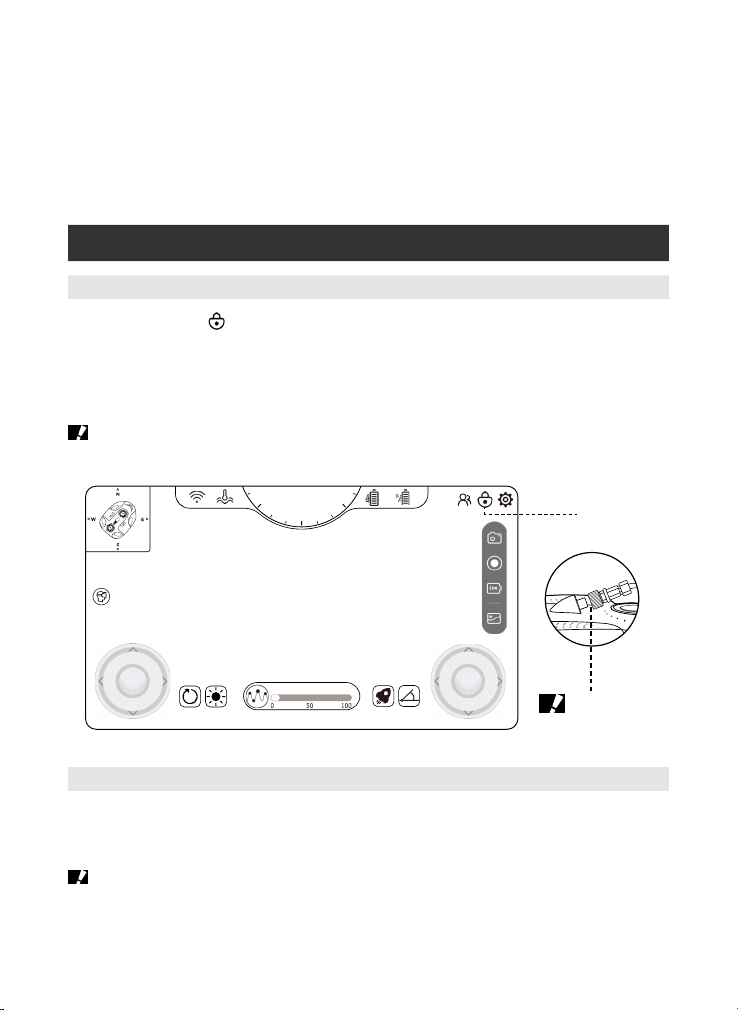

1.Click the "Lock" button in the upper right corner of the Youcan Dive APP, and
BW Space Pro will pause, unable to move or shoot through the APP.
2.After the communication tether is unconnected to BW Space Pro and WiFi
Repeater, the drone is shut down.
After using, you can steer the BW Space Pro back to the shore or to boat, pull back
the tether and drag the drone out of the water.
VI . Shut Down and Retrieval
• Shut down
• Retrieval
Keep Dry
N
0
15
30
60
300
330
345
NE
NW
Depth：10M
Device
connected
High
0
Crash:
1. Click "Disconnect" in the main interface of the APP to disconnect the drone and
WiFi;
2.Unplug the tether of the drone and the WiFi Repeater and reconnect the tether;
3. Return to the main interface and reconnect WiFi and the device.

13
VII . Introduction of Youcan Dive APP
• Main Interface
Connecting Device
When the user uses the
device for the rst time,
choose BW Space Pro,
click "Connect the device"
to search for and connect
to the WiFi Repeater
signal. When the user
has connected the WiFi
Repeater signal, click
''Disconnect'' to disconnect
the WiFi Repeater signal,
and the BW Space Pro
will not move and shoot
through APP control.
Gallery
Browse or manage your
photos and video les.
Online mode: Browse
photos and videos on
your device. You may
view,download,delete,
images,etc.
Local mode: Browse and
manage local pictures
and videos that have
been downloaded to your
phone or tablet without
connecting your BW
Space Pro.
Personal Center
After the user registration
or login, personal
information such as
user name, country,
region,and mailbox, as
well as product model,
enterprise and other
related information will be
displayed on the screen.
BW Space Pro
Setting

14
Machine 3D posture
: Front view, vertical view, side view posture.
WiFi
: BW Space Pro has been successfully connected to the WiFi Repeater
signal.
WiFi
: BW Space Pro doesn't turn on WiFi signal.
WiFi
: The other WiFi signals are connected, rather than the WiFi Repeater
signals of BW Space Pro.
Temperature
: Display underwater real-time temperature.
Compass
: Shows the direction of the magnetic eld of the mobile device.
N
0
15
30
60
300
330
345
NE
NW
Depth：10M
Device
connected
High
• Control Interface
1
2
3
4
1 2 63 7 8 9 10
1118
19
1217 13 15 16
16
14 11
4 5
N
15
30
60
300
330
345
NE
NW
0
15°
20
21
22
23

15
Connection
The connection status between the BW Space Pro and the Youcan Dive APP,
which is divided into "device connected" and "device disconnected".
BW Space Pro battery life
: Display the remaining battery capacity of BW Space Pro.
WiFi Repeater battery life
: Display the remaining battery capacity of WiFi Repeater.
Device mode
: Displays the status of the on-hand device, divided into controller mode
and viewer mode.
BW Space Pro supports multiple people to connect to the same WiFi
Repeater,using different mobile devices to watch real-time image taken by
drone.The controller mode only supports one mobile device to control. The
viewer mode suggests that up to 3 mobile devices.
Lock
: Click the button and BW Space Pro will enter into a lock status and pause.
Settings
: Enter the settings interface to congure the control mode and camera.
Steel wheel
: Control the movement of Forward, Backward, Up, Down, Turn Left and Right.
Brightness adjustment
: Manual adjustment: Touch the button to adjust the brightness of the light
by sliding the adjustment lever. There are 0~100 levels. The higher the value
is, the brighter the light. The 0 level is closed.
Depth maintenance
: Click the button to turn on the Depth maintenance shooting function.
The BW Space Pro is xed at a certain depth in the water, aiming at the person
and shooting. It can still move forward, backward,left, right, but unable to up
or down. Click the button again to turn off the Depth maintenance shooting
function, and the BW Space Pro will return to free motion.
5
6
7
8
9
10
11
12
13

16
Depth
: Shows the underwater depth of BW Space Pro.
Speed
: Speed adjustment can be divided into low, medium and high, which
means low speed, medium speed and high speed respectively.
Pitch range
: Through tilting/moving adjustment of the device position , it is able to take
-45° to +45° angle shots. By clicking on the button, the icon color will turn blue and
the adjustment scope area will appear on the screen : slide up to adjust the device’s
positive pitch angle; slide down to adjust the device’s negative pitch angle.
Pitch Angle Reset
: By clicking on the button, the machine’s head posture will be resetted, i.e.
the angle of the machine head parallel to the water surface is zero degrees.
Zoom ( This feature is only available for the BW Space Pro 4K Zoom ) .
: By placing and spreading two ngers on the screen will enlarge the image ;
by placing and closing two spreaded ngers on the screen will reduce the image.
VR mode
: Youcan Dive supports VR devices, users can watch underwater images
through VR glasses, making your underwater exploration more immersive.
You can only control the drone with the remote controller in VR mode.
Please pay attention to the surrounding environment during using of VR glasses.
Photographing
: Click the Photo button to take photos.
Recording
: Click the Video button to start the recording. Click the Video button again to
stop the recording.
14
15
16
17
18
19
20
6X
0
N
0
15
30
6
0
300
330
345
NE
NW
Device
connected
High
0
N
0
15
30
6
0
300
330
345
NE
NW
Device
connected
High
0
21

17
live stream
: Enter live stream code or push live stream address to platforms to share
underwater world shot by BW Space Pro underwater drone.
Gallery
: Click the button to browse and manage photos and videos.
• Control Settings
APP control: Control the movement and shooting of drone with Youcan Dive APP.
Stick control: Control the movement and shooting of drone with remote controller.
Button settings: Set the direction in control panels. Please select the mode from
mode 1, mode 2, mode 3, mode 4, please refer to Youcan Dive APP for description
of each mode.
Up Left Forward
Down Right Backward
Steering sensitivity: Set the sensitivity of the machine's steering, from -5 to 5, the
higher the value, the more sensitive the steering and the faster the speed.
Depth calibration: Performs depth calibration based on the atmospheric pressure of
the current environment in which the drone is located.
Machine calibration: Calibrate the machine's gyroscope and magnetometer.
Please follow the steps outlined in the Youcan Dive App to complete the depth
calibration and machine calibration.
22
23

18
• Camera settings
Anti-shake: When this function is on, it can reduce the impact of motion that shakes
the screen. It is generally off at default.
Exposure: The brightness adjusted by the light-sensitive components. The exposure
index needs to be moderate, or the image would be brighter if the index is too high
and darker if too low. You can set the automatic gain or manually adjust the gain
value.
Image enhancement: Strengthen the detail features of images, improve the image
quality, and enrich the image information to meet the needs of special analysis.
It is generally off at default. When there is a large amount of water mist, it is
recommended to turn on the digital defogging function.
Noise reduction level: The function of noise reduction to reduce the degree of
screen noise from low to high intensity. The noise reduction level should be set
moderately because the higher of the noise reduction level would make the pictures
more blurred and the lower would generate noise to affect the screen preview.
Flip the screen left and right: The image will have left and right mirror changes.
Flip the screen up and down: The image will be ipped up and down.
Daylight anti-flash: The function of anti-strobe. Turn on to avoid the impact of
strobe caused by unconventional frequency of lights and light sources.
Infrared ltering: Support the detection of infrared light to meet the monitoring
needs of night vision scenes.
Day and night mode conversion: Support automatic switching of day and night
scenes. Usually in the daytime mode, the picture presents color without ll light; in
the night mode, the picture presents black and white and is lled by infrared light.
Recording resolution: Set the video resolution when recording.
Live video resolution: Set the real-time transmission resolution.
Bit rate: The number of data bits transmitted per unit time during video data
transmission. The higher the bit rate, the higher quality of the image.
The high bit rate may cause the lag of the screen. When the screen of real-time
stream lags, it is recommended to lower the bit rate appropriately.
Electronic slow shutter: Control the exposure duration to enable the camera to get
the proper exposure and capture the dynamic traces in darker scenes.
