Youjie ZhongLi ZL2200 User manual

ZhongLi ZL2200
Bar Code Scanner
User’s Guide

Disclaimer
Youjie reserves the right to make changes in specifications and other information
contained in this document without prior notice, and the reader should in all
cases consult Youjie to determine whether any such changes have been made.
The information in this publication does not represent a commitment on the part
of Youjie.
Youjie shall not be liable for technical or editorial errors or omissions contained
herein; nor for incidental or consequential damages resulting from the furnishing,
performance, or use of this material.
This document contains proprietary information that is protected by copyright. All
rights are reserved. No part of this document may be photocopied, reproduced,
or translated into another language without the prior written consent of Youjie."

iii
Table of Contents
Introduction .............................................................................................1
Components.....................................................................................................1
Maintenance.....................................................................................................1
Caution and Serial Number Labels...................................................................2
Scanner Operation
Audible Indicators............................................................................................. 4
Visual Indicators...............................................................................................5
Failure Modes...................................................................................................6
Typical Depth of Field.......................................................................................6
Troubleshooting Guide...........................................................................7
Design Specifications.............................................................................9
Configuration Introduction
Bar Code Configuration Methods ................................................................... 11
Single-Code Method....................................................................................11
Multi-Code Method......................................................................................11
Returning to Factory Defaults.........................................................................12
Code Types and Decode Rules
2 of 5 Codes...................................................................................................13
Additional Decode Features...........................................................................13
Supplements..........................................................................................14
Scanner Operation
Redundant Scans...........................................................................................15
Data Transmission Delays.............................................................................. 15
Scanner Operation.........................................................................................15
Prefixes/Suffixes
User Configurable Prefixes, All Data..............................................................16
Standard Suffix Characters ............................................................................ 16
User Configurable Suffixes, All Data..............................................................17
Code Formatting

iv
UPC/EAN Formatting .....................................................................................18
Code Bytes Usage
Code Bytes 0-9............................................................................................... 20
Code Type Table............................................................................................21
ASCII Reference Table...................................................................................22
Technical Assistance............................................................................27
Limited Warranty...................................................................................28

1
Introduction
Components
1
2
3
4
5
Item No. Description
1 Red Output Window (Laser Aperture)
2 Trigger
3 Cable (undetachable)
4 Beeper Hole
5 LED Indicator (see page 5)
Figure 1. Scanner Components
Maintenance
Smudges and dirt on the unit’s window can interfere with the unit’s performance.
If the window requires cleaning, use only a mild glass cleaner containing no
ammonia. When cleaning the window, spray the cleaner onto a lint free, non-
abrasive cleaning cloth then gently wipe the window clean.
If the unit’s housing requires cleaning, use a mild cleaning agent that does not
contain strong oxidizing chemicals. Strong cleaning agents may discolor or
damage the unit’s exterior.

2
Caution and Serial Number Labels
Item Number,
Serial Number and Compliance
Information location
Figure 2. Label Location on the Bottom of the Scanner

3

4
Scanner Operation
Audible Indicators
When the scanner is operational, the scanner provides audible feedback to
indicate the status of the scanner and the last scan. Eight settings are available
for the tone of the beep (normal, six alternate tones and no tone).
One Beep – On Power Up
When the unit powers up, the green LED turns on, then the green LED flashes
and the scanner beeps once. The green LED will remain on for the duration of
the beep. The scanner is now ready to scan.
One Beep – During Operation
When the scanner successfully reads a bar code, the green LED will flash and
the scanner beeps once (if programmed to do so). If the scanner does not beep
once and the green light does not flash, then the bar code has not been
successfully read.

5
Visual Indicators
The scanner is equipped with a red LED and green LED, which indicate the
scanner’s state and the status of the current scan respectively when the unit is in
operation.

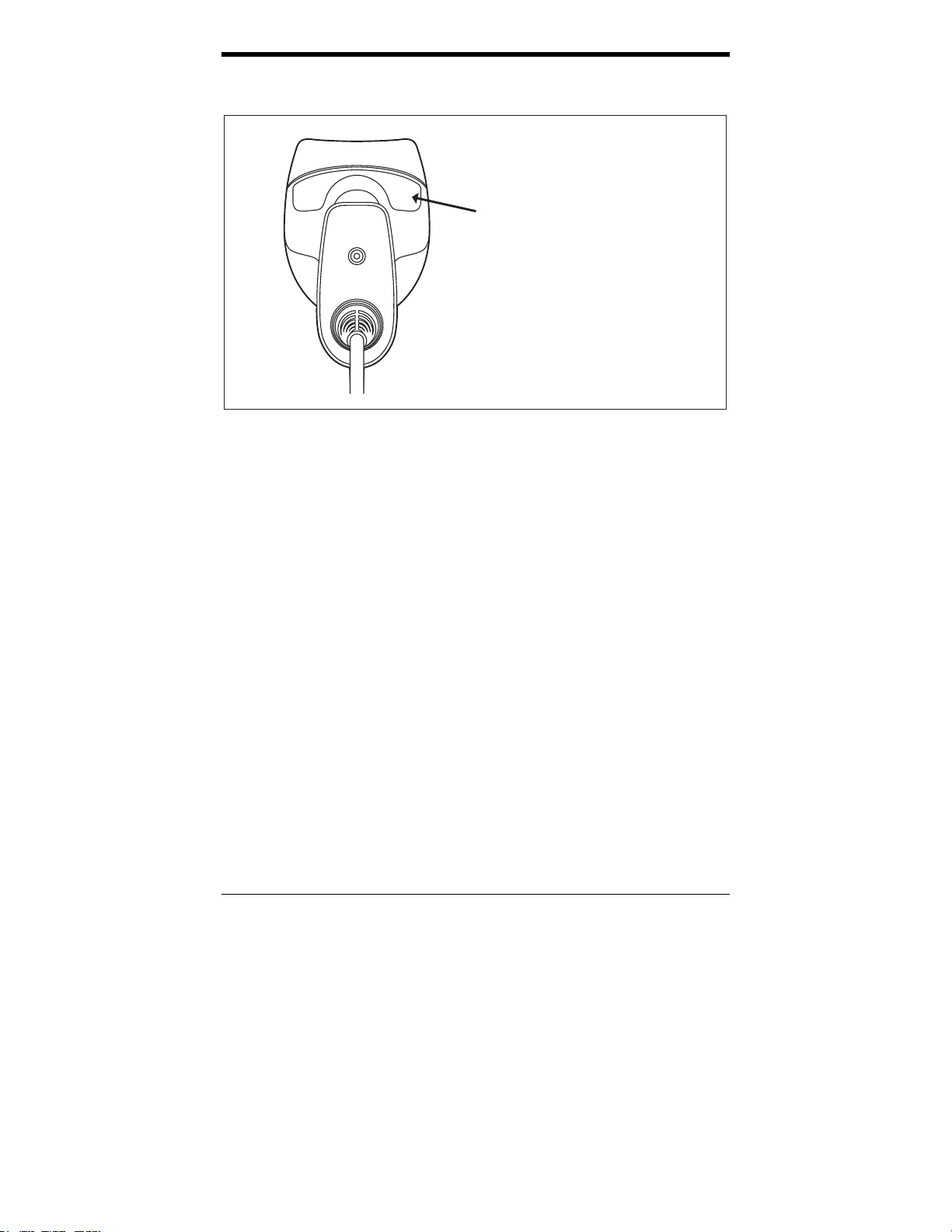

LED
Figure 3. LED Location
Green and Red LEDs Are Off
The LEDs will not be illuminated if the scanner is not receiving power from the
host or transformer.
Steady Red
Steady green indicates normal pulse or continuous laser operation.
Accompanied by a razzberry tone, a steady green LED indicates that an invalid
bar code has been scanned.
Flashing Red
After a period of inactivity, the ON time of the pulsing laser will be shortened.
During this time the green LED will flash. This indicates that the scanner is in a
power saver mode. When a bar code enters the laser field, the scanner will
wake up and return to normal pulse mode.
Steady Red and Single Green Flash
When the scanner successfully reads a bar code, the green LED will flash and
the scanner will beep. If the green LED does not flash and the scanner does not
beep, the bar code has not been successfully read.
Steady Green and Steady Red
After a successful read, the scanner transmits the data to the host device. Some
communication modes require that the host inform the scanner when data is
ready to be received. If the host is not ready to accept the information, the
scanner’s green LED will remain on until the data can be transmitted.

6
Failure Modes
One Razzberry Tone – On Power Up
This indicates the scanner has experienced a laser or flipper subsystem failure.
Return the unit for repair to an Authorized Service Center.
Continuous Razzberry Tone with no LEDs
If, upon power up, the scanner emits a continuous razzberry tone, then the
scanner has an experienced an electronic failure. Return the unit for repair to an
Authorized Service Center.
Three Beeps – On Power Up
If the scanner beeps three times on power up, then the non-volatile memory
(NovRAM) that holds the scanner configuration has failed. You must return the
unit for repair to an Authorized Service Center.
Typical Depth of Field by Bar Code Element Width
Bar Code Element
Width
Depth of Field
Start
(From Scanner Face) End
(From Scanner Face)
0.13 mm 5 mil 47 mm (1.9") 111 mm (4.4")
0.19mm 7.5 mil 20 mm (.8") 163 mm (6.4")
0.33 mm 13 mil
UPC-A 17 mm (0.7") 232 mm (9.1")

7
Troubleshooting Guide
The following guide is for reference purposes only. Contact a customer service
representative to preserve the limited warranty terms.
Symptoms Possible Causes Solution
All Interfaces
The unit has no
LEDs, beep or laser.
No power is being
supplied to the
unit.
Check the transformer, the outlet
and power strip. Make sure the
cable is plugged into the unit.
No power is being
supplied to the unit
from host.
Some host systems cannot supply
enough current to power the
scanner. A power supply may be
needed.
At power up the
unit beeps two
times and
alternately flashes
the LEDs.
There is a ROM
failure. A flash ROM upgrade is required.
At power up the unit
beeps three times.
There is a non-
volatile RAM
failure.
Contact a customer service
representative.
At power up there
is a continuous
razz tone.
There has been a
diagnostic failure.
At power up there
is a razz tone and
the green LED
flashes.
There is a VLD
failure.
At power up there
is a razz tone and
both LEDs flash.
There is a
scanning
mechanism
failure.
The unit scans,
communicates and
beeps twice.
The same symbol
timeout is set too
short.
Adjust the same symbol timeout
for a longer time.
The unit powers up,
but does not beep.
The beeper may
be disabled or no
tone has been
selected.
Enable beeper and select a tone.

8
Symptoms Possible Causes Solution
The unit powers
up, but does not
scan and/or
beep.
The unit is trying to
scan a particular
symbology that is not
enabled.
UPC/EAN, Code 39, interleaved 2
of 5, Code 93, Code 128 and
Codabar are enabled by default.
Verify the type of bar code being
read has been selected.
The unit powers
up, but does not
scan and/or
beep.
The bar code being
scanned does not
satisfy the configured
criteria for character
length lock or
minimum length.
Verify the bar code being scanned
falls into the configured criteria.
The scanner defaults to a
minimum of three-character bar
code.

9
Design Specifications
Operational
Light Source: Visible Laser Diode (VLD) @ 650 nm
Laser Power: Less than 1.0 mW average
Depth of Scan Field: 17 mm – 232 mm
(0.7" – 9.1") 0.33 mm (13 mil) UPC-A
Bar Code
Scan Speed: 72 ± 2 scan lines per second
Scan Pattern: Single scan line
Minimum Bar Width: 4.5 mil
Decode Capability: Reads standard 1D and GS1 DataBar symbologies.
System Interfaces: USB
Print Contrast: 20% minimum reflectance difference
No. Characters Read: Up to 80 data characters. The maximum number will
vary based on symbology and density.
Scan Angle: 55° Horizontal
Pitch, Yaw: 68°, 52°
Beeper Operation: 7 tones or no beep
Indicators (LED): Green = good read
Red = laser on, ready to scan
Mechanical
Length: 165 mm (6.5")
Width: 65 mm (2.6")
Height: 80 mm (3.2")
Weight: 182 g (6.42 oz)
Specifications subject to change without notice.

10
Electrical
Input Voltage: 5VDC +/- 0.2V (USB port)
Operating Power: Standby: 700 mW
Decoding USB: 1000 mW
Operating Current: Standby: 140 mA average @ 5VDC
Decoding USB: 200 mA average @ 5VDC
Environmental
Temperature: Operating: 0°C to 40°C (32°F to 104°F)
Storage: -40°C to 60°C (-40°F to 140°F)
Humidity: 5% to 95% relative humidity, non-condensing
Light Levels: Up to 100000 Lux (9290 footcandles)
Shock: Designed to withstand 1.0 m (3.3 ft.) drops
Contaminants: Sealed to resist airborne particulate contaminants
Ventilation: None required
Specifications subject to change without notice.

11
Configuration Introduction
Your new scanner has been factory configured with a set of default parameters.
Since many host systems have unique formats and protocol requirements, a
wide range of configurable features that may be selected using this bar code
based configuration tool are provided. Once the configuration is completed, the
scanner stores the settings in nonvolatile memory (NOVRAM). NOVRAM saves
the settings when the power is off.
Note: Bar code descriptions marked with an asterisk ( * ) define a feature that is
a factory default. Bar codes marked with a tilde ( ~ ) require the
Multi-Code configuration method.
Bar Code Configuration Methods
Scanners can be bar code configured in two ways:
the Single-Code Method and the Multi-Code Method.
Single-Code Method
Most features can be enabled or disabled using the Single-Code Method.
1. Power up the scanner.
2. Scan the bar code for the desired feature.
3. The scanner will emit a multi-toned beep to indicate the configuration
has been saved to NOVRAM.
Multi-Code Method
All features can be enabled or disabled using the Multi-Code Method.
A feature marked with a tilde ( ~ ) requires the Multi-Code Method.
1. Power up the scanner.
2. Scan the Enter/Exit Configuration Mode bar code (3 beeps).
3. Scan the bar code for the desired feature (1 beep). Multiple features can
be enabled/disabled before scanning the enter/exit configuration mode
bar code.
4. Scan the Enter/Exit Configuration Mode bar code (3 beeps) and save
the new configuration. To abort a configuration change, power off the
scanner before scanning the Enter/Exit code.
Enter/Exit Configuration Mode
³999999

12

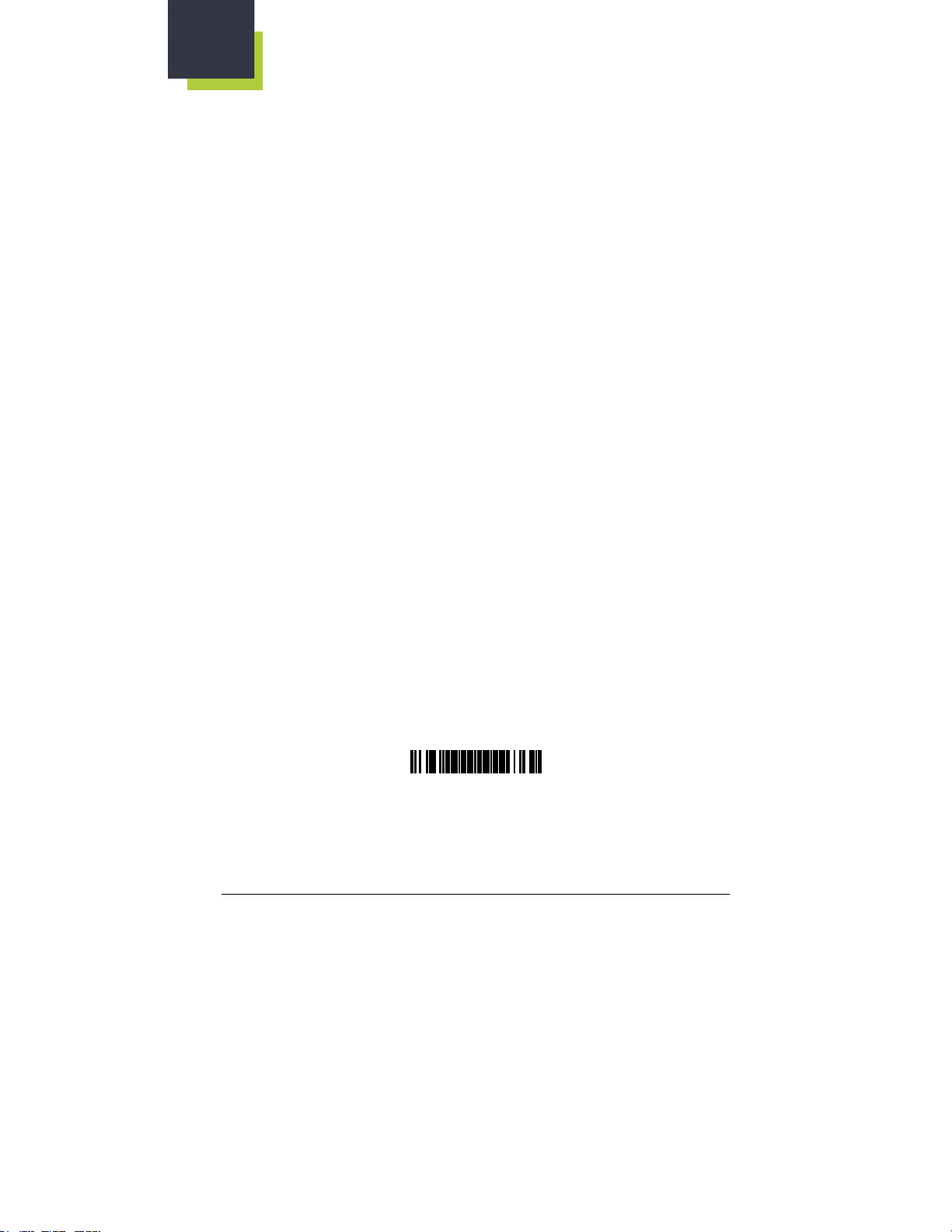

Returning to Factory Defaults
Scan the Recall Defaults bar code to erase all previous settings and return
the scanner to its factory default communication protocol.
Recall Defaults
³999998

13
Code Types and Decode Rules
Bar code descriptions marked with an asterisk ( * ) define a feature that is a
factory default. Bar codes marked with a tilde ( ~ ) require the Multi-Code
configuration method.

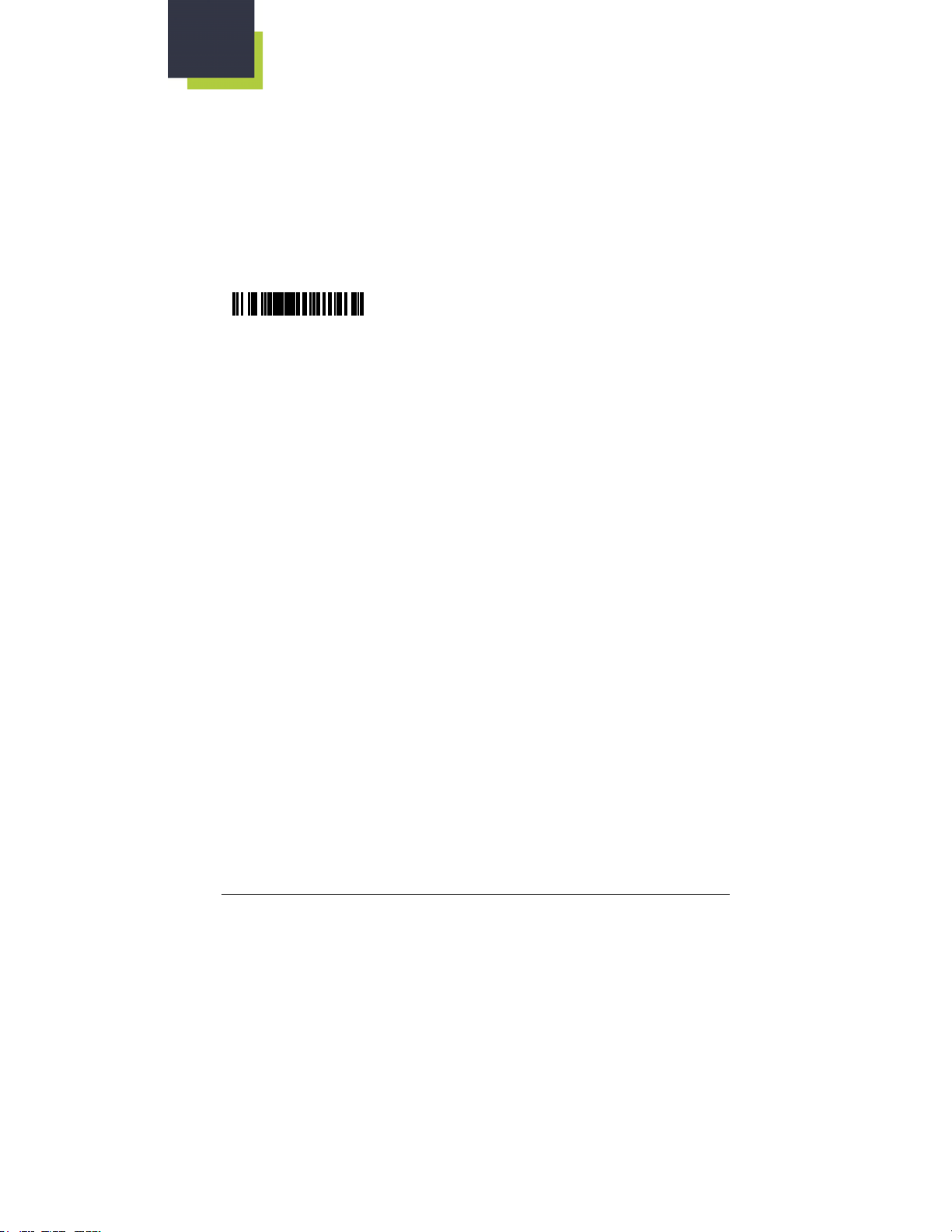

2 of 5 Codes
Additional Decode Features
³901800
~
Minimum Symbol Length –Single-line default
is 3. Combine this code with the proper code bytes
(on page 20), to specify the minimum number
of characters in all non-UPC/EAN bar codes.

14

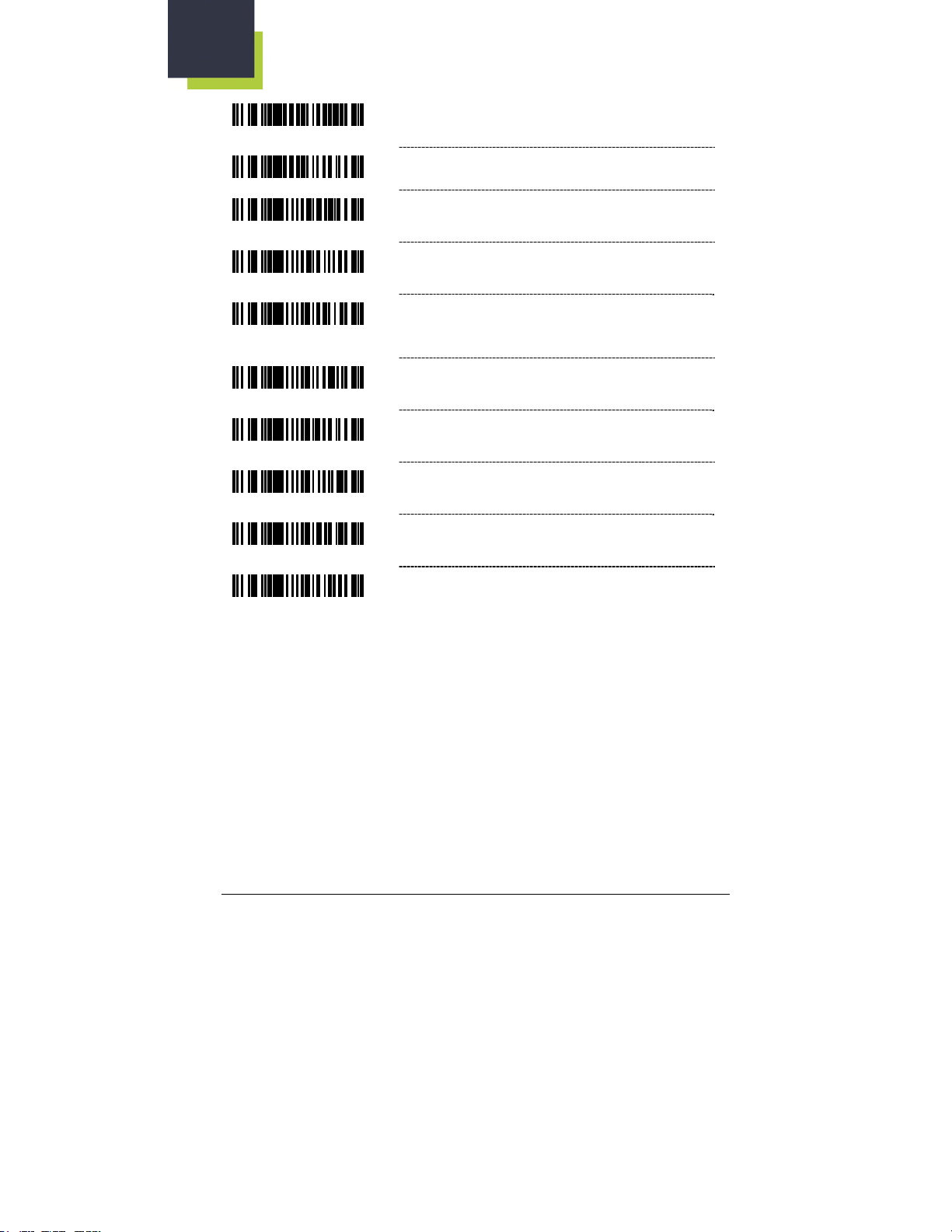

Supplements
³125114
Enable Bookland (979) Supplement Required
³125104
* Disable Bookland (979) Supplement Required
³101417
Enable Bookland (978) Supplement Required
³101407
* Disable Bookland (978) Supplement Required
³101314
Enable 977 (2 Digit) Supplement Required –
The scanner will require a 2 digit supplement to be
scanned when an EAN-13 code begins with 977.
³101304
* Disable 977 (2 Digit) Supplement Required
³101315
Enable ISBN Check Digit Transmission
³101305
Disable ISBN Check Digit Transmission
³101317
Enable Bookland to ISBN Conversion
³101307
* Disable Bookland to ISBN Conversion

15

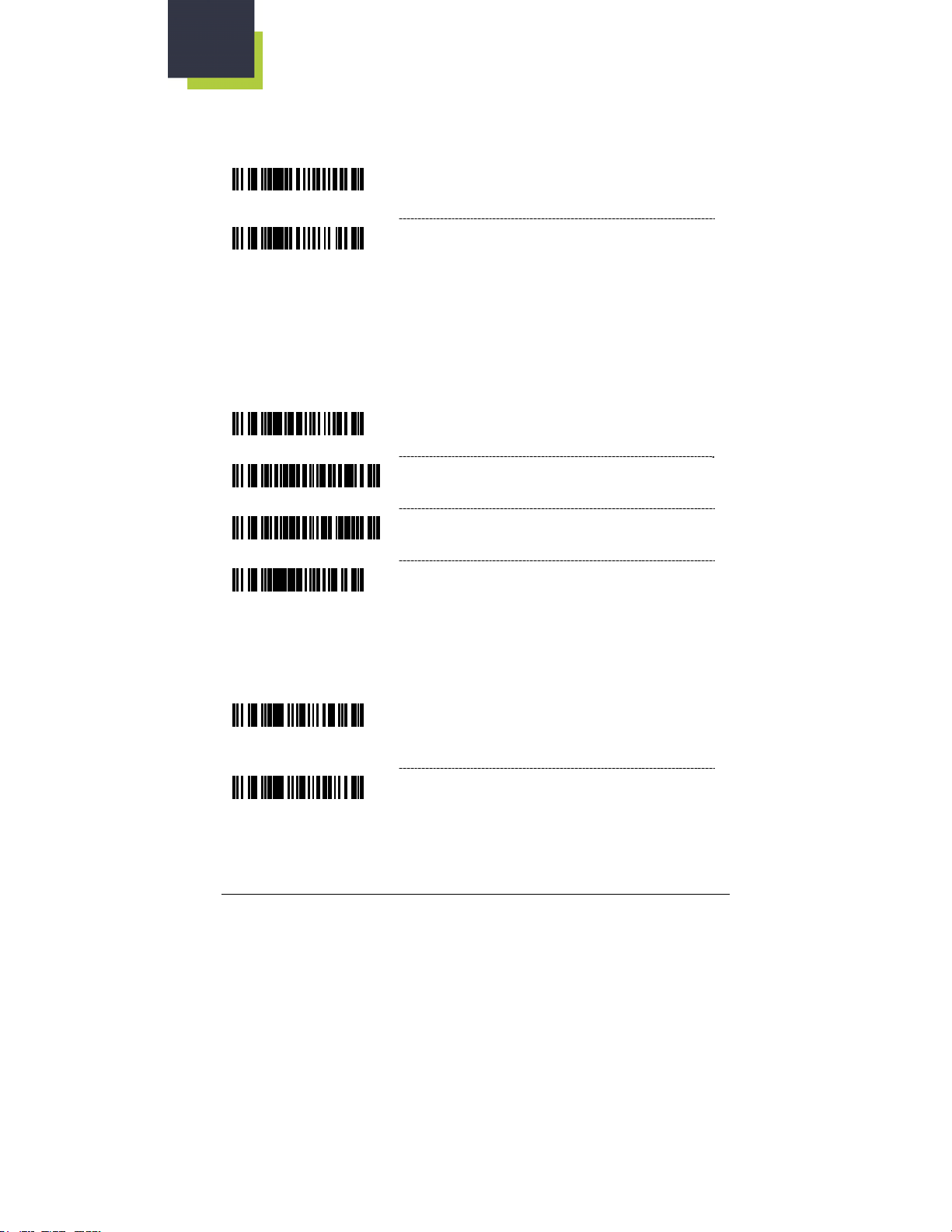

Scanner Operation
Redundant Scans
³301100
* 0 Redundant Scans – Requires 1 good decode
for a good scan.
³301110
1 Redundant Scan – Requires 2 consecutive
decodes of the same bar code data for a good
scan.
Data Transmission Delays
Use these codes to select the amount of delay between sending data characters
from the scanner to the host. This helps prevent the scanner from overflowing
host-input buffers.
³818810
* 1 msec Intercharacter Delay
³8188100
10 msec Intercharacter Delay
³8188250
25 msec Intercharacter Delay
³918800
~
V
ariable msec Intercharacter Delay – Scan this
bar code and a sequence of code bytes on page
20 to set the delay between characters sent to the
host system (range from 1 to 255 msecs.).
Operation Modes
³118304
*Manual Trigger Mode – The scanner is
activated by pressing the trigger. The scanner
scans until a bar code is read, or the trigger is
released.
³118314
Continuously Scan Mode – The scanner is
always in active state.

16
Prefixes/Suffixes
Scan the Enter Configuration Mode bar code before trying to set these features
(see the Multi-Code Method on page 11.)
User Configurable Prefixes, All Data
³903500
~ Configurable Prefix Character #1 – A prefix ID
can be added and assigned for data transmission.
Use this code with a code byte sequence, on page
20, which represents the desired character.
³903600
~ Configurable Prefix Character #2 – Assigns a
second configurable prefix character.
Standard Suffix Characters
³116613
* Enable CR Suffix – The scanner transmits a
carriage return after each bar code.
³116603
Disable CR Suffix
³116612
* Enable LF Suffix – The scanner transmits a line
feed after each bar code. Disabled when
keyboard wedge defaults are loaded.
³116602
Disable LF Suffix
³116616
Enable UPC Suffix ID – The scanner will
transmit a suffix after any UPC/EAN bar code.
The suffixes are A (UPC-A), E (UPC-E),
F (EAN-13) and F (EAN-8).
³116606
* Disable UPC Suffix ID
Table of contents
Other Youjie Barcode Reader manuals
