Youngkook YK-PTSHZ-410 User manual

User Manual
for Positioning PTZ Camera
Function and Installation
YK-PTSHZ-410
Thank you for choosing our product. Please read the User Manual carefully before
using the product. The User Manual will provide you appropriate instructions for
installation and use.
Copyright statement:
The copyright of the User Manual belongs to Youngkook Electronics Co., Ltd.
No institution and nobody is allowed to copy or reprint all or part of its contents.
Youngkook Electronics Co., Ltd. reserves the right of revising and updating the
User Manual due to product performance improvement, and users will not be
notified one by one for the updated contents. Please contact our company or the
legal distributor of our company for any problem that has not been mentioned in
the User Manual during your use.
You can view our website at http://www.youngkook.com at any time to learn
about the latest news on the product.

YoungkookUser Manual for Positioning PTZ Camera
Statement
uThe instructions may contain inaccuracies, inconsistencies in the operation of
the product function, or typographical errors.
uThe company continues to adopt new technology, product parameters change
without notice.
uThe instructions only provide guidance for the customer guidance, does not
guarantee and exactly the same, the actual product should prevail in kind.
uInstructions for a variety of models for reference, the specific operation of
each product does not enumerate, please user control operation according to
the actual product.
uThis user manual belongs to all companies, without our permission, no
organization or individual may copied, reproduced in whole or in part of
them.
Safety Notice
lPlease read this instruction manual carefully before use and keep it for future
use.
lPlease use a dry soft cloth to clean the equipment, such as dirt is difficult to
remove may be appropriate to add a small amount of neutral detergent gently
wipe, and finally wipe the remainder of the detergent, wipe the power supply
before disconnecting.
lTransport, storage and installation process, should avoid heavy pressure,
severe vibration or sleep, otherwise it will cause damage to equipment.
lEquipment in the installation and use of the process must strictly comply with
the electrical safety standards.
lThe personnel of the installation and maintenance equipment shall be carried
out by qualified service technician or system installer.

YoungkookUser Manual for Positioning PTZ Camera
lAvoid installing the equipment in damp, dusty, extremely hot, cold, strong
electromagnetic radiation and other places.
lCustomers are advised not to disassemble the shell and screws themselves.
We are not responsible for any problems caused by unauthorized
modifications or repairs.
lDo not aim the camera at light objects to avoid poor image performance.
lLong-term high-speed operation of the device may lead to conductive slip
ring, timing belt aging, will affect the equipment life.

YoungkookUser Manual for Positioning PTZ Camera
Content
1. Product Introduction............................................................................................ 1
1.1 Function..................................................................................................... 1
1.2 Product Features........................................................................................ 2
1.3 Introduction to technical parameters ......................................................... 3
1.4 Dimensions................................................................................................ 4
1.5 Installation diagram................................................................................... 5
2. Installation........................................................................................................... 6
2.1 Installation of basic requirements and accessories to confirm .................. 6
2.2 Basic installation tool ................................................................................ 6
2.3 Installation space and installation strength................................................ 7
3. Control and operating instructions ...................................................................... 8
3.1 Operation instruction................................................................................. 8
4. Fault and troubleshooting.................................................................................. 10
5. Network Setup................................................................................................... 12
5.1 Operation Requirement ........................................................................... 12
5.2 LAN Access &Active Installation........................................................... 12
5.3 Setting ..................................................................................................... 14

YoungkookUser Manual for Positioning PTZ Camera
1
1. Product Introduction
YK-PTSHZ-410 high-definition laser integrated PTZ camera.Using the latest
H.265 video compression algorithm, the whole shell and base are made of
high-strength aluminum alloy, with full-featured, high stability. This series has
360°continuous rotation, automatic scanning, automatic cruise and other functions,
suitable for large areas of monitoring, can be widely used in airports, stations,
urban roads, traffic survey, enterprise security, warehouse monitoring and
residential area security Important areas.
1.1 Function
lPreset Position
A set of data contains the coordinates of the head and lens focal length, focus and
other parameters stored in advance corresponding to the spatial location.
The preset function is that the PTZ can store the position parameters such as the
horizontal angle, the vertical angle and the camera lens in the current state in the
nonvolatile memory, and can quickly call these parameters from the nonvolatile
memory if necessary The PTZ and the camera lens are adjusted to the recorded
position, the operator can quickly and easily set and call the preset position
through the control keyboard and other equipment.
lAutomatic Scanning
PTZ in the two fixed points or between the two set points at a certain speed PTZ
horizontal round-trip movement of the process.
Pre-set the left limit (angle of view) and the right limit (viewing angle boundary),
can be achieved in the left and right limits of the PTZ reciprocating patrol, patrol
speed can be programmed to set the first.
lAutomatic Cruise
PTZ in a certain order, a certain time interval call cycle preset process.

YoungkookUser Manual for Positioning PTZ Camera
2
The automatic cruise function means that some presets can be programmed into
the automatic cruise queue in the order required by pre-programming. Only one
command allows the PTZ to automatically set the preset bits in order. Set the time
interval to move back and forth. By setting the preset position at each important
position, it is possible to realize the automatic cruise between the PTZ and the
preset position.
lKeep Watch
When the PTZ standby time reaches the set value, it can automatically run the
preset position, automatic cruise, automatic scanning and other functions.
Set a function (such as a preset preset, an automatic cruise route, an automatic
scan route) for the pan / tilt head, and the PTZ automatically performs this
function when the standby time is set in the standby mode.
1.2 Product Features
uYK-PTSHZ-410 high-definition laser integrated PTZ camera, the fuselage
selection of high strength aluminum alloy material, exterior design can resist
strong winds, smooth operation, high precision.
uProducts using high-precision stepper motor and precision worm gear drive
combination, power can be self-locking.
uSupport a variety of lens preset function, zoom adaptive function, the rotation
speed can be automatically adjusted according to the lens zoom factor.
uPowerful, with preset, cruise, line sweep, keep watch and other functions.
uVisual pitch angle range, monitoring a wide range of horizontal speed up to
100 °/ s.
uEquipment has its own automatic heating system, low temperature
automatically start heating function, to ensure that products can be applied to
cold areas.
uNetwork transmission signal can reach 100Mbps.

YoungkookUser Manual for Positioning PTZ Camera
3
uSupport 3D positioning function, through the client software / IE can achieve
click tracking and zoomclientsoftware.
uPower failure memory function, accidental power after re-power, the memory
of the last running state, can be restored to power before running state.
1.3 Introduction to technical parameters
Function Basic performance indicators
Model YK-PTSHZ-410
Spinning speed Level：0.1°/s-100°/s Vertical：0.1°/s-40°/s
Rotation angle Level：360° Vertical：-90°~ +40°
Preset position 200(effective)
Preset accuracy ±0.1°
Lens preset support
Lens control speed Zoom, focus continuously adjustable control speed
PTZ speed adaptive support
Automatic cruise Support one
Automatic scanning Support one
Keep watch One preset or one automatic cruise route or one auto scan route
can be set
Power-off memory location Support (can be restored before the power off position, preset
position status, cruise status, line sweep state)
Protocol Pelco D or Pelco P
Communication Interface RJ45 network port
(network PTZ configuration)
Voltage input range AC24V±15%，50/60Hz or DC24V±10%
Power consumption ≤70W
Operating temperature -25 ~+65℃ ℃
90±5%RH（No heating）

YoungkookUser Manual for Positioning PTZ Camera
4
-40℃~+70℃
90±5%RH（With heating）
Storage temperature -40℃~+70℃
Ingress Protection IP66
Dimensions 340mm×240mm×462mm(L*W*H)
Product material Aluminum alloy
Total Weight ≤12kg
1.4 Dimensions

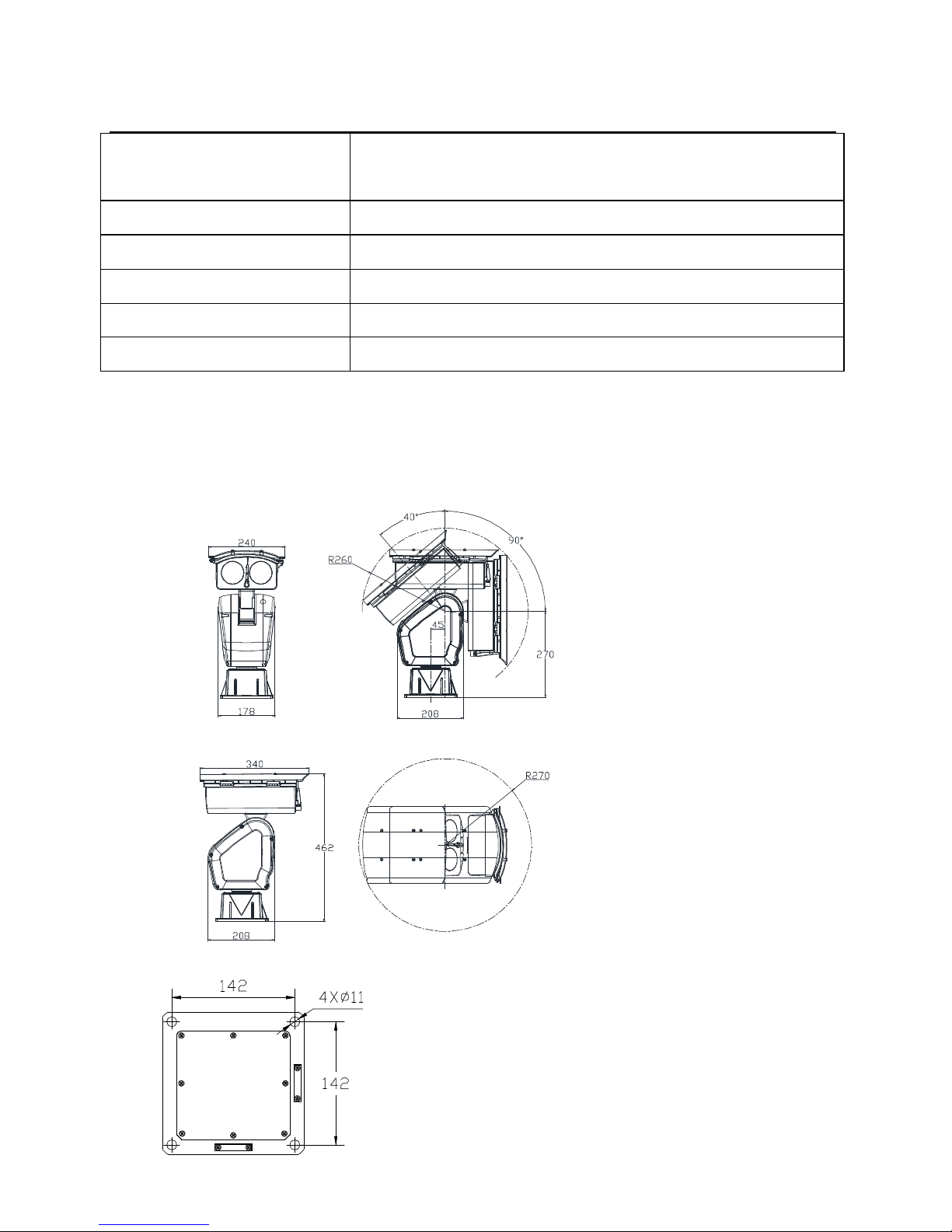

Dimensions：
Base mounting hole

YoungkookUser Manual for Positioning PTZ Camera
5

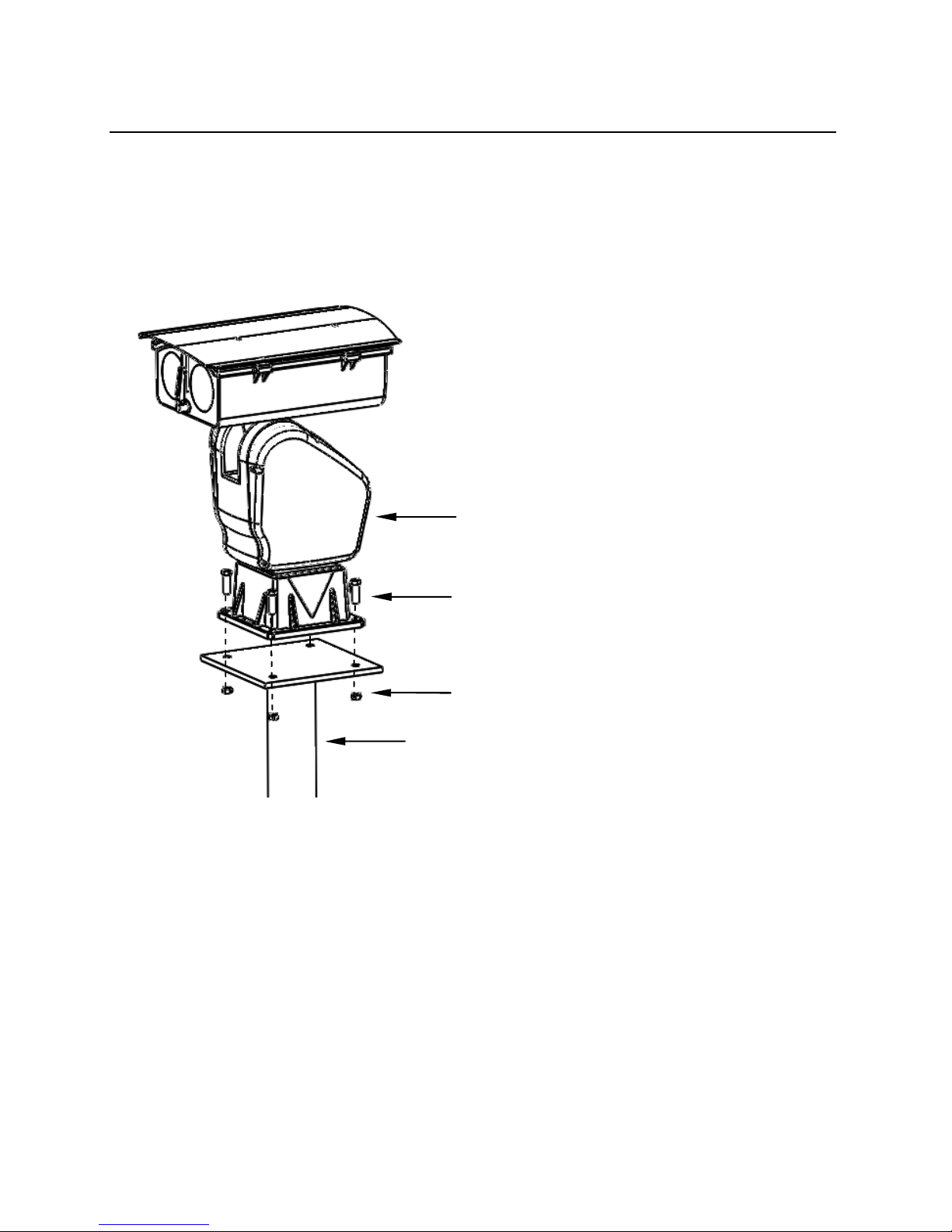

1.5 Installation diagram
Use the bolts and nuts provided in the accessory
※If the bracket base is not threaded, it is necessary to lock the nut.
Product
Bolt
Nuts
Bracket base

YoungkookUser Manual for Positioning PTZ Camera
6
2. Installation
2.1 Installation of basic requirements and accessories to confirm
Installation site and environment to meet the technical parameters mentioned
in the requirements, the installation staff should have been fully read and read the
contents of this manual, with the appropriate system installation qualification and
maintenance work qualification certificate.
Open the box to confirm the accessories information, the lack of accessories,
please contact the supplier.
Name Quantity Name Quantity
Hexagon Bolt
M8x25 4Inside the hex wrench 4mm 1
Nut M8 4 Flat washer Φ8 4
Manual 1 Certificate 1
Cross head
screws M4x8 4Inside the hex wrench 3mm 1
Nylon washers 4 shade 1
2.2 Basic installation tool
Commonly used engineering wiring and equipment installation tools, please
install the equipment before the preparation is complete.

YoungkookUser Manual for Positioning PTZ Camera
7
2.3 Installation space and installation strength
Under normal circumstances, this device needs to be equipped with a
protective cover or other overhead items, please confirm the installation location
can accommodate this product and the equipment and installation of the structure
of the space. To confirm the installation of the wall, the carrying capacity of the
bracket can reach 4 times the safety of the entire equipment weight.
Install the device as shown, using the bolts and nuts in the fitting.
Name Quantity Remarks
13mm wrench 1 For mounting fixtures and
mounting brackets
14mm sleeve 1
Cross screwdriver(big) 1 For common construction
Cross screwdriver(small) 1
Used to disassemble the DIP
cover to adjust the device
communication parameters
Inside the hex wrench 1 set
Used for disassembly of pan /
tilt pallet and shield
connection
Word screwdriver (small) 1 Used to secure the wiring
harness connection terminals
Wire strippers 1 Stripping

YoungkookUser Manual for Positioning PTZ Camera
8
3. Control and operating instructions
3.1 Operation instruction
Function Operation instruction
Turn on / off wipers Set / recall 111st preset
Manually open the laser,
force the night mode
Set 112nd preset（5 minutes Photosensitive
triggering day and night conversion）
Manually turn off the laser,
force the day mode
Recall 112nd preset（5 minutes Photosensitive
triggering day and night conversion）
The cruise function starts Recall 98th preset
Cruise speed setting
Set 90th preset + recall 90th preset + set 98th preset
+ set 97th preset + set the speed level (speed
grade optional range 1 ~ 63)
Line sweep left border
settings Set 92nd preset
Line sweep right border
setting
Set 93rd preset
The line sweep function
starts
Recall 99th preset
Line sweep speed setting
Set 90th preset + recall 90th preset + set 99th preset
+ set 97th preset + set the speed level (speed
grade optional range 1 ~ 63)
Start / Close keep watching Set 94th preset + recall 94th preset
Note: default keep watch 1st preset

YoungkookUser Manual for Positioning PTZ Camera
9
Keep Watching preset
function
Set 90th preset + recall 90th preset + set 94th preset
+ set 94th preset + set (No.)
N0. is represented as a preset number.
Keep Watching ring sweep
function
Set 90th preset + recall 90th preset + set 94th preset
+ set 97hpreset
Keep Watching cruise
function
Set 90th preset + recall 90th preset + set 94th preset
+ set 98hpreset
Keep Watching line sweep
function
Set 90th preset + recall 90th preset + set 94th preset
+ set 99hpreset
Device Reboot Set or recall 254th preset
Re-check, do not clear all the parameters have
been set.
Reset Set 90th preset + recall 90th preset + set 255th
preset + recall 255hpreset
Clear the set parameters and re-check.
Turn on / off the power-off
memory function Set / recall 108th preset
Please promptly remove the security risks, the use of the process found any
problems, please contact our company for after-sales consultation to confirm the
serious problem of rework processing.

YoungkookUser Manual for Positioning PTZ Camera
10
4. Fault and troubleshooting
Fault phenomenon Reason / solution
No self-test after
power supply,
no image output
There is a broken line in the circuit / find breakpoints,
rewiring.
Low supply voltage / Replace the power adapter to
increase the output voltage.
Self-test exception Low supply voltage / Replace the power adapter to
increase the output voltage.
Equipment control is
normal,
image instability
Poor video circuit contact / troubleshooting, rewiring.
Access device exception / replacement access device
Equipment control is
normal,
image instability
Network line bad contact / dismantling bad point,
re-wiring.
Access to computer performance is insufficient, take up
CPU usage / lower stream and resolution
Lack of network bandwidth / replacement of industrial
Gigabit switches
Access decoder performance / replacement of
high-performance decoder
Self-test normal, can
not control
Wrong wiring / rewiring
Set the baud rate, protocol, address and device mismatch /
screen configuration according to device parameters
Repeated restart Insufficient supply voltage or voltage instability / to
ensure that the input device voltage stability

YoungkookUser Manual for Positioning PTZ Camera
11
Can not control the
lens to perform zoom
zoom action
Wiring error / re-connect the lens control line
Circuit board lens control problems / replacement circuit
board (please contact after-sales rework processing, do
not replace parts or repair)
Can not recall the set
lens preset point
DIP switch relative to the set lens preset dialing is not set
to ON / DIP switch control lens preset dialing dial into
ON
The image is lost
when the control
device rotates
Rotation process at the same location lost image /
conductive slip ring there is a bad contact, replace the
parts (please contact after-sales rework, do not replace
parts or repair)
Note: If the customer to buy this product does not use the lens preset function, as
far as possible the DIP switch relative to the set lens preset dialing is not allocated
to OFF.
* Web Server information
Default parameter
IP 192.168.1.108
Name admin
Password 123456

YoungkookUser Manual for Positioning PTZ Camera
12
5.Network Setup
5.1 Operation Requirement
This system is advised to operate in the Windows 7 operating system. In order to
use and operate the system better, Please make sure below items setup or install
correctly after this system installation.
5.1.1. Monitor resolution setup to: 1024x768 or more, color setup to Color (32 bit).
Please refer to the Windows user manual or online help.
5.1.2. Please confirm install the fonts the system need in the operating system. If
the system interface display abnormal, because of it maybe not install the system
needed fonts or the fonts are damaged and need to reinstall the fonts.
5.1.3. If it is the first time to use the camera, please download the ActiveX control.
Before download it needs to setup the IE browser to confirm download
successfully.
Notice: Please use the IE browser of Windows operating system , confirm the
version is above 6.0 Please don’t use any third-party browser and any IE browser
shell like Maxthon, FireFox, Window of the World, we do not ensure use these
software can log on the network video server
5.2 LAN Access &Active Installation
Run IE and input default IP address 192.168.1.108(for example).

YoungkookUser Manual for Positioning PTZ Camera
13
Install active for the first time log in IE Click→Installation→NextStep→Finished,
if antivirus block, please keep running.
Some version of IE may have different authority matter and cause auto run failed
and need to click to run.
After installation success, refresh the web page to log in.
Input user name and password in page log in, default user name is admin and
password is 123456. Password can be changed after log in, please keep in mind.
After log in success, set through menu.

YoungkookUser Manual for Positioning PTZ Camera
14
Main Menu Image Shortcut Menu
Code Menu Control Shortcut Menu
PTZ Menu
5.3 Setting
This file explains a few of common
setting.

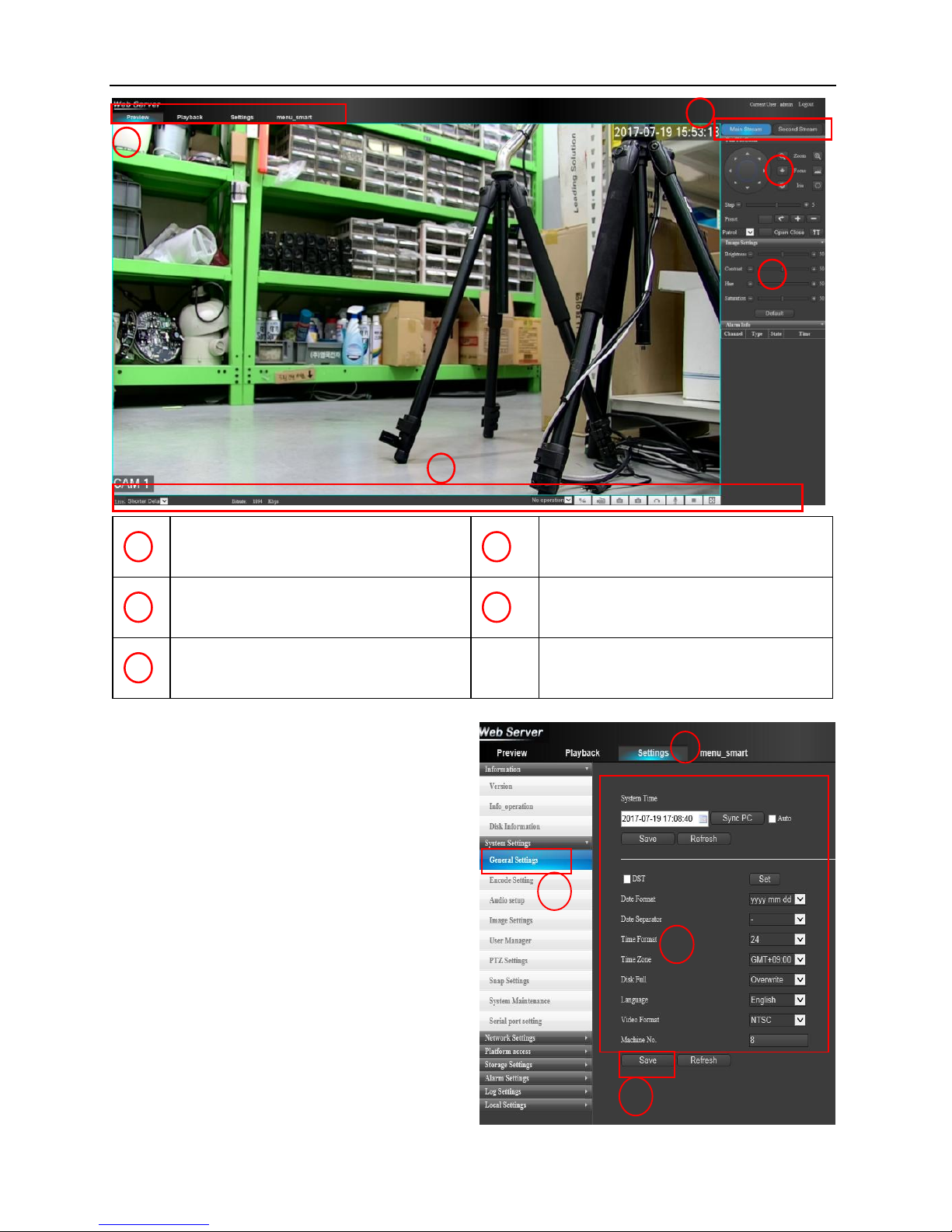

5.3.1. System Setting→GeneralSetting
Click
①Setting, Main Menu→Click
②General Menu
③Setting time synchronization, data
mode, time mode, mode at storage
device full
④Save after setting.
3
5
2
4
1
1
2
3
4
5
4
3
2
1

YoungkookUser Manual for Positioning PTZ Camera
15

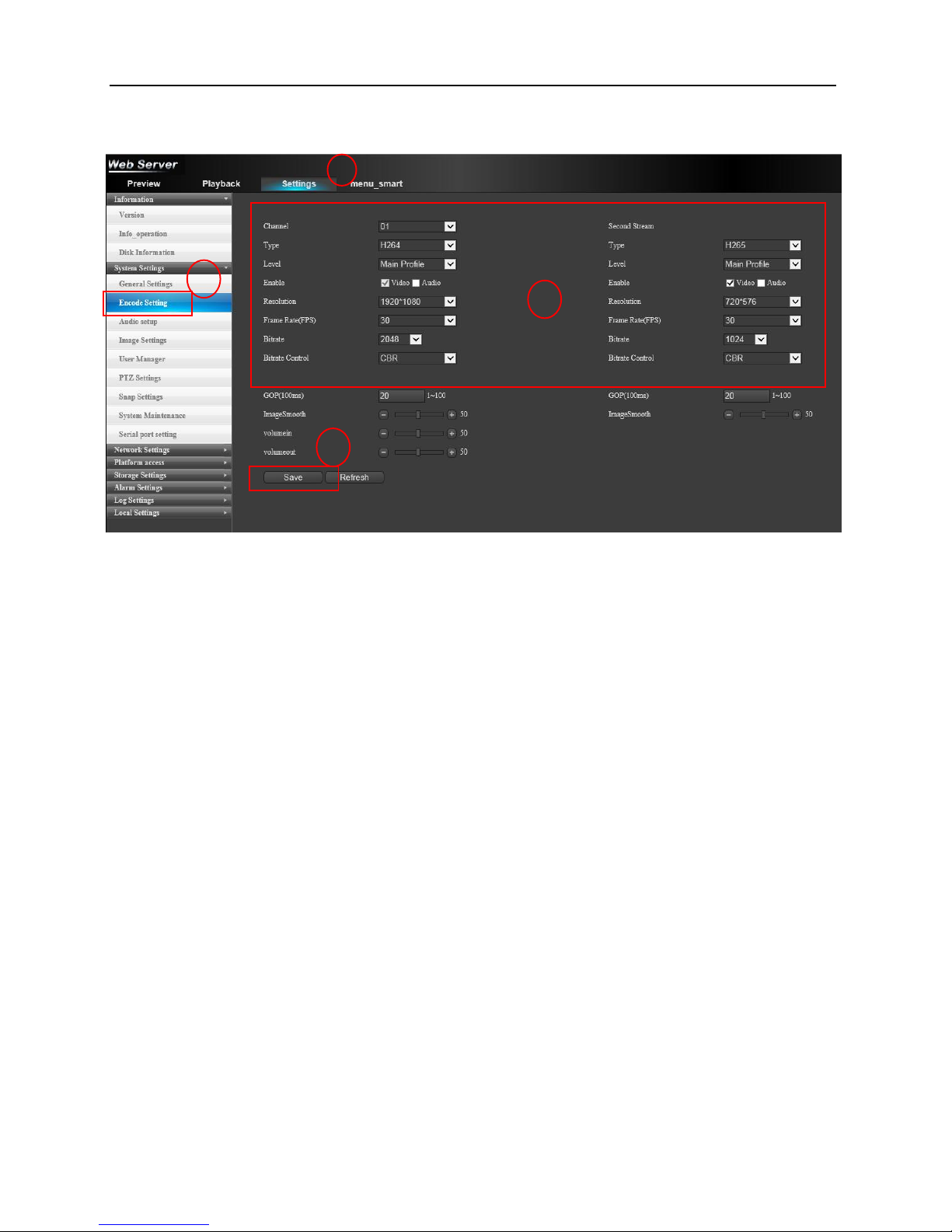

5.3.2. System Setting→Code
Click
①Setting, Main Menu→Click
②Encode Setting
③to set encoding mode, level, stream
④Save after setting.
1
2
3
4
