Yukon HLS80E User manual

ASSEMBLY, TESTING, OPERATION, SERVICING
& STORAGE INSTRUCTION
ELECTRIC
8 TONNE HYDRAULIC
LOG SPLITTER
READ and UNDERSTAND this manual completely before using The log splitter. All operators
of this equipment must read and completely understand all safety information, operating
instructions, maintenance and storage instructions.
Please check all bolts, screws, handles, clamps & clips are tight before each use.
Failure to properly operate and maintain the log splitter could result in serious injury to the
operator and bystanders from moving parts that can crush or cut, flying objects, burns, fire
or explosion, escaping high pressure hydraulic fluid, or carbon monoxide poisoning.
WARNING!
Yukon

2
8 tonne Electric hydraulic Log Splitter Assembly, Installation, Care, Maintenance useage Instruction Manual
TABLE OF CONTENTS
1.0. Disclaimer
1.1. About your Log Splitter .......................................................................................................................................................................................
2.0. Safety Usage
2.1. General Safety ........................................................................................................................................................................................................
3.0. Assembly Instructions
3.1. Parts for Assembly ................................................................................................................................................................................................
3.2. Assembling the log splitter ................................................................................................................................................................................
4.0. Pre-checks Before Operations
4.1. Electrical requirements .......................................................................................................................................................................................
4.2. Select location .......................................................................................................................................................................................................
5.0. Operations Instruction
6.0. Storage, Usage & Maintenance
6.1. Loading Log ............................................................................................................................................................................................................
6.2. Operator Position .................................................................................................................................................................................................
6.3. Second Person ......................................................................................................................................................................................................
6.4. Log splitter operation ..........................................................................................................................................................................................
6.5. Freeing a jammed log .........................................................................................................................................................................................
6.6. Replacing hydraulic oil ......................................................................................................................................................................................
6.7. Sharpening the Wedge ......................................................................................................................................................................................
7.0. Specifications
7.1. Log Specification & Guide .................................................................................................................................................................................
7.2. Log-Splitter Specification ..................................................................................................................................................................................
8.0. Troubleshooting Guide
9.0. Warranty
Page
3
3
4
4-5
6
6
7-8
9
9
9
10
11
11
11
11
11
12
12
12
13
13
13
14-15
16
Yukon

3
8 tonne Electric hydraulic Log Splitter Assembly, Installation, Care, Maintenance useage Instruction Manual
1.0 DISCLAIMER
Congratulation on purchasing your new 8tonne Yukon log
splitter
This log splitter is designed to split wood logs using a
hydraulically powered moving wedge. The log splitter’s 240v
powered engine is used to pressurize the hydraulic system.
The technical specifications for your log splitter are provided in
the Specifications section (Page 12) of this manual.
All persons to whom you rent, loan or use this the log
splitter must have access to and read this manual.
Keep this owner’s manual with the splitter at all times
and advise all persons who will operate the machine to
read it.
You must provide instruction on how to safely operate
the splitter and remain available to answer any questions
a renter/borrower might have.
The log splitter is heavy power machine and can
crush, burn and cause serious injury if proper safety
precaution and not taken.
Follow all safety precautions presented throughout this
manual, for safely moving, towing and operating this 60
ton log splitter.
Read the Owner’s Manual completely before
operating the machine to understand how to safely
operate and maintain the log splitter.
1.1. About your Log Splitter
ATTENTION:
All Rental Companies and Private Owners who loan
this equipment to others!
ALWAYS MAKE SURE SAFETY LABELS ARE IN
GOOD CONDITION.
Failure to follow all instructions and warnings exactly may result in serious injury and/or
damage to the product which will void all implied and express warranties
Yukon

4
8 tonne Electric hydraulic Log Splitter Assembly, Installation, Care, Maintenance useage Instruction Manual
2.0 SAFETY USAGE
•UNDERSTAND YOUR LOG SPLITTER
Read and understand the owner’s manual and labels
axed to the log splitter. Learn its application and
limitations as well as the specific potential hazards peculiar
to it.
•DRUGS, ALCOHOL AND MEDICATION
Do not operate the log splitter while under the influence
of drugs, alcohol, or any medication that could aect your
ability to use it properly.
•AVOID DANGEROUS CONDITIONS
Put the log splitter on a 60 - 75cm high, stable, flat,
and level work bench where there is plenty of room for
handling, and help the operator stay alert.
Bolt the log splitter to the work surface if it tends to slip,
walk, or slide. Keep your work area clean and well lighted.
Cluttered areas invite injuries.
Do not use the log splitter in wet or damp areas or expose
it to rain.
Do not use it in areas where fumes from paint, solvents or
flammable liquids pose a potential hazard.
•INSPECT YOUR LOG SPLITTER
Check your log splitter before turning it on. Keep guards in
place and in working order.
Form a habit of checking to see that keys and adjusting
wrenches are removed from tool area before turning it on.
Replace damaged, missing or failed parts before using it.
•DRESS PROPERLY
Do not wear loose clothing, gloves, neckties or jewelry
(rings, wrist watches). They can be caught in moving parts.
Protective electrically nonconductive gloves and
non-skid footwear are recommended when working.
Wear protective hair covering to contain long hair,
preventing it from get caught in machinery.
•PROTECT YOUR EYES AND FACE
Any log splitter may throw foreign objects into the eyes.
This can cause permanent eye damage. Always wear
safety goggles. Everyday eyeglasses have only impact
resistant lenses. They are not safety glasses.
Do not put the log splitter on the ground for operations.
This is awkward operating position that the operator has
to bring his face close to the machine, and thus risks being
struck by wood chips or debris.
•EXTENSION CORDS
Improper use of extension cords may cause inecient
operation of the log splitter which can result in
overheating.
Be sure the extension cord is no longer than 10m and its
section is no less than 2.5mm2 to allow sucient current
flow to the motor.
Avoid use of free and inadequately insulated connections.
Connections must be made with protected material
suitable for outdoor use.
•AVOID ELECTRICAL SHOCK
Check that the electric circuit is adequately protected and
that it corresponds with the power, voltage and frequency
of the motor.
Check that there is a ground connection, and a regulation
dierential switch upstream. Ground the log splitter.
Prevent body contact with grounded surfaces: pipes,
radiators, ranges, and refrigerator enclosures.
Never open the pushbutton box on the motor. Should
this be necessary, contact a qualified electrician Mark sure
your fingers do not touch the plug’s metal prongs when
plugging or unplugging the log splitter.
•KEEP VISITORS AND CHILDREN AWAY
The log splitter must be always operated by one person
only. Other people should keep a safe distance from
the work area, especially when the log splitter is under
operations. Never use another people to help you with
freeing jammed log.
•INSPECT YOUR LOG
Make sure there are no nails or foreign objects in logs to
be split. The ends of the logs must be cut square. Branches
must be cut of flush with the trunk.
•DON’T OVERREACH
Floor must not be slippery. Keep proper footing and
balance at all times.
Never stand on log splitter. Serious injury could occur if
the tool is tipped or if the cutting tools is unintentionally
contacted.
Do not store anything above or near the log splitter where
anyone might stand on the tool to reach them.
2.1. General Safety
Yukon

5
8 tonne Electric hydraulic Log Splitter Assembly, Installation, Care, Maintenance useage Instruction Manual
•AVOID INJURY FROM UNEXPECTED ACCIDENT
Always pay full attention to the movement of the log
pusher.
Do not attempt to load the log on until the log pusher has
stopped.
Keep hands out of the way of all moving parts.
•PROTECT YOUR HANDS
Keep your hands away from splits and cracks which
open in the log; They may close suddenly and crush or
amputate your hands.
Do not remove jammed logs with your hands.
•DON’T FORCE TOOL
It will do a better and safer job at its design rate.
Never try to split logs larger than those indicated in the
specifications table.
This could be dangerous and may damage the machine.
Don’t use log splitter for a purpose for which it was not
intended.
•NEVER LEAVE TOOL RUNNING UNATTENDED
Don’t leave tool until it has come to a complete stop.
•DISCONNECT POWER
Unplug when not in use, before making adjustments,
changing parts, cleaning, or working on the log splitter;
Consult technical manual before servicing.
•PROTECT THE ENVIRONMENT
Take used oil to an authorized collection point or follow
the stipulations in the country where the log splitter is
used.
Do not discharge into drains, soil or water.
•MAINTAIN YOUR LOG SPLITTER WITH CARE
Keep the log splitter clean for best and safest performance.
•MAKE THE WORKSHOP CHILDPROOF
Lock the shop. Disconnect master switches.
Store the log splitter away from children and others not
qualified to use it.
Yukon

6
8 tonne Electric hydraulic Log Splitter Assembly, Installation, Care, Maintenance useage Instruction Manual
3.0 ASSEMBLY INSTRUCTIONS

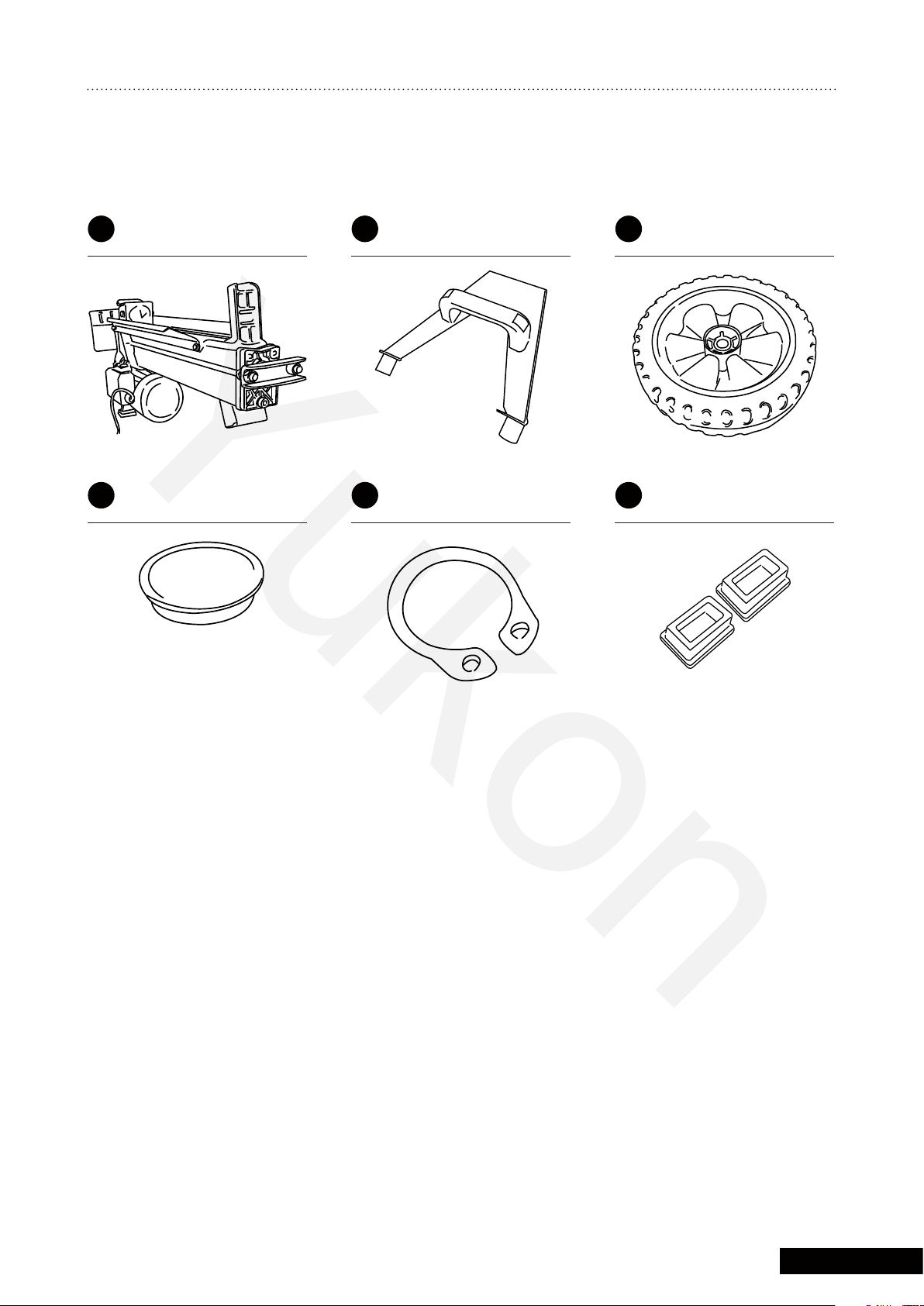

3.1. Parts for Assembly
Hydraulic Log Splitter Front Support Legs
Front Support Rubber FeetWheel Cap Back Support Rubber Feet
Wheels
A B
ED F
C
length QTY: 1 QTY: 1
QTY: 2QTY: 2 QTY: 2
QTY: 2
Yukon

7
8 tonne Electric hydraulic Log Splitter Assembly, Installation, Care, Maintenance useage Instruction Manual

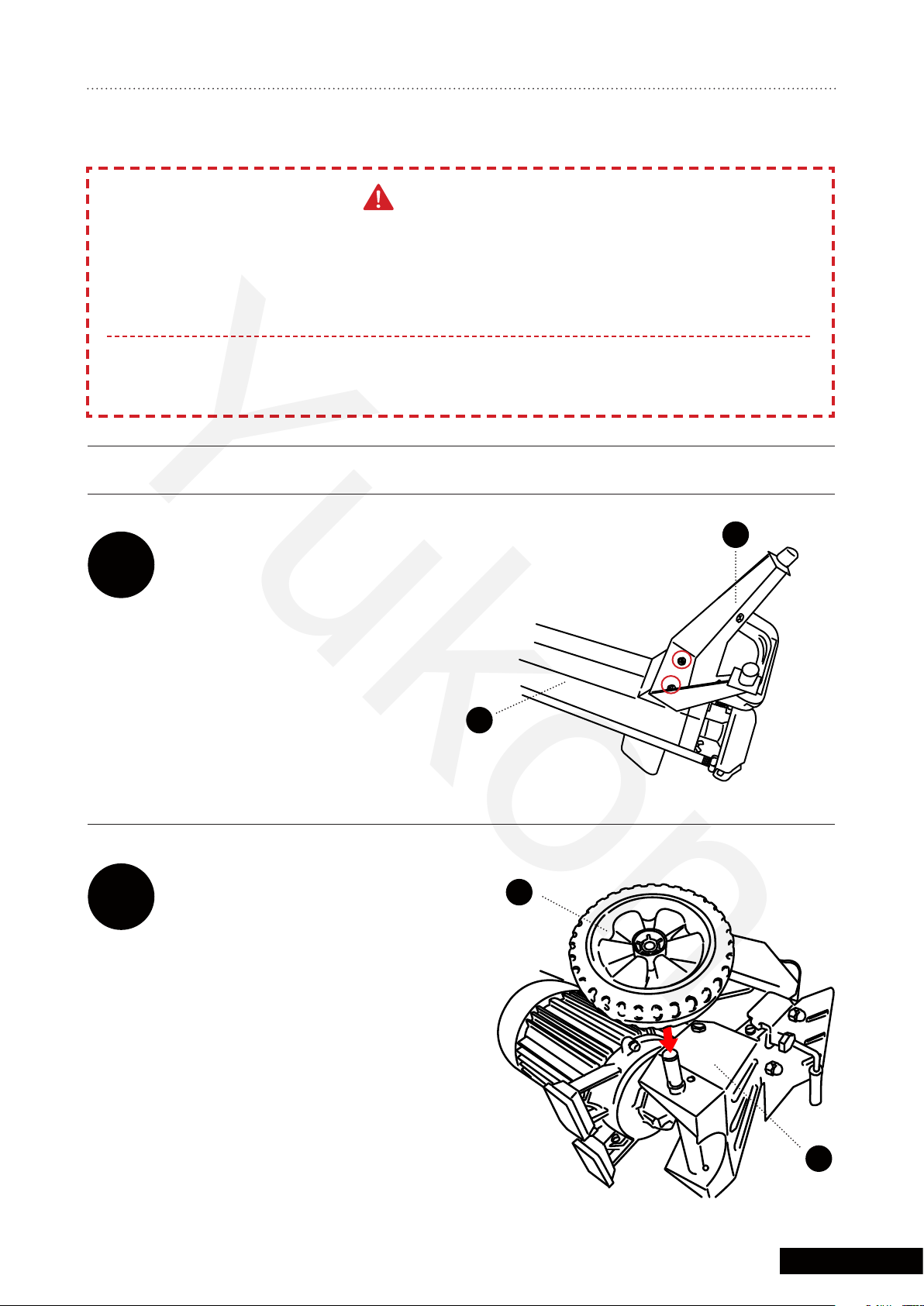

Slide wheels (Part C) onto the axles at the back of the machine.
Step 2
Unscrew preinstalled bolts. Attached the front support legs
(Part B) and screw back the bolts.
3.2. Assembling the Log Splitter
Step 1
TURN OVER THE LOG SPLITTER
CLOSELY INSPECT ALL LOG SPLITTER COMPONENTS.
(See Machine Components section on page 15-16 of this manual for diagram of components,)
• If you have missing components, contact the seller
• If you have damaged components, contact the seller
SAVE BOLTS FROM PACKAGING:
Some packaging bolts are used to assemble the log splitter, while others are used for attachments or spares
A
A
C
WARNING!
B
Yukon

8
8 tonne Electric hydraulic Log Splitter Assembly, Installation, Care, Maintenance useage Instruction Manual
Put on axle cap. (Part D
Attach rubber feet (Part F) to legs on engine
Turn machine over and let sit for 2 minutes before using
Step 4
Step 4
Using a pair of circlip pillers
install the circlip (Part E) on
the axle.
Step 3 A
H
E
C
D
F
TURN OVER THE LOG SPLITTER
Yukon

9
8 tonne Electric hydraulic Log Splitter Assembly, Installation, Care, Maintenance useage Instruction Manual
4.0 PRE-CHECKS BEFORE OPERATIONS
Before operating the log splitter, the Bleed Screw should be loosened by some rotations
until air can go in and out of the oil tank smoothly.
Air flow thru the Bleed Screw hole should be detectable during the log splitter
is under operations.
Before moving the log splitter, make sure the Bleed Screw is tightened to avoid
oil leaking from this point.
DO NOT ADJUST THE MAX PRESSURE LIMITING SCREW!
Max pressure was set before the log splitter ex work and the max pressure limiting screw is
sealed with glue to ensure the log splitter works under pressure no more than 8 tons.
The setting was done by qualified mechanic with professional instruments.
Unauthorized resetting will cause the hydraulic pump fail to output enough splitting pressure
or RESULT IN SERIOUS INJURY AS WELL AS DAMAGE TO THE MACHINE.
FAILED TO LOOSEN THE BLEED SCREW WILL KEEP THE SEALED AIR IN HYDRAULIC
SYSTEM BEING COMPRESSED AFTER BEING DECOMPRESSED.
SUCH CONTINUOUS AIR COMPRESSION AND DECOMPRESSION WILL BLOW OUT THE
SEALS OF THE HYDRAULIC SYSTEM AND CAUSE PERMANENT DAMAGE TO THE LOG
SPLITTER.
WARNING!
4.2. Select location
4.1. Electrical requirements
• Select an appropriate location for operating the log
splitter.
• Dry-level surface with good footing. Stay clear of areas
with mud, ice, tall grass, weeds, brush, or snow.
• If you start to feel sick, dizzy, or weak while using the log
splitter, shut o the engine and get to fresh air RIGHT
AWAY, See a doctor You may have carbon monoxide
poisoning.
Connect the main leads to a standard 230V+10% (50Hz+1Hz)
electrical supply which has protection devices of
under-voltage, over-voltage, over-current as well as a residual
current device (RCD) which maximum residual current rated at
0.03A.
• Block the wheels to prevent unintended movement of the
log splitter.
• Place a block behind the jockey wheel
Yukon

10
8 tonne Electric hydraulic Log Splitter Assembly, Installation, Care, Maintenance useage Instruction Manual
5.0 OPERATIONS INSTRUCTION
Plug into the Power souce
Step 1
Push and hold the green button on the engine.
Pull down control lever
(Once released wood pusher will automatically retract)
Must be held together. or machine won’t operate.
Step 2
IncorrectIncorrect
Correct
Yukon

11
8 tonne Electric hydraulic Log Splitter Assembly, Installation, Care, Maintenance useage Instruction Manual
6.0 STORAGE, USAGE & MAINTENANCE
6.4. Log splitter operation
The log splitter will not move forward if either hand is not
holding down the handle or green button. Only after both
hands are released from the controls, the log pusher starts to
return backward to the end on the machine
Never force the log splitter for more than 5 seconds by
keeping pressure on it to split excessively hard wood.
After this time interval, the oil under pressure will be overheated
and the machine could be damaged. For such extremely
hard log, rotate it by 90 deg to see whether it can be split in a
dierent direction. In any case, if you are not able to split the
log, this means that its hardness exceeds the capacity of this
machine and thus that log should be discarded to protect the
log splitter.
Always set logs firmly on the log splitting wedge. Make
sure logs will not twist, rock or slip while being split. Do
not force the blade by splitting the log on the upper part.
This will break the blade or damage the machine.
Break log in the direction of its growing grain. Do not place
log across the log splitter for splitting. It may be dangerous and
may seriously damage the machine.
Do not attempt to split 2 pieces of logs at the same time. One
of them may fly up and hit you.
6.3. Second Person
• If loading a heavy log a 2nd person may be required to
help load the log only Many accidents occur when there
is more than one person involved in loading and operating
the log splitter.
• Only one person should operate the controls.
• If a second person is assisting in loading logs, the operator
must NEVER actuate the splotter Control Lever until the
assistant and all bystanders are at least 10 feet away
•EVER allow an assistant to hold the log in place while the
operator actuates the Split Control Lever
•Hand activate
• Use only your hand to operate the Split Control
Lever Never use any other body part, or a rope, cable,
or other remote device to actuate the control.
6.2. Operator Position
• ALWAYS operate the log splitter from the manufacturer’s
indicated OPERATOR POSITION
• Other positions are unsafe because they can increase
the risk of injury from crushing, cutting, flying objects, or
burns.
6.1. Loading Log
• Load the log onto beam with a straight cut end against the
splitting wedge - positioned for a lengthwise cut
• The log splitter is designed only for cutting lengthwise
with the grain, NOT for cutting across the grain.
• Hold bark side. Hold the bark side of logs when loading or
positioning, never the ends.
• Never place your hands or any part of your body between
a log and any part of the log splitter.
Yukon

12
8 tonne Electric hydraulic Log Splitter Assembly, Installation, Care, Maintenance useage Instruction Manual
6.7. Sharpening the Wedge
After using the log splitters for some time, sharpen the wedge
of the log splitter using a fine-toothed file and smooth any
burrs or crushed area along the cutting edge.
If a part needs replacement only use genuine Yukon parts that meets the manufacturer’s
specifications.
Replacement parts that do not meet specifications may result in a safety hazard or poor
operation of the log splitter.
IMPORTANT
6.6. Replacing hydraulic oil
Replace the Hydraulic oil in the log splitter after every 150 hours
of use. Take following steps to replace it.
• Make sure all moving parts stops and the log splitter is
unplugged.
• Unscrew Oil Drain Bolt with Dipstick to remove it.
• Turn the log splitter on the Support Leg side over an 4
liters capacity container to drain the hydraulic oil o.
• Turn the log splitter on the motor side.
• Refill fresh hydraulic oil at the volume as per the hydraulic
oil capacity of a particular model indicated in above
specifications table.
• Clean the surface of Dipstick on the Oil Drain Bolt and put
it back into the oil tank while keep the log splitter vertically.
• Make sure the level of the refilled oil is just between 2
grooves around the Dipstick.
• Clean the Oil Drain Bolt before thread them back. Make
sure they are tightened to avoid leakage before place the
log splitter horizontally.
6.5. Freeing a jammed log
• Release both controls.
• After the log pusher moves back and completely stops
at its starting position, insert a wedge wood under the
jammed log.
• Start the log splitter to push the wedge wood to go
completely under the jammed one.
• Repeat above procedure with sharper slope wedge woods
until the log is completely freed.
Do not try to knock the jammed log o.
Knocking about will damages the machine or may
launch the log and cause accident.
Periodically check oil level to ensure it is between 2
grooves around the Dipstick. Upon Lower oil level,
oil refilling is required.
Following hydraulic oils or equivalent are recommended
for the log splitter’s hydraulic transmission system:
• SHELL Tellus 22
• MOBIL DTE 11
• ARAL Vitam GF 22
• BP Energol HLP-HM 22
Yukon

13
8 tonne Electric hydraulic Log Splitter Assembly, Installation, Care, Maintenance useage Instruction Manual
7.0 SPECIFICATIONS
7.1. Log Specification & Guide
7.2. Log-Splitter Specification
Square log ends. Logs that are not cut square
can slide out while splitting and become a safety
hazard or cause excessive force to log splitter
components. Use a chainsaw to cut logs square
on each end before attempting to split them into
single logs.
Max Log Size. The diameter of the log is
indicative-a small log can be dicult to split when
is has knots, tough fiber or green. On the other
hand, it may not be dicult to split logs with
regular fibers even if its diameter exceeds the Max
Log size.
Split along grain. Do not use the log splitter to
split logs across the grain. Doing so will damage
the log splitter and could also cause pieces of log
to be thrown, injuring the operator or bystanders.
Warning. Splitting log that are not cut square or
has knots or tough fiber or green or not along the
grain will damage the log splitter which would not
be covered under the manufacture warranty
Model Number HLS80E
Max. Splitting Force 8 Ton
Motor 240V~ 50Hz 2KW IP54 S6 40%
Max. Ram Travel
Feed Time
390mm
10s
Power 2000W
Max. Splitting Length
Max Splitting Diameter
520mm
50-250mm
Wheel Size 8”
Max Splitting Length:
Hydraulic Oil Capacity
520mm
4.2L
The manufacturer reserves the right to make improvements in design and/or changes
in specifications at any time without incurring any obligation to install them on units
previously sold
IMPORTANT
50-250mm520mm
Max Splitting
Length
Max Splitting
Diameter
Yukon

14
8 tonne Electric hydraulic Log Splitter Assembly, Installation, Care, Maintenance useage Instruction Manual
8.0 TROUBLESHOOTING
Problem Probable Cause Suggested Remedy
Power not turn on
Is the log splitter
straight into the power
point or into a power
board/power lead
Make sure the Green
Power Button is held
down.
Is the log with the size
limit for the machine?
Is the handle and safety
switch held down
together
Log is improperly
positioned
Fault motor
Is the log being split
along the grain
Try reposition the logs?
Is the splitting wedge
cutting edge is blunt?
Is the log fiber too hard
for the capacity of the
machine or is the wood
knotty, wet or green?
Fault with the pump or
hydrocoral system
Motor does not
turn on
Fails to split
logs
Make sure the power is turn on at the power point
Plug the log splitter direct into the power point
For Engine to operate. the green power button must be hep down.
Releasing it, will cause the engine to stop.
Please make sure the log is the with the size limit for the machine
Max size is 5 ~ 25cm diameter and 52cm long.
Make sure you are holding down the safety switch and handle together
Make sure log is flat on the bed.
The motor is faulty Please contact the Klika warranty department
Make sure the log is being split along the natural grain in which the tree grow
Reposition the log by turning it around or spinning it 90 deg
If the splitting wedge is blunt it will need to be sharpen
This machine is not designed to split these type of logs. If the fiber of the wood is
to hard wood knotty, wet or green you will need to wait to the wood is older to
split
There is fault with the pump or hydrocoral system Please contact the Klika
warranty department
Yukon

15
8 tonne Electric hydraulic Log Splitter Assembly, Installation, Care, Maintenance useage Instruction Manual
Have you check the oil
levels
Is the item on flat solid
surface?
Is the breather screw
loose
Is the oil coming from
between the hydraulic
pump and the motor
Is the oil coming from
between the motor and
the case iron housing
Is there a hole in the
ram?
Have the breath screw
been undone?
Is there oil mark below
the breather screw?
The log pusher
moves jerkily or
vibrating a lot
Leaking oil
Make sure oil levels are correct
Leaking oil Front of the machine
Leaking oil Front of machine
Place item on flat level surface
Tighten up breather screw
Tighten up the 6 bolts, if it is still leaking from there If still leaking oil O ring be-
tween hydraulic pump and the motor needs to be replaced
Tighten up the 3 bolts, if it is still leaking from there If still leaking oil the 2 O ring
between the motor and the case iron housing needs to be replaced
Please contact the Klika warranty department
Undo the breath screws
Seal on the breather nut is fault and will need to be replaced
Fault with the ram or
hydrocoral system
Is the dip stick loose?
Is there oil mark below
the dip stick?
Is there a hole in the
ram?
Is the oil coming from
the main seal
in-between the ram and
the casting?
There is problem with the pump or hydrocoral system.
Please contact the Klika warranty department
Tighten up dip stick
Seal on the dip stick is faulty and will need to be replaced
Please contact the Klika warranty department
There is a problem with the main seals in-between the ram and casing.
Please contact the Klika warranty department
Yukon

16
8 tonne Electric hydraulic Log Splitter Assembly, Installation, Care, Maintenance useage Instruction Manual
9.0 WARRANTY
• Kmate Pty Ltd provides a 12 month warranty for this
product when used for domestic purposes. Commercial
use of the product will void all warranty.
• The benefits of this warranty are provided in addition to
other rights and remedies you may have under a law in
relation to the goods and services to which this warranty
relates. Our goods come with guarantees that cannot be
excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure and
for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have goods
repaired or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a major failure.
• Before making a claim under warranty, please refer to your
user/installation manual to ensure that you have followed
correct operating procedures of your product, and refer
to the trouble shooting section (if such exists) to assist
solving any problems.
• The warranty period begins from the day of purchase.
• Your proof of purchase must be produced before
assistance will be provided.
• Where the Product is replaced pursuant to this Warranty,
the replacement Product will be subject to the warranty
terms and warranty commencement date of the original
product.
• This warranty is only valid if the product is operated
and maintained in accordance with the manufacturer’s
instructions.
• Damage to property including but not limited to grass,
outdoor areas, outdoor furniture, walls, or any other event
either directly or indirectly are excluded from warranty as
well as any losses or expenses incurred by you in relation
to the product or making a claim under this warranty
including without limitation any costs associated with
installation, reinstallation or transporting the product.
• A claim may be refused if the defective claim has arisen
for reasons other than a manufacturers fault or defective
parts or workmanship. Circumstances in which a warranty
claim may be declined include, but are not limited to the
following:
1. Normal wear and tear
2. Misuse or abuse, including failure to properly
maintain or service
3. Damages caused by improper or incorrect
installation, force-majeure, abnormal outdoor
conditions, inclement weather, lightning etc are not
eligible for warranty repair
4. Insect or vermin infestation; Failure to clean or
improper cleaning and/or operation of the product
5. If the product is modified without authorisation from
Supplier in writing;
Contact Details
Kmate Pty Ltd
PO Box 234, Mount Waverley VIC 3149
Email: [email protected]
Phone: [phone]
Yukon

Yukon
