Yunca Gas LEEDZ Installation guide

25-07-01 Page 1 of 22 Operation Instructions for Leedz Free Standing July 2001.doc
GAS HEATER
July 2001
OPERATIONS, MAINTENANCE
&
WARRANTY INFORMATION

25-07-01 Page 2 of 22 Operation Instructions for Leedz Free Standing July 2001.doc
CONTENTS: PAGE
INTRODUCTION 3
INSTALLATION 4
FLUE INSTALLATION 5
CLEARANCES 6
CONNECTION TO GAS SUPPLY 7
TESTING PRESSURES 8
OPERATION 9
MAINTENANCE 11
FAULT FINDING GUIDE 15
Appendix A
GAS TYPE CONVERSION 18
Appendix B
PARTSLIST 20
Appendix C
INJECTOR SIZES 20
Appendix D
WARRANTY, WIRING DIAGRAM 21
Appendix E
WARRANTY REGISTRATION 22

25-07-01 Page 3 of 22 Operation Instructions for Leedz Free Standing July 2001.doc
INTRODUCTION
Welcome and congratulations on purchasing your YUNCA LEEDZ FLUED GAS
HEATER.
Please read the following carefully before attempting to operate the heater and ensure
all members of your home understand how this elegant and highly efficient heater
functions.
Please fill out and return the registration card promptly.
These instructions should be stored in a convenient safe place for ready reference. If
you have any questions regarding your heater please contact your YUNCA LEEDZ
dealer.
The YUNCA LEEDZ FLUED GAS HEATER is a listed gas-fired, conventionally vented,
room heater tested by independent laboratories to Australian and New Zealand
standards.
The installation of the YUNCA LEEDZ FLUED GAS HEATER must be carried out by a
suitably qualified person and comply with the current New Zealand or Australian
installation code, NZS 5261:1996/ AG 601:1998
CAUTION:This appliance must be flued to atmosphere. Installation and repair of
the YUNCA LEEDZ VENTED GAS HEATER should be done by a qualified person. The
appliance should be serviced at least annually by a qualified service person. Control
valve compartments, burners, fan, and air circulating passageways of the Leedz must
be kept free from any lint and dust build-up to ensure efficient and safe operation of the
heater.
DO NOT PLACE ARTICLES ON OR AGAINST THIS APPLIANCE.
DO NOT USE OR STORE FLAMMABLE MATERIALS NEAR THIS APPLIANCE.
DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS
OPERATIONAL.
To remove internal packaging, refer to page 12 for front door removal.

25-07-01 Page 4 of 22 Operation Instructions for Leedz Free Standing July 2001.doc
INSTALLATION
Considerations
The most desirable and beneficial location for a YUNCA LEEDZ HEATER is in the
centre of a building, thereby allowing the most efficient use of the heat created.
The location of windows, doors and the traffic flow in the room where the heater is to be
located, should all be considered.
If possible a location should be selected that allows the flue pipe to be installed simply
and pass through the house without cutting a floor or roof joist.
To obtain maximum heat distribution with any freestanding heater a ceiling fan can be
fitted.
Another important consideration when installing the Yunca Leedz is availability of power
supply to the fan.
When the appropriate position has been selected the unit can be bolted to the floor to
ensure that the unit remains upright in the event of an earthquake or similar. If the
heater is being attached to a concrete floor dyna bolts should be used, if the floor is
wooden the bolts used should be long enough to go fully through the floorboards and
fixed with nuts and washers from the underside.
The earthquake brackets are located at the rear corners of the heater.

25-07-01 Page 5 of 22 Operation Instructions for Leedz Free Standing July 2001.doc
Typical Flue Installation

25-07-01 Page 6 of 22 Operation Instructions for Leedz Free Standing July 2001.doc
CLEARANCES
The YUNCA LEEDZ FLUED GAS HEATER should be installed with clearances equal to
or greater than those recommended below and comply with NZS 5261/ AG601.
This is to ensure adequate air circulation around the heater and avoid heat damage to
wall coverings.
Note: If walled surface is incombustible i.e. brick or steel, side clearances may be
reduced by 100mm, and the back clearance to a minimum of 75mm. Corner positions
remain the same.
(See Fig. 3 Below)
(Fig. 3)

25-07-01 Page 7 of 22 Operation Instructions for Leedz Free Standing July 2001.doc
CONNECTING THE HEATER TO A GAS SUPPLY.
Burn only the fuel for which the heater is equipped.
The YUNCA LEEDZ may be shipped from the factory equipped to burn Natural Gas,
Propane or L.P.G. The data plate affixed to the back of the heater specifies the gas
type which the heater is factory equipped for. Fuel Conversion Kits, No. LZ-A16 for
natural gas, or Kit No. LZ-A15 for L.P.G. are available from your YUNCA agents.
See Appendix: A for instructions on field conversion from one gas to another. This
conversion can only be done by a suitably qualified person.
Thermostat:
Remove the thermostat sensing bulb through access panel at base of back panel. The
bulb should be placed under the saddle on fan Assembly.
Gas connection:
The gas inlet is located through the back panel, into the base of the control. The inlet
thread is a female 3/8" BSP and is accessed by removing the two inspection covers.
A separate gas isolation valve should be installed immediately up stream of the
connection to the appliance.
WARNING: To stop pipe compounds entering the gas line, do not apply sealing
compounds to the first two threads at the tip of any gas connection. All joints should be
tested for leaks before operating the heater.
GAS PRESSURE REQUIREMENTS
Correct gas pressure and the use of a properly sized gas supply line is essential for the
safe and efficient performance of this appliance. The inlet and outlet pressures at the
control must be tested on installation following the procedure over page.
Note: Improper gas pressure will affect heater performance flame colour or cause pilot
malfunction.
Natural Gas:
Minimum inlet pressure 1.25 KPa (5"w.g.) {For Australia 1.13Kpa}
Maximum inlet pressure 5.0 KPa (20"w.g.) With supplied inline regulator
fitted.
Operating pressure 1.0kPa (4"w.g.) {For Australia 0.8 KPa}
L.P.G. (NZ Only) and Propane
Minimum inlet pressure 2.75 KPa (11"w.g.)
Maximum inlet pressure 3.5 KPa (14"w.g.)
Operating pressure 2.5 KPa (10"w.g.)
CAUTION: Do not use this heater if any part has been under water or exposed to
moisture causing corrosion.
A Qualified service technician should inspect the heater and replace any part of the
gas system that has been under water.

25-07-01 Page 8 of 22 Operation Instructions for Leedz Free Standing July 2001.doc
PRESSURE TESTING:
The pressures listed on the previous page can be tested using a manometer.
To attach manometer, first remove the inspection cover from back panel. The cover is
located directly behind the control and is removed by unscrewing the two top screws.
This will expose the back of the control so manometer tubes can be attached to the
pressure taps as shown below.
The inlet pressure can be adjusted via in line regulators in the supply to the heater, and
the outlet (operating) pressure by adjusting the valves internal regulator. To locate the
valves regulator adjustment screw the plastic control cover must be removed from the
front of the valve. This is done by removing the bottom screw and inserting a small flat
head screwdriver into the slot at the top on the front of this cover and pulling the cover
off.
Refer to fig. 4 below
CONNECTING THE FAN
The fan should be connected to the mains supply (240V 50Hz) via the 3m flex and 3pin
plug provided.

25-07-01 Page 9 of 22 Operation Instructions for Leedz Free Standing July 2001.doc
OPERATION
How To Light Your YUNCA LEEDZ
Refer to Fig 5.
Fig 5: Control Panel.
1. First read all the instructions for the heater.
2. Check that the control knob "A"(Fig 5) is in the off position, the thermostat knob "B" is
turned to its Highest setting (7) and back burner control “C” should be in the off
position.
3. Turn off electric power at the wall.
4. Turn the knob “A” slightly anti-clockwise to stop. Push the control knob "A" fully down
and turn left from OFF to IGN, hold for 5-15 seconds. Continuing to hold down, turn
the knob “A” further anti-clockwise to pilot mark. Observe pilot light by looking
through front door. The pilot light is visible under the left-hand end of the log set.
5. When the pilot is lit, continue pushing in knob for further 20 seconds to allow safety
thermocouple to heat up. Release knob and pilot flame should remain lit. If it goes out
repeat steps 4 and 5
6. The pilot control knob “A” can now be turned fully left to the ON position to light the
front burner.
7. Turn electric power on and the fan to low speed.
8. After the front burner has been on for at about 3 minutes. Turn the back burner on,
by pushing in knob “C” and turning Anti-Clockwise to maximum position.

25-07-01 Page 10 of 22 Operation Instructions for Leedz Free Standing July 2001.doc
Allow both burners to run for 30 minutes to bring the room up to temperature.
9. Turn the back burner off.
10.Adjust the thermostat down, to the front burner turns off. Note the thermostat
number and turn up by ½ to1 ½ a thermostat number till the front burner turns on.
11.Leave the fan on. Note Fan can be turned off, Higher efficiency is achieved with
the fan running
To further increase the room temperature follow the following steps:
1st Turn the fan on to high speed.
2nd Turn the thermostat up one number.
3rd Turn the secondary burner on to minimum.
4th turn the secondary burner up to maximum.
Note: Various combinations of the settings of knobs “B” and “C” will provide different
heat settings and flame effects.
The first few times that the heater is lit it should only be running for about twenty
minutes. And then allowed to cool. This will eliminate damage to paints and
reduce the smoke and odour caused by burning off of manufacturing oils etc.
HOW TO TURN OFF THE HEATER.
1. If the thermostat, knob “B”, has been in use turn it to its lowest position.
2. Turn the rear burner control, knob “C”, to the off position.
3. Turn off the electrical power at the wall.
4. Push in the pilot control knob “A” and turn it clockwise to off.
Note: the knob cannot be turned from “pilot” to “off” unless it is pushed in slightly.
Do not force it.

25-07-01 Page 11 of 22 Operation Instructions for Leedz Free Standing July 2001.doc
MAINTENANCE
A qualified service person recommended by your YUNCA dealer should conduct an
annual inspection and undertake any maintenance required on your LEEDZ. Its venting
and installation must be checked to keep it running safely and efficiently. The following
procedures should be performed only by a qualified service person. The gas supply and
electrical power should be isolated whenever any maintenance procedures are
undertaken.
Note: the door can only be removed after the heater has been turned off for long
enough so that the door has cooled to touching temperature.
Removing The Front Door
1. First the side panels must be removed, to do this grip panel at its base and pull out.
The panel should be swung out to about 30 degrees and then pulled down to release
the locating pins in its top.
2. This will expose the restraining latches at each side. To open these latches lift the
butterfly grip forward and twist it through 180 degrees.
3. The front door can now be removed by griping it by its back bottom corners and
pulling it straight back and out.
Note: It is important not to spread the sides out any further than is necessary to
remove door, as this may damage the doors enamel coating
Removing The Glass For Replacement.
1. Remove the front door as described above, and place front down on a soft surface.
2. Remove the two side glass retainers by taking out the three bolts in each one.
3. Remove the bottom front glass retainer by taking out the four screws along the base
of the door.
4. To remove the front glass place one hand under it and lift it up and out of the
doorframe.
5. Remove the side glasses
6. New glass with gasket attached can be ordered through your YUNCA LEEDZ agent.
Note: Only recommended heat resistant glass may be fitted.
7. Place replacement glass in position in the reverse order of removal, i.e. Side glass
should be placed in position before front glass.
8. Replace side and bottom glass retainers with their respective bolts and screws.
Note: Tighten the screws and bolts alternately, do not over tighten to avoid damaging
glass.

25-07-01 Page 12 of 22 Operation Instructions for Leedz Free Standing July 2001.doc
REPLACING THE GASKET.
The YUNCA LEEDZ has a 10mm fibreglass gasket surrounding the front door. Should it
ever need replacement, use only the replacement gasket that is available from your
YUNCA dealer. The reference number for this is listed in the parts list.
Procedure.
1. Remove the front door as described on previous page.
2. Remove the existing gasket and clean the channel of all loose material.
3. Lay a thin bed of gasket cement around the length of the channel.
4. Lay the gasket in the channel.
5. Replace the door carefully to avoid dislodging the gasket.
Cleaning The Glass
The glass may be cleaned with ordinary household glass cleaner and a soft cloth or
paper towel.
Note: Never clean the glass when it is hot. Do not use abrasive cleaners on the
glass.
CLEANING THE LOG SET AND FIREBOX.
During the annual inspection and maintenance appointment, the service person should
clean dust, lint and any light soot accumulation from the logs and the firebox area. An
extra soft brush should be used on the logs, as they are extremely fragile. If at any time
the logs cannot be removed or installed without force, the cause must be found. The
logs must never be forced.
Procedure,
1. Remove front door as described on page 11.
2. Remove the complete log set from the firebox by lifting it up and out. Brush it gently
over a newspaper and carefully place it out of the way.
3. The bark tray can be removed by lifting its feet over the bottom gasket retainer and
pulling it straight out, with the bark still on it.
4. The bark consists of a mixture of vermiculite and composite chips and it can be
dusted by sieving. If needed a replacement bag can be ordered through your YUNCA
dealer.
(See parts list for reference number)
5. With firebox empty a vacuum cleaner can be used to remove any visible dust and lint
from within the firebox area.
6. Replace the bark tray.
7. Replace log set and redistribute bark.
8. Replace and relatch the front door and close the side panels.

25-07-01 Page 13 of 22 Operation Instructions for Leedz Free Standing July 2001.doc
CLEANING THE TOP AND LOUVRES
The top panel is held in place by four retaining clips, two on the back panel and one on
each side. The top panel should only be removed with the side panels closed.
Note: If a flue guard kit has been fitted this will need to be removed at this stage. This is
done by sliding the front half up and out and unscrewing the back half from its brackets.
The top panel can be lifted up off the retaining clips, this will take a moderately strong
pull.
Slide the top panel up the flue until there is sufficient space to vacuum any dust and lint
that may be lying under the panel.
This is also a good time to wipe the front louvers with a soft cloth.
INSPECTING THE VENTING
An inspection of the venting system should be made during the annual service
appointment. There must be no blockages and the flue must be in good repair. Any
sections that are taken apart for inspection must be reassembled and sealed as
required.
CLEANING THE FAN FILTER
This is the one maintenance procedure designed to be carried out by the householder.
It can be cleaned with a brush or vacuum cleaner, and replaced.

25-07-01 Page 14 of 22 Operation Instructions for Leedz Free Standing July 2001.doc
HOW TO REMOVE FAN
The fan unit is designed to be removed as an assembly.
The procedure for this is as follows.
1. Turn off and unplug power to unit.
2. Take out four screws that attach the fan-mounting bracket to the base.
3. Reach inside the plinth and disconnect the wiring from the switch, taking note of
terminal placement. A wiring diagram appears at the back of this manual.
4. The earth wire must be unplugged and the plastic conduit adapter removed from its
retaining bracket.
5. The fan unit will now slide out of the back of the heater.

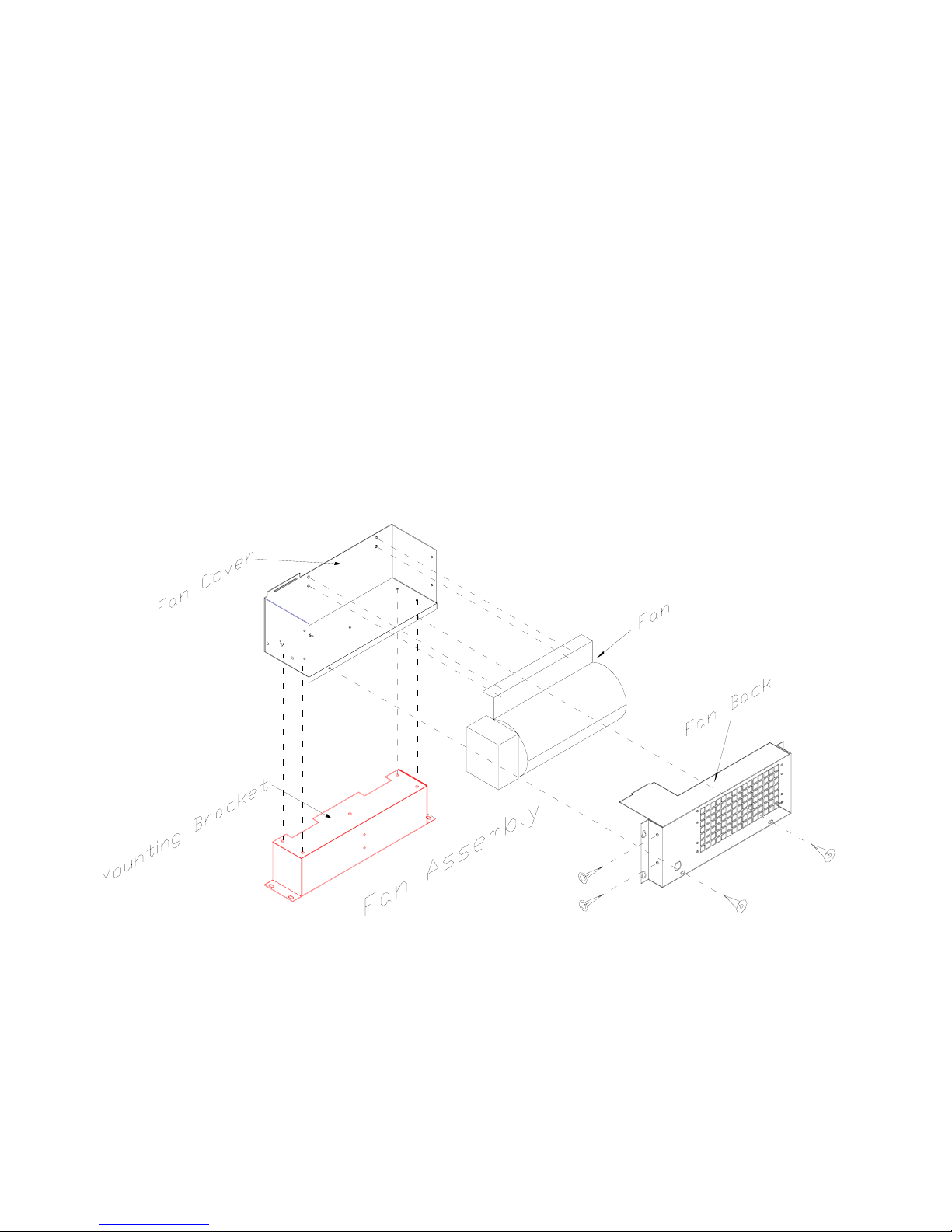

6. When the fan has been removed it can be disassembled as shown below if needed.

25-07-01 Page 15 of 22 Operation Instructions for Leedz Free Standing July 2001.doc
Fault Finding:
SYMPTOM
PROBLEM CORRECTIVE
Pilot Will Not
Light.
No spark at pilot
burner.
Spark gap is incorrect.
No gas at pilot burner
No Supply Gas.
Check connection between
electrode in pilot assembly and
lead from control. Press connection
hard together.
Replace the pilot assembly if
ceramic insulator is cracked or
broken
Spark gap should be 3-4mm
between the electrode tip and the
pilot flame hood.
Check that isolating valves are
turned on and gas is available.
Check pilot hood for blockage
Remove pilot jet and blow clean.
The jet is located inside the base of
the pilot burner and is removed by
disconnecting the gas to the pilot
and removing the brass nut from
the base of the burner. Jet will fall
out.
Check for any obstructions in the
gas line that may cause low
pressure or restrict flow.
Purge gas lines.
L.P.G. -- Refill tank
Natural -- Check with gas supplier.

25-07-01 Page 16 of 22 Operation Instructions for Leedz Free Standing July 2001.doc
Soot is being
deposited on
glass or logs.
There is insufficient
secondary air in the
combustion chamber.
The logs are not
properly
positioned.
Incorrect gas
pressures.
Check the back of the heater for
blockages around the air intake
slots.
Check that the clearances around
the heater match those stated in
this manual.
Ensure that the front log set is
sitting flat with no bark chips under
it and that the locating pins are in
their holes.
Check that the back log is sitting on
its brackets.
Check and set gas pressure to
manufacturers specifications.
Main burners
extinguishing.
Flue down draughting.
Flueway blocked
Pilot flame is not large
enough.
Severe down draught.
This is caused by a vacuum in the
room.
Turn off heater. Turn off all air
conditioners, expelair fans, other
heaters etc. Open doors and
windows to allow pressure to
equalise. Re-light heater.
Close doors and windows but not
completely.
Remove blockage.
Check that pilot assembly is
correctly mounted and that the pilot
burner flame hood directs the pilot
flame over both burners and the
thermocouple.
If the flame pattern is disturbed
during extreme winds then ensure
a recommended flue cowl has
been fitted and is still in place.

25-07-01 Page 17 of 22 Operation Instructions for Leedz Free Standing July 2001.doc
Pilot will not stay
lit
Incorrect operation.
Weak or improperly
located pilot flame.
Thermocouple not
properly connected.
Defective
thermocouple.
Faulty control valve.
Operator not following correct
lighting procedure, see lighting
instructions.
Adjust the height of the
thermocouple
(using the brass nut at its base)
The flame should engulf the top
8mm of the thermocouple.
Check back of main control where
thermocouples copper tube enters
the control. Tighten brass collar nut.
Replace thermocouple
A new thermocouple may be
ordered through your YUNCA agent.
(See parts list.)
A replacement may be fitted by a
suitably qualified service person.
(See parts list).
Pilot burning no
gas to burners
Burner injectors may
be blocked.
Faulty control
Disconnect gas supply at burners
and unscrew brass injectors from
end of burner. Use compressed air
to clean out orifice.
Control requires replacement.
Back burner
stays on when
switched to off
position.
Build up on the control
valve.
Disassemble the control valve by
removing the two screws below the
cover. Extract the control valve, note
the position. Clean the control valve
clean and re-assemble. Test
operation.

25-07-01 Page 18 of 22 Operation Instructions for Leedz Free Standing July 2001.doc
APPENDIX A:
GAS TYPE CONVERSION
If at any stage the heater is required to run on a gas other than that which it was factory
equipped a conversion kit can be ordered through your YUNCA dealer, see parts list for
reference number.
The conversion should be done by a suitably qualified person.
Step 1. Isolate the heater from the gas supply
2. Remove the front door as described on page 11
3. Remove the log set assembly and bark tray.
4. Disconnect the burners from their supply pipes.
5. Unscrew the brass injector holders from the burner frame.
6. The brass injectors are threaded into the end of the injector holders, they
can be removed with a 7mm spanner, and the new injectors fitted.
An approved sealing compound should also be used.
7. The burner module can be unscrewed, it is held in place by three screws
located between the burners.
8. The pilot assembly must be removed from the burner module. To do this undo
the screw on the left-hand end of the burner support bracket and slide the pilot
assembly down. The two screws that attach the pilot assembly are now
accessible under the front burner, remove these screws.
9. It is now possible to remove the entire main burner module.
10. This will expose the pilot assembly and make it possible to disconnect the gas

25-07-01 Page 19 of 22 Operation Instructions for Leedz Free Standing July 2001.doc
supply to the pilot burner
11. When the brass nut is removed from the base of the pilot burner the pilot jet
will drop out. Insert new pilot jet from conversion kit ensuring the chamfered
end is facing upwards.
12. The gas can now be reconnected to the pilot and the burner module replaced
and reconnected.
13. When changing from N.G. to LPG, the in line restrictor, located in the rear
burner pipe where it attaches to the control, must me removed. When
changing from LPG to NG, this restrictor must be placed in rear burner pipe at
the control.
14. The brass reducer that couples the front burner pipe to the control must also
be changed and the reducer supplied with kit fitted.
15. Test all connections for gas tightness and replace logs and door.
16. Update or replace appliance data plate for new specifications and gas type.

25-07-01 Page 20 of 22 Operation Instructions for Leedz Free Standing July 2001.doc
APPENDIX B:
PARTS LIST:
PART NO. PART NAME
LZ-G01 Mertik gas control
LZ-2011 Burner module
6601 Rear Burner - SIT W-351120
E 7 Front Burner -Furi316
LZ-G03 Pilot assembly
LZ-G04 Electrode
LZ-G05 Thermocouple
LZ-G07 Pilot pipe assembly
LZ-G08 Front burner pipe assembly
LZ-G09 Rear burner pipe assembly
LZ-G10 Adjustable N.G. inline regulator
E 14 Otago Bay Log Set assembly
LZ-G17 Bag of vermiculite
LZ-B11 Door gasket
LZ-B25 Front glass
LZ-B26 Side glass
1950 Booster fan assembly
1955 Rocker switch
8800LF2R Right side panel (state Colour)
8800LF2L Left side panel (state Colour)
8300LF2 Top panel (state Colour)
8900LF2 Main door (state Colour)
LZ-A15 L.P.G. conversion kit
LZ-A16 Natural gas conversion kit
LZ-A17 Propane conversion kit
LZ-A08C Enamelled combustion wrap
APPENDIX C
INJECTOR SIZE:
GAS TYPE FRONT BURNER BACK BURNER
NATURAL
2.3mm diameter 2.8mm diameter
L.P.G. (NZ only)
1.15mm diameter 1.15mm diameter
PROPANE NZ
Australia
1.20mm diameter
1.1mm diameter
1.20mm diameter
1.1mm diameter
