Z-EDGE UG34 User manual

Model: UG34
Instruction Manual
34" LED GAMING
MONITOR
Please read this manual thoroughly before use and keep it handy for future reference

SAFETY INFORMATION
•Read these instructions - All the safety and operang instructions should be read before this
product is operated.
• Keep these instructions - The safety and operang instrucons should be retained for future
reference.
• Heed all warnings - All warnings on the appliance and in the operang instructions should
be adhered to.
• Follow all instrucons - All operang and usage instrucons should be followed.
• Do not use this equipment near water, or in humid environments – The appliance should not be used
near water or moisture e.g. in a wet basement or near a swimming pool.
• Clean only with a dry cloth. Do not use solvents or petroleum based fluids.
• Do not block any venlaon openings.
• Do not install near any heat sources such as radiators, stoves or other apparatus (including
amplifiers) that produce heat.
•Do not tamper with the supplied plug. This plug is a BS1363 standard plug.
• Protect the power cord from being walked on or trapped, parcularly at the plug and at the point
where it exits from the appliance.
• Only use aachments/accessoriesspecified by the manufacturer.
• Use only with a cart, stand, tripod, bracket or table specified by the manufacturer or sold with the
apparatus. When a cart or stand is used, use cauon when moving it to avoid any injuries or
damage from it pping over.
• Unplug the apparatus during lightning storms or when unused for long periods of me.
• Refer all servicing to qualified personnel. Servicing is required when the apparatus has been
damaged in any way, such as if the power supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus or it has been exposed to rain or moisture, it does not operate
normally or has been dropped.
• Please keep the unit in a well-venlated environment.
• The monitor should only be connected to a mains power supply as rated on the back of the equipment.
• To prevent overload, do not share the same power supply socket with too many other electronic
components.
• Do not place any connecng wires where they may be stepped on or tripped over.
• Do not place heavy items on the cable as this may cause damage.
• When removing from a socket hold by the plug and not the wires.
• Disconnect the power immediately and seek professional help if the plug or cable is damaged, liquid
has spilt onto the set, if accidentally exposed to water or moisture, if anything accidentally penetrates
the ventilaon slots or if the set does not work normally.
• Do not remove the safety covers. There are no user serviceable parts inside.

Trying to service the unit yourself is dangerous and may invalidate the product's warranty. Only
qualified personnel should service this apparatus.
• Do not block ventilation slots on the back cover. The monitor can be placed in a cabinet but ensure at
least 5cm (2") clearance all around. Do not tap or shake the screen, this may damage internal
components.
• WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
The apparatus shall not be exposed to dripping or splashing and objects filled with liquids, such as
vases, shall not be placed on the apparatus.
• WARNING: The wall plug socket is used as a disconnecon device and should remain readily
accessible.
• WARNING: The baeries shall not be exposed to excessive heat such as direct sunlight or fire.

WHAT’S INCLUDED

CONNECTIONS AVAILABLE ON THE MONITOR
DC 12V USB HDMI 2 HDMI 1 DP AUDIO OUT
WALL MOUNTING
The monitor is provided with mounting holes for a VESA approved wall mounng bracket (not
supplied).
The VESA mounting paern is: 100x100mm and the size of the screws is 4 x M6 x 10 (not supplied) Do not
use screws longer than specified or damage will occur to the internal components.
NOTE: As the monitor is considered heavy, please consult with a professional wall mount installer to perform
the installaon.
HDMI 2 (HDMI 1.4,WQHD 60Hz FreeSync)
HDMI 1 (HDMI 2.0,WQHD 100Hz FreeSync)
DP (DlsplayPort1.2,WQHD 100Hz FreeSync&G-sync)
AUDIO OUT
Power
USB (Firmware updates)
GETTING STARTED
MONITOR CONTROLS

Shortcut Key Guide
Ac vate the Signal Input Selec n menu.Use◄and ►to navigate and M to select the source.
Ac veate the Line of Sight feature. Further press to cycle between the colors or turn off.
Ac veate the ECO Mode feature.Further press to cycle through the presets.
INITIAL SETUP
Connect the monitor to a power outlet.
1. Press the POWER button on the monitor or to turn it on (The indicator will be blue).
2. Connect the relevant cable to the corresponding input on the monitor. The source will be
automatically detected.
3. To change between inputs, press the “Source” bu on to enter the source menu. Use the
“◄”and“►” bu ons to choose the input source between Auto Select, HDMI1,HDMI2 and DP.
MENU OPTIONS
The menu for the monitor can be accessed by pressing the menu button on the control panel. This menu is
separated into the following sub menus: Picture Se ings, Image Settings, Colour Temperature, OSD Se ings,
Reset, and Miscellaneous options, details of each menu can be found in the following sec on.
HDMI1
DP
HDMI2

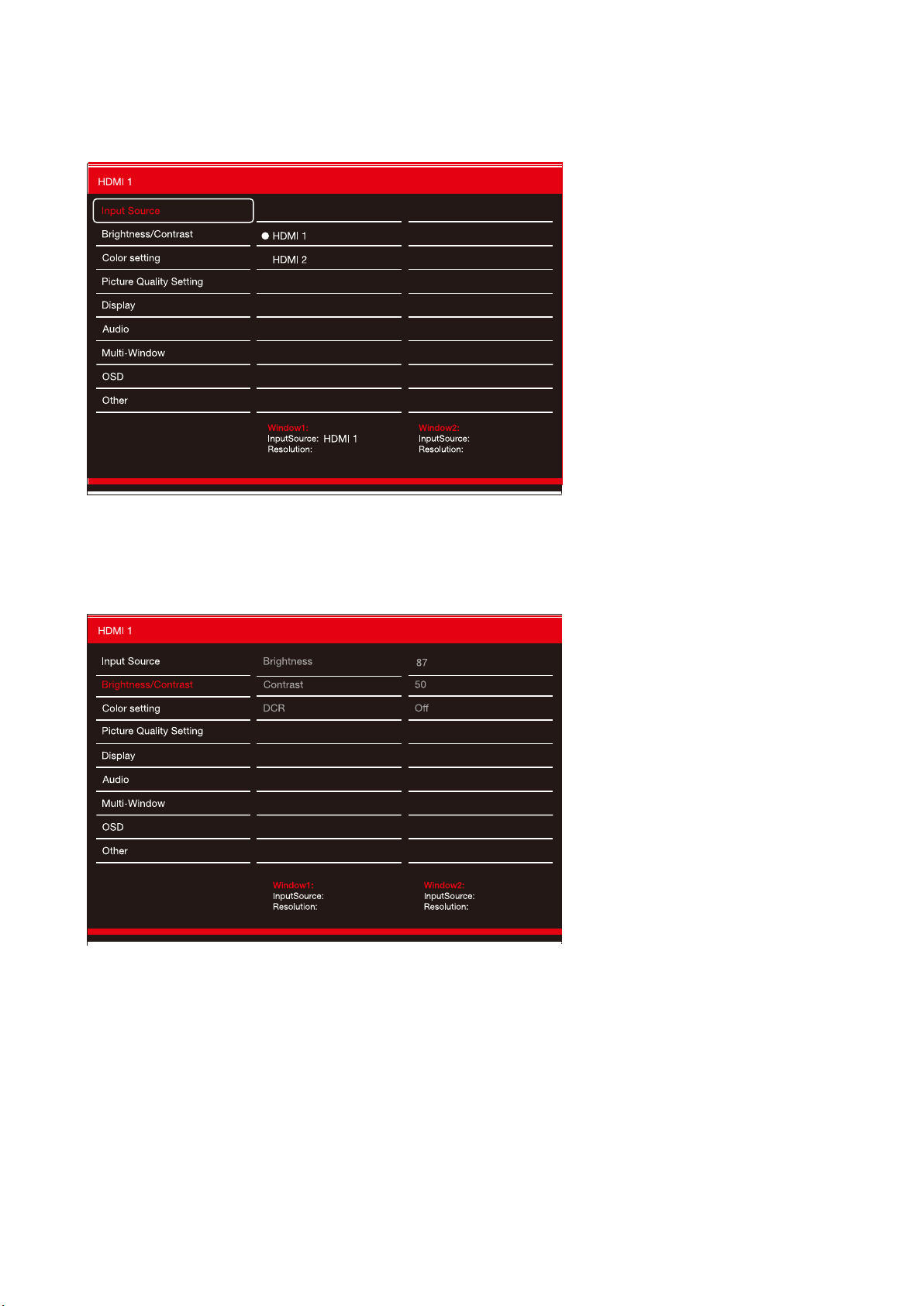

OSD MENU
Brightness/Contrast
Imput Source
Brightness: change the brightness value from 0 to 100.
Resolution: 3440x1440@100Hz
DP
3440x1440@100Hz
Resolution: 3440x1440@100Hz
3440x1440@100Hz
HDMI1
Contrast: Change the contrast rao from 0 to 100 .
DCR : Turn the Dynamic Contrast Rao by on or off.
Switch the signal input to DisplayPort,HDMI1,HDMI2.

Color Seng
Gamma: Change he gamma value to 1.8/2.0/2.2/2.4/2.6.
Picture M ode: Change the picture mode to Standard/photo/movie/ game.
Color T emper ature: change the color temperature to Standard/warm/cool/user.
Hue: change Hue value from 0 to 100.
Saturaon: Change the color saturaon value from 0 to 100 .
Low blue light: Change the LBL value from 0 to 100 .
Picture Mode
Low Blue Light
2.2
Standard
Warm
50
50
0
Resolution: 3440x1440@100Hz
3440x1440@100Hz
HDMI1
Picture Quality Seng
Sharpness: change the sharpness vlaue from 0 to 100.
Response time: adjust the response time by High/middle/low.
Noise Reduction: adjust the noise reduction by High/Middle/Low.
Super Resolution: adjust the Super Resolution by Hight/Middle/Low.
Dynamic Luminos Control: adjust the DLC by On/Off.
Sharpness
Dynamic Luminous Control
Off
50
Off
Off
Off
Noise Reduction
Resolution: 3440x1440@100Hz
3440x1440@100Hz
HDMI1

Display
Aspect Rao: Adjust the Aspect raon by Auto/ 4:3 /1:1.
Audio
Mute: Turn on or offto mute the Audio source.
Volume: Change the Audio source value from 0 to 100 .
Mute Off
50
Resolution: 3440x1440@100Hz
3440x1440@100Hz
HDMI1
Wide Screen
Resolution: 3440x1440@100Hz
3440x1440@144Hz
HDMI1

Mul-window
Mul-window: adjust the mul-window to off/ PIP/ PBP.
OSD
Language: Adjust the language to Chinese, English, Korean, Russian, Spanish, Japanese,French.
H-posion: change the horizontal posion from 0 to 100.
OffMultl-Window
HDMI2(1.4)
Mediun
TopRight
Resolution: 3440x1440@100Hz
3440x1440@100Hz
HDMI1
OSD H-Position
OSD V-Position
OSD Time Out
50
50
20
20
Normal
Resolution: 3440x1440@100Hz
3440x1440@100Hz
HDMI1
V-posion: Change the vercal positon from 0 to 100.
Transparency: Change the transparency value from 0 to 100.
Time out: Change the How long the OSD menu is on before it automacally exits .
Rotaon: Cha nge the rotaon of OSD as Normal /90º/180 º/270 º.

Other
FreeSync(Adapve Sync): Turn on or offFreeSync (Adapve Sync).
HDR: Turn of or offHDR funcon.
MPRT: Turn on or offMPRT funcon.
Firmware update: Update Firmware by USB port.
Reset : Return to factory mode.
FreeSync (Adaptive Sync)
Firmware Update
MPRT
Reset
Off
Off
Off
Resolution: 3440x1440@100Hz
3440x1440@100Hz
HDMI1

SPECIFICATION
Model UG34
Screen Size 34”
Aspect Ra o 21:9
Backlight LED
Brightness
300cd/m²
Panel Type VA
Resolu on 3440x1440
Refresh Rate 100Hz
Response Time MPRT 1ms
Viewing Angle 178º/178º (CR>10)
Contrast Ra o 3000:1
VESA Moun ng 100x100mm
Colours 1.07B(10bit)
AMD FreeSync Yes
G-Sync Yes
HDR HDR10
Signal Input HDMIx2+DPx1+USB
Audio out
Speakers 2x2W
Cables
Power Cable Yes
Input Cable HDMI2.0
Addi onal Func ons
Low Blue Light Yes
Flicker Free Yes
Power
Consump on Typical 50W
Power Type 12V,5A
