Z GRILLS ZPG-450A User manual

VN082020
WOOD PELLET GRILLS
ZPG-450A/ZPG-450APro
OWNER’S MANUAL
MON TO FRI, 8:00 A.M. - 5:00 P.M. PACIFIC STANDARD TIME
SERVICE CONTACT: 1-833-947-4557/1-833-ZGRILLS
EMAIL: [e-mail]
WEBSITE: www.zgrills.com

1
CONTENTS
IMPORTANT SAFETY INFO
3
COMPONENT LIST
6
ASSEMBLY INSTRUCTIONS
8
INITIAL FIRING INSTRUCTIONS
15
SUBSEQUENT START-UP
16
OPERATING TIPS
17
MAINTENANCE & CLEANING
18
TROUBLESHOOTING
20
DIGITAL THERMOSTAT CONTROL WIRING DIAGRAM
22
Z GRILLS SUPPORT
23
3-Y LIMITED WARRANTY
24

2
SAVE THIS MANUAL FOR FUTURE REFERENCE

3
IMPORTANT SAFETY INFO
GENERAL WARNINGS
Please read this entire manual before installation and use of the pellet fuel-burning
appliance. Failure to follow these instructions could result in property damage, bodily
injury or even death.
Contact local building or fire officials about restrictions and installation inspection
requirements in your area.
This grill is for outdoor use only. DO NOT use it in any enclosed area.
DO NOT store or use combustible materials or liquids near this appliance.
Keep children away while it is in use.
Maintain a safe distance between your grill and any combustible material.
DO NOT move your grill while operating or while it is hot. Wait until the grill is
completely cold.
If a grease fire occurs, turn “off”and leave lid closed until the fire is extinguished. DO
NOT unplug the power cord. DO NOT throw water on it. DO NOT try to smother the
fire.
Clean and maintain your grill after each use.
DO NOT use your grill on rainy days.
DO NOT touch any part of your grill while it is hot. Serious bodily injury could result.
We suggest the use of heat-resistant gloves when operating this grill.
We suggest that you should wrap the Grease Drain Pan with heavy-duty aluminum
foil before using because it is easy to clean.
For convenient and safe assembly, use at least two people to assemble the grill.
Make sure the power cord is disconnected before performing any service or
maintenance.

4
DO NOT place anything heavy on top of hopper lid. It is not a shelf and is a tip hazard.
Never use gasoline, gasoline-type lantern fuel, kerosene, charcoal lighter fluid, or
similar liquids to start or ‘freshen up’ a fire in this appliance. Keep all such liquids
well away from the appliance when in use.
Do not use accessories not specified for use with this appliance.
NOTE: A MAJOR CAUSE OF FIRES IS FAILURE TO MAINTAIN REQUIRED
CLEARANCES (AIR SPACES) TO COMBUSTIBLE MATERIALS. IT IS OF
UTMOST IMPORTANCE THAT THIS PRODUCT BE INSTALLED ONLY IN
ACCORDANCE WITH THESE INSTRUCTIONS.

5
PELLET RESTRICTIONS
This grill is designed for use of wood pellets only designed for burning in wood pellet
grills. Do Not Use Pellet Fuel Labeled As Having Additives.
We suggest that you use Z GRILLS BBQ WOOD PELLETS, which are specifically
made to work in our grills. There is no guarantee that other brands of pellets are
suitable for use in Z GRILLS. And Z GRILLS assumes no liability for any loss, damage
or injury caused by the use of any other brands of pellets.
Always keep the Pellet Hopper dry, the wood pellets will expand greatly, break apart
and even jam the feed system if the pellets get wet or are exposed to high humidity.
CARBON MONOXIDE WARNING
Follow these guidelines to prevent this colorless, odorless gas from poisoning you,
your family or others.
Know the symptoms of carbon monoxide poisoning: headache, dizziness, weakness,
nausea, vomiting, sleepiness, and confusion. Carbon monoxide reduces the blood’s
ability to carry oxygen. Low blood oxygen levels can result in loss of consciousness
and death.
See a doctor if you or others develop cold or flu-like symptoms while cooking or in
the vicinity of this appliance. Carbon monoxide poisoning, which can easily be
mistaken for a cold or flu, is often detected too late.
Alcohol consumption and drug use increase the effects of carbon monoxide
poisoning.
Carbon monoxide is especially toxic to mother and child during pregnancy, infants,
the elderly, smokers, and people with blood or circulatory system problems, such as
anemia, or heart disease.

6
COMPONENT LIST
ITEM
QTY
DESCRIPTION
ITEM
QTY
DESCRIPTION
1
2
Hinge Assembly
24
1
Hopper Lid Handle
2
2
Pin
25
2
Wheels
3
1
Fan
26
1
Firepot Welding Assembly
4
1
Lid
27
2
Axle Bolt
5
1
Name Plate
28
1
Wheeled Leg Base
6
1
Lid Handle
29
1
Footed Leg Base
7
1
Grill Chamber Assembly
30
1
Heat Baffle
8
1
Hopper Assembly
31
1
Grease Drain Pan
9
1
Chimney Cap Assembly
32
1
Porcelain Grills
10
1
Smoke Stack Assembly
33
1
Warming Rack
11
1
Smoke Stack Gasket
34
1
Hopper Bottom Cover
12
1
RTD Temperature Probe
35
1
Hopper Guard
13
2
Foot Pad
36
1
Hopper Shell
14
1
Front Shelf Left Bracket
37
1
Cable Box
15
1
Hot Rod (Ignitor)
38
1
Power Cord
16
1
Feeder Assembly
39
1
Digital Control
17
1
Front Shelf Right Bracket
40
1
Auger Drive Motor
18
1
Front Table
41
1
Auger Nylon Ring
19
1
Grease Bucket
42
1
Auger
20
2
Leg A
43
1
Hopper Handle
21
2
Leg B
44
1
Hopper Lid
22
1
Side Table
45
1
Insulation
23
1
Cable Clip
46
1
Heat Insulation Foam

7

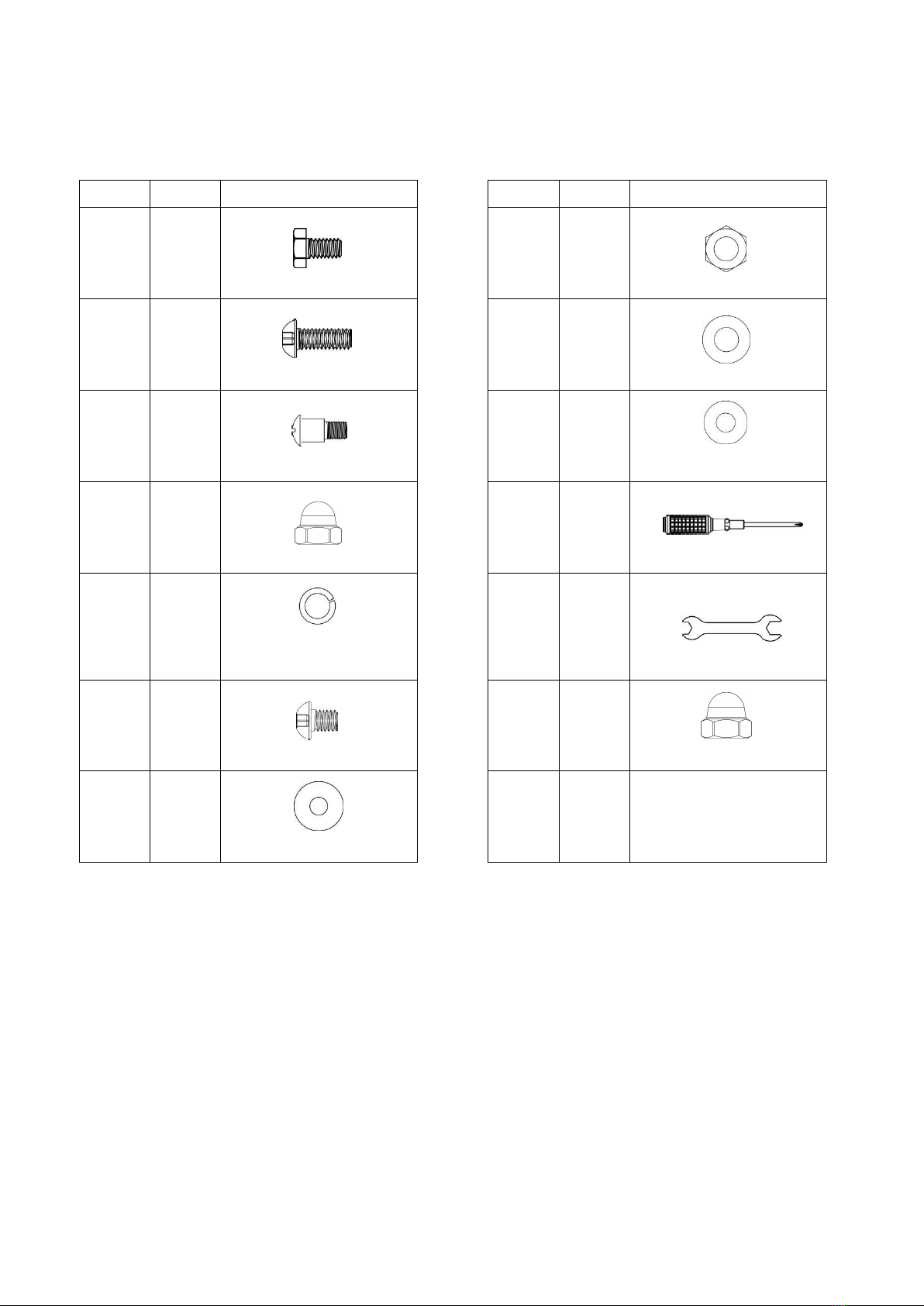

HARDWARE PACKAGE LIST
ITEM
QTY
DESCRIPTION
ITEM
QTY
DESCRIPTION
A
4
Hexagon Bolt 1/4-20×1/2
H
2
Hexagon Nut 1/4-20
B
36
Bolt 1/4-20×1/2
I
2
Gasket (OD0.75×ID0.4)
C
4
Step Screw 1/4-20
J
24
Gasket (OD0.6×ID0.25)
D
4
Cap Nut 1/4-20
K
1
Screwdriver
E
28
Spring Washer
(OD0.4×ID0.25)
L
2
Open End Wrench
F
2
Bolt 8#-32×4/17
M
2
Cap Nut 5/16-18
G
4
Gasket (OD0.73×ID0.25)

8
ASSEMBLY INSTRUCTIONS

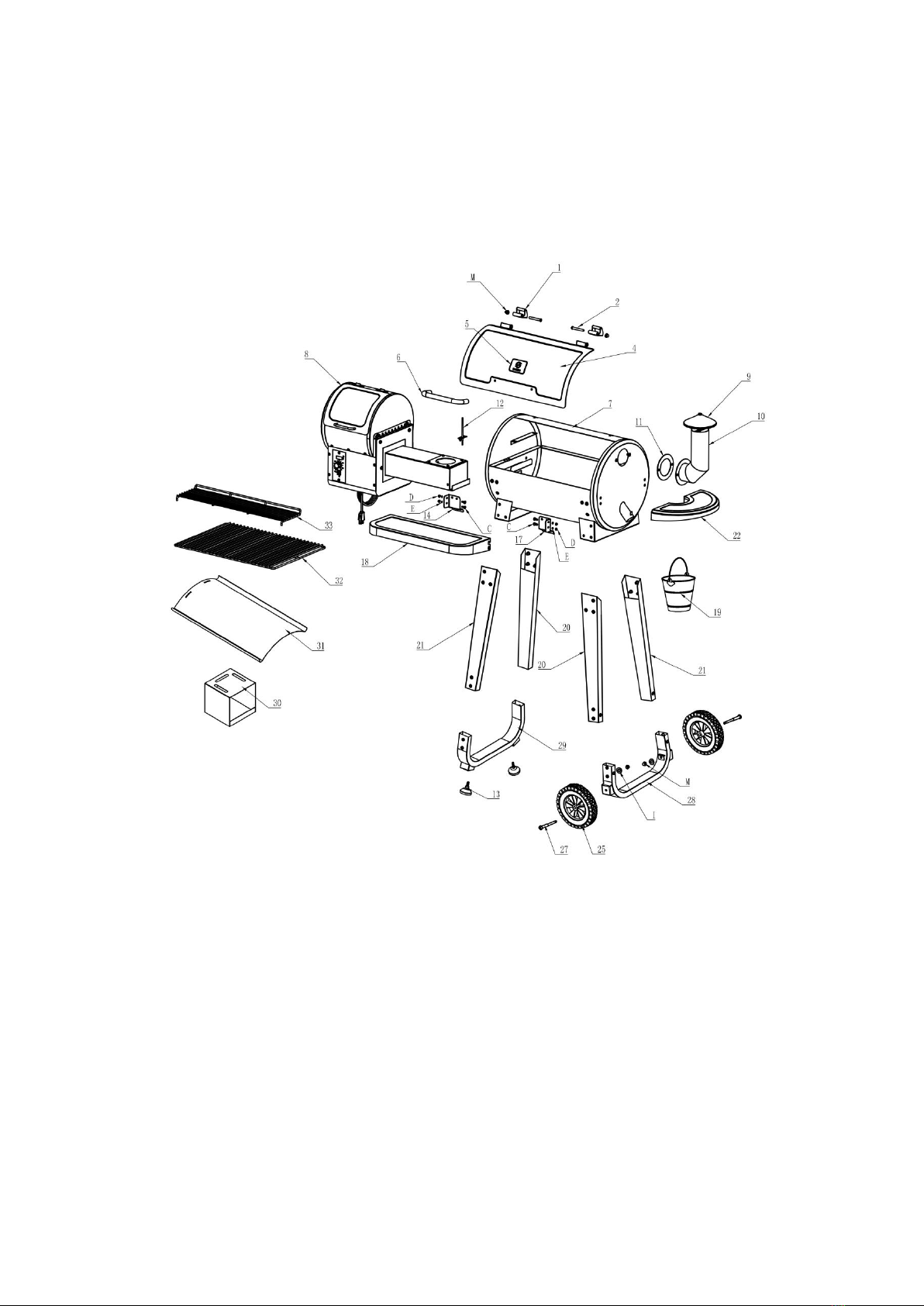

PARTS DIAGRAM

9
HOPPER BURNER ASSEMBLY
BODY FRAME ASSEMBLY
1. Attach 2pcs Leg A B (20) (21) to the Leg Base (28) (29) with Bolt (B), Spring Washers (E),
Flat Gasket (J) orderly.
2. Insert Axle Bolt (27) through the hole in Wheel (25) and Wheeled Leg Base (28).
3. Place Gasket (I) onto Axle Bolt (27) and secure with Cap Nut (M). Tighten with Wrench
(L).

10
1.MOUNTING THE BODY FRAME TO THE CHAMBER
Turn the Grill Chamber Assembly (7) over, attach the Wheeled Leg Assembly and the
Footed Leg Assembly using Bolts (B), Spring Washers (E), Gaskets (J) as shown. Use the
Screwdriver (K) to tighten.
2.INSTALLING CHAMBER HANDLE TO LID
1. With the Lid (4) open, insert 2 Hexagon Bolts (A) through Flat Gaskets (G) and Lid (4)
and into Lift Handle (6).
2. Using Wrench (L) tighten Hexagon Bolts (A). Be careful not to over tighten Bolts (A).

11
3.ATTACHING HOPPER HANDLE TO HOPPER LID
Keep the Hopper Burner Lid (44) open. Penetrate the Bolt (F) into the hole on the Hopper
Burner Lid (44), then install the Hopper Lid Handle (24) by screwdriver.
4.ATTACHING THE SMOKESTACK AND CHIMNEY CAP
Place Bolt (A) through the holes of Smokestack (10) and the holes of Smokestack Insulation
(11), attach two Bolts (A), then attach Gasket (G) and Nuts (H), using the Wrench to tighten
them.

12
5.ATTACHING LATERAL FLAT PALLET AND FRONT FLAT PLATE
1. Insert 3 Bolts (B) through the Left Front Table Bracket (14) and into the Grill Chamber
Assembly (7).
2. Insert the Step Screw (C) through the Left Front Table Bracket (14) and Spring Washer
(E), attaching the Cap Nut (D) then using the Screwdriver (K) and Wrench (L) to tighten
them.
3. Repeat Steps 1 and 2 for Right Front Table Bracket(17).
4. Insert the Bolts (B) through Hopper Handle (43). Tighten with the Screwdriver (K). Insert
the Bolts (B) through the holes on the end of the Hopper Assembly (8).
5. Insert 2 Bolts (B) through the holes on the right side of the Grill Chamber Assembly (7)
and into the holes on the Side Table (22). Tighten with Screwdriver (K).
6.ATTACHING HEAT BAFFLE
Attaching the Heat Baffle (30) on the Firepot.

13
7.POSITIONING THE GREASE DRAIN PAN
Place the Grease Drain Pan (31) on the Pan Support in the Grill Chamber Assembly (7) The
2 slots in the Grease Drain Pan (31) should fit over the corners of the Pan Support.
8.ATTACHING COOKING GRATE AND WARMING RACK
Attaching the Porcelain Cooking Grate (32) and Warming Rack (33) in the chamber.

14
9.HANG ON THE GREASE BUCKET
Locate the Grease Drain Tube which is on the right side of the chamber. Hang
the Grease Bucket (19) on the hook as shown.

15
INITIAL FIRING INSTRUCTIONS
Please read this manual carefully and follow it step by step before starting your
Z Grills for the first time and each time the grill runs out of pellets.
1.Remove the Porcelain Grills, Grease Drain Pan and Heat Baffle from the interior of the
grill.
2.Open the Pellet Hopper Lid, make sure there are no foreign objects in the Auger and
Hopper.
3.With the Switch in the OFF(O) position, plug the power cord into a 110 Volt AC grounded
outlet.
4.Turn on your Z Grill and turn the Temperature Dial to the SMOKE position. Please check
the following things:
(WARNING: Please do not touch it!)
Confirm the Auger is turning. (Wait for 1-2 minutes.)
Hold your fingers above the Firepot to confirm the fan is blowing air through the Firepot.
The hotrod will heat up and you should be able to sense the heat coming from it. (It takes
approximately 1-2 minutes.)
You should see a temperature number displayed on your LED DISPLAY. If you see
something different displayed it is an ERROR CODE. NOTE: PLEASE SEE
TROUBLESHOOTING FOR DETAILS ON ERROR CODES.
5.Turn the Temperature Dial to SHUT DOWN CYCLE.
(Please note the draft fan will stay on for 10 minutes in this mode.)
6.Fill the Pellet Hopper with Pellets. Then turn the Temperature Dial to HIGH. It takes some
time for the Pellets to travel through the tube, when the Pellets start to drop, turn the
Temperature Dial to SHUT DOWN CYCLE. Leave grill until it shuts off automatically.
7.Turn the Temperature Dial to SMOKE. Allow the Pellets to come to full flame. Once flames
are coming out of the Firepot, turn the Temperature Dial to SHUT DOWN CYCLE and let the
grill cool down.
[We suggest that you should wrap the Grease Drain Pan with heavy-duty aluminum
foil before using because it is easy to clean.]
8.Place components back in place. Open the lid and turn the Temperature Dial to SMOKE. A
few minutes later, when you see whitish-gray smoke coming out of the grill, close the lid and
turn the Temperature Dial to any cooking setting desired.
9.Set Temperature Dial to HIGH and let grill run for 45 minutes at this setting to rid it of any
foreign matter. This step must be done before cooking any food.
10.Please preheat the grill for 10 minutes before adding food. This makes your grill heat up
faster and quickly reach your desired cooking temperature. Adding food sooner will slow
down the heating process.
ALWAYS START THE GRILL ON SMOKE SETTING WITH THE LID OPEN !
After the Pellets are ignited, you can turn the Temperature Dial to any cooking temperature
desired. Please don’t turn the Temperature Dial to SHUT DOWN CYCLE while in use.

16
SUBSEQUENT START-UP
ATTENTION: If the grill fails to light or the fire in the Firepot goes out while cooking, it is vital
to follow these steps when sufficient pellets are still in the Pellet Hopper. Failure to follow the
steps may cause a hazardous “over-firing”of your grill due to an excess of unburned pellets
in the Firepot.
1.Turn OFF the appliance and unplug the Power Cord. After the grill cools down, remove all
food, the Porcelain Grills, Grease Drain Pan and the Heat Baffle.
2.Remove all unburned pellets and ash from inside and around the Firepot (See instruction
for proper handling and disposal of ash).
3.Plug the Power Cord and turn on the grill. Pellets should fall into the Firepot and the Hot
Rod should begin to heat (it will start to turn red).
4.If this step is successful, you will see flames come out of the Firepot.
Then turn the Temperature Dial to SHUT DOWN CYCLE and let it cool down. Next, put
components back in place, open the lid and turn the Temperature Dial to SMOKE. Wait a
few minutes until you see whitish-gray smoke coming out of the grill, then close the lid and
turn the Temperature Dial to any cooking setting desired.
5.If this step is not successful, see TROUBLESHOOTING or contact Z GRILLS Technical
Support to help diagnose the problem.
SHUTDOWN CYCLE
Auger turns off
Fan continues to run for 10 minutes
After you have finished cooking, turn the Temperature Dial to Shutdown Cycle position. The
function of this setting is to leave the Draft Induction Fan running for 10 minutes to burn
redundant pellets in the firepot. After the fan runs for 10 minutes, the fan will stop and the
controller will power off.
CAUTION: The main power switch will shut the power off to the controller and the
Temperature Dial Knob switch will cut off power to the grill components only. When servicing
the controller or any parts ensure that the power supply is disconnected by unplugging the
grill to avoid a shock hazard.

17
OPERATING TIPS
1.Like all grills, the actual temperature of this grill and the cooking times will be affected by
external temperature, humidity, wind conditions, quality of pellets, etc.
2.It is beneficial to shelter your grill from the wind. This will aid in temperature output, heat
retention and heat recovery time when the lid is open.
3.Do not open the lid frequently, it will increase your cooking time. You can open the lid
when you want the grill to cool down quickly.
4.Please preheat the grill for 10 minutes before adding food. This will allow your grill to heat
up quickly and return to your desired temperature once food is added.
5.Never move your grill while in use.
6.Never put water into the Pellet Hopper or Firepot.
7.WARNING: NEVER ADD PELLETS TO THE FIREPOT DIRECTLY. IT IS DANGEROUS.
If you run out of pellets and lose your fire while cooking, let the grill cool down and start
again with the INITIAL FIRING INSTRUCTIONS.
8.We recommend you cover your Grease Drain Pan with heavy-duty aluminum foil and
change it frequently. This is the simplest way to clean your Grease Drain Pan. Failure to
clean the Grease Drain Pan, V-shaped Grease Drain and Grease Drain Tube may cause
grease fires. If this situation happens, turn the Temperature Dial to SHUT DOWN CYCLE
and keep the lid open until the fire is completely out. AT THE SAME TIME, BE CAREFUL
NOT TO BURN YOURSELF. When the grill is completely cool, clean any grease
accumulation from the V-shaped Grease Drain and the Grease Drain Pan. Replace the foil
on the Grease Drain Pan. Then restart the grill and resume cooking.

18
MAINTENANCE & CLEANING
Your Z GRILL requires regular maintenance.
Make sure your grill is OFF, unplugged and completely cold before performing any
maintenance and cleaning.
Grease
1.With regular use your grill will accumulate grease on the Flue Lining, the Grease Drain
Tube, the V-shaped Grease Drain and the Grease Drain Pan. Always be sure these areas
are clean and free of grease and debris. You should check and clean these areas regularly
to reduce the risk of fire.
2.It is easier to remove accumulated grease when the grill is still warm (not hot).
BE CAREFUL NOT TO BURN YOURSELF. Heat-resistant gloves are recommended.
If too much grease is allowed to build up in the V-shaped Grease Drain or is allowed to plug
the Grease Drain Tube, a grease fire could result. It is necessary to clean these area
regularly. You can scarp the grease accumulation from inside the V-shaped Grease Drain
and Grease Drain Tube by using a stiff, nonmetallic tool. Much of the loosened grease can
be pushed down through the Grease Drain Tube and fall into the Grease Bucket. Wipe up
remaining grease residue with paper towels or disposable rags.
Flue Pipe(Smoke Stack)
Remove the Chimney Cap Assembly, clean it with warm soapy water. Scrape the creosote
and grease accumulation from inside of the vertical and horizontal sections of the Flue Pipe
by using a stiff, nonmetallic tool such as a wooden paint stir stick. Once the creosote and
grease residue has been loosened from the Flue Pipe Lining, much of it can be cleaned with
paper towels or disposable rags. Do not spray water or other liquid cleaners onto the inside
of the grill.
Outside surfaces
1.Use warm soapy water to wipe away grease. Do not use oven cleaner, abrasive cleansers
or abrasive cleaning pads on the outside grill surfaces.
2.It is highly recommended that you use Z GRILLS Cover to protect your grill .
3.You can use a high-quality car wax on the outside surfaces of your grill to protect it’s finish.
Internal component
1.To clean the Porcelain-coated Grill Grates we recommend using a long-handled cleaning
brush designed for Porcelain-coated Grates.
2.It is recommended that you clean your Grill Grates after each use.
3.Clean the inner RTD temperature probe after each use.
