ZANKER KOB20721XK User manual

KOB20721XK
EN Oven User Manual 2
DE Backofen Benutzerinformation 23

VISIT OUR WEBSITE TO:
Get usage advice, brochures, trouble shooter, service and repair information:
www.zanker.de/support
CONTENTS
1. SAFETY INFORMATION...................................................................................2
2. SAFETY INSTRUCTIONS.................................................................................4
3. INSTALLATION................................................................................................. 6
4. PRODUCT DESCRIPTION............................................................................... 7
5. BEFORE FIRST USE........................................................................................ 8
6. DAILY USE........................................................................................................8
7. USING THE ACCESSORIES............................................................................ 9
8. ADDITIONAL FUNCTIONS............................................................................. 10
9. HINTS AND TIPS............................................................................................ 10
10. CARE AND CLEANING.................................................................................17
11. TROUBLESHOOTING...................................................................................20
12. ENERGY EFFICIENCY................................................................................. 20
13. ENVIRONMENTAL CONCERNS.................................................................. 21
Subject to change without notice.
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
for any injuries or damage that are the result of incorrect
installation or usage. Always keep the instructions in a safe
and accessible location for future reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
the use of the appliance in a safe way and understand the
hazards involved. Children of less than 8 years of age and
persons with very extensive and complex disabilities shall
be kept away from the appliance unless continuously
supervised.
2 ENGLISH

•Children should be supervised to ensure that they do not
play with the appliance.
•Keep all packaging away from children and dispose of it
appropriately.
•WARNING: The appliance and its accessible parts become
hot during use. Keep children and pets away from the
appliance when in use and when cooling down.
•If the appliance has a child safety device, it should be
activated.
•Children shall not carry out cleaning and user maintenance
of the appliance without supervision.
1.2 General Safety
•This appliance is for cooking purposes only.
•This appliance is designed for single household domestic
use in an indoor environment.
•This appliance may be used in, offices, hotel guest rooms,
bed & breakfast guest rooms, farm guest houses and other
similar accommodation where such use does not exceed
(average) domestic usage levels.
•Only a qualified person must install this appliance and
replace the cable.
•Do not use the appliance before installing it in the built-in
structure.
•Disconnect the appliance from the power supply before
carrying out any maintenance.
•If the mains power supply cable is damaged, it must be
replaced by the manufacturer, its Authorised Service Centre
or similarly qualified persons to avoid an electrical hazard.
•WARNING: Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric shock.
•WARNING: The appliance and its accessible parts become
hot during use. Care should be taken to avoid touching
heating elements or the surface of the oven cavity.
•Always use oven gloves to remove or insert accessories or
ovenware.
•Do not use a steam cleaner to clean the appliance.
ENGLISH 3

•Do not use harsh abrasive cleaners or sharp metal scrapers
to clean the glass door since they can scratch the surface,
which may result in shattering of the glass.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must install this
appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instructions supplied
with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use safety
gloves and enclosed footwear.
• Do not pull the appliance by the handle.
• Install the appliance in a safe and suitable
place that meets installation requirements.
• Keep the minimum distance from other
appliances and units.
• Before mounting the appliance, check if
the oven door opens without restraint.
• The appliance is equipped with an electric
cooling system. It must be operated with
the electric power supply.
Cabinet minimum height
(Cabinet under the work‐
top minimum height)
590 (600) mm
Cabinet width 560 mm
Cabinet depth 550 (550) mm
Height of the front of the
appliance
598 mm
Height of the back of the
appliance
579 mm
Width of the front of the
appliance
594 mm
Width of the back of the
appliance
558 mm
Depth of the appliance 561 mm
Built in depth of the ap‐
pliance
540 mm
Depth with open door 1007 mm
Ventilation opening mini‐
mum size. Opening
placed on the bottom
rear side
560x20 mm
Mains supply cable
length. Cable is placed
in the right corner of the
back side
1100 mm
Mounting screws 4x25 mm
2.2 Electrical connection
WARNING!
Risk of fire and electric shock.
• All electrical connections should be made
by a qualified electrician.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable. Should
the mains cable need to be replaced, this
must be carried out by our Authorised
Service Centre.
• Do not let mains cables touch or come
near the appliance door or the niche below
the appliance, especially when it operates
or the door is hot.
• The shock protection of live and insulated
parts must be fastened in such a way that
it cannot be removed without tools.
4 ENGLISH

• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have an
isolation device which lets you disconnect
the appliance from the mains at all poles.
The isolation device must have a contact
opening width of minimum 3 mm.
• This appliance is supplied with a main
plug and a main cable.
Cable types applicable for installation or
replacement for Europe:
H07 RN-F, H05 RN-F, H05 RRF, H05 VV-F, H05
V2V2-F (T90), H05 BB-F
For the section of the cable refer to the total
power on the rating plate. You can also refer
to the table:
Total power (W) Section of the ca‐
ble (mm²)
maximum 1380 3 x 0.75
maximum 2300 3 x 1
maximum 3680 3 x 1.5
The earth cord (green / yellow cable) must be
2 cm longer than phase and neutral cables
(blue and brown cables).
2.3 Use
WARNING!
Risk of injury, burns and electric shock or
explosion.
• Do not change the specification of this
appliance.
• Make sure that the ventilation openings
are not blocked.
• Do not let the appliance stay unattended
during operation.
• Deactivate the appliance after each use.
• Be careful when you open the appliance
door while the appliance is in operation.
Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with water.
• Do not apply pressure on the open door.
• Do not use the appliance as a work
surface or as a storage surface.
• Open the appliance door carefully. The
use of ingredients with alcohol can cause
a mixture of alcohol and air.
• Do not let sparks or open flames to come
in contact with the appliance when you
open the door.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
WARNING!
Risk of damage to the appliance.
• To prevent damage or discoloration to the
enamel:
– do not put ovenware or other objects
in the appliance directly on the bottom.
– do not put aluminium foil directly on
the bottom of cavity of the appliance.
– do not put water directly into the hot
appliance.
– do not keep moist dishes and food in
the appliance after you finish the
cooking.
– be careful when you remove or install
the accessories.
• Discoloration of the enamel or stainless
steel has no effect on the performance of
the appliance.
• Always cook with the appliance door
closed.
• If the appliance is installed behind a
furniture panel (e.g. a door) make sure the
door is never closed when the appliance
operates. Heat and moisture can build up
behind a closed furniture panel and cause
subsequent damage to the appliance, the
housing unit or the floor. Do not close the
furniture panel until the appliance has
cooled down completely after use.
ENGLISH 5

2.4 Care and cleaning
WARNING!
Risk of injury, fire, or damage to the
appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains plug
from the mains socket.
• Make sure the appliance is cold. There is
the risk that the glass panels can break.
• Replace immediately the door glass
panels when they are damaged. Contact
the Authorised Service Centre.
• Be careful when you remove the door from
the appliance. The door is heavy!
• Clean regularly the appliance to prevent
the deterioration of the surface material.
• Clean the appliance with a moist soft
cloth. Use only neutral detergents. Do not
use abrasive products, abrasive cleaning
pads, solvents or metal objects.
• If you use an oven spray, follow the safety
instructions on its packaging.
2.5 Internal lighting
WARNING!
Risk of electric shock.
• Concerning the lamp(s) inside this product
and spare part lamps sold separately:
These lamps are intended to withstand
extreme physical conditions in household
appliances, such as temperature,
vibration, humidity, or are intended to
signal information about the operational
status of the appliance. They are not
intended to be used in other applications
and are not suitable for household room
illumination.
• This product contains a light source of
energy efficiency class G.
• Use only lamps with the same
specifications.
2.6 Service
• To repair the appliance contact the
Authorised Service Centre.
• Use original spare parts only.
2.7 Disposal
WARNING!
Risk of injury or suffocation.
• Contact your municipal authority for
information on how to dispose of the
appliance.
• Disconnect the appliance from the mains
supply.
• Cut off the mains electrical cable close to
the appliance and dispose of it.
• Remove the door catch to prevent children
or pets from becoming trapped in the
appliance.
3. INSTALLATION
WARNING!
Refer to Safety chapters.
3.1 Building in
589
598
594
114
19
21540
570
558
min. 550
20
min. 560
3
9
600
(*mm)
6 ENGLISH

min. 550
20
590
min. 560 589
598
594
114
19
21540
570
558
3
9
(*mm)
3.2 Securing the oven to the cabinet
4. PRODUCT DESCRIPTION
4.1 General overview
6
7
8
9
4
3
2
1
10
21 3 4 5
1Control panel
2Power lamp / symbol
3Knob for the heating functions
4Control knob (for the temperature)
5Temperature indicator / symbol
6Air vents for the cooling fan
7Heating element
8Lamp
9Fan
10 Shelf positions
4.2 Accessories
•Wire shelf
For cookware, cake tins, roasts.
•Baking tray
For cakes and biscuits.
ENGLISH 7

5. BEFORE FIRST USE
WARNING!
Refer to Safety chapters.
5.1 Before first use
The oven can emit an odour and smoke during preheating. Make sure that the room is
ventilated.
Step 1 Step 2
Clean the oven Preheat the empty oven
1. Remove all accessories from the oven.
2. Clean the oven and the accessories
with a soft cloth, warm water and a mild
detergent.
1. Set the maximum temperature for the
function: .
Time: 1 h.
2. Set the maximum temperature for the
function: .
Time: 15 min.
Turn off the oven and wait until it is cold. Place the accessories in the oven.
6. DAILY USE
WARNING!
Refer to Safety chapters.
6.1 How to set: Heating function
Step 1 Turn the knob for the heating func‐
tions to select a heating function.
Step 2 Turn the control knob to select the
temperature.
Step 3 When the cooking ends, turn the
knobs to the off position to turn off
the oven.
6.2 Heating functions
Heating
function
Application
Off position
The oven is off.
Fan Cook‐
ing
To roast or roast and bake food
with the same cooking tempera‐
ture on more than one shelf posi‐
tion, without flavour transference.
Convention‐
al Cooking
To bake and roast food on one
shelf position.
8 ENGLISH

Heating
function
Application
Bottom Heat
To bake cakes with crispy bottom
and to preserve food.
Turbo Grill‐
ing
To roast large meat joints or poul‐
try with bones on one shelf posi‐
tion. To make gratins and to
brown.
Fast Grilling
To grill thin pieces of food in large
quantities and to toast bread.
Grill
To grill thin pieces of food and to
toast bread.
Heating
function
Application
Moist Bak‐
ing
This function is designed to save
energy during cooking. When you
use this function, the temperature
in the cavity may differ from the
set temperature. The heating
power may be reduced. For more
information refer to "Daily Use"
chapter, Notes on: Moist Baking.
6.3 Notes on: Moist Baking
This function was used to comply with the
energy efficiency class and ecodesign
requirements according to EU 65/2014 and
EU 66/2014. Tests according to EN 60350-1.
The oven door should be closed during
cooking so that the function is not interrupted
and the oven operates with the highest
energy efficiency possible.
For the cooking instructions refer to "Hints
and tips" chapter, Moist Baking. For general
energy saving recommendations refer to
"Energy Efficiency" chapter, Energy Saving.
7. USING THE ACCESSORIES
WARNING!
Refer to Safety chapters.
7.1 Inserting accessories
Wire shelf:
Push the shelf between the guide bars of the
shelf support and make sure that the feet point
down.
ENGLISH 9

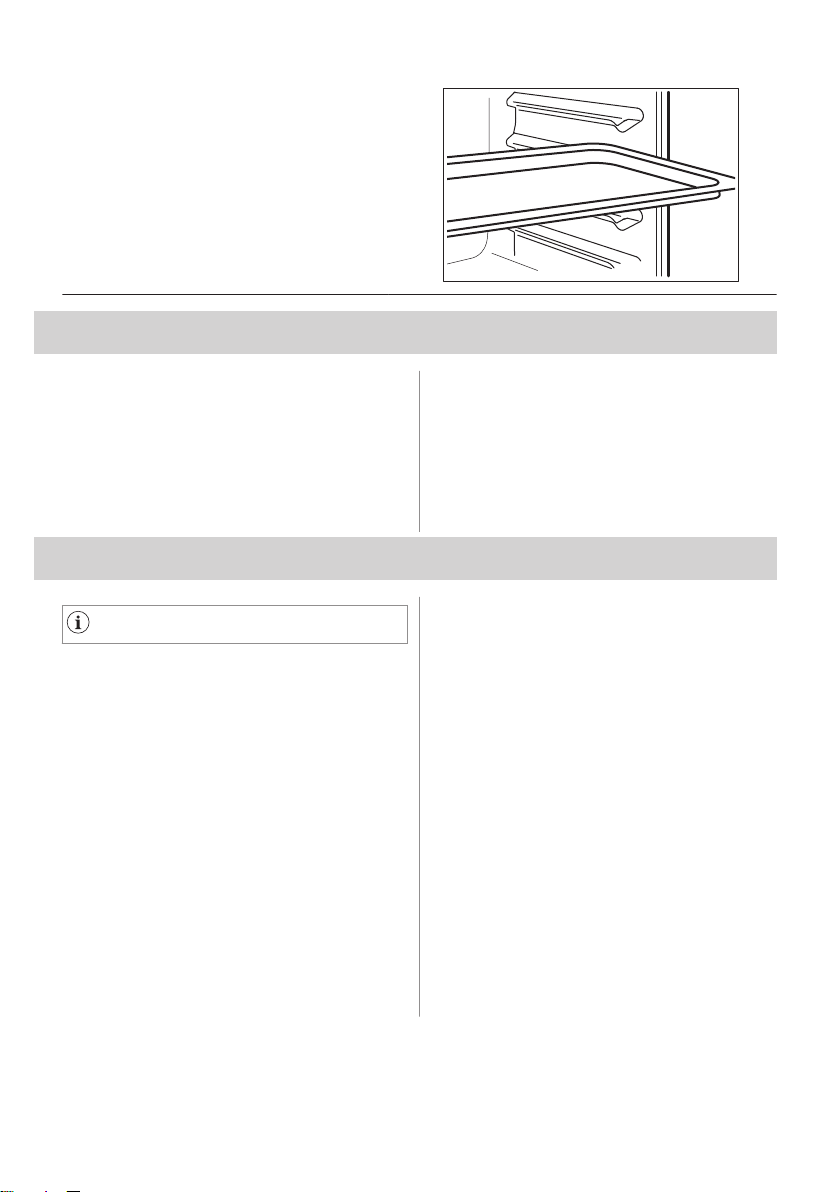

Baking tray:
Push the tray between the guide bars of the
shelf support.
8. ADDITIONAL FUNCTIONS
8.1 Cooling fan
When the oven operates, the cooling fan
turns on automatically to keep the surfaces of
the oven cool. If you turn off the oven, the
cooling fan can continue to operate until the
oven cools down.
8.2 Safety thermostat
Incorrect operation of the oven or defective
components can cause dangerous
overheating. To prevent this, the oven has a
safety thermostat which interrupts the power
supply. The oven turns on again
automatically when the temperature drops.
9. HINTS AND TIPS
Refer to Safety chapters.
9.1 Cooking recommendations
The oven has four shelf positions.
Count the shelf positions from the bottom of
the oven floor.
Your oven may bake or roast differently to the
oven you had before.The below tables
provide you with the standard settings for
temperature, cooking time and shelf position.
If you cannot find the settings for a special
recipe, look for the similar one.
Baking cakes
Do not open the oven door before 3/4 of the
set cooking time is up.
If you use two baking trays at the same time,
keep one empty level between them.
Cooking meat and fish
Leave the meat for approximately 15 minutes
before carving so that the juice does not seep
out.
To prevent too much smoke in the oven
during roasting, add some water into the
deep pan. To prevent the smoke
condensation, add water each time after it
dries up.
Cooking times
Cooking times depend on the type of food, its
consistency, and volume.
Initially, monitor the performance when you
cook. Find the best settings (heat setting,
cooking time, etc.) for your cookware, recipes
and quantities when you use this appliance.
10 ENGLISH

9.2 Baking and roasting
CAKES
Conventional
Cooking
Fan Cooking
(min)
(°C) (°C)
Whisked recipes 170 2 165 2 (1 and
3)
45 - 60 Cake mould
Shortbread dough 170 2 160 2 (1 and
3)
20 - 30 Cake mould
Buttermilk
cheesecake
170 1 165 2 70 - 80 Cake mould, Ø
26 cm
Strudel 175 2 150 2 60 - 80 Baking tray
Jam tart 170 2 160 2 (1 and
3)
30 - 40 Cake mould, Ø
26 cm
Fruit cake 170 2 155 2 50 - 60 Cake mould, Ø
26 cm
Christmas cake 170 2 160 2 50 - 60 Cake mould, Ø
20 cm
Plum cake, pre‐
heat the empty
oven
170 2 165 2 20 - 30 Bread tin
Biscuits, preheat
the empty oven
150 3 140 3 (1 and
3)
30 - 35 Baking tray
Meringues 100 3 115 3 35 - 40 Baking tray
Buns, preheat the
empty oven
190 3 180 3 80 - 100 Baking tray
Choux pastry,
preheat the empty
oven
190 3 180 3 (1 and
3)
15 - 20 Baking tray
Plate tarts 180 3 170 2 25 - 35 Cake mould, Ø
20 cm
Rich fruit cake 160 1 150 2 110 - 120 Cake mould, Ø
24 cm
Victoria sandwich 180 1 or 2 170 2 45 - 70 Cake mould, Ø
20 cm
Preheat the empty oven.
ENGLISH 11

BREAD
AND PIZZA
Conventional
Cooking
Fan Cooking
(min)
(°C) (°C)
White bread, 1 - 2
pieces, 0.5 kg each
190 1 195 1 60 - 70 -
Rye bread, pre‐
heating is not nee‐
ded
190 1 190 1 30 - 45 Bread tin
Bread rolls, 6 - 8
rolls
190 2 180 2 (1 and
3)
25 - 40 Baking tray
Pizza 190 1 190 1 20 - 30 Deep pan
Scones 200 3 190 2 10 - 20 Baking tray
Use the cake mould.
FLANS
Conventional Cook‐
ing
Fan Cooking
(min)
(°C) (°C)
Pasta flan 180 2 180 2 40 - 50
Vegetable flan 200 2 200 2 45 - 60
Quiches 190 1 190 1 40 - 50
Lasagne 200 2 200 2 25 - 40
Cannelloni 200 2 200 2 25 - 40
Yorkshire pudding, 6 pud‐
ding moulds, preheat the
empty oven
220 2 210 2 20 - 30
Use the wire shelf.
MEAT
Conventional Cook‐
ing
Fan Cooking
(min)
(°C) (°C)
Beef 200 2 190 2 50 - 70
Pork 180 2 180 2 90 - 120
12 ENGLISH

MEAT
Conventional Cook‐
ing
Fan Cooking
(min)
(°C) (°C)
Veal 190 2 175 2 90 - 120
English roast beef, rare 210 2 200 2 44 - 50
English roast beef, medi‐
um
210 2 200 2 51 - 55
English roast beef, well
done
210 2 200 2 55 - 60
MEAT
Conventional Cook‐
ing
Fan Cooking
(min)
(°C) (°C)
Pork shoulder, with rind 180 2 170 2 120 - 150
Pork shin, 2 pieces 180 2 160 2 100 - 120
Leg of lamb 190 2 190 2 110 - 130
Whole chicken 200 2 200 2 70 - 85
Whole turkey 180 1 160 1 210 - 240
Whole duck 175 2 160 2 120 - 150
Whole goose 175 1 160 1 150 - 200
Rabbit, cut in pieces 190 2 175 2 60 - 80
Hare, cut in pieces 190 2 175 2 150 - 200
Whole pheasant 190 2 175 2 90 - 120
FISH
Conventional Cook‐
ing
Fan Cooking
(min)
(°C) (°C)
Trout / Sea bream, 3 - 4
fish
190 2 175 2 (1 and 3) 40 - 55
Tuna / Salmon, 4 - 6 fillets 190 2 175 2 (1 and 3) 35 - 60
ENGLISH 13

9.3 Grill
Preheat the empty oven.
Use the third shelf position.
Set the temperature to 250 °C.
GRILL
(kg) (min)
1st side
(min)
2nd side
Fillet steaks, 4 pieces 0.8 12 - 15 12 - 14
Beef steak, 4 pieces 0.6 10 - 12 6 - 8
Sausages, 8 - 12 - 15 10 - 12
Pork chops, 4 pieces 0.6 12 - 16 12 - 14
Chicken, half, 2 1 30 - 35 25 - 30
Kebabs, 4 - 10 - 15 10 - 12
Chicken breast, 4 pieces 0.4 12 - 15 12 - 14
Burgers, 6 0.6 20 - 30 -
Fish fillet, 4 pieces 0.4 12 - 14 10 - 12
Toasted sandwiches, 4 - 6 - 5 - 7 -
Toast, 4 - 6 - 2 - 4 2 - 3
9.4 Turbo Grilling
Preheat the empty oven.
Set the temperature to 200 °C.
Use the third shelf position.
(min)
(kg) 1st side 2nd side
Rolled joint, turkey 1 30 - 40 20 - 30
Chicken, half, 2 1 25 - 30 20 - 30
Chicken drumsticks, 6 pieces - 15 - 20 15 - 18
Quail, 4 pieces 0.5 25 - 30 20 - 25
Vegetables au gratin - 20 - 25 -
Scallops - 15 - 20 -
14 ENGLISH

(min)
(kg) 1st side 2nd side
Mackerel, 2 - 4 - 15 - 20 10 - 15
Fish slices, 4 - 6 0.8 12 - 15 8 - 10
9.5 Moist Baking - recommended accessories
Use the dark and non-reflective tins and containers. They have better heat absorption than the
light colour and reflective dishes.
Pizza pan Baking dish Ramekins Flan base tin
Dark, non-reflective
28 cm diameter
Dark, non-reflective
26 cm diameter
Ceramic
8 cm diameter,
5 cm height
Dark, non-reflective
28 cm diameter
9.6 Moist Baking
For the best results follow suggestions listed
in the table below.
(°C) (min)
Sweet rolls, 12
pieces
baking tray or dripping pan 180 2 35 - 40
Rolls, 9 pieces baking tray or dripping pan 180 2 35 - 40
Pizza, frozen, 0.35
kg
wire shelf 220 2 35 - 40
Swiss roll baking tray or dripping pan 170 2 30 - 40
Brownie baking tray or dripping pan 180 2 30 - 40
Soufflè, 6 pieces ceramic ramekins on wire
shelf
200 3 30 - 40
Sponge flan base flan base tin on wire shelf 170 2 20 - 30
Victoria sandwich baking dish on wire shelf 170 2 35 - 45
ENGLISH 15

(°C) (min)
Poached fish, 0.3
kg
baking tray or dripping pan 180 3 35 - 45
Whole fish, 0.2 kg baking tray or dripping pan 180 3 35 - 45
Fish fillet, 0.3 kg pizza pan on wire shelf 180 3 35 - 45
Poached meat, 0.25
kg
baking tray or dripping pan 200 3 40 - 50
Shashlik, 0.5 kg baking tray or dripping pan 200 3 25 - 35
Cookies, 16 pieces baking tray or dripping pan 180 2 20 - 30
Macaroons, 20
pieces
baking tray or dripping pan 180 2 40 - 45
Muffins, 12 pieces baking tray or dripping pan 170 2 30 - 40
Savory pastry, 16
pieces
baking tray or dripping pan 170 2 35 - 45
Short crust biscuits,
20 pieces
baking tray or dripping pan 150 2 40 - 50
Tartlets, 8 pieces baking tray or dripping pan 170 2 20 - 30
Vegetables, poach‐
ed, 0.4 kg
baking tray or dripping pan 180 3 35 - 40
Vegetarian omelette pizza pan on wire shelf 200 3 30 - 45
Mediterranean veg‐
etables, 0.7 kg
baking tray or dripping pan 180 4 35 - 40
9.7 Information for test institutes
Tests according to IEC 60350-1.
(°C) (min)
Small
cakes, 20
per tray
Convention‐
al Cooking
Baking
tray
3 170 20 - 30 -
Apple pie,
2 tins Ø20
cm
Convention‐
al Cooking
Wire
shelf
1 170 80 - 120 -
16 ENGLISH

(°C) (min)
Sponge
cake,
cake
mould
Ø26 cm
Convention‐
al Cooking
Wire
shelf
2 170 35 - 45 -
Short
bread
Convention‐
al Cooking
Baking
tray
3 150 20 - 35 Preheat the oven
for 10 minutes.
Toast, 4 -
6 pieces
Grill Wire
shelf
3 max. 2 - 4 minutes
first side; 2 - 3
minutes second
side
Preheat the oven
for 3 minutes.
Beef bur‐
ger, 6
pieces,
0.6 kg
Grill Wire
shelf and
dripping
pan
3 max. 20 - 30 Put the wire shelf
on the third level
and the dripping
pan on the second
level of the oven.
Turn the food half‐
way through the
cooking time.
Preheat the oven
for 3 minutes.
10. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
10.1 Notes on cleaning
Cleaning
Agents
Clean the front of the oven with a soft cloth with warm water and a mild detergent. Clean
and check the door gasket around the frame of the cavity.
Use a cleaning solution to clean metal surfaces.
Clean stains with a mild detergent.
ENGLISH 17

Everyday
Use
Clean the cavity after each use. Fat accumulation or other residue may cause fire.
Moisture can condense in the oven or on the door glass panels. To decrease the conden‐
sation, let the oven work for 10 minutes before cooking. Do not store the food in the oven
for longer than 20 minutes. Dry the cavity with a soft cloth after each use.
Accesso‐
ries
Clean all accessories after each use and let them dry. Use a soft cloth with warm water
and a mild detergent. Do not clean the accessories in a dishwasher.
Do not clean the non-stick accessories using abrasive cleaner or sharp-edged objects.
10.2 How to remove and install: Door
The oven door has two glass panels. You can remove the oven door and the internal glass
panel to clean it. Read the whole "Removing and installing door" instruction before you remove
the glass panels.
CAUTION!
Do not use the oven without the glass panels.
Step 1 Open the door fully and hold both
hinges.
Step 2 Lift and turn the levers fully on both
hinges.
Step 3 Close the oven door halfway to the
first opening position. Then lift and
pull forward and remove the door
from its seat.
Step 4 Put the door on a soft cloth on a sta‐
ble surface and release the locking
system to remove the internal glass
panel.
18 ENGLISH

Step 5 Turn the fasteners by 90° and re‐
move them from their seats.
Step 6 First lift carefully and then remove
the glass panel.
90°
12
Step 7 Clean the glass panels with water and soap. Dry the glass panels carefully. Do not clean the
glass panels in the dishwasher.
Step 8 After cleaning, install the glass panel and the oven door.
When installed correctly the door trim clicks.
Make sure that you install the internal glass panel
in the seats correctly.
A
10.3 How to replace: Lamp
WARNING!
Risk of electric shock.
The lamp can be hot.
Before you replace the lamp:
Step 1 Step 2 Step 3
Turn off the oven. Wait until the
oven is cold.
Disconnect the oven from the
mains.
Put a cloth on the bottom of the
cavity.
ENGLISH 19

Back lamp
Step 1 Turn the glass cover to remove it.
Step 2 Clean the glass cover.
Step 3 Replace the lamp with a suitable 300 °C heat-resistant lamp.
Step 4 Install the glass cover.
11. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
11.1 What to do if...
In any cases not included in this table please
contact with an Authorised Service Centre.
Problem Check if...
The oven does not
heat up.
The fuse is blown.
Problem Check if...
The door gasket is
damaged.
Do not use the oven.
Contact an Authorised
Service Centre.
The lamp does not
work.
The lamp is burnt out.
11.2 Service data
If you cannot find a solution to the problem yourself, contact your dealer or an Authorised
Service Centre.
The necessary data for the service centre is on the rating plate. The rating plate is on the front
frame of the oven cavity. Do not remove the rating plate from the oven cavity.
We recommend that you write the data here:
Model (MOD.) .........................................
Product number (PNC) .........................................
Serial number (S.N.) .........................................
12. ENERGY EFFICIENCY
12.1 Product Information and Product Information Sheet*
Supplier's name Zanker
Model identification KOB20721XK 944064975
Energy Efficiency Index 94.8
20 ENGLISH
