ZANKER CTVD85 User manual

Waschvollautomat CT VD85
Washing machine
Gebrauchsanweisung
Instructions manual

21
CONTENTS
For the user
Safety instructions 22/23
Description of the appliance 24
Use of your appliance 25
Operating instructions 26/27
Programme chart 28/29
Hints & Tips 30-32
Cleaningandmaintenance 33
If something doesn't work 34/35
Service 35
For the installer
Technicalinformation 36
Installation
Unpacking 36
Installation 37
Levelling 37
Moving of the appliance 37
Water connection 38
Electrical connection 38
Guide to use the instruction
The following symbols will be found in the text to guid you
throughout the instructions :
Safety instructions
Hints and tips
Environmentalinformation

22
You must read the whole of this instruction book
before you use the appliance. Follow the advice
carefully.Keepthebookforfuturereference.Ifyou
sellorgiveawaytheappliance,makesurethatthe
book is passed to the new owner.
Thefollowingwarningsareprovidedintheinterest
of overall safety. You must read them before the
appliance is installed or used.
Use
This appliance is designed to be used by
adults.Children shouldnotbeallowedtotouch
the controls or play with the product.
It is dangerous to modify the specifications of
this appliance in any way.
Always unplug the appliance and turn off the
water after use.
Only wash fabrics with are designed to be
machinewashed.Ifindoubt,followtheinstruc-
tions you find on the label of the item itself.
Place small metal rings or edged plastic rings
in a net or bag.
Make sure that all pockets are empty. Hard,
sharpobjects suchascoins,safety pins,nails,
screwsorstonescancauseextensivedamage.
Do not machine wash fabrics which are
saturated with petroleum products. If volatile
cleaning fluids have been used, make sure
that they are thoroughly removed from the
fabricsbeforetheyareplacedintheappliance.
Small and delicate objects (e.g. baby socks,
stockings)canbeeasily washed inside asmall
pillowcase with a zip fastener or in larger
socks.
Useonlythe recommended quantitiesoffabric
conditioner.
Beforecleaning,careandmaintenance,ensure
that the machine is unplugged.
Installation
Any electrical work required to install this
appliance should be carried out by a qualified
electrician or competent person.
Any plumbing work required to install this
appliance should be cariied out by a qualified
plumber or competent person.
Make sure that the appliance does not stand
on its electrical supply cable.
This appliance is heavy. Care should be taken
when moving it.
Allpackagingandtransitboltsmustberemoved
before the appliance is used. Serious damage
may occur if this is not done.
Ifyourwashingmachineisina room subject to
temperatures below freezing, the water must
be removed from the machine. So, the danger
of freezing should be expected.
SAFETY INSTRUCTIONS
Read all instructions before using
the appliance and save them for
future reference.

23
Safeties
Lid : your washing machine is equipped with
asafety avoidingtheswitching oftheappliance
when the flapdoors of the drum are opened ;
the closure of the lid is so impossible. An
electromechanic safety prohibits the opening
ofthelidwhenthewashingmachineworksand
2 minutes after the end of the programme.
Washing motor : in case of mechanic
overloading, overvoltage, a thermic safety
protects automatically the motor.
Heating : the heating can only begin when
the water quantity necessary for the washing
is in the tub. This safety is useful when there is
a water break-up or if you forget to open the
water inlet hose.
Environmental information
All materials marked by the symbol are
biodegradable. They can be disposed of without
danger or burnt in rubbish incinerators.
Inordertorealizewaterandenergysavingsandto
act in an environmentally conscious manner, we
advice to follow the below instructions :
Use if possible the appliance with full loads
instead of partial loads. Take care to do not
overload the drum.
Useonlytheprogrammeswithprewashforvery
soiled laundry.
Savings on detergent and for the environment
may also be achieved if with medium to hard
wateryouaddsufficientdetergentforsoftwater
andthenaddseparatelyasoftener.Thisrelieves
our waters of a certain amount of chemicals.
When disposing of the machine in a proper
manner, destroy the door lock and cut off the
power supply cord.

24
DESCRIPTION OF THE APPLIANCE
Detergent dispenser
Symbols
() Washing powder for programmes with
pre-wash (1).
() Washing powder or liquid detergent for
the main wash (2).
() Liquid additives (fabric softener and
conditioner...) (3).
Control panel
Lid
Handleforopeninglid
Trap door for lint filter
Lever for castors
Pushbuttons
Timer Temperature selector
123
Light

25
USE OFYOUR APPLIANCE
The control panel
Never turn the programme selector when the appliance is working.
1 "EIN/AUS" pushbutton (on/off)
Press the ON/OFF pushbutton, the programme
starts : the control lamp lights on.
2 Control lamp
The control lamp lights on when the appliance is
working (on/off pushbutton pressed). It lights off
when the on/off pushbutton is pressed out.
3 "850/400" pushbutton (spinning
speed reduction)
Press this pushbutton to reduce the spinning
speedfrom850to400rpmoncottonprogrammes
and from 600 to 400 rpm on synthetics/delicates/
wool programmes.
4 "Spar 1/2" pushbutton (half load
pushbutton)
This pushbutton allows to wash small quantity of
linen not much soiled (2,5 kg) only on the cotton
programmes.
5 Programme selector
It enables to select the most adapted programme
tothenature and degreees of soil of yourlaundry.
Turn the programme selector clockwise to select
the chosen programme.
The programme selector indicates each pro-
gramme phase as it takes place.
At the end of the programme, the appliance stops
automatically on a position off "I" for cotton pro-
grammes and on a rinse hold position ("o") for
synthetics/delicates/wool programmes.
Neverturntheprogrammeselectoranticlockwise.
6 Temperature selector
Itenablestochoosethemostaadaptedtemperature
between cold ( ) and 95°C.
Choosethetemperaturewhichcorrespondstothe
chosen programme, with the help of the indica-
tions or the programme table, according to the
fibers and the fastness of the colours.
CT VD85
2
EIN
AUS
345
Classic
KALT
80
95
30
50
40 70
1
°C
SPAR
1/2
850
400
6

26
OPERATING INSTRUCTIONS
1. Place the laundry in the drum
lift up the lid of the machine.
open the drum with your two hands by pressing
the button Aand the two flapdoors till they
disengage.
introduce the laundry into the drum ; close the
drum and the lid of the machine.
Becareful:beforeclosingthelidofyourmachine,
make sure that the drum flapdoors are correctly
closed :
the two flapdoors fastened,
the button Apressed out.
2. Measure out the detergent
Measure out the amount of detergent
recommended by the manufacturer in the main
wash compartment ( )
Ifyouwishtocarryoutaprewash,pourtheamount
required into the prewash compartment ( ).
Do not exceed the MAX level.
3. Add the fabric softener
Pourthesoftener,ifrequired,intothecompartment
marked ( ). Do not exceed the MAX level.
4. Press the "Spar 1/2" and/or the
"850/400" pushbuttons if required.
A

27
5. Select the temperature
Choosethetemperaturewhichcorrespondstothe
chosen programme, with the help of the indica-
tions or the programme table, according to the
fibers and the fastness of the colours.
6. Select the programme
Choose the programme according to the nature
and the degree of soil of the laundry.
Turn the programme selector clockwise to select
the chosen programme.
7. Starting of the programme
The "EIN/AUS" pushbutton enables to switch on
your machine. The control lamp lights on and the
programmebegins.
8. At the end of the programme
When the selected programme is over, the ma-
chine stops automatically. The timer knob stops
on the position "I" for the cotton programmes.
The synthetic, delicates and wool programmes
end by a rinse hold ("o"). You can finish these
programmes by a draining ("Pumpen") or by a
short spinning ("Kurzschleudern"). Depress the
"EIN/AUS" pushbutton before doing your choice.
After each wash, depress the "EIN/AUS"
pushbutton. Press off the pushbuttons if ne-
cessary;unplugthemachinefromthewallsocket;
turn off the water tap.
KALT
80
95
30
50
40 70
°C
EIN
AUS SPAR 1/2
850
400

28
PROGRAMMES CHART
Programmes for Cotton/Linen
Maximum load : 5 kg (cotton)
() : This programme with temperature selector on 60°C is the programme for Energy Label.
When the selected programme is over, the washing machine stops automatically. The timer knob stops
on the position "I" after a spinning phase
BE CAREFUL :
THE LID CAN ONLY BE OPENED 90 SECONDS AFTER THE MACHINE HAS STOPPED.
Programmes
description Temperatures
(°C) Consumptions
Time
(min.)
Detergent
dispensers
to use
Kochwäsche mit Vorwäsche
Whites with prewash
Kochwäsche
Whites
Buntwäsche
Coloureds
Buntwäsche Kurz
Coloureds short prog.
Spülen
Rinsings
Weichspülen
Softening
60°- 95°
60°- 95°
40°- 60°
30°- 40°
Schleudern
Spinning
80
69
69
69
62
19
0
150
135
115
95
55
15
8
Water
(Liter)
( )

29
Programmes for Synthetics / Delicates / Wool
Maximum loads : 2,5 kg (synthetics), 1 kg (wool).
Pflegeleicht mit Vorwäsche
Synthetics with prewash
Pflegeleicht Kurz
Synthetics short prog.
Feinwäsche
Delicates
Wolle
Wool
Spülen
Rinsings
Weichspülen
Softening
40°-60°
40°-60°
40°- 60°
30°- 40°
Kalt - 30°
Cold - 30°
Kurzschleudern
Short spinning
54
42
42
45
45
35
13
0
0
93
78
68
63
58
28
13
8
6
Programmes
description Temperatures
(°C) Consumptions
Time
(min.)
Detergent
dispensers
to use Water
(Liter)
Pumpen
Draining
Pflegeleicht
Synthetics
When the selected programme is over, the washing machine stops automatically. The synthetics
programmes end by a rinse hold in order to avoid the formation of creases. You can end these
programmes by a draining (by setting the timer on the programme "Pumpen") or by a short spinning (by
setting the timer on the programme "Kurzschleudern"). Please depress the EIN/AUS pushbutton before
doing your choice.
BE CAREFUL :
THE LID CAN ONLY BE OPENED 90 SECONDS AFTER THE MACHINE HAS STOPPED.

30
HINTS AND TIPS
Washing hints
Youareadvisednottoleaveyourlaundrytoolong,
especially when damp. Damp laundry produces
moult and unpleasant smells.
Moult stains cannot be removed.
Sort your laundry.

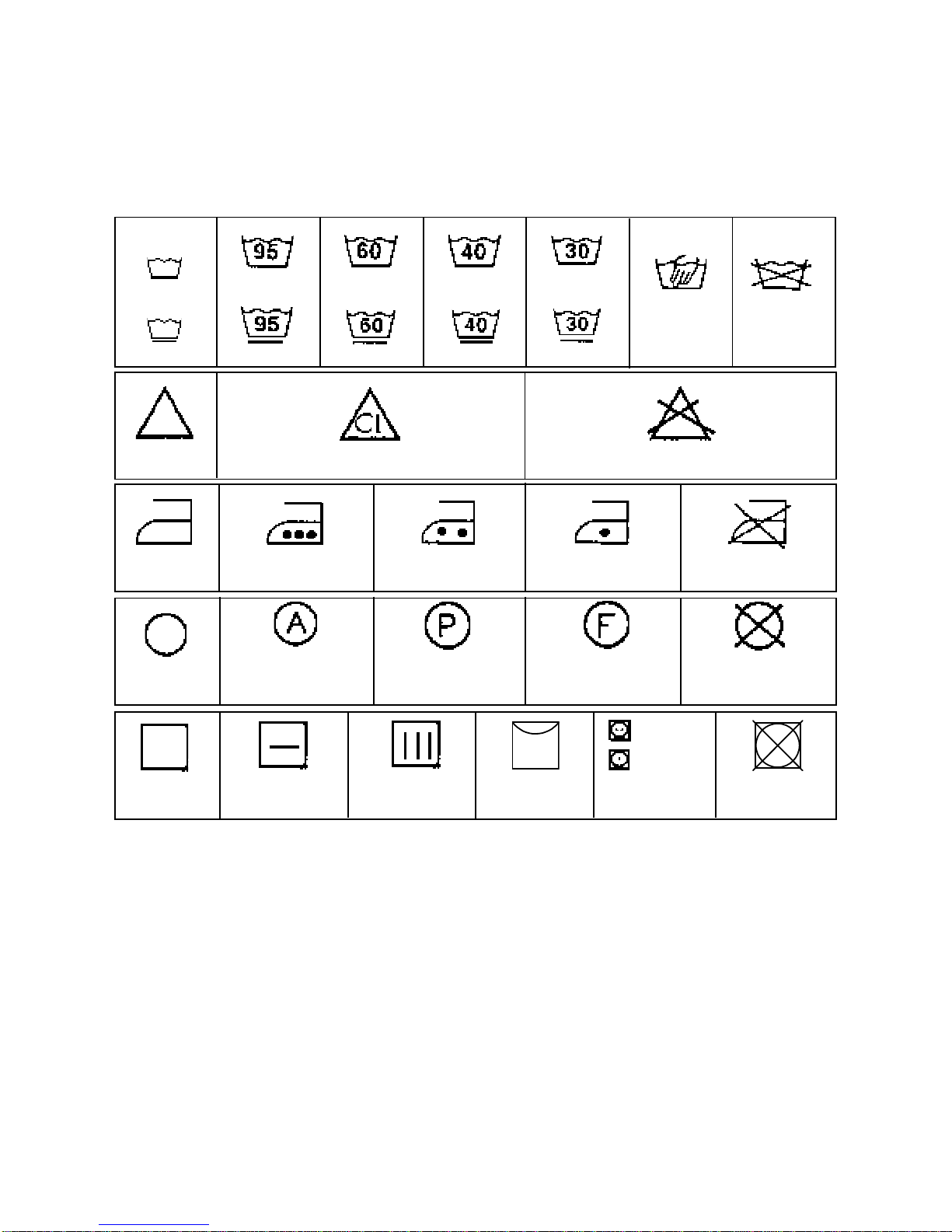

Studycarefully the chart in this booklet explaining
the symbols used on clothes labels (see page 32).
The following points are particularly important :
- a line under the bowl means that the garment
cannotbewashedusingprogrammesforresistant
fabrics such as cotton and linen;
- do not mix coloured garments with whites;
-anticreasematerialslikepolyester/cottonshould
be treated as synthetics;
-non-resistantfabricslikeacrylicandmostcurtain
materials should be treated as delicate fabrics;
- the wool programme is designed specifically for
pure new wool. Other types of wool and wool
mixtures may shrink or felt if machine-washed.
Woollen garments should be spun briefly
immediately after washing.
Prewash
Prewash is not normally necessary. Your new
washing machine combined with modern
detergentswillgiveperfectwashingresultswithout
prewash, thus saving energy, time, water and
detergent.
However, when the laundry is particularly dirty
(for example if you have to wash mechanics'
overalls or butchers' aprons), you are advised to
use prewash with a biological detergent.
Temperatures
We suggest that white cotton and linen, if it is not
excessively soiled, can be washed at 60°instead
of 90°C. There should be no reduction in perfor-
mance, but there will be an energy saving of
approximately 30%.
Thesameappliestoalesserextenttofastcoloured
garments.
They usually require a temperature of 60°C but if
they are not excessively dirty, you will have
satisfactory results at 40°C.
Garments with non-fast colours should not be
washed at temperatures above 40°C. If fast and
non-fastcoloursarewashedtogether,theyshould
be treated as non-fast colours and therefore the
temperature should not exceed 40°C.
Resistant white and coloured synthetics can
normally be washed at 60°C but also in this case
40°C is sufficient if the laundry is not excessively
dirty.
Delicate synthetics, synthetics with non-fast
colours and woollen garments must never be
washed above 40°C.
As you already know, your washing machine can
also wash with cold water. However, it must be
remembered that the detergents currently on the
market have not been designed for cold washes
and that in winter, when the water is very cold,
they may not dissolve adequately.
We suggest the use of liquid detergents.
How much laundry can be washed
in one load?
Strictly speaking you should always weigh your
laundry.
Thedrumwilltakeamaximumof5kgofcottonand
linen. For synthetics and delicate fabrics, the
maximum load is 2,5 kg and for wool, 1 kg.
Asweighing can be complicated, we suggestyou
estimatetheweightaccordingtohowfullthedrum
is:
cotton and linen : drumfullnottootightypacked
resistant synthetics : no more than 2/3 of the
drum
delicate fabrics and wool : no more than 1/2 of
thedrum.
Before placing the laundry in the
machine:
- mend all tears, holes and ladders;
- secure loose buttons and close poppers and
zips;
- do not wash frayed garments - mend hems
before washing;
- remove all small objects from pockets. Nails,
pins,clipsandsimilarobjectscanseriouslydamage
your washing machine and laundry;
- remove curtain hooks;
- wash coloured garments and in particular those
withnon-fastcoloursseparatelywhenwashingfor
thefirsttime. Theyarelikelytolose colour thefirst
time they are washed.
- treat obstinate stains such as grass, rust, tar,
paint,inketc.withastainremoverbeforewashing.

31
Toremovepaintstains,forexample,useavolatile
substance such as turpentine: in this case, you
shouldwaitforittodrycompletelybeforewashing.
Themanufacturer of your washing machine is not
responsibleforanydamagederivingfromtheuse
of volatile, inflammable or toxic substances.
At the end of the washing
Damplaundryshouldbedriedassoonaspossible
after finishing the wash.
Knitwear and woollens should be dried flat away
from direct sunlight.
Detergents and additives
Good washing results also depend on the choice
of detergent and use of the correct quantities to
avoidwasteandprotecttheenvironment.Although
biodegradable, detergents contain substances
which in large quantities can damage the delicate
ecological balance of nature.
Always use good quality detergents suitable
for use in washing machines.
Follow the indications given by the detergent ma-
nufacturer according to the weight of laundry, the
degree of soil and the hardness of the water in
your area; if you do not know how hard it is, ask
your local Water Authority.
Powder detergents.
The washing powder should be placed in the
appropriatecompartmentsofthedispenserdrawer
beforestartingtheprogramme.Specialdetergents
areavailaibleforcolouredanddelicatefabricsand
for wool.
"Concentrated" powder detergents
Pour the concentrated powder detergent into the
main wash ( ) compartment.
Avoid selecting programmes including
prewash when concentrated detergents are
used.
Level Characteristic French degrees
°dH m mol °T.H.
1 Soft 0 - 7 0 - 1,3 0 - 15
2 medium 8 - 14 1,4 - 2,5 16 - 25
3 hard 15 - 21 2,6 - 3,8 26 - 37
4 very hard > 21 > 3,8 > 37
German degreesGerman degrees
German degreesGerman degrees
German degrees
Liquid detergents
Using the new automatic dispenser for liquid
detergents, it is possible to use a liquid detergent
for main wash phases if you start the washing
machineimmediately.
Liquid detergents can be used instead of powder
detergents particularly for lightly soiled laundry
and for medium or low temperature washing pro-
grammes, while it is better to use a powder
detergent for high temperature washing
programmes.
Liquid additives
Anyliquidadditivesforsofteningthelaundrymust
bepouredintothecompartment ofthedetergent
dispenserdrawerbeforestartingtheprogramme.
Theadditionofwatersoftenerisparticularlyuseful
when drying the clothes in a tumble dryer after
washing to avoid a static charge.
Makesurethattheleveloftheliquidneverexceeds
the MAX level.
Water hardness

32
Strong wash
WASH
Delicate wash
Max. wash
temperature 95°CMax. wash temperature 60°CMax. wash temperature 40°CMax. wash
temperature 30°CHand
wash Do not
wash
at all
BLEACHING Bleach in cold water Do not bleach
IRONING Hot iron max. 200°CWarm iron max. 150°CLukewarm iron max. 110°CDo not iron
DRY CLEANING
Dry cleaning in
perchlorethylene petrol, pure
alcohol, R 111 & R 113
Dry cleaning
in all solvents Dry cleaning in petrol,
pure alcohol, and R 113 Do not dry clean
DRYING On the lineFlat On clothes hanger Tumble dry
high
temperature
low
Do not tumble dry
Wash code symbols
These symbols appear on fabric label, in order to help you choose the best way to treat your
laundry.

33
fig.4 fig.5
Bodywork
The outside or the machine can be cleaned with
warmwaterandaneutralnon-abrasivehousehold
detergent. Wipe with clean water and dry after
cleaning.
Important:donotusemethylatedspirit,diluentsor
similar products.
It is advisable, from time to time, to carry out a
complete cycle without a washing load, adding a
decalcifying product.
The detergent dispenser
The detergent dispenser is very easy to remove.
Justturnthetwo screws 1/4ofaturnandslide the
box towards the top (fig.1 and fig.2).
Cleanthedetergentdispenserunderrunningwater
with a brush or a piece of rag (fig.3).
Repositionthedetergentdispenserintothelid and
refix the two screws (fig.4 and fig.5).
The drain filter
The machine has got a mecanic filter located on
the front part to collect lint and small objects
(toothpins,coins,pins,etc)inadvertentlyleftinthe
clothes. It is essential that this filter is cleaned
regularly.
Frequency of cleaning depends on the type of
articleswashed(cleaningshouldbemorefrequent
if the articles have no hem and tend to fray).
Open the flapdoor covering the filter by pressing
the left side of the filter door (fig.1).
Placeacontainerunderneathtocatchanyspillage.
Accordingotthemodels,completethedrainofthe
appliancebytakingawaythecapandbyextracting
thelittle hose located on the leftof the filter (fig.2).
Turnthefilteranticlockwiseandcleanitthoroughly
with running water (fig.3).
Refit the filter in the guides and turn it clockwise.
Refit the little hose ans the cap, then close the
flapdoor.
fig.1 fig.2
fig.3
CLEANING AND MAINTENANCE
Make sure that the machine is unplugged and
the water tap turned off before undertaking any kind of maintenance.
fig.1
fig.2
fig.3

34
The wash results are not as usualThe wash results are not as usual
The wash results are not as usualThe wash results are not as usual
The wash results are not as usual
The washing cycle is very much too long.The washing cycle is very much too long.
The washing cycle is very much too long.The washing cycle is very much too long.
The washing cycle is very much too long.
The washing machine stops during aThe washing machine stops during a
The washing machine stops during aThe washing machine stops during a
The washing machine stops during a
washing cycle.washing cycle.
washing cycle.washing cycle.
washing cycle.
The machine does not start upThe machine does not start up
The machine does not start upThe machine does not start up
The machine does not start up
The machine does not drain and/or doesThe machine does not drain and/or does
The machine does not drain and/or doesThe machine does not drain and/or does
The machine does not drain and/or does
not spinnot spin
not spinnot spin
not spin
The machine does not fillThe machine does not fill
The machine does not fillThe machine does not fill
The machine does not fill
The machine vibrates or is too noisy
IF SOMETHING DOESN'T WORK ?
Check that :
was the wrong quantity or the wrong detergent
added?Insufficientdetergentleadstogreywashes
and scale deposits in the machine. Check the
quantities more exactly.
were special stains pre-treated ?
were programme and temperature correctly
chosen ?
Check that :
the water pression is sufficient.
the pump filter is not obstructed.
there has not been a power breakdown.
Check that :
the water pression is sufficient.
the pump filter is not obstructed.
the mains fuse is intact.
there is not a rinse hold ending a washing
programme for delicate laundry (see the
programmes chart page 30).
Check that :
the mains fuse is intact.
the appliance is plugged in,.
the lid is firmly shut.
theprogrammeselectordialiscorrectlypositioned.
thebeginningoftheprogrammehasbeenordered
(EIN/AUS pushbutton pushed on).
there has not been a power breakdown.
Check that :
the drain hose is not squashed or bent.
the drain filter is not clogged.
Check that :
the inlet water hose is opened and the water
pression is sufficent.
the lid of the appliance is closed.
there has not been a breakwater.
Check that :
all the transit bolts and packing have been
removed.
all the feet resting firmly on the ground, the lock
nuts have been secrured.
the machine does not touch something.
the load is sufficent.
ProblemsProblems
ProblemsProblems
Problems SolutionsSolutions
SolutionsSolutions
Solutions

35
The machine empties as it fills
There is water on the floor
Softener detergent flows out the overflow
orifice
IF SOMETHING DOESN'T WORK ?
Check that :
the end of the drain hose is not too low.
Check that :
there is not too much detergent or unsuitable
detergent. The formation of foam can cause water
leaks.
one of the detergent dispenser is not obstructed.
the drain hose is well hanged.
if one of the joints or the tap leaking ? it is not
alwayseasytoseeastheleakoftenrunsalongthe
hose.
is the drain filter cover properly closed ?
Check that :
you have respected the adviced quantities.
ProblemsProblems
ProblemsProblems
Problems SolutionsSolutions
SolutionsSolutions
Solutions
Ifyouhaveunabletoidentifyor solve the problem,
consult our servicing department. Before
telephoning, make a note of the make, model and
date of purchase of your machine : the service
department will require this information.
Data plate
You will find these informations on the data plate
of the appliance. It is placed on the back of the
appliance.
SERVICE

36
FORTHE INSTALLER
Technical information
Dimensions heightwithpanel 895mm
heightwithoutpanel 850mm
width 397mm
depth 600mm
Power supply voltage / frequency 220-230 V / 50 Hz
Totalpowerabsorbed 2300 W(10 A)
Heaterrating 1950W
Waterpressure minimum 5 N/cm²(0,5 kg/cm2)
maximum 80 N/cm²(8 kg/cm2)
Maximumload cotton 5 kg
synthetics 2,5 kg
wool 1 kg
Spinningspeed 850rpm
Electricalconsumption(washingat60°C) 1,25kWh
This appliance complies with the following EC Directive :
-72/23/EECof19.02.1973-Low-VoltageDirective
-89/336/EEC of 03.05.1989(including Amentment Directive92/31/EEC) -EMV Directive.
Installation
Unpacking

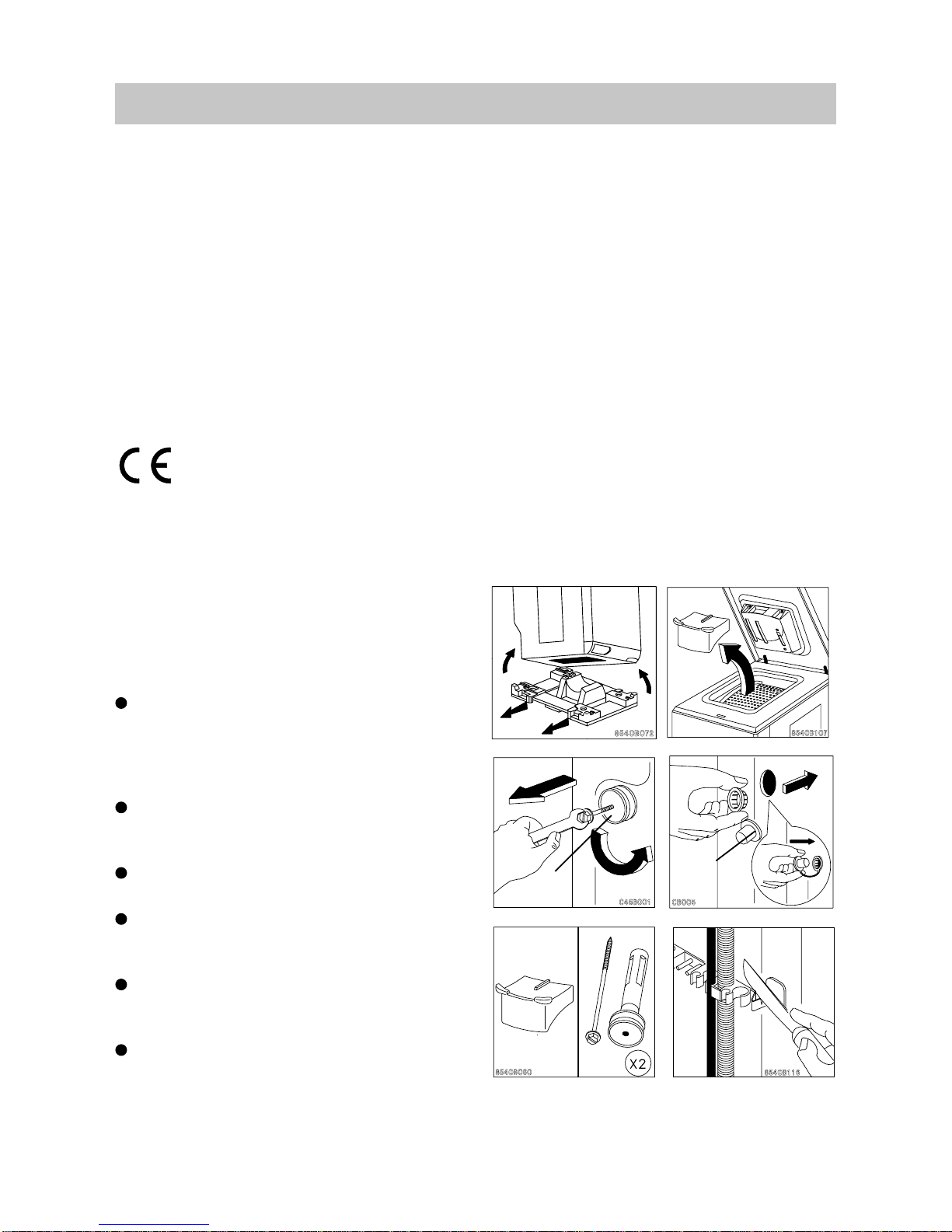

The parts protecting the inner components of
the machine during transit are red. They must
all be removed before using your machine for
the first time. These parts and their securing
meansshouldbekeptincasethemachinehas
to be transported again.
Unpack the appliance. Tilt the appliance
backwards. Give to one of the back corners a
quarterturn.Theappliancecomesfreenaturally
outthepolystyrenebasis.Takeawaythisbasis
(fig. 1).
Open the lid of the appliance and remove the
polystyrene wedge which blocks the drum.
Close the lid (fig. 2).
On the back part and with a spanner, remove
the two red loosened spacers (A) (fig. 3).
Theholeswhicharenowvisiblemustbeclosed
with the plugs (B)provided with the appliance
(fig. 4).
Please ensure that these parts have been
removed from the machine and keep them in
case of next transport (fig. 5).
If you want to keep the alignment of your
appliance with the adjacent cupboards, you
have the possibility to cut the crossbar holding
the hoses located at the back of your washing
machine (fig. 6).
Fig. 1 Fig. 2
Fig 4
Fig 6
B
A
Fig 3
Fig 5

37
Installation
The floor must be clean and dry, free from floor
polish and other greasy substances, so that the
machine does not slide about. Do not use any
grease as lubrification.
Installation on deep pile carpets and floor
coveringswithfoambackingsisnotrecommended,
as the stability of the machine is no longer
guaranteed. If the installation must be done on a
carpeted floor, the openings located at the lower
part of the back of the appliance must remain
free.Theseopeningsensureagoodventilationof
yourappliance. Incaseofsmallformattiles,place
a standard rubber mat under the machine.
With sprung floors, in particular wooden plank
floors with yielding floor boards, screw down a
waterproof wooden base at least 15 mm thick,
acrossatleast2floorboards. Whereverpossible,
placetheapplianceinthecorneroftheroom-there
wooden floors are most secure and least liable to
resonance vibrations.
Nevercompensateforsmall unevennesses inthe
floor by placing wood, pasteboard or such like.
The front adjustable feet must be blocked after
installationoftheappliancebymeansofthelocking
nuts.
Levelling
Itisessentialthatyourmachineisabsolutelylevel.
Raiseorlowerthefrontfeetofthemachine;tighten
the nuts of the feet with an adjustable wrench.
Also make sure that the machine does not touch
the wall, the furnitures etc. during the functioning.
Thisinordertoavoidvibrations,noiseordisplace-
ments of the appliance during operation.
Moving of the appliance
To move your washing machine, put it on its
wheels by turning from the right to the left the
special lever situated at the bottom of the ma-
chine. Once the machine placed at the chosen
place, bring back the lever to its initial original
position.

38

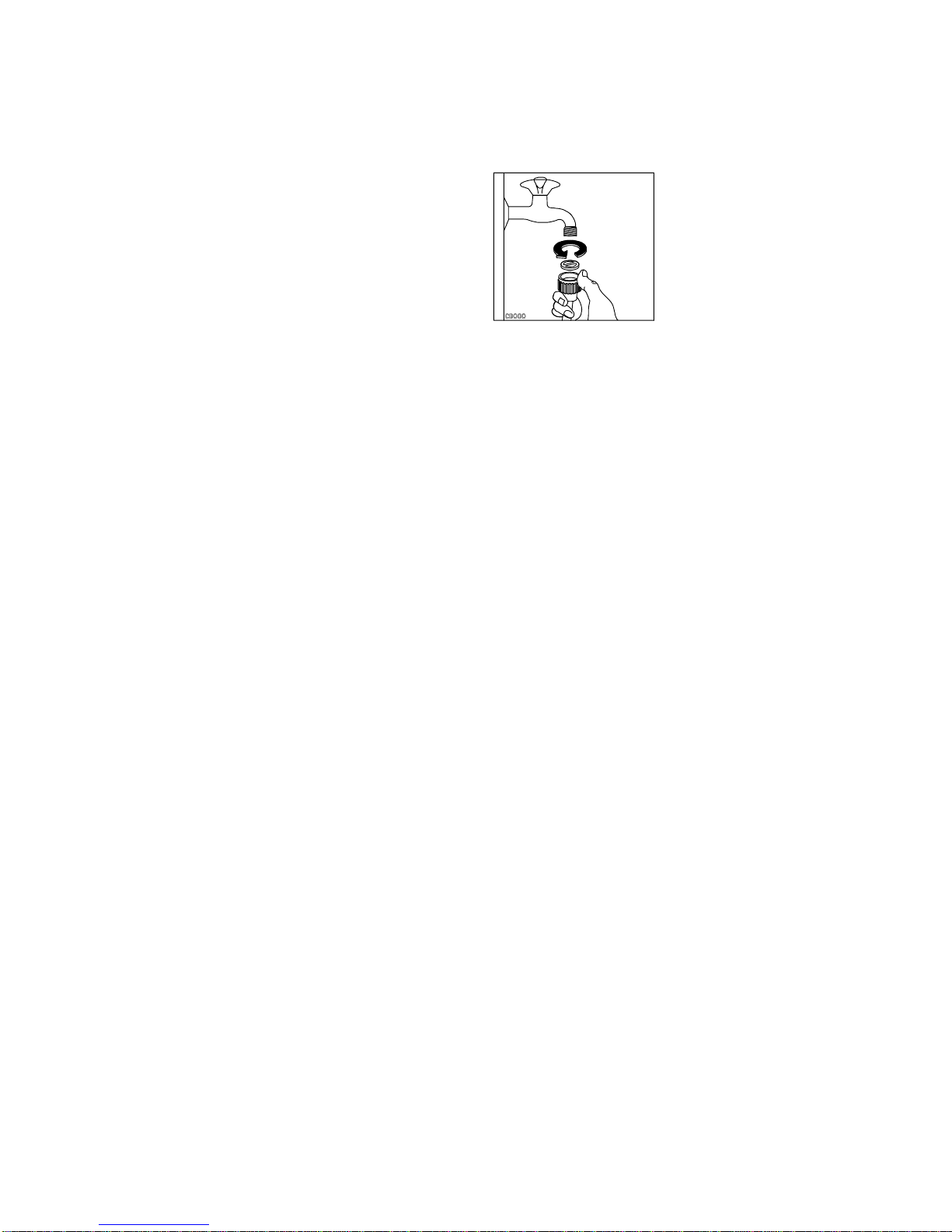

Water connection
Connect the water inlet hose to a cold water tap
witha3/4"gasthreadedorifice,afterhavinginserted
the rugger sealing washer into the hose collar. If
the water connection is made onto new pipes or
onto pipes which have not been used for a long
time, it is advisable to run off a certain amount of
water before connecting the machine.
Placethecurvedendoftheoutledhoseintoadrain
pipehavingaheightbetween70 and100cmfrom
floor level or secure it to a sink or bath tub. Make
sure that the drain hose is firmly secured so that it
will not slip out or fall down from its position.
The water should drain freely and, consequently,
the drain hose should not be choked or placed in
such a way as to obstruct the normal water flow.
If an extension hose is required, remember that it
might cause a malfunction in the drain pump,
particularlyiftheextensionhasalengthinexcess
of 1 meter or if the diameter of the extension is
smallerthanthediameteroftheoriginaldrainhose.
Electrical connection
Before you fit the plug into the wall socket, check
the following points :
1)Thesupplyvoltageofthedomesticwiringsystem
does not fluctuate by more that 10%, plus or
minus, from 230 V.
2)Themeter,thefuses,thesupplylineandthewall
socket are suitable to carry the maximum load
required by the machine (2,3 kW).
Very important :
Thewashingmachineisprovidedwithafeeding
wire with earth connection: it must be
connectedto apluglike thatis provided witha
good earth connection.
The replacing of the power cord must only be
realized by the After Sales Service.
The manufacturer declines any responsibility
where the previous recommendations are not
followed.
129 8454 00

129845400
