Zanussi ZCV621 User manual

EN User manual
Cooker
ZCV621

Contents
Safety information _ _ _ _ _ _ _ _ _ _ _ _ _ _ 2
Safety instructions _ _ _ _ _ _ _ _ _ _ _ _ _ _ 3
Product description _ _ _ _ _ _ _ _ _ _ _ _ _ 6
Before first use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 7
Hob - Daily use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 7
Hob - Helpful hints and tips _ _ _ _ _ _ _ _ _ 7
Hob - Care and cleaning _ _ _ _ _ _ _ _ _ _ _ 8
Oven - Daily use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 8
Oven - Helpful hints and tips _ _ _ _ _ _ _ _ 10
Oven - Care and cleaning _ _ _ _ _ _ _ _ _ 13
What to do if… _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 15
Installation _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 16
Environment concerns _ _ _ _ _ _ _ _ _ _ _ 17
GREAT BRITAIN & IRELAND - Guarantee/
Customer Service _ _ _ _ _ _ _ _ _ _ _ _ _ _ 18
European Guarantee _ _ _ _ _ _ _ _ _ _ _ _ 19
Subject to change without notice.
Safety information
Before the installation and use of the appliance, carefully read the
supplied instructions. The manufacturer is not responsible if an in-
correct installation and use causes injuries and damages. Always
keep the instructions with the appliance for future reference.
Children and vulnerable people safety
Warning! Risk of suffocation, injury or permanent disability.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental ca-
pabilities or lack of experience and knowledge if they are super-
vised by an adult or a person who is responsible for their safety.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep children and pets away from the appliance when it operates
or when it cools down. Accessible parts are hot.
• If the appliance has a child safety device, we recommend that you
activate it.
• Cleaning and user maintenance shall not be made by children
without supervision.
General Safety
• The appliance and its accessible parts become hot during use.
Do not touch the heating elements.
2
www.zanussi.com

• Do not operate the appliance by means of an external timer or
separate remote-control system.
• Unattended cooking on a hob with fat or oil can be dangerous
and may result in fire.
• Never try to extinguish a fire with water, but switch off the appli-
ance and then cover flame e.g. with a lid or a fire blanket.
• Do not store items on the cooking surfaces.
• Do not use a steam cleaner to clean the appliance.
• Metallic objects such as knives, forks, spoons and lids should not
be placed on the hob surface since they can get hot.
• Do not use harsh abrasive cleaners or sharp metal scrapers to
clean the glass door since they can scratch the surface, which
may result in shattering of the glass.
• If the glass ceramic surface is cracked, switch off the appliance to
avoid the possibility of electric shock.
Safety instructions
Installation
Warning! Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied
with the appliance.
• Always be careful when you move the appli-
ance because it is heavy. Always wear safety
gloves.
• Do not pull the appliance by the handle.
• Keep the minimum distance from the other
appliances and units.
• Make sure that the appliance is installed be-
low and adjacent safe structures.
• The sides of the appliance must stay adja-
cent to appliances or to units with the same
height.
• Do not install the appliance on a platform.
• Do not install the appliance adjacent to a
door or under a window. This prevents hot
cookware to fall from the appliance when the
door or the window is opened.
Warning! Make sure to install a stabilizing
means in order to prevent tipping of the
appliance. Refer to Installation chapter.
Electrical connection
Warning! Risk of fire and electrical shock.
• All electrical connections should be made by
a qualified electrician.
• The appliance must be earthed.
• Make sure that the electrical information on
the rating plate agrees with the power sup-
ply. If not, contact an electrician.
• Always use a correctly installed shockproof
socket.
• Do not use multi-plug adapters and exten-
sion cables.
3
www.zanussi.com

• Make sure not to cause damage to the mains
plug and to the mains cable. Contact the
Service or an electrician to change a dam-
aged mains cable.
• Do not let mains cables to come in touch
with the appliance door, specially when the
door is hot.
• The shock protection of live and insulated
parts must be fastened in such a way that it
cannot be removed without tools.
• Connect the mains plug to the mains socket
only at the end of the installation. Make sure
that there is access to the mains plug after
the installation.
• If the mains socket is loose, do not connect
the mains plug.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains plug.
• Use only correct isolation devices: line pro-
tecting cut-outs, fuses (screw type fuses re-
moved from the holder), earth leakage trips
and contactors.
• The electrical installation must have an isola-
tion device which lets you disconnect the ap-
pliance from the mains at all poles. The isola-
tion device must have a contact opening
width of minimum 3 mm.
Use
Warning! Risk of injury, burns or electric
shock.
• Use this appliance in a household environ-
ment.
• Do not change the specification of this appli-
ance.
• Make sure that the ventilation openings are
not blocked.
• Do not let the appliance stay unattended
during operation.
• Deactivate the appliance after each use.
• Internally the appliance becomes hot when in
operation. Do not touch the heating elements
that are in the appliance. Always use oven
gloves to remove or put in accessories or
ovenware.
• Be careful, when you open the appliance
door while the appliance is in operation. Hot
air can release.
• Do not operate the appliance with wet hands
or when it has contact with water.
• Do not apply pressure on the open door.
• Do not use an external timer or a separate re-
mote-control system to operate the appli-
ance.
• Always keep the appliance door closed when
the appliance is in operation.
• Do not put cutlery or saucepan lids on the
cooking zones. They become hot.
• Set the cooking zone to “off” after use.
• Do not use the appliance as a work surface
or as a storage surface.
• If the surface of the appliance is cracked,
disconnect immediately the appliance from
the power supply. This to prevent an electri-
cal shock.
Warning! Risk of fire or explosion.
• Fats and oil when heated can release flam-
mable vapours. Keep flames or heated ob-
jects away from fats and oils when you cook
with them.
• The vapours that very hot oil releases can
cause spontaneous combustion.
• Used oil, that can contain food remnants, can
cause fire at a lower temperature than oil
used for the first time.
• Do not put flammable products or items that
are wet with flammable products in, near or
on the appliance.
• Do not let sparks or open flames to come in
contact with the appliance when you open
the door.
• Open the appliance door carefully. The use
of ingredients with alcohol can cause a mix-
ture of alcohol and air.
• Do not try to extinguish a fire with water. Dis-
connect the appliance and cover the flame
with a lid or a fire blanket.
Warning! Risk of damage to the
appliance.
4
www.zanussi.com

• To prevent damage or discoloration to the
enamel:
– Do not put ovenware or other objects in
the appliance directly on the bottom.
– Do not put aluminium foil directly on the
bottom of the appliance.
– do not put water directly into the hot appli-
ance.
– do not keep moist dishes and food in the
appliance after you finish the cooking.
– be careful when you remove or install the
accessories.
• Discoloration of the enamel has no effect on
the performance of the appliance. It is not a
defect in the sense of the warranty law.
• Use a deep pan for moist cakes. Fruit juices
cause stains that can be permanent.
• Do not keep hot cookware on the control
panel.
• Do not let cookware to boil dry.
• Be careful not to let objects or cookware fall
on the appliance. The surface can be dam-
aged.
• Do not activate the cooking zones with emp-
ty cookware or without cookware.
• Do not put aluminium foil on the appliance.
• Cookware made of cast iron, aluminium or
with a damaged bottom can cause scratches
on the glass ceramic. Always lift these ob-
jects up when you have to move them on the
cooking surface.
Warning! This appliance is for cooking
purposes only. It must not be used for
other purposes, for example room heating.
Care and Cleaning
Warning! Risk of injury, fire or damage to
the appliance.
• Before maintenance, deactivate the appli-
ance and disconnect the mains plug from the
mains socket.
• Make sure the appliance is cold. There is the
risk that the glass panels can break.
• Replace immediately the door glass panels
when they are damaged. Contact the Serv-
ice.
• Be careful when you remove the door from
the appliance. The door is heavy!
• Clean regularly the appliance to prevent the
deterioration of the surface material.
• Remaining fat or food in the appliance can
cause fire.
• Clean the appliance with a moist soft cloth.
Only use neutral detergents. Do not use
abrasive products, abrasive cleaning pads,
solvents or metal objects.
• If you use an oven spray, obey the safety in-
structions on the packaging.
• Do not clean the catalytic enamel (if applica-
ble) with any kind of detergent.
Internal light
• The type of light bulb or halogen lamp used
for this appliance, is only for household appli-
ances. Do not use it for house lighting.
Warning! Risk of electrical shock.
• Before replacing the lamp, disconnect the
appliance from the power supply.
• Only use lamps with the same specifications.
Service
• Contact the Service to repair the appliance.
We recommend only the use of original
spare parts.
Disposal
Warning! Risk of injury or suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent children
and pets to get closed in the appliance.
5
www.zanussi.com

Product description
General overview
2
1
3
4
5
5
6
5
4
3
2
1
3
2
1
7
8
1Control panel and hob
2Air vents for the cooling fan
3Heating element
4Rating plate
5Oven lamp
6Fan and heating element
7Shelf positions of the main oven
8Shelf positions of the top oven
Cooking surface layout
180
mm
180
mm
145
mm
145
mm
5 4
1 2
3
1Cooking zone 1200 W
2Cooking zone 1700 W
3Cooking zone 1200 W
4Residual heat indicator
5Cooking zone 1700 W
6
www.zanussi.com

Control panel
1 2 3
45
1
1Knobs for the hob
2Knob for the top oven / grill
3Knob for the main oven
4Main oven indicator
5Oven power indicator
Accessories
•Deep grill roasting pan
To bake and roast or as pan to collect fat.
•The roasting pan grid
To put in the deep roasting pan.
•Oven shelf
For cookware, cake tins, roasts.
Before first use
Warning! Refer to the Safety chapters.
Initial Cleaning
• Remove all parts from the appliance.
• Clean the appliance before first use.
Caution! Do not use abrasive cleaning
agents! This can damage the surface.
Refer to chapter "Care and Cleaning".
Preheating
Set an oven function and maximum temperature
and run an empty oven for 45 minutes, to burn
off any residue from the cavity surface. Acces-
sories can become hotter than in normal use.
During this period an odour can be emitted.
This is normal. Make sure the room is well ven-
tilated.
Preheat the two ovens. Heat up one oven at a
time.
Hob - Daily use
Warning! Refer to the Safety chapters.
Heat settings
Control knob Function
0Off position
1-6
Heat settings
(1 = lowest heat setting; 6=
highest heat setting)
1. Turn the control knob to a necessary heat
setting.
2. To complete the cooking process, turn the
control knob to the “0” position.
Residual heat indicator
The residual heat indicator comes on when a
cooking zone is hot.
Warning! Risk of burns from residual
heat!
Hob - Helpful hints and tips
Warning! Refer to the Safety chapters.
Cookware
• The bottom of the cookware must be as
thick and flat as possible.
7
www.zanussi.com

• Cookware made of enamelled steel and
with aluminium or copper bottoms can
cause discoloration on glass ceramic
surface.
Energy saving
• If possible, always put the lids on the
cookware.
• Put cookware on a cooking zone before
you start it.
• Stop the cooking zones before the end
of the cooking time to use residual heat.
• The bottom of pans and cooking zones
must have the same dimension.
Examples of cooking applications
Heat set-
ting:
Use to:
1Keeping warm
2Gentle simmering
3Simmering
4Frying / browning
5Bringing to the boil
6Bringing to the boil / quick frying /
deep-frying
Hob - Care and cleaning
Warning! Refer to the Safety chapters.
Clean the appliance after each use.
Always use cookware with clean bottom.
Scratches or dark stains on the glass ce-
ramic have no effect on how the appliance
operates.
To remove the dirt:
1. – Remove immediately:melted plastic,
plastic foil, and food with sugar. If not,
the dirt can cause damage to the appli-
ance. Use a special scraper for the
glass . Put the scraper on the glass sur-
face at an acute angle and move the
blade on the surface .
–Remove after the appliance is suffi-
ciently cool:limescale rings , water
rings, fat stains, shiny metallic discolora-
tions. Use a special cleaning agent for
glass ceramic or stainless steel.
2. Clean the appliance with a moist cloth and
some detergent.
3. At the end rub the appliance dry with a
clean cloth.
Oven - Daily use
Warning! Refer to the Safety chapters.
Cooling fan
When the appliance operates, the cooling fan
switches on automatically to keep the surfaces
of the appliance cool. If you switch off the ap-
pliance, the cooling fan continues to operate
until the appliance cools down.
If there is a fault in the cooling fan, contact
the customer service.
Activating and deactivating the appliance
1. Turn the top oven/grill (the main oven) con-
trol knob to the require settings.
2. The top oven/grill indicator (the oven pow-
er indicator) indicator comes on while the
temperature in the appliance increases.
3. To deactivate the appliance, turn the top
oven/grill (the main oven) control knob to
the Off position.
The main oven indicator switches to OFF,
when the set temperature will be reached.
8
www.zanussi.com

Top oven functions
Oven function Application
OFF position The appliance is OFF.
Oven lamp To illuminate the oven interior.
Scale Keep Warm The oven uses the outer top heating element to keep cooked food warm
or to keep the plate warm before serving.
Single Circuit Grill To grill flat food items in small quantities in the middle of the shelf. To
make toast.
Dual Circuit Grill To grill food items in medium quantities in the middle of the shelf. To
make toast.
Full Grill The full grill element is on. To grill flat food items in large quantities. To
make toast.
Main oven functions
Oven function Application
OFF position The appliance is OFF.
Oven lamp To illuminate the oven interior.
Defrost To thaw frozen food. The knob for the temperature must be on the OFF
position.
100-250 Thermaflow This function is particularly suitable for cooking larger quantities of food.
Grilling set
The grilling set includes the roasting pan grid
and the deep roasting pan. You can use the
roasting pan grid on the two sides.
Warning! Risk of burns when removing
the accessories from a hot oven.
9
www.zanussi.com

You can use the grill-
ing set to roast larger
pieces of meat or
poultry on one level:
Put the roasting pan
grid inside the deep
roasting pan so that
the supports of the
oven shelf point up-
wards.
You can use the grill-
ing set to grill flat
dishes in large quan-
tities and to toast:
Put the roasting pan
grid inside the deep
roasting pan so that
the supports of the
oven shelf point
downwards.
Put the deep roasting pan in the oven at the
necessary level.
Oven - Helpful hints and tips
Warning! Refer to the Safety chapters.
The temperature and baking times in the
tables are guidelines only. They depend on
the recipes, quality and quantity of the ingredi-
ents used.
Caution! Use a Deep grill roasting pan for
very moist cakes. Fruit juices can cause
permanent stains on the enamel.
Top oven
The top oven is the smaller of the two ovens. It
has 3 shelf levels. Use is to cook smaller quan-
tities of food. It gives especially good results
when used to cook fruitcakes, sweets and sa-
voury flants or quiche.
Main oven
The main oven is particularly suitable for cook-
ing larger quantities of food.
Baking
General instructions
• Your new oven may bake or roast differently
to the appliance you had before. Adapt your
usual settings (temperature, cooking times)
and shelf levels to the values in the tables.
• With longer baking times, the oven can be
switched off about 10 minutes before the
end of baking time, to use the residual heat.
When you use frozen food, the trays in
the oven can twist during baking. When
the trays get cold again, the distortion
will be gone.
How to use the Baking Tables
• We recommend to use the lower tempera-
ture the first time.
• If you cannot find the settings for a special
recipe, look for the one that is almost the
same.
• Baking time can be extended by 10-15 mi-
nutes, if you bake cakes on more than one
level.
10
www.zanussi.com

• Cakes and pastries at different heights do
not always brown equally at first. If this oc-
curs, do not change the temperature setting.
The differences equalize during the baking
procedure.
Tips on baking
Baking results Possible cause Remedy
The cake is not browned
sufficiently below
Incorrect oven level Put the cake on a lower oven level
The cake sinks (becomes
soggy, lumpy, streaky)
Oven temperature too high Use a lower setting
The cake sinks (becomes
soggy, lumpy, streaky)
Baking time is too short Set a longer baking time
Do not set higher temperatures to de-
crease baking times
The cake sinks (becomes
soggy, lumpy, streaky)
Too much liquid in the mixture Use less liquid. Look at the mixing times, spe-
cially when you use mixing machines
Cake is too dry Oven temperature too low Set a higher oven temperature
Cake is too dry Baking time too long Set a shorter baking time
Cake does not brown
equally
Oven temperature too high and
baking time too short
Set a lower oven temperature and a longer
baking time
Cake does not brown
equally
No equal mixture Put the mixture equally on the baking tray
Cake does not cook in
the baking time set
Temperature too low Use a slightly higher oven temperature setting
Main Oven
Shelf Positions are not critical but ensure
that oven shelves are evenly spaced when
more than one is used (e.g. shelf positions 1
and 3)
Baking
Food Temperature
[°C]
Approx Cook Time
(mins) Shelf Position
Biscuits 180 - 190 10 - 20 1 / 3
Bread 190 - 210 30 - 35 2
Cakes: Small & Queen 150 - 170 18 - 25 1 / 3
Cakes: Sponges 160 - 170 20 - 25 3
Cakes: Madeira 140 - 160 60 - 80 3
Cakes: Rich Fruit 130 - 140 120 - 150 3
Cakes: Christmas 130 - 140 180 - 270 3
Cakes: Apple Pie 160 - 170 50 - 60 3
- Shortbread 130 - 150 45 - 60 1 / 3
Fish 160 - 180 30 - 40 3
Fruit Pies, Crumbles 170 - 180 30 - 50 3
11
www.zanussi.com

Food Temperature
[°C]
Approx Cook Time
(mins) Shelf Position
Milk Puddings 140 - 160 60 - 90 3
Pastry: Choux 180 - 190 30 - 40 3
Pastry: Shortcrust 180 - 190 25 - 35 3
Pastry: Flaky 180 - 190 30 -40 3
Pastry: Puff Follow manufacturer`s instructions. Reduce the tem-
perature for Fan oven by 20°C 3
Plate Tarts 180 - 190 25 - 45 3
Quiches/Flans 170 - 180 25 - 45 3
Scones 210 - 230 8 - 12 1 / 3
Roasting: Meat, Poultry 160 - 180 see Roasting Chart 2
Roasting
Roasting dishes
• Use heat-resistant ovenware to roast (please
read the instructions of the manufacturer).
• Large roasting joints can be roasted directly
in the deep roasting pan or on the oven shelf
above the deep roasting pan. (If present)
• Roast lean meats in a roasting tin with a lid.
This well keep the meat more succulent.
• All types of meat, that can be browned or
have crackling, can be roasted in the roasting
tin without the lid.
Thermaflow or Conventional Cooking (if available)
Roasting
Meat Temperature [°C] Cooking Time
Beef/Beef boned 170 - 190 20-35 minutes per 0.5 kb (1 lb) and
20-30 minutes over
Mutton/Lamb 170 - 190 20-35 minutes per 0.5 kb (1 lb) and
25-35 minutes over
Pork/Veal/Ham 170 - 190 30-40 minutes per 0.5 kb (1 lb) and
30-40 minutes over
Chicken 180 - 200 20-25 minutes per 0.5 kb (1 lb) and 20
minutes over
Turkey/Goose
170 - 190
15-20 minutes per 0.5 kg (1 lb) up to
3.5 kg (7 lb) then 10 minutes per 0.5
kg (1 lb) over 3.5 kg (7 lb)
Duck 180 - 200 25-35 minutes per 0.5 kb (1 lb) and
25-30 minutes over
Pheasant 170 -190 35-40 minutes per 0.5 kb (1 lb) and
35-40 minutes over
Rabbit 170 - 190 20 minutes per 0.5 kb (1 lb) and 20mi-
nutes over
12
www.zanussi.com

Grilling
Always use the grilling function with max-
imum temperature setting
Important! Always grill with the oven door
closed
Always pre-heat the empty oven with the
grill functions for 5 minutes.
• Set the grilling set in the shelf level as rec-
ommended in the grilling table.
• Grill only flat pieces of meat or fish.
Top Oven - Dual Circuit Grill
Adjust shelf position and grilling set to suit
different thicknesses of food.
Grilling
Food Shelf Position Grill Time (min)
Bacon Rashers 35 - 6
Beefburgers 310 - 20
Chicken Joints 220 - 40
Chops - Lamb 2 - 3 15 - 25
Chops - Pork 2 - 3 20 - 25
Fish - Whole/Trout/Makarel 210 - 12
Fillets - Plaice/Cod 24 - 6
Kebabs 2 - 3 12 - 18
Kidneys - Lamb/Pig 2 - 3 6 - 10
Sausages 320 - 30
Steaks: Rare 34 - 6
Steaks: Medium 36 - 8
Steaks: Well Done 312 - 15
Toasted Sandwiches 33- 4
Defrosting
• Put the food out of the packaging and set it
on a plate on the oven shelf.
• Do not cover with a plate or bowl. This can
extend the time to defrost very much.
• Put the oven shelf in the first shelf level from
the bottom.
Oven - Care and cleaning
Warning! Refer to the Safety chapters.
• Clean the front of the appliance with a soft
cloth with warm water and cleaning agent.
• To clean metal surfaces use a usual cleaning
agent
• Clean the oven interior after each use. Thus
you can remove dirt more easily and it does
not burn on.
• Clean stubborn dirt with a special oven
cleaner.
• Clean all oven accessories (with a soft cloth
with warm water and cleaning agent) after
each use and let them dry.
• If you have nonstick accessories, do not
clean them using an aggressive agents,
sharp edged objects or dishwasher. It can
destroy nonstick coating!
13
www.zanussi.com

Stainless steel or aluminium applian-
ces:
Clean the oven door with a wet sponge only.
Dry it with a soft cloth.
Do not use steel wool, acids or abrasive materi-
als as they can damage the oven surface.
Clean the oven control panel with the same
precautions
Oven Ceiling
You can fold down the heating element on the
oven ceiling to clean the oven ceiling easily.
Warning! Before you fold down the
heating element switch off the appliance.
Make sure that the appliance is cold.
There is a risk of burns!
Folding down the heating element
1. Remove the shelf support rails.
2. Hold the heating element with the two
hands at the front
3. Pull it forwards against the spring pressure
and out along the support on both sides.
4. The heating element folds down.
The oven ceiling is ready to clean.
Installing the heating element
1. Install the heating element in opposite se-
quence.
Important! Install the heating element correctly
on the two sides above the support on the
inner wall of the oven.
2. Insert shelf support rails.
Cleaning the top oven glass panels
The door glass on your product can be dif-
ferent in type and shape from what you
see in diagrams. The number of glasses can be
different.
Removing the glass:
1. Open the door.
2. Push the door trim at both sides to release
the clips. Refer to the picture.
3. Remove the glass panels.
1
2
1
To replace the glass obey the procedure in
opposite sequence.
Cleaning the oven door
The door glass on your product can be dif-
ferent in type and shape from what you
see in diagrams. The number of glasses can be
different.

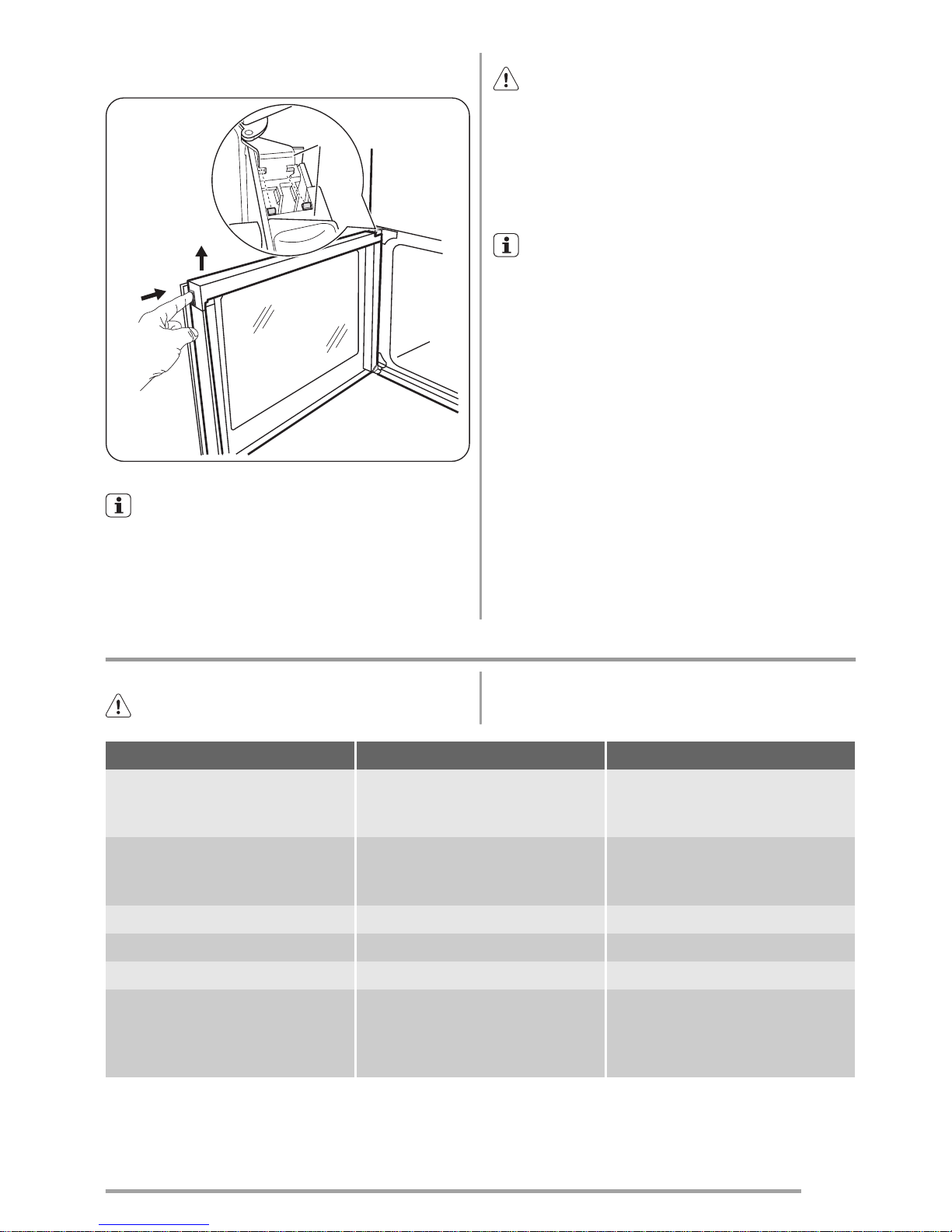

Removing the glass:
1. Push the door trim at one side to remove it.
Refer to the picture.
2. Pull up the trim.
14
www.zanussi.com

3. Remove the glass panels.
1
2
A
To replace the glass panels obey the pro-
cedure in opposite sequence. Before you
lower the trim attach the A trim part to the door.
Refer to picture.
Oven lamp
Warning! There is a danger of electrical
shock!
Before you change the oven lamp:
• Switch off the oven.
• Remove the fuses in the fuse box or switch
off the circuit breaker.
Put a cloth on the bottom of the oven for
protection of the oven light and glass cov-
er.
Replacing the oven lamp
1. You can find the lamp glass cover at the
back of the cavity.
Turn the lamp glass cover counterclock-
wise to remove it.
2. Clean the glass cover.
3. Replace the oven lamp with an applicable
300 °C heat-resistant oven lamp.
Important! Use the same oven lamp type.
4. Install the glass cover.
What to do if…
Warning! Refer to the Safety chapters.
Problem Possible cause Remedy
The residual heat indicator does
not come on
The cooking zone is not hot be-
cause it operated only for a short
time
If the cooking zone must be hot,
speak to the after sales service
The appliance does not operate The fuse in the fuse box is re-
leased
Control the fuse. If the fuse is re-
leased more than one time, refer
to a qualified electrician.
The oven does not heat up The oven is not switched on Switch on the oven
The oven does not heat up The necessary settings are not set Control the settings
The oven lamp does not operate The oven lamp is defective Replace the oven lamp
Steam and condensation settle on
the food and in the oven cavity
You left the dish in the oven for
too long
Do not leave the dishes in the
oven for longer than 15-20 mi-
nutes after the cooking process
ends
15
www.zanussi.com

If you cannot find a solution to the problem
yourself, contact your dealer or the service cen-
tre.
The necessary data for the service centre is on
the rating plate. The rating plate is on the front
frame of the oven cavity.
We recommend that you write the data here:
Model (MOD.) .........................................
Product number (PNC) .........................................
Serial number (S.N.) .........................................
Installation
Warning! Refer to the Safety chapters.
Technical data
Dimensions
Height 893 - 912 mm
Width 600 mm
Depth 600 mm
Top oven capacity 37 l
Main oven capacity 74 l

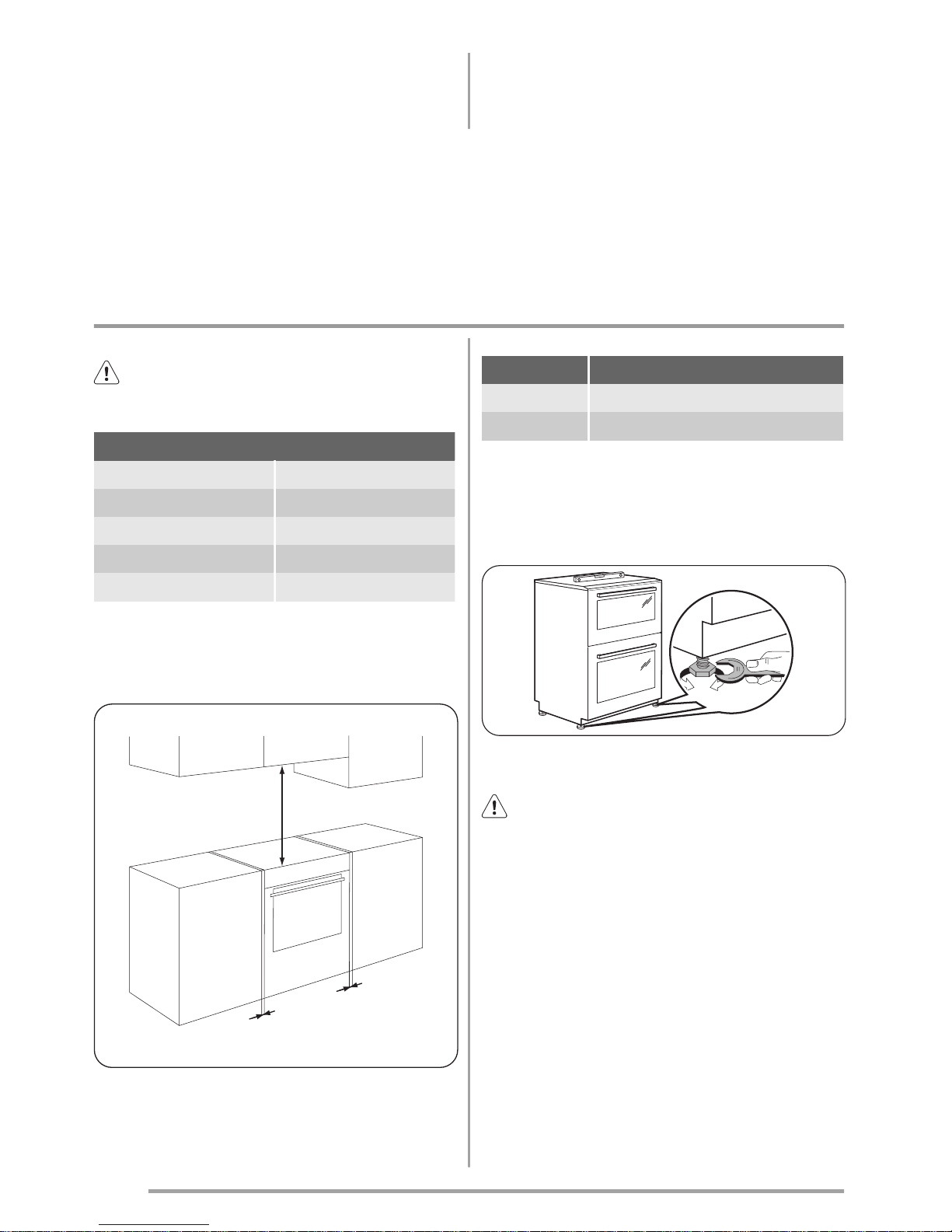

Location of the appliance
You can install your freestanding appliance with
cabinets on one or two sides and in the corner.
A
A
B
Minimum distances
Dimension mm
A 2
B685
Levelling
Use small feet on the bottom of appliance to
set same level of cooker top surface with other
surfaces
The anti-tilt protection
Caution! You must install the anti-tilt
protection (A+B). If you do not install it the
appliance can tilt.
Before you install anti-tilt protection, adjust the
appliance to the correct height.

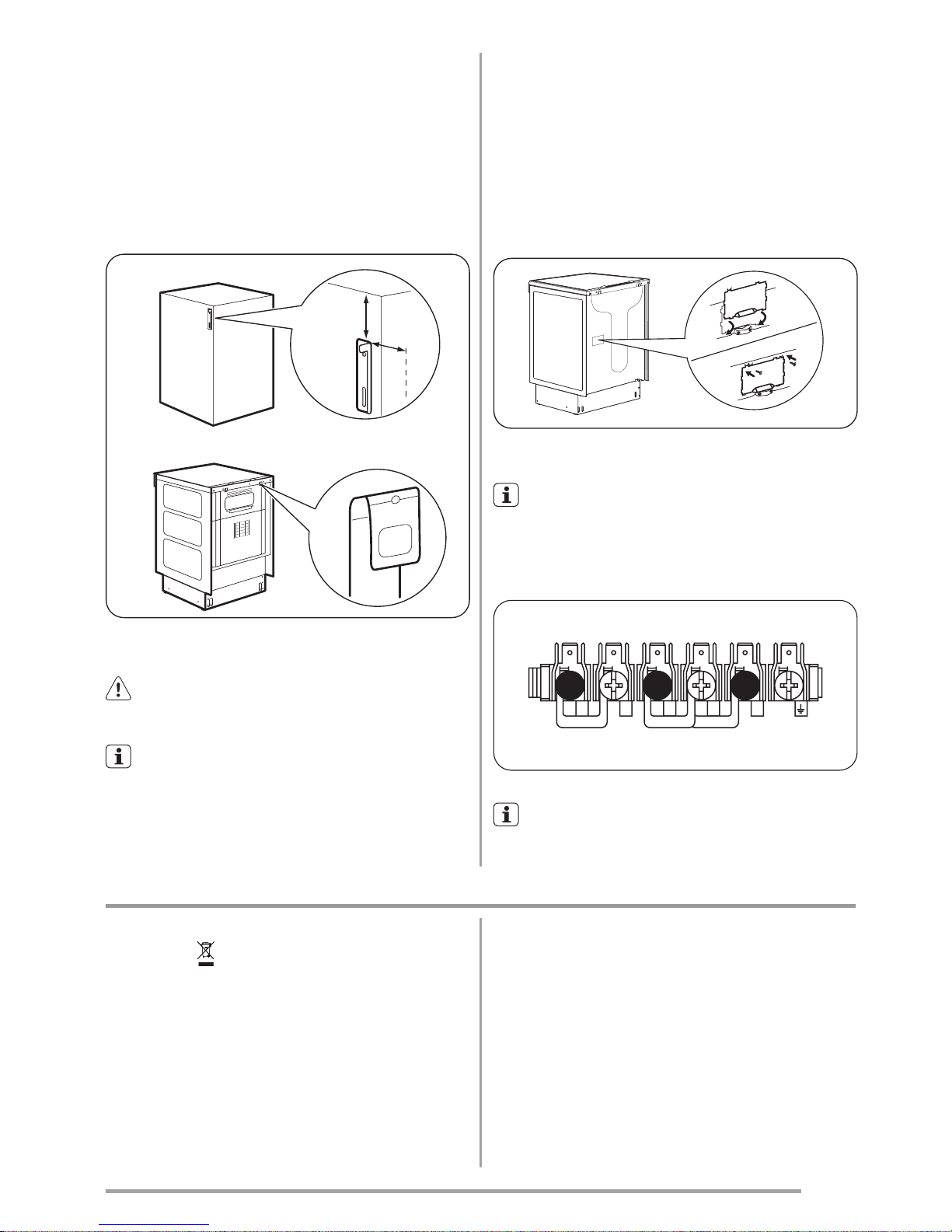

The anti-tilt protection has two parts (A+B).
You can find the anti-tilt protection (B) on right
or left side of the rear wall of the appliance
(See fig. 1). You must install the anti-tilt protec-
tion (A) on the wall. The distance of the hole of
the anti-tilt protection (A) from the floor is about
816 mm. Make sure you install the anti-tilt pro-
tection (A) at the correct height. Screw it into
the solid material or use applicable reinforce-
ment.
16
www.zanussi.com

Check that the anti-tilt protection projects mini-
mum 20 mm into the hole in the back of the ap-
pliance (B) when you push the appliance (See
fig. 2). If the space between the bench cup-
boards is greater than the width of the appli-
ance, you must adjust the side measurement to
centre the appliance. Make sure that the sur-
face behind the appliance is smooth.
2
1
B
60 mm
50 mm
A
Electrical installation
Warning! Only a qualified and competent
person must do the electrical installation.
The manufacturer is not responsible if you
do not follow safety precautions from the
chapter "Safety information".
This appliance is supplied without a main plug
or a main cable.
Covering terminal board
The recommended cross-section area is six
square millimetres (6 mm²).
When you refit the mains terminal cover, make
sure that the lower tabs are located inside the
bottom edge of the aperture, before you fix the
two screws into the top edge of the mains ter-
minal cover.
Make sure that the cover is securely fastened.
To open the cover of terminal board obey
the procedure in opposite sequence.
Terminal board
Make sure that the links are fitted as shown.
NNN
LL
Do not remove blanking plates.
Environment concerns
The symbol on the product or on its
packaging indicates that this product may not
be treated as household waste. Instead it
should be taken to the appropriate collection
point for the recycling of electrical and
electronic equipment. By ensuring this product
is disposed of correctly, you will help prevent
potential negative consequences for the
environment and human health, which could
otherwise be caused by inappropriate waste
handling of this product. For more detailed
information about recycling of this product,
please contact your local council, your
household waste disposal service or the shop
where you purchased the product.
17
www.zanussi.com

Packaging material
The packaging material is environmentally-
friendly and recyclable. Plastic parts are marked
with international abbreviations such as PE, PS,
etc. Dispose of the packaging material in the
containers provided for this purpose at your lo-
cal waste management facility.
GB
IE
GREAT BRITAIN & IRELAND - Guarantee/Customer Service
Standard guarantee conditions:
We, Electrolux, undertake that if within 12
months of the date of the purchase this Electro-
lux appliance or any part thereof is proved to be
defective by reason only of faulty workmanship
or materials, we will, at our option repair or re-
place the same FREE OF CHARGE for labour,
materials or carriage on condition that:
• Appliance has been correctly installed and
used only on the electricity supply stated on
the rating plate.
• Appliance has been used for normal domes-
tic purposes only, in accordance with manu-
facturer's instructions.
• Appliance hasn't been serviced, maintained,
repaired, taken apart or tampered with by
person not authorised by us.
• Electrolux Service Force Centre must under-
take all service work under this guarantee
• Any appliance or defective part replaced
shall become the Company's property.
• This guarantee is in addition to your statutory
and other legal rights.
Exclusions
• Damage, calls resulting from transport, im-
proper use, neglect, light bulbs, removable
parts of glass, plastic.
• Costs for calls to put right appliance which is
improperly installed, calls to appliances out-
side United Kingdom.
• Appliances found to be in use within a com-
mercial environment, plus those which are
subject to rental agreements.
• Products of Electrolux manufacturer that are
not marketed by Electrolux
Service and Spare Parts.Please contact your
local Service Force Centre: 08445 616
616(Call will be routed to Service Force Centre
covering your postcode area). For address of
local Service Force Centre and further informa-
tion, please visit: www.serviceforce.co.uk
Before calling out an engineer, please ensure
you have read the details under the heading
"What to do if... / Troubleshooting". When you
contact the Service Force Centre you will need
to give the following details: Your name, ad-
dress and postcode, your telephone number,
clear concise details of the fault, model and se-
rial number of the appliance (found on the rat-
ing plate), the purchase date. Please note a val-
id purchase receipt or guarantee documenta-
tion is required for in guarantee service calls.
Customer Care.Please contact our Customer
Care Department: Electrolux Major Appliances,
Addington Way, Luton, Bedfordshire, LU4
9QQ or visit our website at www.electro-
lux.co.uk
Customer
Care De-
partment,
Tel: (Calls may be recorded for
training purposes)
Electrolux 08445 613 613
AEG-Elec-
trolux
08445 611 611
Zanussi-
Electrolux
08445 612 612
For Customer Service in The Republic of
Ireland please contact us at the address
below:
Electrolux Group (Irl) Ltd, Long Mile Road,
Dublin 12, Republic of Ireland
Tel: [phone], Email: serv-
[email protected]
18
www.zanussi.com

European Guarantee
GB
This appliance is guaranteed by Electrolux
in each of the countries listed at the back of
this user manual, for the period specified in the
appliance guarantee or otherwise by law. If you
move from one of these countries to another of
the countries listed, the appliance guarantee
will move with you subject to the following qual-
ifications:-
• The appliance guarantee starts from the date
you first purchased the appliance which will
be evidenced by production of a valid pur-
chase document issued by the seller of the
appliance.
• The appliance guarantee is for the same peri-
od and to the same extent for labour and
parts as exists in your new country of resi-
dence for this particular model or range of
appliances.
• The appliance guarantee is personal to the
original purchaser of the appliance and can-
not be transferred to another user.
• The appliance is installed and used in ac-
cordance with instructions issued by Electro-
lux and is only used within the home, i.e. is
not used for commercial purposes.
• The appliance is installed in accordance with
all relevant regulations in force within your
new country of residence.
The provisions of this European Guarantee do
not affect any of the rights granted to you by
law.
www.electrolux.com
Albania [phone] Rruga “Kavajës”, ish-parku autobuzëve, Ti-
ranë
Belgique/België/Belgien [phone] Raketstraat 40, 1130 Brussel/Bruxelles
Česká Republika [phone] Budějovická 3, Praha 4, 140 21
Danmark [phone] Strevelinsvej 38-40, 7000 Fredericia
Deutschland [phone] Fürther Str. 246, 90429 Nürnberg
Eesti [phone] Pärnu mnt. 153, 11624 Tallinn
España [phone] Carretera M-300, Km. 29,900 Alcalá de He-
nares Madrid
France 08 92 68 24 33 (0.34€/
min)
www.electrolux.fr
Great Britain [phone] Addington Way, Luton, Bedfordshire LU4
9QQ
Hellas [phone], Limnou Str., 54627 Thessaloniki
Hrvatska [phone] Slavonska avenija 3, 10000 Zagreb
Ireland [phone] Long Mile Road Dublin 12
Italia [phone] Corso Lino Zanussi, 30 - 33080 Porcia (PN)
Latvija [phone] Kr. Barona iela 130/2, LV-1012, Riga
Lietuva [phone] Ozo 10a, LT-08200 Vilnius
Luxembourg [phone] Rue de Bitbourg, 7, L-1273 Hamm
19
www.zanussi.com

Magyarország (06-1)467-3205
[phone]
H-1142 Budapest XIV, Erzsébet Királyné
útja 87
Nederland [phone] Vennootsweg 1, 2404 CG - Alphen aan den
Rijn
Norge [phone] Risløkkvn. 2 , 0508 Oslo
Österreich 0810 955030 Herziggasse 9, 1230 Wien
Polska [phone] ul. Kolejowa 5/7, 01–217 Warszawa
Portugal [phone] Quinta da Fonte - Edifício Gonçalves Zarco -
Q 35 -2774-518 Paço de Arcos
Romania [phone] Str. Garii Progresului 2, S4, 040671 RO
Schweiz - Suisse - Svizzera 0848 848 111 Industriestrasse 10, CH-5506 Mägenwil
Slovenija [phone] Gerbičeva ulica 110, 1000 Ljubljana
Slovensko [phone] Electrolux Slovakia s.r.o., Electrolux Domáce spotre-
biče SK, Galvaniho 17/B, 821 04 Bratislava
Suomi 030 600 5200
Lankapuhelinverkosta 0,0828€/puhelu+0,032€/min Matkapuhelinverkosta 0,192€/min
Sverige [phone] Electrolux Service, S:t Göransgatan 143,
S-105 45 Stockholm
Türkiye [phone] Tarlabaşıcaddesi no : 35 Taksim İstanbul
Россия 8-800-200-3589 129090 Москва, Олимпийский проспект,
16, БЦ "Олимпик"
Україна [phone] 04074 Київ, вул.Автозаводська, 2а, БЦ
"Алкон"
20
www.zanussi.com
