Zanussi ZCM 600 User manual

MIXED FUEL
COOKER
ZCM 600
ZCM 610
INSTRUCTION BOOKLET
Please read this instruction booklet before using the appliance
GB

2
Important Safety Information
You MUST read these warnings carefully before installing or using the hob. If you need assistance,
contact our Customer Care Department on 87 5 727727
Installation
lThis cooker must be installed by qualified personnel,
according to the manufacturers instructions and to
the relevant British Standards.
lThis cooker is heavy. Take care when moving it.
lAny gas installation must be carried out by a
registered CORGI installer.
lRemove all packaging before using the cooker.
lEnsure that the gas and electrical supply complies
with the type stated on the rating plate, located near
the gas supply pipe.
lDo not attempt to modify the cooker in any way.
Child Safety
lThis cooker is designed to be operated by adults. Do
not allow children to play near or with the cooker.
lThe cooker gets hot when it is in use. Children should
be kept away until it has cooled.
lChildren can also injure themselves by pulling pans
or pots off the cooker.
During Use
lThis cooker is intended for domestic cooking only. It
is not designed for commercial or industrial purposes.
lWhen in use a gas cooker will produce heat and
moisture in the room in which it has been installed.
Ensure there is a continuous air supply, keeping air
vents in good condition or installing a cooker hood
with a venting hose.
lWhen using the cooker for a long period of time, the
ventilation should be improved, by opening a window
or increasing the extractor speed.
lDo not use this cooker if it is in contact with water.
Do not operate the cooker with wet hands.
lEnsure the control knobs are in the OFF position
when not in use.
lWhen using other electrical appliances, ensure the
cable does not come into contact with the hot surfaces
of the cooker.
lUnstable or misshapen pans should not be used on
the hob burners as unstable pans can cause an
accident by tipping or spillage.
lNever leave the cooker unattended when cooking with
oil and fats.
lThis cooker should be kept clean at all times. A
build-up of fats or foodstuffs could result in a fire.
Keep this instruction book for future reference
and ensure it is passed on to any new owner.
lNever use plastic dishes in the oven or on the hob
burners. Never line any part of the oven with aluminium
foil.
lAlways ensure that the oven vent which is located at
the centre back of the hob is left unobstructed to
ensure ventilation of the oven cavity.
lPerishable food, plastic items and areosols may be
affected by heat and should not be stored above the
cooker.
Service
lThis cooker should only be repaired or serviced by an
authorised Service Engineer and only genuine
approved spare parts should be used.
Environmental Information
lAfter installation, please dispose of the packaging with
due regard to safety and the environment.
lWhen disposing of an old appliance, make it unusable,
by cutting off the cable.

3
This appliance is manufactured according to
the following EEC directives:
73/23 EEC - 9 /683 EEC - 93/68 EEC -
89/336 EEC - 9 /396 EEC,
current edition.
Contents
The following symbols will be found in the text to guide
you throughout the Instructions:
Safety Instructions
Step by step instructions for an operation
Hints and Tips
Environmental Information
For the User For the Installer
F
Guide to Use the instructions
Oven Door Protection Device
(Stainless steel models only)
All our appliances comply with the European
safety standards. Nevertheless, in order to ensure
the highest safety level, and avoid small children
to be exposed to the heat when the appliance is
operated, it is possible to fit a special protection
device to the oven door. This device can be
purchased in our Service Force Centres,
specifying the relevant code (35791) and the
Product No. shown on the rating plate.
Important Safety Information 2
Guide to Use the instructions 3
Description of the Cooker 4
Control Panel 5
Before the irst Use of the Cooker 6
Controls 6
Electric Oven 7
24 Hour Clock and Timer 8
Using the Oven 10
Using the an Oven 11
Hints and Tips 12
Defrosting 13
Grilling 14
Maintenance and Cleaning 15
Cleaning the Oven 16
Something not working 18
Service and Spare Parts 18
Guarantee Conditions 19
Instructions for the Installer 22
Important Safety Requirements 22
Installation 23
Electrical connections 25
Commissioning 26
Conversion from Natural Gas to LPG 27

4
Fitting the Splash back
(only in model ZC 610 X)
A stainless steel splash back is supplied with the
appliance. This is meant to be fitted on the rear edge of
the cooker's hob. The splash back package is in the
oven cavity.
1. Unpack the splash back and dispose of the packaging
with due regard to safety and the environment.
2. Slide the two bayonets of the splash back into the
relevant supports on the rear edge of the cooker's
hob.
STOP
SET
TIME

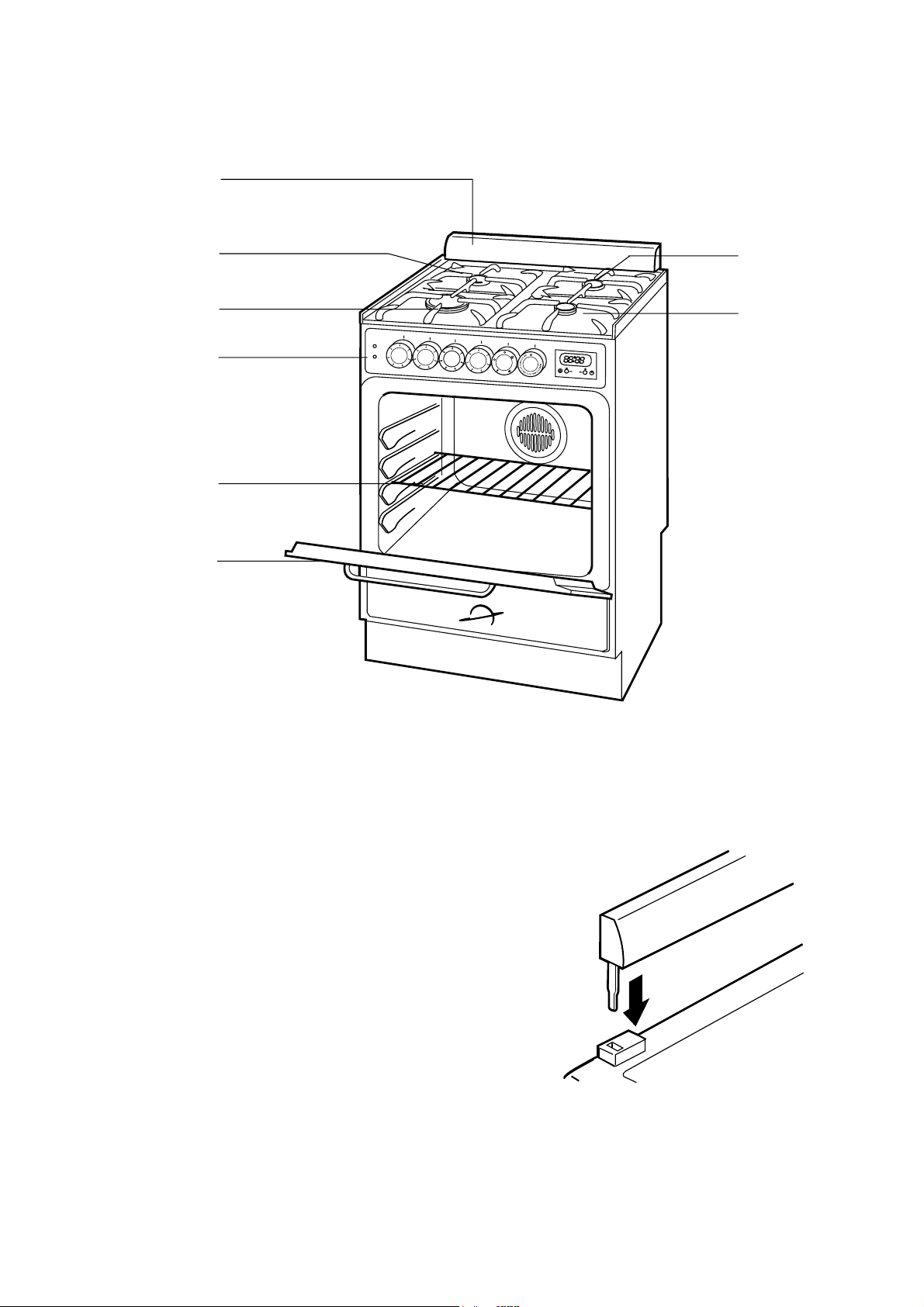

Description of the Cooker
Splash back
(only in model ZCM
61 X)
Semi-Rapid burner
Rapid burner
Control panel
Shelf
Oven door
Semi-rapid burner
Auxiliary burner

5
BACK LEFT FRONT LEFT FRONT RIGHT BACK RIGHT OVEN FUNCTION TEMPERATURE
MAINS ON
THERMOSTAT
OVEN PROGRAMMER
IGNITION
STOP
SET
TIME
PUSH
BOTH
-+

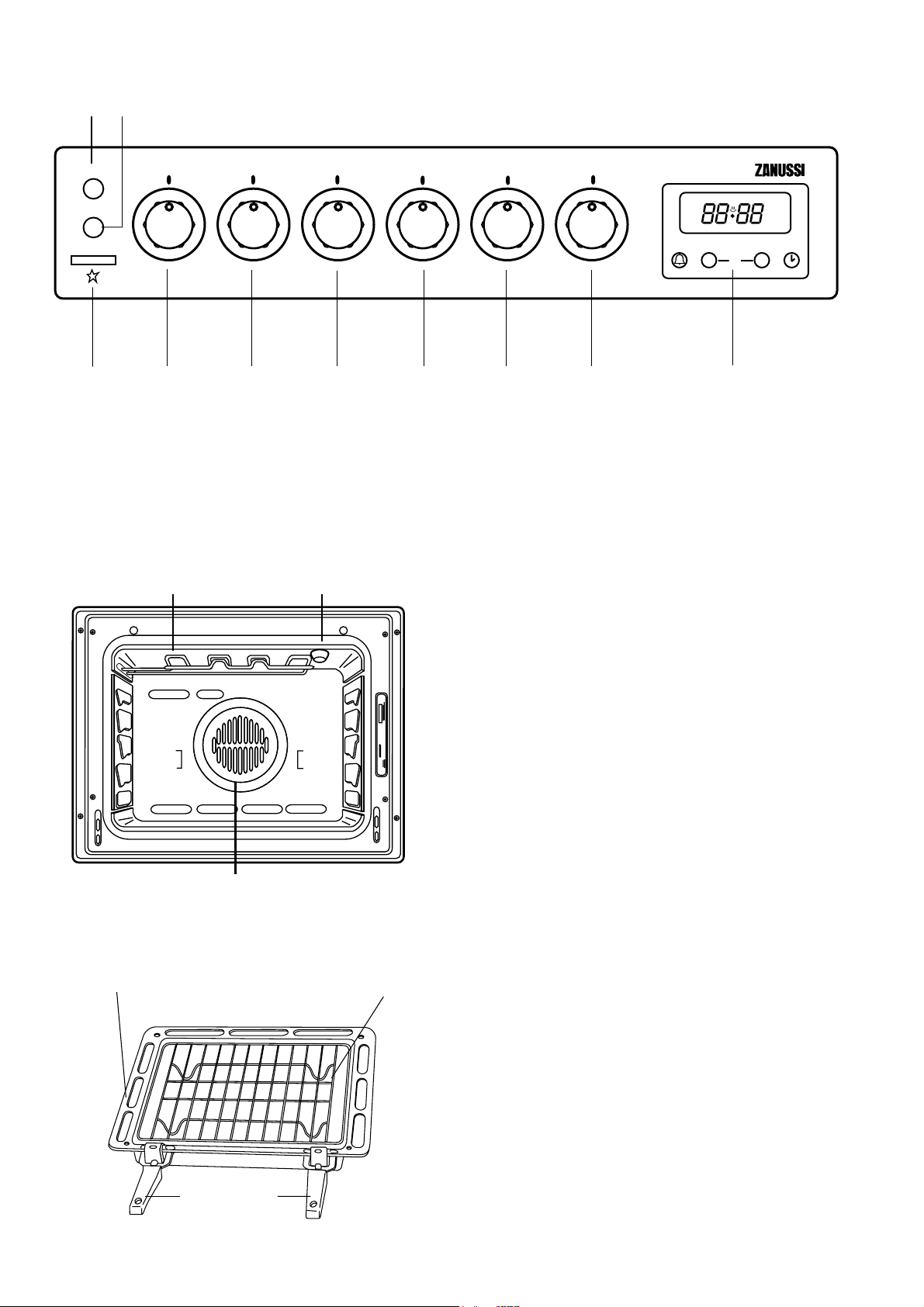

Control Panel
1. Cooker Operation Pilot Light
2. Oven Thermostat Pilot Light
3. Electric ignition push button
4. Back left burner control knob (semi-rapid)
5. Front left burner control knob (rapid)
98765
12
4
The Oven Cavity
Grill element Oven Light
Accessories
Oven fan
10
Grill trivet
Grill/roasting pan
Removable
handles
3
6. Front right burner control knob (auxiliary)
7. Back right burner control knob (semi-rapid)
8. Oven function control knob
9. Oven thermostat control knob
10. 24 hour clock and Timer

6
Hob burners
To light a burner:
- turn the relevant control knob anticlockwise to
maximum position.
- At the same time push the electric ignition button
which is marked with a little spark.
- Then adjust the flame as required.
If the burner does not ignite, turn the control knob to
zero, and try again.
When switching on the mains, after installation or
a power cut, it is quite normal for the spark
generator to be activated automatically.
If you use a saucepan which is smaller than the
recommended size, the flame will spread beyond
the bottom of the pan, causing the handle to
overheat.
Controls
F
Before the First Use of the Cooker
Remove all packaging, both inside and outside
the cooker, before using it.
Before first use, the oven should be heated without food.
During this time, an unpleasant odour may be emitted.
This is quite normal.
1. Set the electronic timer to manual function.
2. Switch the oven function control knob to fan cooking
.
3. Set the thermostat control knob to MAX.
4. Open a window for ventilation.
5. Allow the oven to run empty for approximately 45
minutes.
This procedure should be repeated with the grill
function for approximately 5-1 minutes.
NSTALLAT ON
Any gas installation must be carried out by a
COR I registered installer, and in accordance with
existing rules and regulations.
The relevant instructions are to be found in the second
section of this manual.
Please ensure that when the appliance is installed, it is
easily accessible for the engineer in the event of a
breakdown.
WHEN THE COOKER S F RST NSTALLED
Once the cooker has been installed, it is important
to remove any protective materials, which were
put on in the factory.

7
Burner minimum maximum
diameter diameter
Large (rapid) 18 mm. 26 mm.
Medium (semi-rapid) 12 mm. 22 mm.
Small (Auxiliary) 8 mm. 16 mm.
Oven Function Control Knob
Oven Light - The oven light will be on without any
cooking function
Defrost Setting - This setting is intended to assist in
thawing of frozen food.
Fan cooking - This allows you to roast or roast and
bake simoultaneously using any shelf, without flavour
transference.
Grill - The heat comes only from the top element.
Electric Oven
0
100
150
200
50
Thermostat Control Knob
Turn the thermostat control knob clockwise to select
temperatures between 5 °C and 25 °C (max).
To ensure maximum burner efficiency, you should only
use pots and pans with a flat bottom fitting the size of
the burner used (see table).
As soon as a liquid starts boiling, turn down the
flame so that it will barely keep the liquid
simmering.
Take care when frying food in hot oil or fat, as the
overheated splashes could easily ignite.
If the control knobs become difficult to turn, please
contact your local Zanussi Service Force Centre.

8
1. ( - ) DECREASE CONTROL & TIMER SETTING
BUTTON
2. ( + ) INCREASE CONTROL
( ) COOKPOT SYMBOL
( ) PUSH BOTH CLOCK SETTING SYMBOL
1. Set the time of day
When the electricity supply is first switched ON, the
display will flash 0.00. See Fig. 1.
Press buttons (1) and (2) together. The display will
momentarily read 88.88. See Fig. 2. Release buttons,
0.00 will appear in the display as Fig. 3. Within 5
seconds press button (2), 12.00 will show in the display
as Fig. 4.
Within 5 seconds, press and hold either button (1) to
decrease or button (2) to increase the time until the
correct time of day on the 24 hour clock is reached, e.g.
14.3 . See Fig. 5.
NOTE
The increase and decrease control buttons operate slowly
at first and then more rapidly. They should be pressed
separately.
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
4 Hour Clock and Timer
STOP
SET
TIME
PUSH
BOTH
-+
STOP
SET
TIME
PUSH
BOTH
-+
STOP
SET
TIME
PUSH
BOTH
-+
STOP
SET
TIME
PUSH
BOTH
-+
STOP
SET
TIME
PUSH
BOTH
-+
STOP
SET
TIME
PUSH
BOTH
-+
12

9
2. The timer
MPORTANT
The timer can be used to time a set cooking period. At
the end of the cook time the timer will automatically switch
off the oven if in use.
The timer gives an audible reminder at the end of any
period of cooking up to 23 hours and 59 minutes.
To set, press button (1) and the display will read 0.00, see
Fig. 6.
Release button (1) and press and hold button (2). The
display will count up in one minute intervals until the
interval to be timed is reached, e.g. 3 minutes, see Fig.
7. If necessary, press and hold button (1) to achieve the
correct time interval.
The timer will begin to count down once set. At the end
of the timed period, the timer will click, switching the
oven OFF if in use.
An audible signal will sound for up to 2 minutes.
The cookpot symbol will flash and the time of day will
show in the display. See Fig. 8.
To stop the sound press button (1). The display will stop
flashing and show the time of day, e.g. 15. . The cookpot
symbol ( ) will go out. See Fig. 9. If using the oven it
will come on again once button (1) has been depressed.
When cooking is complete remove food and turn OFF
oven temperature control.
3. To cancel the timer
Press and release button (1). Then press and hold button
(1) and the display will count down in one minute intervals
to 0.00. See Fig. 1 . Release button (1).
After a few seconds the cookpot symbol will flash and the
time of day will show in the display. See Fig. 11
If the oven is in use this will switch OFF after a few
seconds.
To reset, press button (1) and (2) together. See Fig. 12.
4. Things to note
1. The time of day must be set before the oven will ope-
rate. There will be a few seconds delay before the
oven switches on.
2. The timer function controls the main oven only and
will switch the oven OFF at the end of a timed period.
This function is useful if you want to begin cooking
now and have the oven switch OFF automatically.
3. If you have used the timer to time food cooking in the
oven you will need to reset the timer before the oven
can operate again.
Fig. 8
Fig. 7
Fig. 9
Fig. 6
STOP
SET
TIME
PUSH
BOTH
-+
STOP
SET
TIME
PUSH
BOTH
-+
STOP
SET
TIME
PUSH
BOTH
-+
STOP
SET
TIME
PUSH
BOTH
-+
STOP
SET
TIME
PUSH
BOTH
-+
STOP
SET
TIME
PUSH
BOTH
-+
STOP
SET
TIME
PUSH
BOTH
-+
Fig. 12
Fig. 11
Fig. 1

10
Hints and Tips
Condensation and steam
When food is heated it produces steam in the same way
as a boiling kettle. The oven vents allow some of this
steam to escape. However, always stand back from
the oven when opening the oven door to allow any
build up of steam or heat to release.
If the steam comes into contact with a cool surface on
the outside of the oven, e.g. a trim, it will condense and
produce water droplets. This is quite normal and is not a
fault with the oven.
To prevent discoloration, regularly wipe away
condensation and also soilage from surfaces.
Cookware
 Use any oven proof cookware which will withstand
temperatures of 25 °C.
 Baking trays, oven dishes, etc. should not be placed
directly against the grid covering the fan at the back
of the oven, or placed on the oven base.
 Do not use baking trays larger than 3 cm x 35 cm
(12 in x 14 in) as they will restrict the circulation of
heat and may affect performance.
The effects of dishes
on cooking results
Dishes and tins vary in their thickness, conductivity,
colour, etc. which affects the way they transmit heat to
the food inside them.
AAluminium, earthenware, oven glassware and bright
shiny utensils reduce cooking and base browning.
BEnamelled cast iron, anodized aluminium, aluminium
with non-stick interior and coloured exterior and dark,
heavy utensils increase cooking and base browning.
Always cook with the oven door closed.
Stand clear when opening the drop down oven
door. Do not allow it to fall open - support the
door using the door handle, until it is fully
open.
The oven has four shelf levels, and is supplied with
two shelves.
The shelf positions are counted from the bottom
of the oven as shown in the diagram.
It is important that these shelves are correctly
positioned as shown in the diagram.
Do not place cookware directly on the oven base.
4
2
1
3
Using the Oven

11
The air inside the oven is heated by the element around
the fan situated behind the back panel. The fan circulates
hot air to maintain an even temperature inside the oven.
The advantages of cooking with this function are:
l Faster Preheating
As the fan oven quickly reaches temperature, it is not
usually necessary to preheat the oven although you
may find that you need to allow an extra 5-7 minutes
on cooking times. For recipes which require higher
temperatures, best results are achieved if the oven
is preheated first, e.g. bread, pastries, scones,
souffles, etc.
lLower Temperatures
Fan oven cooking generally requires lower
temperatures than conventional cooking.
Follow the temperatures recommended in the
cooking chart. Remember to reduce temperatures by
about 2 -25°C for your own recipes which use
conventional cooking.
lEven Heating for Baking
The fan oven has uniform heating on all runner
positions. This means that batches of the same food
can be cooked in the oven at the same time.
However, the top shelf may brown slightly quicker
than the lower one.
This is quite usual. There is no mixing of flavours
between dishes.
How to Use the Fan Oven
1. Turn the oven function control knob to .
2. Turn the thermostat control to the required temperatu-
re.
TH NGS TO NOTE
l The oven light will come on when the oven function
control knob is set.
l The thermostat control light will remain on until the
correct temperature is reached. It will then cycle on
and off to show that the temperature is being
maintained.
Using the Fan Oven
F
This chart is intended as a guide only. It may be necessary to increase or decrease the temperature to suit your
individual requirements. Only experience will enable you to determine the correct setting for your personal requirements.
Cooking Chart
Food Thermostat Runner Time
Position
Biscuits, cookies 2 trays 16 -19 1-3 18-25 min.
Bread, yeast doughs 2 trays 17 -2 1-3 35-45 min.
Cakes, Victoria sandwich 2 trays 16 -17 1-3 2 -28 min.
Choux pastry, eclairs 2 trays 17 -2 1-3 3 -35 min.
Fruit pies, plate tarts, crumbles 2 trays 17 -2 1-3 5 -65 min.
Meringues 2 trays 7 -9 1-3 9 -15 min.
Puff pastry, vol au vents 2 trays 2 -23 1-3 2 -35 min.
Scones 2 trays 2 -21 1-3 8-12 min.

12
Runner positions are not critical, but make sure the
shelves are evenly spread.
When cooking more than one dish in the fan oven, place
dishes centrally on the shelves rather than several dishes
on one shelf.
When the oven is full, you may need to allow slightly
longer cooking time.
A shelf may be placed on the floor of the oven. Place
dishes on a shelf in this position rather than on the oven
base, to allow air circulation around the food.
When the oven is full of the same food, e.g. equal trays
of small cakes or equal size victoria sandwich cakes,
then they will be cooked in the same time and removed
from the oven together. When different sizes of trays or
types of food, e.g. biscuits and cakes are cooked, they
will not necessarily be ready together.
The fan oven can be used to heat foods through without
thawing first, e.g. fruit tarts, mince pies, sausage rolls,
and other small pastry items. Use a temperature of 19 -
2 °C and allow 2 -4 minutes (depending on the quantity
of food in the oven).
The use of too high temperatures can cause uneven
browning. Check with the recommendations for oven
temperatures given in the cooking charts, but be prepared
Hints and Tips
Meat Thermostat Cooking
Beef 17 °-18 °C 2 -3 min per 1/2 kg (1 lb) and 2 -3 min over
Lamb 17 °-18 °C 25-35 min per 1/2 kg (1 lb) and 25-35 min over
Pork 17 °-18 °C 25-35 min per 1/2 kg (1 lb) and 25-35 min over
Chicken 17 °-18 °C 15-2 min per 1/2 kg (1 lb) and 2 min over
Turkey and goose 17 °-18 °C 15-2 min per 1/2 kg (1 lb) up to 3 1/2 kg (7 lb)
then 15 min per 1/2 kg (1 lb)
Duck 17 °-18 °C 25-35 min per 1/2 kg (1 lb) and 25-35 min over
Pheasant 17 °-18 °C 35-4 min per 1/2 kg (1 lb) and 35-4 min over
Rabbit 17 °-18 °C 2 min per 1/2 kg (1 lb) and 2 min over
When roasting, ensure the meat is cooked thoroughly, use a meat thermometer if preferred to check the centre
temperature has reached the required temperature (see table below).
Roasting Chart
to adjust the temperature by 1 °C if necessary.
Remember to reduce temperatures by about 2 -25°C for
your own conventional recipes.
When roasting do use the trivet in the meat tin. Fat and
meat juices will drain into the meat tin below and can be
used to make gravy. The trivet also prevents splashes of
fat from soiling the oven interior.
The meat tin should not be placed on a heated hotplate
or burner as this may cause the enamel to crack.

13
The oven fan operates without heat and circulates the
air, at room temperature, inside the oven. This increases
the speed of defrosting. However, please note that the
temperature of the kitchen will influence the speed of
defrosting.
This function is particularly suitable for delicate food which
could be damaged by heat, e.g. cream filled gateaux,
iced cakes, pastries, bread and other yeast products.
How to Use Defrosting
1. Turn the oven function control knob to .
2. Ensure the thermostat control knob is in the OFF
position.
Chicken 1 g. 1 -14 2 -3 Place the chicken on an inverted
saucer on a large plate. Defrost open
and turn at half time or defrost
covered with foil. Remove giblets
as soon as possible.
Meat 1 g. 1 -14 2 -3 Defrost open and turn at
half time or cover with foil
Meat 5 g. 9 -12 2 -3 As above
Trout 15 g. 23-35 1 -15 Defrost open
Strawberries 3 g. 3 -4 1 -2 Defrost open
Butter 25 g. 3 -4 1 -15 Defrost open
Cream 2 x 2 g. 8 -1 1 -15 Defrost open (cream is
easy to whip even if parts
of it are still slightly frozen)
Cake 14 g. 6 6 Defrost open
Food Defrosting time
(Mins)
Standing time
(Mins) Notes
Hints and Tips
 Cover food with a lid, aluminium foil or plastic film to
prevent drying out during defrosting.
 ALWAYS COOK THOROUGHLY IMMEDIATELY
AFTER THAWING.
 Frozen food should be placed in a single layer when
ever possible and turned over half way through the
defrosting process.
 Only joints of meat and poultry up to 2 kg. (4 lb.) are
suitable for defrosting in this way.
Refer to the following table for approximate defrosting
times.
The times quoted in the chart should be used as a guide only, as the speed of defrosting will depend on the kitchen
temperature. For example, the colder the ambient temperature, the longer the defrosting time.
Defrosting
F

14
Grilling
Grilling must be carried out with the oven door
closed. The grill pan handles must be removed
from the pan.
How to Use the Grill
1. Turn the oven control function knob to .
2. Turn the thermostat control knob on the required tem-
perature.
3. Adjust the grid and grill pan runner position to allow
for different thicknesses of food. Position the food
close to the element for faster cooking and further
away for more gentle cooking.
Preheat the grill on a full setting for a few minutes before
sealing steaks or toasting. Adjust the heat setting and
the shelf as necessary, during cooking.
The grill element is controlled by the thermostat.
During cooking, the grill cycles on and off to prevent
overheating.
Hints and Tips
- Most foods should be placed on the grid in the grill
pan to allow maximum circulation of air to lift the food
out of the fats and juices. Food such as fish, liver and
kidneys may be placed directly on the grill pan, if
preferred
- Food should be thoroughly dried before grilling to
minimise splashing. Brush lean meats and fish lightly
with a little oil or melted butter to keep them moist
during cooking
- Accompaniments such as tomatoes and mushrooms
may be placed underneath the grid when grilling meats
- When toasting bread, we suggest that the top runner
position is used.
- The food should be turned over during cooking, as
required.
OI
L
Bacon rashers 2-3 each side
Beefburgers 6-1 each side
Chicken joints 1 -15 each side
Chops: 7-1 each side
1 -15 each side
Fish: 8-12 each side
4-6 each side
Kebabs 1 -15 each side
Kidneys: 4-6 each side
Liver: 5-1 each side
Sausages 1 -15 turn as required
Steaks: 3-6 each side
6-8 each side
7-1 each side
Browning only 3-5
Food Conventional Grill
Time (Min)
lamb
pork
whole trout/herring
fillets plaice/cod
lamb/pig
lamb/pig
rare
medium
well
F

15
Before any maintenance or cleaning can be carried
out, you must DIS ONNE T the cooker from the
electricity supply.
The Hob Top
The hob is best cleaned whilst it is still warm, as spillage
can be removed more easily than if it is left to cool.
Regularly wipe over the hob top using a soft cloth well
wrung out in warm water to which a little wasing up liquid
has been added. Avoid the use of the following:
- household detergent and bleaches;
- impregnated pads unsuitable for non-stick saucepans;
- steel wool pads;
- bath/sink stain removers.
Should the hob top become heavily soiled, it is
recommended that a cleaning product such as Hob Brite
or Bar Keepers Friend is used.
Pan Supports
The pan supports are dishwasher proof. If washing them
by hand, take care when drying them as the enamelling
process occasionally leaves rough edges. If necessay,
remove stubborn stains using a paste cleaner.
The pan support of this cooker is fitted with anti-scratch
rubber feet.
These feet are dishwasher proof and should not be
removed when cleaning the pan support.
If the rubber feet become detached from the pan support
re-fit as per diagram.
Anti-scratch rubber feet can be obtained from your local
Zanussi Service Force Centre.
The Burners
The burner caps and crowns can be removed for cleaning.
Wash the burners taps and crowns using hot soapy water,
and remove marks with a mild paste cleaner. A well
moistened soap impregnated steel wool pad can be used
with caution, if the marks are particularly difficult to
remove.
After cleaning, be sure to wipe dry with a soft cloth.
Maintenance and Cleaning

16
Before cleaning always allow the cooling fan
to cool the oven down before switching off
at the electricity supply.
The oven should be kept clean at all times. A
build-up of fats or other foodstuffs could result in
a fire, especially in the grill pan.
Cleaning materials
Before using any cleaning materials on your oven, check
that they are suitable and that their use is recommended
by the manufacturer.
Cleaners that contain bleach should NOT be used as
they may dull the surface finishes. Harsh abrasives
should also be avoided.
External cleaning
Regularly wipe over the control panel, oven door and door
seal using a soft cloth well wrung out in warm water to
which a little washing up liquid has been added.
To prevent damaging or weakening the door glass
panels avoid the use of the following:
 Household detergent and bleaches
 Impregnated pads unsuitable for non-
stick saucepans
 Brillo/Ajax pads or steel wool pads
 Chemical oven pads or aerosols
 Rust removers
 Bath/Sink stain removers
Clean the outer and inner door glass using warm soapy
water. Should the inner door glass become heavily soiled
it is recommended that a cleaning product such as Hob
Brite, or Bar Keepers Friend is used.
DO NOT clean the oven door while the glass
panels are warm. If this precaution is not observed
the glass panel may shatter.
If the door glass panel becomes chipped or has
deep scratches, the glass will be weakened and
must be replaced to prevent the possibility of the
panel shattering. Contact your local Service Centre
who will be pleased to advise further.
Cleaning the Oven

17
Oven Cavity
The enamelled oven cavity is best cleaned whilst the
oven is still warm.
Wipe the oven over with a soft cloth soaked in warm
soapy water after each use. From time to time it will be
necessary to do a more thorough cleaning, using a
proprietary oven cleaner.
If the soilage has become set, after the oven has
cooled down, the following process will help to
soften the splatters to help make cleaning easier.
1. Place the grill/ meat pan on the oven shelf positioned
in the lowest runner.
2. Add a few drops of washing-up liquid to the pan and
fill to about 12 mm. with boiling water from the kettle.
3. Close the oven door, turn the oven function knob on
fan oven and set the thermostat knob on 5 °C.
4. After 15 minutes, turn off the thermostat and allow
the fan oven to continue without heat for a further 5
minutes, when the temperature of the water will have
cooled down.
5. Carefully remove the pan of water from the oven and
use normal oven cleaners to clean away soil residues.
6. Leave a little of the soapy water to soak into any
burned on spillage on the floor of the oven for a longer
time if necessary.
Oven Shelves
To clean the oven shelves, soak in warm soapy water
and remove stubborn marks with a well wetted soap
impregnated pad. Rinse well and dry with a soft cloth.
F
FO 0424
Oven lamp replacement
Disconnect the appliance.
Unscrew the lamp and substitute it with another suitable
for higher temperature (3 °C) having the following
characteristics:
Tension: 23 -24 V (5 Hz)
Power: 15W
Convection: E14

18
If the aplliance is not working correctly, please carry out the following checks, before contacting your local Zanussi
Service Centre.
MPORTANT: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation,
a charge will be made even if the appliance is under guarantee.
SYMPTOM
nThere is no spark when lighting the gas
nThe gas ring burns unevenly
n The oven does not come on
nThe oven temperature light does not come on
nThe oven light does not come on
nIt takes too long to finish the dishes, or they are
cooked too fast.
nSteam and condensation settle on the food and the
oven cavity.
nThe timer does not work
nThe oven fan is noisy
SOLUT ON
uCheck that the unit is plugged in and the electrical
supply is switched on
uCheck that the RCCB has not tripped (if fitted)
uCheck the mains fuse has not blown
uCheck the burner cap and crown have been
replaced correctly, e.g. after cleaning.
uCheck the main jet is not blocked and the burner
crown is clear of food particles.
uCheck the burner cap and crown have been
replaced correctly, e.g. after cleaning.
uCheck the oven is in manual operation and that
both a cooking function and temperature have been
selected.
uCheck the oven is wired in properly, and the socket
switch or the switch from the mains supply to the oven
are ON.
uSelect a temperature with the thermostat control
knob
uSelect a function with the oven function control
knob.
uCheck the light bulb, and replace it if necessary
(see "Replacing the Oven Light")
uThe temperature may need adjusting
uRefer to the contents of this booklet, especially to
the chapter Using the Oven.
uLeave dishes inside the oven no longer than 15-2
minutes after the cooking is completed.
uCheck the instructions for the timer.
uCheck the grease filter is correctly fitted.
uCheck that shelves and bakeware are not vibrating
in contact with the oven back panel.
Something not working
Service and Spare Parts
In the event of your appliance requiring service, or if you
wish to purchase spare parts, please contact your local
Zanussi Service Force Centre by telephoning:
0870 5 929929
Your telephone call will be automatically routed to the
Service Force Centre covering your post code area. The
addresses are listed on the following pages.
Before calling out an engineer, please ensure you have
read the details under the heading Something Not
Working.When you contact the Service Force Centre
you will need to give the following details:
1. Your name, address and post code
2. Your telephone number
3. Clear and concise details of the fault
4. The model and serial number of the appliance (found
on the rating plate)
5. The purchase date

19
Zanussi guarantee conditions
We, Zanussi, undertake that if, within 12 months of the
date of the purchase, this Zanussi appliance or any part
thereof is proved to be defective by any reason only of
faulty workmanship or materials, we will, at our option,
repair or replace the same FREE OF ANY CHARGE for
labour, materials or carriage on condition that:
* The appliance has been correctly installed and used
only on the gas and electricity supply stated on the
rating plate.
* The appliance has been used for normal domestic
purpose only, and in accordance with the
manufacturer's instructions.
* The appliance has not been serviced, maintained,
repaired, taken apart or tampered with by any person
not authorised by us.
* All service work under this guarantee must be
undertaken by a Zanussi Service Centre.
* Any appliance or defective part replaced shall
become the Company's property.
* This guarantee is in addition to your statutory and
other legal rights.
Home visits are made between 8.30am and 5.30pm
Monday to Friday. Visits may be available outside these
hours, in which case a premium will be charged.
Exclusions
This guarantee does not cover:
* Damage or calls resulting from transportation,
improper use or neglect, the replacement of any light
bulbs or removable parts of glass or plastic.
* Costs incurred for calls to put right an appliance
which is improperly installed or calls to appliance
outside European Community (EC) or European Free
Trade Area.
* Appliances found to be in use within a commercial
or similar environment, plus those which are the
subject to rental agreements.
* Products of Zanussi manufacture which are not
marketed by Zanussi.
European Guarantee
If you should move to another country within Europe then
your guarantee moves with you to your new home
subject to the following qualifications:
* The guarantee starts from the date you first
purchased your product.
* The guarantee is for the same period and to the same
extent for labour and parts as exist in the new country
of use for this brand or range of products.
* This guarantee relates to you and cannot be
transferred to another user.
* Your new home is within the European Community
(EC) or European Free Trade Area.
* The product is installed and used in accordance with
our instructions and is only used domestically, i.e. a
normal household
* The product is installed taking into account
regulations in your new country.
Before you move, please contact your nearest Customer
Care centre, listed below, to give them details of your
new home. They will then ensure that the local Service
Organisation is aware of your move and able to look after
you and your appliances.
France Senlis +33 ( ) 3 44 62 29 29
Germany Nürnberg +49 ( ) 8 234 7378
Italy Pordenone +39 ( ) 434 39 47
Sweden Stockholm +46 ( ) 8 672 53 9
UK Slough +44 ( ) 1753 219897
For general enquiries concerning your Zanussi appliance
or for further information on Zanussi products, please
contact our Customer Care Department by letter or
telephone at the address below or visit our website at
www.zanussi.co.uk
Customer Care Department
Zanussi
55-77 High Street
Slough
Berkshire
SL1 1DZ
87 5 727727 (*)
* calls to this number may be recorded for training
purposes.
Customer Care Department
Guarantee Conditions

20
ISLE OF LEWIS ND Macleod
16 James Street
Stornoway
Isle of Lewis PA87 2Q
KELSO 2, 6 & 8 oodmarket
Kelso
Borders
TD5 7AX
ORKNEY 7 King Street
Kirkwall
Orkney
K 15 1JF
PERTH Scottish Hydro Electric
Central arehouse
Inveralmond
(OWN SALES) Perth PH1 3AF
SHETLAND 3-4 Carlton Place
Lerwick
Shetland
(OWN SALES) ZE1 0P
SHETLAND Bolts Shetland
26 North Road
Lerwick
(OWN SALES) Shetland ZE1 0PE
WHALSAY Leask Electrical
Harisdale
Symbister, halsay
(OWN SALES) Shetland ZE2 9AA
NORTHERN IRELAND
BELFAST Owenmore House
Kilwee Business Park
Dunmurry
Belfast
BT17 0HD
WALES
CARDIFF Unit 4
Guardian Industrial Estate
Clydesmuir Road
Cardiff
CF2 2QS
CLYWD Unit 6-7 Coed Parc
Abergele Road
Rhuddlan
Clwyd
LL18 5UG
DYFED Unit 9
St. Clears Business Park
Tenby Road
St. Clears
Carmarthen
SA33 4J
OSWESTRY Plas Ffynnon arehouse
Middleton Road
Oswestry
SY11 2PP
To contact your local Service Force Centre telephone [phone]
CHANNEL ISLANDS
GUERNSEY Guernsey Electricity
PO Box 4
Vale, Guernsey
Channel Islands GY1 3AD
JERSEY Jersey Electricity Company
Haut De Lorme
Rue De Haut De Lorme
Trinity
Jersey
Channel Islands JE3 5FG
SCOTLAND
ABERDEEN 54 Claremont Street
Aberdeen AB10 6RA
AUCHTERMUCHTY 33a Burnside
Auchtermuchty
Fife KY14 7AJ
BLANTYRE Unit 5
Block 2
Auchenraith Ind. Estate
Rosendale ay
Blantyre G72 0NJ
DUMFRIES 93 Irish Street
Dumfries
DG1 2 PQ
DUNOON 7 Hill Street
Dunoon
Argyll
PA23 7AL
EDINBURGH Unit 12
Dumbryden Ind. Estate
2 Dumbryden Road
Edinburgh
EH14 2AB
GLASGOWUnit 4
ellington Road
Bishopriggs
Glasgow G64 2SA
INVERNESS Unit 3BI
Smithton Ind. Estate
Smithton
Inverness IV2 7 L
ISLE OF ARRAN R Haggerty
Bruach
Blackwaterfoot
Isle of Arran
ISLE OF BARRA J Zerfah
244 Bruernish
Isle of Barra
estern Islands HS9 5QY
ISLES OF BUTE alker Engineering
Glenmhor
Upper Serpentine Road
Rothesay
Isle of Bute PA20 9EH
NORTH EAST
GATESHEAD Unit 356a
Dukesway Court
Dukesway
Gateshead NE11 0BH
GRIMSBY 15 Hainton Avenue
Grimsby
N. E. Lincs
DN32 9AS
HULL Unit 1
Boulevard Industrial Estate
Hull
HU3 4AY
LEEDS 64-66 Cross Gates Road
Cross Gates
Leeds
LS15 7YS
NEWTON AYCLIFFE Unit 23
Northfield ay
Aycliffe Industrial Park
Newton Aycliffe
DL5 6EJ
SHEFFIELD Pennine House
Roman Ridge Road
Sheffield
S9 1GB
NORTH WEST
BIRKENHEAD 1 Kelvin Park
Dock Road
Birkenhead
CH41 1LT
CARLISLE Unit 7
James Street orkshops
James Street
Carlisle
Cumbria CA2 5AH
ISLE OF MAN South Quay Ind. Estate
Douglas
Isle of Man
IM1 5AT
BOLTON Unit B
Central Industrial Estate
St Marks Street
Bolton
BL3 6NR
PRESTON Unit 250
Dawson Place
Bamber Bridge
Preston
Lancashire PR5 8AL
STOCKPORT Unit 20 Haigh Park
Haigh Avenue
Stockport
SK4 1QR
