Zanussi ZCV661 User manual

EN
User manual
Cooker
ZCV661

Contents
Safety information _ _ _ _ _ _ _ _ _ _ _ _ _ _ 2
Safety instructions _ _ _ _ _ _ _ _ _ _ _ _ _ _ 3
Product description _ _ _ _ _ _ _ _ _ _ _ _ _ 6
Before first use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 7
Hob - Daily use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 7
Hob - Helpful hints and tips _ _ _ _ _ _ _ _ _ 7
Hob - Care and cleaning _ _ _ _ _ _ _ _ _ _ 8
Oven - Daily use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 8
Oven - Using the accessories _ _ _ _ _ _ _ 9
Oven - Helpful hints and tips _ _ _ _ _ _ _ 10
Oven - Care and cleaning _ _ _ _ _ _ _ _ _ 15
What to do if… _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 17
Installation _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 17
Environment concerns _ _ _ _ _ _ _ _ _ _ _ 19
Subject to change without notice.
Safety information
Before the installation and use of the appliance, carefully read the
supplied instructions. The manufacturer is not responsible if an in-
correct installation and use causes injuries and damages. Always
keep the instructions with the appliance for future reference.
Children and vulnerable people safety
Warning! Risk of suffocation, injury or permanent disability.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental ca-
pabilities or lack of experience and knowledge if they are super-
vised by an adult or a person who is responsible for their safety.
• Do not let children play with the appliance. Children under 3
years must not be left unsupervised in the vicinity of the appli-
ance.
• Keep all packaging away from children.
• Keep children and pets away from the appliance when it oper-
ates or when it cools down. Accessible parts are hot.
• If the appliance has a child safety device, we recommend that
you activate it.
• Cleaning and user maintenance shall not be made by children
without supervision.
General Safety
• The appliance and its accessible parts become hot during use.
Do not touch the heating elements.
2
www.zanussi.com

• Do not operate the appliance by means of an external timer or
separate remote-control system.
• Unattended cooking on a hob with fat or oil can be dangerous
and may result in fire.
• Never try to extinguish a fire with water, but switch off the appli-
ance and then cover flame e.g. with a lid or a fire blanket.
• Do not store items on the cooking surfaces.
• Do not use a steam cleaner to clean the appliance.
• Metallic objects such as knives, forks, spoons and lids should
not be placed on the hob surface since they can get hot.
• Do not use harsh abrasive cleaners or sharp metal scrapers to
clean the glass door since they can scratch the surface, which
may result in shattering of the glass.
• If the glass ceramic surface is cracked, switch off the appliance
to avoid the possibility of electric shock.
• Ensure that the appliance is switched off before replacing the
lamp to avoid the possibility of electric shock.
• The means for disconnection must be incorporated in the fixed
wiring in accordance with the wiring rules.
• The supply cord cannot be replaced. If the cord is damaged the
appliance should be scrapped.
Safety instructions
Installation
Warning! Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied
with the appliance.
• Always be careful when you move the appli-
ance because it is heavy. Always wear safe-
ty gloves.
• Do not pull the appliance by the handle.
• Keep the minimum distance from the other
appliances and units.
• Make sure that the appliance is installed be-
low and adjacent safe structures.
• The sides of the appliance must stay adja-
cent to appliances or to units with the same
height.
• Do not install the appliance on a platform.
• Do not install the appliance adjacent to a
door or under a window. This prevents hot
cookware to fall from the appliance when
the door or the window is opened.
3
www.zanussi.com

Warning! Make sure to install a
stabilizing means in order to prevent
tipping of the appliance. Refer to Installation
chapter.
Electrical connection
Warning! Risk of fire and electrical
shock.
• All electrical connections should be made
by a qualified electrician.
• The appliance must be earthed.
• Make sure that the electrical information on
the rating plate agrees with the power sup-
ply. If not, contact an electrician.
• Always use a correctly installed shockproof
socket.
• Do not use multi-plug adapters and exten-
sion cables.
• Make sure not to cause damage to the
mains plug and to the mains cable. Contact
the Service or an electrician to change a
damaged mains cable.
• Do not let mains cables to come in touch
with the appliance door, specially when the
door is hot.
• The shock protection of live and insulated
parts must be fastened in such a way that it
cannot be removed without tools.
• Connect the mains plug to the mains socket
only at the end of the installation. Make sure
that there is access to the mains plug after
the installation.
• If the mains socket is loose, do not connect
the mains plug.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains plug.
• Use only correct isolation devices: line pro-
tecting cut-outs, fuses (screw type fuses re-
moved from the holder), earth leakage trips
and contactors.
• The electrical installation must have an iso-
lation device which lets you disconnect the
appliance from the mains at all poles. The
isolation device must have a contact open-
ing width of minimum 3 mm.
Use
Warning! Risk of injury, burns or electric
shock.
• Use this appliance in a household environ-
ment.
• Do not change the specification of this ap-
pliance.
• Make sure that the ventilation openings are
not blocked.
• Do not let the appliance stay unattended
during operation.
• Deactivate the appliance after each use.
• Internally the appliance becomes hot when
in operation. Do not touch the heating ele-
ments that are in the appliance. Always use
oven gloves to remove or put in accessories
or ovenware.
• Be careful, when you open the appliance
door while the appliance is in operation. Hot
air can release.
• Do not operate the appliance with wet
hands or when it has contact with water.
• Do not apply pressure on the open door.
• Do not use an external timer or a separate
remote-control system to operate the appli-
ance.
• Always keep the appliance door closed
when the appliance is in operation.
• Do not put cutlery or saucepan lids on the
cooking zones. They become hot.
• Set the cooking zone to “off” after use.
• Do not use the appliance as a work surface
or as a storage surface.
• If the surface of the appliance is cracked,
disconnect immediately the appliance from
the power supply. This to prevent an electri-
cal shock.
Warning! Risk of fire or explosion.
• Fats and oil when heated can release flam-
mable vapours. Keep flames or heated ob-
jects away from fats and oils when you cook
with them.
• The vapours that very hot oil releases can
cause spontaneous combustion.
4
www.zanussi.com

• Used oil, that can contain food remnants,
can cause fire at a lower temperature than
oil used for the first time.
• Do not put flammable products or items that
are wet with flammable products in, near or
on the appliance.
• Do not let sparks or open flames to come in
contact with the appliance when you open
the door.
• Open the appliance door carefully. The use
of ingredients with alcohol can cause a mix-
ture of alcohol and air.
• Do not try to extinguish a fire with water.
Disconnect the appliance and cover the
flame with a lid or a fire blanket.
Warning! Risk of damage to the
appliance.
• To prevent damage or discoloration to the
enamel:
– Do not put ovenware or other objects in
the appliance directly on the bottom.
– Do not put aluminium foil directly on the
bottom of the appliance.
– do not put water directly into the hot ap-
pliance.
– do not keep moist dishes and food in the
appliance after you finish the cooking.
– be careful when you remove or install the
accessories.
• Discoloration of the enamel has no effect on
the performance of the appliance. It is not a
defect in the sense of the warranty law.
• Use a deep pan for moist cakes. Fruit juices
cause stains that can be permanent.
• Do not keep hot cookware on the control
panel.
• Do not let cookware to boil dry.
• Be careful not to let objects or cookware fall
on the appliance. The surface can be dam-
aged.
• Do not activate the cooking zones with
empty cookware or without cookware.
• Do not put aluminium foil on the appliance.
• Cookware made of cast iron, aluminium or
with a damaged bottom can cause scratch-
es on the glass ceramic. Always lift these
objects up when you have to move them on
the cooking surface.
Care and Cleaning
Warning! Risk of injury, fire or damage to
the appliance.
• Before maintenance, deactivate the appli-
ance and disconnect the mains plug from
the mains socket.
• Make sure the appliance is cold. There is
the risk that the glass panels can break.
• Replace immediately the door glass panels
when they are damaged. Contact the Serv-
ice.
• Be careful when you remove the door from
the appliance. The door is heavy!
• Clean regularly the appliance to prevent the
deterioration of the surface material.
• Remaining fat or food in the appliance can
cause fire.
• Clean the appliance with a moist soft cloth.
Only use neutral detergents. Do not use
abrasive products, abrasive cleaning pads,
solvents or metal objects.
• If you use an oven spray, obey the safety in-
structions on the packaging.
• Do not clean the catalytic enamel (if appli-
cable) with any kind of detergent.
Internal light
• The type of light bulb or halogen lamp used
for this appliance, is only for household ap-
pliances. Do not use it for house lighting.
Warning! Risk of electrical shock.
• Before replacing the lamp, disconnect the
appliance from the power supply.
• Only use lamps with the same specifica-
tions.
Service
• Contact the Service to repair the appliance.
We recommend only the use of original
spare parts.
5
www.zanussi.com

Disposal
Warning! Risk of injury or suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent children
and pets to get closed in the appliance.
Product description

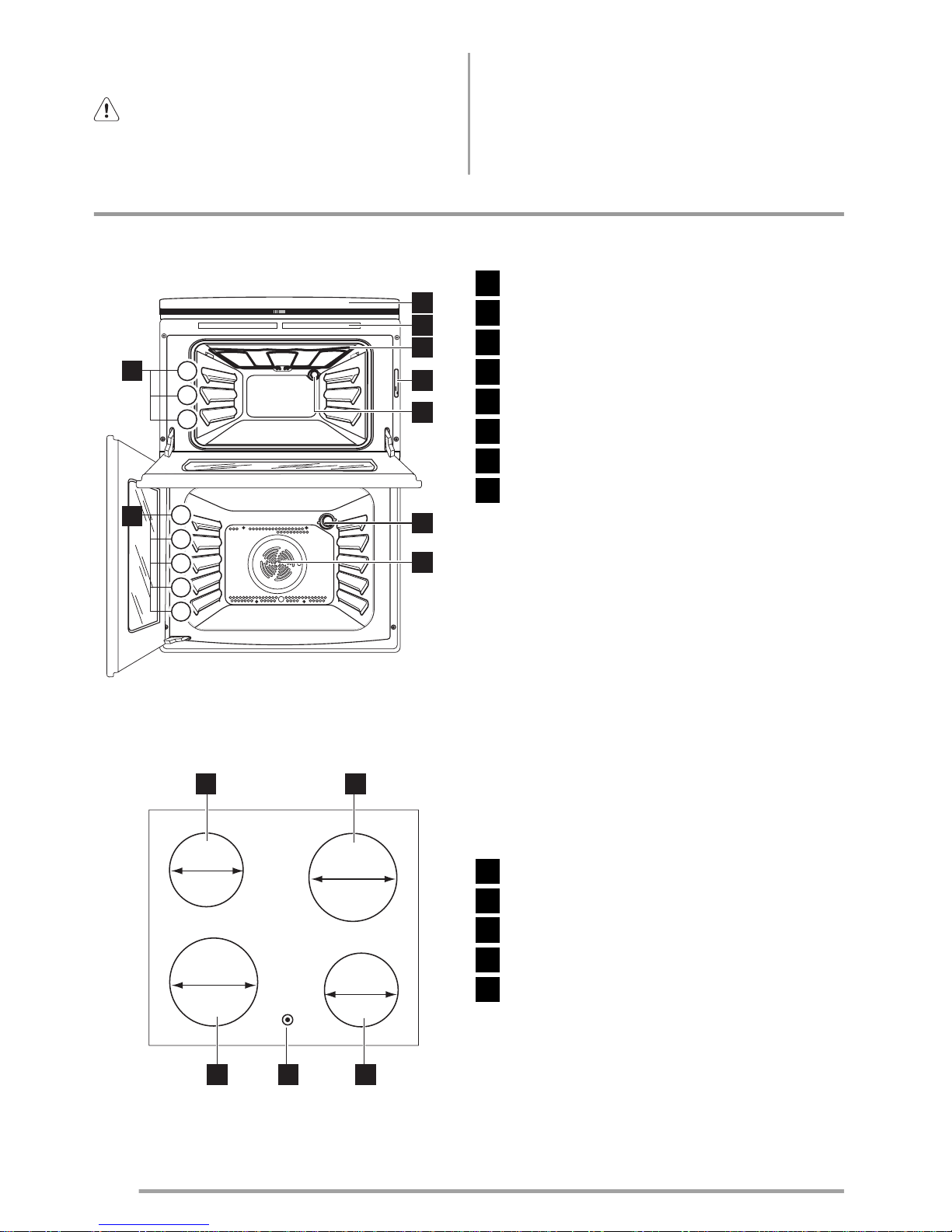

General overview
2
1
3
4
5
5
6
5
4
3
2
1
3
2
1
7
8
1Control panel and hob
2Air vents for the cooling fan
3Heating element
4Rating plate
5Oven lamp
6Fan and heating element
7Shelf positions of the main oven
8Shelf positions of the top oven
Cooking surface layout
180
mm
180
mm
145
mm
145
mm
5 4
1 2
3
1Cooking zone 1200 W
2Cooking zone 1700 W
3Cooking zone 1200 W
4Residual heat indicator
5Cooking zone 1700 W
6
www.zanussi.com

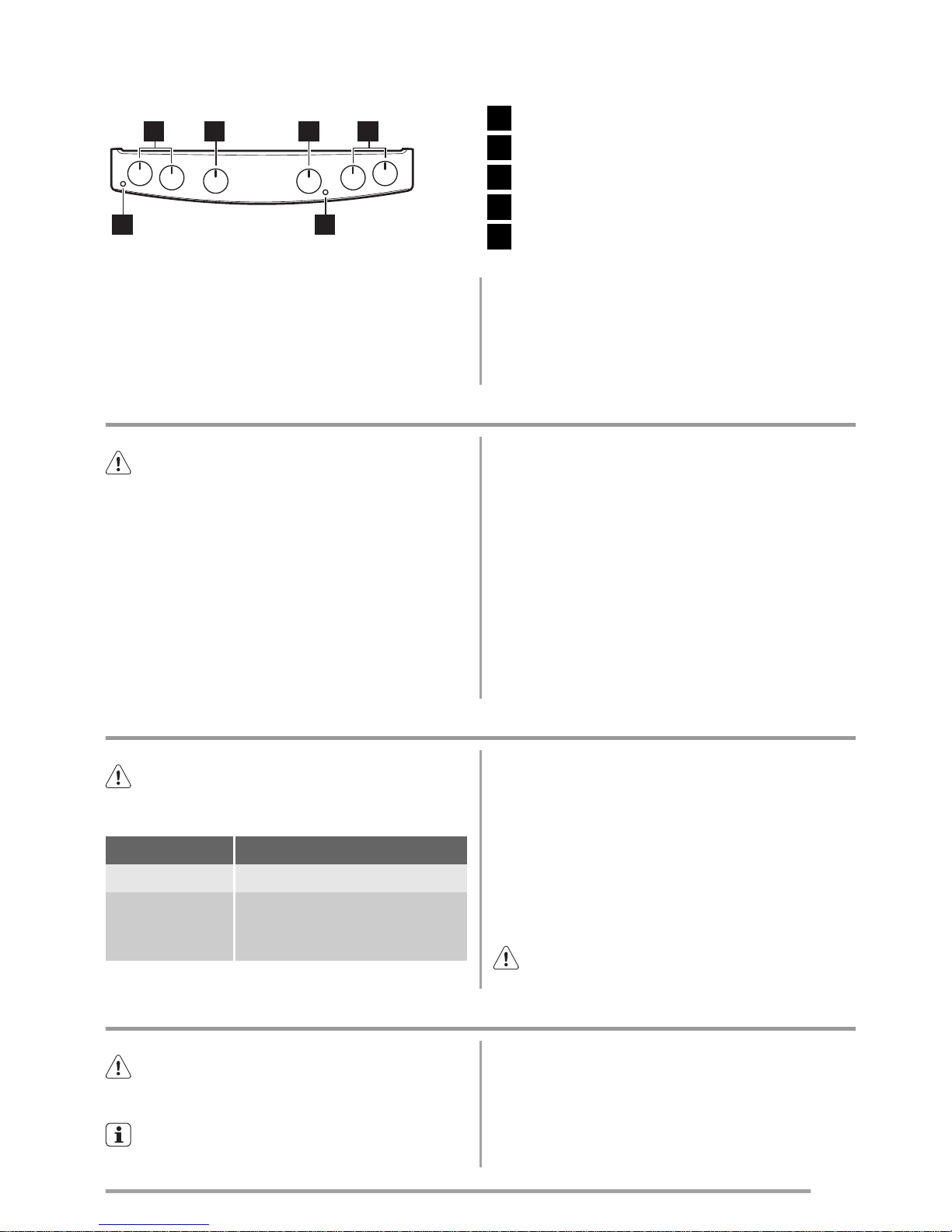

Control panel
1 2 3
45
1
1Knobs for the hob
2Knob for the top oven functions
3Knob for the main oven functions
4Main oven temperature indicator
5Top oven temperature indicator
Accessories
•Deep grill roasting pan
To bake and roast or as pan to collect fat.
•The roasting pan grid
To put in the deep roasting pan.
•Oven shelf
For cookware, cake tins, roasts.
Before first use
Warning! Refer to the Safety chapters.
Initial Cleaning
• Remove all parts from the appliance.
• Clean the appliance before first use.
Important! Refer to chapter "Care and
Cleaning".
Preheating
Set an oven function and maximum tempera-
ture and run an empty oven for 45 minutes, to
burn off any residue from the cavity surface.
Accessories can become hotter than in normal
use. During this period an odour can be emit-
ted. This is normal. Make sure the room is well
ventilated.
Preheat the two ovens. Heat up one oven at a
time.
Hob - Daily use
Warning! Refer to the Safety chapters.
Heat settings
Control knob Function
0Off position
1-6
Heat settings
(1 = lowest heat setting; 6=
highest heat setting)
1. Turn the control knob to a necessary heat
setting.
2. To complete the cooking process, turn the
control knob to the “0” position.
Residual heat indicator
The residual heat indicator comes on when a
cooking zone is hot.
Warning! Risk of burns from residual
heat!
Hob - Helpful hints and tips
Warning! Refer to the Safety chapters.
Cookware
• The bottom of the cookware must be
as thick and flat as possible.
• Cookware made of enamelled steel
and with aluminium or copper bottoms
can cause discoloration on glass ce-
ramic surface.
7
www.zanussi.com

Energy saving
• If possible, always put the lids on the
cookware.
• Put cookware on a cooking zone be-
fore you start it.
• Stop the cooking zones before the end
of the cooking time to use residual
heat.
• The bottom of pans and cooking zones
must have the same dimension.
Examples of cooking applications
Heat set-
ting:
Use to:
1Keeping warm
Heat set-
ting:
Use to:
2Gentle simmering
3Simmering
4Frying / browning
5Bringing to the boil
6Bringing to the boil / quick frying /
deep-frying
Hob - Care and cleaning
Warning! Refer to the Safety chapters.
Clean the appliance after each use.
Always use cookware with clean bottom.
Scratches or dark stains on the glass ce-
ramic have no effect on how the appli-
ance operates.
To remove the dirt:
1. – Remove immediately:melted plastic,
plastic foil, and food with sugar. If not,
the dirt can cause damage to the appli-
ance. Use a special scraper for the
glass . Put the scraper on the glass sur-
face at an acute angle and move the
blade on the surface .
–Remove after the appliance is suf-
ficiently cool:limescale rings , water
rings, fat stains, shiny metallic discolor-
ations. Use a special cleaning agent for
glass ceramic or stainless steel.
2. Clean the appliance with a moist cloth
and some detergent.
3. At the end rub the appliance dry with
a clean cloth.
Oven - Daily use
Warning! Refer to the Safety chapters.
Cooling fan
When the appliance operates, the cooling fan
switches on automatically to keep the surfaces
of the appliance cool. If you switch off the ap-
pliance, the cooling fan continues to operate
until the appliance cools down.
Activating and deactivating the ovens
1. Turn the knob for the top oven or the knob
for the main oven to the necessary set-
tings.
2. The temperature indicator comes on while
the temperature in the appliance increa-
ses.
3. To deactivate an oven, turn the knob to
the off position.
8
www.zanussi.com

Top oven functions
Oven function Application
OFF position The appliance is OFF.
Oven lamp To illuminate the oven interior.
100-250 Conventional
Cooking This function is particularly suitable for cooking larger quantities of food.
Dual Circuit Grill To grill food items in medium quantities in the middle of the shelf. To
make toast.
Full Grill The full grill element is on. To grill flat food items in large quantities. To
make toast.
Main oven functions
Oven function Application
OFF position The appliance is OFF.
Oven lamp To illuminate the oven interior.
Defrost To thaw frozen food. The knob for the temperature must be on the OFF
position.
100-250 Thermaflow This function is particularly suitable for cooking larger quantities of
food.
Oven - Using the accessories
Warning! Refer to the Safety chapters.
Grilling set
The grilling set includes the roasting pan grid
and the deep roasting pan. You can use the
roasting pan grid on the two sides.
Warning! Risk of burns when removing
the accessories from a hot oven.
9
www.zanussi.com

You can use the grill-
ing set to roast larger
pieces of meat or
poultry on one level:
Put the roasting pan
grid inside the deep
roasting pan so that
the supports of the
oven shelf point up-
wards.
You can use the grill-
ing set to grill flat
dishes in large quan-
tities and to toast:
Put the roasting pan
grid inside the deep
roasting pan so that
the supports of the
oven shelf point
downwards.
Put the deep roasting pan in the oven at the
necessary level.
Oven - Helpful hints and tips
Warning! Refer to the Safety chapters.
The temperature and baking times in the
tables are guidelines only. They depend
on the recipes, quality and quantity of the in-
gredients used.
Caution! Use a Deep grill roasting pan
for very moist cakes. Fruit juices can
cause permanent stains on the enamel.
Top oven
The top oven is the smaller of the two ovens. It
has 3 shelf levels. Use is to cook smaller
quantities of food. It gives especially good re-
sults when used to cook fruitcakes, sweets
and savoury flants or quiche.
Main oven
The main oven is particularly suitable for cook-
ing larger quantities of food.
Baking
General instructions
• Your new oven may bake or roast differently
to the appliance you had before. Adapt your
usual settings (temperature, cooking times)
and shelf levels to the values in the tables.
• With longer baking times, the oven can be
switched off about 10 minutes before the
end of baking time, to use the residual heat.
When you use frozen food, the trays in
the oven can twist during baking. When
the trays get cold again, the distortion
will be gone.
How to use the Baking Tables
• We recommend to use the lower tempera-
ture the first time.
• If you cannot find the settings for a special
recipe, look for the one that is almost the
same.
• Baking time can be extended by 10-15 mi-
nutes, if you bake cakes on more than one
level.
• Cakes and pastries at different heights do
not always brown equally at first. If this oc-
curs, do not change the temperature set-
ting. The differences equalize during the
baking procedure.
10
www.zanussi.com

Tips on baking
Baking results Possible cause Remedy
The cake is not browned
sufficiently below
Incorrect oven level Put the cake on a lower oven level
The cake sinks (be-
comes soggy, lumpy,
streaky)
Oven temperature too high Use a lower setting
The cake sinks (be-
comes soggy, lumpy,
streaky)
Baking time is too short Set a longer baking time
Do not set higher temperatures to de-
crease baking times
The cake sinks (be-
comes soggy, lumpy,
streaky)
Too much liquid in the mixture Use less liquid. Look at the mixing times, spe-
cially when you use mixing machines
Cake is too dry Oven temperature too low Set a higher oven temperature
Cake is too dry Baking time too long Set a shorter baking time
Cake does not brown
equally
Oven temperature too high
and baking time too short
Set a lower oven temperature and a longer
baking time
Cake does not brown
equally
No equal mixture Put the mixture equally on the baking tray
Cake does not cook in
the baking time set
Temperature too low Use a slightly higher oven temperature setting
Top Oven
Shelf Positions are not critical but ensure
that oven shelves are evenly spaced
when more than one is used (e.g. shelf posi-
tions 1 and 3)
Baking
Food Shelf Position Temperature
[°C]
Approx Cook Time
(mins)
Biscuits 2 170 - 190 10 - 20
Bread 2 200 - 220 30 - 35
Bread rolls/buns 2200 - 220 10 -15
Cakes: Small & Queen 2160 - 180 18 - 25
Cakes: Sponges 2160 - 175 20 - 30
Cakes: Victoria Sand-
wich 2160 -170 18 - 25
Cakes: Madeira 2140 - 150 75 - 90
Cakes: Rich Fruit 2140 - 150 120 - 150
Cakes: Gingerbread 2140 - 150 80 - 90
Cakes: Meringues 290 - 100 150 - 180
Cakes: Flapjack 2160 - 170 25 -30
11
www.zanussi.com

Food Shelf Position Temperature
[°C]
Approx Cook Time
(mins)
Cakes: Shortbread 2130 - 150 45 - 60
Cakes: Apple Pie 2170 - 180 50 - 60
Casseroles: Beef/Lamb 2160 -170 150 - 180
Casseroles: Chicken 2160 - 180 80 - 90
Convenience Foods 2Follow manufacturer`s instructions
Fish 2170 - 190 20 - 30
Fish Pie (Potato Top-
ped) 2190 - 200 20 - 30
Fruit Pies, Crumbles 2190 - 200 30 - 50
Milk Puddings 2150 - 170 90 -120
Pasta Lasagne etc. 2170 - 180 40 -50
Pastry: Choux 2180 - 190 30 - 40
Pastry: Eclairs, Profiter-
oles 2180 - 190 30 - 40
Pastry: Flaky/Puff Pies 2210 - 220 30 - 40
Shortcrusts: Mince Pies 2190 - 200 15 - 20
Shortcrusts: Meat Pies 2190 - 210 25 - 35
Shortcrusts: Quiche,
Tarts, Flans 2180 - 200 25 - 50
Scones 3220 - 230 8 - 12
Shepard`s Pie 2190 - 200 30 - 40
Souffles 2170 - 180 20 - 30
Vegetables: Baked Jack-
et Potatos 2180 - 190 60 - 90
Vegetables: Roast Pota-
tos 2180 - 190 60 - 90
Yorkshire Pudding Large 2220 - 210 25 - 40
Yorkshire Pudding Indi-
vidual 2210 - 220 15 - 25
Roasting Meat, Poultry 2See roasting chart
Main Oven
Shelf Positions are not critical but ensure
that oven shelves are evenly spaced
when more than one is used (e.g. shelf posi-
tions 1 and 3)
Baking
Food Temperature
[°C]
Approx Cook Time
(mins) Shelf Position
Biscuits 180 - 190 10 - 20 1 / 3
12
www.zanussi.com

Food Temperature
[°C]
Approx Cook Time
(mins) Shelf Position
Bread 190 - 210 30 - 35 2
Cakes: Small & Queen 150 - 170 18 - 25 1 / 3
Cakes: Sponges 160 - 170 20 - 25 3
Cakes: Madeira 140 - 160 60 - 80 3
Cakes: Rich Fruit 130 - 140 120 - 150 3
Cakes: Christmas 130 - 140 180 - 270 3
Cakes: Apple Pie 160 - 170 50 - 60 3
- Shortbread 130 - 150 45 - 60 1 / 3
Fish 160 - 180 30 - 40 3
Fruit Pies, Crumbles 170 - 180 30 - 50 3
Milk Puddings 140 - 160 60 - 90 3
Pastry: Choux 180 - 190 30 - 40 3
Pastry: Shortcrust 180 - 190 25 - 35 3
Pastry: Flaky 180 - 190 30 -40 3
Pastry: Puff Follow manufacturer`s instructions. Reduce the
temperature for Fan oven by 20°C 3
Plate Tarts 180 - 190 25 - 45 3
Quiches/Flans 170 - 180 25 - 45 3
Scones 210 - 230 8 - 12 1 / 3
Roasting: Meat, Poultry 160 - 180 see Roasting Chart 2
Roasting
Roasting dishes
• Use heat-resistant ovenware to roast
(please read the instructions of the manu-
facturer).
• Large roasting joints can be roasted directly
in the deep roasting pan or on the oven
shelf above the deep roasting pan. (If
present)
• Roast lean meats in a roasting tin with a lid.
This well keep the meat more succulent.
• All types of meat, that can be browned or
have crackling, can be roasted in the roast-
ing tin without the lid.
Thermaflow or Conventional Cooking (if available)
Roasting
Meat Temperature [°C] Cooking Time
Beef/Beef boned 170 - 190 20-35 minutes per 0.5 kb (1 lb) and
20-30 minutes over
Mutton/Lamb 170 - 190 20-35 minutes per 0.5 kb (1 lb) and
25-35 minutes over
Pork/Veal/Ham 170 - 190 30-40 minutes per 0.5 kb (1 lb) and
30-40 minutes over
13
www.zanussi.com

Meat Temperature [°C] Cooking Time
Chicken 180 - 200 20-25 minutes per 0.5 kb (1 lb) and
20 minutes over
Turkey/Goose
170 - 190
15-20 minutes per 0.5 kg (1 lb) up to
3.5 kg (7 lb) then 10 minutes per 0.5
kg (1 lb) over 3.5 kg (7 lb)
Duck 180 - 200 25-35 minutes per 0.5 kb (1 lb) and
25-30 minutes over
Pheasant 170 -190 35-40 minutes per 0.5 kb (1 lb) and
35-40 minutes over
Rabbit 170 - 190 20 minutes per 0.5 kb (1 lb) and 20mi-
nutes over
Grilling
Always use the grilling function with
maximum temperature setting
Important! Always grill with the oven door
closed
Always pre-heat the empty oven with the
grill functions for 5 minutes.
• Set the grilling set in the shelf level as rec-
ommended in the grilling table.
• Grill only flat pieces of meat or fish.
Top Oven - Dual Circuit Grill
Adjust shelf position and grilling set to
suit different thicknesses of food.
Grilling
Food Shelf Position Grill Time (min)
Bacon Rashers 35 - 6
Beefburgers 310 - 20
Chicken Joints 220 - 40
Chops - Lamb 2 - 3 15 - 25
Chops - Pork 2 - 3 20 - 25
Fish - Whole/Trout/Makarel 210 - 12
Fillets - Plaice/Cod 24 - 6
Kebabs 2 - 3 12 - 18
Kidneys - Lamb/Pig 2 - 3 6 - 10
Sausages 320 - 30
Steaks: Rare 34 - 6
Steaks: Medium 36 - 8
Steaks: Well Done 312 - 15
Toasted Sandwiches 33- 4
Defrosting
• Put the food out of the packaging and set it
on a plate on the oven shelf.
• Do not cover with a plate or bowl. This can
extend the time to defrost very much.
• Put the oven shelf in the first shelf level from
the bottom.
14
www.zanussi.com

Oven - Care and cleaning
Warning! Refer to the Safety chapters.
• Clean the front of the appliance with a soft
cloth with warm water and cleaning agent.
• To clean metal surfaces use a usual clean-
ing agent
• Clean the oven interior after each use. Thus
you can remove dirt more easily and it does
not burn on.
• Clean stubborn dirt with a special oven
cleaner.
• Clean all oven accessories (with a soft cloth
with warm water and cleaning agent) after
each use and let them dry.
• If you have nonstick accessories, do not
clean them using an aggressive agents,
sharp edged objects or dishwasher. It can
destroy nonstick coating!
Stainless steel or aluminium appli-
ances:
Clean the oven door with a wet sponge only.
Dry it with a soft cloth.
Do not use steel wool, acids or abrasive mate-
rials as they can damage the oven surface.
Clean the oven control panel with the same
precautions
Oven Ceiling
You can fold down the heating element on the
oven ceiling to clean the oven ceiling easily.
Folding down the heating element
1. Remove the shelf support rails.
2. Hold the heating element with the two
hands at the front
3. Pull it forwards against the spring pres-
sure and out along the support on both
sides.
4. The heating element folds down.
The oven ceiling is ready to clean.
Installing the heating element
1. Install the heating element in opposite se-
quence.
Important! Install the heating element
correctly on the two sides above the support
on the inner wall of the oven.
2. Insert shelf support rails.
Cleaning the top oven glass panels
The door glass on your product can be
different in type and shape from what you
see in diagrams. The number of glasses can
be different.
Removing the glass:
1. Open the door.
2. Push the door trim at both sides to release
the clips. Refer to the picture.
3. Remove the glass panels.
15
www.zanussi.com

1
2
1
To replace the glass obey the procedure
in opposite sequence.
Cleaning the oven door
The door glass on your product can be
different in type and shape from what you
see in diagrams. The number of glasses can
be different.
Removing the glass:
1. Push the door trim at one side to remove it.
Refer to the picture.
2. Pull up the trim.
3. Remove the glass panels.
1
2
A
To replace the glass panels obey the pro-
cedure in opposite sequence. Before you
lower the trim attach the A trim part to the
door. Refer to picture.
Oven lamp
Warning! There is a danger of electrical
shock!
Before you change the oven lamp:
• Switch off the oven.
• Remove the fuses in the fuse box or switch
off the circuit breaker.
Put a cloth on the bottom of the oven for
protection of the oven light and glass
cover.
Replacing the oven lamp
1. You can find the lamp glass cover at the
back of the cavity.
Turn the lamp glass cover counterclock-
wise to remove it.
2. Clean the glass cover.
3. Replace the oven lamp with applicable
300°C heat-resistant oven lamp.
Important! Use the same oven lamp type.
4. Install the glass cover.
16
www.zanussi.com

What to do if…
Warning! Refer to the Safety chapters.
Problem Possible cause Remedy
The residual heat indicators does
not come on
The cooking zone is not hot be-
cause it operated only for a short
time
If the cooking zone must be hot,
speak to the after sales service
The appliance does not operate The fuse in the fuse box is re-
leased
Control the fuse. If the fuse is re-
leased more than one time, refer
to a qualified electrician.
The oven does not heat up The oven is not switched on Switch on the oven
The oven does not heat up The necessary settings are not
set
Control the settings
The oven lamp does not operate The oven lamp is defective Replace the oven lamp
Steam and condensation settle
on the food and in the oven cavity
You left the dish in the oven for
too long
Do not leave the dishes in the
oven for longer than 15-20 mi-
nutes after the cooking process
ends
If you cannot find a solution to the problem
yourself, contact your dealer or the service
centre.
The necessary data for the service centre is on
the rating plate. The rating plate is on the front
frame of the oven cavity.
We recommend that you write the data here:
Model (MOD.) .........................................
Product number (PNC) .........................................
Serial number (S.N.) .........................................
Installation
Warning! Refer to the Safety chapters.
Technical data
Dimensions
Height 893 - 912 mm
Width 600 mm
Depth 600 mm
Top oven capacity 37 l
Main oven capacity 74 l
Location of the appliance
You can install your freestanding appliance
with cabinets on one or two sides and in the
corner.
17
www.zanussi.com

A
A
B
Minimum distances
Dimension mm
A 2
B685
Levelling
Use small feet on the bottom of appliance to
set same level of cooker top surface with other
surfaces

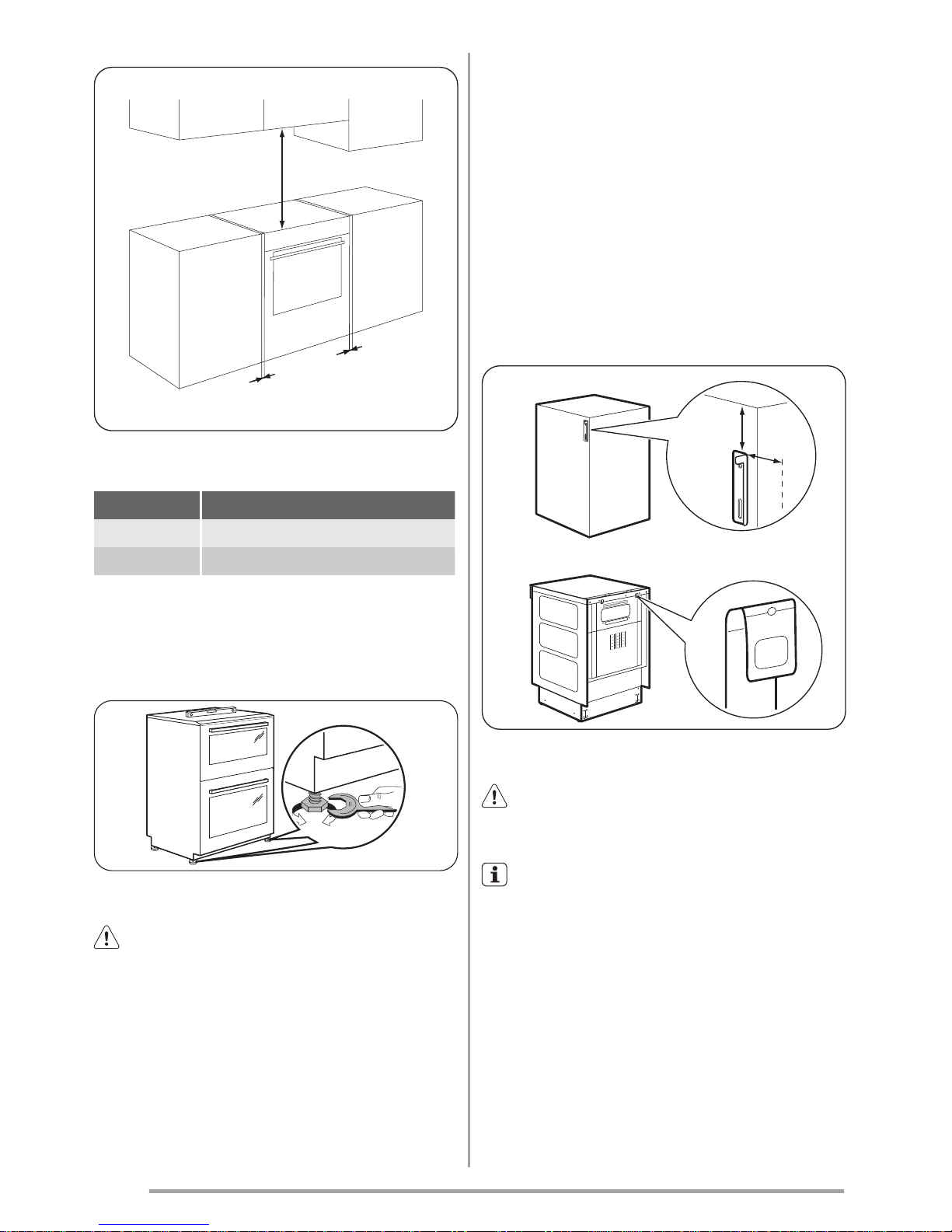

The anti-tilt protection
Caution! You must install the anti-tilt
protection (A+B). If you do not install it
the appliance can tilt.
Before you install anti-tilt protection, adjust the
appliance to the correct height.
The anti-tilt protection has two parts (A+B).
You can find the anti-tilt protection (B) on right
or left side of the rear wall of the appliance
(See fig. 1). You must install the anti-tilt pro-
tection (A) on the wall. The distance of the
hole of the anti-tilt protection (A) from the floor
is about 816 mm. Make sure you install the an-
ti-tilt protection (A) at the correct height.
Screw it into the solid material or use applica-
ble reinforcement.
Check that the anti-tilt protection projects min-
imum 20 mm into the hole in the back of the
appliance (B) when you push the appliance
(See fig. 2). If the space between the bench
cupboards is greater than the width of the ap-
pliance, you must adjust the side measurement
to centre the appliance. Make sure that the
surface behind the appliance is smooth.
2
1
B
60 mm
50 mm
A
Electrical installation
Warning! Only a qualified and
competent person must do the electrical
installation.
The manufacturer is not responsible if you
do not follow safety precautions from the
chapter "Safety information".
This appliance is supplied without a main plug
or a main cable.
Covering terminal board
The recommended cross-section area is six
square millimetres (6 mm²).
When you refit the mains terminal cover, make
sure that the lower tabs are located inside the
bottom edge of the aperture, before you fix the
18
www.zanussi.com

two screws into the top edge of the mains ter-
minal cover.
Make sure that the cover is securely fastened.
To open the cover of terminal board obey
the procedure in opposite sequence.
Terminal board
Make sure that the links are fitted as shown.
NNNLL
Do not remove blanking plates.
Environment concerns
Recycle the materials with the symbol . Put
the packaging in applicable containers to
recycle it.
Help protect the environment and human
health and to recycle waste of electrical and
electronic appliances. Do not dispose
appliances marked with the symbol with the
household waste. Return the product to your
local recycling facility or contact your
municipal office.
Packaging material
The packaging material is environmental-
ly-friendly and recyclable. Plastic parts are
marked with international abbreviations such
as PE, PS, etc. Dispose of the packaging ma-
terial in the containers provided for this pur-
pose at your local waste management facility.
19
www.zanussi.com

www.zanussi.com/shop
892957680-B-472013
