Zanussi ZKC5020 User manual

User manual
Cooker
Top Oven/Grill Back Left Front left Front Reight Back Reight
ZKS5010
ZKC5020
ZKC5030

Thank you for selecting our
appliance
We wish you lots of enjoyment with your new
appliance and we hope that you will consider
our brand again when purchasing household
appliances.
Please read this user manual carefully and
keep it throughout the product life cycle as a
reference document. The user manual should
be passed on to any future owner of the
appliance.
Contents
Safety instructions _ _ _ _ _ _ _ _ _ _ _ _ _ 3
Description of the appliance _ _ _ _ _ _ _ _ 5
Before first use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 7
Grill and oven furniture _ _ _ _ _ _ _ _ _ _ 8
The electronic timer (ZKC5030W1/S1/X1/
K1) _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 9
The hob _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 10
The grill (ZKS5010W1/S1/B1-ZKC5020S1/
W1/X1) _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 13
The top oven (ZKC5030W1/S1/X1/
K1) _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 14
The main oven _ _ _ _ _ _ _ _ _ _ _ _ _ _ 16
Cooking tables _ _ _ _ _ _ _ _ _ _ _ _ _ _ 18
Care and cleaning _ _ _ _ _ _ _ _ _ _ _ _ 21
What to do if... _ _ _ _ _ _ _ _ _ _ _ _ _ _ 25
Installation _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 26
Technical Data _ _ _ _ _ _ _ _ _ _ _ _ _ _ 28
Environmental Information _ _ _ _ _ _ _ _ 29
Guarantee/Customer Service _ _ _ _ _ _ 29
European Guarantee _ _ _ _ _ _ _ _ _ _ _ 31
www.electrolux.com _ _ _ _ _ _ _ _ _ _ _ 31
Subject to change without notice
2

Safety instructions
General safety
These warnings are provided in the interest of
your safety. Ensure that you understand them
all before installing or using the appliance. Your
safety is of paramount importance. If you are
unsure about any of the meanings of these
warnings please contact customer care.
Installation
• The appliance must be installed according
to the instructions supplied.
• The installation work must be undertaken by
a qualified electrician or competent person.
• The appliance should be serviced by an au-
thorised service engineer and only genuine
approved spare parts should be used.
• The appliance must be installed in an
adequately ventilated room.
• If the appliance is to be placed on a base,
measures must be taken to prevent the ap-
pliance from slipping.
• This appliance is heavy and care must be
taken when moving it.
• Do not attempt to lift or move this appliance
by the handles.
• All packaging, both inside and outside the
appliance must be removed before the ap-
pliance is used.
• It is dangerous to alter the specifications or
modify the appliance in any way.
Child safety
• Do not allow children to play with any part of
the packaging.
• Do not allow children to sit or climb on the
drop down doors.
• Childrenshouldbe supervised to ensurethat
they do not play with the appliance.
WARNING!
Accessible parts may be hot during use. Young
children should be kept away.
During use
• This appliance is not intended for use by
children and other persons whose physical,
sensory or mental capabilities or lack of ex-
perience and knowledge prevents them from
using the appliance safely without supervi-
sion or instruction by a responsible person
to ensure that they can use the appliance
safely.
• This appliance is not intended to beoperated
by means of an external timer or separate
remote control system.
• This appliance has been designed for do-
mestic use to cook edible foodstuffs only and
must not be used for any other purposes.
• Take great care when heating fats and oils,
as they will ignite if they become too hot.
• Never place plastic or any other material,
which may melt in or on the oven.
• Do not leave the grill pan handle in position
when grilling, as it will become hot.
• Always support the grill pan when it is in the
withdrawn or partially withdrawn position.
3

• Always use oven gloves to remove and re-
place the grill pan handle when grilling.
• Alwaysuseovenglovestoremoveandplace
food in the oven.
• Ensure cooking utensils are large enough to
contain foods to prevent spillage and boil
over.
• The handles of saucepans, which are
smaller than the heated area on the hob, will
become hot.
• Ensure your hand is protected before han-
dling the pan.
• Do not use the appliance if the ceramic glass
is damaged. If a fault or crack becomes visi-
ble, disconnect the appliance immediately
from the electricity supply and contact your
local service force centre.
• Do not place foil or plastic containers on the
ceramic glass.
• During use the appliance becomes hot. Care
should be taken to avoid touching heating
elements inside the oven.
• Ensure that all vents are not obstructed to
ensure ventilation of the oven cavity.
• Never line any part of the appliance with foil.
• Always stand back from the appliance when
opening the doors to allow any build up of
steam or heat to release.
• Some parts of the product may preserve
their heat for a long time; please wait until
the parts primarily exposed to heat cool
down before touching them.
• Do not keep flammable materials close while
the product is operating.
• Donotleave anything ontheovendoorwhen
it is open.
• Always switch the cooker off when you do
not use it.
WARNING!
Never leave the appliance unattended when
the oven door is open.
• Do not place sealed cans or aerosols inside
the oven. They may explode if they are
heated.
• Ensure that all control knobs are in the off
position when not in use.
• Do not stand on the appliance or on the open
oven doors.
• Do not hang towels, dishcloths or clothes
from the appliance or its handles.
• Do not use this appliance if it is in contact
with water.
• Never operate it with wet hands.
Cleaning and maintenance
WARNING!
For hygiene and safety reasons this appliance
should be kept clean at all times. A build-up of
fat or other foodstuff could result in a fire
especially in the grill pan.
• Do not leave the cookware containing food-
stuff, e.g. fat or oil in the appliance in case it
is inadvertently switched on.
• Extreme care must be taken when using a
ceramic hob scraper.
• Always allow the appliance to cool before
switching off at the wall prior to carrying out
any cleaning/maintenance work.
• Only clean this appliance in accordance with
the instructions given in this book.
• Never use steam or high-pressure steam
cleaners to clean the appliance.
4

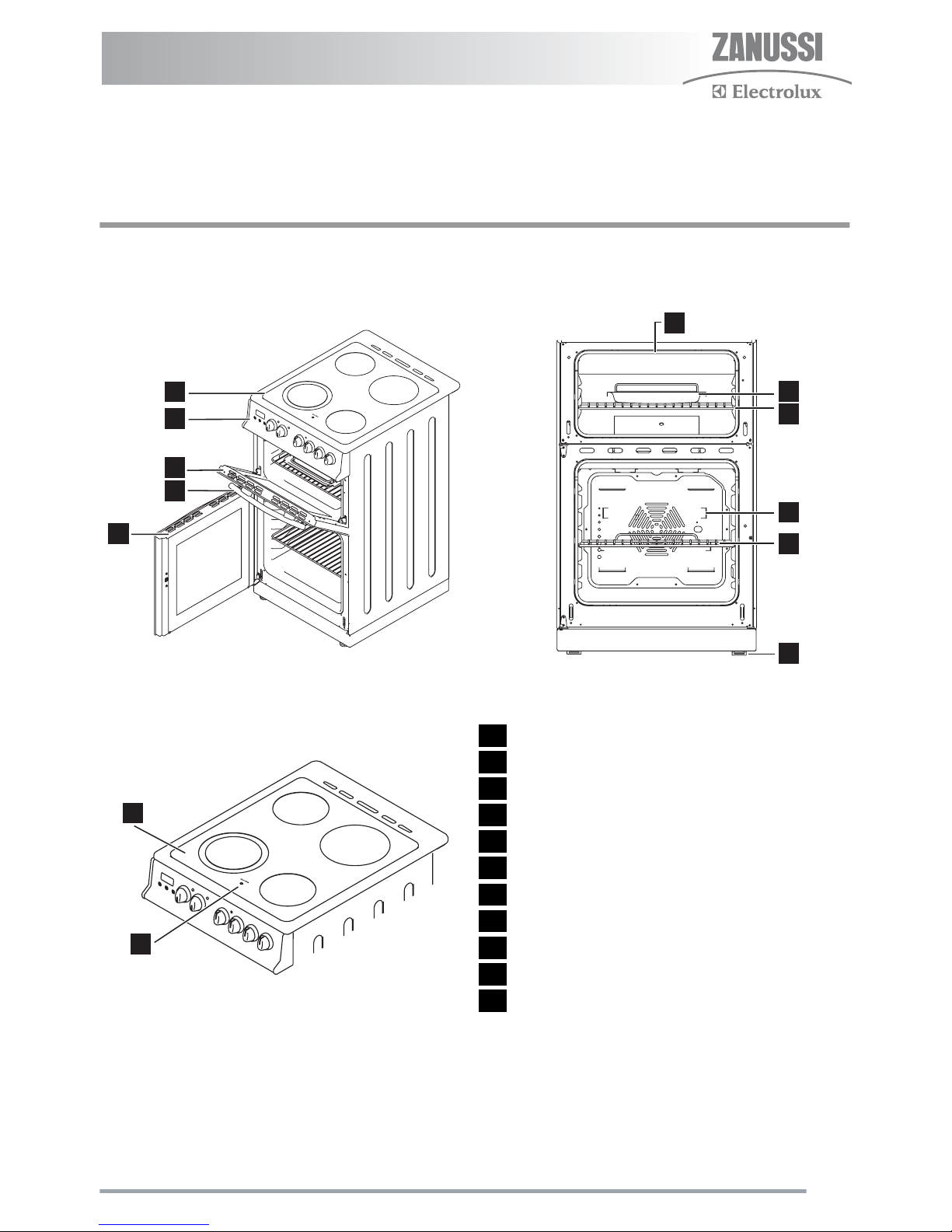

Description of the appliance
Product description
1
2
3
4
5
6
7
8
9
8
10
11
12
1Hob
2Control Panel
3Top Oven Door/Grill
4Oven Door Handle/Grill
5Main Oven Door
6Tubular heating element
7Grill Pan
8Shelf
9Levelling leg
10 Ceramic feet
11 Hot hob indicator
5

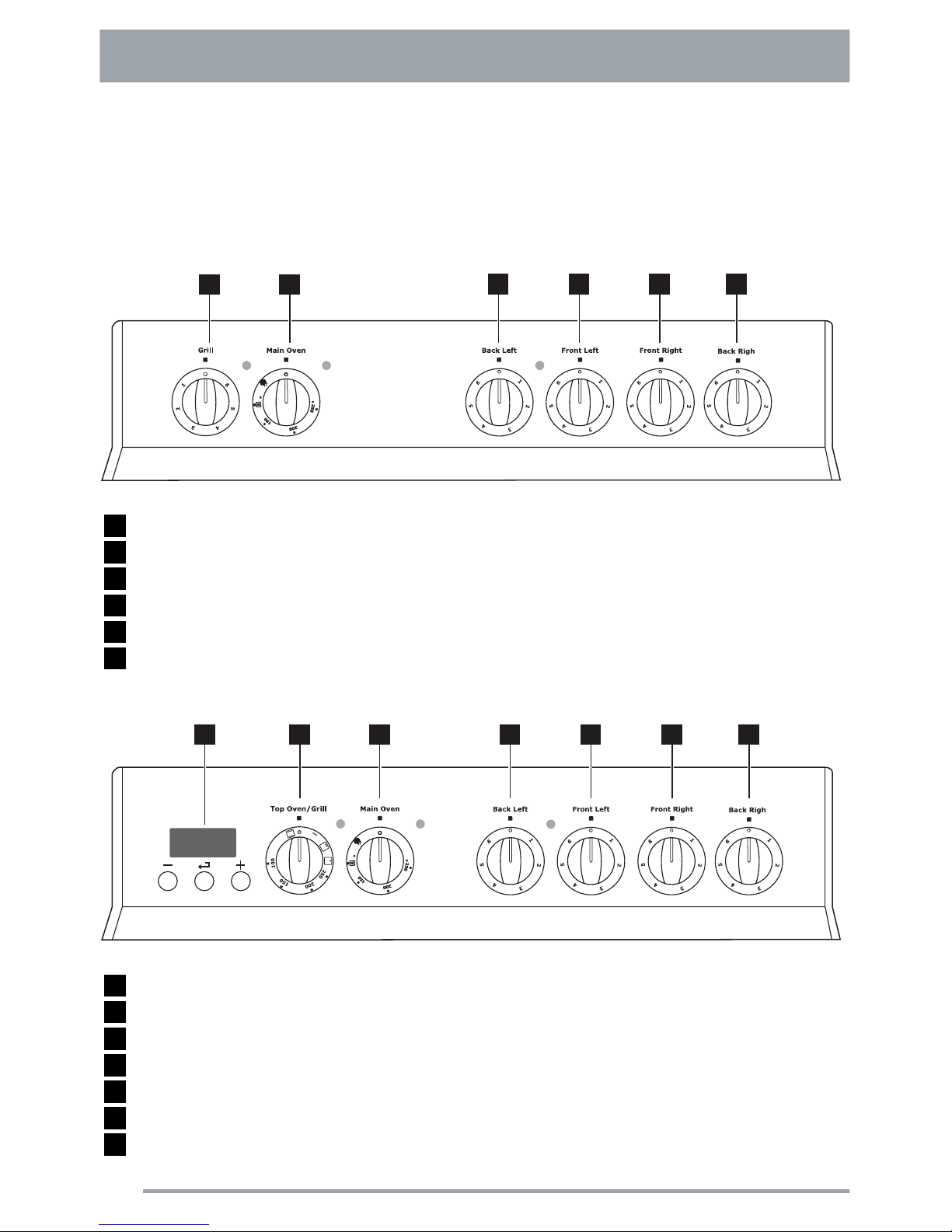

Controls and their functions
ZKS5010W1/S1/B1, ZKC5020S1/W1/X1
3 4 5 6
1 2
1Grill
2Main Oven
3Back Left
4Front Left
5Front Right
6Back Right
ZKC5030W1/S1/X1/K1
1 2 3 4 5 6 7
1Timer
2Top Oven/Grill
3Main Oven
4Back Left
5Front Left
6Front Right
7Back Right
6

Before first use
Rating plate
• This is situated on the lower front frame of
theappliance and can beseenuponopening
the door. Alternatively the rating plate may
also be found on the back or top of some
models (where applicable).
• The appliance must be protected by a suita-
bly rated fuse or circuit breaker.
• The rating of the appliance is given on the
rating plate.
•Do not remove the rating plate from the
applianceasthismayinvalidatetheguar-
antee.
Preparing to use your
appliance
• Carefully check whether there is any dam-
age after you unpack the appliance. If there
is any defect; do not use the appliance and
contact your retailer immediately. As the ma-
terials used for packaging (nylon, stapler,
Styrofoam etc.) may cause harmful effects
to children, they should be collected and re-
moved immediately.
• For your safety wall coverings at the rear of
the appliance should be securely fixed to the
wall.
• Wipe over the base of the oven(s) with a soft
cloth using hot soapy water. Wash the oven
furniture before use.
• We suggest that you run the oven(s) and grill
for 10 – 15 minutes at maximum tempera-
ture, to burn off any residue from their sur-
faces. Accessible parts may become hotter
than in normal use. Children should be kept
away. During this period an odour may be
emitted, it is therefore advisable to open a
window for ventilation.
Controlpanelindicatorneon(s)
• The indicator neon will operate when the grill
(where applicable) or oven(s) is switched on.
The indicator neon will glow. It may turn on
and off during use to show that the setting is
being maintained. If the neon does not op-
erate as the instructions indicate the controls
have been incorrectly set. Return all controls
to zero and reset following the instructions
for the required setting.
Condensation and steam
• When food is heated it produces steam simi-
lar to a boiling kettle. The vents allow some
of this steam to escape. However, always
standback from the appliance whenopening
the door(s) to allow any build up of steam or
heat to release.
• If the steam comes into contact with a cool
surface on the outside of the appliance, e.g.
a trim, it will condense and produce water
droplets. This is quite normal and is not
caused by a fault on the appliance.
• To prevent discolouration, regularly wipe
away condensation and foodstuff from sur-
faces.
7

• For your safety wall coverings at the rear of
the appliance should be securely fixed to the
wall.
Cookware
• Baking trays, dishes etc., should not be
placed directly against the grid covering the
fan at the back of the oven.
• Do not use baking trays larger than 30cm x
35cm (12” x 14”) as they will restrict the cir-
culation of heat and may affect performance.

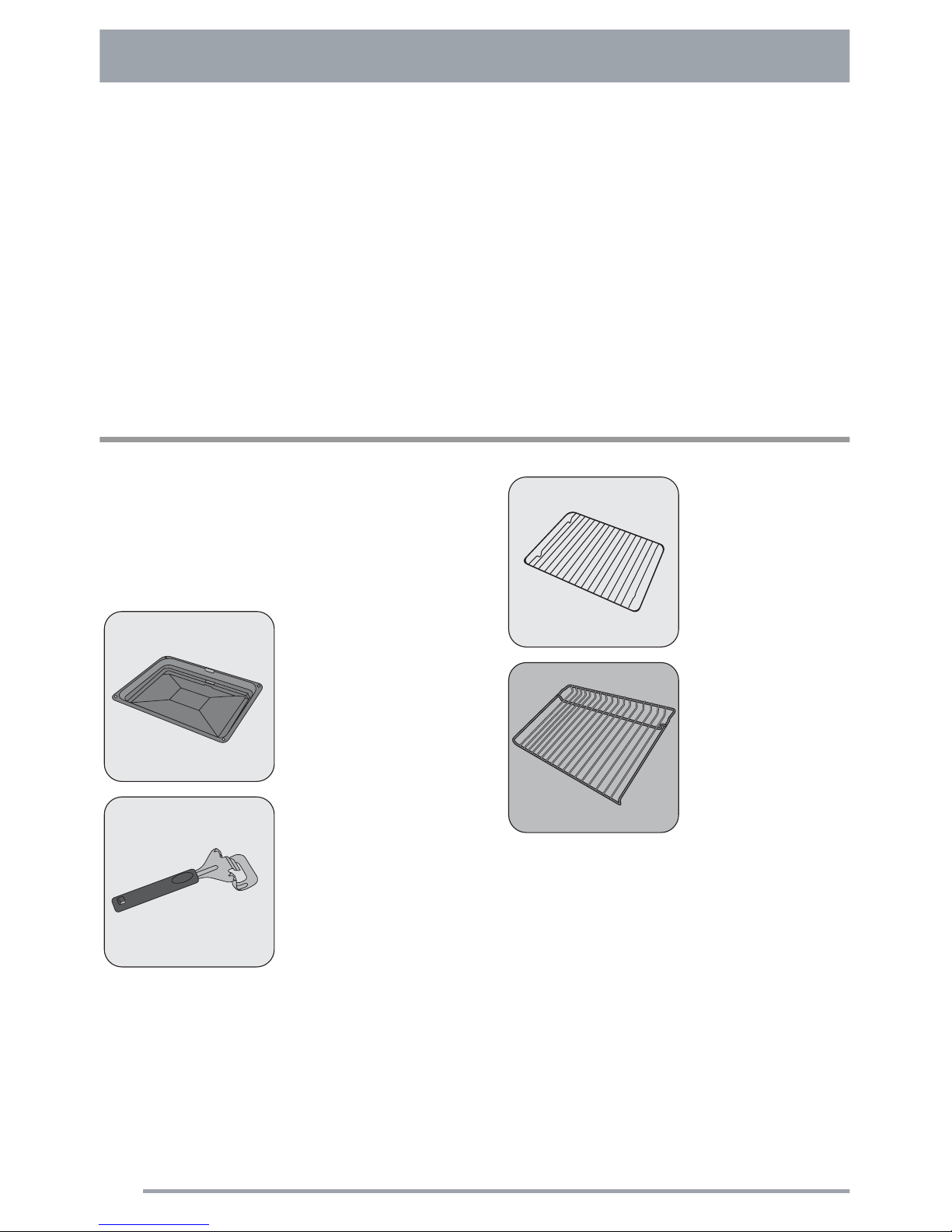

Grill and oven furniture
• The following items of grill and oven furniture
havebeen supplied with the appliance. If you
require replacements of any of the items lis-
ted below please contact your local service
force centre.
1 grill pan
1 grill pan handle
1 grill pan grid
1 straight shelf (For grill-
ing and top oven cook-
ing)
and
2 straight shelves (For
main oven cooking)
8

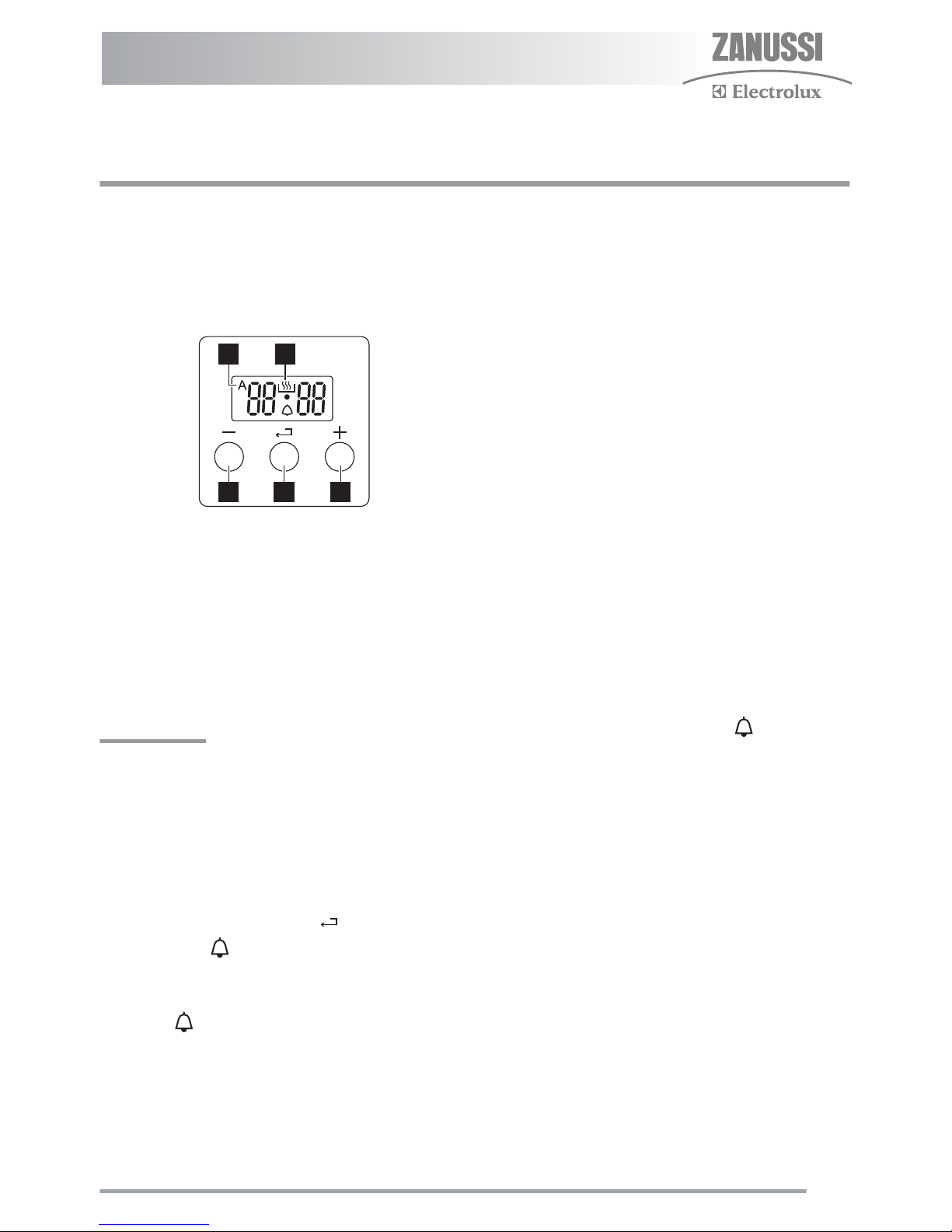

The electronic timer (ZKC5030W1/S1/X1/K1)
This oven has a 24-hour clock. In the event of
an interruption of the electricity supply, the
clock will stop and you will not be able to use
the main oven.
To set the time of day
1 2
345
“A” Symbol and "0:00" will flash after the cooker is
connected to electricity. Press (+) and (-) keys at the
same time. Press the increase and decrease buttons
until the correct time is showing.
1. This symbol is displayed when the Cooking Period
function is set (see apropriate chapter)
2. This symbol is displayed when the Cooking Period
function is set (see apropriate chapter)
3. Time increase button
4. Mode button
5. Time decrease button
IMPORTANT!
The increase and decrease control buttons op-
erate slowly at first and then more rapidly. They
should be pressed separately.
To set the countdown
This function can be used as time set up and
alarm when wished. “Mode”( ) key must be
pressed until “ “ indicator lamp will start to
light. The wished period interval is adjusted via
“+” and “-” keys. Screen reverts to the time of
day and “ “ sign that flashed in the past
remains fixed. It is possible to make time set up
between 0- 23.59 hours. At the end of cooking
period an alarm is heard and “ “ symbol
flashes. You can press any key to stop the
alarm.
Setting the oven timer control
Only the main oven can be automatically timed.
When using the timer control for the very first
time, it is advisable to let it operate while you
are at home.
The display can be checked to show that it is
operating correctly and you will feel confident
to leave a meal to cook automatically in the fu-
ture.
9

Setting the Desired Cooking Period
This function is used to set the desired cooking period.
To adjust the cooking period, “Mode“ ( )key is
pressed until “dur” indicator lamp starts to flash. The
desired cooking period is adjusted by using “+” and “-”
keys. Once the time is adjusted, it is registered
automatically in 5 seconds following the adjustment.
“A” and “ “ symbols will be illuminated. The screen
returns to the current time. At the emd of a timed cook-
ing period an alarm will sound and “A” and “ “
symbols starts to flash. Pressing any button stops the
alarm and the lamp flashing. It is possible to adjust
cooking period between 0-10 hours.
Setting the Finish Time
This function is used to adjust finish time of the
cooking period. To adjust the finish time of
cooking “Mode” key is pressed until “End” indi-
cator lamp starts to flash. The desired finish
time is adjusted by using “+” and “-” keys. The
time will revert to the time of day when the finish
time is reached an alarm is heard and you can
press any key to stop the alarm. The oven will
turn off.
Setting the Cooking Period and Finish Time
This function is used to adjust the cooking period by
use of the automatic cooking function. Both cooking
period and end time have to be adjusted. The cooking
period is adjusted as explained above. “Mode” key is
pressed until “End” indicator lamp flashes in order to
adjust the ending time. “+” and “-” keys must be used.
Once the time is adjusted, it is registered automatically
in 5 seconds following the adjustment and “A” and
““ symbols starts to light continuously. The screen
returns to the current time. An alarm sound is heard at
the end of the time and “A” symbol starts to flash.
Pressing any button stops the alarm and lamp flashing.
10
