Zanussi DW 65 TCR Operating and safety instructions

INSTRUCTIONS FOR
THE USE AND CARE OF
ZANUSSI
DISHWASHER
MODEL No DW 65 TCR ZANUSSI
PA O u ERATE
The appliance of science

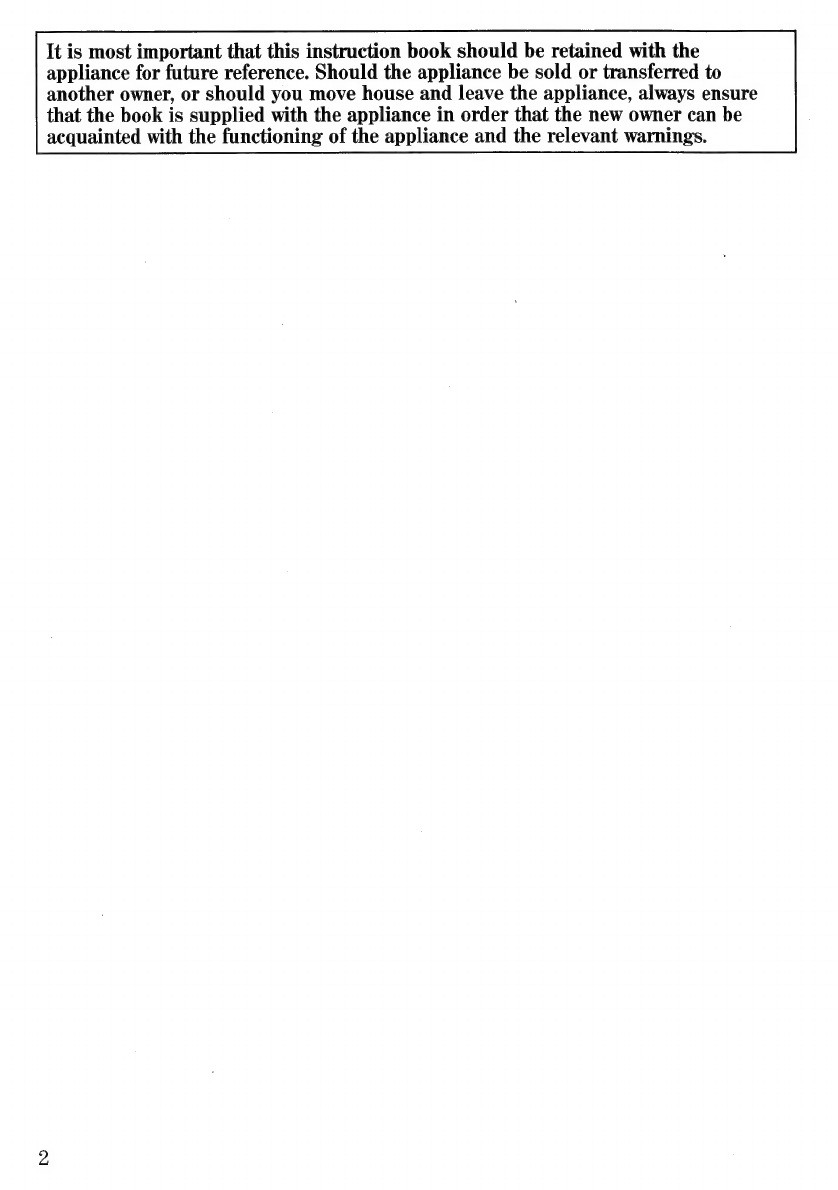

It is most important that this instruction book should be retained with the
appliance for future reference. Should the appliance be sold or transferred to
another owner, or should you move house and leave the appliance, always ensure
that the book is supplied with the appliance in order that the new owner can be
acquainted with the functioning of the appliance and the relevant warnings.

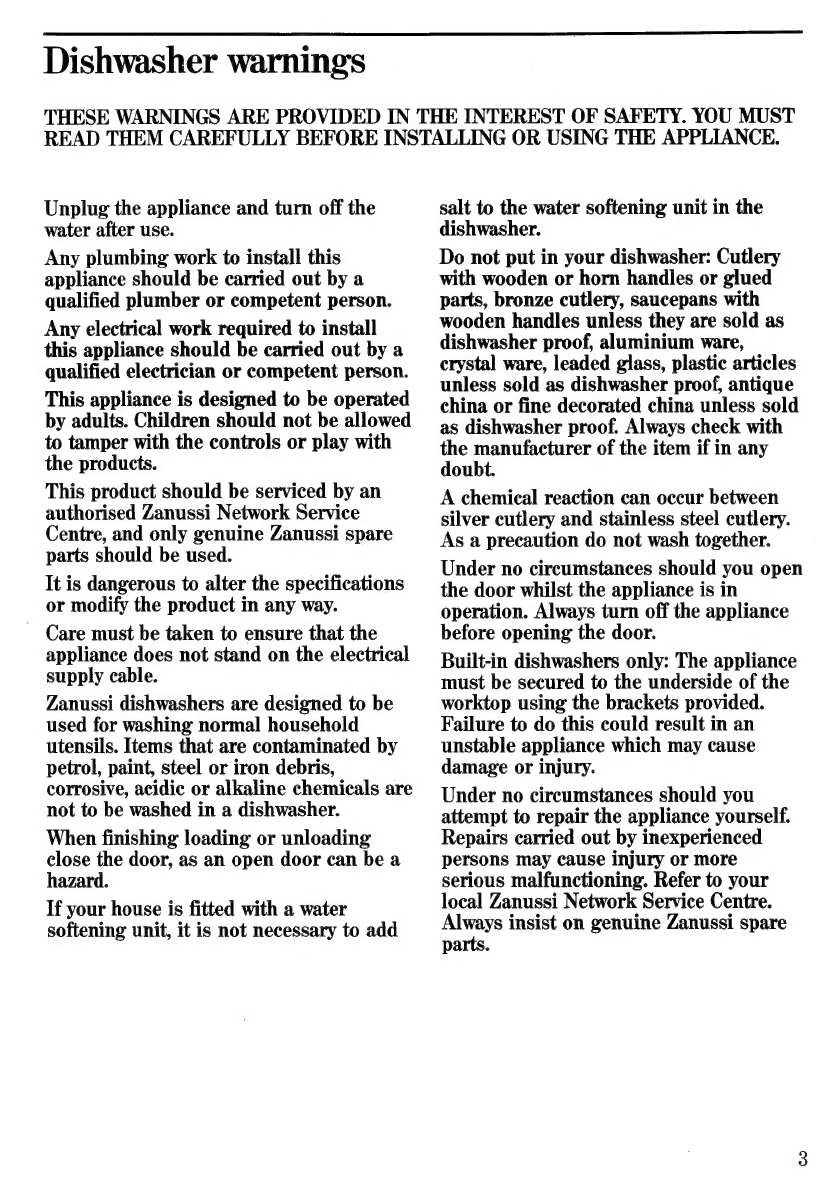

Dishwasher warnings
THESE WARNINGS ARE PROVIDED IN THE INTEREST OF SAFETY. YOU MUST
READ THEM CAREFULLY BEFORE INSTALLING OR USING THE APPLIANCE.
Unplug the appliance and turn off the
water after use.
Any plumbing work to install this
appliance should be carried out by a
qualified plumber or competent person.
Any electrical work required to install
this appliance should be carried out by a
qualified electrician or competent person.
This appliance is designed to be operated
by adults. Children should not be allowed
to tamper with the controls or play with
the products.
This product should be serviced by an
authorised Zanussi Network Service
Centre, and only genuine Zanussi spare
parts should be used.
It is dangerous to alter the specifications
or modify the product in any way.
- Care must be taken to ensure that the
appliance does not stand on the electrical
supply cable.
Zanussi dishwashers are designed to be
used for washing normal household
utensils. Items that are contaminated by
petrol, paint, steel or iron debris,
corrosive, acidic or alkaline chemicals are
not to be washed in a dishwasher.
When finishing loading or unloading
close the door, as an open door can be a
hazard.
If your house is fitted with a water
softening unit, it is not necessary to add
salt to the water softening unit in the
dishwasher.
Do not put in your dishwasher: Cutlery
with wooden or horn handles or glued
parts, bronze cutlery, saucepans with
wooden handles unless they are sold as
dishwasher proof, aluminium ware,
crystal ware, leaded glass, plastic articles
unless sold as dishwasher proof, antique
china or fine decorated china unless sold
as dishwasher proof. Always check with
the manufacturer of the item if in any
doubt.
A chemical reaction can occur between
silver cutlery and stainless steel cutlery.
As a precaution do not wash together.
Under no circumstances should you open
the door whilst the appliance is in
operation. Always turn off the appliance
before opening the door.
Built-in dishwashers only: The appliance
must be secured to the underside of the
worktop using the brackets provided.
Failure to do this could result in an
unstable appliance which may cause
damage or injury.
Under no circumstances should you
attempt to repair the appliance yourself.
Repairs carried out by inexperienced
persons may cause injury or more
serious malfunctioning. Refer to your
local Zanussi Network Service Centre.
Always insist on genuine Zanussi spare
parts.

Contents
Page 5
7
12
13
16
20
21
22
24
25
27
28
Specifications
Installation
User instructions
Using your machine
Loading the machine
Programme Selection
Washing programmes
Taking Care of your machine
Making the most of your machine
Servicing
ZANUSSI guarantee conditions
ZANUSSI 5 year cover
Please note that the specifications of your appliance may differ slightly from those
shown in this leaflet.

Specifications
Width 600mm
23.6”
Overall depth 570mm
22.4”
Overall depth
with door open 1200mm
47.2”
Height 850mm
33.5”
Capacity
(IEC place settings) 12
Supply voltage 220/240V
50Hz
Motor rating
During washing 200W
Heater element 2570W
Maximum power
absorbed 2770W
Water supply pressure
Minimum Tpsi
49KN/sq.m.
Maximum 110psi
758KN/sq.m.
Decor Panel Size
Width Height Thickness
Door Panel 590mm 461mm 4mm (max)
Bottom Panel 590mm 114mm 4mm (max)

z eet emer et $
r netas
an
a
os
E ay
PEER
Me
Sica
aa
cana
mo
7
bidladobsdubidubdobdabidetabchons

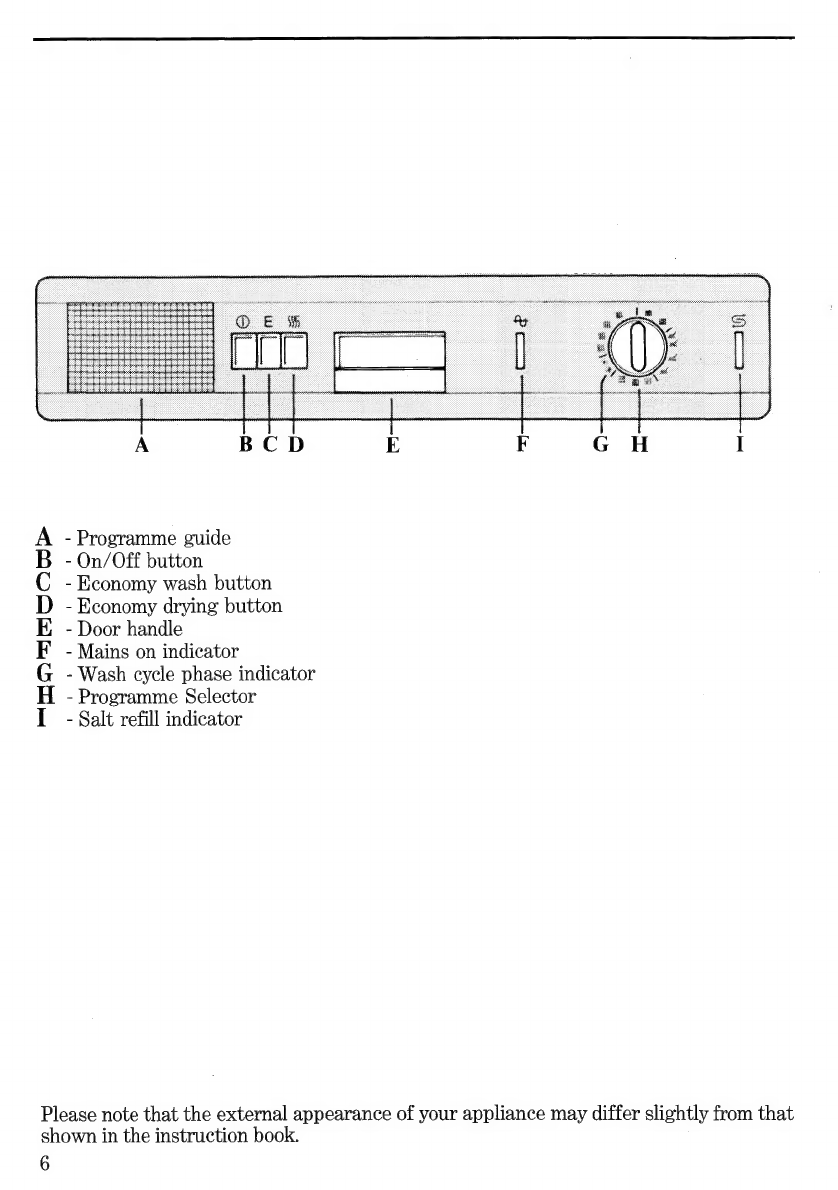

A - Programme guide
B - On/Off button
C - Economy wash button
D - Economy drying button
E -Door handle
F -Mains on indicator
G - Wash cycle phase indicator
H - Programme Selector
I - Salt refill indicator
Please note that the external appearance of your appliance may differ slightly from that
shown in the instruction book.
6

Installation
Positioning
Apart from the need to position your
dishwasher close to an existing water
supply and waste outlet — long runs of
new piperwork can be expensive — you
can put it almost anywhere you please;
either on its own, or incorporated into a
run of «standard» metric kitchen units. If
you choose the latter option, you will find
that the machine has a number of useful
features making it easier to blend in with
the units.
Firstly, the machine can be set hard
against walls and adjacent units — there is
no need to leave a gap all round, and the
dishwasher features fill and drain hoses
which can be turned to the right or left to
suit the installation (see fig. 1).
Secondly, the integral worktop may be
adjusted by up to 25 mm (1 inch), either
forwards or backwards, to align it with
any adjacent units’ worktops. To do this,
simply remove the screws from the
brackets beneath the worktop’s front lip
(see fig. 2), make the desired re-alignment,

and replace the screws to fix the worktop
in place (see fig. 3).
Alternatively, if you prefer to install the
machine beneath an existing worktop, the
machine’s integral worktop can be
removed merely by removing the front
securing screws as above, and releasing
the worktop from its rear catch. This
done, the dishwasher will fit into a recess
of the dimensions given in figure 3.
Important
Please ensure that when the appliance
is installed it is easily accessible for the
engineer in the event of a breakdown.
Building-in instructions

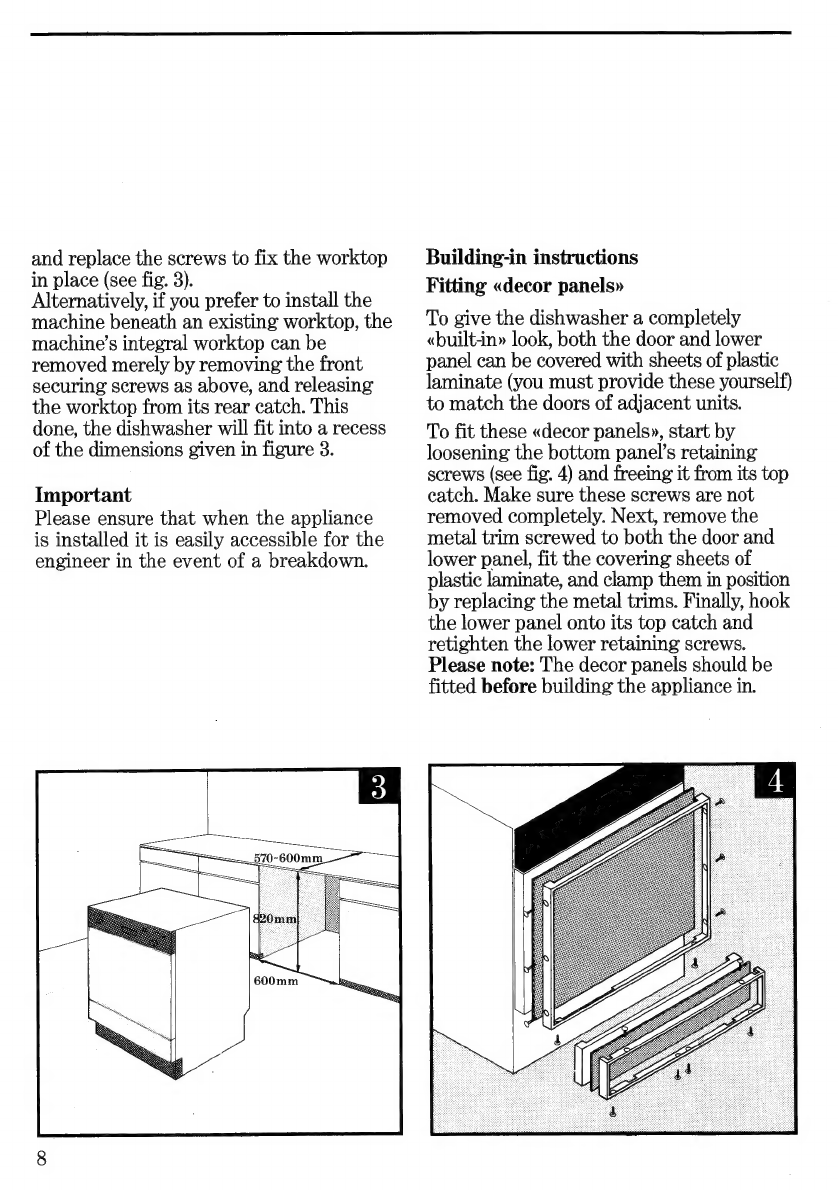

Fitting «decor panels»
To give the dishwasher a completely
«built-in» look, both the door and lower
panel can be covered with sheets of plastic
laminate (you must provide these yourself)
to match the doors of adjacent units.
To fit these «decor panels», start by
loosening the bottom panel’s retaining
screws (see fig. 4) and freeing it from its top
catch. Make sure these screws are not
removed completely. Next, remove the
metal trim screwed to both the door and
lower panel, fit the covering sheets of
plastic laminate, and clamp them in position
by replacing the metal trims. Finally, hook
the lower panel onto its top catch and
retighten the lower retaining screws.
Please note: The decor panels should be
fitted before building the appliance in.

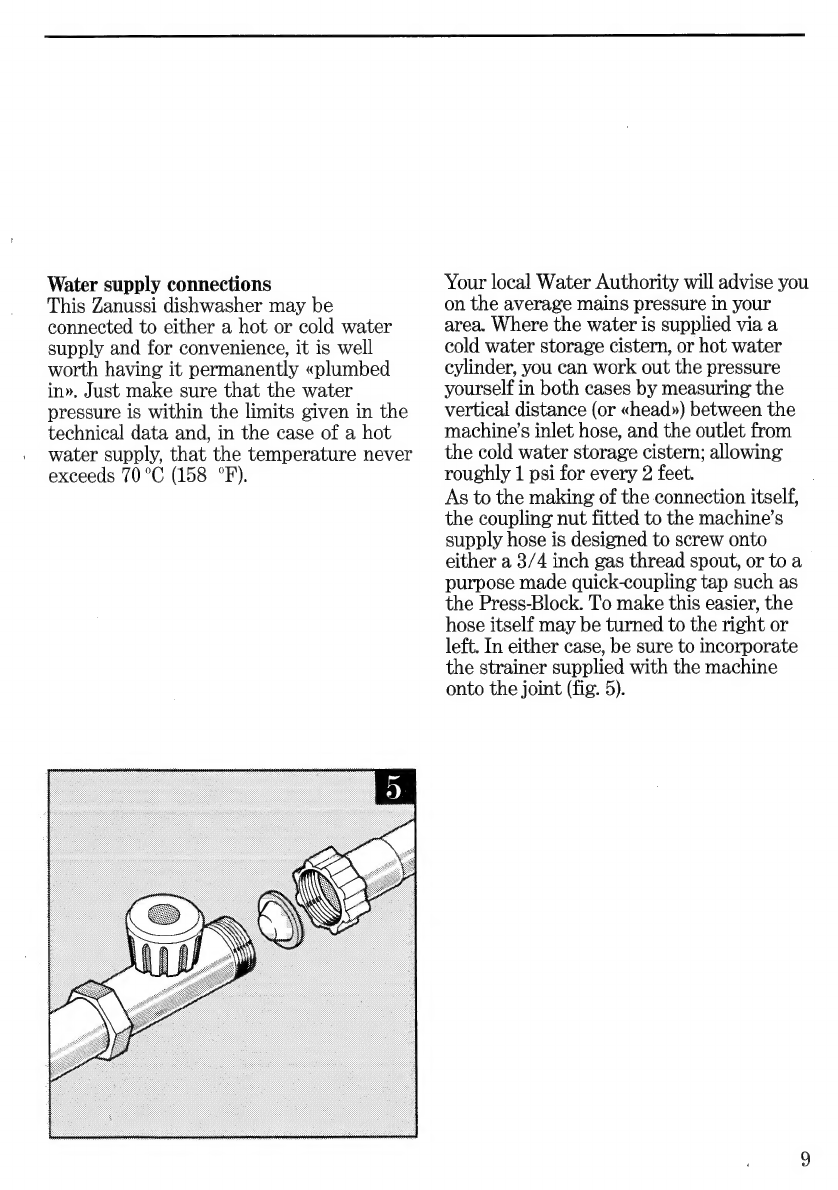

Water supply connections
This Zanussi dishwasher may be
connected to either a hot or cold water
supply and for convenience, it is well
worth having it permanently «plumbed
in». Just make sure that the water
pressure is within the limits given in the
technical data and, in the case of a hot
water supply, that the temperature never
exceeds 70°C (158 °F).
Your local Water Authority will advise you
on the average mains pressure in your
area. Where the water is supplied via a
cold water storage cistern, or hot water
cylinder, you can work out the pressure
yourself in both cases by measuring the
vertical distance (or «head») between the
machine’s inlet hose, and the outlet from
the cold water storage cistern; allowing
roughly 1 psi for every 2 feet.
As to the making of the connection itself,
the coupling nut fitted to the machine’s
supply hose is designed to screw onto
either a 3/4 inch gas thread spout, or to a
purpose made quick-coupling tap such as
the Press-Block. To make this easier, the
hose itself may be turned to the right or
left. In either case, be sure to incorporate
the strainer supplied with the machine
onto the joint (fig. 5).

Waste connections
Care must also be taken over the disposal
of the waste water from the machine. If
your dishwasher is not to be permanently
«plumbed in», merely hook the curved end
of the drain hose firmly over the edge of
the kitchen sink, having made sure that
the sink is empty, and that the waste
outlet is not blocked.
Otherwise, fit a P-trap and stand-pipe
assembly like that in figure 6 (ensure the
pipe has an internal diameter of at least
38 mm (17 ins), and hook the drain hose
into that). In this case ensure that there is
an air gap between the hose and the
inside of the pipe to prevent the risk of
dirty water being syphoned back into the
machine, and check that the top of the
stand-pipe is between 300 and 900 mm
above floor level. In addition, make sure
that the stand-pipe/trap assembly
discharges into the same soil system as
the kitchen sink.
300mm min
900mm max
With the machine in its permanent
position, do check that the drain hose is
not kinked, or squashed in such a way as
to obstruct the flow of water.
Do not extend the drain hose.
