Zanussi DW400 Operating and safety instructions

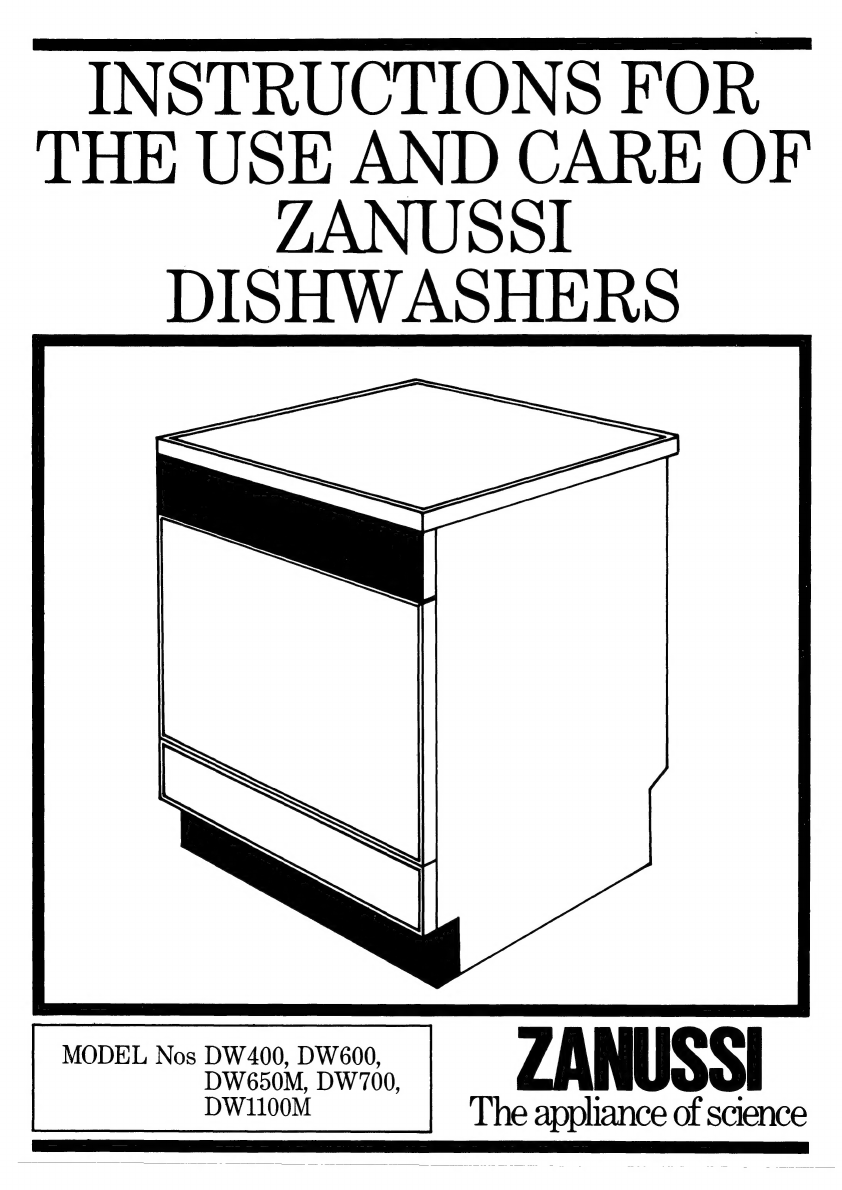

INSTRUCTIONS FOR
THE USE AND CARE OF
-ZANUSSI
DISHWASHERS
MODEL
Nos
DW400,
DW600,
ZANUSSI
DW650M,
DW700,
DW1100M
The
aan
of
science

It is most important that this instruction book should be retained with the
appliance for future reference. Should the appliance be sold or transferred to
another owner, or should you move house and leave the appliance, always ensure
that the book is supplied with the appliance in order that the new owner can be
acquainted with the functioning of the appliance and the relevant warnings.

Dishwasher warnings
THESE WARNINGS ARE PROVIDED IN THE INTEREST OF SAFETY. YOU MUST
READ THEM CAREFULLY BEFORE INSTALLING OR USING THE APPLIANCE.
Unplug the appliance and turn off the
water after use.
Any plumbing work to install this |
appliance should be carried out by a
qualified plumber or. competent person.
Any electrical work required to install
this appliance should be carried out by a
qualified electrician or competent person.
This appliance is designed to be operated
by adults. Children should not be allowed
to tamper with the controls or play with
the products.
This product should be serviced by an
authorised Zanussi Network Service .
Centre, and only genuine Zanussi spare
parts should be used. |
It is dangerous to alter the specifications
or modify the product in any way.
Care must be taken to ensure that the
appliance does not stand on the electrical
supply cable.
Zanussi dishwashers are designed to be
used for washing normal household —
utensils. Items that are contaminated by
petrol, paint, steel or iron debris,
corrosive, acidic or alkaline chemicals are
not to be washed in a dishwasher.
When finishing loading or unloading
close the door, as an open door can be a
hazard.
If your house is fitted with a water
softening unit, it is not necessary to add
salt to the water softening unit in the
dishwasher.
Do not put in your dishwasher: Cutlery
with wooden or horn handles or glued
parts, bronze cutlery, saucepans with
wooden handles unless they are sold as
dishwasher proof, aluminium ware,
crystal ware, leaded glass, plastic articles
unless sold as dishwasher proof, antique
china or fine decorated china unless sold
as dishwasher proof. Always check with
the manufacturer of the item if in any
doubt.
A chemical reaction can occur between
silver cutlery and stainless steel cutlery.
As a precaution do not wash together.
Under no circumstances should you open
the door whilst the appliance is in
operation. Always turn off the appliance
before opening the door.
Built-in dishwashers only: The appliance
must be secured to the underside of the
worktop using the brackets provided.
Failure to do this could result in an
unstable appliance which may cause
damage or injury.
Under no circumstances should you
attempt to repair the appliance yourself.
Repairs carried out by inexperienced
persons may cause injury or more
serious malfunctioning. Refer to your
local Zanussi Network Service Centre.
Always insist on genuine Zanussi spare
parts.

Contents
Page 5
7
12
14
17
21
22
23
24
25
26
29
30
32
33
Specifications
Installation
User instructions

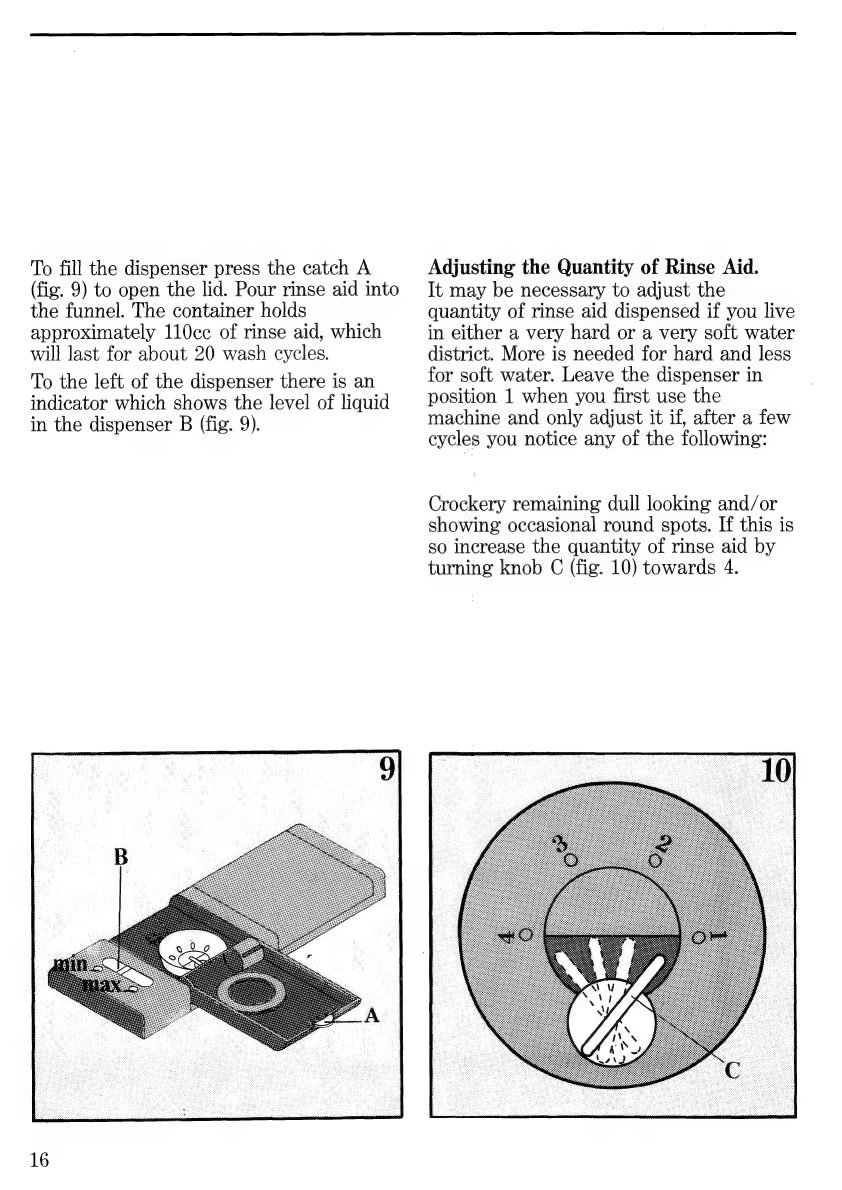

Using your machine

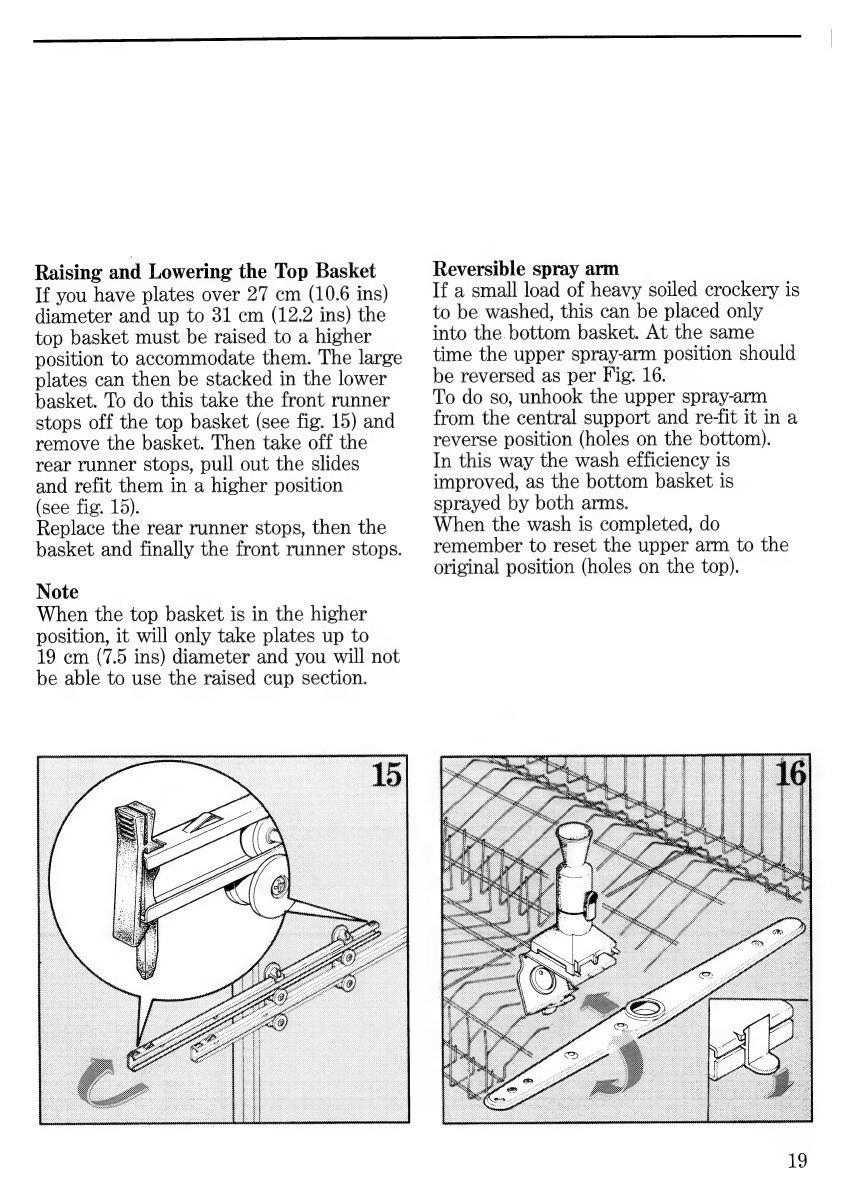

Loading machine
Programme Selection
Washing programmes DW400 |
Washing programmes DW600, DW650M
Washing programmes DW700
Washing programmes DW1100M
Taking care of your machine
Making the most of your machine
Servicing
ZANUSSI guarantee conditions
ZANUSSI 5 year cover
Please note that the specifications of your appliance may differ slightly from those
shown in this leaflet.

Specifications
Width
Overall depth
Overall depth
with door open
Height
Capacity
DW400
600mm
23.6”
570mm
22A?
1200mm
47,2”
850mm
33.5”
12
DW1100M
600mm
23.6”
570mm
22.4”
1200mm
AT 2?
900mm
35.4”
12
(IEC place settings)
Supply voltage
Motor rating
During washing
Heater element
Maximum power
absorbed
220/240V
50Hz
250W
2570W
2820W
220/240V
50Hz
250W
2570W
2820W
Water supply pressure
Minimum
Maximum
Decor Panel Size
Door Panel
Bottom Panel
Tpsi
49KN/sq.m.
110psi
T58KN/sq.m.
Width
590mm
590mm
DW600
DW650M DW700
600mm 600mm
23.6” 23.6”
570mm 570mm
22.4” 224”
1200mm 1200mm
47.2” AT
850mm 850mm
33.5” 33.5”
(DW650M)
900mm
35.4”
12 12
220/240V 220/240V
50Hz 50Hz
250W 250W
2800W 2800W
3050W 3050W
Tpsi ‘Tpsi
49KN/sq.m. A9KN/sq.m.
110psi 110psi
T58KN/sq.m. 7T58KN/sq.m.
Height
461mm
114mm
Tpsi
49KN/sq.m.
110psi
T58KN/sq.m.
Thickness
4mm (max)
4mm (max)

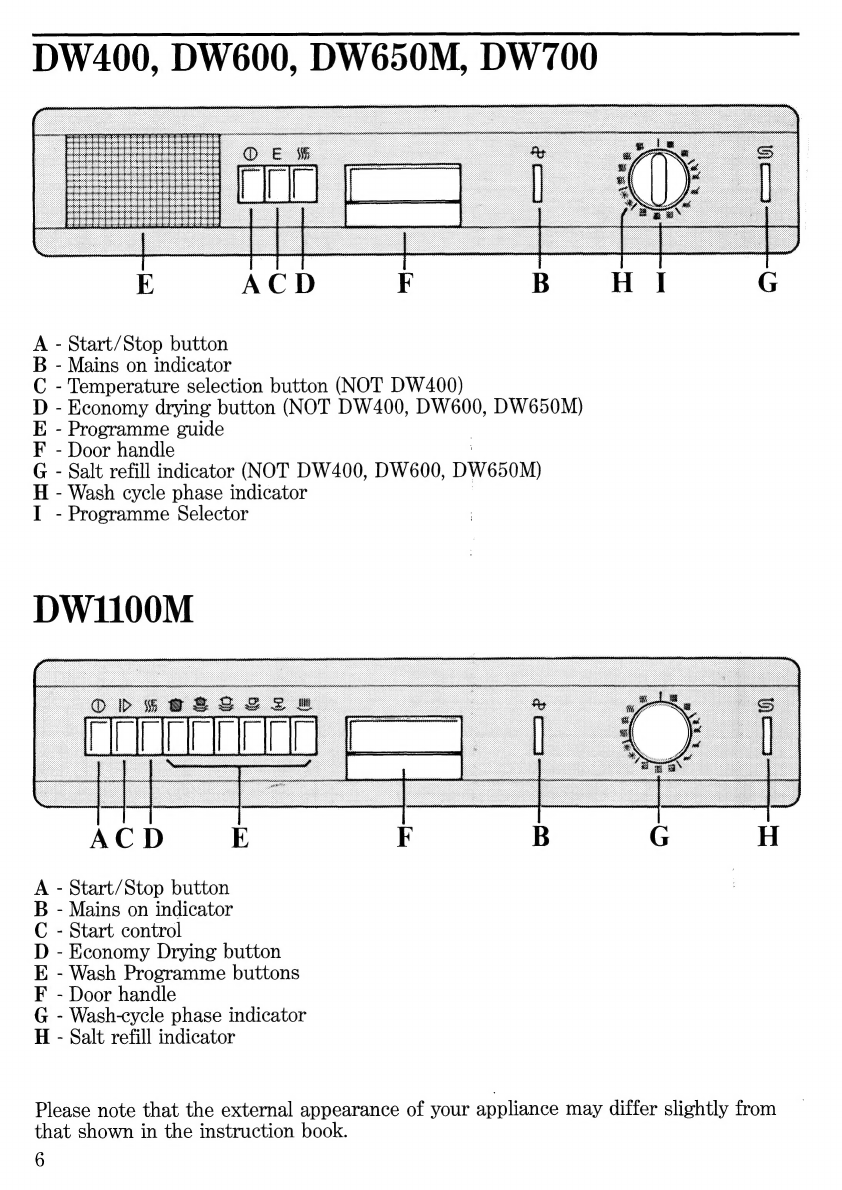

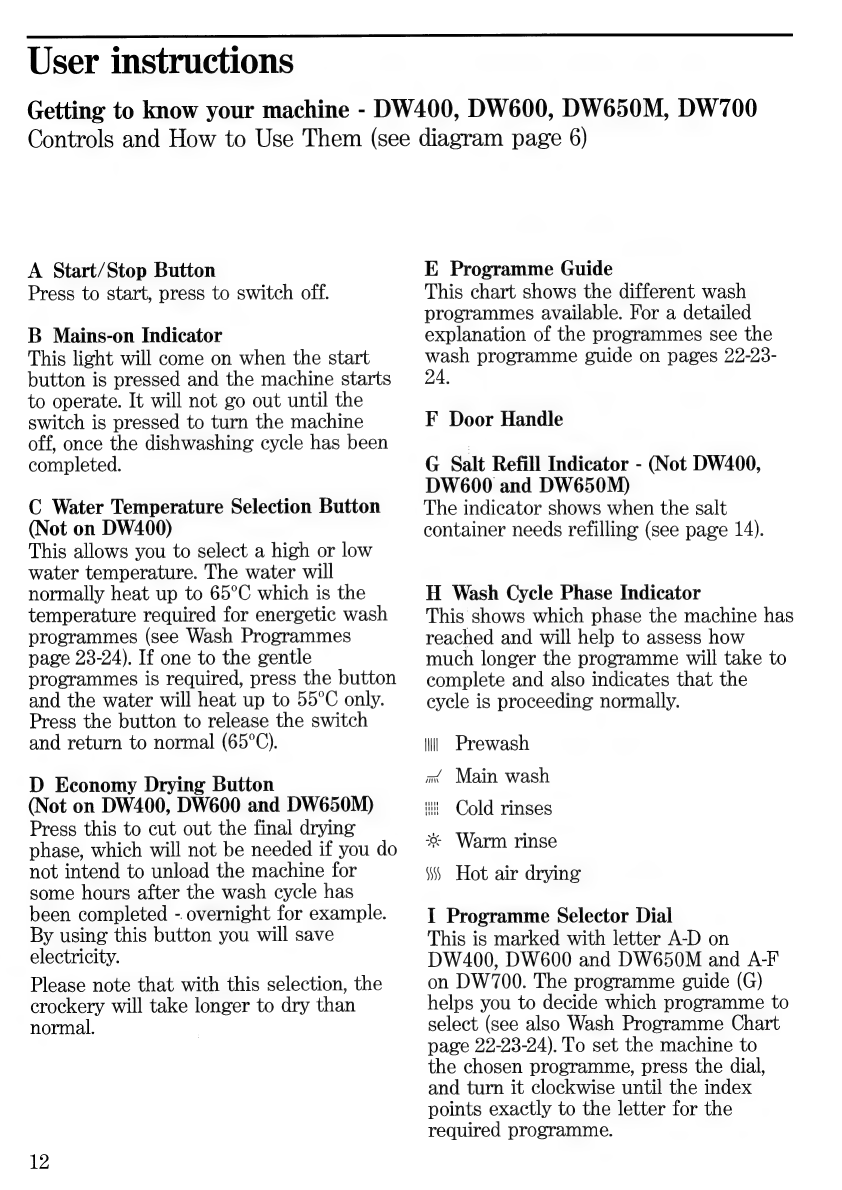

DW400, DW600, DW650M, DW700
E ACD F B HI G
A - Start/Stop button
B - Mains on indicator
C - Temperature selection button (NOT DW400)
D - Economy drying button (NOT DW400, DW600, DW650M)
E - Programme guide
F - Door handle
G - Salt refill indicator (NOT DW400, DW600, DW650M)
H - Wash cycle phase indicator
I - Programme Selector

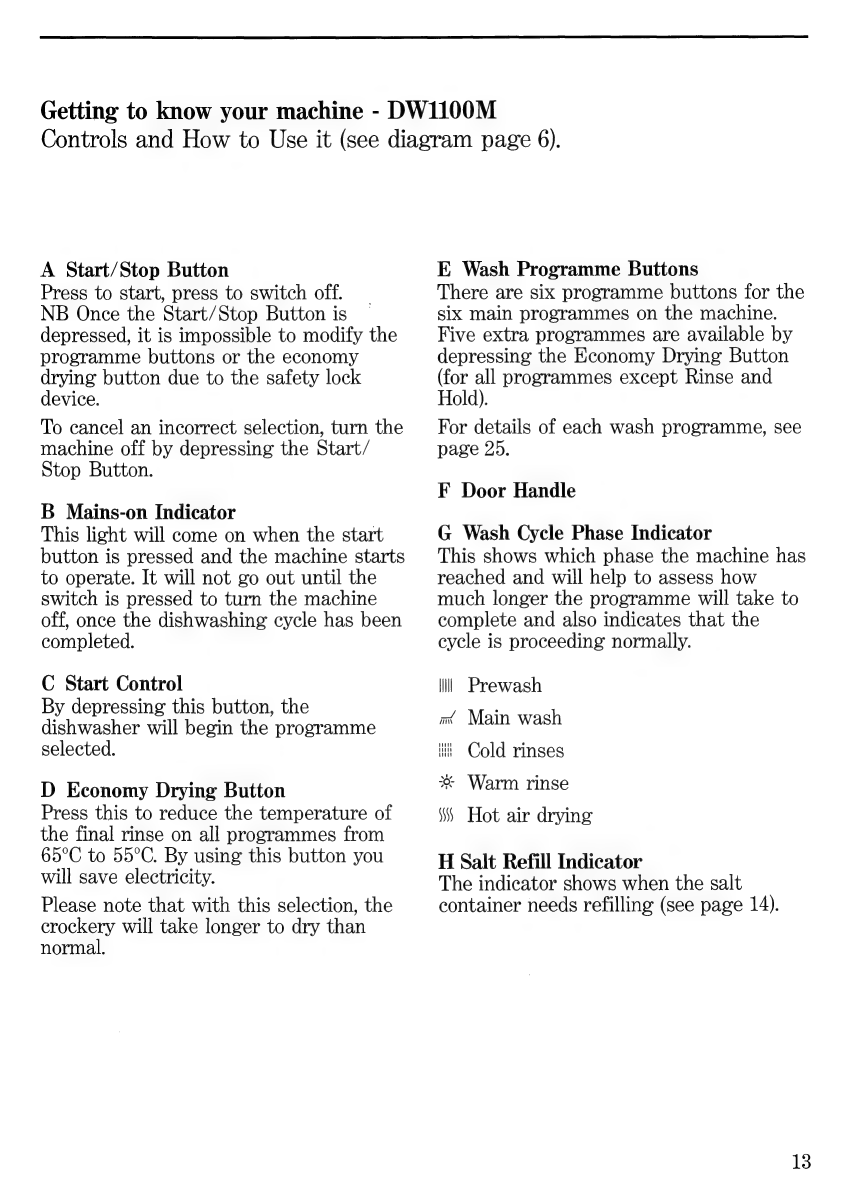

DW1100M
ACD E F B G H
A - Start/Stop button
B - Mains on indicator
C - Start control
D - Economy Drying button
E - Wash Programme buttons
F - Door handle
G - Wash-cycle phase indicator
H - Salt refill indicator
Please note that the external appearance of your appliance may differ slightly from
that shown in the instruction book.
6

Installation
Positioning
Apart from the need to position your
dishwasher close to an existing water
supply and waste outlet — long runs of
new pipework can be expensive — you
can put it almost anywhere you please;
either on its own, or incorporated into a
run of «standard» metric kitchen units.
If you choose the latter option, you will
find that the machine has a number of
useful features making it easier to blend
in with the units.
Firstly, the machine can be set hard.
against walls and adjacent units — there
is no need to leave a gap all round, and
the dishwasher features fill and drain
hoses which can be turned to the right
or left to suit the installation (see fig. 1).
Secondly, the integral worktop may be
adjusted by up to 25 mm (1 inch), either
forwards or backwards, to align it with
any adjacent units’ worktops. To do this,
simply remove the screws from the
brackets beneath the worktop’s front lip
(see fig. 2), make the desired re-

alignment, and replace the screws to fix
the worktop in place (see fig. 3).
Alternatively, if you prefer to install the
machine beneath an existing worktop,
the machine’s integral worktop can be
removed merely by removing the front
securing screws as above, and releasing
the worktop from its rear catch. This
done, the dishwasher will fit into a
recess of the dimensions given in
figure 3.
Important
Please ensure that when the appliance
is installed it is easily accessible for the
engineer in the event of a breakdown.
Building-in instructions
Fitting «decor panels» DW650M,
DW700 and DW1100M
To give the dishwasher a completely
«built-in» look, both the door and lower
panel can be covered with sheets of
plastic laminate (you must provide these
yourself) to match the doors of adjacent
units.
To fit these «decor panels», start by
loosening the bottom panel’s retaining
screws (see fig. 4) and freeing it from its
top catch.
Make sure these screws are not removed
completely. Next, remove the metal trim
screwed to both the door and lower
panel, fit the covering sheets of plastic
laminate, and clamp them in position by
replacing the metal trims. Finally, hook
the lower panel onto its top catch and
retighten the lower retaining screws.
Please note: The decor panels should be
fitted before building the appliance in.

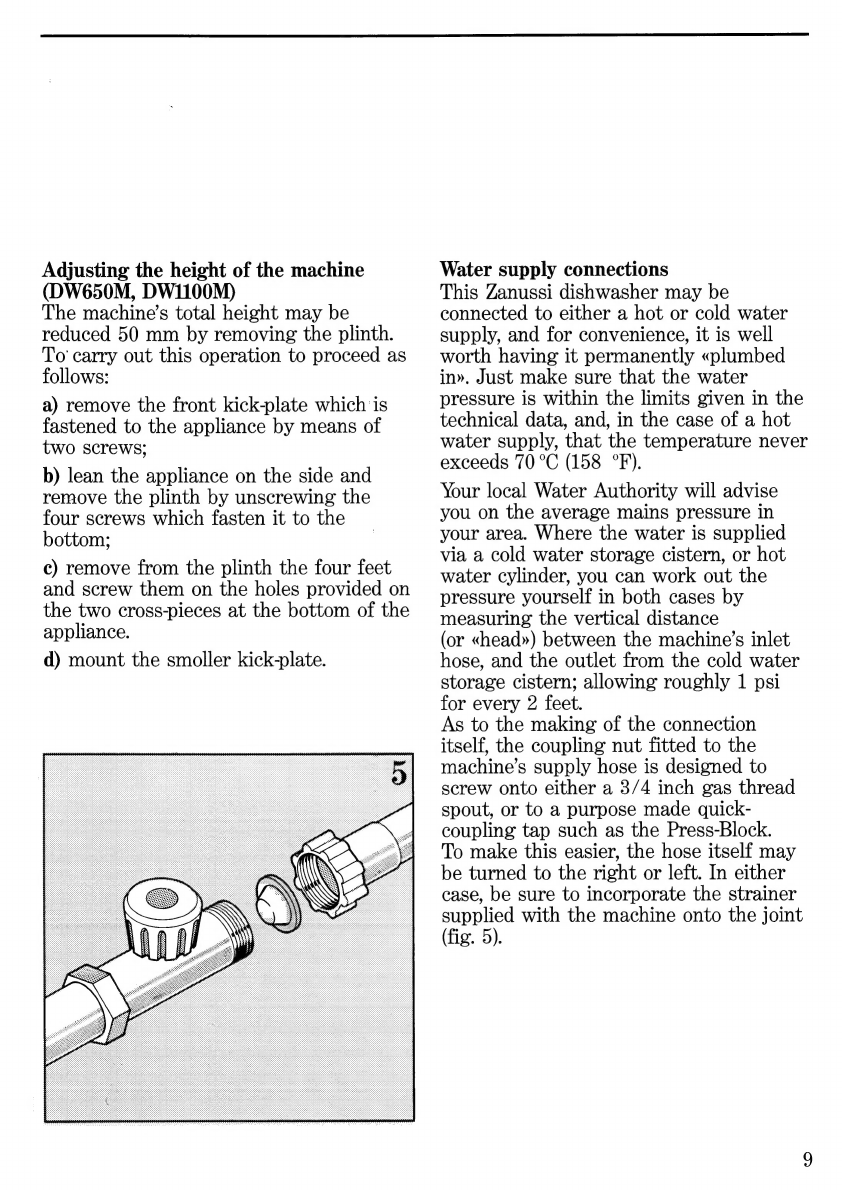

Adjusting the height of the machine
(DW650M, DW1100M)
The machine’s total height may be
reduced 50 mm by removing the plinth.
To carry out this operation to proceed as
follows:
a) remove the front kick-plate which ‘is
fastened to the appliance by means of
two screws;
b) lean the appliance on the side and
remove the plinth by unscrewing the
four screws which fasten it to the
bottom;
c) remove from the plinth the four feet
and screw them on the holes provided on
the two cross-pieces at the bottom of the
appliance.
d) mount the smoller kick-plate.
Water supply connections
This Zanussi dishwasher may be
connected to either a hot or cold water
supply, and for convenience, it is well
worth having it permanently «plumbed
in». Just make sure that the water
pressure is within the limits given in the
technical data, and, in the case of a hot
water supply, that the temperature never
exceeds 70°C (158 °F).
Your local Water Authority will advise
you on the average mains pressure in
your area. Where the water is supplied
via a cold water storage cistern, or hot
water cylinder, you can work out the
pressure yourself in both cases by
measuring the vertical distance
(or «head») between the machine’s inlet
hose, and the outlet from the cold water
storage cistern; allowing roughly 1 psi
for every 2 feet.
As to the making of the connection
itself, the coupling nut fitted to the
machine’s supply hose is designed to
screw onto either a 3/4 inch gas thread
spout, or to a purpose made quick-
coupling tap such as the Press-Block.
To make this easier, the hose itself may
be turned to the right or left. In either
case, be sure to incorporate the strainer
supplied with the machine onto the joint
(fig. 5).

Waste connections
Care must also be taken over the
disposal of the waste water from the
machine. If your dishwasher is not to be
permanently «plumbed in», merely hook
the curved end of the drain hose firmly
over the edge of the kitchen sink, having
made sure that the sink is empty, and
that the waste outlet is not blocked.
Otherwise, fit a P-trap and stand-pipe
assembly like that in figure 6 (ensure the
pipe has an internal diameter of a least
38 mm (1% ins), and hook the drain hose
into that). In this case ensure that there
is an air gap between the hose and the
inside of the pipe to prevent the risk of
dirty water being syphoned back into the
machine, and check that the top of the
stand-pipe is between 300 and 900 mm
above floor level. In addition, make sure
that the stand-pipe/trap assembly
> 40mm min
300mm min
900mm max
10
discharges into the same soil system as
the kitchen sink.
There are just two other points to bear
in mind. Firstly, with the machine in its
permanent position, do check that the
drain hose is not kinked, or squashed in
such a way as to obstruct the flow of
water. Secondly, if the drain hose
supplied with the machine is not long
enough to reach the desired discharge
point, it can be replaced with a hose of
the same internal diameter, up to 2 m
long (see your local Service Network or

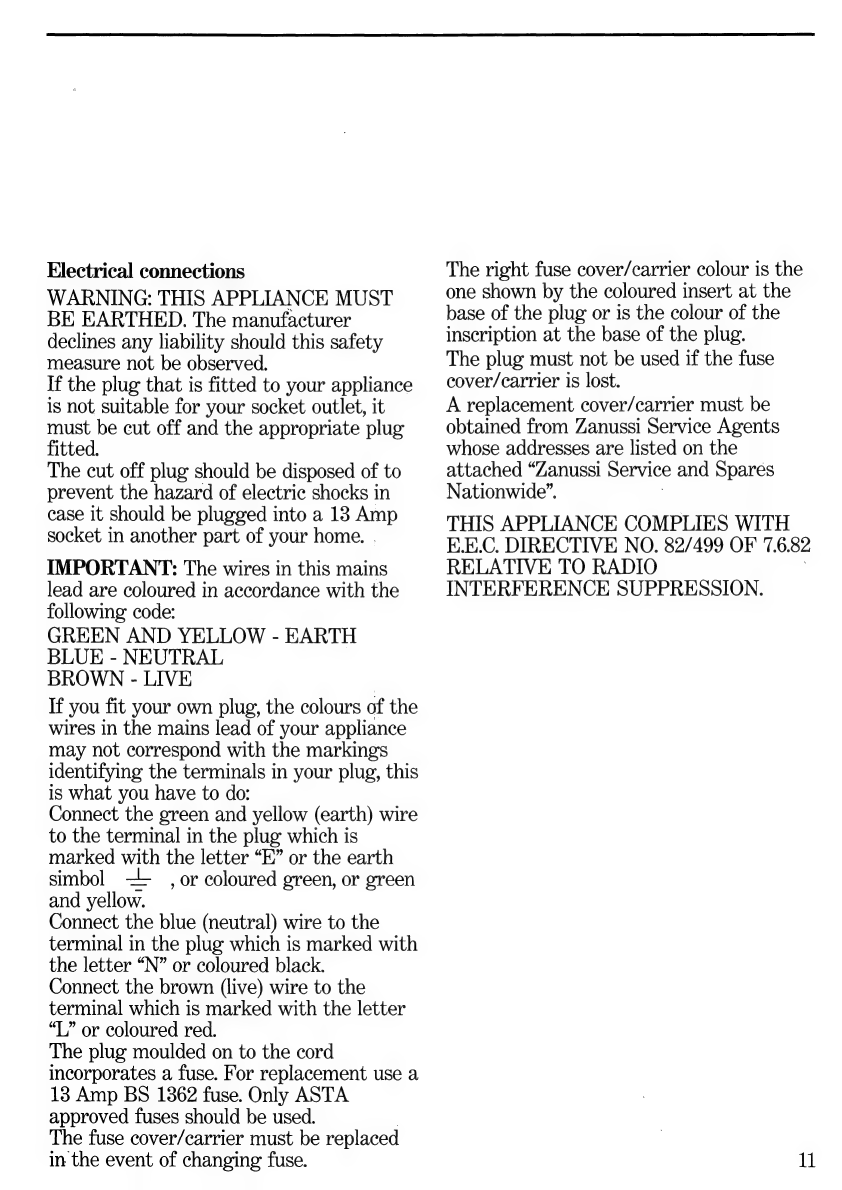

installer).
