Zanussi ZDT110 User manual

User
manual
Dishwasher
ZDT 110
156997240en.qxp 12/27/2006 1:39 PM Page 1

2
Content
Safety information - - - - - - - - - - - - - - - - - - -3
Control panel and functions - - - - - - - - - - - -4
Audible signals - - - - - - - - - - - - - - - - - - - - -6
Programme table - - - - - - - - - - - - - - - - - - -7
Before the first use - - - - - - - - - - - - - - - - - -8
Setting the water softener - - - - - - - - - - - - -8
Filling with dishwasher salt - - - - - - - - - - - -11
Filling with rinse aid - - - - - - - - - - - - - - - - -12
Adjusting the dosage of rinse aid - - - - - - -12
Loading cutlery and dishes - - - - - - - - - - -13
Filling with detergent - - - - - - - - - - - - - - - -15
Unloading the dishwasher - - - - - - - - - - - -15
Cleaning and care- - - - - - - - - - - - - - - - - - 16
Environmental concerns - - - - - - - - - - - - - 17
Something not working - - - - - - - - - - - - - - 18
Technical data- - - - - - - - - - - - - - - - - - - - - 20
Consumption values - - - - - - - - - - - - - - - - 20
Hints for Test Institutes - - - - - - - - - - - - - - 21
Installation - - - - - - - - - - - - - - - - - - - - - - - 22
Guarantee/Customer Service- - - - - - - - - - 25
European guarantee - - - - - - - - - - - - - - - - 27
156997240en.qxp 12/27/2006 1:39 PM Page 2

3
Safety information
Correct use
●This dishwasher is only intended for washing
household utensils suitable for machine
washing.
●Do not put any solvents in the dishwasher.
This could cause an explosion.
●Knives and other items with sharp points
must be loaded in the cutlery basket with
their points down or placed in a horizontal
position in the upper basket.
●Only use products (detergent, salt and rinse
aid) suitable for dishwashers.
●Avoid opening the door whilst the appliance
is in operation, hot steam may escape.
●Do not take any dishes out of the dishwasher
before the end of the dishwashing cycle.
●After use, isolate the appliance from the
power supply and turn off the water supply.
●This product should be serviced only by an
authorised service engineer, and only
genuine spare parts should be used.
General safety
●Dishwasher detergents can cause chemical
burns to eyes, mouth and throat. Could
endanger life! Comply with the safety
instructions of the dishwasher detergent
manufacturer.
●The water in your dishwasher is not for
drinking. Detergent residues may still be
present in your machine.
●Ensure that the door of the dishwasher is
always closed when it is not being loaded or
unloaded. In this way you will avoid anybody
tripping over the open door and hurting
themselves.
●Do not sit or stand on the open door.
Child safety
●This appliance is designed to be operated by
adults. Don’t allow children to use the
dishwasher unsupervised.
●Keep all packaging well away from children.
There is risk of suffocation.
●Keep all detergents in a safe place out of
children’s reach.
●Keep children well away from the dishwasher
when the door is open.
Installation
●Check your dishwasher for any transport
damage. Never connect a damaged
machine. If your dishwasher is damaged
contact your supplier.
●All packaging must be removed before use.
●Any electrical and plumbing work required to
install this appliance must be carried out by
a qualified and competent person.
●For safety reasons it is dangerous to alter
the specifications or attempt to modify this
product in any way.
In the interest of your safety and to ensure the correct use, before installing and first using the
appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary
mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly
familiar with its operation and safety features. Save these instructions and make sure that they
remain with the appliance if it is moved or sold, so that everyone using it through its life will be
properly informed on appliance use and safety.
156997240en.qxp 12/27/2006 1:39 PM Page 3

4
Control panel and functions
In this fully integrated appliance the controls are located on the top of the door. When selecting a
washing programme, the door needs to be slightly open.
●Never use the dishwasher if the electrical
supply cable and water hoses are damaged;
or if the control panel, work top or plinth area
are damaged such that the inside of the
appliance is freely accessible. Contact your
local Service Force centre, in order to avoid
hazard.
●All sides of the dishwasher must never be
drilled to prevent damage to hydraulic and
electric components.
WARNING!
For electrical and water connection carefully
follow the instructions given in specific
paragraphs.
IMPORTANT!
Always remember that when performing
operations such as:
- selecting a washing programme,
- deactivation/activation of the audible signals,
- setting the water softener,
the appliance MUST be in setting mode:
●Press On-Off button, all programme lights
are illuminated and End of cycle light
flashes = appliance in setting mode.
●Press On-Off button, a programme light is
illuminated and End of cycle light is
illuminated with fixed light = last performed
programme still set.
In this case the programme has to be
cancelled (see instructions “Cancel a
washing programme in progress”).
1. On-Off button
2. Programme/Cancel button
3. End of cycle light
4. Programme lights
156997240en.qxp 12/27/2006 1:39 PM Page 4

5
Programme/Cancel
button
● Starting the washing programme:
1. Press the On-Off button.
2. Press the Programme/Cancel once, the light of the last performed
washing programme illuminates and the End of cycle light flashes.
3. Press the Programme/Cancel as many times as necessary to illuminate the
light corresponding to the desired programme.
4. Close the dishwasher’s door, the programme will start automatically.
IMPORTANT!
Once the programme has started, if you want to change the selection made you
must cancel the washing programme in progress.
● Cancel the washing programme in progress:
1. Open the door.
2. Press and hold the Programme/Cancel button until the light of the running
programme turns off and the End of cycle light is flashing.
3. Release the Programme/Cancel button.
4. Switch off the machine by pressing the On-Off button or select a new
washing programme (check that there is detergent in the detergent
dispenser.
End of cycle Illuminates when a washing programme has ended.
Switch of the dishwasher by returning the programme selector dial to the Off
position. The On/Off indicator light turns off.
It also has added functions of visual signalling as:
- the setting of the water softener,
- intervention of an alarm due to the malfunction of the machine.
- deactivation/activation of the audible signals.
Audible signals
Audible signals have been introduced to help
indicate which operations the dishwasher is
performing.
- end of the washing programme,
- malfunction of the appliance.
Factory setting: audible signals activated.
156997240en.qxp 12/27/2006 1:39 PM Page 5

6
Deactivation/activation of the audible signals
1.The dishwasher must be switched off.
Switch on the dishwasher by pressing the On-Off
button.
2.Press and hold Programme/Cancel button until
programme light Aflashes and programme light
Billuminates with fixed light.
3.Press Programme/Cancel button again:
programme light Abecomes fixed and
programme light Bstarts flashing.
4.After a few seconds programme light Aturns off,
programme light Bgoes on flashing and End of
cycle light illuminates with fixed light.
The illumination of the End of cycle light means
that the audible signals are active.
5.To deactivate the audible signals, press the
Programme/-Cancel button, the End of cycle
light turns off indicating that the audible signals
have been deactivated.
6.To memorise the operation, switch off the
dishwasher by pressing the On-Off button.
7.To reactivate again the audible signals, follow the
instructions till point 4. Wait a few seconds and
then press the Programme/Cancel button, the
End of cycle light illuminates indicating that the
audible signals have been reactivated.
156997240en.qxp 12/27/2006 1:39 PM Page 6

7
Programme table
65° NORMAL Normal soil
Crockery and cutlery
Light soil
Crockery and cutlery Main wash
Final rinse
Normal soil
Crockery and cutlery
Prewash
Main wash
2 intermediate rinses
Final rinse
Dry
Prewash
Main wash
1 intermediate rinse
Final rinse
Dry
RINSE & HOLD Any
Partial load (to be completed
later in theday). This
programme does not require the
use of detergent.
Prewash
Cycle description
Use
Programme
156997240en.qxp 12/27/2006 1:39 PM Page 7

8
Before the first use
When using separate special
(dishwasher) salt, rinse aid and
detergent:
- set the water softener
- add special salt
- fill up with rinse aid
When using tablets that integrate
rinse aid and detergent:
there is no need to fill up with rinse aid
- set the water softener
- add special (dishwasher) salt
When using tablets that integrate
rinse aid, detergent, salt function
and other additives:
there is no need to fill up with special salt or
rinse aid.
Check whether these detergents are suitable
for your water hardness. Follow the
manufacturers instructions.
- Set the water hardness to level 1.
IMPORTANT!
If the drying results are not satisfactory we
recommend that you:
1. Fill up the rinse aid dispenser with rinse aid.
2. Set the rinse aid dosage to position 2.
If you decide in future to use separated
detergents, we advise that you:
- Fill up the salt and rinse aid container.
- Adjust the water hardness setting to the
highest level and perform 1 normal washing
programme without loading any dishes.
- Adjust the water hardness setting according
to the hardness of the water in your area.
- Adjust the rinse aid dosage
Setting the water softener
The dishwasher is equipped with a water
softener designed to remove minerals and salts
from the water supply, which would have a
detrimental or adverse effect on the operation
of the appliance.
The softener should be adjusted according to
the hardness of the water in your area. Your
local Water Authority can advise you on the
hardness of the water in your area.
IMPORTANT!
The water softener must be set in both ways:
manually and electronically.
156997240en.qxp 12/27/2006 1:39 PM Page 8

9

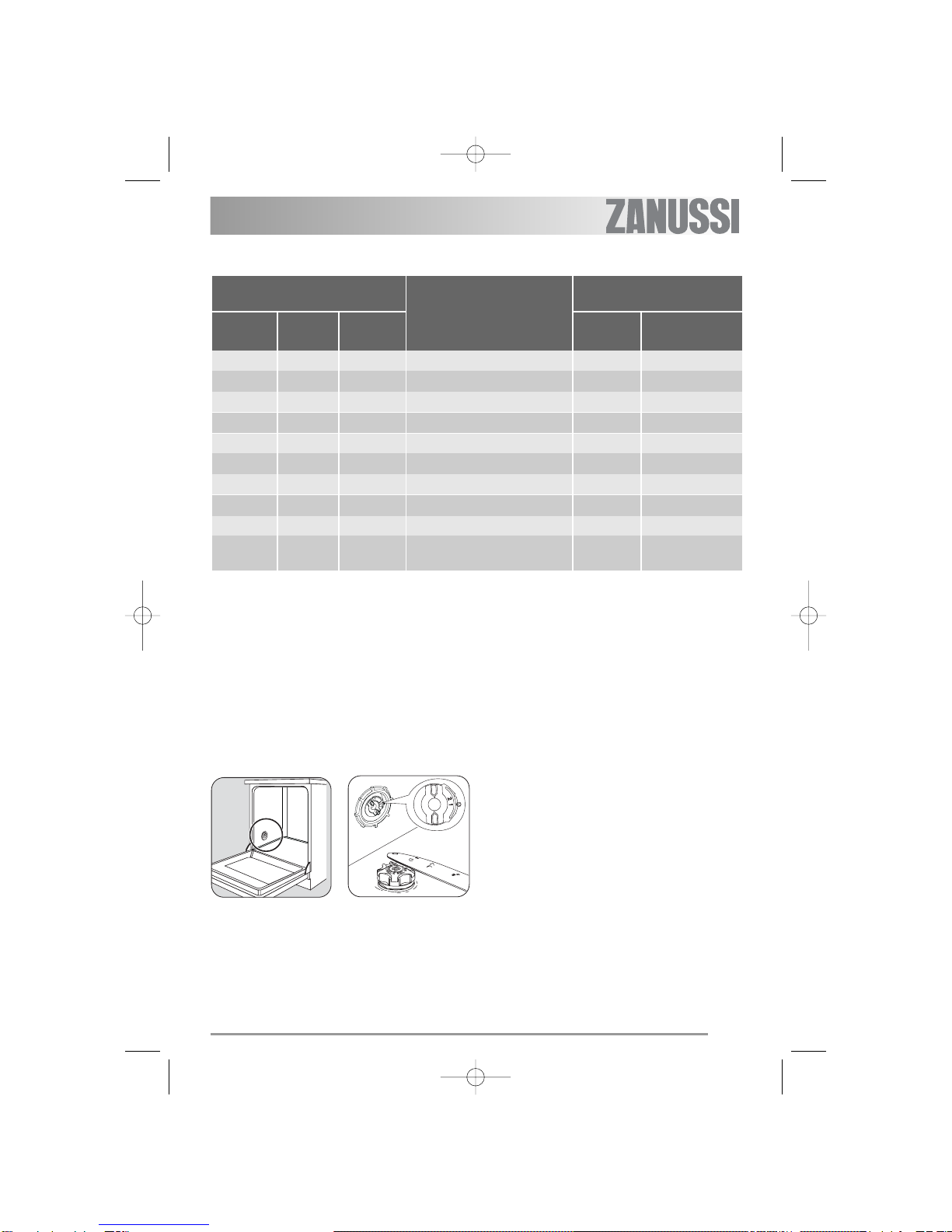

Water hardness Number of flashes of the Adjustment of the water
“end of programme” light hardness setting
in Clarke1) in °TH2) in mmol/l3) manually electronically
64 - 88 91 - 125 9,0 - 12,5 10 2 level 10
53 - 63 76 - 90 7,6 - 8,9 9 2 level 9
46 - 52 65 - 75 6,5 - 7,5 8 2 level 8
36 - 45 51 - 64 5,1 - 6,4 7 2 level 7
28 - 35 40 - 50 4,0 - 5,0 6 2 level 6
18 - 22 26 - 32 2,6 - 3,2 4 1 level 4
5 - 12 7 - 18 0,7 - 1,8 2 1 level 2
23 - 27 33 - 39 3,3 - 3,9 5 2 level 5
13 - 17 19 - 25 1,9 - 2,5 3 1 level 3
< 5 < 7 < 0,7 1 1 level 1
no salt necessary
1) Clarke degree, measure of the water hardness.
2) (°TH) French degree, measure of the water hardness.
3) (mmol/l) millimol per litre, international unit for water hardness
The water softener is factory set at position 2.
Setting the water softener manually (see table)
Set switch to position 1
or 2
factory
setting
156997240en.qxp 12/27/2006 1:39 PM Page 9

10
Setting the water softener electronically (see table)
The water softener is factory set at position 5.
1.The dishwasher must be switched off.
Switch on the dishwasher by pressing the On-Off
button.
2.Press and hold Programme/Cancel button until
programme light Aflashes and programme light
Billuminates with fixed light.
3.Wait until programme light Bturns off,
programme light Agoes on flashing and
simultaneously End of cycle light starts flashing.
The number of flashes of the End of cycle light
corresponds to current level set.
The End of cycle light might flash 5 times, for
example. The flashing is repeated every 5
seconds.
4.To change the level, press the
Programme/Cancel button. Each time the button
is pressed the level increases. (Level 1 follows
level 10). The End of cycle light indicates the
new setting.
5.TTo memorise the operation, switch off the
dishwasher by pressing the On-Off button.
156997240en.qxp 12/27/2006 1:39 PM Page 10

11
Filling with dishwasher salt
Only before filling with
salt for the first time,
fill the salt container
with water
Using the funnel
provided, pour in the
salt until the container is
filled with salt.
Remove any trace of
salt. Replace the cap tightly turning it clockwise until
it stops with a click.
CAUTION!
Use only special salt suitable for dishwashers
IMPORTANT!
Immediately start a complete programme.
IMPORTANT!
Water will overflow from the container as salt is
added.
IMPORTANT!
The salt container will require topping up
periodically.
The salt cap has a refill indicator window in the
centre in which a green float is clearly visible when
there is salt inside the container and almost
disappears when the salt has finished.
156997240en.qxp 12/27/2006 1:39 PM Page 11

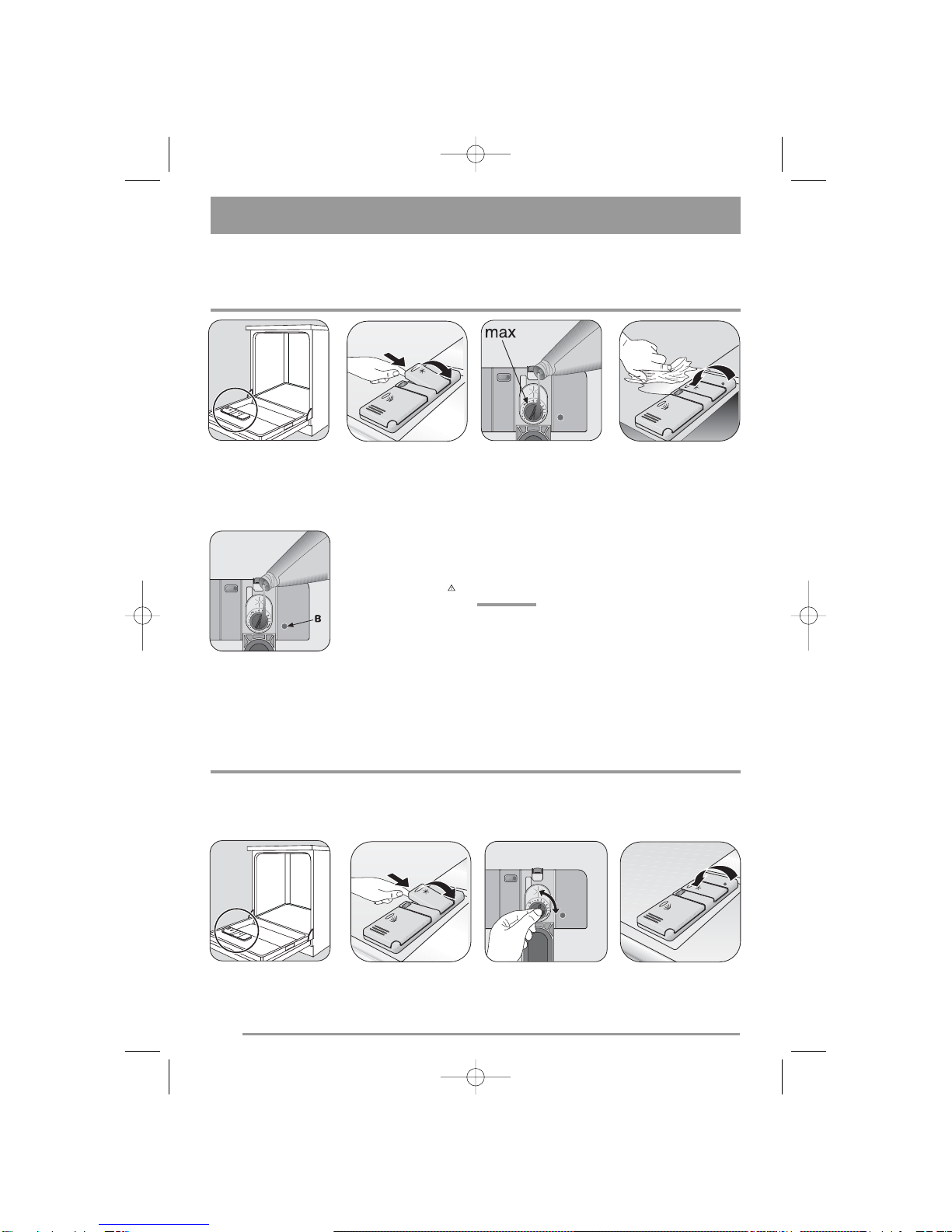

Filling with rinse aid
12
Open the lid. Fill up with rinse aid.
The maximum level for
filling is indicated by
"max".
Clean up any rinse aid
which overflows. Close
the lid and press until it
locks.
CAUTION!
Never fill the rinse aid dispenser with any other
substances (e.g. dishwasher cleaning agent, liquid
detergent). This would damage the appliance.
Adjusting the dosage of rinse aid
Increase the dose if there are drops of water or
lime spots on the dishes after washing. Reduce the dose if there are whitish streaks
on the dishes or a bluish film on glassware or
knife blades.
Open the lid. Set the dosage level.
(The dose is factory set
in position 4).
Close the lid and press
until it locks.
Top up the rinse aid
when the indicator (B)
becomes clear.
156997240en.qxp 12/27/2006 1:39 PM Page 12

13
Loading cutlery and dishes
●The following items are not suitable for use
in the dishwasher:
- Cutlery with wooden, horn, china or
mother-of-pearl handles
- Plastic items that are not heat resistant
- Older cutlery with glued parts that are not
temperature resistant
- Bonded cutlery items or dishes
- Pewter or copper items
- Lead crystal glass
- Steel items prone to rusting
- Wooden platters
- Items made from synthetic fibres
●When loading the dishwasher, make sure
that you:
- Remove all left over food and debris.
- Soften remnants of burnt food in pans
- Load hollow items such as cups, glasses,
pans, etc. with the opening downwards so
that water cannot collect in the container
or a deep base.
-Dishes and items of cutlery must not lie
inside one another, or cover each other.
- To avoid damage to glasses, they must
not touch.
- Lay small objects in the cutlery basket.
●Plastic items and pans with teflon have a
tendency to retain water drops; these
items will not dry as well as porcelain and
steel items.
IMPORTANT!
Before closing the door, ensure that the spray
arms can rotate freely.
Load cutlery.
For best results we
recommend you to use
the cutlery grid provided
(if the size and
dimensions of the
cutlery allow it.
Place knives and other
items of cutlery with
sharp points or edges
with their handles facing
upwards.
Risk of injury!
Load the lower basket.
Arrange serving dishes and large lids around the
edge of the basket.
156997240en.qxp 12/27/2006 1:39 PM Page 13

14

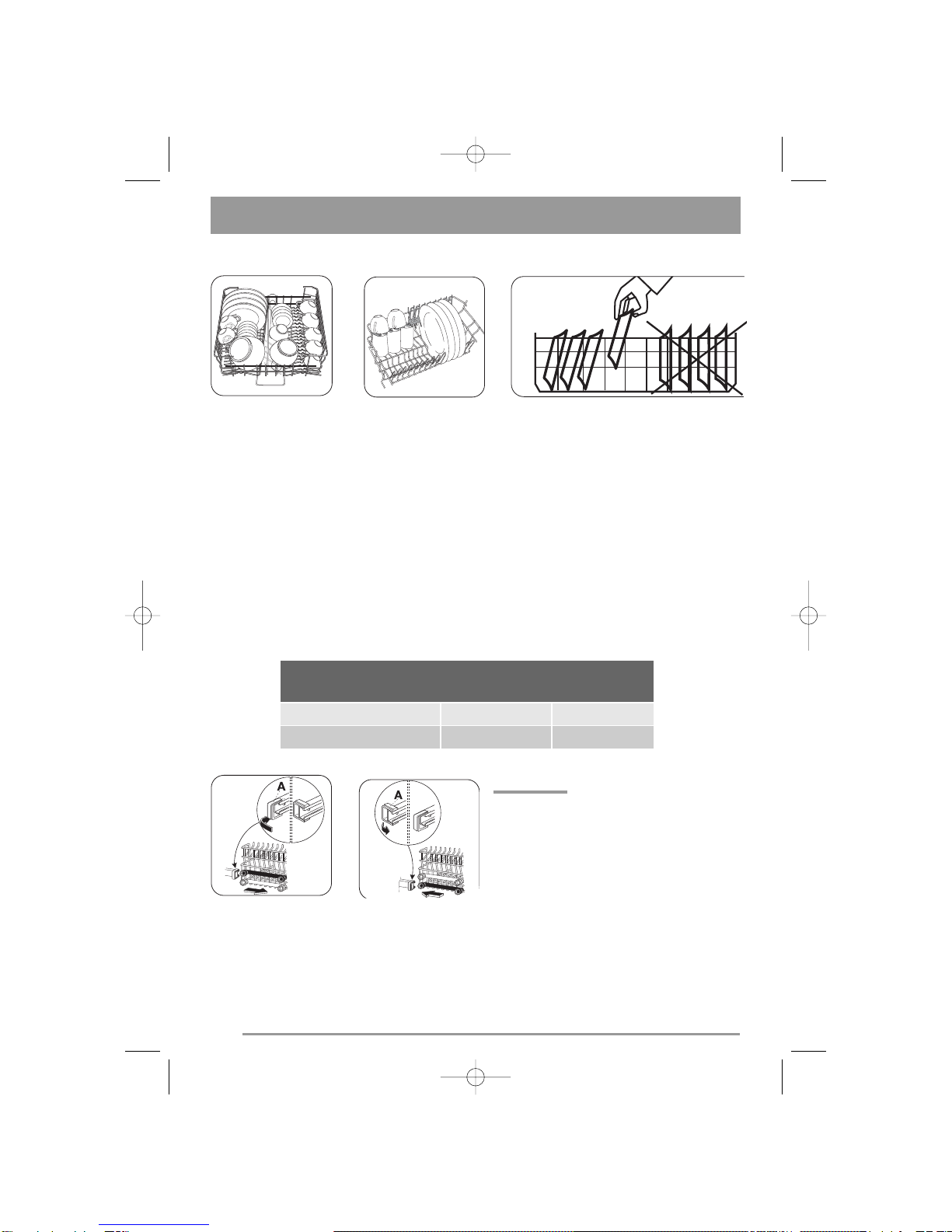

Load upper basket.
Light items (plastic
bowls etc.) must be
loaded in the upper
basket and arranged so
they do not move.
For taller items, the cup
racks can be folded
upwards.
If plates are to be loaded in the upper
basket:
load them starting from the rear positions;
tilting them slightly forwards and avoiding the
front positions near the door.
Adjusting the height of the upper basket
If washing very large plates you can load them in the lower basket after moving the upper basket
to the higher position.
Maximum height of the dishes in:
upper basket lower basket
With upper basket raised 20 cm 31 cm
With upper basket lowered 24 cm 27 cm
IMPORTANT!
When the basket is in the higher position you
will not be able to use the cup racks.
Refit the basket in
the higher position
and replace the stops
(A) in their original
position.
Move the front runner
stops (A) of the upper
basket outwards and
slide the basket out.
156997240en.qxp 12/27/2006 1:39 PM Page 14

15
Filling with detergent
IMPORTANT!
Only use detergents suitable for dishwashers.
Observe the manufacturer’s dosing and storage recommendations.
Open the lid.
For programmes with
prewash add an
additional detergent
dose in compartment B.
When using detergent
tablets:
place detergent tablets
in compartmentA.
Close the lid.
Fill in the detergent in
compartmentA. Observe the dosing
levels.
Unloading the dishwasher
●Empty the lower basket first and then the
upper one; this will avoid water dripping from
the upper basket onto the dishes in the lower
one.
●Water may appear on the sides and the door
of the dishwasher as the stainless steel will
eventually become cooler than the dishes.
IMPORTANT!
Open the dishwasher’s door, leave it ajar and
wait a few minutes before removing the
dishes; hot dishes are sensitive to knocks. In
this way they will be cooler and the drying will
be improved.
156997240en.qxp 12/27/2006 1:39 PM Page 15

16
Cleaning and Care
IMPORTANT!
NEVER use the dishwasher without filters.
Incorrect repositioning and fitting of the filters will produce poor washing results.
Cleaning the filters
IMPORTANT!
NEVER try to remove the spray arms.
If residues of soil have clogged the holes in the
upper spray arm, remove them with a
toothpick.
Clean filters A, Band C
thoroughly under
running water.
Turn the handle about
1/4turn anticlockwise
and remove filters B
and C.
Remove filter Afrom the
base of the washing
compartment.
Put the flat filter Aback
in the base of the
washing compartment
and ensure that it fits
perfectly under the two
guides D.
Replace the filters and
lock by turning the
handle clockwise to the
stop.
The dishwasher must
be switched off
156997240en.qxp 12/27/2006 1:39 PM Page 16

17
Environmental concerns
External cleaning
Clean the external surfaces of the machine and
control panel with a damp soft cloth. If
necessary use only neutral detergents. Never
use abrasive products, scouring pads or
solvent (acetone, trichloroethylene etc....).
Ensure that the seals around the door, the
detergent and rinse aid dispensers are cleaned
regularly with a damp cloth.
We recommend every 3 months to run a 65°C
wash programme without dishes using
detergent.
Prolonged periods of non-operation
If you are not using the machine for any period
of time you are advised to:
1. Unplug the appliance and then turn off the
water.
2. Leave the door ajar to prevent the formation
of any unpleasant smells.
3. Leave the inside of the machine clean.
Frost precautions
Avoid placing the machine in a location where
the temperature is below 0°C. If this is
unavoidable, empty the machine, close the
appliance door, disconnect the water inlet pipe
and empty it.
Moving the machine
If you have to move the machine (moving
house etc....):
1. Unplug it.
2. Turn the water tap off.
3. Remove the water inlet and discharge
hoses.
4. Pull the machine out together with the
hoses.
5. Only transport the dishwasher in an upright
position, otherwise salt water may run out.
Packaging material
The packaging materials are environmentally
friendly and can be recycled. The plastic
components are identified by markings, e.g.
>PE<, >PS<, etc. Please dispose of the
packaging materials in the appropriate
container at the community waste disposal
facilities.
WARNING!
When a unit is no longer being used:
- Pull the plug out of the socket.
- Cut off the cable and plug and dispose of
them.
- Dispose of the door catch.
This prevents children from trapping
themselves inside and endangering their
lives.
Old appliance
The symbol on the product or on its
packaging indicates that this product may not
be treated as household waste. Instead it shall
be handed over to the applicable collection
point for the recycling of electrical and
electronic equipment. By ensuring this product
is disposed of correctly, you will help prevent
potential negative consequences for the
environment and human health, which could
otherwise be caused by inappropriate waste
handling of this product.
For more detailed information about recycling
of this product, please contact your local city
office, your household waste disposal service
or the shop where you purchased the product.
156997240en.qxp 12/27/2006 1:39 PM Page 17

18

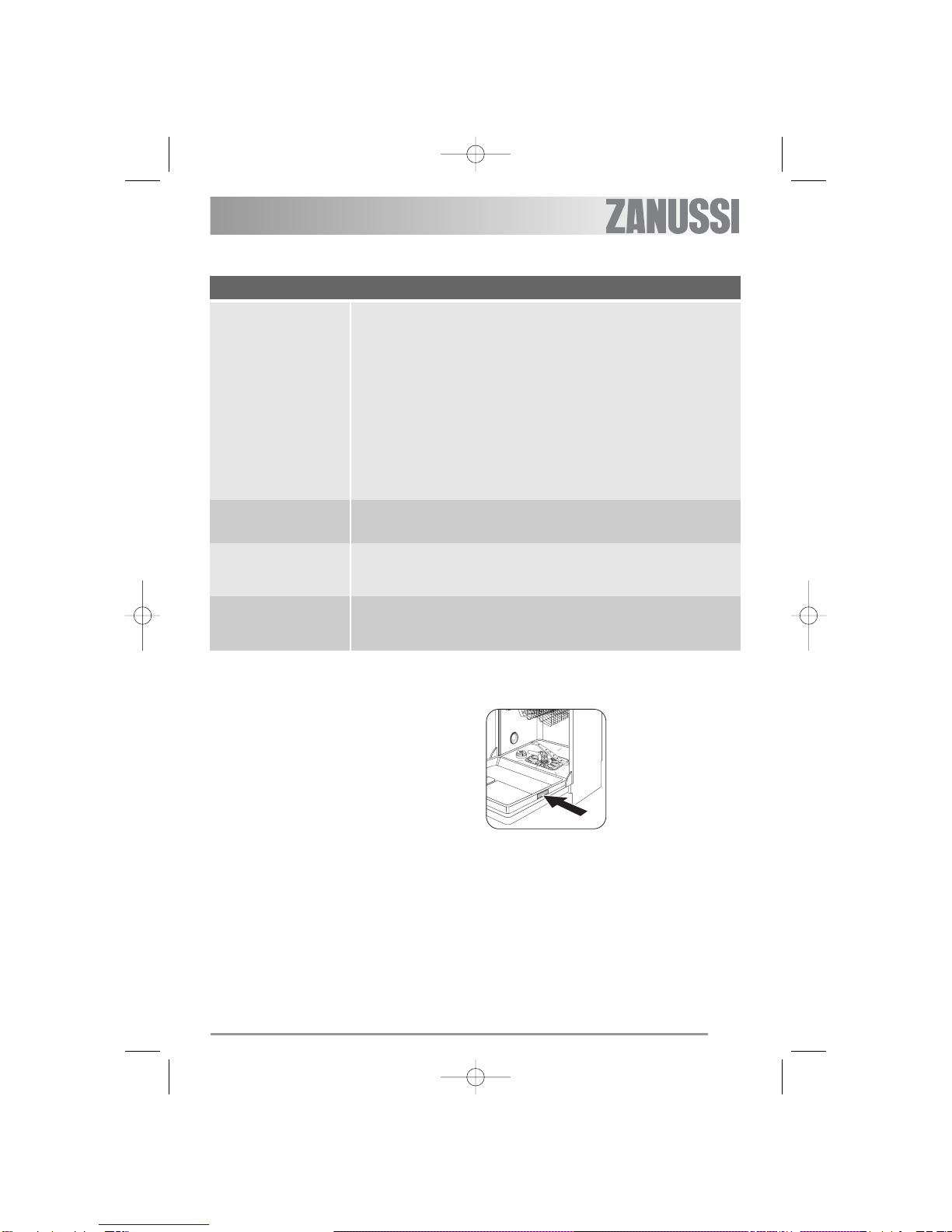

Fault code / malfunction Possible cause Solution
Something not working
The dishwasher does not fill with
water.
- 1 intermittent audible signal
- 1 flash of the "end of cycle"
indicator light
The dishwasher will not drain.
- 2 intermittent audible signals
- 2 flashes of the "end of cycle"
indicator light
The water tap is blocked or furred Clean the water tap.
with limescale.
The water tap is turned off. Turn the water tap on.
The filter (where present) in the . Clean the filter in the.
threaded hose fitting at the water threaded hose fitting.
inlet valve is blocked.
The water inlet hose has not been Check the water inlet hose
correctly laid or it is bent or connection.
squashed.
The sink spigot is blocked. Clean out the sink spigot.
The water drain hose has not been Check the water drain hose
correctly laid or it is bent or connection.
squashed.
- 3 intermittent audible signals
- 3 flashes of the "end of cycle"
indicator light
Anti-flood device is activated. Close the water tap and
contact your local Service
Force Centre.
The programme does not start.
The dishwasher door has not been Close the door
properly closed.
The main plug is not plugged in. Insert the mains plug
The fuse has blown in the household Replace the fuse.
fuse box.
IMPORTANT!
The dishwasher will not start or stops during operation.
Certain problems are due to the lack of simple maintenance or oversights, which can be solved
with the help of the indications described in the chart, without calling out an engineer.
Open the door and see which fault code is active.
Switch off the dishwasher and carry out the following suggested corrective actions.
Once these checks have been carried out; switch on the dishwasher, press the
Programme/Cancel button and close the door. The programme will continue from the point at
which it was interrupted. If the malfunction or fault code reappears contact the Service Force
Centre.
For other combinations of fault codes not described in the above chart, please contact your
Service Force Centre.
156997240en.qxp 12/27/2006 1:39 PM Page 18

19
The wash results are not satisfactory
The dishes are not clean ●The wrong washing programme has been selected.
●The dishes were arranged in such a way as to stop water reaching all parts
of the surface. The baskets must not be overloaded.
●The spray arm do not rotate freely due to incorrect arrangement of the load.
●The filters in the base of the washing compartment are dirty or incorrectly
positioned.
●Too little or no detergent has been used.
●Where there are limescale deposits on the dishes; the salt container is
empty or the incorrect level of the water softener has been set.
●The drain hose connection is not correct.
●The salt container cap is not properly closed.
The dishes are wet and
dull
●Rinse aid was not used.
●The rinse aid dispenser is empty.
Water drops have dried
onto glasses and dishes
●Increase rinse aid dosing.
●The detergent may be the cause, Contact the detergent manufacturer’s
consumer care line.
There are streaks, milky
spots or a bluish coating
on glasses and dishes
●Decrease rinse aid dosing.
If after all these checks, the problem persists,
contact your local Service Force Centre,
quoting the model (Mod.), product number
(PNC) and serial number (S.N.).
This information can be found on the rating
plate located on the side of the dishwasher
door (see picture).
So that you always have these numbers at
hand, we recommend you to make a note of
them here:
Mod. :. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PNC : . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
S.N. : . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
156997240en.qxp 12/27/2006 1:39 PM Page 19

Technical data
20
Consumption values
Dimensions Width 59.6 cm
Height 81.8 - 87.8 cm
Depth. 55.5 cm
Water supply pressure Minimum 0,05 MPa (0.5 bar)
Maximum 0,8 MPa (8 bar)
Electrical connection Information on the electrical connection is given on the rating plate on
Voltage - Overall power - Fuse the inner edge of the dishwasher’s door.
Capacity 12 place settings
Noise level 51 dB (A)
Max. weight 37
The consumption values are intended as a
guide and depends on the pressure and the
temperature of the water and also by the
variations of the power supply and the amount
of dishes.
Programme Programme duration Energy Water
(minutes) (kWh) (litres)
105 - 115 1,5 - 1,7 23 - 25
65° NORMAL
30 0,9 9
65° A 30’
140 1,05 18
BIO 50°
(Test programme for
Test Institutes)
12 < 0,1 5
RINSE & HOLD
156997240en.qxp 12/27/2006 1:39 PM Page 20
