Zanussi ZXE 65 X User manual

Ceramic glass induction hob
ZXE 65 X
Installation and Operating Instructions g

2
Dear Customer,
Please read these user instructions carefully and keep them to refer to later.
Please pass the user instructions on to any future owner of the appliance.
The following symbols are used in the text:
1Safety instructions
Warning! Notes that concern your personal safety.
Important! Notes that show how to avoid damage to the appliance.
3Useful tips and hints
2Environmental information
zDangerous Voltage

3
Contents
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Description of the Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Cooking surface layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Control panel layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Touch Control sensor fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Residual heat indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Operating the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Switching the appliance on and off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Selecting the heat setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Switching the double ring cooking zone on and off . . . . . . . . . . . . . . . . . . . . 9
Using the automatic warm-up function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Locking/unlocking the control panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Using the child safety device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Switching the power function on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Using the timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Automatic switch off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Tips on cooking and frying. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Cookware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Cookware for induction cooking zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Tips on energy saving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Examples of cooking applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
What to do if … . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Rating Plate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Guarantee/Customer Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Service and Spare Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

4
Operating Instructions
1Safety instructions
Please comply with these instructions. If you do not, any damage resulting
is not covered by the warranty.
Correct use
•Persons (including children) who, due to their physical, sensory or mental
capacity or their inexperience or lack of knowledge are unable to use the
appliance safely should not operate this appliance without the supervision
or instruction of a responsible person.
•Do not leave the appliance unattended during operation.
•This appliance should be used only for normal domestic cooking and fry-
ing of food.
•The appliance must not be used as a work surface or as a storage sur-
face.
•Additions or modifications to the appliance are not permitted.
•Do not place or store flammable liquids, highly inflammable materials or
fusible objects (e.g. plastic film, plastic, aluminium) on or near the appli-
ance.
Child safety
•Small children must be kept away from the appliance.
•Only let bigger children work on the appliance under supervision.
•To avoid small children and pets unintentionally switching the appliance
on, we recommend activation of the child safety device.
General safety
•The appliance may only be installed and connected by trained, registered
service engineers, or competent persons.
•Built-in appliances may only be used after they have been built in to suita-
ble built-in units and work surfaces that meet standards.
•In the event of faults with the appliance or damage to the glass ceramic
(cracks, scratches or splits), the appliance must be switched off and dis-
connected from the electrical supply to prevent the possibility of an elec-
tric shock.
•Repairs to the appliance must only be carried out by trained registered
service engineers.

5
Safety during use
•Remove stickers and film from the glass ceramic.
•There is the risk of burns from the appliance if used carelessly.
•Cables from electrical appliances must not touch the hot surface of the
appliance or hot cookware.
•Overheated fats and oils can ignite very quickly. Warning! Fire hazard!
•Switch the cooking zones off after each use.
•Users with implanted pacemakers should keep their upper body at least
30 cm from induction cooking zones that are switched on.
•Risk of burns! Do not place objects made of metal, such as knives, forks,
spoons and saucepan lids on the cooking surface, as they can get hot.
Safety when cleaning
•For cleaning, the appliance must be switched off and cooled down.
•For safety reasons, the cleaning of the appliance with steam jet or high-
pressure cleaning equipment is not permitted.
How to avoid damage to the appliance
•The ceramic glass can be damaged by objects falling onto it.
•The edge of the ceramic glass can be damaged by being knocked by the
cookware.
•Cookware made of cast iron, cast aluminium or with damaged bottoms
can scratch the ceramic glass if pushed across the surface.
•Objects that melt and things that boil over can burn onto the ceramic
glass and should be removed straightaway.
•Do not use the cooking zones with empty cookware or without cookware.
•To avoid damaging cookware and glass ceramics, do not allow saucepans
or frying pans to boil dry.
•The ventilation gap of 5mm between the worktop and front of the unit un-
derneath it must not be covered.

6
Description of the Appliance
Cooking surface layout
Control panel layout
Induction cooking zone 2200 W
with power function 3100 W
Double ring cooking zone 700/1700 W
Induction cooking zone 1400 W
Control panel Single cooking zone 1200 W
On/Off
with pilot light
Timer display
Cooking zone indicators
Timer function
Heat setting selection
Timer
Display
Connection
double ring cooking zone
with pilot light
Lock with pilot light
Power function
with pilot light

7
Touch Control sensor fields
The appliance is operated using Touch Control sensor fields. Functions are
controlled by touching sensor fields and confirmed by displays and acoustic
signals.
Touch the sensor fields from above, without covering other sensor fields.
Sensor field Function
On / Off Switches appliance on and off
Increase settings Increasing heat setting
Decrease settings Decreasing heat setting
Timer Timer selection
Increase settings To increase Timer time
Reduce settings To reduce Timer time
Lock Locking/unlocking the control panel
Power Switching the power function on
and off
Dual zone touch control Switches outside zone
on and off

8
Displays
Residual heat indicator
1Warning! Risk of burns from residual heat. After being switched off, the
cooking zones need some time to cool down. Look at the residual heat indi-
cator .
3Residual heat can be used for melting and keeping food warm.
The induction cooking zones create the heat required for cooking directly
in the base of the cookware. The glass ceramic is merely heated by the re-
sidual heat of the cookware.
The cooling fan switches itself on and off depending upon the temperature
of the electronics.
Display Description
Cooking zone is switched off
Keep warm setting Keep warm setting is set
- Heat settings Heat setting is set
Automatic warm up func-
tion
Automatic warm-up function is acti-
vated
Fault Malfunction has occurred
Pan detection Cookware is unsuitable or too small
or no cookware has been placed on
the cooking zone
Residual heat Cooking zone is still hot
Child safety device Lock/child safety device is set.
Power Power function is switched on
Automatic switch off Switch off is active.

9
Operating the appliance
3Use the induction cooking zones with suitable cookware.
Switching the appliance on and off
3After switching on, within approx. 10 seconds a heat setting or a function
must be set, otherwise the appliance automatically switches itself off.
Selecting the heat setting
3The keep warm setting lies between and . It is used to keep food
warm.
Switching the double ring cooking zone on and off
With the dual cooking zone the heating surface can be matched to the size
of the cookware.
Control panel Display Pilot light
Switch on Touch for 2 seconds / lights up
Switch off Touch for 1 second / none goes out
Control panel Display
Increase Touch to /
Decrease Touch to
Switch off Touch and at the same time
Control panel Pilot light
Switch on Touch for 1-2 seconds lights up
Switch off Touch for 1-2 seconds goes out

10
Using the automatic warm-up function
All cooking zones are equipped with an automatic warm-up function. The
automatic warm-up function sets the cooking zone to the highest setting for
a certain period of time and then automatically switches back to the cook-
ing setting that was originally set.
3If during the automatic warm up a higher heat setting is selected, e.g.
from to , the automatic warm up is adjusted.
The length of time that the automatic warm up function operates depends
on the heat setting selected.
Step Control panel Display
1. Setting the level / /
2. Place to one side for a moment /
3. touch
4. touch in order to set the desired
cooking setting
until /
after 3 seconds
Heat
setting
Length of the automatic
warm up Radiation element
[min:sec]
Length of the automatic
warm up Induction
[min:sec]
v 0:30 0:10
1 1:00 0:10
2 1:40 0:10
3 4:50 3:10
4 6:30 5:50
5 10:10 10:10
6 2:30 2:00
7 3:30 2:30
8 4:30 2:50
9 --- ---

11
Locking/unlocking the control panel
The control panel, with the exception of the “On/Off” sensor field, can be
locked at any time in order to prevent the settings being changed e.g. by
wiping over the panel with a cloth.
3When you switch the appliance off, the locking function is automatically
switched off.
Using the child safety device
The child safety device prevents unintentional use of the appliance.
Switching on the child safety device
Switching off the child safety device
3The child safety device can only be switched on and off, if no heat setting is
set.
Control panel Display
Switch on Touch (for 5 seconds)
Switch off Touch previously set heat setting
Step Control panel Display/Signal
1. Switch on appliance. (Do not
set a heat setting.)
2. Touch for 4 seconds
The child safety device is switched on.
Step Control panel Display/Signal
1. Switch on appliance. (Do not
set a heat setting.)
2. Tou c h for 4 seconds lights up
3. Switch appliance off.
The child safety device is switched off.

12
Overriding the child safety device
The child safety device can be switched off in this way for a single cooking
session; it remains activated afterwards.
3After overriding the child safety device, a heat setting or a function must be
set within approx. 10 seconds, otherwise the appliance automatically
switches itself off.

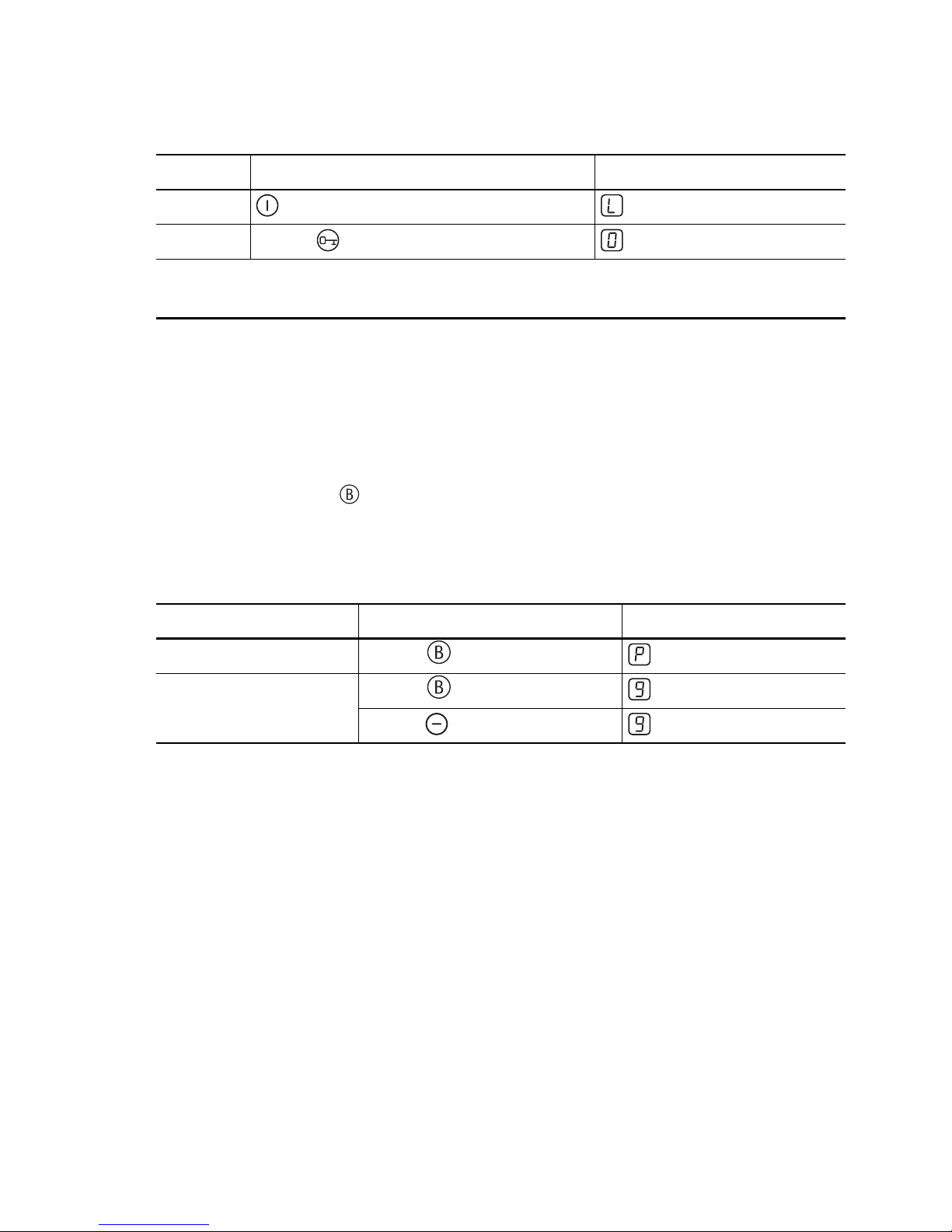

Switching the power function on and off
The power function makes more power available to the left induction
cooking zone, e.g. to bring a large quantity of water to the boil quickly.
The power function is activated for 10 minutes. After that the induction
cooking zone automatically switches back to heat setting 9.
3If the power function has ended, the cooking zones automatically switch
back to the heat setting set previously.
Step Control panel Display/Signal
1. Switch appliance on
2. Touch for 4 seconds lights up
Until the appliance is next switched off, it can used as normal. After
switching off the appliance, the child safety device is active again.
Control panel Display
Switch on Touch
Switch off Touch
To uc h

13

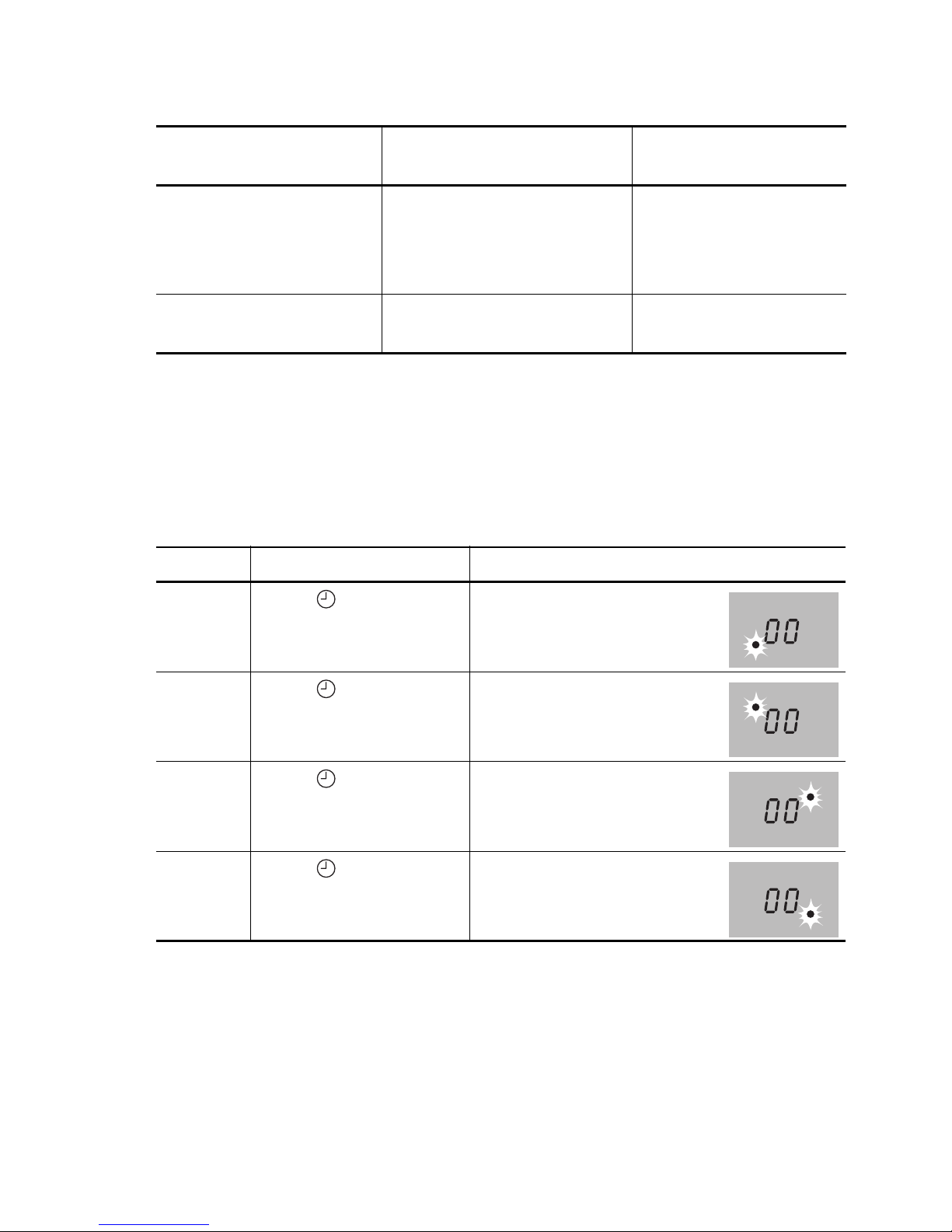

Using the timer
3If a heat setting is set on this cooking zone in addition to a countdown timer,
the cooking zone is switched off after the time set has elapsed.
3If a cooking zone is switched off, the timer function set is also switched off.
Selecting a cooking zone
3If the pilot light is flashing more slowly, the heat setting can be set or modi-
fied.
3If other timer functions are set, after a few seconds the shortest remaining
time of all the timer functions is displayed and the corresponding pilot light
flashes.
Function Condition Outcome after the
time has elapsed
Automatic cut-out a heat setting is set acoustic signal
00 flashes
Cooking zone switch-
es off
Countdown timer cooking zones not in use acoustic signal
00 flashes
Step Control panel Display
1. Touch once Pilot light of the first cook-
ing zone flashes
2. Touch once Pilot light of the second
cooking zone flashes
3. Touch once Pilot light of the third
cooking zone flashes
4. Touch once Pilot light of the fourth
cooking zone flashes

14
Setting the time
Switching off the timer function
Changing the time
Displaying the time remaining for a cooking zone
Step Control panel Indicator
1. Select cooking
zone
Pilot light for the cooking zone selected
flashes
2. Touch or 00 to 99 minutes
After a few seconds the pilot light flashes more slowly.
The time is set.
The time counts down.
Step Control panel Indicator
1. Select cooking
zone
Pilot light of cooking zone selected
flashes faster
Time remaining is displayed
2. Touch The time remaining counts backwards
to 00.
The pilot light goes out.
The Timer function for the selected cooking zone is switched off.
Step Control panel Indicator
1. Selecting a cook-
ing zone
Pilot light of the selected cooking zone
flashes more quickly
Remaining time is displayed
2. Tou c h or 01 to 99 minutes
After a few seconds the pilot light flashes more slowly.
The time is set.
The time counts down.
Step Control panel field Display
1. Select cooking
zone
Pilot light of the cooking zone selected
flashes faster
The time remaining is displayed
After a few seconds the pilot light flashes more slowly.

15
Switching off the acoustic signal
Automatic switch off
Cooking surface
•If after switching on the cooking surface, a heat setting is not set for a
cooking zone within approx. 10 seconds, the cooking surface automati-
cally switches itself off.
•If one or more sensor fields are covered by objects (a pan, cloths, etc.) for
longer than approx. 10 seconds, a signal sounds and the cooking surface
switches off automatically.
•If all cooking zones are switched off, the cooking surface automatically
switches itself off after approx. 10 seconds.
Cooking zones
•If one of the cooking zones is not switched off after a certain time, or if the
heat setting is not modified, the relevant cooking zone switches off auto-
matically. is displayed. Before being used again, the cooking zone
must be set to .
Step Control panel field Acoustic signal
1. Touch Acoustic signal to acknowledge.
Acoustic signal stops.
Heat setting Switches off after
v, 1 - 2 6 hours
3 - 4 5 hours
54 hours
6 - 9 1.5 hours

16
Tips on cooking and frying
3Information about acrylamides
According to the latest scientific research, intensive browning of food, espe-
cially in products containing starch, may present a health risk due to acryla-
mide. Therefore we recommend cooking at low temperatures and not
browning foods too much.
Cookware
•You can recognise good cookware from the bottoms of the pans. The bot-
tom should be as thick and flat as possible.
•Cookware made of enamelled steel or with aluminium or copper bottoms
can leave discolourations on the ceramic glass surface which are difficult
or impossible to remove.
Cookware for induction cooking zones
Cookware material
3Cookware for induction cooking zones is labelled as suitable by the manu-
facturer.
Suitability test
Cookware is suitable for induction cooking, if …
•... a little water on an induction cooking zone set to heat setting 9 is heat-
ed within a short time.
•... a magnet sticks to the bottom of the cookware.
3Certain cookware can make noises when being used on induction cooking
zones. These noises are not a fault in the appliance and do not affect opera-
tion in any way.
Bottom of the cookware
The bottom of the cookware should be as thick and flat as possible.
Cookware material Suitable
Steel, enamelled steel yes
Cast iron yes
Stainless steel if appropriately labelled by the manufacturer
Aluminium, copper, brass ---
Glass, ceramic, porcelain ---

17
Pan size
Induction cooking zones adapt automatically to the size of the bottom of the
cookware up to a certain limit. However the magnetic part of the bottom of
the cookware must have a minimum diameter depending upon the size of
the cooking zone.
3The cookware must be placed centrally on the cooking zone.
Tips on energy saving
2Place cookware on the cooking zone before it is switched on.
2If possible, always place a lid on the cookware.
Diameter of cooking zone
[mm]
Minimum diameter of dish base
[mm]
210 180
145 120

18
Examples of cooking applications
The information given in the following table is for guidance only.
The power function is suitable for heating large quantities of liquid.
Heat
set-
ting
Cooking
process suitable for Cook time Tips/Hints
0 Residual heat, Off position
V
Keeping
food
warm
Keeping cooked foods
warm as required Cover
1-2
Melting
Hollandaise sauce,
melting butter, chocolate,
gelatine
5-25 mins. Stir occasionally
Solidify-
ing
Fluffy omelettes, baked
eggs 10-40 mins. Cook with lid on
2-3
Simmer-
ing
Simmering rice and milk-
based dishes
Heating up ready-cooked
meals
25-50 mins.
Add at least twice as
much liquid as rice, stir
milk dishes part way
through cooking
3-4
Steaming
Braising
Steaming vegetables, fish
Braising meat 20-45 mins.
With vegetables add
only a little liquid (a few
tablespoons)
4-5
Boiling
Steaming potatoes 20-60 mins.
Use only a little liquid, e.
g.: max. ¼ l water for
750 g of potatoes
Cooking larger quantities of
food, stews and soups 60-150 mins. Up to 3 l liquid plus in- gredients
6-7
Gentle
frying
Frying escalope, veal cor-
don bleu, cutlets, rissoles,
sausages, liver, roux, eggs,
pancakes, doughnuts
as required Turn halfway through
cooking
7-8
Heavy
frying
Hash browns, loin steaks,
steaks, Flädle (pancakes for
garnishing soup)
5-15 mins.
per pan
Turn halfway through
cooking
9
Boiling
Searing
Deep
frying
Boiling large quantities of water, cooking pasta, searing meat (gou-
lash, pot roast), deep frying chips

19
Cleaning and care
1Take care! Risk of burns from residual heat.
1Important Sharp objects and abrasive cleaning materials will damage the
appliance. Clean with water and washing up liquid.
1Important Residues from cleaning agents will damage the appliance. Re-
move residues with water and washing up liquid.
Cleaning the appliance after each use
1. Wipe the appliance with a damp cloth and a little washing up liquid.
2. Rub the appliance dry using a clean cloth.
Removing deposits
1. Place the scraper on the glass ceramic surface at an angle.
2. Remove residues by sliding the blade over the surface.
3. Wipe the appliance with a damp cloth and a little washing up liquid.
4. Rub the appliance dry using a clean cloth.
*Scrapers and cleaners for glass ceramic and stainless steel can be purchased in specialist shops, su-
permarkets, the parts department of your local Service Force Centre or from www.shop.elec-
trolux.co.uk
3Remove stubborn residues with a cleaner for glass ceramic or stainless
steel.
3Scratches or dark stains on the glass ceramic that cannot be removed do
not however affect the functioning of the appliance.
Remove
Type of dirt imme-
diately
when the appliance has
cooled down using
sugar, food containing sugar yes --- a scraper*
plastics, tin foil yes ---
limescale and water rings --- yes cleaner for glass ce-
ramic or stainless
steel*
fat splashes --- yes
shiny metallic discolouration --- yes

20
What to do if …
Problem Possible cause Remedy
The appliance cannot be
switched on or is not operat-
ing
More than 10 seconds have
passed since the appliance
was switched on
Switch the appliance on
again.
The lock is switched on Switch off the lock (See the
section “Locking/unlocking
the control panel”)
The child safety device is
switched on
Deactivate child safety de-
vice (See the section “Child
safety device”)
Several sensor fields were
touched at the same time
Only touch one sensor field
Automatic switch off has
been triggered
Remove any objects (pan,
cloths, etc.) that are lying on
the control panel. Switch the
appliance on again
The residual heat indicator is
not displaying anything
The cooking zone was only
on for a short time and is
therefore not hot
If the cooking zone is sup-
posed to be hot, call your lo-
cal Service Force Centre.
The automatic warm up func-
tion is not switching itself on
There is still residual heat on
the cooking zone
Let the cooking zone cool
down
The highest heat setting is
set
The highest heat setting has
the same power as the auto-
matic warm up function
Acoustic signal sounds re-
peatedly, appliance switches
off
One or more sensor fields
have been covered for longer
than 10 seconds
Uncover sensor field
Acoustic signal sounds when
appliance is switched off
The control panel is wholly or
partly covered by objects.
Remove objects.
Acoustic signal sounds and
appliance switches itself on
and then off again; after 5
seconds another acoustic
signal sounds
The On/Off sensor field has
been covered up, e.g. by a
cloth
Do not place any objects on
the control panel
Display is switching between
two heat settings
Power management is reduc-
ing the power of this cooking
zone
See the section “Switching
the power function on and
off”
