OPERATING AND INSTALLATION MANUAL
ZANUSSI
35663 - 3302
BUILT-IN OVEN
MODEL
ZBS 701

3
WARNINGS AND GUIDANCE
It is most important that this instruction book should be retained with the appliance for future
reference. Should the appliance be sold or transferred, always ensure that the book is left with
the appliance in order that the new owner can get to know the functions of the appliance and
the relevant warnings.
These warnings are provided in the interest of safety. You MUST read them carefully before
installing or using the appliance.
This oven is heavy and care must be taken when
moving it.
Ensure that all packaging, both inside and outside the
oven, has been removed before the oven is used.
The oven must be installed according to the
instructions supplied. Any electrical work must be
undertaken by a qualified electrician/competent
person.
It is dangerous to alter the specifications in any way.
After installation, please dispose of the packaging with
due regard to safety and the environment.
During Operation
Do not use this oven if it is in contact with water and
never operate it with wet hands.
Ensure that the anti-tip oven shelves are installed in
the correct way (see instructions).
This oven is designed to be operated by adults and
children under supervision. Young children must not
be allowed to tamper with the controls or play near or
with the oven.
CAUTION - accessible parts, especially around the
grill area, may become hot when the oven is in use.
Children should be kept away until it has cooled.
Take great care when heating fats and oils as they
will ignite if they become too hot.
This oven has been designed for cooking edible
foodstuffs only and must not be used for any other
purposes.
Never place plastic or any other material which may
melt in or on the oven.
Only clean this oven in accordance with the
instructions.
Take care to follow the recommendations given for
tending the food when grilling. Use the handle
provided in the recommended way.
Always grill with the oven door closed.
Always remove the grill pan handles when grilling.
Always use oven gloves to remove and replace food
in the oven. Similarly always use oven gloves to
remove and replace the grill pan handle, before and
after grilling.
Ensure that you support the grill pan when removing it
from the oven.
Never line any part of the oven with aluminium foil. Do
not allow heatproof cooking material, e.g. roasting
bags, to come into contact with oven elements.
Always stand back from the oven when opening the
oven door, to allow any build-up of steam or heat to
release.
Do not place sealed cans or aerosols inside the oven.
They may explode if they are heated.
Do not hang towels or clothes from the oven or its
handle. They are a safety hazard.
After Use
Ensure that all control knobs are in the OFF position
when not in use.
For hygiene and safety reasons, this oven should be
kept clean at all times. A build-up of fats or other
foodstuffs could result in a fire, especially in the grill
pan.
Always allow the cooling fan to cool the oven down
before switching off at the electrical supply prior to
carrying out any cleaning or maintenance work.
Do not leave utensils containing foodstuffs, e.g. fat or
oil in or on the cooker in case it is inadvertently
switched ON.
Ovens become very hot, and retain their heat for a
long period of time after use. Children should be kept
well away from the oven until it has cooled.
Under no circumstances should you attempt to repair
the appliance yourself. Repairs carried out by
inexperienced persons may cause injury or serious
malfunctioning. Refer to your local Zanussi Service
Centre. Always insist on genuine Zanussi spare parts.
Your safety is of paramount importance.
Therefore, if you are unsure about any of the
meanings of these WARNINGS, contact the
Customer Care Department
Customer Care Department
Telephone: [phone]

4
CONTENTS
Warnings and Guidance Page 3
Technical Data Page 5
Installation and Electrical Connections Page 6
Installation Page 7-8
Electrical connection Page 9
When the oven is first installed Page 10
Use and Care Page 11

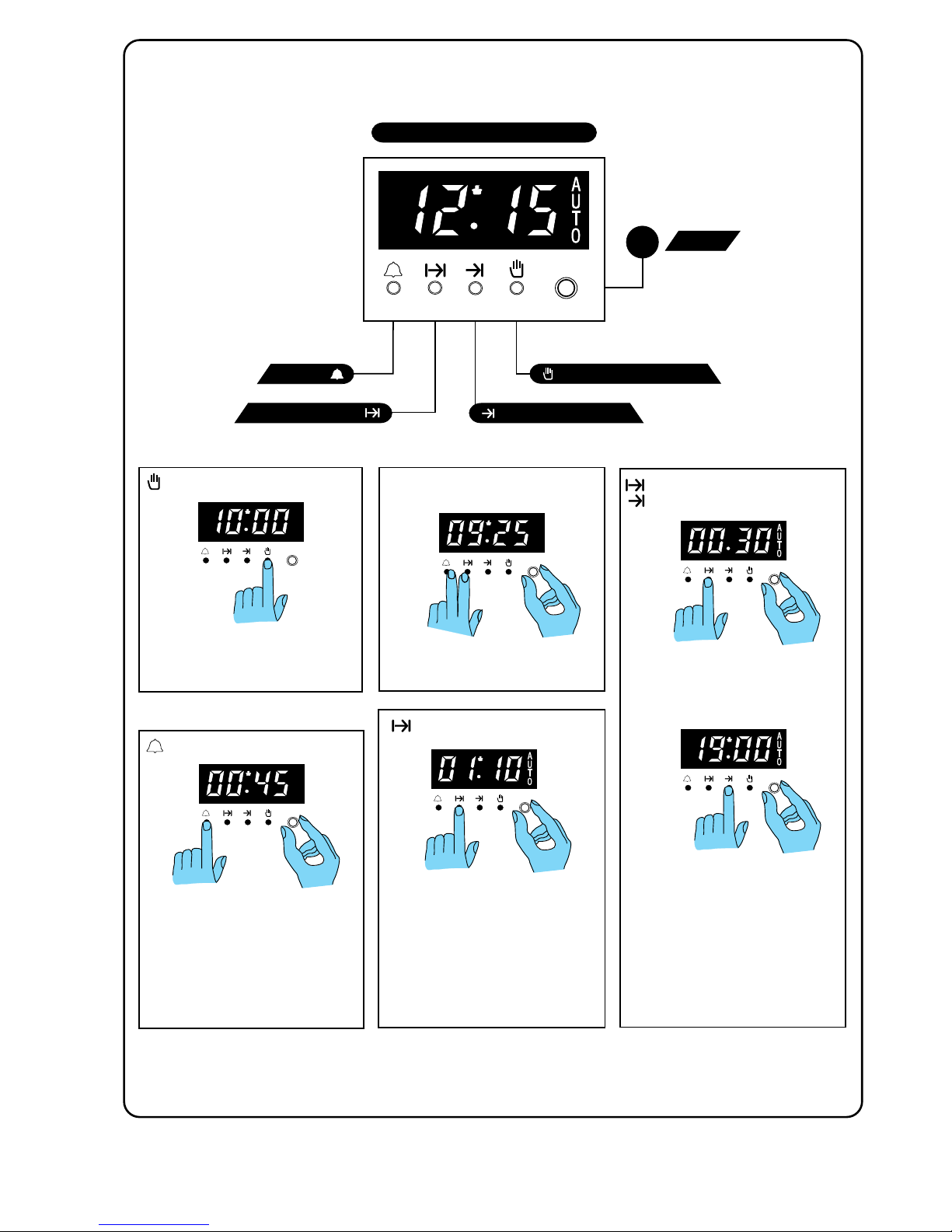

How to set the programmer Page 12

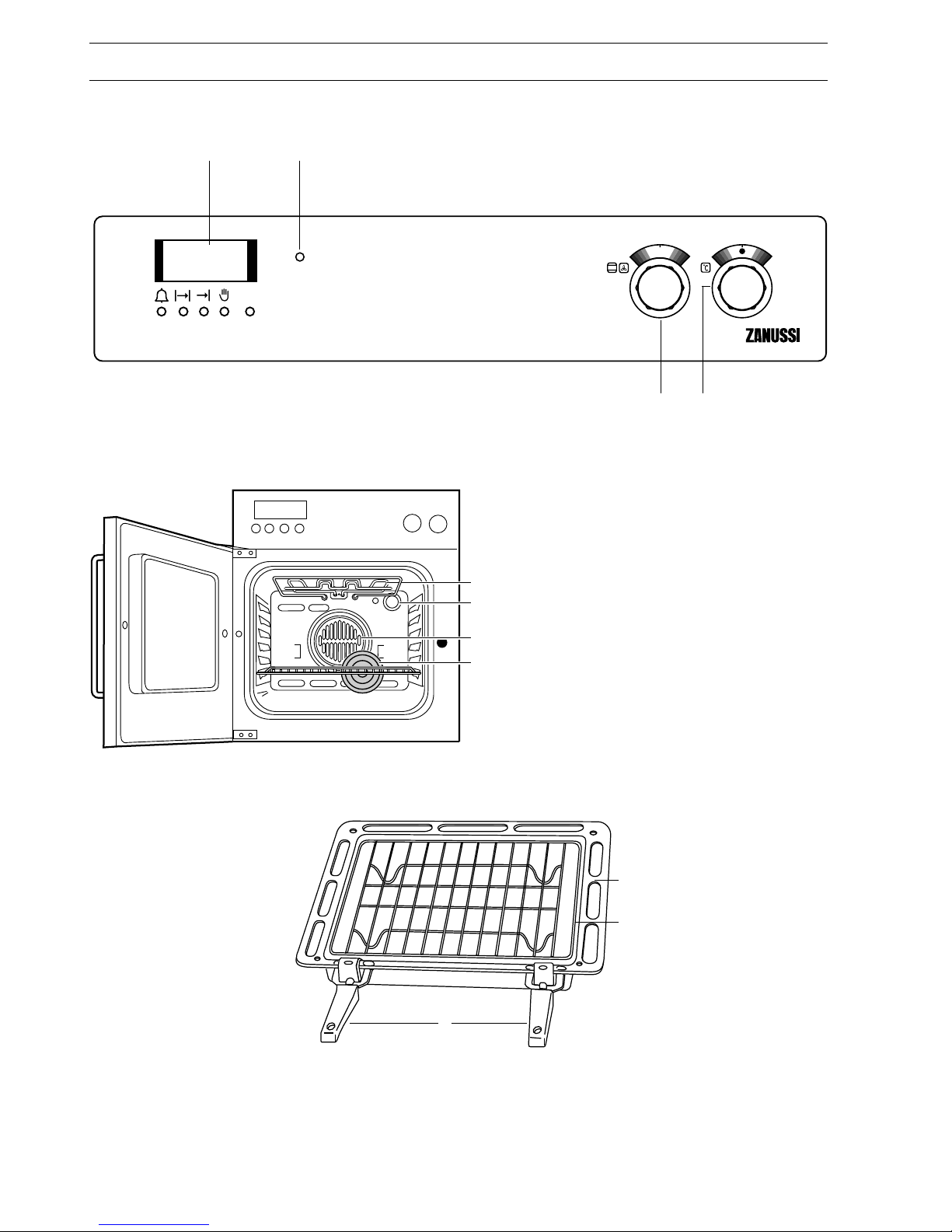

Controls Page 13
Using the fan oven Page 14-15
Grilling Page 17
Thermal Grilling Page 17-18
Helpful hints when buying and preparing food Page 19
Cleaning the oven Page 20
Care of catalytic liners Page 21
Cleaning the Hinged Grill Page 22
What Happens if something goes wrong Page 22
Peace of mind for 24 Months Page 23
Please complete and return the 24 months Guarantee card.
In case of a complaint, and for ordering spare parts, you must specify the
model number and serial number which appear on the rating plate situated
on the cavity front panel.
WARNING
Please remember that an appliance used for cooking does
get hot, so make sure that children are kept well away while it is in use.
*73/23 - 90/683 (Low Voltage Directive);
*93/68 (General Directives);
*89/336 (Electromagnetical Compatibility Directive) .
and subsequent modifications
This appliance complies with the following E.E.C. Directives:
MANUFACTURER: ELECTROLUX ZANUSSI ELETTRODOMESTICI S.p.A.
Viale Bologna 298
47100 FORLÌ (Italy)

5
TECHNICAL DATA
Model Number: ZBS 701W - ZBS 701B
Recess dimensions
Height 580 mm
Width 560-570 mm
Depth 550 mm
Oven Capacity 1.9 cu. ft.
Internal oven dimensions
Height 320 mm
Width 420 mm
Depth 390 mm
Oven Ratings
Oven Element 2.5 kW
Grill Element 1.8 kW
Double Grill Element 2.8 kW
Convection Fan 30 W
Oven Light 15 W
Cooling fan 25 W
Total Rating 2.870 kW
Cable (for UK use)
Cable cross-section 6 mm2
Type of cable 6242 Y
Fuse (min.) 15 amp
Cable (for Europe use)
Cable cross-section 2.5 mm2
Type of cable Ho RR-F
Fuse (min.) 13 amp

6
INSTALLATION AND ELECTRICAL CONNECTION
FO 0701 Fig. 1
WARNING
Before installing the oven, ensure that the 4
plastic buffers are correctly fitted (as shown Fig.
1). These are supplied with the oven, and are in the
bag with the guarantee card.
We strongly recommend that all operations for the
installation of your cooker be carryed out by
QUALIFIED PERSONNEL in accordance with
existing rules and regulations.
Important
Before the appliance is connected, check that the
main fuse and the domestic installation can support
the load; and that the power supply is properly
earthed.
The manufacturer disclaims any responsibility
should these safety instructions not be carried
out.
FO 0702

7
INSTALLATION
It is mandatory that all operations required for the
installation be carried out by a qualified or
competent person - in accordance with existing
rules and regulations.
Please ensure that when the appliance is installed it
is easily accessible for the engineer in the event of a
breakdown.
BUILDING IN
It is important that the dimensions and materials of
the surround or cabinet into which the oven will be
built are correct and will withstand a temperature
increase of at least 60°C above ambient; and that
proper arrangements are made of a continuous
supply of air to the oven so it does not overheat.
Dimensions of the appliance and recess required
are given below (Fig. 2-3).
Fig. 3
Fig. 2
FO 0374
FO 0381

8

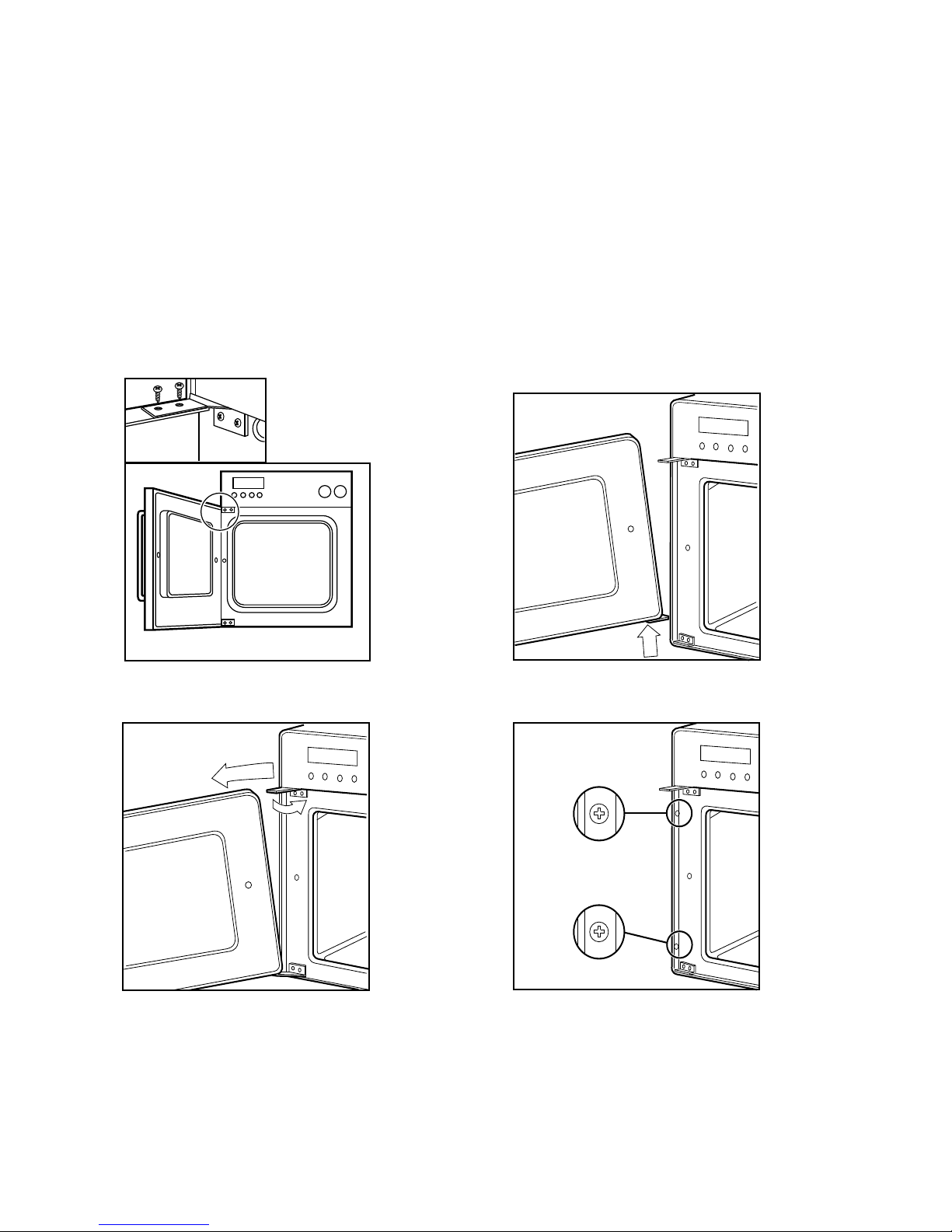

Securing the oven to the cabinet
Fit the appliance into the cabinet recess, open the
oven door and unscrew the two upper screws of the
door hinge (Fig. 4/a).
Slightly slide forward the door in order to disengage it
from the upper hinge (Fig. 4/b).
Lift the oven door to disengage it from the lower
hinge slipping off the pivot (Fig. 4/c).
Secure the oven to the kitchen cabinet with four
wood screws, which fit the holes provided in the oven
frame (Fig. 4/d).
Reassemble the oven door in reverse order.
Fig. 4/b Fig. 4/d
FO 0852FO 0850
FO 0851
Fig. 4/a Fig. 4/c
A
A
FO 1218

9
ELECTRICAL CONNECTION
We strongly recommend that all operations for the
installation of your oven be carried out by
QUALIFIED PERSONNEL to the relevant British
Standards.
The oven designed to be connected to 240V (50Hz)
electricity supply.
The oven has an easily accessible terminal block
which is marked as follows:
Letter L - Live terminal
Letter N - Neutral terminal
- Earth terminal
THIS APPLIANCE MUST BE EARTHED
The cable used to connect the oven to the electrical
supply should have the characteristics indicated in
the table.
It is necessary that you install a double pole switch
between the appliance and theelectricity supply
(mains), with a minimum gap of 3mm between the
switch contacts and of a type suitable for the
required load in compliance with the current rules.
The switch must not break the yellow and green
earth cable at any point.
Important
After installation and connecting, the cable must be
placed so that it cannot at any point reach a
temperature of more than 50°C above the ambient
temperature.
Before the appliance is connected, check that the
main fuse and the domestic installation can support
the load; and that the power supply is properly
earthed.
The manufacturer disclaims any responsibility should
these safety measures not be carried out.
This appliance meets the requirements laid down in
EEC Directive No. 89/336 relating to the suppression
of radio and TV interference.
Models Rating Cable cross Fuse
section mm
2
and
Type of the cable min.
ZBS 701 2870 W 6 mm
2
6242 Y 15 A
For Uk use only
Models Rating Cable cross Fuse
section mm
2
and
Type of the cable min.
ZBS 701 2870 W 2,5 mm
2
Ho5 RR-F 13 A
For Europe use only

10
WHENTHE OVEN IS FIRST INSTALLED
Once the oven has been installed, it is important to
remove the protective materials which were put on in
the factory.
Press button E for manual function. Switch the
oven control knob to fan ducted cooking and then
set the thermostat control knob to MAX and leave it
to run, empty, for 30 minutes to remove any
unpleasant new smells.
During this period, an unpleasant odour may be
emitted, it is therefore, advisable to open a window
for ventilation.
Rating Plate
The model number of your oven can be found on the
rating plate on the lower front frame of the cooker
upon opening the door.
The oven must be protected by a suitably rated fuse
or circuit breaker. The rating of the oven is given on
the rating plate.
About condensation and steam
When food is heated it produces steam in the same
way as a boiling kettle does. The oven is vented to
allow some of this steam to escape. However, always
stand back from the oven when opening the oven
door to allow any build up of steam or heat to
release.
If the steam comes into contact with a cool surface
on the outside of the oven, e.g. a trim, it will
condense and produce water droplets. This is quite
normal and is not caused by a fault on the oven.
To prevent discolouration, regularly wipe away
condensation and also soilage from surfaces.
Cookware
Baking trays, oven dishes, etc. should not be placed
directly against the grid covering the fan at the back
of the oven, or placed on the oven base.
Do not use baking trays larger than 30 cm x 35 cm
(12 in x 14 in) as they will restrict the circulation of
heat and may affect performance. Advice on the
effect of different materials and finishes of bakeware
is given in 'Hints and Tips' in the appropriate oven
section.
The trivet
When roasting do use the trivet in the meat tin. Fat
and meat juices will drain into the meat tin below and
can be used to make gravy. The trivet also prevents
splashes of fat from soiling the oven interior.
N.B. The meat tin should not be placed on a heated
hotplate as this may cause the enamel to crack.
The cooling fan for the controls
The cooling fan comes on immediately when the grill
is switched on and after a short time when the oven
is in use, and switches off when cooking is
completed.
During the initial period the cooling fan may cycle ON
and OFF, this is quite normal.
It may run on after the oven or grill is switched off to
keep the controls cool.
Always allow the cooling fan to cool the oven down
before switching off the wall prior to carrying out any
cleaning or maintenance work.
NOTE
The action of the cooling fan will depend on how long
the oven or grill has been used and at what
temperature. It may not switch in at all at lower
temperature settings nor run on where the grill or
oven has only been used for a short time.
Control panel indicator neon
This light indicates whether the oven or grill is
switched ON. In the case of the oven, the neon also
indicates when the set temperature has been
reached. It will cycle on, and off during use to show
that the temperature is being maintained.
If the neon do not operate as the instructions indicate
the controls have been incorrectly set. Return all
controls to zero and reset following the instructions
for the required setting.
When the oven is set for automatic cooking the neon
should remain unlit during OFF periods.

11
BUILT-IN
°C
FUNCTION TEMPERATURE
- +
0
USE AND CARE
34
12
1. Electronic programmer
2. Oven temperature light
3. Oven function control knob
4. Thermostat control knob
5. Hinged grill element
6. Interior light (oven light)
7. Fan
8. Grease filter
9. Removable handle (2)
10. Grill trivet
11. Grill / roasting pan
5
6
7
8
9
11
10
BUILT-IN

12
HOWTO SET THE PROGRAMMER
To cancel any programme press button B
Press button D and while turning knob A
enter the end of cooking time. Turn the
thermostat and control function knobs to
the required settings. The oven
temperature light nor oven light will
illuminate until the oven switches on.
When cooking is completed the AUTO
signal will flash and an audible signal will
be heard for approx 2 mins. To cancel
press button B and return control and
thermostat knobs to 'O' OFF.
- +
To set oven for manual operation press
button E.
- +
MANUAL OPERATION
Press button B and C at the same time
and while turning knob A enter the time
of day.
SETTINGTHETIME OF DAY
24 HOUR CLOCK
- +
Press button B and while turning knob A
enter the required time (max. 23 h 59
min.). After required time has been
selected the clock will revert to the time
of day. When time is up an audible signal
will be heard for approx 2 mins. To
cancel press button B and return control
and thermostat knobs to 'O' OFF.
- +
SETTINGTHETIMER
Press button C and while turning knob A
enter the required cooking time. Auto
will appear on the right hand side of the
clock, select the required temperature
and oven function. When cooking is
completed an audible signal will be heard
for approx 2 mins. To cancel press button
B and return control and thermostat
knobs to 'O' OFF.
COOKING TIME
- +
Then
Press button C and while turning knob A
enter the required cooking time.
SETTINGTHE AUTOMATIC
TIMER
- +
CLOCK
KNOB
A
MANUAL OPERATION
END OF COOKING
COOKING TIME
TIMER
- +
EDCB

13
CONTROLS
Push-Pull Control Knob
The knobs of this oven are of the push-pull type.
They can be completely sunken inside the control
panel when the oven is not working (see Fig. 5).
Oven Function Control Knob (fan)
Oven light - this will come on automatically when
the oven is in use.
Defrost setting (NB This is NOT a cooking
setting). This setting is intended to assist in
thawing of frozen foods (see page 16).
Conventional cooking, uses the top and bottom
element; this function will enable you to use your
favourite recipes without having to adapt the
temperatures. It is necessary to pre-heat the
oven in this instance.
Top oven element only, enables you to finish off
dishes on the top only.
Bottom oven element only, enables you to finish
off dishes on the bottom only.
Fan ducted cooking - this allows you to roast or
roast and bake simultaneously using any shelf,
without flavour transference.
Grill - the oven door MUST be closed when
grilling. The grill cannot be used at the same
time as the oven.
Thermal grilling offers an alternative method of
cooking food items normally associated with
conventional grilling. The grill element and the
oven fan operate together, circulating hot air
around the food. Select a maximum temperature
of 200°C
Inner grill element only. Can be used for grilling
one or two items.
Note:
When the control knob (Fig. 6) is on position ( )
light or ( ) defrost, the temperature control knob
(Fig. 7) should by on the « » (Off) position.
Caution
Do not place pans, dripping pans, biscuit pans or
aluminium foil directly on the base of the oven. This
could cause a heat build-up which could affect the
performance of the oven and damage the oven
enamel.
Fig. 7
FO 0776
Fig. 6
FO 0777
Fig. 5
100
150
200
MAX
50
0
FO 0350
Thermostat Control Knob (Fig. 7)
By turning the oven control knob clockwise, you
select the cooking temperature.
Temperature selection starts at 50°C and is marked
in 25°C increments up to maximum, where the
temperature at the centre of the oven will reach
approximately 250°C.
The thermostat controlling the temperature is totally
variable so it is possible to select temperatures
between those marked.
The MAX setting is particularly suitable for grilling.
Once the oven temperature has been selected, the
temperature light will come on and remain on until
the oven has reached the correct setting; after that, it
will go on and off with the thermostat, showing how
the temperature is being maintained.

14
USINGTHE CONVENTIONAL OVEN
CONVENTIONAL COOKING
This function uses the top and lower elements to give
single level cooking. This is particularly suitable for
disches which require extra base browning such as
pizzas, quiches and flans. Gratins, lasagnes and
hotpots which require extra top browning also cook
well in the conventional oven. This form of cooking
gives you the opportunity to cook without the fan in
operation.
• Turn the function control knob to Conventional
Oven .
• Turn the main oven temperature control to the
required setting.
NOTE:
a)The selector and oven temperature indicator
windows will illuminate.
b)The oven indicator neon will glow.
THINGS TO NOTE
The oven indicator neon will glow until the oven has
reached the desired temperature and then go OUT. It
will then cycle ON and OFF showing that the oven
temperature is being maintained.
The internal oven light operate when the selector is
set. If an automatic programme is set, the oven light
will come on when the cook time starts.
The control cooling fan will operate after a short time
and runs on after the controls are swiched off until
the appliance has cooled.
HINTS AND TIPS
The middle shelf position allows for the best heat
distribution. To increase base browning simply lower
the shelf position. To increase top browning, raise
the shelf position.
The material and finish of the baking traus and
dishes used will affect base browning. Enamelware,
dark, heavy or non-stick utensils increase base
browning, while oven glassware, shiny aluminium or
polished steel trays reflect the heat away and given
less base browning.
Always place dishes centrally on the shelf to ensure
even browning.
Stand dishes on suitably sized baking trays to
prevent spillage onto the base of the oven and make
cleaning easier.
Do not place dishes, tins or baking trays directly on
the oven base as it becomes very hot and damage
will occur.
For faster preheating use the fan oven function to
preheat the oven until the oven indicator neon goes
out, then swich the selector to the conventional oven
setting.
Single level cooking gives best results. If you require
more than one level cooking use the fan or zoned
oven functions.
Top oven element only
This function is suitable for finishing cooked dishes,
eg; lasagne, shepherds pie, cauliflower cheese etc.
Bottom oven element only
This function is particularly useful when blind-baking
pastry or cooking pizza.

15
USINGTHE FAN OVEN
The Fan Oven
The air inside the oven is heated by the element
around the fan situated behind the back panel. The
fan draws air from the oven, the element heats the
air which is circulated into the oven via the top, base
and sides of the back panel. The advantages of
cooking with this function are:
Faster Preheating
Because the fan oven quickly reaches temperature, it
is not usually necessary to preheat the oven
although you may find that you need to allow an
extra 5-7 minutes on cooking times. For recipes
which require higher temperatures, best results are
achieved if the oven is preheated first, e.g. bread,
pastries, scones, souffles, etc.
Lower Temperatures
Fan oven cooking generally requires lower
temperatures than conventional cooking.
Follow the temperatures recommended in the charts
or remember to reduce temperatures by about 20-
25°C for your own recipes which use conventional
cooking.
Even Heating for Baking
The fan oven has uniform heating on all runner
positions. This means that batches of the same food
can be cooked in the oven at the same time.
However, the top shelf may brown slightly quicker
that the lower one.
This is quite usual. There is no mixing of flavours
between dishes (see Fig. 9).
The oven is supplied with two anti-tip shelves.
IMPORTANT: The anti-tip oven shelves must be
positoned as shown in Fig. 8.
HINTS AND TIPS
Runner positions are not critical, but make sure the
shelves are evenly spread.
When cooking more than one dish in the fan oven,
place dishes centrally on the shelves rather than
several dishes on one shelf.
When the oven is full, you may need to allow slightly
longer cooking time.
A shelf may be placed on the floor of the oven. Place
dishes on a shelf in this position rather than on the
oven base, to allow air circulation around the food.
When the oven is full of the same food, e.g. equal
trays of small cakes or equal size victoria sandwich
cakes, then they will be cooked in the same time and
removed from the oven together. When different
sizes of trays or types of food, e.g. biscuits and
cakes are cooked, they will not necessarily be ready
together.
The fan oven can be used to heat foods through
without thawing first, e.g. fruit tarts, mince pies,
sausage rolls, and other small pastry items. Use a
temperature of 190-200°C and allow 20-40 minutes
(depending on the quantity of food in the oven).
The use of too high temperatures can cause uneven
browning. Check with the recommendations for oven
temperatures given in the cooking charts, but be
prepared to adjust the temperature by 10°C if
necessary. Remember to reduce temperatures by
about 20-25°C for your own conventional recipes.
Fig. 8 Fig. 9
4
2
1
3
FO 0285 FO 0061

16
Only experience will enable you to determine the
proper settings for your personal cooking needs. The
temperatures are intended as a guide only. It may be
necessary to increase or decrease the temperature
to suit your individual requirements.
The effects of dishes on cooking results
Dishes and tins vary in their thickness, conductivity,
colour, etc. which affects the way they transmit heat
to the food inside them:
AAluminium, earthenware, oven glassware and
bright shiny utensils reduce cooking and underneath
browning.
BEnamelled cast iron, anodized aluminium,
aluminium with non-stick interior and coloured
exterior and dark, heavy utensils increase cooking
and underneath browning.
Defrosting
The defrosting function allows you to defrost frozen
foods. The oven fan operates without heat and
circulates the air, at room temperature, inside the
oven. This increases the rate at which defrosting
takes place.
This function is particularly suitable for delicate food
which could be damaged by heat, e.g. cream filled
gateaux, iced cakes, pastries, bread and other yeast
products.
HINTS AND TIPS
• Cover food with a lid, aluminium foil or plastic film
to prevent drying out during defrosting.
• Small or thin pieces of fish fillet or peeled prawns,
mince, liver and thin chops will defrost in 1-2
hours. Ensure that they are cooked or refrigerated
immediately after defrosting to maintain good food
hygiene.
• Place the food to be defrosted in a single layer and
turn over half way through the defrosting process,
where possible.
• Joints of meat or poultry MUST BE THAWED
THOROUGHLY BEFORE COOKING. A 1.5 kg/3lb
oven-ready chicken will thaw in approximately 5
hours. The giblets must be removed as soon as
possible during the thawing process.
• Only joints of meat and poultry up to 2kg/4lb in
weight are suitable for defrosting in this way.
ALWAYS COOK THOROUGHLY IMMEDIATELY
AFTER THAWING.
• Take care to follow the basic rules for hygiene
when handling fresh, frozen, raw and cooked foods.
HINTS AND TIPS
• Place the frozen food a single layer where
possible, and turn it over half way through the
defrosting process.
• The actual speed of defrosting is influenced by
room temperature. On warm days defrosting will
be faster than on cooler days.
• DO NOT leave food at room temperature once it is
defrosted. Cook raw food immediately or store
cooked food in the fridge.
• Care must always be taken when handling foods
in the home. Always follow the basic rules of food
hygiene to prevent bacterial growth and cross
contamination when defrosting, preparing,
cooking, cooling and freezing foods.

17
GRILLING
Important
All grilling must be carried out with the oven door
closed and the grill pan handle removed from the
pan.
Most foods should be placed on the grid in the grill
pan to allow maximum circulation of air to lift the food
out of the fats and juices. Food such as fish, liver and
kidneys may be placed directly on the grill pan, if
preferred
Adjust the grid and grill pan runner position to allow
for different thicknesses of food. Position the food
close to the element for faster cooking and further
away for more gentle cooking
Food should be thoroughly dried before grilling to
minimise splashing. Brush lean meats and fish lightly
with a little oil or melted butter to keep them moist
during cooking
Accompaniments such as tomatoes and mushrooms
may be placed underneath the grid when grilling
meats
When toasting bread, we suggest that the top runner
position is used with the grid in its 'high' position
Preheat the grill on a full setting for a few minutes
before sealing steaks or toasting. Adjust the heat
setting and the shelf as necessary, during cooking
The food should be turned over during cooking, as
required.
NOTE:
For safety in use, the grill element is controlled
by the thermostat. During cooking, the grill
cycles on and off to prevent overheating.
COOKING GUIDE
Cooking time depends on the thickness of the meat
and not on its weight.
GRILLING - INNER GRILL ELEMENT
Important
All grilling must be carried out with the oven door
closed and the grill pan handle removed from the
pan.
The inner grill provides, quick direct heat to the
central area of the grill pan. By using the inner grill
for cooking small quantities it can help to save
energy.
Always grill with the door closed and remove the grill
pan handle.
Place the food in the centre of of the grid in the grill
pan.
Adjust the gril and grill pan runner position to allow
for different thicknesses of food and follow the
instructions for grilling.
THERMAL GRILLING
Use of thermal grilling
Thermal grilling offers an alternative method of
cooking food items normally associated with
conventional grilling.
The grill element and the oven fan operate
alternately, circulating hot air around the food. The
need to check and turn food is reduced. Thermal
grilling helps to minimise cooking smells in the
kitchen and allows you to grill with the oven door
closed. With the exception of toast and rare steaks,
you can thermal grill all the foods you would normally
cook under a conventional grill.
The lower part of the oven can be used to cook
accompaniments at the same time, e.g. tomatoes
and mushrooms with a mixed grill or breakfast.
Dishes prepared in advance such as shepherd's pie,
lasagne and au gratins can be heated through and
browned on the top using the thermal grilling
function.
• Turn the multifunction selector to Thermal Grill .
• Turn the main oven temperature control to the
required setting (A temperature of between 140°C
and 200°C is suitable for thermal grilling).
NOTE:
Thermal grilling helps to minimise cooking smells in
the kitchen and is carried out with the main oven
door closed, and with the grill pan handle removed.
THINGS TO NOTE
The oven indicator neon will glow until the oven has
reached the desired temperature and then go OFF. It
will then cycle ON and OFF showing that the oven
temperature is being maintained.

18
The indicator windows for selector and oven
temperature control will illuminate.
The oven fan and internal oven light will come on.
The control cooling fan will operate after a short time.
It will run on after the controls are switched off until
the appliance has cooled.
HINTS AND TIPS
Prepare foods in the same way as for conventional
grilling. Brush lean meats and fish lightly with a little
oil or butter to keep them moist during cooking.
Most foods should be placed on the grill pan grid in
the 'high' position in the grill pan to allow maximum
circulation of air around the food. Food such as fish,
liver and kidneys may be placed directly onto the
trivet in the grill pan, if preferred.
The use of the trivet beneath the grid when grilling
fatty foods will help minimise splashing.
Accompaniments such as tomatoes and mushrooms
may be placed below the grid when grilling meat, or
in a separate dish on a lower shelf.
Foods will cook more quickly the closer they are to
the grill element and the higher the temperatures
selected. Be prepared to adjust temperature and
shelf positions during cooking, if necessary.
Turn food over during cooking, as necessary.
Ensure that ready prepared or cooked chilled dishes,
e.g. shepherds pie, moussaka, lasagne, etc., are
piping hot throughout before serving.
A temperature range of 140-220°c and shelf
positions 3 and 4 are suitable for most foods. Be
prepared to make adjustments during cooking to suit
individual requirements. If thermal grilling on more
than one level, it may be necessary to interchange
the food on the shelves during cooking.
COOKING TIMES
Cooking is more gentle, therefore food generally
takes a little longer to cook with thermal grilling
compared with conventional grilling. One of the
advantages is that larger loads can be cooked at the
same time.
A general guide to cooking times is given below but
these times may vary slightly depending on the
thickness and quantity of food being cooked.
FOOD Grill and Economy Grill Thermal Grill
Bacon Rashers 210 2-3 200 8-12
Beefburgers 200 6-10 190 10-15
Chicken Joints 170 10-15 160 35-45
Chops - Lamb 180 7-10 170 20-25
- Pork 180 10-15 170 25-35
Fish - Whole Trout/Herring 170 8-12 170 10-20
- Fillets Plaice/Cod 170 4-6 170 10-20
Kebabs 180 10-15 170 20-30
Kidneys - Lamb/Pig 170 4-6 180 10-15
Liver - Lamb/Pig 170 5-10 180 20-30
Sausages 180 10-15 190 10-15
Toast 250 1-2 - -
Heating through and
Browning, e.g. au-gratin, - - 170 20-30
lasagne, shepherd's pie. depending on size depending on size
Browning dishes only 230 3-5 - -
Temp
(°C) Temp (°C)
Time
(Mins per side) Time (Mins)
The times quoted above are given as a guide and should be adjusted to suit personal taste.

19
HELPFUL HINTSWHEN BUYING AND PREPARING FOOD
Care must be taken when handling foods in the
home. Always follow the basic rules of food hygiene
to prevent bacterial and microbial growth and cross
contamination when preparing, reheating, cooking,
cooling, defrosting and freezing foods:
1. Always ensure food you purchase is of good
quality and in prime condition. Shop at a reliable
source and buy the 'freshest' looking package -
avoid shopworn labels or produce covered in dust.
2. Avoid buying chilled or frozen products if you
cannot store them straight away. The use of an
insulated container when shopping is advisable.
3. Buy and consume foods prior to the 'Sell by' or
'Best Before' date.
4. When you arrive home, place perishable foods in
the refrigerator or freezer immediately.
Ensure they are well covered to prevent them
drying out and to prevent any possible cross
contamination with bacteria from raw to cooked
foods.
5. Follow the cooking instructions on packets of
prepacked and cook chill foods, but be prepared to
adjust cooking time and temperatures to suit your
particular oven. For example, the fan oven
generally requires 20-25°C lower temperature than
conventional ovens.
6. Always ensure that cook chill foods are thoroughly
re-heated until they are piping hot throughout.
7. It is preferable to defrost frozen foods slowly in the
refrigerator. Alternatively, a microwave cooker or
the defrost function on your oven may be used.
8. Always cook defrosted foods immediately after
thawing. Thawed food should never be refrozen.
9. Joints of meat and poultry should be thoroughly
defrosted before cooking.
10. Cook meat thoroughly - use a meat thermometer
if preferred, which penetrates the joint to check
that the centre temperature has reached the
required temperature (see table below).
MEAT TEMPERATURES
Beef Rare - 60°C
Medium - 70°C
Well Done - 80°C
Pork Well Done - 80°C
Lamb Medium - 70°C
Well Done - 80°C
11. If not eaten straightaway after cooking, food
should be cooled as quickly as possible (within
one hour) and then refrigerated or frozen as
required. (Do not put hot food into a Refrigerator
or Freezer).
12. In the kitchen keep work tops, chopping boards
and utensils clean with hot soapy water between
preparation stages. Ideally, keep one chopping
board for raw meat and another for other foods.
Keep your dish cloths and tea towels clean.

20
CLEANINGTHE OVEN
Before cleaning always allow the cooling
fan to cool the oven down before
switching off at the electricity supply
Cleaning materials
Before using any cleaning materials on your oven,
check that they are suitable and that their use is
recommended by the manufacturer.
Cleaners that contain bleach should NOT be used as
they may dull the surface finishes. Harsh abrasives
should also be avoided.
Glass Panel
This should be cleaned with a soft cloth soaked in
warm soapy water. Do not use abrasive scourers or
steel wool.
Oven Shelves
To clean the oven shelves, soak in warm soapy
water and remove stubborn marks with a well
wetted soap impregnated pad. Rinse well and dry
with a soft cloth.
Oven Cavity
The enamelled oven cavity is best cleaned whilst the
oven is still warm. It is advisable to wipe the oven
over with a soft cloth soaked in warm soapy water
after each use. However, from time to time it will be
necessary to do a more thorough cleaning, using a
proprietary oven cleaner.

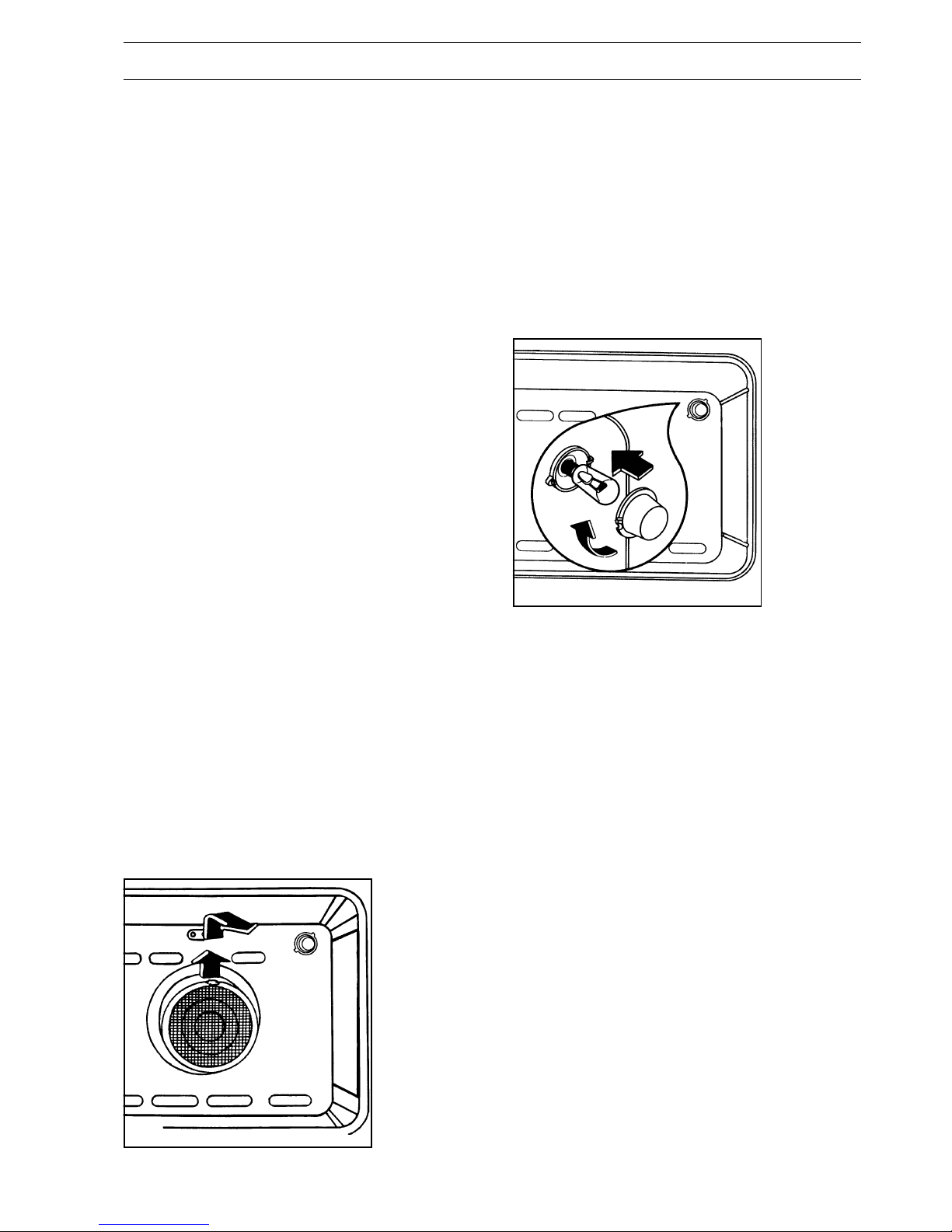

Fig. 10
Grease Filter
When cooking meat the grease filter must be fitted over
the upper oven fan by clipping it over the vents in the
back panel, this will prevent a built-up of fat on the fan
impellor. Do not use abrasive materials to clean the
seal. The grease filter is dishwasher proof. When
cooking is completed and the oven has cooled down,
remove the filter as instructed below and wash carefully.
- Push the protruding tongue on the filter, upward
(See Fig. 10)
Replacing Components
Prior to undertaking any maintenance work or
replacing the oven light, be sure to disconnect
appliance from the electricity supply.
Fig. 11
Electric bulb: 15W, 220-240 V, 50 Hz, 300°C, E14.
These bulbs are available from your local Zanussi
Service Centre whose address can be found in the
Zanussi Customer Care Booklet.
Replacing the Oven Light
Push in and turn the glass cover anticlockwise (Fig.
11). Remove the faulty bulb and replace with one
which is heat resistant to 300°C.
FO 0018
FO 0287

21
Catalytic liners destroy splashes of food and fats
when the oven temperature is raised to around
220°C.
To aid this process it is a good idea to run the oven
for an hour or two per week, without food, to ensure
continued good performance from the Catalytic
liners.
Hints and tips
• Manual cleaning of the Catalytic liner is not
recommended. Damage will occur if soap
impregnated steel wool pads, aerosol cleaners
and any other abrasives are used.
• Slight discolouration and polishing of the Catalytic
surface may occur in time. This does not affect the
Catalytic properties in any way.
• Follow the recommendations below to keep oven
soilage to a minimum.
Cooking to reduce soilage
Cook at the recommended temperatures. Higher
temperatures during roasting will increase soilage.
Try cooking to lower temperatures for an increased
length of time, you will save energy and often the
joint is more tender.
Use minimal, if any, extra oil or fat when roasting
meat; potatoes only require brushing with fat before
cooking. Extra fat in the oven during roasting will
increase splashing and soilage.
It is NOT necessary to add water to the meat tin
when roasting. The water and the fat juices from the
joint create excessive splattering during cooking,
even at normal temperatures, as well as causing
condensation.
Covering joints during cooking will also prevent
splashing onto the interior surfaces; removing the
covering for the last 20-30 minutes will allow extra
browning, if required. Some large joints and turkeys
especially benefit by this method of cooking, allowing
the joint to cook through before the outside is
overbrowned.
Do use the trivet in the roasting tin. During roasting,
the fat from the joint will be contained beneath the
trivet and therefore prevent it from splattering onto
the 'Catalytic' liner.
CARE OF CATALYTIC LINERS
