Zanussi FM5611 Operating and safety instructions

INSTRUCTIONS FOR
THE USE AND CARE OF
ZANUSSI
BUILT - IN OVEN

Warnings - Built-in ovens
It is most important that this instruction hook should be retained with the
appliance for future reference. Should the appliance be sold or transferred to
another owner, or should you move house and leave the appliance, always ensure
that the book is supplied with the appliance in order that the new owner can be
acquainted with the functioning of the appliance and the relevant warnings.
THESE WARNINGS ARE PROVIDED IN THE INTEREST OF SAFETY. YOU MUST
READ THEM CAREFULLY BEFORE INSTALLING OR USING THE APPLIANCE.
This appliance is designed to be operated
by adults. Children should not be allowed
to tamper with the controls or play with
the product
Any installation work must be
undertaken by a qualified electrician or
competent person.
It is dangerous to alter the specifications
or modify the product in any way.
This product should be serviced by an
authorized Zanussi Network Service
Centre, and only genuine Zanussi spare
parts should he used.
Cookers become very hot with use, and
retain their heat for a long period after
use. Children should be supervised at all
times and should not be allowed to touch
the hot surfiices or be in the vicinify
when in use or until the appliance has
cooled after use.
Always ensure that the control knobs are
in the «off» position when not in use.
For hygiene and safely reasons, this
appliance should be kept clean at all
times. A build-up of &ts or foodstuffs
could result in a fire.
This appliance has been designed for
cooking edible foodstu^ only, and must
not be used for any other purposes.
Never line any part of the oven with
aluminium foil.
Easy clean liners should never be
cleaned with any other than soapy water
(see cleaning instructions).
Before any maintenance or cleaning work
is carried out on the appliance, always
turn off the isolator switch at tiie cooker
point, and allow to cool.
Ensure that the anti-tip oven shelves are
put in place in the correct way (see
instructions).
Under no circumstances should you
attempt to repair the appliance yourself.
Repairs carried out by inexperienced
persons may cause injury or
serious malfunctioiung. Refer to your
local Zanussi Service Centre. Always
insist on genuine Zanussi spare parts.
3

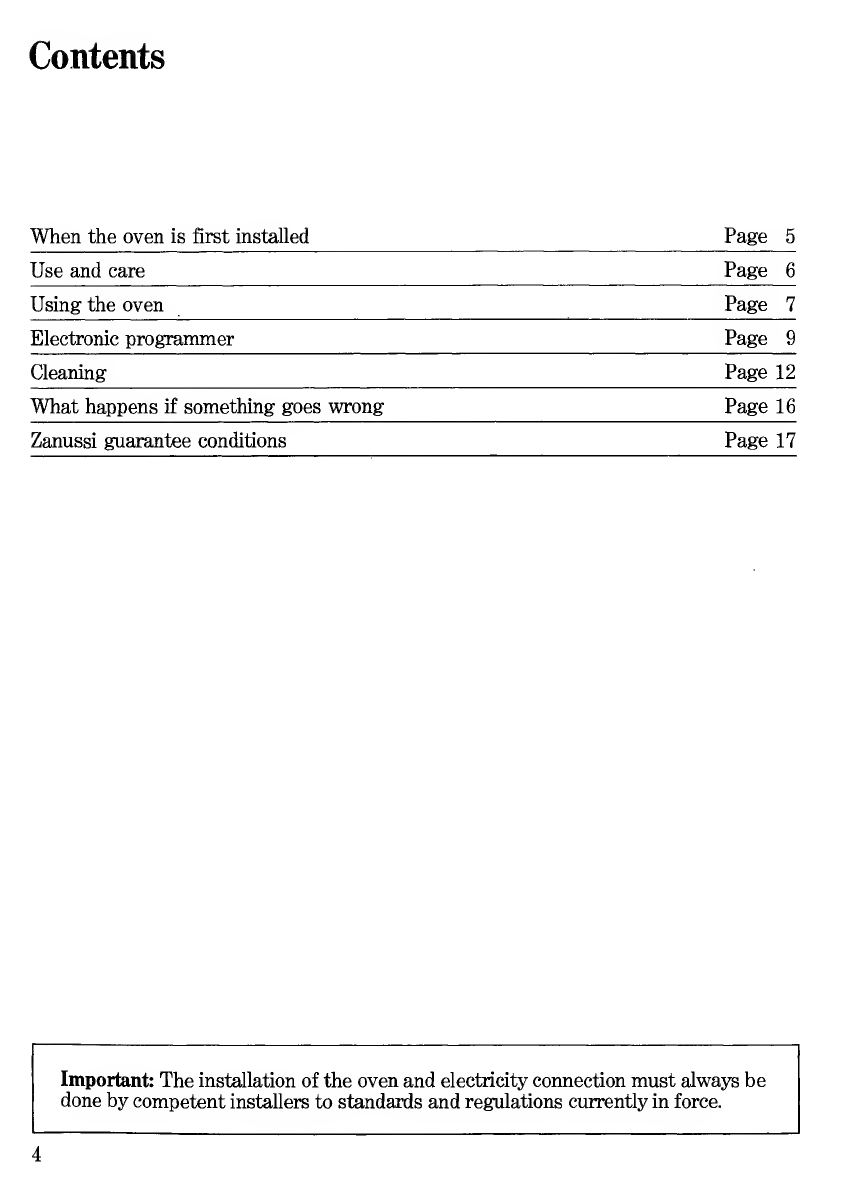

Contents
When the oven is first installed
Page 5
Use and care
Page 6
Using the oven
Page 7
Electronic programmer
Page 9
Cleaning
Page 12
What happens if something goes wrong Page 16
Zanussi guarantee conditions Page 17
Important: The installation of the oven and electricity connection must always be
done by competent installers to standards and regulations currently in force.
4

When the oven is first installed
Once the oven is installed it is important
to remove the protective materials which
were put on in the factory.
Remove from these parts the plastic film,
then wipe with a cloth dipped in
methylated spirit
Switch the oven control to MAX and
leave it to run empty for 30 minutes to
bum off any other protective materials.
This will also remove any unpleasant new
smells.
The oven is evenly heated throughout.
A fan in the back wall distributes heated
air round the food during cooking so that
everything cooks in approximately the
same time regardless of where it is
placed in the oven.
Foods of different types, provided they
require the same cooking temperature
can be cooked together and there is little
possibility of flavour transference.
Cooling fan
The cooling fan is designed to cool the
walls and the components of the oven
itself.
The fan switches on automatically when
the oven control knob is turned on.
Warm air is blown out through the
aperture near the oven door handle.
Technical data
Model Number: FM 5611 - FM 9611
Recess dimensions
Height
Width
Depth
Oven capacity
580 mm
560-570 mm
550 mm
1.9 cu.ft
Internal oven dimensions
Height 32 cm
Width 42 cm
Depth 39 cm
Oven ratings
Traditional system 2.0 kW
Convection system 2.5 kW
Convection fan 25 W
Grill element 2.0 kW
Double grill element 3.0 kW
Oven lamp 15 W
Cooling fan 25 W
Total rating 3.040 kW
5

Use and care
a - Electronic/programmer
b - Oven temperature light
c - Oven control knob
d - Dial
e - Oven/grill temperature
control knob
f - Grill
g - Interior light
h - Removable oven liner panels
i - Fan
j - Removable grease filter
k - Grill or roasting pan
1 - Reversible grill pan insert
m - Removable handles (2 Off.)
6

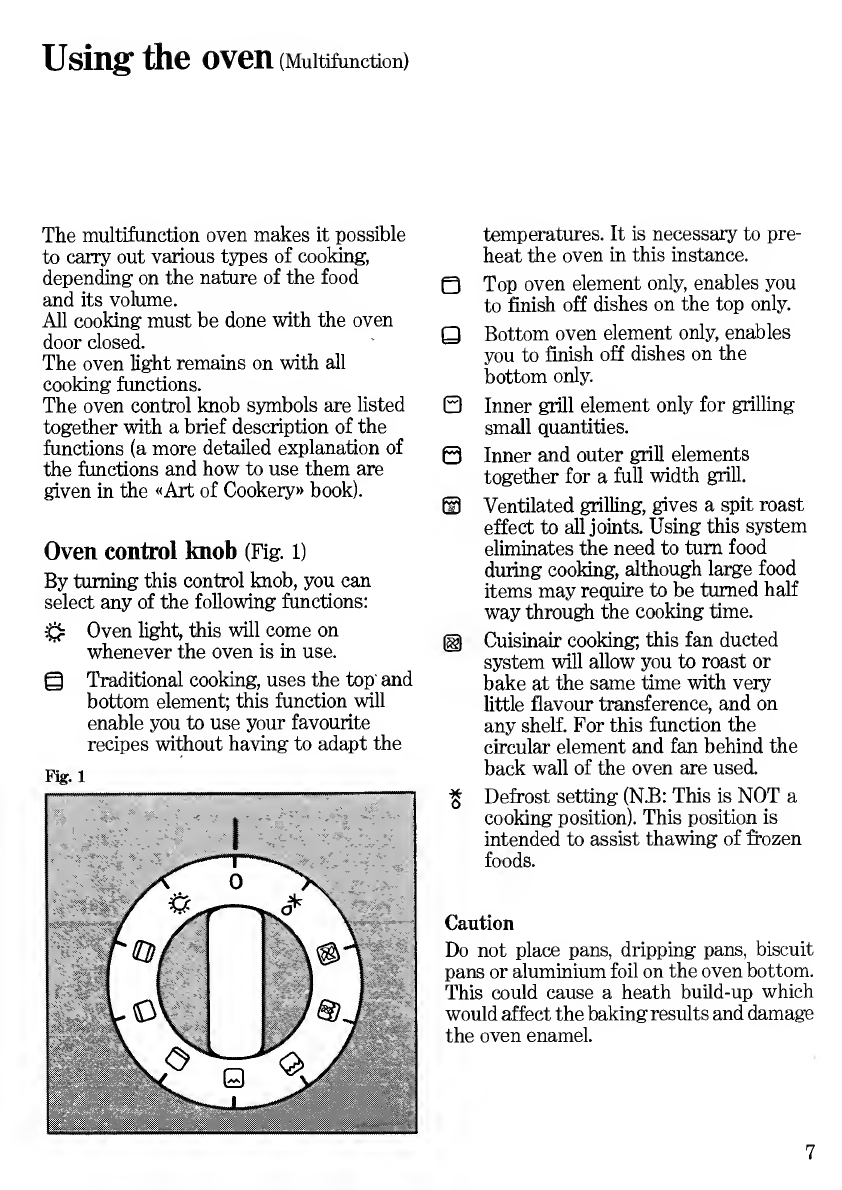

Using the oven (Multifunction)
The multifunction oven makes it possible
to carry out various types of cooking,
depending on the nature of the food
and its volume.
All cooking must be done with the oven
door closed.
The oven light remains on with all
cooking functions.
The oven control knob symbols are listed
together with a brief description of the
functions (a more detailed explanation of
the functions and how to use them are
given in the «Art of Cookery» book).
Oven control knob (Fig. l)
By turning this control knob, you can
select any of the following functions:
Oven light, this will come on
whenever the oven is in use.
m Traditional cooking, uses the top and
bottom element; this function will
enable you to use your favourite
recipes without having to adapt the
Fig.l
temperatures. It is necessary to pre¬
heat the oven in this instance.
Q Top oven element only, enables you
to finish off dishes on the top only.
Q Bottom oven element only, enables
you to finish off dishes on the
bottom only.
0 Inner grill element only for grilling
small quantities.
0 Inner and outer grill elements
together for a full width grill.
® Ventilated grilling, gives a spit roast
effect to all joints. Using this system
eliminates the need to turn food
during cooking, although large food
items may require to be turned half
way through the cooking time.
@ Cuisinair cooking; this fan ducted
system will allow you to roast or
bake at the same time with very
little flavour transference, and on
any shelf. For this function the
circular element and fan behind the
back wall of the oven are used.
Defrost setting (N.B: This is NOT a
cooking position). This position is
intended to assist thawing of frozen
foods.
Caution
Do not place pans, dripping pans, biscuit
pans or aluminium foil on the oven bottom.
This could cause a heath build-up which
would affect the baking results and damage
the oven enamel.
7

Electric grill
To switch on the grill turn the oven
control knob to ( 0 ) or ( Q ) then turn
the thermostat loiob to the required
temperature setting.
On this oven, the grill has two elements.
In this case turning the oven control knob
to ( 0 ) symbol operates the inner
eleihent only, when the oven control knob
is turned to ( 0 ) symbol both the inner
and outer elements operate. The result of
the latter provides a larger grilling area.
This is known as a dual element.
Foods to be grilled should be placed on
the wire trivet in the grill pan. The trivet
can be positioned either way up to give
the required distance from the element
Caution
The appliance must never be left
unattended whilst grilling.
Fig. 2
Note:
We recommend that you wipe fat
splashes off the grill element when it is
cold in order to prevent smoking from
the fat as it bums off when the grill is
next used.
Important
Your oven is fitted with hinges, giving
two door positions, fully open or fully
closed.
When grilling, the oven door must be
closed.
Grilling with the door open could cause
areas of the oven and surrounding
furniture to become excessively hot as
well as reducing the performance,
efficiency and economy of the grill.
Thermostat control knob (Fig. 2).
By turning the thermostat control knob
clockwise you select the cooking
temperature. Temperature selection
starts at 50 °C and is marked in 25 °C
increments up to maximum, where the
temperature at the centre of the oven
will reach approximately 250 °C. The
thermostat controlling the temperature is
totally variable so it is possible to select
temperatures between those marked. The
MAX setting is particularly suitable for
grilling. Once the oven temperature has
been selected, the temperature light will
come on and remain on until the oven
has reached the correct setting; after that
it will come on and off with the
thermostat showing how the temperature
is being maintained.
8

During cooking the oven door should be
opened as little as possible to avoid heat
loss and so excessive electricity
consumption.
Safety thermostat
Should the main oven thermostat fail, the
oven is protected by a safety thermostat
which will operate if the temperature
within the oven reaches too high a level.
Once the temperature has returned to a
safe level the main oven thermostat will
function.
In cases where there is a permanent
failure it is necessary to contact the
Zanussi Network Service Engineer.

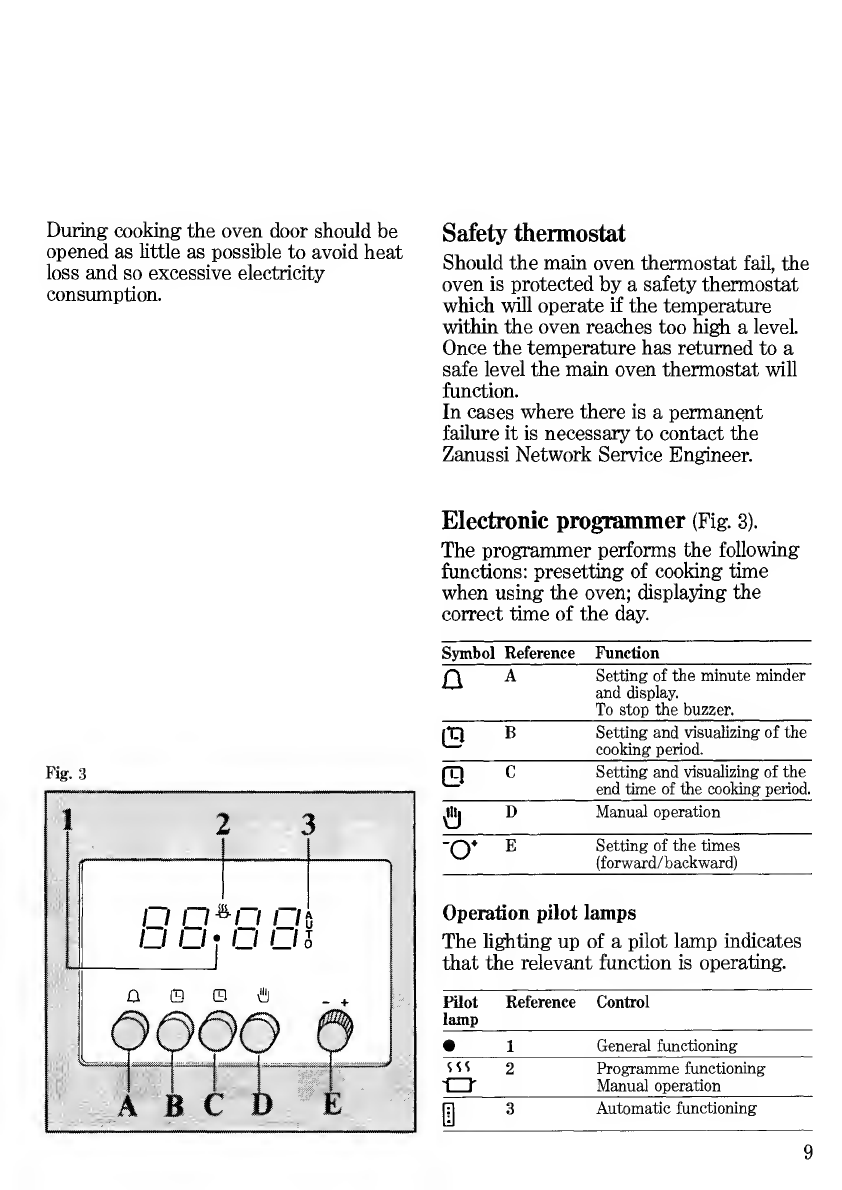

Electronic programmer (Fig. 3).
The programmer performs the following
functions: presetting of cooking time
when using the oven; displaying the
correct time of the day.
Symbol Reference Function
a
A
Setting of the minute minder
and display.
To stop the buzzer.
©
B
Setting and visualizing of the
cooking period.
©
C
Setting and visualizing of the
end time of the cooking period.
a
D Manual operation
'O*
E
Setting of the times
(forward/backward)
Operation pilot lamps
The lighting up of a pilot lamp indicates
that the relevant function is operating.
Pilot
lamp
Reference Control
•
1
General functioning
2
Programme functioning
ini'
Manual operation
0
3
Automatic functioning
9

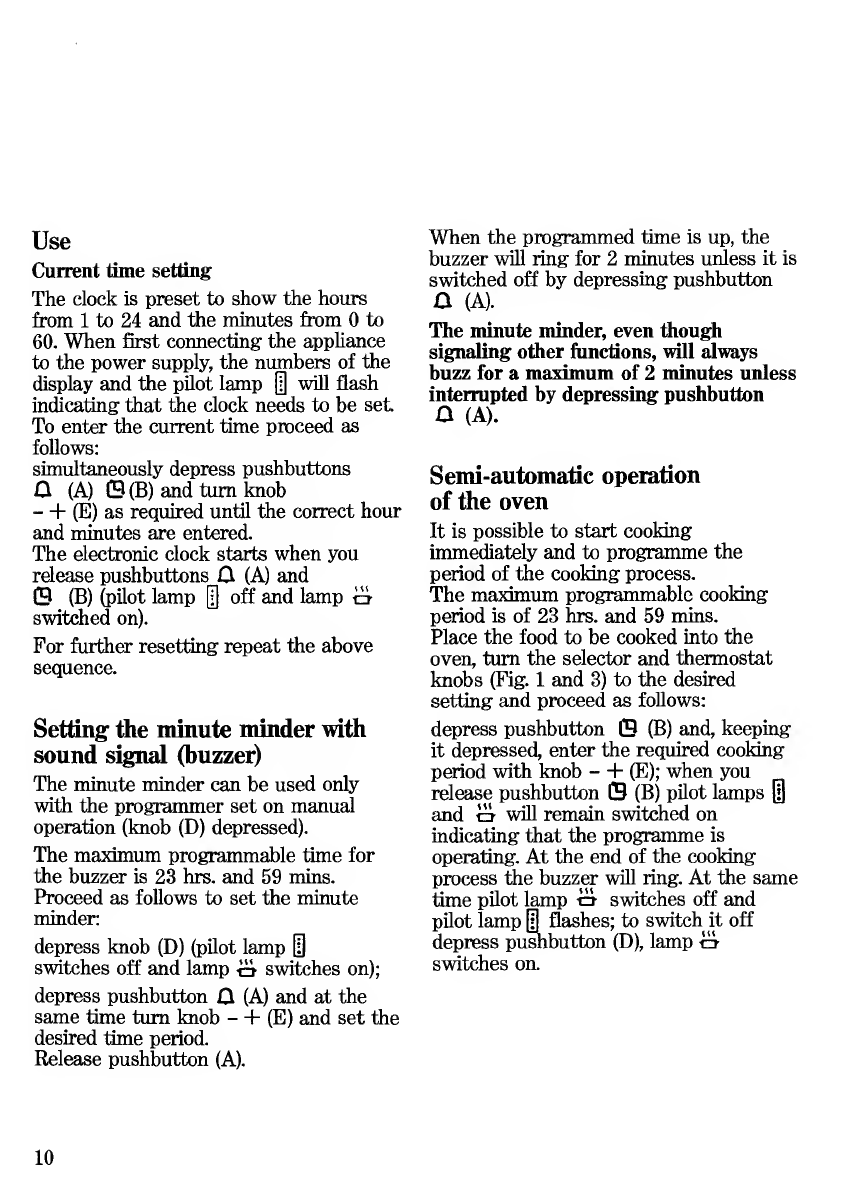

Use
Current time setting
The clock is preset to show the hours
from 1 to 24 and the minutes from 0 to
60. When first connecting the apphance
to the power supply, the numbers of the
display and the pilot lamp [j] will flash
indicating that tiie clock needs to be set
To enter the cmrent time proceed as
follows:
simultaneously depress pushbuttons
C (A) 0 (B) and turn knob
- + (E) as required until the correct hour
and minutes are entered.
The electronic clock starts when you
release pushbuttons 0 (A) and
O (B) (pilot lamp ^ off and lamp a
switched on).
For further resetting repeat the above
sequence.
Setting the minute minder with
sound signal (buzzer)
The minute minder can be used only
with the programmer set on manual
operation (knob (D) depressed).
The maximum programmable time for
the buzzer is 23 hrs. and 59 mins.
Proceed as follows to set the minute
minder:
depress knob (D) (pilot lamp [H
switches off and lamp S switches on);
depress pushbutton 0 (A) and at the
same time turn knob - + (E) and set the
desired time period.
Release pushbutton (A).
When the programmed time is up, the
buzzer will ring for 2 minutes uidess it is
switched off by depressing pushbutton
0 (A).
The minute minder, even though
signaling other functions, will always
buzz for a maximum of 2 minutes unless
interrupted by depressing pushbutton
0 (A).
Semi-automatic operation
of the oven
It is possible to start cooking
immediately and to programme the
period of the cooking process.
The maximirai programmable cooking
period is of 23 hrs. and 59 mins.
Place the food to be cooked into the
oven, turn the selector and thermostat
knobs (Fig. 1 and 3) to the desired
setting and proceed as follows:
depress pushbutton 0 (B) and, keeping
it depressed, enter the required cooking
period with knob - + (E); when you
release pushbutton 0 (B) pilot lamps [[)
and CT will remain switched on
indicating that the programme is
operating. At the end of the cooking
process the buzzer will ring. At the same
time pilot lamp S switches off and
pilot lamp d] flashes; to switch it off
depress pushbutton (D), lamp S
switches on.
10

Automatic operation of the oven
Cooking can be started and finished
automatically.
The maximum programmable cooking
period is of 23 hrs. and 59 mins.
Place the food to be cooked into the
oven, turn the selector and thermostat
knobs to the desired setting and proceed
as follows:
depress pushbutton 0 (C) and, keeping
it depressed, enter the required end time
of the cooking period with knob - +;
when you release pushbutton O (C)
pilot lamp ^ will remain switched on
indicating that the desired function has
been set
Depress pushbutton © (B) and, keeping
it depressed, enter the required cooking
period with knob - + (E); when you
release pushbutton Q (B) pilot lamp [H
will remain switched on and lamp a
switches off indicating that the
programme is operating.
When the cooking starts pilot lamp S
switches on, at the end of the cooking
period the buzzer will ring.
When the buzzer stops pilot lamp o
switches off. At the same time pilot
lamp [H flashes; to switch it off depress
pushbutton (D) (lamp -o- switches on).
Manual (non-automatic) operation
of the oven
The oven may be operated manually i.e.
without programming. In this case it is
necessary to depress pushbutton (D)
(pilot lamp [i] switches off and lamp S
switches on).
Power cuts
In case of a power cut aU data stored in
the programmer are cancelled
(Le. current time, presetting and
operating programmes).
’^en power is restored, the display
starts flashing (digits on zero) indicating
that it needs to be set
11

Cleaning the oven
Grease filter
When roasting meat, be sure to install
the special grease filter to protect the fan
in the rear wall of the oven from fat
splashes. After roasting is completed,
remove the grease filter and clean
thoroughly with warm soapy water. As it
is stainless steel you can safely wash it in
the dishwasher.
To remove the grease filter, pull up the
protruding tongue and then pull the filter
outwards removing it from the rear panel
(Fig. 4).
Glass door
This should be cleaned with a soft cloth
soaked in warm detergent water. Do not
use abrasive scourers or steel wool.
Shelves
To clean the chrome parts of the oven,
soak in warm detergent water and
remove stubborn marks with a well
wetted soap impregnated pad. Rinse well
and dry with a soft cloth. Do not use
abrasive scourers or steel wool.
Special oven linings
This oven is fitted with a set of coated
liners. These are known as «stay clean»
or «easy care».
To obtain the maximum efficiency from
your liners follow the guide lines carefully
for their use and care.
The linings are coated with a special
substance which helps to clean itself by a
process of oxidization. Although the
linings will not remain absolutely spotless
they will reduce your oven cleaning
chores considerably when used in the
correct way.
The linings work most effectively if the
splashes are kept to a minimum, and the
soil is not allowed to build up, as this will
retard the cleaning action. If the oven has
been used at low temperatures it is
advisable to wipe the soiled linings and
oven interior with a soapy cloth. The
linings should be rinsed with a clean
cloth and then the oven should be heated
for one hour on 200 “C. Never use
abrasive wools or pads or an aerosol oven
cleaner on the coated linings.
Fig. 4
12

If the panels become very soiled, use a
standard caustic product specially made
for cleaning ovens.
Before removing the back panel the oven
must be disconnected from the electricity
supply.
To remove the back panel use a
screwdriver (Fig. 6).
It is preferable/advisable to wipe the
oven over with a soft cloth soaked in
warm detergent water after each use.
However, from time to time it will be
necessaiy to do a more thorough
cleaning, using a proprietary oven
cleaner. Do not use aerosol oven cleaners,
abrasive scourers or steel wool.
Oven cavity
The enamelled oven cavity is best
cleaned whilst the oven is still warm.
The oven linings can be removed for a
more thorough cleaning of the oven
interior. To do this remove the side
panels after sliding them out of their
retaining pins (Fig. 5).
Fig. 5 Fig. 6
13

Replacing appliance components
Prior to undertaking any maintenance
work or replacing the oven lamp or grill
heating element, be sure to disconnect
the appliance from the electricity supply.
Oven lamp replacement
Push in and unscrew anticlockwise the
glass cap (fig. 7). Remove the faulty
bulb and replace with one that resists to
high temperatures (300°C). Electric bulb:
240y 50Hz, SOO^C, E14. Bulbs are
available from your Zanussi Service
Network.
Removing the oven door
1. Open the oven door so that it is in the
horizontal position.
2. With the aid of a coin move the two
retaining discs a quarter turn clockwise,
so that the two raised bars are to the left
hand side of the hinges (Fig. 8).
3. Raise the door halfway (Fig. 9).
4. At this stage the two hinges on either
side of the door must be clasped together
simultaneously. The door can then be
removed by pulling out and downwards,
maintaining the angle (Fig. 10).
Fig. 7
Fig. 8
14

To replace the door
1. Clasp the two hinges on either side of
the door together simultaneously.
2. Hook the top hinge into the top slot so
that the hook is engaged with the roller.
3. Drop the lower hinge into the lower
slot, so that the notch is engaged.
Drop the door down so it is in the
horizontal position.
Note: It is very important when carrying
out this operation that both hinges
should be located simultaneously.
4. T urn the retaining discs back a quarter
turn so that the two raised bars are
opposite the hinges.
The door can then be closed.
Fig. 9 Fig. 10
15

What happens if something goes wrong
If the oven does not come on when cooking manually, first check that the
programmer is set for manual, ie. in the { \lll) ) position.
If this is as it should be and the oven still does not come on:
a) Check that it is plugged in properly.
b) Check that the socket switch and/or switch from the supply to the oven are ON.
c) Replace the fuse in the plug, when present, with another of the appropriate rating
and check that this plug has been wired up properly.
d) Check that the socket, when present, is supplying power - do this by plugging in
another appliance that is known to be working properly.
e) Check that the fuse in the fuse box is intact.
If, after all these checks, the oven still does not work, send for your local Zanussi
network service centre listed in the telephone directoiy, under «Z».
It helps to jot down the name and address and telephone number in the space below.
Name
Address
Telephone number
m-GUARANTEE CUSTOMERS SHOULD ENSURE THAT THE ABOVE CHECKS
HAVE BEEN MADE AS THE ENGINEER WILL MAKE A CHARGE IF THE FAULT
IS NOT A MECHANICAL OR ELECTRICAL BREAKDOWN.
Please note that it will be necessary to provide proof of purchase for any in-guarantee
service calls.
16

Peace of mind for twelve months
ZANUSSI STANDARD GUARANTEE
CONDITIONS
This guarantee is in addition to your
statutory and other legal rights which
will not be excluded or in any way
diminished by the return of ^is
guarantee card.
We, Zanussi Ltd., undertake that if,
within twelve months of the date of the
prrrchase, this ZANUSSI appliance or any
part thereof is proved to be defective by
reason only of faulty workmanship or
materials, we wiU, at our option, repair or
replace the same FREE OF ANY
CHARGE for labour, materials or
carriage on condition that:
— The appliance has been correctly
installed and used only on the electricity
supply stated on the rating plate.
— The appliance has been used for
normal domestic purposes only, and in
accordance with the manufacturer’s
operating and maintenance instructions.
— The appliance has not been serviced,
maintained, repaired, taken apart or
tampered with by any person not
authorised by us.
— The appliance is still in the possession
of the original purchaser.
All service work imder this guarantee
must be undertaken by a Zanussi Service
Force Centre.
Any appliance or defective part replaced
shall become our property.
Exclusions
This guarantee does not cover:
— Damage or calls resulting from
transportation, improper use or neglect,
the replacement of any light bulbs or
removable parts of glass or plastic.
— Costs incurred for calls to put right
machines improperly installed or calls to
machines outside the United Kingdom.
— Appliances found to be in use within a
commercial environment, plus those which
are the subject of rental agreements.
— Products of Zanussi manufacture which
are NOT marketed by Zanussi Ltd.
— EEC Countries - the standard
guarantee is applicable but is subject to
the owner’s responsibility and cost to
ensure the appliance meets the standards
set by the country to which the product
is taken. The Zanussi company in the
country concerned will be pleased to
advise further. Sight of your purchase
receipt will be required by them.
17

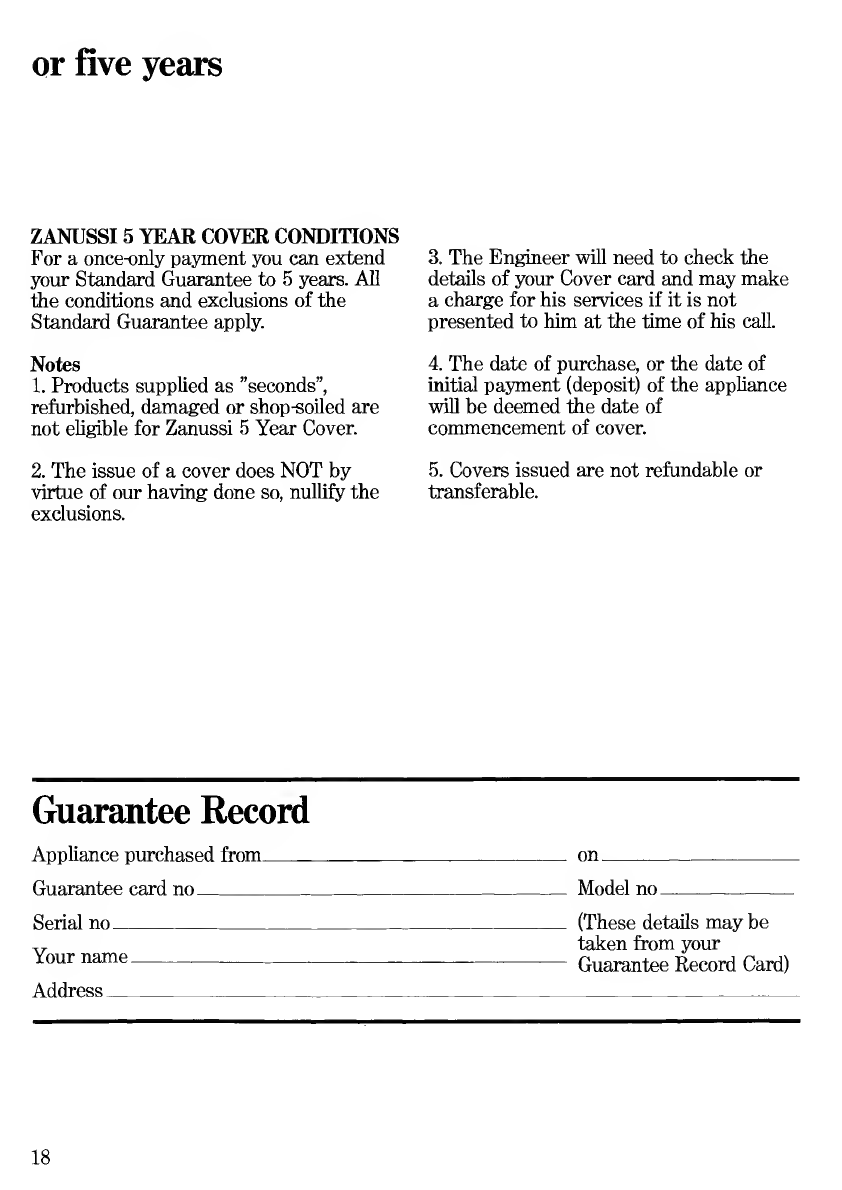

or five years
ZANUSSI 5 YEAR COVER CONDITIONS
For a once-only payment you can extend
your Standard Guarantee to 5 years. All
the conditions and exclusions of the
Standard Guarantee apply.
Notes
1. Products supphed as ’’seconds”,
refurbished, damaged or shop-soiled are
not ehgible for Zanussi 5 Year Cover.
2. The issue of a cover does NOT by
virtue of our having done so, nulhfy the
exclusions.
3. The Engineer will need to check the
details of your Cover card and may make
a charge for his services if it is not
presented to him at the time of his call.
4. The date of purchase, or the date of
initial payment (deposit) of the apphance
wiO be deemed the date of
commencement of cover.
5. Covers issued are not refundable or
transferable.
Guarantee Record
Appliance purchased from_
Guarantee card no_
Serial no_
Your name_
Address_
on_
Model no_
(These details may be
taken from your
Guarantee Record Card)
18

ZANUSSI
The appliance of science
Zanussi Ltd, Zanussi House, Newbury.
The information in this manual is correct at time of going to press
Zanussi reserve the right to alter specifications without notice.
9 10 11 12/91
27296 - 063-1
GFP/Pn (136"
