Zanussi ZOB25602 User manual

EN User manual 2
ES Manual de instrucciones 17
Oven
Horno
ZOB25602

Contents
Safety information _ _ _ _ _ _ _ _ _ _ _ _ _ _ 2
Safety instructions _ _ _ _ _ _ _ _ _ _ _ _ _ _ 3
Product description _ _ _ _ _ _ _ _ _ _ _ _ _ 5
Before first use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 5
Daily use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 6
Clock functions _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 7
Additional functions _ _ _ _ _ _ _ _ _ _ _ _ _ 8
Helpful hints and tips _ _ _ _ _ _ _ _ _ _ _ _ _ 8
Care and cleaning _ _ _ _ _ _ _ _ _ _ _ _ _ 12
What to do if… _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 14
Installation _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 14
Environment concerns _ _ _ _ _ _ _ _ _ _ _ 16
Subject to change without notice.
Safety information
Before the installation and use of the appliance, carefully read the
supplied instructions. The manufacturer is not responsible if an in-
correct installation and use causes injuries and damages. Always
keep the instructions with the appliance for future reference.
Children and vulnerable people safety
Warning! Risk of suffocation, injury or permanent disability.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental ca-
pabilities or lack of experience and knowledge if they are super-
vised by an adult or a person who is responsible for their safety.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep children and pets away from the appliance when it operates
or when it cools down. Accessible parts are hot.
• If the appliance has a child safety device, we recommend that you
activate it.
• Cleaning and user maintenance shall not be made by children
without supervision.
General Safety
• Internally the appliance becomes hot when in operation. Do not
touch the heating elements that are in the appliance. Always use
oven gloves to remove or put in accessories or ovenware.
• Do not use a steam cleaner to clean the appliance.
2
www.zanussi.com

• Before maintenance cut the power supply.
• Do not use harsh abrasive cleaners or sharp metal scrapers to
clean the glass door since they can scratch the surface, which
may result in shattering of the glass.
• To remove the shelf supports first pull the front of the shelf sup-
port and then the rear end away from the side walls. Install the
shelf supports in the opposite sequence.
Safety instructions
Installation
Warning! Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied
with the appliance.
• Always be careful when you move the appli-
ance because it is heavy. Always wear safety
gloves.
• Do not pull the appliance by the handle.
• Keep the minimum distance from the other
appliances and units.
• Make sure that the appliance is installed be-
low and adjacent safe structures.
• The sides of the appliance must stay adja-
cent to appliances or to units with the same
height.
Electrical connection
Warning! Risk of fire and electrical shock.
• All electrical connections should be made by
a qualified electrician.
• The appliance must be earthed.
• Make sure that the electrical information on
the rating plate agrees with the power sup-
ply. If not, contact an electrician.
• Always use a correctly installed shockproof
socket.
• Do not use multi-plug adapters and exten-
sion cables.
• Make sure not to cause damage to the mains
plug and to the mains cable. Contact the
Service or an electrician to change a dam-
aged mains cable.
• Do not let mains cables to come in touch
with the appliance door, specially when the
door is hot.
• The shock protection of live and insulated
parts must be fastened in such a way that it
cannot be removed without tools.
• Connect the mains plug to the mains socket
only at the end of the installation. Make sure
that there is access to the mains plug after
the installation.
• If the mains socket is loose, do not connect
the mains plug.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains plug.
• Use only correct isolation devices: line pro-
tecting cut-outs, fuses (screw type fuses re-
moved from the holder), earth leakage trips
and contactors.
• The electrical installation must have an isola-
tion device which lets you disconnect the ap-
pliance from the mains at all poles. The isola-
tion device must have a contact opening
width of minimum 3 mm.
Use
Warning! Risk of injury, burns or electric
shock or explosion.
• Use this appliance in a household environ-
ment.
3
www.zanussi.com

• Do not change the specification of this appli-
ance.
• Make sure that the ventilation openings are
not blocked.
• Do not let the appliance stay unattended
during operation.
• Deactivate the appliance after each use.
• Be careful, when you open the appliance
door while the appliance is in operation. Hot
air can release.
• Do not operate the appliance with wet hands
or when it has contact with water.
• Do not apply pressure on the open door.
• Do not use the appliance as a work surface
or as a storage surface.
• Always keep the appliance door closed when
the appliance is in operation.
• Open the appliance door carefully. The use
of ingredients with alcohol can cause a mix-
ture of alcohol and air.
• Do not let sparks or open flames to come in
contact with the appliance when you open
the door.
• Do not put flammable products or items that
are wet with flammable products in, near or
on the appliance.
Warning! Risk of damage to the
appliance.
• To prevent damage or discoloration to the
enamel:
– Do not put ovenware or other objects in
the appliance directly on the bottom.
– Do not put aluminium foil directly on the
bottom of the appliance.
– do not put water directly into the hot appli-
ance.
– do not keep moist dishes and food in the
appliance after you finish the cooking.
– be careful when you remove or install the
accessories.
• Discoloration of the enamel has no effect on
the performance of the appliance. It is not a
defect in the sense of the warranty law.
• Use a deep pan for moist cakes. Fruit juices
cause stains that can be permanent.
Care and Cleaning
Warning! Risk of injury, fire or damage to
the appliance.
• Before maintenance, deactivate the appli-
ance and disconnect the mains plug from the
mains socket.
• Make sure the appliance is cold. There is the
risk that the glass panels can break.
• Replace immediately the door glass panels
when they are damaged. Contact the Serv-
ice.
• Be careful when you remove the door from
the appliance. The door is heavy!
• Clean regularly the appliance to prevent the
deterioration of the surface material.
• Remaining fat or food in the appliance can
cause fire.
• Clean the appliance with a moist soft cloth.
Only use neutral detergents. Do not use
abrasive products, abrasive cleaning pads,
solvents or metal objects.
• If you use an oven spray, obey the safety in-
structions on the packaging.
• Do not clean the catalytic enamel (if applica-
ble) with any kind of detergent.
Internal light
• The type of light bulb or halogen lamp used
for this appliance, is only for household appli-
ances. Do not use it for house lighting.
Warning! Risk of electrical shock.
• Before replacing the lamp, disconnect the
appliance from the power supply.
• Only use lamps with the same specifications.
Disposal
Warning! Risk of injury or suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent children
and pets to get closed in the appliance.
4
www.zanussi.com

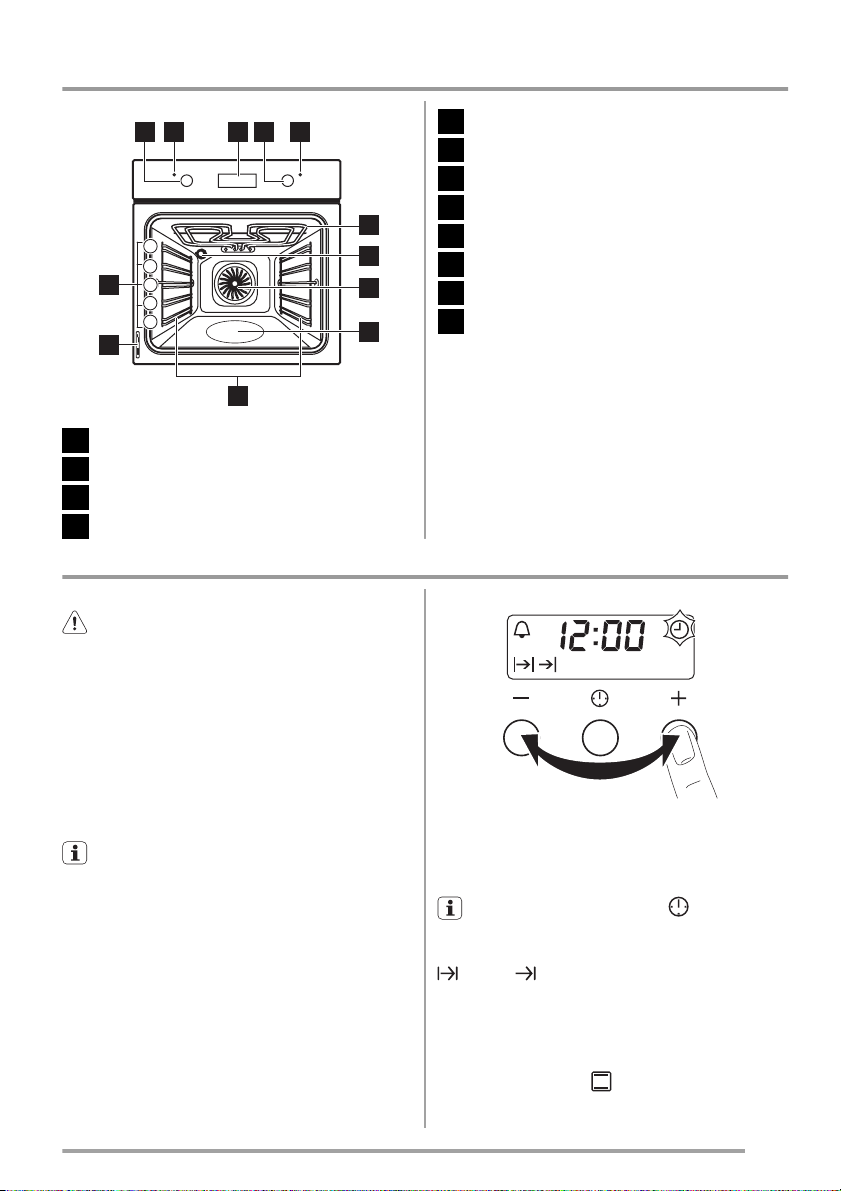

Product description
7
6
12
11
10
5
4
1
2
3
3 52 41
8
9
1Knob for the oven functions
2Power indicator
3Electronic programmer
4Knob for the temperature
5Temperature indicator
6Grill
7Oven lamp
8Fan
9Aqua cleaning container
10 Shelf support, removable
11 Rating plate
12 Shelf positions
Oven accessories
•Wire shelf
For cookware, cake tins, roasts.
•Aluminium baking tray
For cakes and biscuits.
•Grill- / Roasting pan
To bake and roast or as pan to collect fat.
Before first use
Warning! Refer to the Safety chapters.
Initial cleaning
• Remove all accessories and removable shelf
supports (if applicable).
• Clean the appliance before first use.
Important! Refer to the chapter "Care and
cleaning".
Setting the time
You must set the time before you operate
the oven.
When you connect the appliance to the electri-
cal supply or after a power cut, the indicator for
the Time of Day function flashes.
Press the +or -button to set the correct time.
After approximately five seconds, the flashing
stops and the display shows the time of day
you set.
To change the time, press again and
again until the indicator for the Time of Day
function flashes. You must not set the Duration
or End function at the same time.
Preheating
Preheat the empty appliance to burn off the re-
maining grease.
1. Set the function and the maximum tem-
perature.
5
www.zanussi.com

2. Let the appliance operate for 45 minutes.
3. Set the function and the maximum tem-
perature.
4. Let the appliance operate for 15 minutes.
Accessories can become hotter than usually.
The appliance can emit an odour and smoke.
This is normal. Make sure that the airflow is suf-
ficient.
Daily use
Warning! Refer to the Safety chapters.
To use the appliance, push the knob. The knob
comes out.
Activating and deactivating the appliance
1. Turn the knob for the oven functions to an
oven function.
The power indicator comes on while the
appliance operates.
2. Turn the knob for the temperature to a tem-
perature.
The temperature indicator comes on while
the temperature in the appliance increases.
3. To deactivate the appliance, turn the knob
for the oven functions and the knob for the
temperature to the Off position.

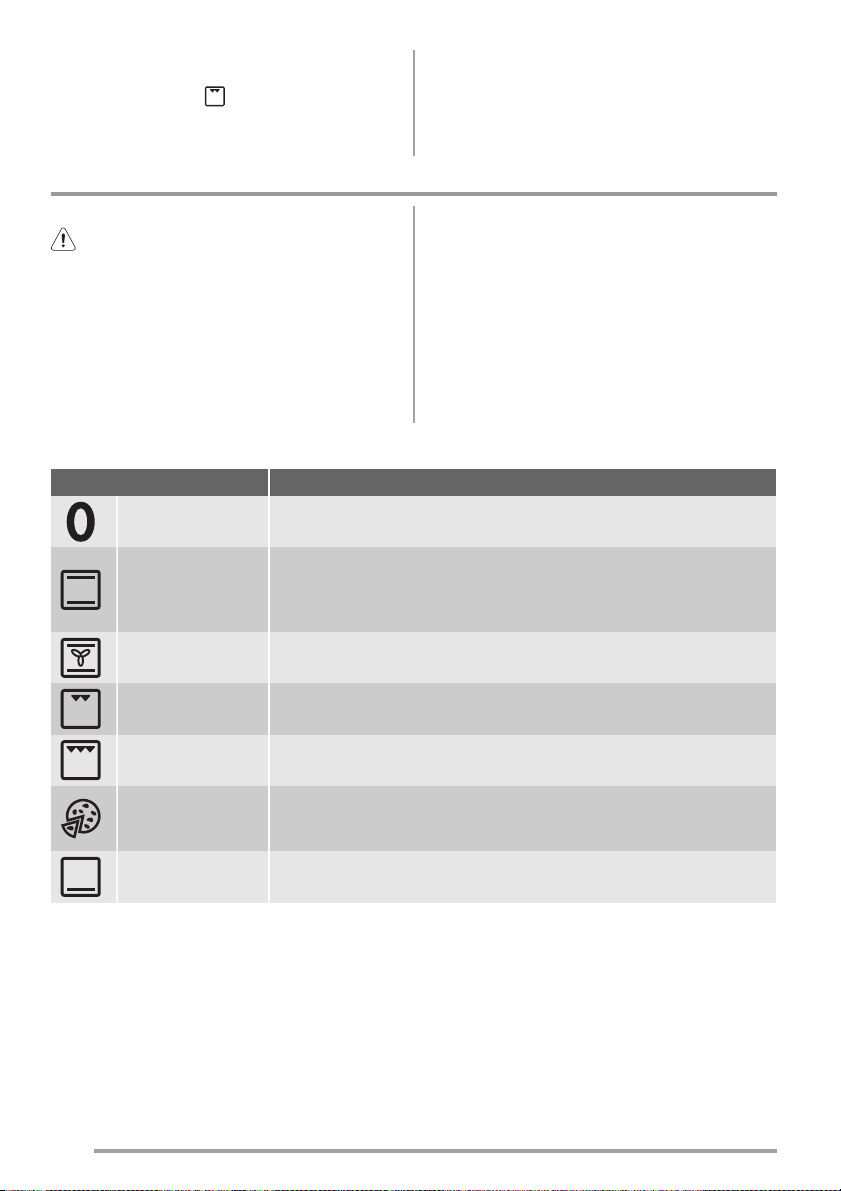

Oven functions
Oven function Application
Off position The appliance is off.
Conventional Cook-
ing / Aqua Cleaning
To bake and roast on one oven level. The top and bottom heating elements
operate at the same time.
For more information about Aqua Cleaning, refer to the chapter "Care and
cleaning".
Fan Cooking To roast or roast and bake food with the same cooking temperature, on
more than one shelf, without flavour transference.
Grilling To grill flat food items in small quantities in the middle of the shelf. To make
toast.
Fast Grilling To grill flat food items in large quantities. To make toast. The full grill ele-
ment operates.
Pizza Setting
To make pizza, quiche or pie. The grill and bottom element provide direct
heat and the fan circulates the hot air to cook the pizza toppings or pie fill-
ing.
Bottom Heat To bake cakes with crispy or crusty bottom. Only the bottom heating ele-
ment operates.
6
www.zanussi.com

Clock functions
Electronic programmer
345
2 11
1Function indicators
2Time display
3Button +
4Selection button
5Button -
Clock function Application
Time of day To set, change or check the time of day.
Minute Minder To set a countdown time. This function has no effect on the operation of
the oven.
Duration To set how long the appliance must operate.
End To set when the appliance must be deactivated.
You can use Duration and End at
the same time to set the time when the ap-
pliance must be activated and then deactivated.
First set Duration , then End .
Setting the clock functions
1. For Duration and End , set an oven
function and temperature. This is not nec-
essary for the Minute Minder .
2. Press the Selection button again and again
until the indicator for the necessary clock
function flashes.
3. Press +or -to set the time for the neces-
sary clock function.
The display shows the indicator for the
clock function you set. When the set time
ends, the indicator flashes and an acoustic
signal sounds for two minutes.
With the Duration and End func-
tions, the appliance deactivates automati-
cally.
7
www.zanussi.com

4. Press a button to stop the signal.
5. Turn the knob for the oven functions and
the knob for the temperature to the off po-
sition.
Cancelling the clock functions
1. Press the Selection button again and again
until the necessary function indicator flash-
es.
2. Press and hold the button -.
The clock function goes out after some
seconds.
Additional functions
Cooling fan
When the appliance operates, the cooling fan
activates automatically to keep the surfaces of
the appliance cool. If you deactivate the appli-
ance, the cooling fan continues to operate until
the temperature in the appliance cools down.
Safety thermostat
Incorrect operation of the appliance or defec-
tive components can cause dangerous over-
heating. To prevent this, the oven has a safety
thermostat which interrupts the power supply.
The oven activates again automatically when
the temperature drops.
Helpful hints and tips
• The appliance has five shelf levels. Count the
shelf levels from the bottom of the appliance
floor.
• The appliance has a special system which
circulates the air and constantly recycles the
steam. With this system you can cook in a
steamy environment and keep the food soft
inside and crusty outside. It decreases the
cooking time and energy consumption to a
minimum.
• Moisture can condense in the appliance or
on the door glass panels. This is normal. Al-
ways stand back from the appliance when
you open the appliance door while cooking.
To decrease the condensation, operate the
appliance for 10 minutes before cooking.
• Clean the moisture after each use of the ap-
pliance.
• Do not put the objects directly on the appli-
ance floor and do not put aluminium foil on
the components when you cook. This can
change the baking results and cause dam-
age to the enamel.
Baking cakes
• Do not open the oven door before 3/4 of the
set cooking time is up.
• If you use two baking trays at the same time,
keep one empty level between them.
Cooking meat and fish
• Use a deep pan for very fatty food to prevent
the oven from stains that can be permanent.
• Leave the meat for approximately 15 minutes
before carving so that the juice does not
seep out.
• To prevent too much smoke in the oven dur-
ing roasting, add some water into the deep
pan. To prevent the smoke condensation,
add water each time after it dries up.
Cooking times
Cooking times depend on the type of food, its
consistency, and volume.
Initially, monitor the performance when you
cook. Find the best settings (heat setting, cook-
ing time, etc.) for your cookware, recipes and
quantities when you use this appliance.
8
www.zanussi.com

Baking and roasting table
CAKES
TYPE OF DISH
Conventional Cook-
ing Fan Cooking Cooking
time [min] Notes
Shelf posi-
tion
Temp
[°C]
Shelf posi-
tion
Temp
[°C]
Whisked recipes 2170 3160 45 - 60 In a cake mould
Shortbread
dough
2170 3160 20 - 30 In a cake mould
Buttermilk
cheesecake
1170 1160 70 - 80 In a 26 cm cake
mould on a wire
shelf
Apple cake (Ap-
ple pie)
2170 2 (left and
right)
160 80 - 100 In two 20 cm cake
moulds on a wire
shelf
1)
Strudel 3175 2150 60 - 80 In a baking tray
Jam-tart 2170 2 (left and
right)
165 30 - 40 In a 26 cm cake
mould
Sponge cake 2170 2160 50 - 60 In a 26 cm cake
mould
Christmas cake /
Rich fruit cake
2170 2150 90 - 120 In a 20 cm cake
mould
1)
Plum cake 1175 2160 50 - 60 In a bread tin
1)
Small cakes -
one level
3170 3140 -
150
20 - 30 In a baking tray
Small cakes -
two levels
- - 2 and 4 140 -
150
25 - 35 In a baking tray
Biscuits / pastry
strips - one level
3140 3140 -
150
30 - 35 In a baking tray
Biscuits / pastry
strips - two lev-
els
- - 2 and 4 140 -
150
35 - 40 In a baking tray
Meringues 3120 3120 80 - 100 In a baking tray
Buns 3190 3180 15 - 20 In a baking tray
1)
Eclairs 3190 3170 25 - 35 In a baking tray
Plate tarts 2180 2170 45 - 70 In a 20 cm cake
mould
Rich fruit cake 1160 2150 110 - 120 In a 24 cm cake
mould
Victoria sand-
wich
1170 1160 50 - 60 In a 20 cm cake
mould
1)
1) Preheat the oven for 10 minutes.
9
www.zanussi.com

BREAD AND PIZZA
TYPE OF DISH
Conventional Cook-
ing Fan Cooking Cooking
time [min] Notes
Shelf posi-
tion
Temp
[°C]
Shelf posi-
tion
Temp
[°C]
White bread 1190 1190 60 - 70 1 - 2 pieces, 500
gr per piece
1)
Rye bread 1190 1180 30 - 45 In a bread tin
Pizza 1230 -
250
1230 -
250
10 - 20 In a baking tray or
a deep pan
1)
Scones 3200 3190 10 - 20 In a baking tray
1)
1) Preheat for 10 minutes.
FLANS
TYPE OF DISH
Conventional Cook-
ing Fan Cooking Cooking
time [min] Notes
Shelf posi-
tion
Temp
[°C]
Shelf posi-
tion
Temp
[°C]
Pasta flan 2200 2180 40 - 50 In a mould
Vegetable flan 2200 2175 45 - 60 In a mould
Quiches 1180 1180 50 - 60 In a mould
1)
Lasagne 2180 -
190
2180 -
190
25 - 40 In a mould
1)
Cannelloni 2180 -
190
2180 -
190
25 - 40 In a mould
1)
1) Preheat for 10 minutes.
MEAT
TYPE OF DISH
Conventional Cook-
ing Fan Cooking Cooking
time [min] Notes
Shelf posi-
tion
Temp
[°C]
Shelf posi-
tion
Temp
[°C]
Beef 2200 2190 50 - 70 On a wire shelf
Pork 2180 2180 90 - 120 On a wire shelf
Veal 2190 2175 90 - 120 On a wire shelf
English roast
beef, rare
2210 2200 50 - 60 On a wire shelf
English roast
beef, medium
2210 2200 60 - 70 On a wire shelf
English roast
beef, well done
2210 2200 70 - 75 On a wire shelf
10
www.zanussi.com

TYPE OF DISH
Conventional Cook-
ing Fan Cooking Cooking
time [min] Notes
Shelf posi-
tion
Temp
[°C]
Shelf posi-
tion
Temp
[°C]
Shoulder of pork 2180 2170 120 - 150 With rind
Shin of pork 2180 2160 100 - 120 Two pieces
Lamb 2190 2175 110 - 130 Leg
Chicken 2220 2200 70 - 85 Whole
Turkey 2180 2160 210 - 240 Whole
Duck 2175 2220 120 - 150 Whole
Goose 2175 1160 150 - 200 Whole
Rabbit 2190 2175 60 - 80 Cut in pieces
Hare 2190 2175 150 - 200 Cut in pieces
Pheasant 2190 2175 90 - 120 Whole
FISH
TYPE OF DISH
Conventional Cook-
ing Fan Cooking Cooking
time [min] Notes
Shelf posi-
tion
Temp
[°C]
Shelf posi-
tion
Temp
[°C]
Trout / Sea
bream
2190 2175 40 - 55 3 - 4 fish
Tuna fish / Sal-
mon
2190 2175 35 - 60 4 - 6 fillets
Grilling Preheat the empty oven for 10 minutes,
before cooking.
Quantity Grilling Cooking time [min]
TYPE OF DISH Pieces [g] Shelf posi-
tion
Temp [°C] 1st side 2nd side
Fillet steaks 4800 4max. 12 - 15 12 - 14
Beef steaks 4600 4max. 10 - 12 6 - 8
Sausages 8 - 4 max. 12 - 15 10 - 12
Pork chops 4600 4max. 12 - 16 12 - 14
Chicken (cut in 2) 21000 4max. 30 - 35 25 - 30
Kebabs 4 - 4 max. 10 - 15 10 - 12
Breast of chicken 4400 4max. 12 - 15 12 - 14
Hamburger 6600 4max. 20 - 30 -
Fish fillet 4400 4max. 12 - 14 10 - 12
Toasted sandwiches 4 - 6 - 4 max. 5 - 7 -
11
www.zanussi.com

Quantity Grilling Cooking time [min]
TYPE OF DISH Pieces [g] Shelf posi-
tion
Temp [°C] 1st side 2nd side
Toast 4 - 6 - 4 max. 2 - 4 2 - 3
Care and cleaning
Warning! Refer to the Safety chapters.
• Clean the front of the appliance with a soft
cloth with warm water and a cleaning agent.
• To clean metal surfaces use a usual cleaning
agent.
• Clean the oven interior after each use. Then
you can remove dirt more easily and it does
not burn on.
• Clean stubborn dirt with a special oven
cleaner.
• Clean all oven accessories after each use
and let them dry. Use a soft cloth with warm
water and a cleaning agent.
• If you have nonstick accessories, do not
clean them using aggressive agents, sharp-
edged objects or a dishwasher. It can de-
stroy nonstick coating.
Stainless steel or aluminium applian-
ces:
Clean the oven door with a wet sponge only.
Dry it with a soft cloth.
Do not use steel wool, acids or abrasive materi-
als, as they can cause damage to the oven sur-
face. Clean the oven control panel with the
same precautions.
Cleaning the door gasket
• Regularly do a check of the door gasket. The
door gasket is around the frame of the oven
cavity. Do not use the appliance if the door
gasket is damaged. Contact the Service
Centre.
• To clean the door gasket, refer to the general
information about cleaning.
Shelf supports
You can remove the shelf supports to clean the
side walls.

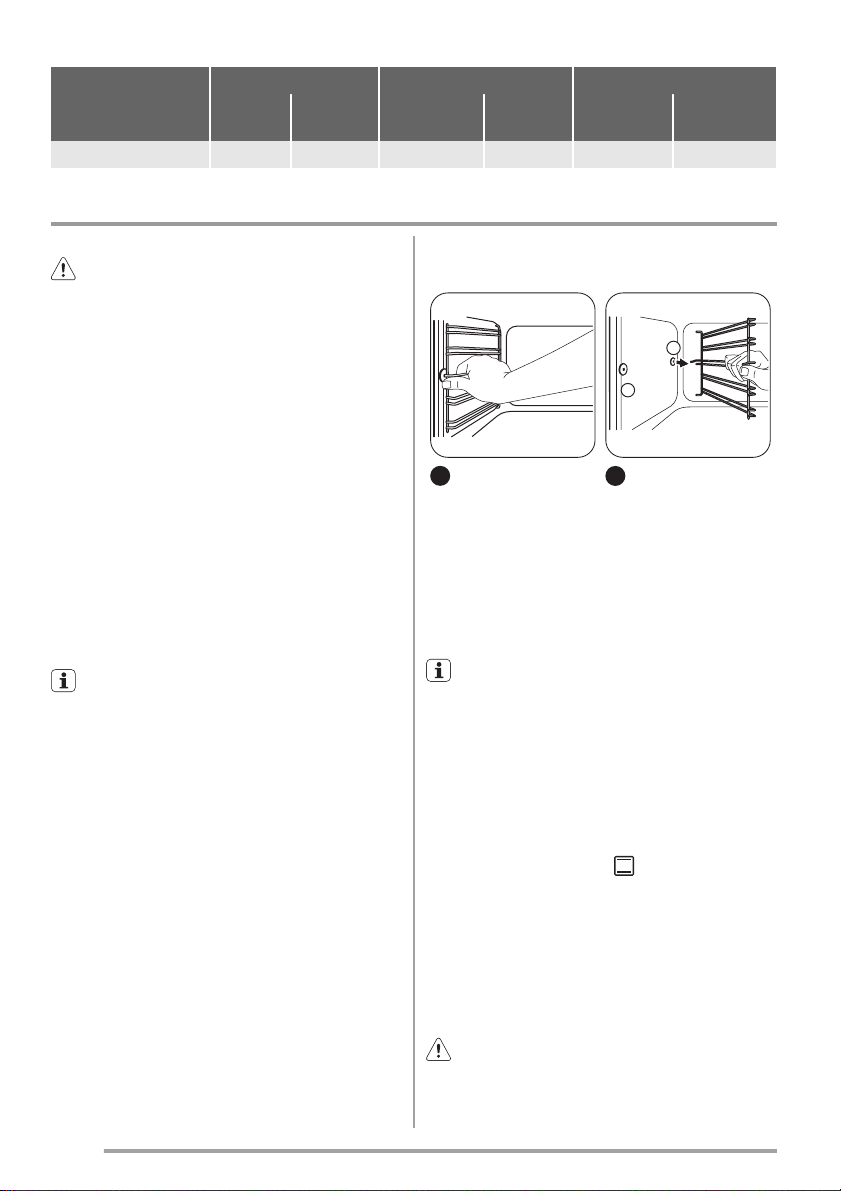

Removing the shelf supports
1
Pull the front of
the shelf support
away from the side
wall.
2
1
2
Pull the rear end
of the shelf support
away from the side
wall and remove it.
Installing the shelf supports
Install the shelf supports in the opposite se-
quence.
The rounded ends of the shelf supports
must point to the front.
Aqua cleaning
The Aqua cleaning procedure uses steam to
help remove remaining fat and food particles
from the oven.
1. Put 300 ml of water into the Aqua cleaning
container at the bottom of the oven.
2. Set the oven function .
3. Set the temperature to 90 °C.
4. Let the appliance operate for 30 minutes.
5. Deactivate the appliance and let it cool
down.
6. When the appliance is cool, clean the inner
surfaces of the oven with a cloth.
Warning! Make sure that the appliance is
cool before you touch it. There is a risk of
burns.
12
www.zanussi.com

Oven lamp
Warning! Be careful when you change
the oven lamp. There is a risk of electrical
shock.
Before you change the oven lamp:
• Deactivate the oven.
• Remove the fuses in the fuse box or deacti-
vate the circuit breaker.
Put a cloth on the bottom of the oven to
prevent damage to the oven light and
glass cover.
Always hold the halogen lamp with a cloth to
prevent grease residue from burning on the
lamp.
1. Turn the glass cover counterclockwise to
remove it.
2. Clean the glass cover.
3. Replace the oven light bulb with an appli-
cable 300 °C heat-resistant oven light
bulb.
Use the same oven lamp type.
4. Install the glass cover.

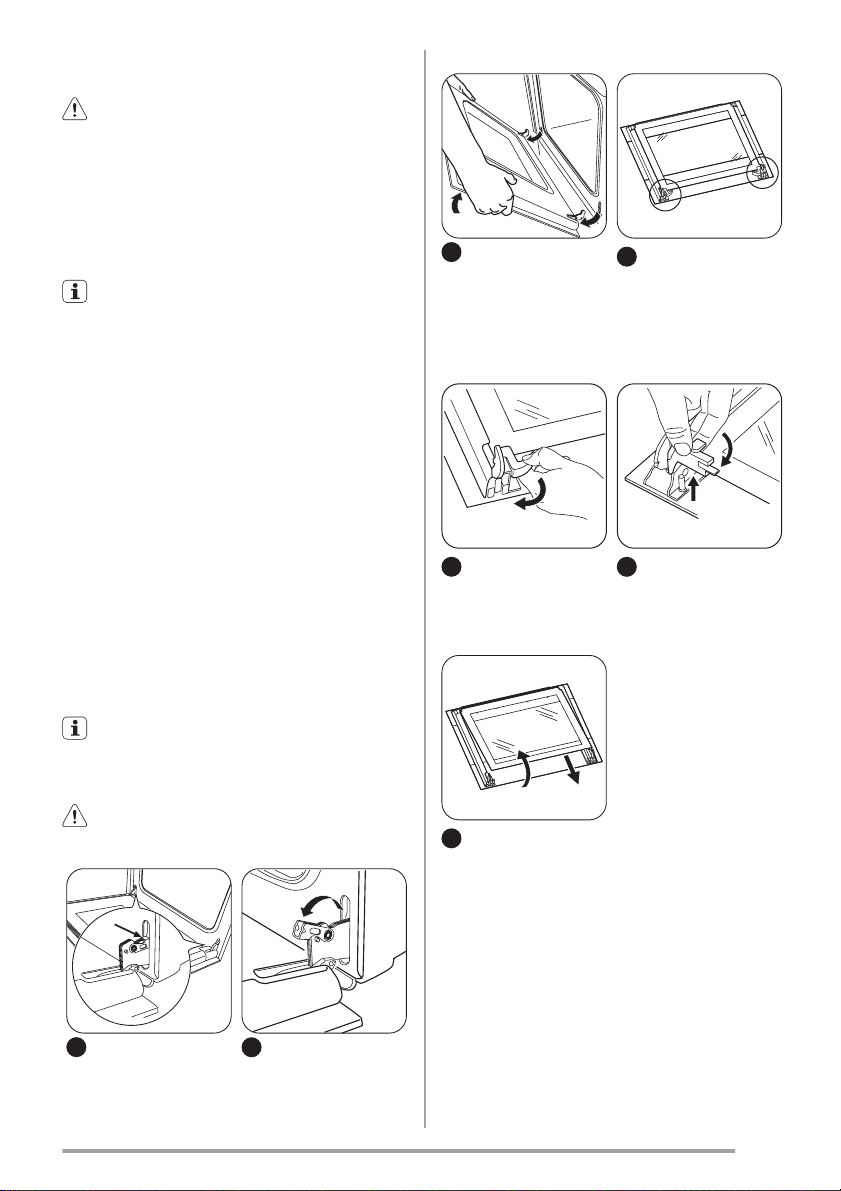

Cleaning the oven door
The oven door has two glass panels. You can
remove the oven door and the internal glass
panel to clean it.
The oven door can close if you try to re-
move the internal glass panel before you
remove the oven door.
Caution! Do not use the appliance
without the glass panels.
1
Open the door
fully and hold the two
door hinges.
2
Lift and turn the
levers on the two
hinges.
3
Close the oven
door to the first open-
ing position (halfway).
Then pull forward and
remove the door from
its seat.
4
Put the door on a
soft cloth on a stable
surface.
5
Release the lock-
ing system to remove
the internal glass
panel.
90°
6
Turn the two fas-
teners by 90° and re-
move them from their
seats.
12
7

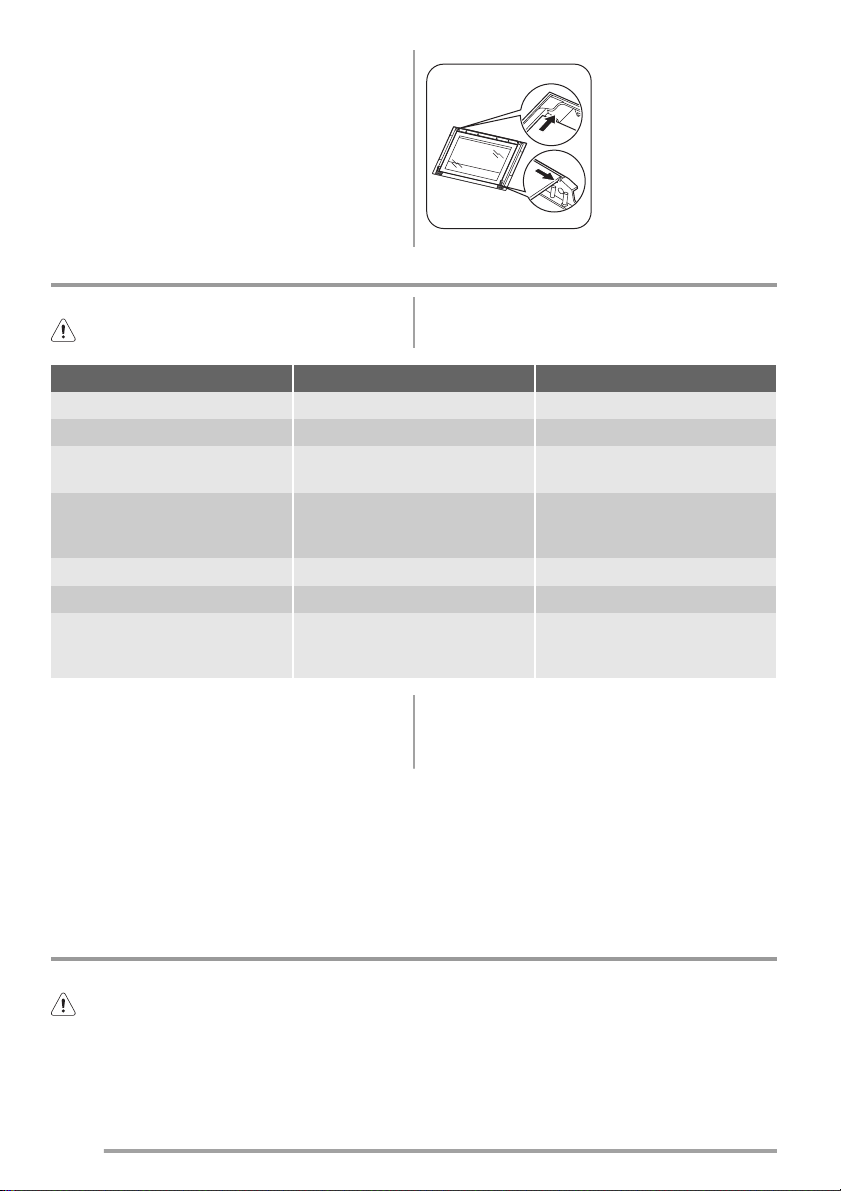

Carefully lift (step
1) and remove (step
2) the glass panel.
Clean the glass panel with water and soap. Dry
the glass panel carefully.
Installing the door and the glass panel
When the cleaning is completed, install the
glass panel and the oven door. Do the above
steps in the opposite sequence.
The screen-printing zone must face the inner
side of the door. Make sure that after the instal-
13
www.zanussi.com

lation the surface of the glass panel frame on
the screen-printing zones is not rough when
you touch it.
Make sure that you install the internal glass
panel in the seats correctly. Refer to the illustra-
tion.
What to do if…
Warning! Refer to the Safety chapters.
Problem Possible cause Remedy
The oven does not heat up. The appliance is deactivated. Activate the appliance.
The oven does not heat up. The clock is not set. Set the clock.
The oven does not heat up. The necessary settings are not
set.
Make sure that the settings are
correct.
The oven does not heat up. The fuse in the fuse box is re-
leased.
Do a check of the fuse. If the fuse
is released more than one time,
contact a qualified electrician.
The oven lamp does not operate. The oven lamp is defective. Replace the oven lamp.
The display shows 12.00.There was a power cut. Set the clock.
Steam and condensation settle on
the food and in the oven.
You left the dish in the oven for
too long.
Do not keep the dishes in the
oven for longer than 15 - 20 mi-
nutes after the cooking ends.
If you cannot find a solution to the problem
yourself, contact your dealer or the service cen-
tre.
The necessary data for the service centre is on
the rating plate. The rating plate is on the front
frame of the appliance cavity.
We recommend that you write the data here:
Model (MOD.) .........................................
Product number (PNC) .........................................
Serial number (S.N.) .........................................
Installation
Warning! Refer to the Safety chapters.
14
www.zanussi.com

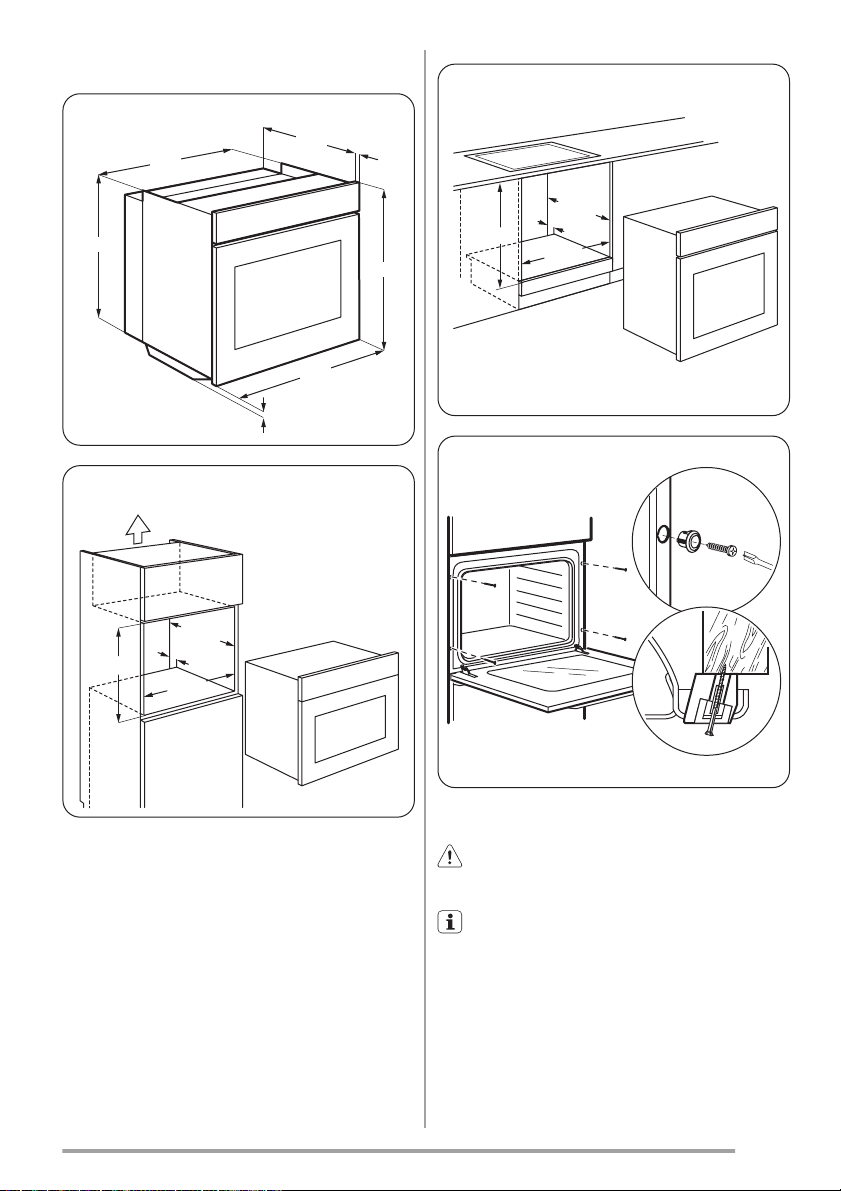

Building In
573
594
5
589
558
548 20
min. 550
20
590
min. 560
min. 550
min. 560
600
20
A
B
Electrical installation
Warning! Only a qualified person must do
the electrical installation.
The manufacturer is not responsible if you
do not follow the safety precautions from
the chapter "Safety Information".
This appliance is only supplied with a main ca-
ble.
Cable
Cable types applicable for installation or re-
placement: H07 RN-F, H05 RN-F, H05 RRF,
H05 VV-F, H05 V2V2-F (T90), H05 BB-F.
15
www.zanussi.com

For the section of the cable refer to the total
power (on the rating plate) and to the table:
Total power Section of the cable
maximum 1380 W 3 x 0.75 mm²
maximum 2300 W 3 x 1 mm²
maximum 3680 W 3 x 1.5 mm²
The earth cord (green / yellow cable) must be 2
cm longer than phase and neutral cables (blue
and brown cables).
Environment concerns
The symbol on the product or on its
packaging indicates that this product may not
be treated as household waste. Instead it
should be taken to the appropriate collection
point for the recycling of electrical and
electronic equipment. By ensuring this product
is disposed of correctly, you will help prevent
potential negative consequences for the
environment and human health, which could
otherwise be caused by inappropriate waste
handling of this product. For more detailed
information about recycling of this product,
please contact your local council, your
household waste disposal service or the shop
where you purchased the product.
Packaging material
The packaging material is environmentally-
friendly and recyclable. Plastic parts are marked
with international abbreviations such as PE, PS,
etc. Dispose of the packaging material in the
containers provided for this purpose at your lo-
cal waste management facility.
16
www.zanussi.com

Índice de materias
Información sobre seguridad _ _ _ _ _ _ _ _ 17
Instrucciones de seguridad _ _ _ _ _ _ _ _ _ 18
Descripción del producto _ _ _ _ _ _ _ _ _ _ 20
Antes del primer uso _ _ _ _ _ _ _ _ _ _ _ _ 20
Uso diario _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 21
Funciones de reloj _ _ _ _ _ _ _ _ _ _ _ _ _ 22
Funciones adicionales _ _ _ _ _ _ _ _ _ _ _ 23
Consejos útiles _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 23
Mantenimiento y limpieza _ _ _ _ _ _ _ _ _ _ 27
Qué hacer si… _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 30
Instalación _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 30
Aspectos medioambientales _ _ _ _ _ _ _ _ 32
Salvo modificaciones.
Información sobre seguridad
Antes de instalar y utilizar el aparato, lea atentamente las instruccio-
nes facilitadas. El fabricante no se hace responsable de los daños y
lesiones causados por una instalación y uso incorrectos. Guarde
siempre las instrucciones junto con el aparato para futuras consul-
tas.
Seguridad de niños y personas vulnerables
Advertencia Existe riesgo de sufrir asfixia, lesiones o
incapacidad permanente.
• Este aparato puede ser utilizado por niños de 8 años en adelante
y por personas cuyas capacidades físicas, sensoriales o mentales
estén disminuidas o que carezcan de la experiencia y conocimien-
tos suficientes para manejarlo, siempre que cuenten con la super-
visión de una persona que se responsabilice de su seguridad.
• No deje que los niños jueguen con el aparato.
• Mantenga los materiales de embalaje alejados de los niños.
• Mantenga a los niños y mascotas alejados del aparato cuando es-
té funcionando o enfriándose. Las piezas de fácil acceso están
calientes.
• Si el aparato dispone de dispositivo de seguridad para niños, se
recomienda activarlo.
• Evite que un niño lleve a cabo la limpieza y el mantenimiento de
usuario sin la supervisión adecuada.
17
www.zanussi.com

Seguridad general
• El aparato se calienta cuando está en funcionamiento. No toque
las resistencias del aparato. Utilice siempre guantes de horno
cuando introduzca o retire accesorios o utensilios refractarios.
• No utilice un limpiador a vapor para limpiar el aparato.
• Antes de realizar tareas de mantenimiento, corte la corriente eléc-
trica.
• No utilice limpiadores abrasivos ásperos ni rascadores de metal
afilado para limpiar la puerta de cristal si no quiere arañar su su-
perficie, lo que podría hacer que el cristal se hiciese añicos.
• Para quitar los carriles laterales, tire primero del frontal del carril y
luego separe el extremo trasero de las paredes. Instale los carriles
de apoyo en el orden inverso.
Instrucciones de seguridad
Instalación
Advertencia Sólo un técnico cualificado
puede instalar el aparato.
• Retire todo el embalaje.
• No instale ni utilice un aparato dañado.
• Siga las instrucciones de instalación sumi-
nistradas con el aparato.
• El aparato es pesado, tenga cuidado siempre
cuando lo mueva. Utilice siempre guantes de
protección.
• No tire nunca del aparato sujetando el asa.
• Respete siempre la distancia mínima entre el
aparato y los demás electrodomésticos y
mobiliario.
• Asegúrese de que el aparato se instala de-
bajo y junto a estructuras seguras.
• Los laterales del aparato deben colocarse
junto a otros aparatos o muebles de la mis-
ma altura.
Conexión eléctrica
Advertencia Riesgo de incendios y
descargas eléctricas.
• Todas las conexiones eléctricas deben reali-
zarse por electricistas cualificados.
• El aparato debe quedar conectado a tierra.
• Asegúrese de que las especificaciones eléc-
tricas de la placa coinciden con las del sumi-
nistro eléctrico de su hogar. En caso contra-
rio, póngase en contacto con un electricista.
• Utilice siempre una toma con aislamiento de
conexión a tierra correctamente instalada.
• No utilice adaptadores de enchufes múltiples
ni cables prolongadores.
• Asegúrese de no provocar daños en el en-
chufe ni en el cable de red. Póngase en con-
tacto con un electricista o con el servicio
técnico para cambiar un cable de red daña-
do.
• Evite que el cable de red entre en contacto
con la puerta del aparato, especialmente si la
puerta está caliente.
• Los mecanismos de protección contra des-
cargas eléctricas de componentes con co-
rriente y aislados deben fijarse de forma que
no puedan aflojarse sin utilizar herramientas.
18
www.zanussi.com

• Conecte el enchufe a la toma de corriente
únicamente cuando haya terminado la insta-
lación. Asegúrese de tener acceso al enchu-
fe del suministro de red una vez instalado el
aparato.
• Si la toma de corriente está floja, no conecte
el enchufe.
• No desconecte el aparato tirando del cable
de conexión a la red. Tire siempre del enchu-
fe.
• Use únicamente dispositivos de aislamiento
correctos: línea con protección contra los
cortocircuitos, fusibles (tipo tornillo que pue-
dan retirarse del soporte), dispositivos de fu-
ga a tierra y contactores.
• La instalación eléctrica debe tener un dispo-
sitivo de aislamiento que permita desconec-
tar el aparato de todos los polos de la red. El
dispositivo de aislamiento debe tener una
apertura de contacto con una anchura míni-
ma de 3 mm.
Uso
Advertencia Existe riesgo de lesiones,
quemaduras, descargas eléctricas o
explosiones.
• Utilice este aparato en entornos domésticos.
• No cambie las especificaciones de este apa-
rato.
• Cerciórese de que los orificios de ventilación
no están obstruidos.
• No deje nunca el aparato desatendido mien-
tras funciona.
• Desactive el aparato después de cada uso.
• Tenga cuidado al abrir la puerta del aparato
cuando éste esté en funcionamiento. Pueden
liberarse vapores calientes.
• No utilice el aparato con las manos mojadas
ni cuando entre en contacto con el agua.
• No ejerza presión sobre la puerta abierta.
• No utilice el aparato como superficie de tra-
bajo ni de almacenamiento.
• Mantenga siempre cerrada la puerta del apa-
rato cuando éste esté en funcionamiento.
• Abra la puerta del aparato con cuidado. El
uso de ingredientes con alcohol puede ge-
nerar una mezcla de alcohol y aire.
• Procure que no haya chispas ni fuego en-
cendido cerca cuando se abra la puerta del
aparato.
• No coloque productos inflamables ni objetos
mojados con productos inflamables dentro,
cerca o encima del aparato.
Advertencia Podría dañar el aparato.
• Para evitar daños o decoloraciones del es-
malte:
– No coloque recipientes ni otros objetos di-
rectamente sobre la base del aparato.
– No coloque papel de aluminio directamen-
te sobre la base del aparato.
– No ponga agua directamente en el aparato
caliente.
– No deje platos húmedos ni comida en el
aparato una vez finalizada la cocción.
– Tenga cuidado al retirar o instalar los acce-
sorios.
• La pérdida de color del esmalte no afecta al
rendimiento del aparato. Por lo tanto, no re-
presenta ningún defecto en el sentido del
derecho de garantía.
• Use una bandeja honda para pasteles húme-
dos. Los jugos de frutas provocan manchas
que pueden ser permanentes.
Mantenimiento y limpieza
Advertencia Riesgo de lesiones, incendio
o de ocasionar daños al aparato.
• Antes de proceder con el mantenimiento,
apague el aparato y desconecte el enchufe
de la red.
• Asegúrese de que el aparato esté frío. Los
paneles de cristal pueden romperse.
• Cambie inmediatamente los paneles de cris-
tal de la puerta que estén dañados. Póngase
en contacto con el servicio técnico.
• Tenga mucho cuidado al desmontar la puerta
del aparato. ¡La puerta es muy pesada!
• Limpie periódicamente el aparato para evitar
el deterioro del material de la superficie.
19
www.zanussi.com

• Los restos de comida o grasa en el interior
del aparato podrían provocar un incendio.
• Limpie el aparato con un paño suave hume-
decido. Utilice sólo detergentes neutros. No
utilice productos abrasivos, estropajos duros,
disolventes ni objetos de metal.
• Si utiliza aerosoles de limpieza para hornos,
siga las instrucciones del envase.
• No limpie el esmalte catalítico (en su caso)
con ningún tipo de detergente.
Luz interna
• El tipo de bombilla o lámpara halógena utili-
zada para este aparato es específica para
aparatos domésticos. No debe utilizarse para
la iluminación doméstica.
Advertencia Riesgo de descargas
eléctricas.
• Antes de cambiar la bombilla, desconecte el
aparato del suministro de red.
• Utilice sólo bombillas con las mismas espe-
cificaciones.
Desecho
Advertencia Existe riesgo de lesiones o
asfixia.
• Desconecte el aparato de la red.
• Corte el cable de conexión a la red y desé-
chelo.
• Retire el pestillo de la puerta para evitar que
los niños y las mascotas queden encerrados
en el aparato.
Descripción del producto
7
6
12
11
10
5
4
1
2
3
3 52 41
8
9
1Mando de las funciones del horno
2Indicador del suministro eléctrico
3Programador electrónico
4Mando de temperatura
5Indicador de temperatura
6Grill
7Bombilla del horno
8Ventilador
9Contenedor de limpieza con agua
10 Carril de apoyo, extraíble
11 Placa de características
12 Posiciones de las parrillas
Accesorios del horno
•Parrilla
Para utensilios de cocina, pasteles en molde,
asados.
•Bandeja de repostería de aluminio
Para bizcochos y galletas.
•Grill / Bandeja de asar
Para hornear y asar o como grasera.
Antes del primer uso
Advertencia Consulte los capítulos sobre
seguridad.
Limpieza inicial
• Retire todos los accesorios y carriles latera-
les extraíbles (en su caso).
• Limpie el interior del aparato antes de utili-
zarlo por primera vez.
20
www.zanussi.com
