Zanussi ZEFSTV2001B User manual

For Customer Services & Spare Parts please call 0330 1230 597
Or visit us at www.zanussiheatingandcooling.uk
PLEASE RETAIN
FOR FUTURE REFERENCE
Model Number:
ZEFSTV2001B
This product is only suitable for well insulated spaces or
occasional use.
2KW Black Electric Stove Fire
User Guide

CONTENTS
2
Page(s)
Safety Instructions
3 - 5
Product Overview
6
Using
your Electric Stove 7-8
Cleaning
and Care 9
Problem
Solving 10
Guarantee
and Customer Services 11
Connection
to the Mains Supply 12
Information Requirements for Electric Local Space
Heaters
13-14
Notes
15
Disposal
Information 16

SAFETY INSTRUCTIONS
When using electrical appliances, basic safety precautions should always be observed,
including the following:
•Read all instructions.
•Check that the your mains voltage corresponds with the rating on the appliance.
•The appliance must not be left unattended while it is connected to the mains
supply.
•This appliance must be positioned upright on the floor away from curtains,
furniture or wall coverings and other flammable items.
•Do not touch hot surfaces. Use the handle or the controls.
•To protect against electrical shock do not immerse cord, plug, or appliance in
water or other liquid. Do not operate with wet hands.
•Do not let the cord hangover the edge of a worktop, table etc. or touch hot
surfaces.
•Do not operate any appliance with a damaged cord or plug, or after the appliance
malfunctions or is dropped or damaged in any manner. The supply cord cannot be
replaced. If the cord is damaged the appliance should be scrapped.
•The use of accessory attachments not recommended by the appliance
manufacturer may cause fire, electric shock or injury.
•This appliance must not be immersed
•To disconnect remove the plug from the mains outlet. Do not pull the plug out by
the cord.
•Never remove parts from the appliance, such as the feet, screws and so on.
•Never use the appliance near a bath, shower or a swimming pool.
•Never use the appliance on or near hot surface.
•Never move the appliance by pulling the cord.
•Never place flammable objects or clothing on top of the appliance.
•Never move the heater when it is operating. Turn the heater off before move it.
•Allow at least 15cm safe area around the appliance on the top, at the front and
sides to provide good air circulation.
•Prevent overheating of the appliance by keeping the air inlets and outlets clean
and free of anything that may cause blockage. Check all inlets and outlets from
time to time for accumulated dust. DO NOT COVER.
3
WARNING: In order to avoid overheating,
do not cover the heater.

SAFETY INSTRUCTIONS
•Never use the appliance in a room with explosive gas such as petrol, or while using
any kinds of flammable glues, sprays or solvents.
•The appliance must not be used with an extension lead.
•Do not place any part of your body near the air inlet, outlet or on the fins ,to avoid
personal injury, electric shock or fire.
•If overheating should occur, the built-in overheating safety device will shut the
appliance off.
•Caution: Some parts of this product can become very hot and cause burns.
Particular attention must be given when children vulnerable people are present.
•Do not insert any foreign objects into the grill.
•Keep all grills clear of any draped fabric or curtains.
•The appliance must not be located immediately below a mains socket. Do not use
the appliance with a programmer, timer or any other device that switches the
appliance on automatically. A fire risk exists if the appliance is covered or
positioned incorrectly.
•Do not operate this appliance for any thing other than its intended use.
•This appliance is not intended for commercial use
•This product is intended for household use only. Do not use outdoors.
•This product is only intended for heating.
•Warning: It is hazardous for anyone other than a competent person to carry out
any service or repair operation which involves the removal of a cover which gives
protection against exposure to electrical parts.
•Warning: Children should not use this appliance. Close supervision is necessary
when any appliances are used near children.
4
•This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of
the appliance in a safe way and understand the hazards involved. Children shall
not play with the appliance. Cleaning and user maintenance shall not be made by
children without supervision.
•Children of less than 3 years should be kept away unless continuously supervised.
•Children aged from 3 years and less than 8 years shall only switch on/off the
appliance provided that it has been placed or installed in its intended normal
operating position and they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the hazards involved. Children
aged from 3 years and less than 8 years shall not plug in, regulate and clean the
appliance or perform user maintenance.

SAFETY INSTRUCTIONS
•Warning: This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning use
of the appliance by a person responsible for their safety. Children should be
supervised to make sure that they do not play with the appliance.
•Warning: This heater is not equipped with a device to control the room
temperature. Do not use this heater in small rooms when they are occupied by
persons not capable of leaving the room on their own, unless constant supervision
is provided.
Electrical Safety
THIS APPLIANCE MUST BE PLUGGED INTO AN EARTHED SOCKET
•Before switching on, make sure that the voltage of your electricity supply is the
same as that indicated on the rating plate. This product is designed to operate on
220 –240V AC; 50Hz. Connection to any other power source may damage the unit.
•This product may be fitted with a non re-wireable plug. If it is necessary to change
the fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost
or damaged, the plug must not be used until a suitable replacement is obtained.
•If the plug has to be changed because it is not suitable for your socket, or becomes
damaged in any way, it should be cut off and an appropriate plug fitted. This should
be carried out by a qualified electrician. The plug removed must be disposed of
safely, as insertion into a 13 Amp socket is likely to cause an electrical hazard.
5

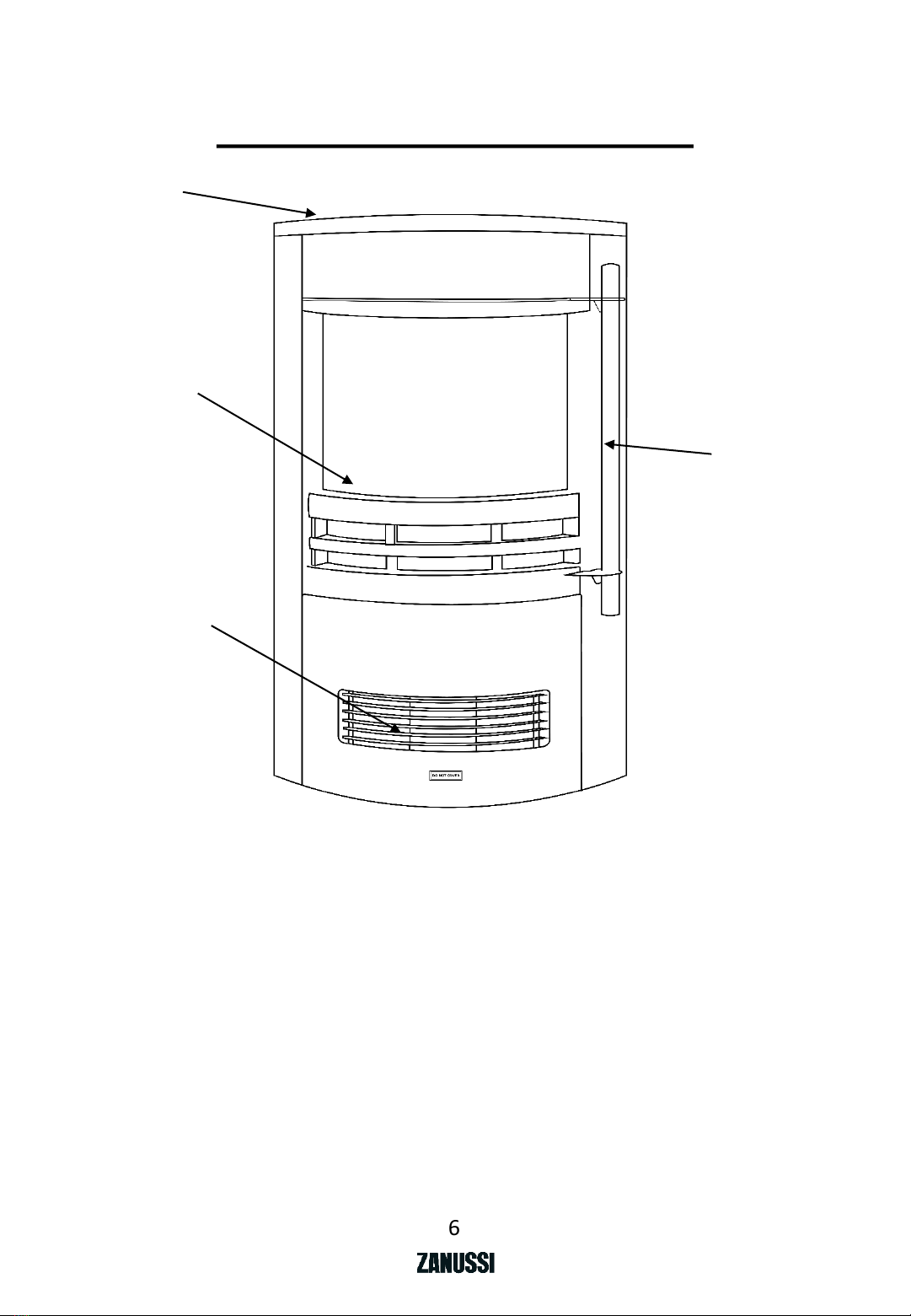

1. Top of the electric fire
2. Log effect fire bed
3. Air outlet
4. Handle
1
2
3
6
PRODUCT OVERVIEW
4

USING YOUR ELECTRIC STOVE
•Before connecting to the mains socket, position the appliance
away from curtains, furniture or wall coverings and other
flammable materials.
•Insert the mains plug into a suitable 13 Amp mains socket.
•To activate the heater, press ON/OFF switch to turn on the
heater.
•Turn Thermostat Control clockwise to increase the
temperature or turn anti-clockwise to decrease the
temperature.
•Press the ‘I’ switch for the low heat setting and then press the
‘II’ switch for the maximum heat setting.
Note: maximum heat can only be switched on when press ‘I’ and
then ‘II’ afterwards. If only press ‘II’, the maximum heat will not
work.
7
1. On/Off switch
2. Low heat setting ‘I’ 3. High heat setting ‘II’
4. Thermostat control dial
1234

Safety Protective Devices
The appliance is fitted with an over heat protection and safety
cut off system.
•Overheat protection - the power to the heating elements
will automatically cut off if the temperature of the heating
elements exceeds a certain limit. In the event of
overheating, the heater will stop operating. Switch the
appliance off and allow it to completely cool.
•This appliance is fitted with a safety cut-off which will
operate if the heater overheats (e.g. Due to blocked air
vents). For safety reasons, the heater will NOT
automatically reset. To reset the appliance, disconnect the
appliance from the mains supply for at least 15 minutes.
Reconnect the supply to the mains and switch on the
appliance.
8
USING YOUR ELECTRIC STOVE

CLEANING AND CARE
WARNING: Electrical Shock Hazard.
Before you clean the appliance, disconnect the mains plug from
the wall socket.
•Allow the appliance to cool down completely before
cleaning.
•Do not immerse cord, plug or appliance in any liquid or allow
moisture to come into contact with electrical parts.
•Clean the outer surface using a moist cloth and wipe over
with a dry, soft cloth.
•Do not use harsh detergents, abrasives or spray on cleaners.
•Don’t allow water to seep into the openings or come into
contact with electrical connections.
•Allow sufficient drying time before operating again.
•Clean the air inlets and outlets regularly with a vacuum
cleaner using the brush attachment (with a regular use, at
least twice a year).
•When the appliance is not in use. We recommend that, the
heater is re-packed in its original packaging and stored in a
cool, dry place.
9

PROBLEM SOLVING
My appliance does not work when I turn it on:
1. Check that your appliance is plugged in and the power is
turned on at the mains socket.
2. Try another mains socket.
3. Check the appliance is in an upright position.
4. Check that the thermostat setting has not been set too low.
5. If the appliance still doesn’t work, do not try to repair it
yourself.
If your appliance power is automatically cut off, follow the step
below:
1. Unplug your appliance from the mains socket and allow it to
completely cool down.
2. Inspect your appliance. Clean the air inlet and air outlet with
a vacuum cleaner if necessary. If there are any signs of
physical damage (e.g. melting, or burning of the case), do
not attempt to use the appliance. Please leave all
maintenance work to qualified personnel.
3. Plug in the appliance and switch it on again. If it cuts off
again, move the appliance to a better ventilated location.
Note: This appliance has LED light bulbs to create the flame
effect, therefore it should only be serviced by qualified
electricians.
10

At Zanussi, we take all our customer feedback seriously.
Feel free to contact our Customer Service Team on
0330 1230 597
who will be more than happy to assist you.
This product is guaranteed for 12 months from the date of the original
purchase. If any defect arises due to faulty materials or workmanship,
the faulty product must be returned to the place of purchase.
Refund or replacement is at the discretion of the retailer.
The following conditions apply:
• The product must be returned to the retailer with the original proof of
purchase.
• The product must be installed and used in accordance with the
instructions contained in this instruction guide and any other
instructions for use which are supplied.
• It must be used for domestic purposes only and for its intended use.
• This warranty does not cover wear and tear, damage, misuse or
consumable parts.
This does not affect your statutory rights.
GUARANTEE AND CUSTOMER
SERVICES
11

CONNECTION TO THE MAINS
SUPPLY
This appliance is designed to operate from a mains supply of
220-240V~50Hz.
Check that the voltage marked on the product corresponds
with your supply voltage.
How to change the fuse
1. Slot the end of a screwdriver into the recess in the fuse
holder of the plug.
2. Pull the fuse holder upwards until free of the plug and slide
the fuse out.
3. Replace the fuse and replace fuse holder, pushing down
until locked into place.
Important: Only ever use a 13 amp fuse.
12

13
Information Requirements for
Electric Local Space Heaters
Heat output Symbol Value Unit
Nominal heat output Pnom 2.0 kW
Minimum heat output (indicative) Pmin 1.0 kW
Maximum continuous heat output Pmax,c 2.0 kW
Type of heat output/room temperature control yes or no
single stage heat output and no room temperature control [no]
Two or more manual stages, no room temperature control [no]
with mechanic thermostat room temperature control [yes]
with electronic room temperature control [no]
electronic room temperature control plus day timer [no]
electronic room temperature control plus week timer [no]
Auxiliary electricity consumption
Symbol
Value Unit
At nominal heat output elmax 0.013 (fan
motor) kW
At minimum heat output elmin 0.013 (fan
motor) kW
In standby mode elSB 0 W
Type of heat input, for electric storage local space
heaters only (select one)
manual heat charge control, with integrated thermostat
Not applicable
manual heat charge control with room and/or outdoor
temperature feedback
Not applicable
electronic heat charge control with room and/or
outdoor temperature feedback
Not applicable
fan assisted heat output
Not applicable

14
Other control options (multiple selections possible) yes or no
room temperature control, with presence detection [no]
room temperature control, with open window detection [no]
with distance control option [no]
with adaptive start control [no]
with working time limitation [no]
with black bulb sensor [no]
Information Requirements for
Electric Local Space Heaters

15
Notes

The ‘wheelie bin’ symbol is known as the 'Crossed-out wheelie bin Symbol'.
When this symbol is marked on a product/batteries, it means that the
product/batteries should not be disposed of with your general household
waste. Only discard electrical/electronic/battery items in separate collection
schemes, which cater for the recovery and recycling of materials contained
within. Your co-operation is vital to ensure the success of these schemes
and for the protection of the environment. For your nearest disposal facility,
visit www.recycle-more.co.uk or ask in store for details.
SEDEX –Connecting businesses and their global suppliers to share ethical
data and enabling improvement in ethical performance. Visit
www.sedex.org.uk for further information.
We reserve the right, due to possible changes to design, to alter the
instruction manual without prior notice.
Revision 2.2
ZANUSSI is a registered trademark used under license from AB
Electrolux (publ). Made by Product Care Trading Limited, Wigan, WN2
4AY/ PCT (NI) Ltd, Belfast, BT5 5AD.
Zanussi Support: call 0330 1230 597 Or visit us at:
www.zanussiheatingandcooling.uk
