Zanussi ZHC 700 User manual

COOKER HOOD
ZHC 700
INSTRUCTIONBOOKLET

2
Thank you for buying a Zanussi product.
To enable you to use your appliance effectively and safely, please read this instruction book carefully before using
the appliance and retain for future reference. If you require guidance in the use of the appliance or require further
information on Zanussi Products, please contact our Customer Care Department. For general enquiries
concerning your Zanussi appliance or for further information, visit our website at http://www.zanussi.co.uk
Customer Care Department
Zanussi
55 - 77 High Street
Slough
Berkshire Tel: [phone]
SL1 1DZ Fax: [phone]
Calls to this number may be recorded for training purposes.
For the User
Important Safety Information
Your Appliance
Operating Instructions
Cooker Hood Controls
To Operate
Recirculation
Extraction
Maintenance and Cleaning
External Cleaning
Metal Grease Filters
Charcoal Filters
To Remove/Replace Charcoal Filter
Changing the Light Bulb
Something Not Working
Service and Spare Parts
Guarantee Conditions
For the Installer
Technical Information
Electrical Connections
Electrical Requirements
Electrical Connection
Installing the Cooker Hood
Installation Requirements
Unpacking

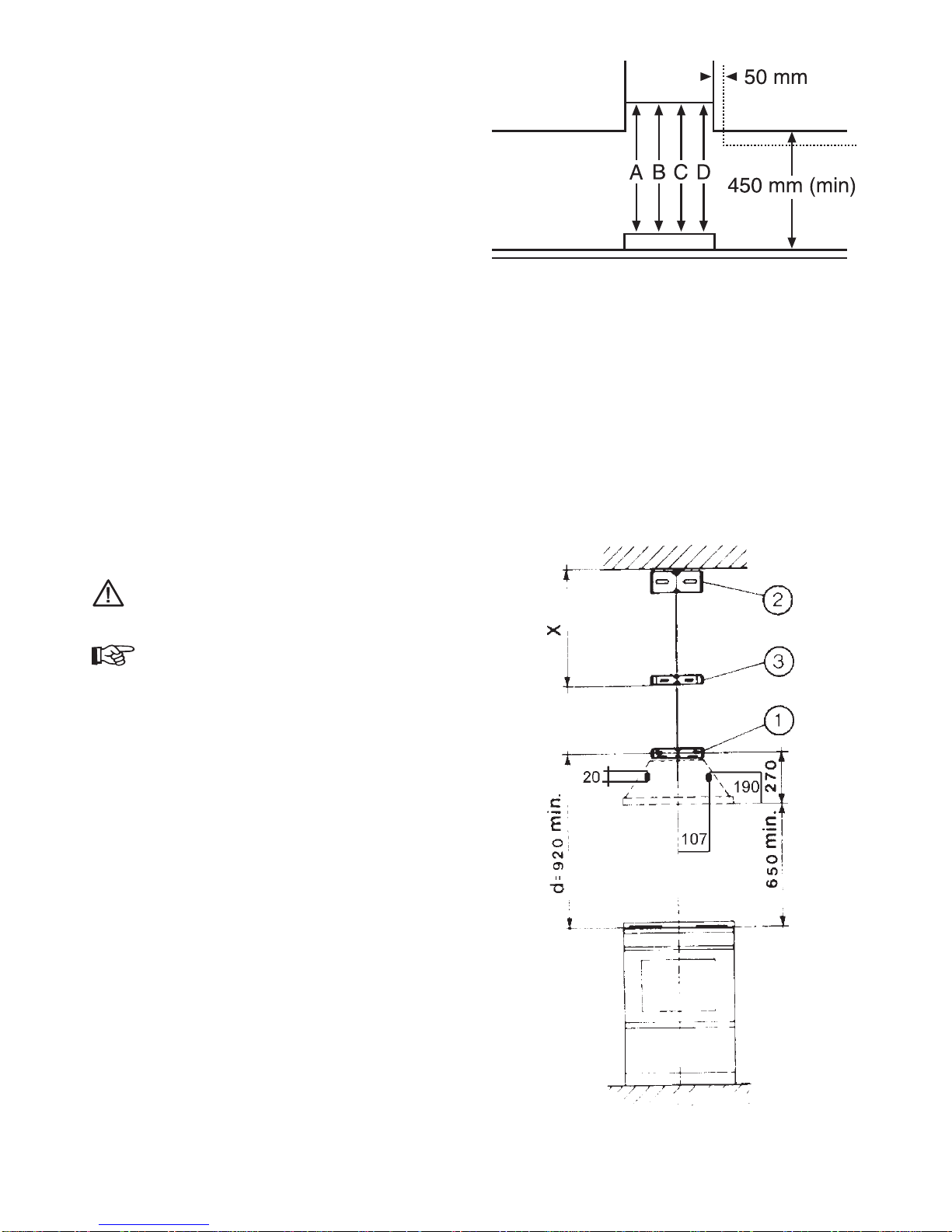

Fitting the Wall Brackets
Fitting the Canopy Hood
Venting
Recirculation

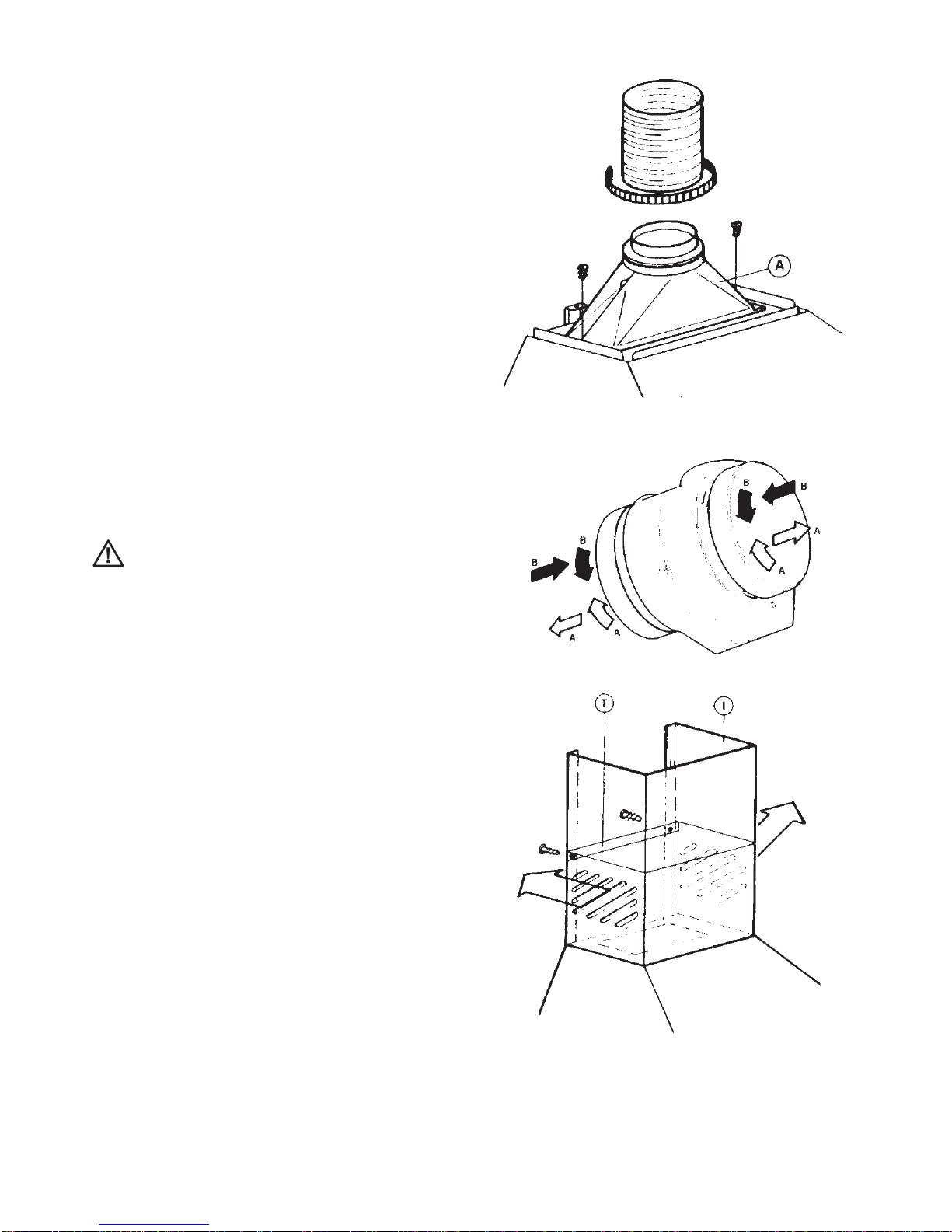

Fitting the Chimney Stack

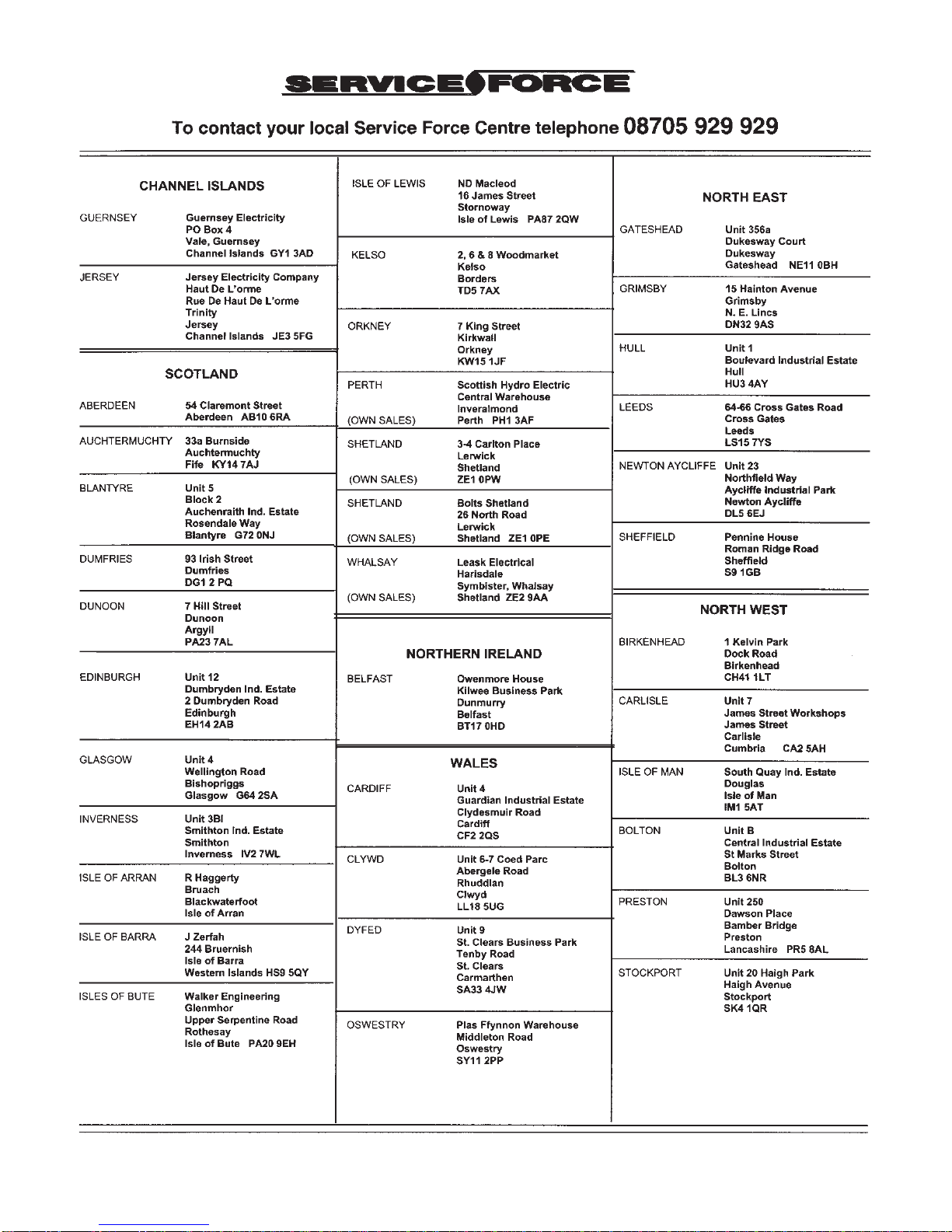

Service Force Centres
To register ownership, please ensure you
complete and return the guarantee card supplied
with the appliance.
Guide to use the instruction book
The following Symbols will be found in the text to guide you through the instruction book
Safety instructions Step by step instructions

3
IMPORTANT SAFETY INFORMATION
These warnings are provided in the interests of your safety. Ensure that you understand them all before
installing or using this appliance. Your safety is of paramount importance. If you are unsure about any of
the meanings of these warnings contact the Customer Care Department.
Installation
• Any installation work must be undertaken by a
qualified electrician or a competent person.
• This hood must be installed in accordance with the
installation instructions and all measurements must
be adhered to.
• If the cooker hood is installed for use above a gas
appliance then the provision for ventilation must be
in accordance with the Gas Safety Codes of
Practice BS.6172, BS.5440 and BS.6891 (Natural
Gas) and BS.5482 (LP Gas) 1994, the Gas Safety
(Installation & Use) Regulations, the Building
Regulations issued by the Department of the
Environment, the Building standards (Scotland)
(Consolidated) Regulations issued by the Scottish
Development Department.
• The fan motor of this cooker hood incorporates a
cut-out device which will operate if the cooker hood
is installed below the minimum height
recommended under section ‘Clearance Height’, or
if the motor becomes overheated. If the cut-out
device is activated, switch off the fan motor and
allow the cooker hood to cool. The cut-out device
will reset itself when the fan motor has cooled
significantly.
• It is dangerous to alter the specifications or modify
this product in any way.
• When installed between adjoining wall cabinets the
wall cabinets must not overhang the hob.
• If the room where the hood is to be used contains a
fuel burning appliance such as a central heating
boiler then its flue must be of the room sealed or
balanced flue type.
• If other types of flue or appliances are fitted ensure
that there is an adequate supply of air to the room.
• The ducting system for this appliance must not be
connected to any existing ventilation system which
is being used for any other purpose.
• Do not install above a cooker with a high level grill.
Child Safety
• This appliance is designed to be operated by
adults. Children should not be allowed to tamper
with the controls or play with the appliance.
During Use
• This product is for domestic use only.
• Never leave frying pans unattended during use as
over-heated fats and oils might catch fire.
• Never do flambé cooking under this cooker hood.
• Do not leave naked flames under the hood.
Maintenance and Service
• This appliance can be a hazard if the synthetic
paper and charcoal filters are not replaced as
recommended.
• Under no circumstances should you attempt to
repair the appliance yourself. Repairs carried out
by inexperienced persons may cause injury or
more serious malfunction. Refer to your local
Zanussi Service Force Centre.Always insist on
genuine spare parts.

4
YOUR APPLIANCE
OPERATING INSTRUCTIONS
The cooker hood is designed to extract
unpleasant odours from the kitchen, it will not
extract steam. The appliance can be installed to
recirculate or extract contaminated air.
Cooker Hood Controls
The cooker hood functions are controlled by
three switches located to the right on the
underside of the hood immediately in front of the
metal grease filters.
Worktop Lighting
The switch (L) marked with the lamp symbol
operates the worktop lighting.
L 0 - OFF
1 - ON
Fan Control
The switch (M) marked with the fan symbol and
the switch (V) marked 1-2-3 operates the fan.
M 0 - OFF
1 - ON
V 1 - Low
2 - Normal
3 - Boost
LMV
0 1 0 1 1 2 3
360
698

5
To Operate
Select the required fan speed and light if required.
Recirculation
In the recirculation mode the contaminated air enters
the cooker hood through the grease filters. The air is
cleaned by passing through the charcoal filters
before being passed back into the kitchen through
the grilles in either side of the chimney stack.
Extraction
In the extraction mode the contaminated air enters
the cooker hood passing through the grease filters
and is passed out through the ducting into the
atmosphere.
To obtain the best performance when cooking it is
advisable to switch the cooker hood on for a few
minutes before you start cooking and leave it
running for about 15 minutes after finishing.
When used in the ducting mode the charcoal
filters are not required.
Never do flambé cooking under this cooker
hood.
Never leave frying pans unattended during
use, as over-heated fats and oils can catch
fire.
Do not leave naked flames under the cooker
hood.
Ensure heating areas on your hob are covered
with pots and pans when using the hob and
cooker hood simultaneously.

6
MAINTENANCE AND CLEANING
Before carrying out any maintenance or
cleaning isolate the cooker hood from the
mains supply.
The cooker hood must be kept clean, as a
build up of grease or fat can be a fire hazard.
External Cleaning
Wipe the cooker hood frequently with warm
soapy water using a mild detergent.
Never use scouring pads or abrasive cleaners.
Never use excessive amounts of water when
cleaning particularly around the control panel.
Metal Grease Filters
The grease filters absorb grease and dust during
cooking to help keep the cooker hood clean inside,
and should be cleaned approximately once every
month or more often if the hood is used for more
than 3 hours a day.
Remove the metal grease filters
one at a time by:
Releasing the catches on the filters, the
filters can be removed.
The metal grease filters should be washed, by
hand, in mild soapy water or in a dishwasher. Allow
to dry completely before replacing.

7
Charcoal Filters
In the recirculation mode the charcoal filters
absorb smells and unwanted odours.
The charcoal filters cannot be cleaned, we
recommend they should be replaced
approximately every three months or more often
if the hood is used for more than three hours per
day.
To Remove/Replace the
Charcoal Filters
1. First remove the metal grease filters.
2. Rotate the charcoal filter anti-clockwise
(B) and remove.
3. To replace the charcoal filters, remove
the metal grease filters.
4. Place the filter over the inlet grille at
either end of the fan housing and rotate
clockwise (A) into position.
This appliance can be a possible fire
hazard if the grease and charcoal filters
are not cleaned and replaced as
recommended.
Changing the Light Bulb
1. First remove the metal grease filters.
2. The light bulbs can be reached from
inside the canopy.
3. Rotate the light bulb anti-clockwise to
unscrew.
4. To replace the light bulb insert a
replacement into the holder then rotate
the bulb clockwise into position. Ensure
you take care not to overtighten the
bulb.
If the light bulb fails to function check that the
bulb is fully screwed into the holder. If bulb
failure has occurred then it should be replaced
with a 220-240 Volt 40W clear globe shaped
bulb with a small E14 screw thread.
Replacement filters and light bulbs can be
obtained from your local Service Force Centre.

8
SOMETHING NOT WORKING
SERVICE AND SPARE PARTS
If, having followed these instructions carefully, your cooker hood fails to work properly please carry out
the following checks.
Symptom
The cooker hood will not start
The cooker hood is not working effectively
The cooker hood has switched off during
operation
If after all these checks, the fault persists,
contact your local Service Force Centre,
quoting the model and serial number.
Please note that it will be necessary to
provide proof of purchase for any
in-guarantee service calls.
Solution
• Check the hood is connected to the electricity
supply.
• Make sure the switch is in the ‘ON’ position.
• The fan speed is set high enough for the task
• The grease filter is clean.
• The kitchen is adequately vented to allow the
entry of fresh air.
• If set up for recirculation, check that the
charcoal filter is still effective.
• If set up for extraction, check that the ducting
and outlets are not blocked.
• The safety cut-out device has been tripped.
• Tum off the hob and then wait for the device to
reset.
In-guarantee customers should ensure
that the above checks have been made as
the engineer will make a charge if the fault
is not a mechanical or electrical
breakdown.
If you require an engineer or spare parts
contact your local Service Force Centre by
telephoning:
08705 929929
Your telephone call will be routed to your local
Service Force Centre. The addresses are
listed in the back of the book.
For general assistance with your appliance or
for further information on Zanussi products
please contact our Customer Care Department.
Customer Care Department,
Zanussi
55 - 77 High Street
Slough
Berkshire
SL1 1DZ
Tel: [phone] *
* calls to this number may be recorded for training
purposes.

9
GUARANTEE CONDITIONS
We Zanussi, undertake that if within twenty four months of the date of the purchase this Zanussi built-in appliance
or any part thereof is proved to be defective by reason only of faulty workmanship or materials, the company will,
at our option repair or replace the same FREE OF ANY CHARGE for labour, materials or carriage on condition
that:
• The appliance has been correctly installed and used only on the electrical supply stated on the rating plate.
• The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer’s
operating and maintenance instructions.
• The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not
authorised by us.
• All service work under this guarantee must be undertaken by Zanussi Service Force Centre.
• Any appliance or defective part replaced shall become the property of this company.
Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these
hours in which case a premium will be charged.
EXCLUSIONS
This Guarantee does not cover:
• Damage or calls resulting from transportation, improper use or neglect, the replacement of any lilght bulbs or
removable parts of glass or plastic.
• Costs incurred for calls to put right appliances improperly installed or calls to appliances outside the United
Kingdom.
• Appliances found to be in use within a commercial environment, plus those which are the subject of rental
agreements.
• Products of Zanussi manufacture which are not marked by Zanussi.
This guarantee is in addition to your statutory and legal rights.
ZANUSSI EUROPEAN GUARANTEE
If you should move to another country within Europe then your guarantee moves with you to your new home
subject to the following qualifications:
• The guarantee starts from the date you first purchased your product.
• The guarantee is for the same period and to the same extent for labour and parts as exists in the new country
of use for this brand or range of products.
• This guarantee relates to you and cannot be transferred to another user.
• Your new home is within the European Community (EC) or European Free TradeArea.
• The product is installed and used in accordance with our instructions and is only used domestically, i.e. a
normal household.
Before you move please contact your nearest Customer Care Centre, listed below, to give them details of
your new home. They will then ensure that the local Service Organisation is aware of your move and able
to look after you and your appliances.
France Senlis [phone]
Germany Nurnberg [phone]
Italy Pordenone [phone]
Sweden Stockholm [phone]
UK Slough [phone]

10
INSTALLATION INSTRUCTIONS
It is dangerous to alter the specifications or attempt to modify this product in any way.
Technical Information
DIMENSIONS HEIGHT OF CANOPY: 24cm
HEIGHT OF CHIMNEY: (UPPER SECTION) 40cm
(LOWER SECTION) 36cm
WIDTH OF CANOPY - ZHC 700: 69,8cm
DEPTH OF CANOPY: 49cm
GROSS - ZHC 700: 18 kg
NET - ZHC 700: 14,9kg
ELECTRICAL SUPPLY: VOLTAGE: 220-240 V 50Hz
POWER CONSUMPTION: 225W
FAN MOTOR: 145W
LIGHT BULB: (2 x 40 W) 80W
SUITABLE FOR INSTALLATION
ABOVE: ELECTRIC HOB: 7KW (max)
GAS HOB: 10KW (max)
SLOT-IN GAS COOKER 13.5KW (max)
SLOT-IN ELECTRIC COOKER 12.4KW (max)
Note: CE Marking certifies that this appliance complies with the requirements
laid down in EEC directive 89:336. (Electromagnetic compatibility) and
subsequent modifications and Low Voltage directive 72/23/E.
ELECTRICAL CONNECTIONS
This appliance must be earthed
Electrical Requirements
Any permanent electrical installation must
comply with the latest I.E.E. Regulations and
local Electricity Board regulations. For your own
safety this should be undertaken by a qualified
electrician e.g. your local Electricity Board, or a
contractor who is on the roll of the National
Inspection Council for Electrical Installation
Contracting (NICEIC).
Electrical Connection
Before connecting to the mains supply ensure
that the mains voltage corresponds to the
voltage on the rating plate inside the cooker
hood.
This appliance is fitted with a 3 core mains
cable and must be permanently connected to
the electricity supply via a double-pole switch
having 3mm minimum contact gap on each
pole.A Switched Fuse Connection Unit to
BS1363 Part 4, fitted with a 3 Amp fuse, is a
recommended mains supply connection
accessory to ensure compliance with the Safety
Requirements applicable to fixed wiring
instructions.
This appliance conforms to BS 800: 1988 and
EEC Directive No. 78 308 regarding
suppression of radio and television
interference.

11
INSTALLING THE COOKER HOOD
Please ensure that when the appliance is
installed it is easily accessible to an
engineer in the event of a breakdown.
All installations must comply with the local
authorities requirements for the discharge of
exhaust air.
Incorrect installation may affect the safety of
this cooker hood.
Installation Requirements
Before installation check the wall to which the
cooker hood is to be fitted for electric cables,
water pipes or gas.
This cooker hood is designed to be fixed to
any vertical surface over a cooking area, and
can be used in the extraction (ducted to the
outside) or recirculation mode.
The installation work must be undertaken by a
qualified and competent person.
The manufacturer disclaims any responsibility for
damage due to incorrect installation of the cooker
hood or if the hood is not installed in compliance with
relevant regulations controlling this type of
installation.
Unpacking
The cooker hood is supplied with the following
components for installation:
• Canopy (C), including controls, worktop
illumination and fan unit.
• U-shaped upper chimney section (S).
• U-shaped lower chimney section (I).
• Metal recirculation plate (T).
• 120mm ducting spigot (A).
Fixing kit comprising:
• Wall fixing brackets (1,2,3 and 4).
• Document pack.

12
A: Built-in Electric Hob: 650mm clearance
B: Built-in Gas hob: 700mm clearance
C: Slot-in Electric Cooker: 685mm clearance
D: Slot-in Gas Cooker: 787mm clearance
Hob
Clearance Height
The cooker hood is designed to be fitted over a
cooking appliance at the clearance heights stated,
providing the maximum output of the appliance
beneath does not exceed the maximums quoted in
the Technical Specifications.
If the output of the appliance below the cooker
hood exceeds the maximum outputs quoted,
please refer to the cooker manufacturer’s
installation instructions.
A clearance height of 650mm (25 1/2 ”) is required
when installed above a built-in electric hob, or 700mm
(27 1/2 ”) when installed above a built-in gas hob.
A clearance height of 685mm (27”) is required when
installed above a slot-in electric cooker, or 787mm (30
1/2 ”) when installed above a slot-in gas cooker.
When installed between adjoining wall
cabinets, the wall cabinets must not overhang
the hob and the distance between the
underside of the cabinet and the worktop must
be 450mm. If the height of the wall cabinet is
less than 450mm, a gap of 50mm must be
maintained either side of the hob.
This cooker hood must not be installed above
a cooking appliance with a high level grill.
Fitting the Wall Brackets
1. Draw a vertical line on the wall from the
centre of the cooking appliance up to the
ceiling, using a spirit level and marking pen.
This is to ensure the correct vertical
alignment of the appliance.
2. Drow a horizontal line trough the vertical at
190mm .Mark the centre positions for the
bracket fixing screw(4) at 107mm either side
of the vertical line.(screw not supplied)
Ensure that the distance between the
lowest point of the hood and the cooking
appliance beneath meet the clearance
requirements quoted above.
3 Draw a horizontal line through the vertical
at 270mm. Mark the centre positions for
the lower bracket fixing screws (1) at
110mm either side of the vertical line (screws
not supplied).
4. Draw a horizontal line through the vertical
at 45mm from the ceiling or from the
maximum height of the chimney. Mark the
centre positions for the upper bracket
fixing screws (2) at 80mm either of the
vertical line (screws not supplied).

13
4. Draw a horizontal line through the vertical line
at X. Xis a distance between the centre of the
top and bottom fixing holes on the upper
chimney stack. Mark the centre positions for
the middle bracket fixing screws (3) at 95mm
either of the vertical line (screws not supplied).
5. Drill the holes for the fixing screws using an
8mm masonary drill and fix the wall brackets
using the plastic rawl plugs and 44mm screws
(not supplied). Ensure the lower bracket (1)
is fitted with the lugs at the bottom.
Note: If the hood is to be installed onto a hollow
construction or plaster or partition board
wall then special fixing screws will be
required (not supplied).
Fitting the Canopy Hood
1. Hook the canopy (C), onto the wall fixing
brackets (4)ensuring the security fixing screws
align with the holes in the centre of the back
panel of the cooker hood as illustrated.
2. Fit the two regulation screws of 4M x 25
(supplied) into the keyholes of the wall
brackets.
3. the canopy can be aligned or adjusted in
height by using the two adjustement screws.
7.1
12.d
4

14
Venting
The hood is more effective when used in the
extraction mode (ducted to the outside).
Venting kits may be purchased through your
retailer or DIY store, and must be ducted to an
outside vent of 125mm (5”).
The 120-125mm collar should be fitted onto the
ducting spigot to suit UK diameter ducting, and
held in position by a jubilee clip (not supplied)
used to secure the flexible hose.
Where flexible duting is fitted the length should be
no more than:
3 metres with one 90º bend, or
2metres with two 90º bends.
Bends of more than 90º will reduce the efficency
of the hood and reduce airflow.
The ducting used must be manufactured
from fire retardent material conforming to
the relevant British Standard or DIN 4102-
B1.
When the cooker hood is ducted to the outside the
charcoal filters must be removed.
Recirculation
If you are using the hood for recirculation, ensure
the charcoal filters are in position following the
instructions contained in the section “To Remove/
Replace the Charcoal Filters”.
Note: When the hood is used in the
recirculation mode ensure that the
plate (T) has been fixed into the lower
chimney section. If not, fit the plate as
illustrated opposite using two of the
self tapping screws provided in the
fixing kit.

15
Fitting the Chimney Stack
The chimney stack consists of two sections.
1. Fit the upper section (S) first. Expand the
chimney slightly to allow it to be fitted over
the brackets (1) and (2), and then secure
the chimney stack to bracket (2) using two
self tapping screws provided in the fitting
kit.
2. Fit the lower chimney section (I) by
expanding the chimney slightly to allow it
to be fitted over the brackets (1), and the
upper chimney section and bracket (3).
3. Ensure the bottom edge of the chimney
stack is fitted correctly into the recess
around the top of the canopy, and secured
using the two self tapping screws as
illustrated in the close-up above.
Note: The upper (S) and lower (I) chimney stack
sections are fixed to the middle wall
bracket (3) by the natural force of the
metal, and the over lapping of the
sections by vigorously pushing against the
centre of the chimney.

16

17

18

19

© Electrolux plc 2002 436002372_01 040705
