Zee Z-3020 Assembly instructions

1
Z-3020 Installation Guide and User Manual
2
Iveda Z-3020 Installation Guide and User Manual
Please use this guide to set up your Z-3020 IP Camera
Package Contents
Check the package contents against the list below.
Camera Z-3020 IP Camera
Software CD
Installation Guide and User Manual
Mounting Bracket (3) screws, (3) plastic wall anchors, and (1) camera bracket
Accessory
4 pin terminal block for DI/DO antenna for connection of IEEE 802.11 b/g/n
wireless network
Adaptor 5V DC, 1A
Ethernet Cable 1 meter ( 3 feet)
Physical Overview
Focus Adjustment Ring: Adjust the focus ring to get a clear image.
Reset: When the device is powered, press the Reset Button to reboot the device, or hold the Reset
Button for 5 seconds to set the settings back to factory default.
WPS: Push WPS button to configure wireless connection automatically.
3
LED Indicator Definition
LED Color Indication
Network
Blue Flash Blue during Network activity
Power Red Steady red for booting up process; Steady red 30
seconds when WPS configure
Blue Steady blue for booting up completion
Purple Flash purple then steady Red during firmware
upgrading; or when wireless is connecting.
Unlit When reset button pressed for at least 5 sec. to
factory default
WPS Blue Steady blue for wireless or WPS Network link;
Flash blue for connecting wireless or WPS
DI/DO Diagram
4
Install the Hardware and Connect All Cables
Wall mounting and Ceiling mounting
1. Use the 3 supplied screws to fix the base plate to a flat surface.
2. Loosen the lock ring to adjust the desired angle of the camera.
3. Tighten the lock ring.
Connect cables and power supply
1. Connect the power adapter to the IP Camera.
2. Use a standard RJ-45 network cable to connect the
IP Camera to the Network connector port on the
camera.
System Specifications
CPU
Intel Atom 330 or above
(1M cache, 1.6GHz, 533MHz FSB)
RAM
1G or above
Screen Resolution
1280 x 720 recommended
Browser
IE, Firefox, Chrome, Safari. Version as below
Java Version
Java 7u11 or above
5
Adding Your Camera
1. Connect IP Camera to network router via network cable.
2. Power on IP camera.
Please also ensure your router’s DHCP is activated.
3. Visit the hosting URL of your service provider given when you purchased your camera.
4. If you do not have an account, click on “Create Account”.
5. After filling out the form, click “Apply”. An email confirmation will be sent to your email address.
6. Login with account and password.
6
7. If no cameras have been added, you will be prompted to add a camera. Otherwise, click “Settings” at
the bottom of the page.
8. Clicking will pop up a reminder to ensure the IP camera you are going to bind has already been
connected to the network properly. Then follow the binding method via browser by filling the MAC
address and activation code of the camera.
7
9. A table will then display for filling in the IP camera’s MAC address and activation code after clicking
“Next”. Click “Apply” when finished providing required information. Cameras can also be added by
using the Smart phone APP provided by your service provider.
10. “Success” shows when finished adding properly. The IP camera is now displayed on the setting table.
11. Clicking “Config” button will lead to a “Modify” page which listed each device’s registration
information where users can alter its device name for easy recognition.
12. Sharing your Camera. Clicking the “Share” button . In the “Share” field, type in the user account
name that the camera will be shared with. If the individual you are sharing the camera with does not
already have an account, they can create one on the home page.
8
Clicking on the “Share” button at the bottom of the screen will show all cameras that belong to other
accounts that are shared with your account.
13. Watching your Cameras
Click the “Matrix” at the bottom of the page and you will view the cameras in RTSP streaming.
9
Basic Functions
Tool Bar
The tool bar is located in the upper right hand side of each IP cam view for easy
management.
1. Lights Indicators
Green Light
The green light means the IP camera is online and streaming video, therefore its video is
successfully displayed on the screen.
Yellow Light
The yellow light means the IP camera is online but not yet streaming video, therefore, its
video is not displayed on the screen.
Red Light
The red light means the IP camera is offline, therefore, the screen is blank.
2. Full Screen
The Full screen button is to lead you to a new screen layer where the video is displayed in full
screen for larger image and event play back function.
Control buttons
When viewing video in full screen, function buttons are located on
the lower right hand side of the screen.
By clicking the button, it will take you to the matrix view page. Or you can click on the
button located on the top right hand side of the screen to exit the full screen function
and back to the matrix view as well.
Clicking the button allows you to take a snapshot from the camera you are currently
monitoring. You can name the snapshot file and select the directory to store it at your
preference.
10
You may also choose to mute the camera by clicking the button.
When the video does not display well, you can click to reload the media again. You
can access the camera’s control UI by clicking the button.
The “camera list” with the arrow buttons and is displayed on the left-hand side of
the screen for selecting other IP cameras to view.
Live View and PTZ
The “Live view” button is used to view the selected camera in a larger view than matrix
view. You may also select to view a different camera’s video from the “camera list”
displayed on the left-hand side of the screen. Click the arrow buttons and to select
more IP cameras from the list.
When the selected IP camera supports PTZ function, its PTZ control panel will be
displayed for you to manage camera angles on the bottom-right side of the screen.
Otherwise, the panel will be displayed in grey to indicate it is not functioning. Each angle
adjustment requires one click to make. Clicking takes you back to the original setting
position, while is to zoom in, and is to zoom out.
Playback
“Playback” function can playback continuous recording from the cloud and event
recording from the cloud pending on your sales package. Continuous recording is
indicated by the top red line, event recording in the cloud indicated by the orange tabs
along the red line.
You may view the timeline in different timeline length: by clicking hour, day, or week,
located on the top left-hand side of the timeline. By default, the timeline length is by
week.
You can click anywhere on the red bar and press the play button. While playing back the
selected media clip, you may also manage it to be stopped, paused, move one clip
forward or backward from the media control panel. Or, you may also drag the progress
bar cursor to the specific playing point at your preference.
11
The detailed recording clips will be displayed when you mouse over the orange tags.
You can select the specific clip to review.
3. Settings
The settings button will take you to that specific IP camera’s web user interface.
4. Mute
The mute or un-mute buttons are used to control whether the users would like to hear the
audio via the camera or not.
5. Refresh
The refresh button is for you to refresh or reload the IP camera’s video.
Direct Access to Camera
To set your wireless settings, set your date and time, and to access SD card recording (if applicable) it is
necessary to log in directly to the camera. Click the “Settings” icon for the camera.
1. Enter the default Username and Password to login to access
the IP Camera:
Username: user
Password: camera
12
Wireless Settings
After logging into the camera user interface using the user login click on Basic Setting, and then go to the
WLAN section on the right. Make sure WLAN is enabled and select the appropriate SSID for your network.
Important Note:
1. Please plug in the antenna inside the box
2. You need to set the WLAN while your network cable is plugged in.
3. After you set the WLAN setting and a pop-up window says “Savings Applied Successfully”, please
unplug the network and power cable first. Then plug the power cable back to do a HW reset so
WLAN can be functional.
Local Event Backup
If SD card is inserted, you can view and download event video from the SD card in the “Local Event
Backup” section. These video recordings are saved in the SD card locally so even if internet connection
is lost, the recordings will still be at the SD card. Please follow the steps below to view or download your
local event video.
13

Other Zee IP Camera manuals

Zee Iveda Z-3501 Assembly instructions

Zee

Zee Iveda Z-3501 Assembly instructions

Popular IP Camera manuals by other brands

FLIR Quasar Gen III CP-6302-31-I Quick install guide

FLIR

FLIR Quasar Gen III CP-6302-31-I Quick install guide

Speco O2iBD2 user guide

Speco

Speco O2iBD2 user guide

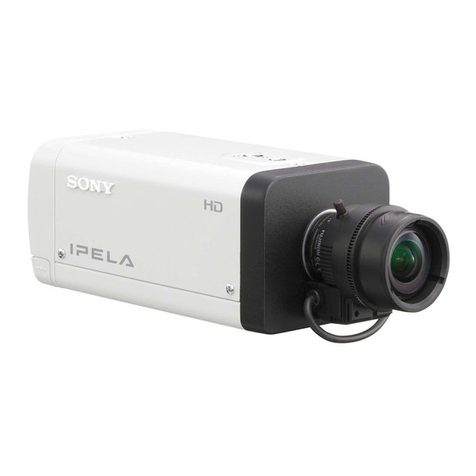

Sony Ipela SNC-CH135 installation manual

Sony

Sony Ipela SNC-CH135 installation manual

D-Link DCS-6620G - Network Camera Quick install guide

D-Link

D-Link DCS-6620G - Network Camera Quick install guide

KlisLite 40IR-OSD Operation manual

KlisLite

KlisLite 40IR-OSD Operation manual

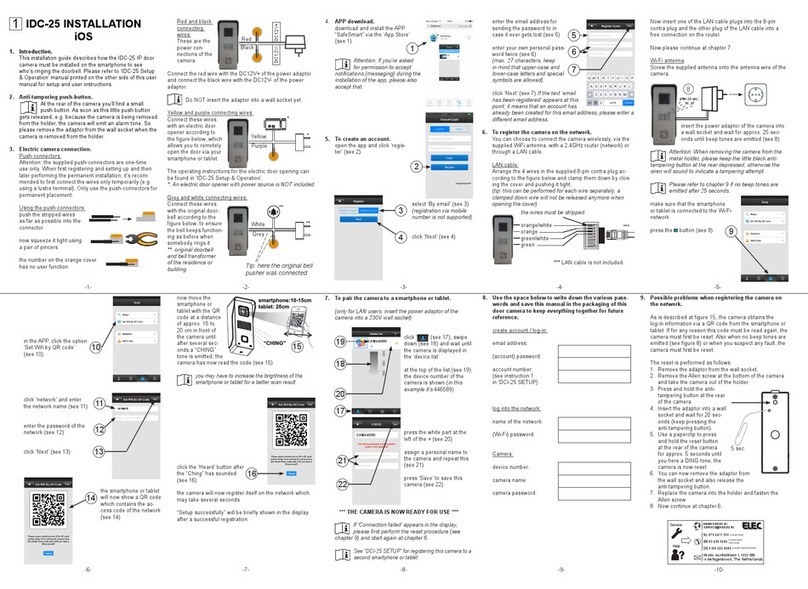

Alecto Elec IDC-25 installation guide

Alecto

Alecto Elec IDC-25 installation guide

Velleman CAMCOLIRP2 user manual

Velleman

Velleman CAMCOLIRP2 user manual

EverFocus EZN Plus Series user manual

EverFocus

EverFocus EZN Plus Series user manual

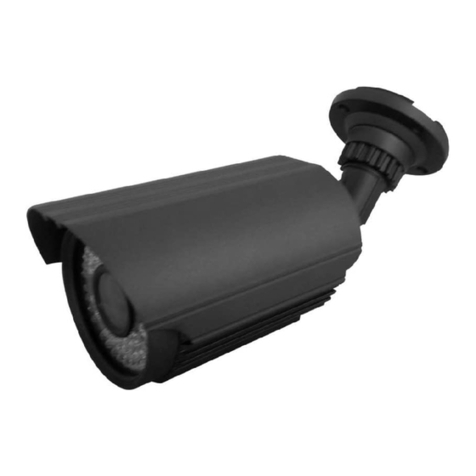

XENO NITRO XBCHDA28V12A-1M3 Installation and user guide

XENO

XENO NITRO XBCHDA28V12A-1M3 Installation and user guide

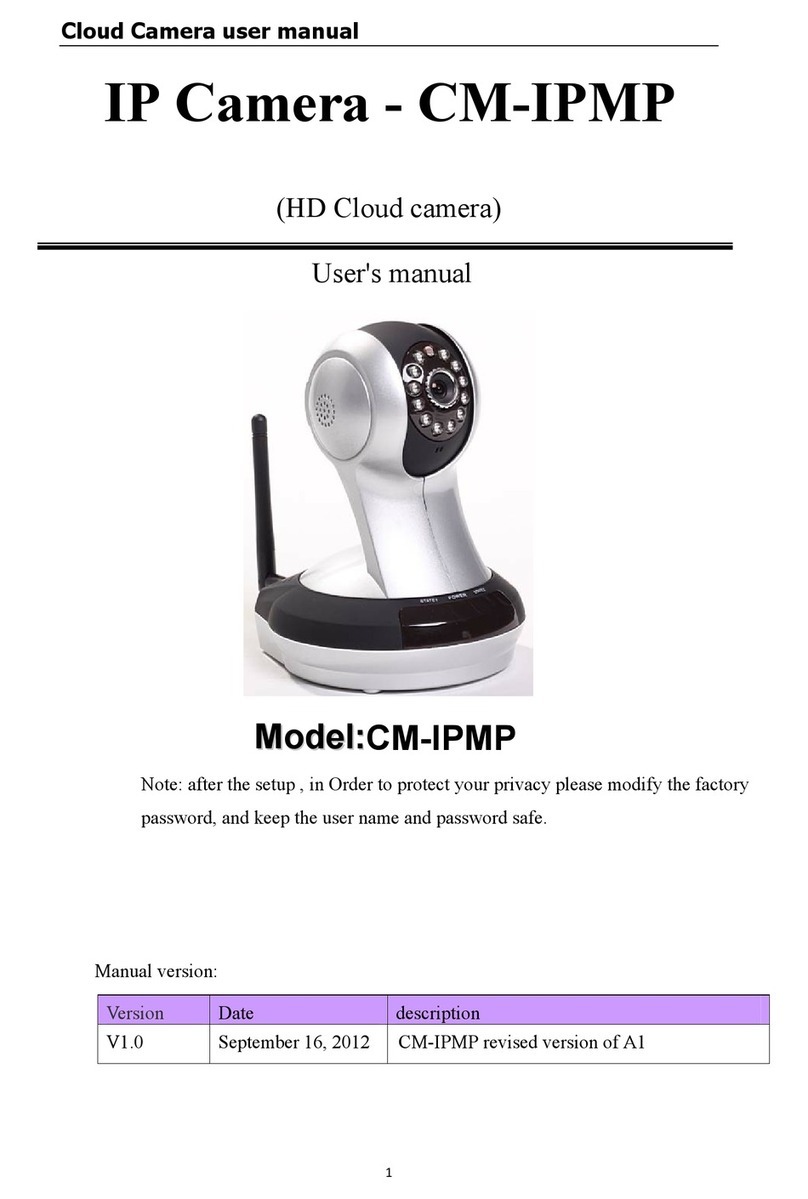

Cloud CM-IPMP user manual

Cloud

Cloud CM-IPMP user manual

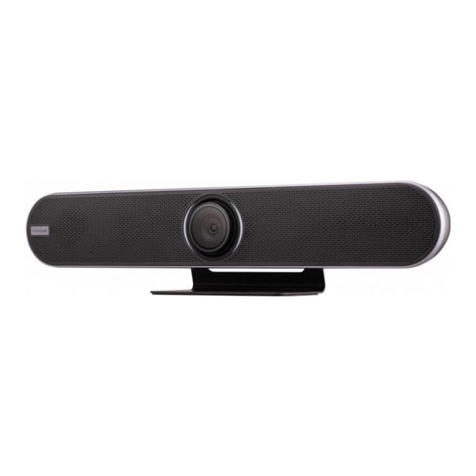

ViewSonic VS18518 user guide

ViewSonic

ViewSonic VS18518 user guide

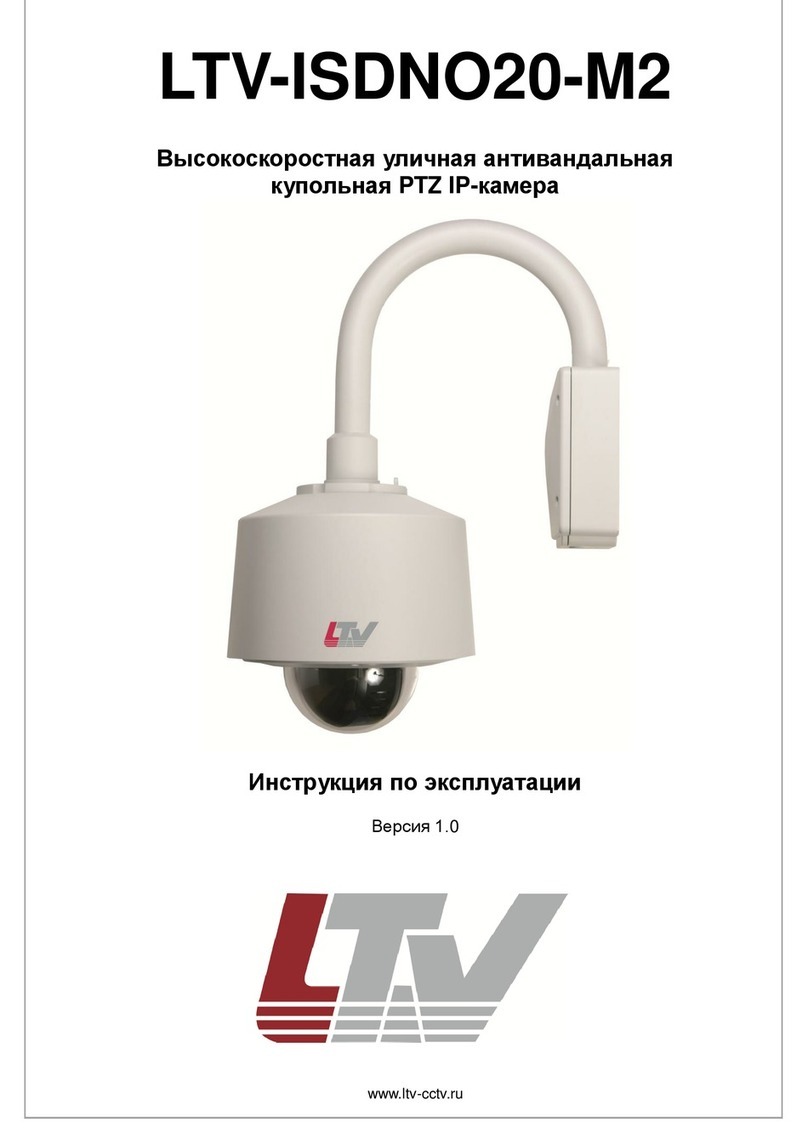

LTV ISDNO20-M2 user manual

LTV

LTV ISDNO20-M2 user manual

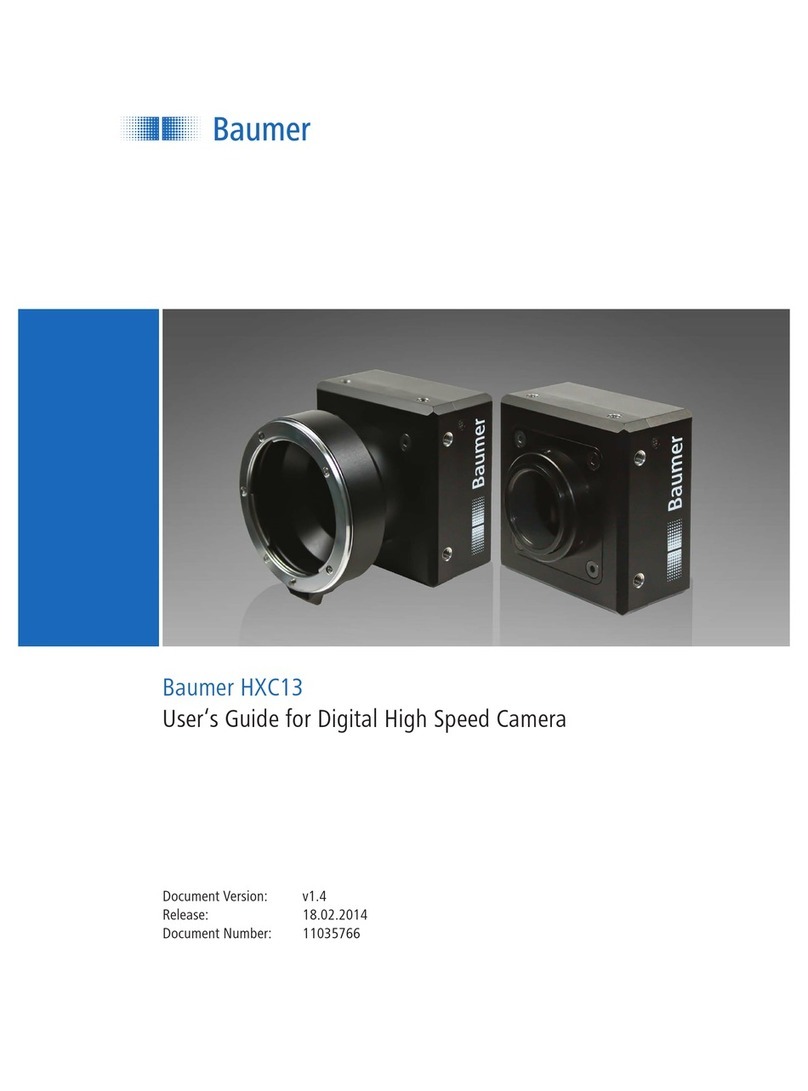

Baumer HXC13 user guide

Baumer

Baumer HXC13 user guide

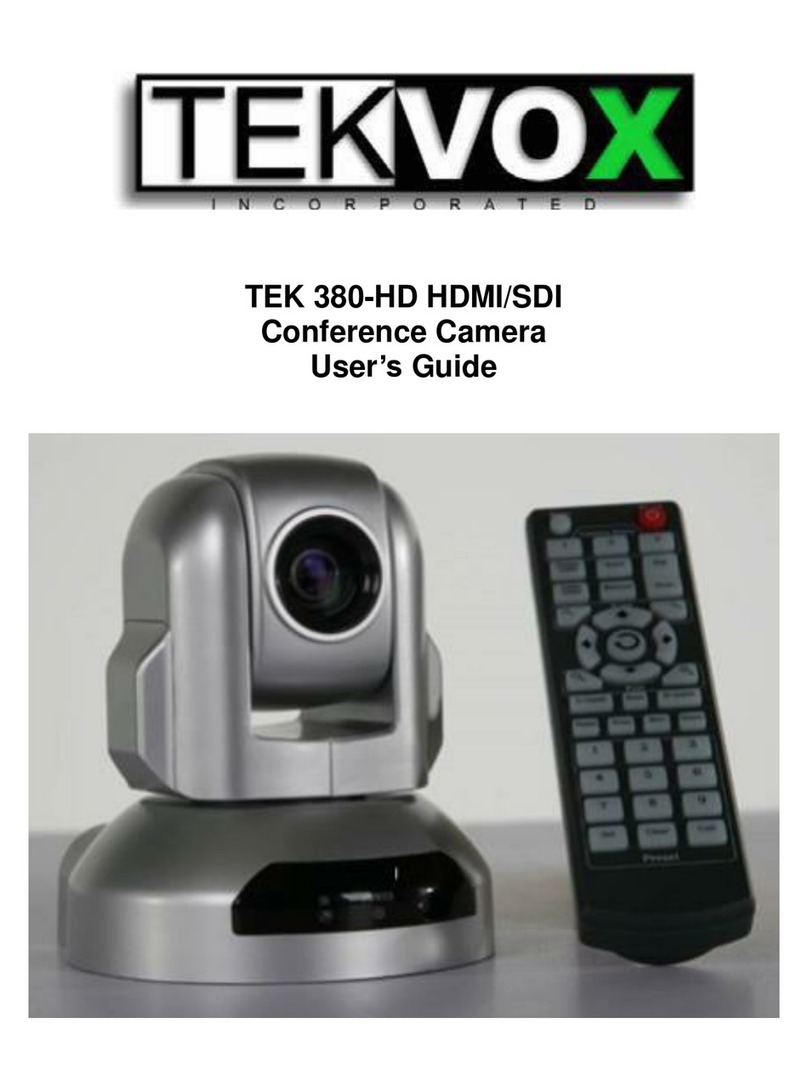

Tekvox TEK 380-HD HDMI/SDI user guide

Tekvox

Tekvox TEK 380-HD HDMI/SDI user guide

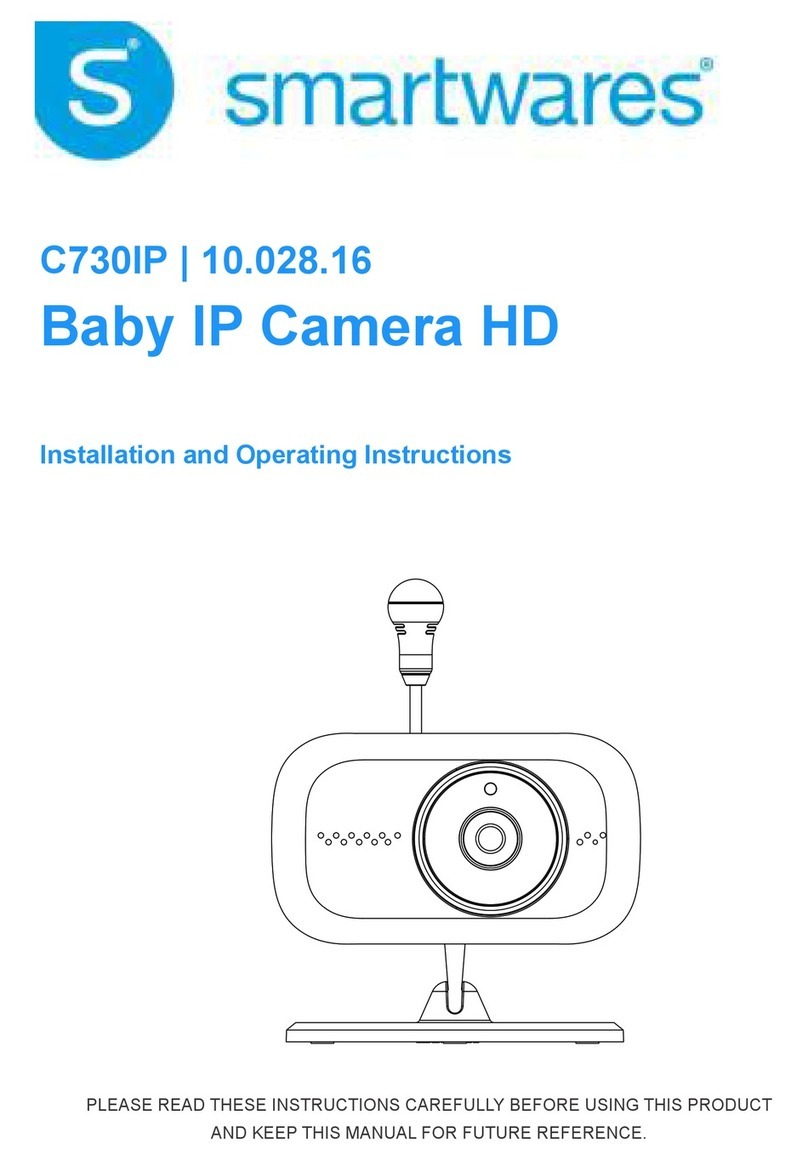

Smartwares C730IP 10.028.16 Installation and operating instructions

Smartwares

Smartwares C730IP 10.028.16 Installation and operating instructions

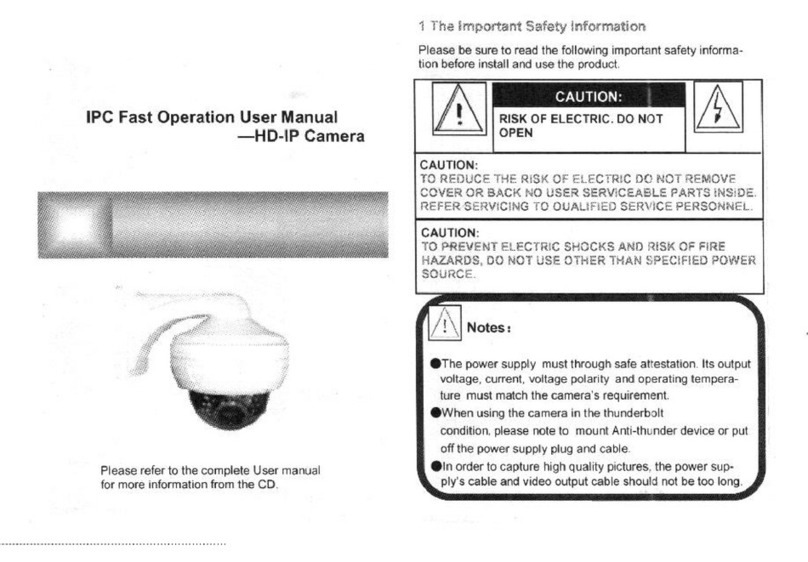

Omnivision ADV25P200 user manual
