Zenit Semi-Profi Series User manual

InstructIon manual
rotary hammer
rh-1600/2 profI
SEMI-PROFI SERIES

3
General safety precautions
WARNING! When using electric tools, basic safety precautions should always
be followed to reduce the risk of re, electric shock and personal injury, including the
following.
Read all these instructions before operating this product and save these instructions.
For safe operations:
1. Keep work area clean. Cluttered areas and benches invite injuries.
2. Consider work area environment. Do not expose power tools to rain. Do not use
power tools in damp or wet locations. Keep work area well lit. Do not use power tools
where there is risk to cause re or explosion.
3. Guard against electric shock. Avoid body contact with earthed or grounded surfaces.
(e.g. pipes, radiators, ranges, refrigerators).
4. Keep children and inrm persons away. Do not let visitors touch the tool or
extension cord. All visitors should be kept away from work area.
5. Store idle tools. When not in use, tools should be stored in a dry, high or locked up
place, out of reach of children and inrm persons.
6. Do not force the tool. It will do the job better and safer at the rate for which it was
intended.
7. Use the right tool. Do not force small tools or attachments to do the job of a heavy
duty tool. Do not use tools for purposes not intended.
8. Dress properly. Do not wear loose clothing or jewelry; they can be caught in
moving parts. Rubber gloves and non-skid footwear are recommended when working
outdoors. Wear protecting hair covering to contain long hair.
9. Use eye protection. Also use face or dust mask if the cutting operation is dusty.
10. Connect dust extraction equipment. If devices are provided for the connection of
dust extraction and collection facilities ensure these are connected and properly used.
11. Do not abuse the cord. Never carry the tool by the cord or yank it to disconnect it
from the receptacle. Keep the cord away from heat, oil and sharp edges.
12. Secure work. Use clamps or a vise to hold the work. It is safer than using your
hand and it frees both hands to operate tool.
13. Do not overreach. Keep proper footing and balance at all times.
14. Maintain tools with care. Keep cutting tools sharp and clean for better and safer
performance. Follow instructions for lubrication and changing accessories. Inspect
tool cords periodically and if damaged, have it repaired by authorized service center.
Inspect extension cords periodically and replace, if damaged. Keep handles dry, clean,
and free from oil and grease.
15. Disconnect tools. When not in use, before servicing, and when changing
accessories such as blades, bits and cutters.
16. Remove adjusting keys and wrenches. Form the habit of checking to see that keys
and adjusting wrenches are removed from the tool before turning it on.
17. Avoid unintentional starting. Do not carry a plugged in tool with a nger on the
switch. Ensure switch is off when plugging in.
18. Use outdoor extension leads. When tool is used outdoors, use only extension cords
intended for outdoor use.

4
19. Stay alert. Watch what you are doing. Use common sense. Do not operate tool
when you are tired.
20. Check damaged parts. Before further use of the tool, a guard or other part that is
damaged should be carefully checked to determine that it will operate properly and
perform its intended function. Check for alignment of moving parts, free running of
moving parts, breakage of parts, mounting and any other conditions that may affect
its operation. A guard or other part that is damaged should be properly repaired or
replaced by an authorized service center unless otherwise indicated in this instruction
manual. Have defective switches replaced by an authorized service center. Do not use
the tool if the switch does not turn it on and off.
21. Warning Use only accessories or attachments recommended in this instruction
manual or in the catalogue of ZENIT ТМ.
22. Have your tool repaired by a qualied person. This electric tool is in accordance
with the relevant safety requirements. Repairs should only be carried out by
qualied persons using original ZENIT TM spare parts. Otherwise this may result in
considerable danger to the user.
safety precautions on usinG rotary hammer
1. Always wear ear protectors when using the tool for extended periods. Prolonged
exposure to high intensity noise can cause hearing loss.
2. Never touch the tool bit with bare hands after operation.
3. Before operation conrm whether hidden objects are present, such as electric cables
or water pipes within the wall, oor or ceiling.
4. Always attach the side handle and securely grip the rotary hammer.
ATTENTION
The power tool is a source of mechanical vibration. Recommended operation time for
one operator per shift is not more than 48 minutes.

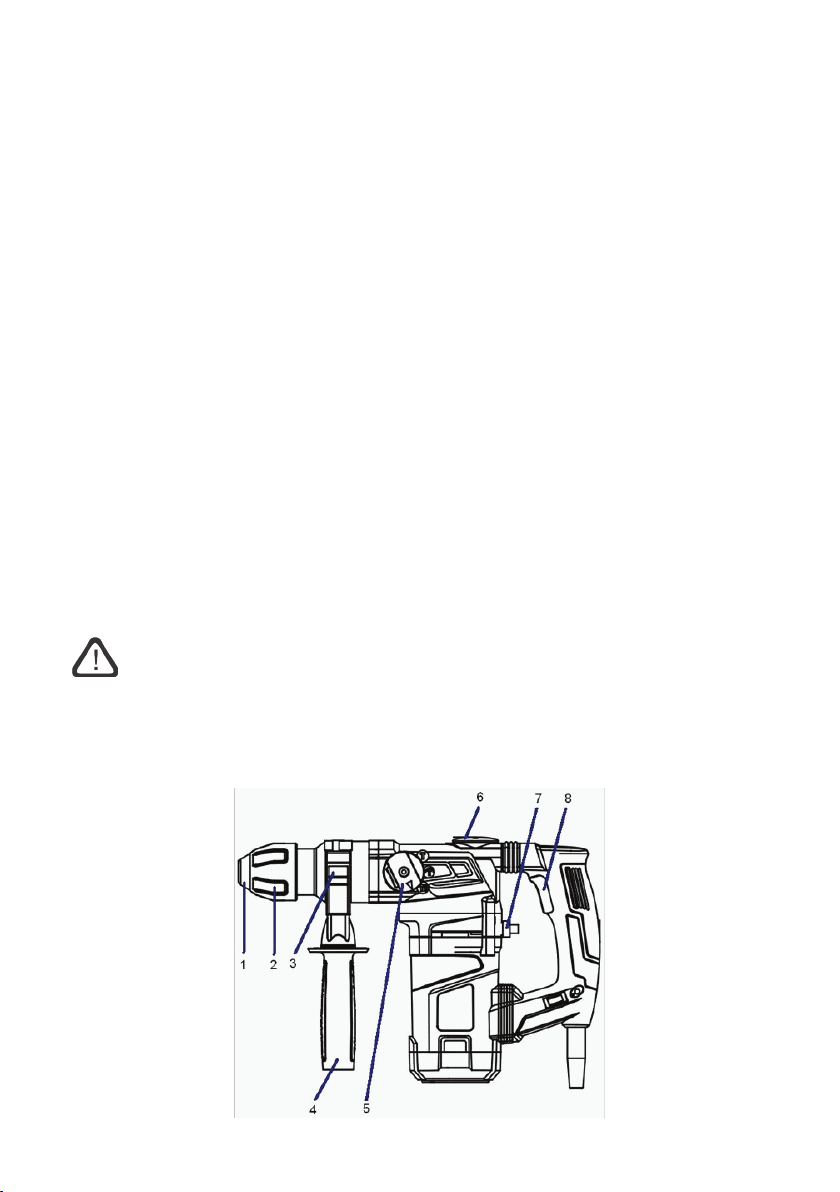

Description

5
1. Rubber protective socket cap (dustcoat);
2. SDS-plus socket for removable tool xation;
3. Clamp of the depth gauge;
4. Front handle;
5. Side mode switch ( , and );
6. Service cover for the mechanism lubrication;
7. Back mode switch ( or );
8. «On/Off» switch.
technical specifications
Model RH-1600/2 pro
Rated voltage 220-240 V
Rated frequency 50-60 Hz
Rated power 1600 W
Impact rate 3900 bpm
Rotation speed 800 rpm
Diameter range: ---
one-piece drill 4-32 mm
hollow crown to 90 mm
Impact energy 6.5 J
Gross/net weight 8.2/5.7 kg
stanDarD accessories
Wrench 1
Side handle 1
Carbon brushes set 1
Bits and drills set:
Drills 3
Bits 2
Case 1
Standard accessories are subject to change without notice.

6
applications
Rotation and hammering function
• Drilling anchor holes
• Drilling holes in concrete
• Drilling holes in tile
Rotation only function
• Drilling in steel or wood
• Tightening screws
Hammering only
• Wall chasing
• Crushing and chiseling
prior to operation
1. Power source.
Ensure that the power source to be utilized conforms to the power requirements
specied on the product nameplate.
2. After transporting the rotary hammer in winter conditions, before operation indoors
it is recommended to wait 2 hours. Do not switch on the rotary hammer until dried up.
3. «On\Off» switch.
Ensure that the power switch is in the OFF position. If
the plug is connected to a receptacle while the power switch is in the ON position, the
power tool will start operating immediately, inviting serious accident.
4. Extension cord.
When the work area is removed from the power source. Use an extension cord of
sufcient thickness and rated capacity. The extension cord should be kept as short as
practicable.
5. Installing the drill bit.
To install the drill bit pull the grip and insert the greased bit end into the chuck.
Release the grip. The tool should be secured in its place.
To remove the tool, fully pull the grip and remove the tool. The same way the drill
chuck and chuck adaptor are installed.
6. Drilling depth can be adjusted with a depth gauge.
Selecting the appropriate drill bit.
When boring concrete or stone use a concrete drill bit.
When boring metal or plastic use an ordinary metalworking drill bit.
When boring wood, metal or plastic use an ordinary metalworking drill bit.
WARNING! Always attach the side handle.
WARNING! Do not use the Impact Drill in the IMPACT function if the
material can be bored by rotation only. Such action will not only reduce drill
efciency, but may also damage the drill tip. Operating the Impact Drill with the
change lever in mid-position may result in damage. When switching, make sure that

7
you shift the change lever to the correct position.
How to use
ATTENTION
To prevent accidents, make sure to turn the switch off and disconnect the plug from
the receptacle when the drill pits and other various parts are installed or removed. The
power switch should also be turned off during a work break and after work.
Switch operation
This rotary hammer can be used in hammering, rotation + hammering and drilling
modes. Before operation set both switches in needed mode.
ATTENTION
Application of force more than necessary will not only reducing drilling efciency at
all, but will deteriorate the tip edge of the drill bit and reduce the service life of the
rotary hammer in addition.
Do not attempt to drill anchor holes or holes in concrete with the main unit in the
rotation only function.
Do not attempt to use the rotary hammer in the rotation and striking function with the
drill chuck and chuck adaptor attached. This would seriously shorten the service life of
every components of the machine.
maintenance anD inspection
1. Inspecting the drill bits.
Since use of a dull tool will cause motor malfunctioning and degraded efciency,
replace the drill bit with a new one or resharpening without delay when abrasion is
noted.
2. Inspecting the screws
Regularly inspect all mounting screws and ensure that they are properly tightened.
Should any of the screws be loose, retighten them immediately. Failure to do so could
result in serious hazard.
3. Maintenance of the motor.
The motor unit winding is the very “heart” of the power tool. Exercise due care to
ensure the winding does not become damaged and/or wet with oil or water.
4. Inspecting the carbon brushes.
The motor is equipped with carbon brushes, which wear with time. When a brush
reaches the wear limit, the motor may malfunction. If the engine is equipped with
a disengaging brush, it will automatically turn off. In this case replace both carbon
brushes. Keep the brushes clean and ensure that brushes move freely within the brush
holders.
5. The machine can be used without lubrication for long periods. Replace grease after
every carbon brush replacement.
Remove the crank cover and wipe off the grease inside. Apply 15-20 g of grease

8
(standard accessory). After replenishing the grease, install the crank cover securely.
ATTENTION
Do not apply much force to the crank case. It is made of plastic and may break.
CAUTION
When using the drill follow these rules:
• continuous use of the drill should not exceed 15 minutes;
• do not allow mechanic damage (strikes, falls etc.);
• protect the drill from external sources of heat and chemically active substances, as
well as liquid and objects penetration;
• provide effective cooling and drilling wastes withdrawal from the tool working zone;
• before disconnecting the tool from the power source turn off the On/Off switch;
• check the engine temperature, do not allow overheating;
• change the rotation direction only after switching off the tool and complete stop of
rotating parts;
• do not use bits not intended for concrete and brick drilling in impact mode.
Inobservance of these rules will make warranty void!
WARNING! Repair, modication and check of ZENIT power tools should be
performed only in authorized service centers ZENIT. While use or maintenance of
power tools follow all safety rules and standards.
NOTE
Zenit Power Tools are constantly being improved and modied to incorporate the
latest technological advancements. Accordingly, some parts may be changed without
prior notice.
