Zenith ZD309 User manual

DEHUMIDIFIER
OWNER'S MANUAL
Please retain this owner's manual for future reference after reading
it thoroughly.
DESHUMIDIFICADOR
MANUAL DEL PROPIETARIO
Le rogamos que guarde este manual del usuario para futura refer-
encia después de leerlo completamente.
MODEL, MODELO:ZD309
H
S
ILGNE LO
Ñ
A
PS
E
website http://www.zenithappliances.com

2Dehumidifier
Dehumidifier Owner’s Manual
TABLE OF CONTENTS
FOR YOUR RECORDS
Write the model and serial numbers here:
Model #
Serial #
You can find them on a label on the side of each unit.
Dealer's Name
Date Purchased
■Staple your receipt to this page in the event you need
it to prove date of purchase or for warranty issues.
READ THIS MANUAL
Inside you will find many helpful hints on how to use
and maintain your dehumidifier properly. Just a little
preventive care on your part can save you a great deal
of time and money over the life of your dehumidifier.
You'll find many answers to common problems in the
chart of troubleshooting tips. If you review our chart of
Troubleshooting Tips first, you may not need to call
for service at all.
PRECAUTION
•Contact the authorized service technician for
repair or maintenance of this unit.
• Contact the installer for installation of this unit.
• The dehumidifier is not intended for use by young
children without adult supervision.
• Young children should be supervised to ensure
that they do not play with the dehumidifier.
• When the power cord is to be replaced, replacement
work shall be performed by authorized personnel
only using only genuine replacement parts.
Safety Precautions .......................3
Prior to Operation .........................7
Instruction .....................................8
Electrical Safety ............................9
Operating Instructions ...............11
Installation...................................13
Maintenance
................................14

Safety Precautions
Owner’s Manual 3
ENGLISH
Read all instruction bef
Read all instruction before using ore using
■To prevent injury to the user or other people and property damage, the following instructions must be followed.
■Incorrect operation due to ignoring instructions will cause harm or damage; the seriousness is classified by the
following indications.
■Meanings of symbols used in this manual are as shown below.
WARNING This symbol indicates the possibility of death or serious injury.
CAUTION This symbol indicates the possibility of injury or damage to property only.
Be sure not to do.
Be sure not to do.
Be sure to f
Be sure to follo ollow the instruction. w the instruction.
W
WARNING ARNING
Plug in the power plug
properly.
• Otherwise, it will cause electric
shock or fire.
Do not operate or stop the unit
by inserting or pulling out the
power plug.
• It will cause electric shock or fire.
Do not damage or use an
unspecified power cord.
• It will cause electric shock or fire.
Safety Precautions
NO
■Installation
■Operation
Do not place the power cord
near a heater.
• It may cause fire and electric
shock.
Do not use the power cord near
flammable or combustibles
materials such as gasoline,
benzene,paint thinner, etc.
• It may cause explosion or fire.
Do not disassemble or modify
products.
• It may cause electric shock and
failure.
Gasolin

4Dehumidifier
Safety Precautions
Do not modify power cord
length.
• It will cause electric shock or fire.
Do not share the outlet with
other appliances.
• It will cause electric shock or fire.
Always plug into a grounded
outlet.
• No grounding may cause electric
shock.
Unplug the unit if strange
sounds, odors, or smoke come
from it.
• Otherwise it may cause a fire or
an electric shock.
Do not use the socket if it is
loose or damaged.
• It may cause fire and electric
shock.
Do not operate with wet hands
or in damp environment.
• It may cause electric shock.
Ventilate before operating
defumidifier when gas goes out.
• It may cause explosion, fire, and
burn.
Do not clean the dehumidifier
with water.
• Water may enter the unit and
degrade the insulation. It may
cause an electric shock.
Turn off the power and breaker
first when cleaning the unit.
• Since the fan rotates at high
speed during operation, it may
cause injury.
If water enters the product, turn off the
dehumidifier's power switch. Contact service
center after taking the power-plug out from the
socket.
• It will cause machine failure or electric shock.

Safety Precautions
Owner’s Manual 5
CA
CAUTION UTION
■Installation
Never touch the metal parts of the
unit when removing the filter.
• They are sharp and may cause
injury.
Do not block the inlet or outlet.
• It may cause failure of appliance or
performance deterioration.
Hold the plug by the head when
taking it out.
• It may cause electric shock and
damage.
Turn off the main power switch
when not using the dehumidifier
for a long time.
• It will waste power consumption in
vain and it may cause an accident.
Secure wheels with blocks to
prevent unit from falling when
installed on a table or shelf.
• It may damage the dehumidifier
or cause other damage or injury.
Make sure the dehumidifier is
the correct size for the area you
want to dehumidify.
• It is not designed to dehumidify
the entire house.
Install the dehumidifier properly on a
floor, table, or shelf that is level and
strong enough to support it when the
water collection bucket is full.
• It should withstand around
90 lbs (40kg) of weight.
Close all doors, windows and
other outside openings to the
room.
• The dehumidifier must be
operated in an enclosed area to
be most effective.
ENGLISH

6Dehumidifier
Safety Precautions
Do not put a pet or house plant
where it will be exposed to
direct air flow.
• This could injure the pet or plant.
Do not use this appliance for
preserving precision devices,
foods, pets, plants, and art
objects.
• It is a general use appliance not
precision equipment.
Do not use the water collected
in the bucket for drinking
purposes.
• It is not sanitary and could cause
illness or personal injury.
Always insert the filter securely.
Clean it every two weeks.
• Operation without filters will cause
failure.
Wax
Thinner
Use a soft cloth to clean. Do not
use wax, thinner, or a strong
detergent.
• The appearance of the
dehumidifier may deteriorate,
change color, or develop surface
flaws.
Be sure to replace the bucket
properly after emptying to
prevent water from collecting
on the floor.
• Otherwise, it will cause property
damage.
Will not operate satisfactorily if
the room temperature is below
65°F(18°C).
• Low temperatures could cause
coils to frost.
■Operation

Owner’s Manual 7
Prior to Operation
Prior to Operation
1. Consult an installation specialist for installation.
2. Plug in the power plug properly.
3. Use a dedicated circuit.
4. Do not use an extension cord.
5. Do not start/stop operation by plugging/unplugging the power cord.
6. If the cord/plug is damaged, only replace it with an authorized replacement part.
1. Being exposed to direct airflow for an extended period of time could be hazardous to your
health. Do not expose occupants, pets, or plants to direct airflow for extended periods of time.
2. Ventilate the room when the dehumidifier is used with other heating devices. Otherwise the
oxygen supply may be inadequate.
3. Do not use this dehumidifier for non-specified special purposes (e.g. preserving precision
devices, food, pets, plants, and art objects). Such usage could damage the items.
1. Do not touch the metal parts of the unit when removing the filter. Injuries can occur when
handling sharp metal edges.
2. Do not use water to clean inside the dehumidifier. Exposure to water can destroy the insulation,
leading to possible electric shock.
3. When cleaning the unit, first make sure that the power and breaker are turned off. The fan
rotates at a very high speed during operation. There is a possibility of injury if the unit’s power
is accidently turned on while the interior of the unit is being cleaned.
For repair and maintenance, contact your authorized service dealer.
Preparing for operation
Usage
Cleaning and maintenance
Service
ENGLISH

8Dehumidifier
Instruction
Instruction
This symbol alerts you to the risk of electric shock.
This symbol alerts you to hazards that could cause harm to the
dehumidifier.
This symbol indicates special notes.
NOTICE
WARNING: This appliance should be installed in accordance with national
wiring regulations. This guide acts as a guide to help to explain product
features.
Features
Symbols used in this Manual
Rear Grille
Power cord
Cabinet
Front Grille
Water Bucket
Air Filter
Handle
Auto Shut-off
Light
Humidity Control
Fan Speed

ENGLISH
Owner’s Manual 9
Electrical Safety
Electrical Safety
WARNING: This appliance must be properly grounded.
The power cord of this appliance is equipped with a three-prong grounding plug.
To minimize the risk of electric shock, use the plug with a standard three-slot
grounding wall power outlet. If the power outlet does not include a grounding slot,
have a qualified electrician replace the outlet before you use the dehumidifier.
WARNING: Do not cut or remove the grounding prong from the
power plug.
WARNING: Attaching the adapter ground terminal to the wall
receptacle cover screw does not ground the appliance unless the
cover screw is metal and not insulated, and the wall receptacle is
grounded through the house wiring.
WARNING: If you have any doubt whether the dehumidifier is
properly grounded, have the wall receptacle and circuit checked by
a qualified electrician.
Preferred method
Ensure proper ground
exists before use

10 Dehumidifier
Electrical Safety
Temporary Use of an Adapter
We strongly discourage the use of an adapter due to potential safety hazards.
For temporary connections, use only a UL-listed adapter, available from most local
hardware stores. To disconnect the power cord from the adapter, use one hand on
each to avoid damaging the ground terminal. Avoid frequently unplugging the power
cord as this can lead to eventual ground terminal damage.
WARNING: Never use the appliance with a broken adapter.
We strongly discourage the use of an extension cord due to potential safety
hazards.
Temporary Use of an Extension Cord
Temporary method
Adapter Plug
Receptacle Cover
Metal Screw

ENGLISH
Owner’s Manual 11
Operating Instructions
Operating Instructions
CONTROL
Your dehumidifier has a control panel containing an indicator and two controls —
Auto Shut-Off, Fan Speed, and Humidity Control.
Auto Shut-Off ---This lamp glows when the bucket is full or missing.
Fan Speed --- This controls the speed of the airflow.
Humidity Control--- This controls the moisture in the room.
UNIT OPERATION
1. Turn the Humidity Control to Off. Plug the power supply cord into an electrical outlet.
2. The Humidity Control can be set anywhere between Off and Max for normal operation.
If you need more dehumidification, turn the Humidity Control toward Max. If you need less
dehumidification, turn the Humidity Control toward Off.
3. Turn the Humidity Control to Off to stop the unit manually.
4. If you want to control the speed of air flow, turn the Fan Speed toward Low or High.
The compressor will not operate for about three minutes to protect the compressor
when you turn the unit off and immediately back on.
DE-ICER CONTROL (INVISIBLE)
The Defrost Control senses frost build-up on the evaporator coil and automatically shuts off the
compressor. The fan continues to run, drawing air across the coil, and melting the frost. When the
coil is defrosted, the compressor automatically restarts, and dehumidifying resumes.
Water bucket must be properly installed.
•The dehumidifier will not run if the bucket is not properly installed.
•The dehumidifier shuts off when the desired humidity setting is reached.
NOTICE
NOTICE

12 Dehumidifier
Operating Instructions
Water level
control switch
Automatic shut off

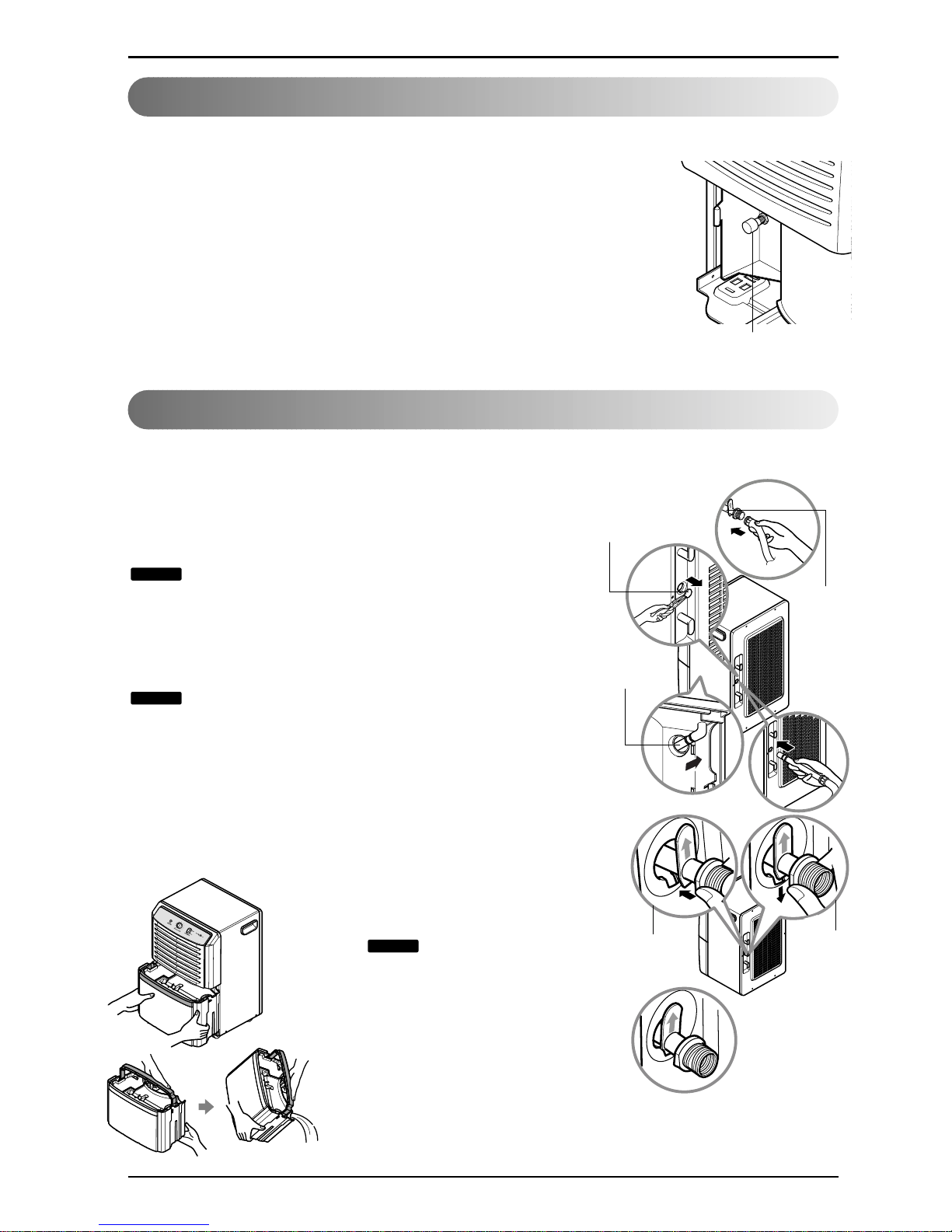

Disposing of collected water
The dehumidifier will turn off automatically when the bucket is full,
or when the bucket is removed or not replaced in the proper
position.
The bucket must be replaced in the proper position for the
dehumidifier to work. The light will be on and the
dehumidifier will not run if the bucket is not in the proper
position.
1. Empty the bucket manually.
2. Attach a length of garden hose to the threaded drain hose
connection to carry water to the drain.
When the bucket is full, pull out by
grasping the handle and empty it
into a large sink or tub and then
replace it properly.
Do not remove while
operating the dehumidifier.
It can cause water to drop on the
base pan or the floor.
Empty the bucket when the indicator
light turns on.
It is advisable to carry the
bucket by supporting it from the
bottom as well as by the handle.
Carrying by only the handle may
cause the handle or bucket cover to
break.
2. Remove the drain-hole cover.
(Fig2)
1. Connect a garden hose to the
threaded drain hose connector.
(Fig1)
NOTICE
NOTICE
4. Press the hose down and make
sure the “Arrow” is pointing upward.
(Fig4-1,4-2)
The hose attachment will
accept a standard garden hose
fitting.
Do not over tighten the hose when
connecting it to the hose connector,
use a rubber washer and tighten by
hand firmly without stripping the
plastic threads.
NOTICE
When being attached to hose connector drain hose connection, do not bend or kink the hose.
The hose should lie flat fom the dehumidifier to the drain.
DRAIN HOLE
COVER
HOSE
CONNECTOR
HOSE
CONNECTOR
3. Push hose connector tightly into
the drain-hole on Rear Grille.
(Fig3-1,3-2)
Fig1
Fig2
Fig3-2
Fig3-1
INSERT TAKE OUT
Fig4-1 Fig4-2
5.The connection should be resemble
Fig5 when complete.
Fig5

ENGLISH
Owner’s Manual 13
Installation
12"
12"
1. Allow at least 12 inches of space on all sides of the unit for good air circulation.
2. Install your dehumidifier on a floor, table, or shelf. When installing the dehumidifier
on a table or shelf, make sure the table or shelf is strong enough to support the weight
of the dehumidifier with a full bucket. Do not sit or stand on the dehumidifier.
Secure wheels with blocks to prevent unit from falling when installed on a table or shelf.
The height of a table or shelf might provide a better position from
which to handle the bucket and help prevent icing of the coils due to
colder air near the floor (such as in a basement.)
3. Lift the bucket and place it in the dehumidifier, making sure the slots on
the bottom side of the bucket are positioned correctly.
4. Rollers let you move the dehumidifier easily.
NOTICE
1. Pull out the bucket cover. 2. Brush off the residue in the bucket.
Clean the bucket by
wiping with a cloth dampened
in a mild detergent solution.
3. Close the cover.
Push the tabs on the top
of the bucket when installing
the bucket.
NOTICE
NOTICE
•Use the dehumidifier in a
basement to help prevent
moisture damage.
•Use the dehumidifier in laundry
drying, bathing, and dishwashing
areas which have excessive
moisture.
•Use the dehumidifier to prevent
moisture damage where books
are stored.
Installation
Installing the dehumidifier properly
Choosing the proper location for your dehumidifier
The cleaning of bucket

14 Dehumidifier
Maintenance
Maintenance
Your dehumidifier is designed to serve you year-
round. It needs practically no attention. However,
you should check your dehumidifier annually.
You may want an Authorized Service Center to
perform this annual checkup. (Cost of the inspection
is the owner’s responsibility.)
Cleaning the front case, bucket
and cabinet
Clean the front case and the cabinet with a soft
cloth, warm water, and a mild detergent.
Clean the grille with a vacuum attachment or brush.
Do not use bleach or abrasives.
Cleaning the air filter
1. Remove water bucket from the cabinet.
Pull out the air filter as shown above.
2. Wash air filter with warm water and a mild
detergent. Rinse and dry it.
Replace it in place.
Electrical Shock Hazard
• Disconnect power supply cord from receptacle
before performing any maintenance.
• Be careful when cleaning the coils.
Fins are sharp.
Failure to follow the above precautions could result
in electrical shock or personal injury.

ENGLISH
Owner’s Manual 15
Maintenance and Service
■The dryness level you
selected has been
reached.
•Push plug firmly into wall outlet.
•Check the house fuse/circuit breaker box
and replace fuse or reset the breaker.
•
•Turn the Humidity Control to a lower setting.
•Dehumidifier will not turn off if Humidity
Control is at Max.
•Close all windows or doors to outside.
Problem Possible Causes WhatTo Do
Dehumidifier does
not operate
Dehumidifier
runs too much
Frost appears
on coils
Fan noise
■Plug is disconnected from
outlet.
■The fuse is blown/circuit
breaker is tripped.
■
The Auto Shut-Off light is
on.
■ Humidity Control is set too
high.
■Windows or doors near
dehumidifier are open to
outdoors.
■Humidity Control is set at
Max.
Dehumidifier automatically shuts off when
the selected amount of moisture has been
removed from the air. If you want to remove
more moisture, turn the humidity Control to
Max. After the dehumidifier starts, reset the
control to the desired setting.
• Dehumidifier automatically shuts off when
the bucket is full. Empty the bucket and
replace it.
■ Area to be dehumidified is
too large.
Air movement through
dehumidifier is blocked.
•Check with your dealer to see if capacity is
adequate.
Front grille may be dirty.
Use a brush to clean the grille.
Dehumidifier's coils on the back of unit may
be dirty. Clean the soil on the coils of the
back of the unit.
Dehumidifier must be placed in a space that
does not restrict air flowing into the rear coil
or out of the front grille.
■ Dehumidifier is not turned
on.
• Turn on the Humidity Control.
■ Room temperature is too
low.(Room temperature is
below 65°F (18°C.)
• Frost will usually disappear within 60
minutes.
■ Air is moving through the
dehumidifier.
• This is a normal sound.
The dehumidifier may be operating abnormally when:
Troubleshooting
•
■

16 Dehumidifier
• The more moisture in the room air, the
longer it takes for the room air to
become dry.
oDoTtahWsesuaCelbissoPmelborP
Dehumidifier does
not dry the air as
it should
■Dehumidifier has been
installed or restarted
recently.
■
Airflow is restricted.
•
•
Make sure there are no curtains, blinds, or
furniture blocking the front or back of the
dehumidifier.
■ The control may not be set
high enough.
Turn the knob to a higher number.
•
■ Doors and windows may
not be closed tightly.
Check that all doors, windows, and other
openings are securely close.
•
■ Household equipment such as
clothes dryers ordishwashers
the room.
Place the dehumidifier away from
household appliance air vents. Ensure
•
■ Room temperature is too
low.
The unit will not operate satisfactorily if the
room temperature is below 65°F (18°C.)
Maintenance and Service
may be blowing moist air into
that clothes dryers are vented outside.

Memo
Owner’s Manual 17
ENGLISH

18 Deshumidificador
Manual de Instalación & Operación Deshumidificador
ÍNDICE
PARA SUS REGISTROS
Escriba aquí el número de modelo y serie:
Modelo #
Serie #
Puede encontrarlos en la etiqueta situada en el lateral de cada unidad.
Nombre del distribuidor
Fecha de compra
■
Grape su recibo en esta página por si lo necesita para comprobar la
fecha de compra o temas relacionados con la garantía.
LEA ESTE MANUAL
En su interior encontrará muchos consejos útiles sobre la utilización
y el mantenimiento adecuado de su deshumidificador. Una simple
atención preventiva por su parte puede ahorrarle mucho tiempo y
dinero a lo largo de la vida de su deshumidificador.
Encontrará muchas respuestas a los problemas más comunes en el
cuadro de consejos para la solución de problemas. Si en primer lugar
revisa nuestro cuadro de consejos para la solución de problemas, es
posible que no tenga necesidad de llamar al servicio técnico.
PRECAUCIÓN
• Póngase en contacto con un técnico del servicio
autorizado para las reparaciones o el mantenimiento
de esta unidad.
• Póngase en contacto con un instalador para la
instalación de esta unidad.
• El deshumidificador no está diseñado para que lo
utilicen sin supervisión niños o personas con las
facultades mentales mermadas.
• Debe vigilarse a los niños para asegurarse de que no
juegan con el deshumidificador.
• Cuando haya que sustituir el cable de alimentación,
debe realizar el trabajo de sustitución personal
autorizado utilizando únicamente piezas de recambio
originales.
Precauciones de seguridad .......19
Antes de la utilización ................23
Instrucción...................................24
Seguridad eléctrica.....................25
Instrucciones de
funcionamiento ...........................27
Instalación ...................................29
Mantenimiento ............................30

Precauciones de seguridad
Manual de usuario 19
LEA EST
LEA ESTAS INSTR AS INSTRUCCIONES ANTES DE USAR UCCIONES ANTES DE USAR
■Para evitar lesiones al usuario o a otras personas y daños materiales, debe seguir las siguientes instrucciones.
■El uso incorrecto ocasionado al ignorar las instrucciones puede causar lesiones o daños. La gravedad se
clasifica mediante las siguientes indicaciones.
■A continuación se muestran los significados de los símbolos utilizados en este manual.
ADVERTENCIA Este símbolo indica la posibilidad de muerte o lesiones graves.
ATENCIÓN Este símbolo indica la posibilidad de lesiones o daños sólo materiales.
No lo haga.
Siga las instrucciones.
AD
ADVER VERTENCIA TENCIA
Enchufe la clavija
correctamente.
•
De lo contrario, puede ocasionar
un incendio o una descarga
electrica.
No encienda ni apague la
unidad insertando o retirando
la clavija.
• Causará una descarga eléctrica
o incendio
No dañe el cable ni utilice un
cable de alimentación no
especificado.
• Podría producirse una descarga
eléctrica o incendio.
■Instalación
■Funcionamiento
No coloque el cable de
alimentación cerca de una
estufa.
• Podría producirse un incendio y
una descarga eléctrica.
No utilice el cable de alimentación
cerca de gas inflamable o
combustibles, como gasolina,
benceno, disolvente, etc.
• Podría producirse una explosión o
incendio.
No desmonte ni modifique los
productos.
• Puede causar una descarga
eléctrica
Gasolin
NO
Precauciones de Seguridad
ESPAÑOL

20 Deshumidificador
Precauciones de seguridad
No modifique la longitud del
cable de alimentación.
• Causará una descarga eléctrica o
incendio.
No comparta el enchufe con
otros aparatos.
• Causará una descarga eléctrica o
incendio.
Realice siempre la conexión a
un enchufe con toma de tierra.
• Si no hay toma de tierra, podría
producirse una descarga
eléctrica.
Desenchufe la unidad si emite un
sonido extraño, olores o humo.
• De lo contrario, puede ocasionar un
incendio o una descarga electrica.
No utilice el enchufe si está
flojo o dañado.
• Podría producirse una descarga
eléctrica o incendio.
No utilice la unidad con las manos
mojadas o en un entorno húmedo.
• Puede causar una descarga
eléctrica o incendio.
Si observa que entra agua en el producto, apague
el interruptor de contacto del deshumidificador.
Después de retirar la clavija del enchufe, póngase
en contacto con el centro de servicio técnico.
• Causara fallo de la maquina o descarga electrica.
Si hay una fuga de gas, ventile
la habitación antes de utilizar el
deshumidificador.
• Podría producirse una explosión,
incendio y quemaduras.
No limpie el deshumidificador
con agua.
• El agua podría introducirse en la
unidad y degradar el aislamiento.
Podría producirse una descarga
eléctrica.
Apague el aparato y el diferencial
primero al limpiar la unidad.
• Como el ventilador gira a alta
velocidad durante el
funcionamiento, podrían
producirse lesiones.
