Zenith VOCALIZER II User manual

operating instructions
VOCALIZER II
HEARING AID
Th e quality goes in . .. before the na me goes on

~ ~~:
Welcome to a thrilling new experience in hearing
aid enjoyment. .. the true benefits of Zenith's outstand·
ing qual i ty. As you become accustomed to your new
hearing a id we are sure you will b-e delighted with the
hearing comfort, convenience and the performance you
will der i ve from it. Your VOCAL I ZER II features the latest
Zenith engineering ... creatively designed to provide the
world 's finest hearing help.
We urge you to follow these step-by - step instruc-
tions to obtain the maximum enjoyment from your new
hearing aid. As time goes by, we are certain your con-
fidence in Zenith hearing aids will be rewarded by many
years of listening pleasure.
Should you ever have any questions regarding
your new hearing aid, check with the dealer from whom
the aid was purchased, or with us . We are always avail -
ab le to assist you in any way to achieve better hearing.
Sincerely,
~~
Robert C. Stuart, General Manager
Zenith Hearing Aid Sales Corp.

. Three·positlon
Phone-Mqnet'D
switch
2. Volume control-
ON/OFF awltl:ll
!3. Microphone openln8
4. Garment clip
,s. Battery compllrtmllnt
• Earphonll
7. Earphone cord
volume control
on/ off switch
A smoothly rotating volume control permits finger-
tip adjustment of sound amplification for best h ea r ing
under varying acoustic conditions_ The on/off switch
is comb - ined with the volume control. Your hearing aid
wi ll be off when the arro w on the top of the case points
dir ectly to the word "Off" On the volume control knob.

ne w
m
ic rophone
hood
The microphone grill on top of your new Zenith
hearing aid has been specifically designed to screen out
the biggest percentage of dirt and foreign particles.
To further this protection, Zenith offers a new
microphone hood as an accessory. Designed to blend
with the smooth l ines of your hearing aid, the micro·
phone hood can be quickly mounted by your Zenith
dealer and offers added protection against the intrusion
of foreign matter, particularly it the user is a young chi ld .
how to attach
earphone cord
Your aid Is supplied with • special cord equipped
with • right an,le plul to mttle Iide receptacle of the
hearln. ald. This cord may be attached to the aid In
either
of two ways. up or down as desired. The other
end Is, of
COutS., pluaed Into the earphone.
Should you desire • different lenath cord, or be
In need
of a replacement. _ recommend that you
elways use • pnUlne Zenith COrd, available at author-
ized Zenith dealers.

how to inse rt battery
Your new hearln.ald has been designed to operate
efficiently using the ZM401 battery. Your authorized
Zenith Hearing Aid Dealer keeps freah SUpplies 01 thiS
battery available for your convenience.
To
InArt the battery. open the battery compart-
ment door. You will ... a plastic tape. This tapa II there
to assist In removing the battery. Piece the battery on
top 0' tha remOQlI tape. leaving enouch 'tape to pull
when you wish to ramove the ~ttwY.
Press the neptlve (-) end .,.lnit the contact
spring. than push down the positive (+> and. To remove
the battery. pntly pull the plastic lape.
To obtain maximum perfO~tiCe and battery IIle
from your new ald. we racommend tIIat ,au always use
Zenith label batteries. freBtl stocks of whtch are kept at
authorized Zenith dealers.
L----- ____________________________ ~I .

P hone- M agn et @
The Zenith Phone -
To operate, simply flick the switch from "M"
(microphone) to "T" (telephone) position, then couple
the telephone receiver as shown in the above illustration.
Magnet in your new hearing aid
enables you to "focus" on telephone c onversations by
shutting out other sounds picked up by the microphon e.
A new feature is the "8" position. This indicates
that both the microphon e and telephone coil are on at
the same time. It has practi c al applications in school,
hom e and office use.
garment
clip \/_1
The pnnent cUp on your n_ hearln.aid Is ftCIdly
constructed and firmly aua~ed to the case. The clip
Insul'8$ that the heartn. aid will be held securely end
comfortable
In place wll.u.., In the pocket 0; In the
hearinK aid aarmenL

finding c or r ect
volum e setting
The sound a mplification you will need depends
upon (1) degree of your hearing loss, and (2) ac ousti c
conditions in di ff e rent surroundings.
To find the volume setting that provides be st
performance under most conditions, foll ow this pro·
c edure. Always use a fresh battery. It is helpful to have
another person pr esent to assist in the adjustment of
your volume co nt r ol.
1. Have this person speak in a normal tone of
voice from a distance of 6 to 8 feet.
2. Slowly mov e yo ur Volume Control until you can
hear his or her voice clearly.
3. Do not move Volume Control beyond point
where you can hear words clearly. Some tend
to u se too much volume at first . Th is ca us es
distortion of sound . Alway s adjust to the lowest
c omfortable level.
•
Zenith
I 'Receiver-Saver' ,
Aa a service to heart". aid user., Zenltlt chlvel.
oped the "Recelver-Saver." SlIpped over tile cord "nct
attached to the receiver (euphone) e. directed. .. pr.
ventw the receiver comlnaJoo$e from the cord. 'This Is
P*tlculatlyImportant to scfIooIs for tile hard·o'oIiUrIng
and
.,.,.nts of children ... ".. hearing aida. Recetwr·
Sa ... ere evallabla from yourauthorized Zenith 1'18r·
Ina aid dealer.

how to care f or your he aringaid
1. AVOID EXCESSIVE HEAT
Never leave your aid in hot sunlight, on a radiator,
in a clo se d car, or near other sources of high tem-
perature. Our warranty does not co ver damage
caused by such abuse.
2, REMOVE BATTERY NIGHTLY
When batteries become exhausted, the chances of
their leaking and damaging your aid are increased.
Occasionally , however, even new batteries may leak
because of slight imperfections . Play safe by remov·
ing battery from aid each night and checking care-
fully for signs of leakage.
3. CLEAN TERMINALS WITH AMMONIA
If battery terminals or hearing aid contacts become
corroded, bri g hten them by rubbing with cloth dipped
in household ammonia. Should battery leakage occur,
remove fluid promptly with cloth dampened in
ammonia .
4. CLEAN CORD CONTACTS
Remove any cOrrosion that forms on cord plu. tar-
mlna'-
with a pipe clUner or small brush.
5. CLEAN EARMOLD FREQUENTLY
Remove wax from earmold eanal with pipe clUner
whenever It formlh Wash mold In "Germl-K!ean"_
beneflcl.1 product developed spedfieally tor deenln.
end sanltizlnl aarmolds. and which Is evallable at
mOSlZenlth hearing aid deale.... If not avellable. wash
In _py _ter at least once a weak. Do not use hot
water or stronl solvents .uch •• alcohol to claen
earmold.
Dry thoroulhly WIth pipe cleaner. maklnl
certeln no moisture remains In the sound channeL

Zenith custom earmolds
Your new hearing aid is supplied with either a
stock earmold, or with a soft plastic eartip , both of
which have been designed p ri marily for use in demon-
stratin g the i nstrument, and fo r temporary use unti l a
custom earmold can be obt ain ed.
Good aco u stic seal betw een ear and earmo ld is
so important th at a Zenith "Custom Earmold," made
especially to fit your ear an d ear cana l, is strongly r ec·
ommended. The Zenith Royal Velvet earmold of fle x-
ible material is especially designed for added comf ort
and proper acoustic seal.
Your Zenith hearing aid dealer can take an im -
pres sio n of your ear and obtain a genuine Zen ith "Cus-
tom E ar mold" for you at a moderate cost. A variety of
eff i cient, comfortable styles in three separate materials
is ava ilab le to you. Ask your dea ler for f" ull detai ls and
a demo ns tration today.
important advice
to new users ...
Learnina toOpenlteand maintain your new Zenith
Is the first step to true hearinl enjoyment. Next, and
equally Important.
I. patience and practice In master-
Inl the new worlds of sound chat your hearins aid will
provide. To assist you In learnln8 how to U&8 your new
aid, we recommand you read the booklet entitled "A
Guide to Better Hearing" written especially for those
who have never worn a hearln. ald.
Also available is an excellent booklet prepared by
Zenith·. Audlolo,lc:a1Services Department
'or parents
of a hard-of·hearlng child. The booklet Is entitled'
"CARING
FOR ACHILD'SHEAR INGAID"whlch contains.
amons other thlnss. Instructions on how
to properly
perform a listen test
on a hearing ald.

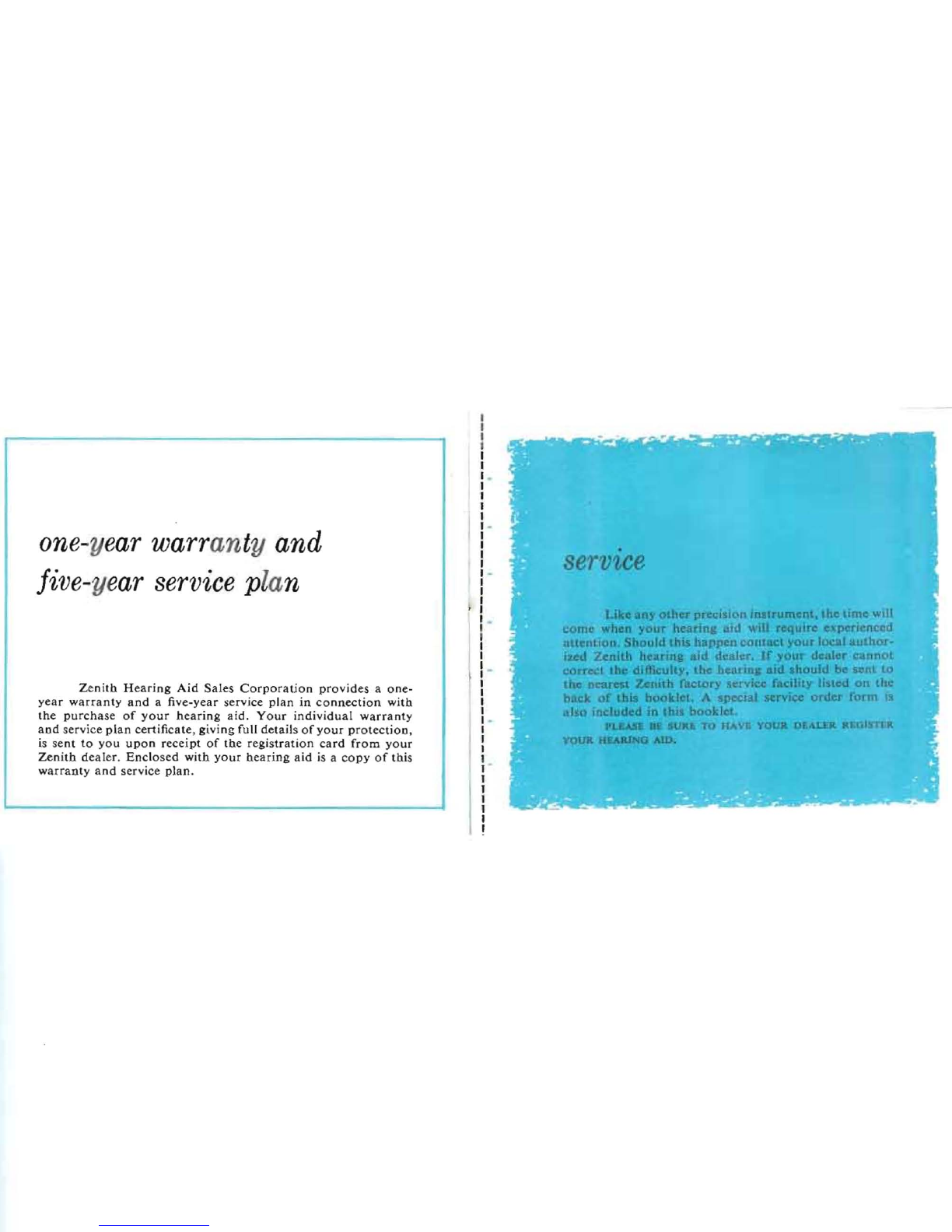

one- y ear warranty and
five- y ear service p la n
I
I
I
I
I
I -
.
servu;e
I I uteoan)'
oth. pRoislon I ... Irumonl. tbe Lime Will
,- come
whoa your hearinc III wlU require ClIPGI'IeJ\Ccd
I
:-
uUCnLlOD Sbouldlhls happen ~n_l your locailluthor·
I fuel Zealth hearma aid dealCt'.
If your dealer "nnot
eorre.:1 tlIo d111k:u1t)'. the bcaruaa lUd should be IlIlIl to
I
tho acarwl Zaith IlacIory service lulUIy IIstoe! on Ihe
I
I blGll
of Lbill booklet. It. Special HrvlC:C ordu rorm IS
I
Iso rncJoded fa lbil booklet.
I •
I PL&AR
IUD TO RA VII YOtII& Ol.u:mt a IJTtJI
I
YOU1& ItIA&INO AID.
I
I
I -
I
I
I
I
I
!
Zenith Hearing Aid Sales Corporatjon provides a one-
year warranty and a five-year service plan in connection with
the pu rchase of your hearing aid, Your individual warranty
~od service plan certificate, giving full details of your protection ,
IS se nt to you upon receipt of the registration card from you r
Zenith deal er. Enclosed with your he ari ng aid is a co py of this
warranty and service plan .
