Zenoah BK2650DL-Hb User manual

BK2650DL-Hb
848EGD93A0 (601)
OWNER’S MANUAL
BRUSHCUTTERS
•This OWNER’S MANUAL contains
operation instructions and important
precautions necessary to prevent
accidents when using your unit. Before
starting any operation, please read this
manual carefully to ensure proper use
of your unit. After reading it, keep the
manual handy for future reference.
•Failure to follow the safety precautions
for electrical parts might cause a fire or
accident resulting in injury or death.
CAUTION
●이 사용설명서에는 제품을 사용하시
는데 있어, 사고방지를 위한 중요한
주의사항과 제품의 취급방법이 설명
되어 있습니다. 이 사용설명서를 잘
이해하신 후, 제품을 안전하게 사용
하십시오. 다 읽으신 후에는 언제라
도 볼 수 있는 곳에 반드시 보관하여
주십시오.
●전기관계 부품은 안전을 위한 주의사
항을 지키지 않으면, 화재나 인재사
고가 발생할 수 있습니다.

2

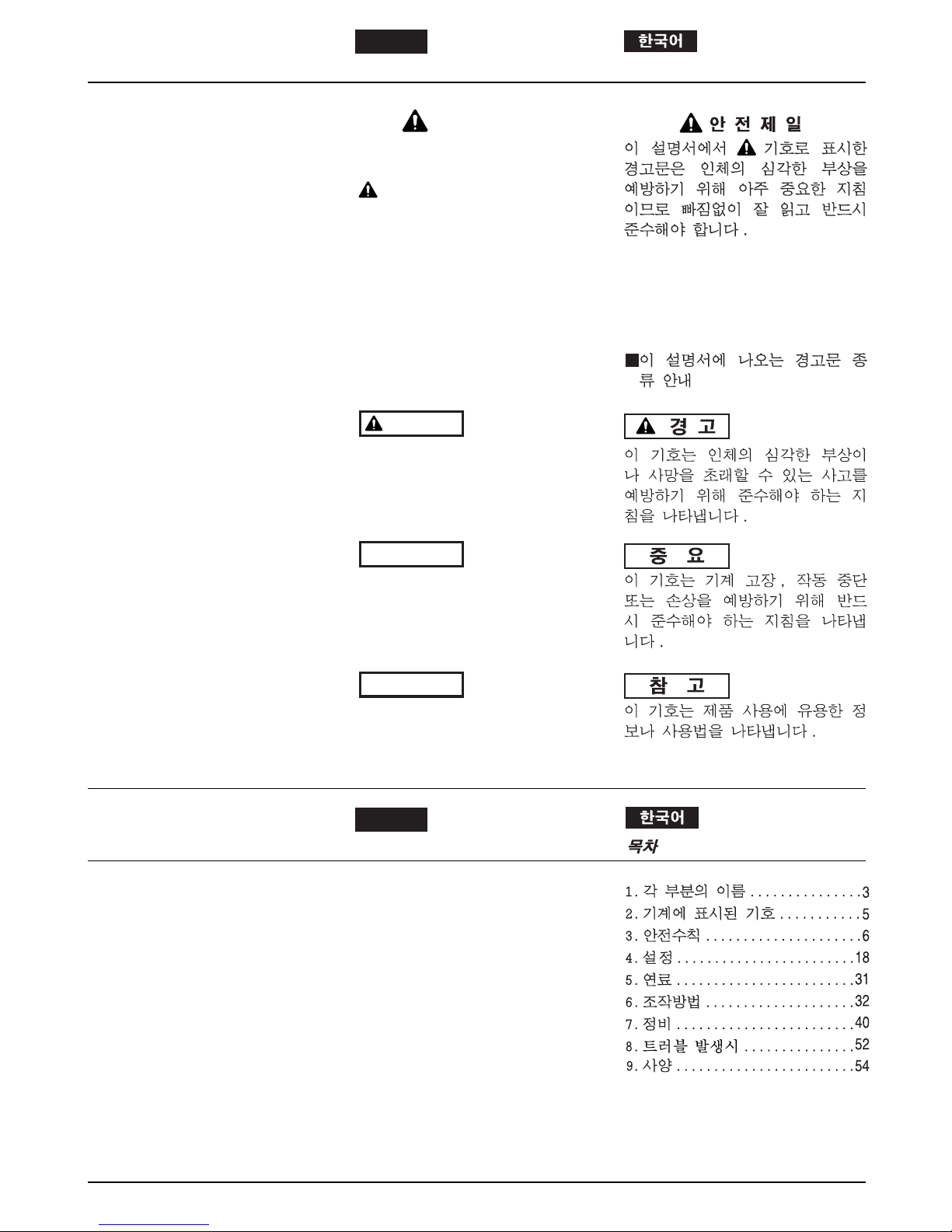

SAFETY FIRST
Instructions contained in warnings
within this manual marked with a
symbol concern critical points
which must be taken into
consideration to prevent possible
serious bodily injury, and for this
reason you are requested to read
all such instructions carefully and
follow them without fail.
■NOTES ON TYPES OF
WARNINGS IN THE MANUAL
This mark indicates instructions
which must be followed in order to
prevent accidents which could lead to
serious bodily injury or death.
This mark indicates instructions
which must be followed, or it leads to
mechanical failure, breakdown, or
damage.
This mark indicates hints or
directions useful in the use of the
product.
NOTE
IMPORTANT
WARNING
English
Contents
1. PARTS LOCATION ………………………3
2. SYMBOLS ON THE MACHINE …………5
3. SAFETY PRECAUTIONS ………………6
4. SET UP …………………………………18
5. FUEL………………………………………31
6. OPERATION ……………………………32
7. MAINTENANCE …………………………40
8. TROUBLESHOOTING …………………51
9. SPECIFICATIONS ………………………53
English

3
English
1. PARTS LOCATION
1. 멜빵 프레임
2. 멜빵 밴드
3. 걸림 밴드
4. 루프 핸들
5. 메인 파이프
6. 기어 케이스
7. 에어 크리너
8. 캐브레터
9. 연료 탱크
10. 연료 탱크 캡
11. 머플러
12. 스파크 플러그
13. 초크 레버
14. 칼날
15. 칼날 커버
16. 비산방지 커버
17. 가드
18. 스위치 박스
19. 오른쪽 글립
20. 와이어 클램프
21. 플랙시블 샤프트
22. 스로틀 와이어
23. 정지 스위치
24. 스로틀 레버
25. 시작버튼
26. 밧데리
1. Shoulder frame
2. Shoulder belt
3. Hanging belt
4. Loop handle
5. Main pipe
6. Gear case
7. Air cleaner
8. Carburetor
9. Fuel tank
10. Fuel tank cap
11. Muffler
12. Spark plug
13. Choke lever
14. Blade
15. Blade cover
16. Debris guard
17. Guard
18. Switch box
19. Right-hand grip
20. Wire clamp
21. Flexible shaft
22. Throttle wire
23. Stop switch
24. Throttle lever
25. Sterter switch
26. Battery

English
1. PARTS LOCATION
■표준 부속품
개봉시에 하기의 부속품이 들어 있는
것을 확인해 주십시오.
부족하는 것이 있으면 사신 판매점에
연락해 주십시오.
그림번호 부품번호 품명 수량
1 6298-59410 팁소오255-40P 1장
2 6298-59390 칼날 커버 1개
3 T3541-92110 보호 안경 1개
4 3520-91110 칼날 수납 가방 1개
5 848-EGD-93A0 취급 설명서 1권
6 3073-91111 소켓13×19 1개
7 09007-00425 육각렌치(대변4) 1개
8 3570-37214 걸림 밴드 1개
9 848-F62-3610 멜빵 밴드 1개
10 848-8RR-0170 밧데리 1개
11 ㅡ AC어뎁터 1개
12 848-8UA-0010 충전기 1개
4

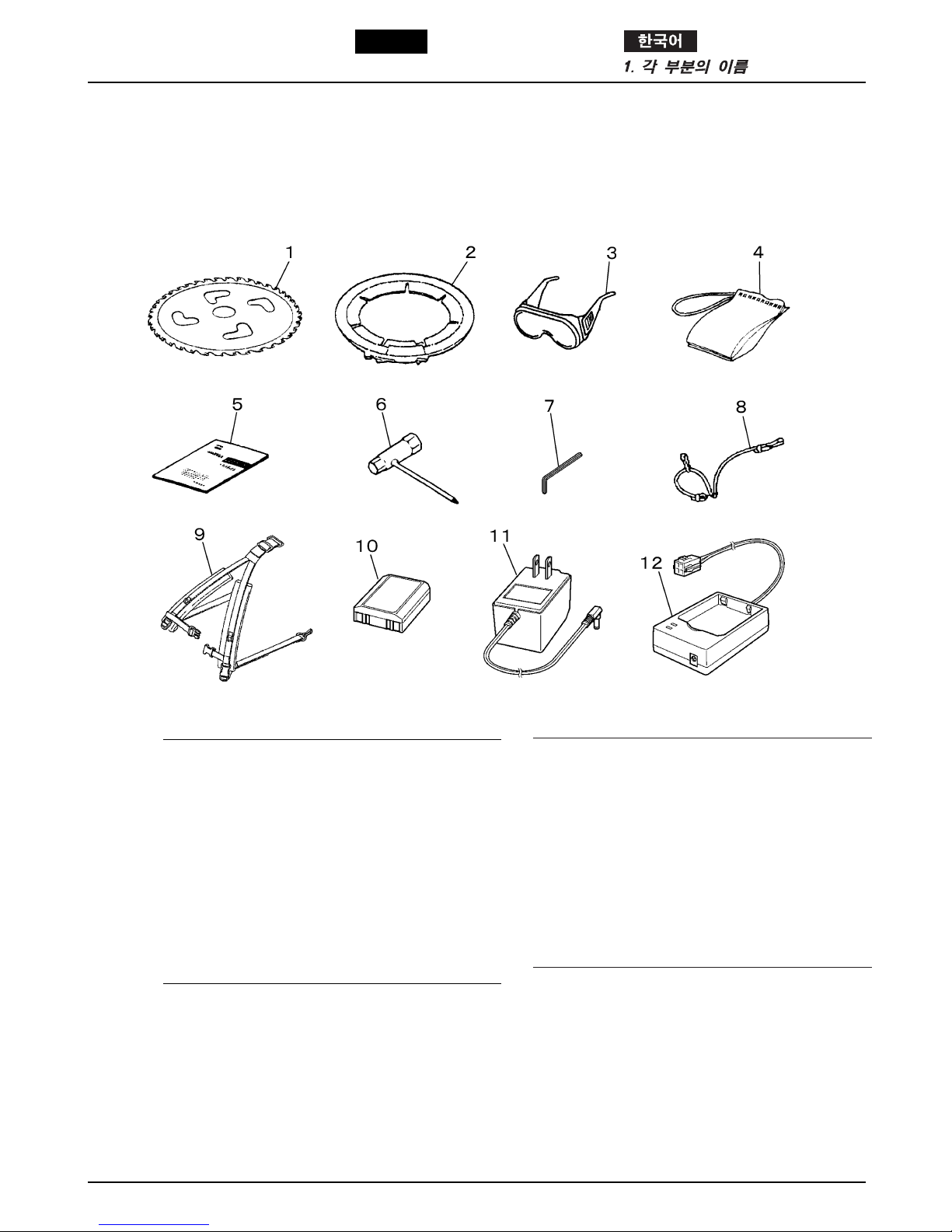

■STANDERD ACCESSORYS
When opening the packaging, please
make sure that the following
accessories are included. If you find
that any of the accessories is lacking,
please contact the shop where you
bought this product.
No. Part No. Part name Quantity
16298-59410 Chip saw 255-50P 1 pc.
26298-59390 Blade cover 1 pc.
3T3541-92110 Goggles 1 pc.
43520-91110 Blade storage-bag 1 pc.
5848-EGD-93A0 Instruction manual 1 set
63073-91111 Socket 13 x 19 1 pc.
Hexagonal wrench
709007-00425 1 pc.
(opposite side 4)
83570-37214 Hanging belt 1 pc.
9848-F62-3610 Shouldering belt 1 pc.
10 848-8RR-0170 Battery 1 pc.
11 – AC adapter 1 pc.
12 848-8UA-0010 Charger 1 pc.

5
English

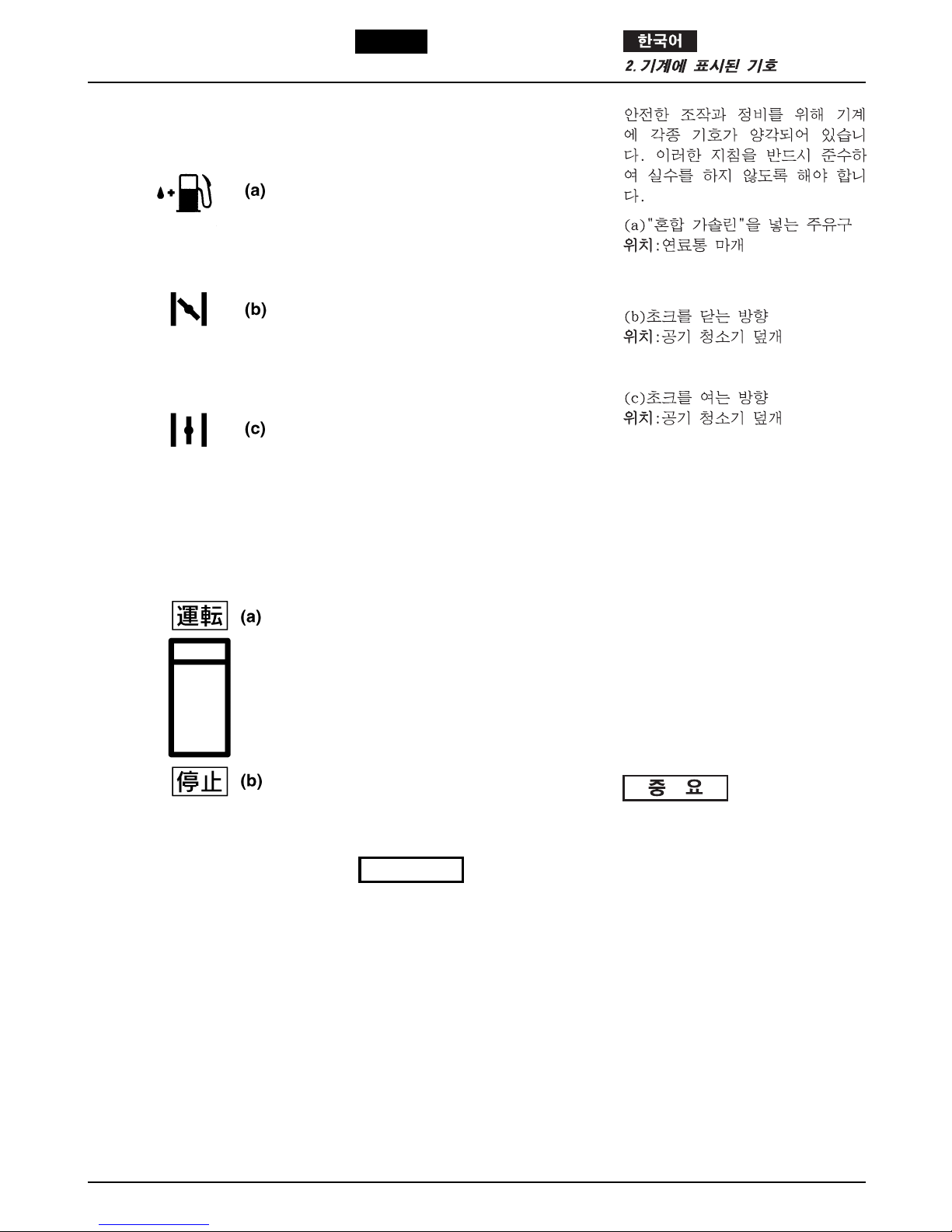

For safe operation and maintenance,
symbols are carved in relief on the
machine. According to these
indications, please be careful not to
take a mistake.
(a).The port to refuel the "MIX
GASOLINE"
POSITION: FUEL TANK CAP
(b).The direction to close the choke
POSITION: AIR CLEANER COVER
(c).The direction to open the choke
POSITION: AIR CLEANER COVER
■STOPSWITCH (ON THE RIGHT-
HAND GRIP SIDE)
(a) Operation:
Setting the stopswitch to the
“operation” position places the unit in
“operate” mode and the engine can
be started by pressing the start
button.
(b) Stop:
Setting the stopswitch to the “stop”
position stops the engine.
This unit is equipped with an
automatic choke carburetor. When
starting the engine under normal
conditions, make sure that the
position of the choke lever is on the
“open” side.
IMPORTANT
2. SYMBOLS ON THE MACHINE
■정지 스위치 (오른쪽 글립측)
(A) 운전
운전측으로 하면 엔진이「운전」되는
것을 나타내며, 스타트 버튼으로 엔
진이 시동하는 것을 나타냅니다.
(B) 정지
정지측으로 하면 엔진이 「정지」하
는 것을 나타냅니다.
본제품에는 오토 쵸크 캐브레터가 탑
재되어 있습니다. 통상, 엔진시동시
에는 쵸크레버의 위치가「열림」측으
로 되어 있는지 확인해 주십시오.

6

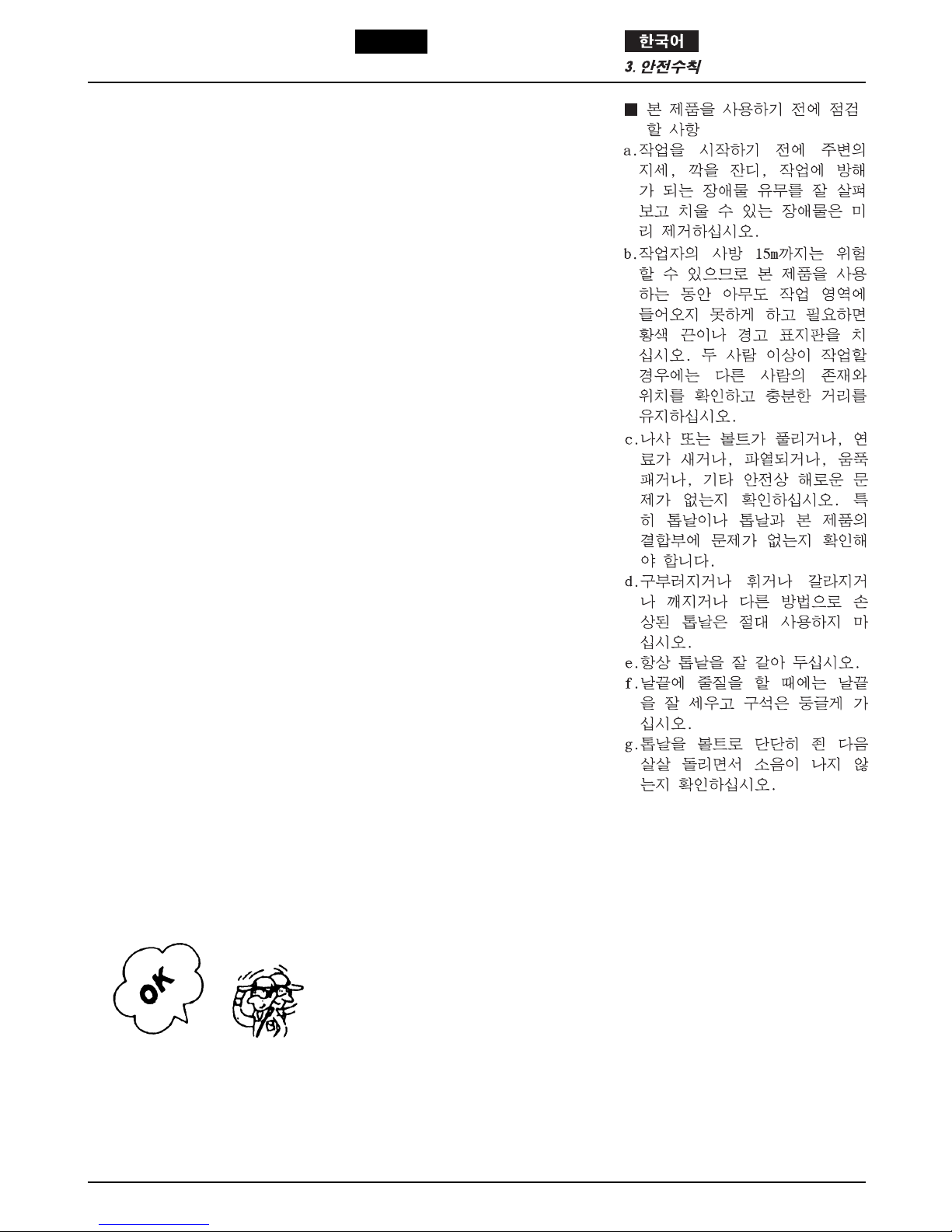

3. SAFETY PRECAUTIONS
■BEFORE USING THE MACHINE
a. Read this owner's manual carefully
to understand how to operate this
unit properly.
b. This product has been designed
for use in trimming grass, and it
should never be used for any other
purpose since doing so could
result in unforeseen accidents and
injuries occurring.
c. You should never use this product
when under the influence of
alcohol, when suffering from
exhaustion or lack of sleep, when
suffering from drowsiness as a
result of having taken cold
medicine, or at any other time
when a possibility exists that your
judgment might be impaired or that
you might not be able to operate
the product properly and in a safe
manner.
d. Avoid running the engine indoors.
The exhaust gases contain
harmful carbon monoxide.
e. Never use your product under
circumstances like those
described below:
1. When the ground is slippery or
when other conditions exist
which might make it not
possible to maintain a steady
posture while using the product.
2. At night, at times of heavy fog,
or at any other times when your
field of vision might be limited
and it would be difficult to gain a
clear view of the area.
3. During rain storms, during
lightning storms, at times of
strong or gale-force winds, or at
any other times when weather
conditions might make it unsafe
to use this product.
f. When using this product for the
first time, before beginning actual
work, learn to handling the product
from skilled worker.
English

7
3. SAFETY PRECAUTIONS
g. Lack of sleep, tiredness, or
physical exhaustion results in
lower attention spans, and this in
turn leads to accidents and injury.
Limit the amount of time over
which the product is to be used
continuously to somewhere
around 30~40 minutes per
session, and take 10~20 minutes
of rest between work sessions.
Also try to keep the total amount of
work performed in a single day
under 2 hours or less.
h. Be sure to keep this manual handy
so that you may refer to it later
whenever any questions arise.
i. Always be sure to include this
manual when selling, lending, or
otherwise transferring the
ownership of this product.
j. Never allow children or anyone
unable to fully understand the
directions given in this manual to
use this product.
■
WORKING GEAR AND CLOTHING
a. When using your product, you
should wear proper clothing and
protective equipment as follows.
(1) Helmet
(2) Protection goggles or face
protector
(3) Thick work gloves
(4) Non-slip-sole work boots
(5) Ear protectors
b. And you should carry with you
things as follows.
1. Attached tools and files
2. Properly reserved fuel
3. Spare blade
4. Things to notify your working
area (Rope, warning signs)
5. Whistle (for collaboration or
emergency)
6. Hatchet or saw (for removal of
obstacles)
c. Never use your product when
wearing pants with loose cuffs,
when wearing sandals, or when
barefoot.
English

8
3. SAFETY PRECAUTIONS
■WARNING CONSIDERING
HANDLING OF FUEL
a. The engine of this product is
designed to run on a mixed fuel
which contains highly flammable
gasoline. You should never store
cans of fuel or refill the fuel tank in
any place where there is a boiler,
stove, wood fire, electrical sparks,
welding sparks, or any other
source of heat or fire which might
ignite the fuel.
b. Smoking while operating the
product or refilling its fuel tank is
extremely dangerous. Always be
sure to keep lit cigarettes away
from the product at all times.
c. When refilling the tank always turn
off the engine first and take a
careful look around to make sure
that there are no sparks or open
flames anywhere nearby before
refueling.
d. If any fuel spillage occurs during
refueling, use a dry rag to wipe up
spills before turning the engine
back on again.
e. After refueling, screw the fuel cap
back tightly onto the fuel tank and
then carry the product to a spot
3m or more away from where it
was refueled before turning on the
engine.
English

9
English
3. SAFETY PRECAUTIONS
■BATTERY AND CHARGER
The battery is an important
component for operating a hybrid
start system. Make sure that you
understand the characteristics of the
battery (lithium-ion battery) in order
to use it appropriately. Furthermore,
handle it carefully without dropping or
knocking it.
A. Do not throw the battery into a fire
or expose it to heat.
Failure to observe this precaution
might result in leakage of battery
fluid, excessive heat generation, or
explosion.
B. Do not disassemble or modify the
battery. Failure to observe this
precaution might result in electric
shock, leakage of battery fluid,
excessive heat generation, or
explosion.
C. When charging the battery, use
the dedicated charger for this
product. Using any other charger
might cause a fire, excessive heat
generation, or malfunction.
D. Do not charge the battery in a
place where fuel is stored or
where there is spilt fuel. Doing so
might cause the fuel to ignite,
resulting in a fire and burns.
E. Do not connect the terminals of
the battery using a metal object.
Doing so might result in electric
shock, leakage of battery fluid,
excessive heat generation, or
explosion.
F. This battery is to be used
exclusively for this product. Do not
use it for any other machine or for
any other application. Failure to
observe this precaution might
result in leakage of battery fluid,
excessive heat generation, or
explosion.
G.If there is any damage to the
charger case or to the cord or the
plug of the AC adapter, or if the
plug fits loosely into the power
supply outlet, do not use the
charger or the AC adapter. Failure
to observe this precaution might
result in electric shock, fire, or
excessive heat generation.
WARNING
■밧데리·충전기에 대해서
밧데리는 하이브리드 스타트 시스템
을 작동시키는데 있어서 중요한 부품
입니다. 밧데리(리튬이온전지)의 특
성을 충분히 이해하신 후, 올바르게
사용해 주십시오. 또한, 떨어뜨리거나
부딪히지 않도록 주의해서 취급해 주
십시오.
a.밧데리를 불 속에 던지거나, 가열
하지 마십시오.
누액, 이상발열, 파열의 원인이 됩
니다.
b.밧데리를 분해하거나 개조하지 마
십시오.
감전, 누액, 이상발열, 파열의 원인
이 됩니다.
c.밧데리를 충전할 경우는 부속된 전
용충전기를 사용해 주십시오. 다른
충전기를 사용할 경우 발화, 이상
발열, 고장의 우려가 있습니다.
d.연료를 보관하는 곳이나 연료가 흘
려진 곳에서는 밧데리를 충전하지
마십시오. 연료에 인화되어 화재나
화상의 우려가 있습니다.
e.금속 등으로 밧데리의 단자 사이를
접촉시키지 마십시오. 감전, 누액,
이상발열, 파열의 원인이 됩니다.
f.전용 밧데리이므로 다른 기종이나
다른 용도로는 사용하지 마십시오.
누액, 이상발열, 파열의 원인이 됩
니다.
g.충전기의 케이스, AC어뎁터의 코
드나 플러그가 손상되었거나, 콘센
트와의 접속이 느슨할 경우는 사용
하지 마십시오. 감전, 발화, 이상발
열의 우려가 있습니다.

10
English
3. SAFETY PRECAUTIONS
H. If battery fluid gets in your eye,
wash it away with clean water
without rubbing your eye, and
consult a doctor immediately.
Otherwise, you could lose your
eyesight.
A. Be careful not to drop the battery
or give any impact to it. Doing so
might cause breakdown of the
battery case, leakage of battery
fluid, excessive heat generation, or
explosion.
B. Do not disassemble or modify the
battery charger. Doing so might
cause an electric shock, fire, or
excessive heat generation.
C. Do not plug in or unplug the AC
adapter with wet hands. Failure to
observe this warning might result
in electric shock.
D. Do not charge the battery in a
place where a child is nearby.
There is a risk of electric shock or
injury to the child.
E. Be careful not to drop the battery
or give any impact to it. Doing so
might cause an electric shock, fire,
or excessive heat generation.
F. Do not use the battery if its case
has broken down. There is a risk
of battery fluid leakage, excessive
heat generation, or explosion.
G.For the power supply outlet, use
the AC adapter (to be used solely
for AC220 V), which is an optional
accessory. Using any other plug
might cause leakage of battery
fluid, excessive heat generation, or
explosion.
H. Do not use the battery charger for
batteries other than the dedicated
battery. Failure to observe this
warning might result in electric
shock, fire, or excessive heat
generation.
I. Do not pour water or seawater on
the battery, and do not put the
battery in water. Failure to observe
this warning might cause a short
circuit or excessive heat
generation. Placing the battery in
water will result in loss of function,
and the battery will no longer be
usable.
WARNING
h.밧데리액이 눈에 들어갔을 경우,
비비지 말고 깨끗한 물로 충분히
씻으신 후, 바로 의사의 진찰을 받
으시기 바랍니다. 실명할 우려가
있습니다.
a.밧데리를 떨어뜨리거나 충격을 가
하지 마십시오. 케이스의 파손, 누
액, 이상발열, 파열의 원인이 됩니
다.
b.충전기를 분해하거나 개조하지 마
십시오. 감전, 발화, 이상발열의 우
려가 있습니다.
c.젖은 손으로 AC어뎁터를 꽂거나
뽑지 마십시오. 감전의 우려가 있
습니다.
d.어린 아이의 손이 닿는 곳에서는
충전하지 마십시오. 감전이나 부상
의 원인이 됩니다.
e.충전기를 떨어뜨리거나 충격을 가
하지 마십시오. 감전, 발화, 이상발
열의 우려가 있습니다.
f.케이스가 파손된 밧데리는 사용하지
마십시오. 누액, 이상발열, 파열의
원인이 됩니다.
g.전원은 부속된 AC어뎁터(교류
220V 전용)를 사용해 주십시오.
누액, 이상발열, 파열의 원인이 됩
니다.
h.충전기는 전용 밧데리 이외의 충전
에는 사용하지 마십시오. 감전, 발
화, 이상발열의 우려가 있습니다.
i.밧데리에 물이나 바닷물를 끼얹거나
물속에 넣지 마십시오. 쇼트, 이상
발열의 원인이 됩니다. 또한, 물속
에 던지면 전지기능을 잃게되어 사
용할 수 없게 됩니다.

11
English
3. SAFETY PRECAUTIONS
J. Do not charge the battery in a
humid place such as a bathroom
or in an open-air place exposed to
rain. Failure to observe this
warning might result in electric
shock, fire, or excessive heat
generation.
When charging the battery, do not
use an extension cord and do not
plug too many leads for other
electric appliances into one outlet.
Failure to observe this warning
might result in electric shock, fire,
or excessive heat generation.
Do not impair, damage, process,
forcibly bend, pull, twist, or bundle
the power supply cord. Do not put
anything heavy on it and do not insert
anything into it. Failure to observe
this warning might damage the power
supply cord or cause an electric
shock or fire.
If battery fluid splashes on your skin
or clothes, wash it away with clean
water immediately. Failure to do so
might result in skin irritation or
damage.
A. While charging the battery, do not
keep touching the same part of
your body to the charger for a long
time. The temperature of the
battery case could become high
enough to cause mild burns.
B. When not charging the battery, be
sure the AC adapter is unplugged
from the power supply outlet.
Failure to observe this precaution
might result in electric shock or fire
due to deterioration of the
insulation.
C. Be careful that the power supply
cord is not caught in a door or a
door sash. Failure to observe this
caution might result in damage to
the power supply cord and a risk
of electric shock or fire.
WARNING
WARNING
j.욕실 등 습기가 많은 곳이나, 실외
의 빗물에 젖는 곳에서는 충전하지
마십시오. 감전, 발화, 이상발열의
우려가 있습니다.
●충전할 때에는 연장코드를 사용하
거나 다른 전기제품과의 문어발식
배선을 하지 마십시오. 감전, 이상
발열, 화재의 우려가 있습니다.
●전원코드를 손상시키거나, 파손하
거나, 가공하거나, 무리하게 굽히거
나, 잡아당기거나, 비틀거나, 묶거
나 하지 마십시오. 또한, 무거운 물
건을 올리거나 끼워넣지 마십시오.
코드가 파손되어 감전, 화재의 원인
이 됩니다.
●밧데리액이 피부나 의류에 부착되
었을 경우, 바로 깨끗한 물로 씻어
주십시오. 피부에 손상을 입힐 우려
가 있습니다.
a.충전기 안쪽은 신체의 동일부분이
장시간 접촉되지 않도록 주의해 주
십시오. 케이스의 온도가 높아지는
경우가 있어 저온화상을 입을 우려
가 있습니다.
b.충전하지 않을 때에는 반드시 AC
어뎁터를 콘센트에서 뽑아 주십시
오. 절연열화에 의한 감전이나 누
전화재의 원인의 됩니다.
c.전원코드가 문이나 샷시 등에 끼지
않도록 각별히 주의해 주십시오.
코드를 손상시켜 감전이나 발화의
우려가 있습니다.

12
English
3. SAFETY PRECAUTIONS
D. When unplugging the AC adapter,
be sure to hold the plug instead of
the cord. Failure to observe this
precaution might result in electric
shock, short circuit, or fire.
E. Make sure that the plug of the AC
adapter is free from dust, soil, and
oil. Failure to observe this
precaution might result in electric
shock or fire.

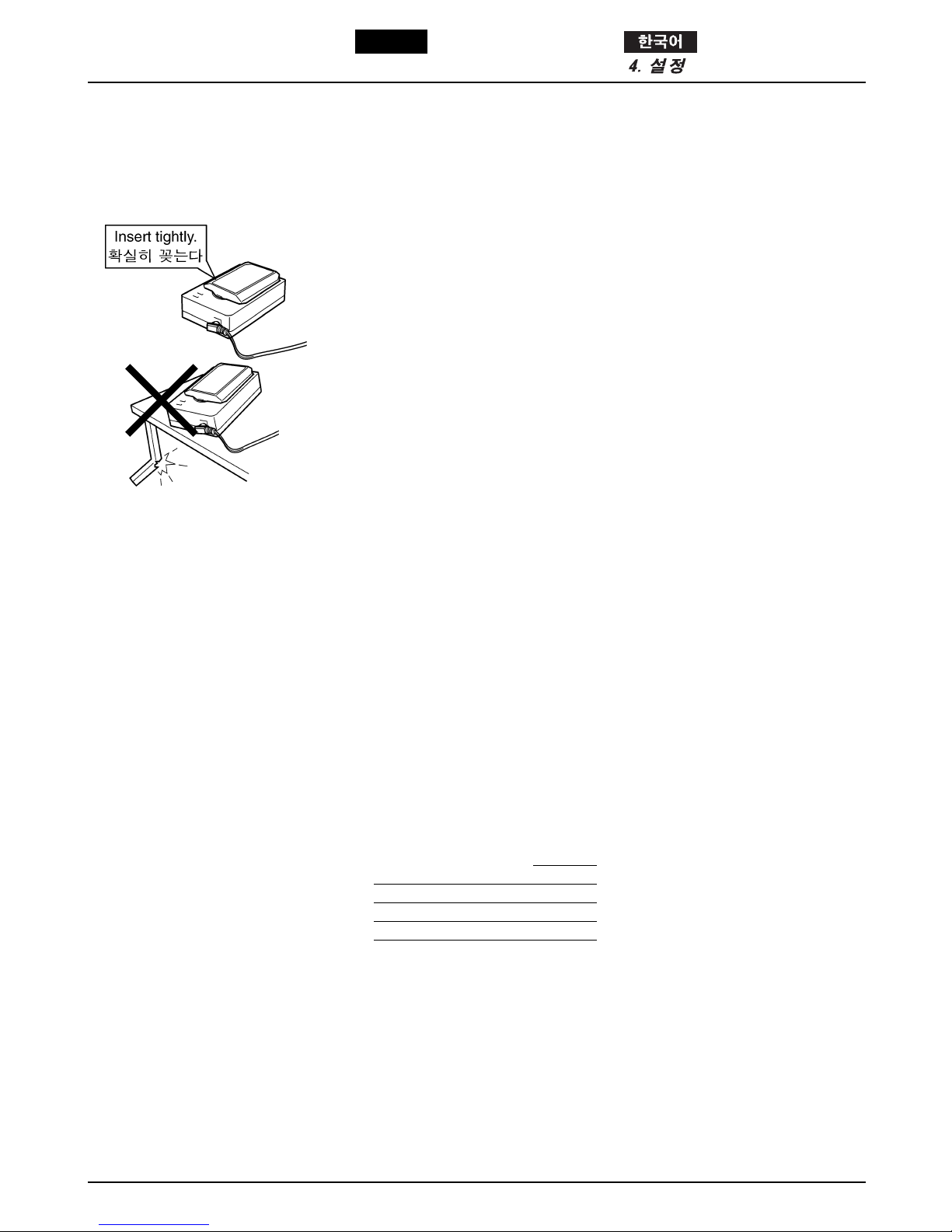

F. Be sure to insert the battery into
the very end of the charger.
Failure to do so might damage the
terminal of the battery.
G.Do not carry out charging on a
stand that leans over to one side.
The charger could fall from the
stand, resulting in electric shock,
fire, or excessive heat generation.
Characteristics of Battery (lithium-
ion battery):
•The lithium-ion battery included
with this product is of a high-
performance charging type and is
an excellent battery that can be
used by repeatedly charging and
discharging electricity.
•The life of the lithium-ion battery
differs according to the
temperature, conditions of use,
and how it is charged. In
particular, its performance
deteriorates at high temperature.
When leaving the unit alone, be
sure to select a place that is not
exposed to direct sunlight.
•If your unit is stored for a long time
without being used, the remaining
battery life will gradually decrease
due to self discharging. From the
viewpoint of battery
characteristics, if the battery is
left with no remaining battery
life, it will lose its function.
Charge the battery at least once
every 6 months.
•The stand-alone battery
associated with this product does
not have a waterproof function. Do
not charge the battery or use your
unit in a wet area.
d.AC어뎁터의 플러그를 뽑을 때에
는, 코드를 잡지 말고 반드시 선단
의 플러그를 잡고 뽑아 주십시오.
감전, 쇼트, 발화의 원인이 됩니다.
e.AC어뎁터의 플러그에 이물질이나
흙, 기름이 묻지 않도록 주의해 주
십시오. 감전이나 발화의 우려가
있습니다.
f.충전기에 밧데리를 안쪽까지 확실히
끼워 주십시오. 단자부분을 손상시
킬 우려가 있습니다.
g.경사진 곳에서 충전하지 마십시오.
쓰러질 경우 감전, 발화, 이상발열
의 우려가 있습니다.
[밧데리(리튬이온전지)의 특성]
●본제품에 부속된 리튬이온전지는
고성능 충전식으로, 충전과 방전을
반복해서 사용할 수 있는 우수한 전
지입니다.
●밧데리의 수명은 기온·사용상황·
충전방법에 따라 다릅니다. 특히 고
온에서는 밧데리의 성능이 저하되
므로 본체를 방치할 때에는 직사광
선이 닿지 않는 곳을 선택해 주십시
오.
●장기간 사용하지 않고 보관하게 되
면 자기방전에 의해 밧데리 잔량이
점차 줄어듭니다. 밧데리의밧데리의 특성상,
잔량이 0인 상태에서 방치하면 밧
데리로서의 기능을 잃게 됩니다. 적
어도 6개월마다 한 번씩은 충전해
주십시오.
●부속 밧데리는 그 자체가 방수기능
을 갖고 있지 않습니다. 따라서, 수
분이 많은 곳에서 충전하거나 사용
하지 않도록 해 주십시오.

13
English
3. SAFETY PRECAUTIONS
•The battery is designed with full
attention paid to safety. If it does
not operate normally, or if you
notice any strange sounds or
offensive smells, stop using your
unit immediately.
•The lithium-ion battery does not
suffer from the memory effect❈, so
additional charging is possible.
❈(If the battery is charged
halfway before being completely
used (that is, the battery is
additionally charged halfway),
the apparent capacity of the
battery decreases, and the
battery quickly runs down.)
Overdischarging (state in which
the remaining battery life has
come to an end):
•If your unit is stored for a long time
without being used, the battery
might overdischarge due to self
discharging. The nature of a
battery is such that, if it is
overdischarged, it will stop working
as a battery. Even if you do not
use your unit, charge the battery
at least once every six months.
Criterion for Replacing Battery:
•The battery gradually deteriorates
through charging and discharging,
and its charging capability
gradually decreases. When it is
not possible to recover the battery
voltage (when the motor does not
rotate) even after charging the
battery for the prescribed time with
the charger associated with this
product, replace it with a new
battery. If it is difficult to judge how
to do this, contact the shop where
you bought your unit.
●밧데리는 안전을 최대한 고려하여
설계되어 있습니다. 만일 작동이 이
상해지거나, 이상한 소리나 냄새가
나면 바로 사용을 중지해 주십시오.
●리튬이온 밧데리는 ※메모리 효과
가 없으며, 보충충전이 가능합니다.
※전지를 다 사용하지 않고 도중에
충전하여 (보충충전) 사용하게
되면, 겉보기의 전지용량이 줄어
들어, 바로 방전이 되는 현상.
[과방전(밧데리 잔량이 완전히 없어
진 상태)에 대해서]
●장기간 사용하지 않고 보관하게 되
면 자기방전에 의해 과방전이 될
가능성이 있습니다. 밧데리의 특성
상, 과방전이 되면 밧데리로서의
기능을 잃게 됩니다. 사용하지사용하지 않
을 경우에도 적어도 6개월마다 한
번씩은 충전해 주십시오.
[밧데리 교환시기에 대해서]
●밧데리는 충_방전 반복으로 인해
서서히 열화되어 충전능력이 저하
됩니다. 부속된 충전기로 소요시
간동안 충전해도 밧데리의 전압이
회복되지 않는(모터가 돌아가지 않
는다)경우는, 새로운 밧데리로 교
환해 주십시오. 또한, 스스로 판단
하기 어려울 때에는 구입처에 상담
해 주십시오.

14
3. SAFETY PRECAUTIONS
■THINGS TO CHECK BEFORE
USING THE PRODUCT
a. Before beginning work, look
around carefully to get a feel for
the shape of the land, or grass to
be trimmed, and whether or not
there are any obstacles which
might get in the way while working,
and remove any obstacles which
can be cleared away.
b. The area within a perimeter of
15m of the person using the
product should be considered a
hazardous area into which no one
should enter while the product is in
use, and when necessary yellow
warning rope, warning signs
should be placed around the work
area. When work is to be
performed simultaneously by two
or more persons, always check the
presence and locations of others
so as to maintain a distance each
person sufficient to ensure safety.
c. Make sure that there are no loose
screws or bolts, fuel leaks,
ruptures, dents, or any other
problems which might interfere
with safe operation. Be especially
careful to check that there is
nothing wrong with the blades or
with the joints by which the blades
are attached to the product.
d. Never use blades that are bent,
warped, cracked, broken or
damaged in any way.
e. Keep the blade always sharp.
f. Filing the cutting edges, keep the
end corner sharp and round the
root of the edge.
g. Check the bolt to fasten the blade
and be sure the blade turns
smoothly without abnormal noise.
English

15
3. SAFETY PRECAUTIONS
■NOTES ON STARTING THE
ENGINE
1. Take a careful look around to
make sure that no obstacles exist
within a perimeter of 15m or less
around the product.
2. Place the body of the product onto
the ground in a flat clear area and
hold it firmly in place so as to
ensure that neither the blades nor
the throttle come into contact with
any obstacles when the engine
starts up.
3. Place the throttle into the idling
position when starting the engine.
4. After starting up the engine, if the
blades continue to rotate even
after the throttle has been moved
fully back, turn off the engine and
check the throttle wire and other
parts.
■
KICKBACK SAFETY PRECAUTIONS
•Adangerous reaction may occur
when the spinning blade contacts
a solid object in the critical area. It
is called Kick back. As a result, the
operator can lose control of the
unit which can cause serious or
fatal injury.
Avoid kickback, observe the safety
precautions below strictly.
1. Keep the cutting blades clear of
fances, posts, wires, and rocks to
prevent kickback and damage to
the blades.
2. When using your product, do not
grip other parts except the
handles.
3. When using your product, never
take your eyes off. If you need to,
place the throttle into the idling
position.
4. When using your product, do not
let the unit get closer to your feet
nor raise the unit above your
waist.
English

16
3. SAFETY PRECAUTIONS
■NOTES ON TRANSPORTATION
a. Make sure the appropriate blade
cover is in place.
b. When transporting by car, fix the
unit firmly using a rope. Do not
transport by bicycle or motorbike
because it is dangerous.
c. Never transport the product over
rough roads over long distances
without first removing all fuel from
the fuel tank, as doing so might
cause fuel to leak from the tank.
■
OPERATION SAFETY PRECAUTIONS
a. Grip the handles of the product
firmly with both hands. If you
suspend the work, place the
throttle into the idling position.
b. Always be sure to maintain a
steady, even posture while
working.
c. Maintain the speed of the engine
at the level required to perform
cutting work, and never raise the
speed of the engine above the
level necessary.
d. If the grass gets caught in the
blade during operation, or if you
need to check the unit or refuel the
tank, always be sure to turn off the
engine.
e. If the blade touches a hard object
like a stone, immediately stop the
engine and check if something is
wrong with the blade. If so, replace
the blade by new one.
f. If someone calls out while working
,always be sure to turn off the
engine before turning around.
g. Never touch the spark plug or plug
cord while the engine is in
operation. Doing so may result in
being subjected to an electrical
shock.
h. Never touch the muffler, spark
plug, or other metallic parts of the
engine while the engine is in
operation or immediately after
shutting down the engine. Doing
so may result in serious burns.
i. When you finish cutting in one
location and wish to continue work
in another spot, turn off the engine
and turn the unit as the blade
faces away from your body.
English

17
English
■MAINTENANCE SAFETY
PRECAUTION
a. Perform the maintenance and
checking operations described in
this manual at regular intervals. If
any parts must be replaced or any
maintenance or repair work not
described in this manual must be
performed, please contact a
representative from the store
nearest KOMATSU ZENOAH
authorized servicing dealer for
assistance.
b. Under no circumstances should
you ever take apart the product or
alter it in any way. Doing so might
result in the product becoming
damaged during operation or the
product becoming unable to
operate properly.
c. Always be sure to turn off the
engine before performing any
maintenance or checking
procedures.
d. When sharpening, removing, or
reattaching the blade, be sure to
wear thick, sturdy gloves and use
only proper tools and equipment to
prevent injury.
e. When replacing blade or any other
parts or when replacing the oil or
any lubricants, always be sure to
use only KOMATSU ZENOAH
products or products which have
been certified by KOMATSU
ZENOAH for use with the product.
3. SAFETY PRECAUTIONS

18
English
4. SET UP
■CHARGING THE BATTERY
•Be sure to charge the battery using the dedicated
charger and AC adapter associated with this
product.
•If the charger is damaged, do not use it.
•If battery fluid gets in your eye, wash it away with
clean water without rubbing your eye, and consult
a doctor immediately.
•Do not disassemble or modify the battery.
•Be careful not to drop the battery or give any impact to
it. Do not use the battery if its case has broken.
•Do not disassemble or modify the battery.
•Be sure to use a socket for the dedicated AC220V
adapter as a power supply outlet. Using any other
socket might result in dangerous production of fire and
smoke.
•Do not pour water or seawater on the battery, and do
not put the battery in water. Do not take out or put in
the AC adapter with wet hands.
•Be careful not to drop the charger or give any impact to
it.
•Do not charge the battery in a humid place such as a
bathroom or in an open-air place exposed to rain.
•If battery fluid splashes on your skin or clothes, wash it
away with clean water immediately.
When you are not charging the battery, be sure to leave
the AC adapter unplugged from the power supply outlet.
•The battery packed with this product has not been
charged. Be sure to charge the battery before using
your unit.
•When charging the battery, do not place anything
inflammable such as fuel near the battery.
•To ensure safety when charging the battery, the
following conditions are applied to the location for
charging:
- No exposure to direct sunlight or the elements
- Adequate ventilation and little humidity
- No vibrations
- Ambient temperature of 0 to 40°C
- No strong magnetism or radiation
- Level surface to ensure stable position of the
charger
- Little dust
- No children or pets nearby
IMPORTANT
NOTE
WARNING
WARNING
■밧데리의 충전
●충전은 반드시 부속된 전용 충전기 및 AC어뎁터를 사
용해 주십시오.
●충전기가 손상된 경우에는 사용하지 마십시오.
●밧데리액이 눈에 들어갔을 경우, 비비지 말고 깨끗한
물로 충분히 씻은 후, 바로 의사의 진찰을 받으시기 바
랍니다.
●밧데리를 분해하거나 개조하지 마십시오.
●밧데리를 떨어뜨리거나 충격을 가하지 마십시오. 또한,
케이스가 파손된 밧데리는 사용하지 마십시오.
●충전기를 분해하거나 개조하지 마십시오.
●전원은 반드시 AC 220V 전용 콘센트를 사용해 주십
시오. AC 220V이외의 콘센트를 사용하시면 발화·발
연의 우려가 있어 위험합니다.
●밧데리에 물을 끼얹거나 물속에 넣지 마십시오. 또한,
젖은 손으로 AC어뎁터를 꽂거나 뽑지 마십시오.
●충전기를 떨어뜨리거나 충격을 가하지 마십시오.
●욕실 등 습기가 많은 곳이나, 실외의 빗물에 젖는 곳에
서는 충전하지 마십시오.
●밧데리액이 피부나 의류에 부착되었을 경우, 바로 깨끗
한 물로 씻어 주십시오.
충전하지 않을때에는 반드시 AC어뎁터를 콘센트에서 뽑
아 주십시오.
●제품 개봉시, 밧데리는 충전되어 있지 않습니다. 작업
하기 전에 반드시 충전시킨 후 사용해 주십시오.
●충전 중에는 연료 등 인화성 물질을 근처에 두지 마십
시오.
●다음 조건을 고려하여 안전하게 충전해 주십시오.
•직사광선이나 비와 이슬이 들지 않는 곳
•통풍이 잘되고 습기가 적은 곳
•진동이 없는 곳
•주위온도가 0_40℃인 곳
•강력한 자기장이나 방사선이 없는 곳
•충전기를 놓았을 때 안정되는 평탄한 곳
•모래_먼지가 없는 곳
•어린 아이나 애완동물 등이 장난치지 않는 곳

19
English
4. SET UP
■CHARGING OF THE BATTERY
BY CHARGER
1. Insert the battery tightly into the
charger.
If you insert the battery at an angle,
the terminal portion might become
damaged.
2. Insert the jack of the AC adapter
into the charger.
3. Insert the power-supply plug of the
AC adapter into your household
socket (AC220 V). The “Power
supply/POWER” and
“Charging/CHARGE” lamps will
turn on (red).
(1) Socket (AC220 V)
(2) AC adapter
(3) Battery
(4) Charger
(5) Jack
(6) Charging/CHARGE
From turning on (red) to
turning off
(7) Power supply/POWER
Turning on (red)
Be sure to charge the battery at least
2 m away from any audiovisual
equipment such as a television or
radio to prevent any noise
interference with the AC adapter.
[Confirming charging]
The “Charging/CHARGE” indicator
lamp changes according to the
charging status. When charging is
completed, the lamp turns off.
The battery takes about four hours to
charge from empty to fully charged.
NOTE
NOTE
IMPORTANT
SE1
Charging
status
Under
charging
Charging is
completed
Lamp indication
Power supply/
POWER
Turned on (red)
Turned on (red)
Charging/
CHARGE
Turned on (red)
Turned off
■충전기에 의한 충전
1.충전기에 밧데리를 확실하게 끼워
주십시오.
밧데리를 비스듬하게 끼우면 단자부
분이 손상될 경우가 있습니다.
2.AC어뎁터의 잭을 충전기에 꽂아
주십시오.
3.AC어뎁터의 전원 플러그를 각 가
정의 콘센트(AC220V)에 꽂아 주
십시오. 「전원/POWER」 및 「충
전/CHARGE」램프가 점등(적색)
합니다.
(1) 콘센트(AC220V)
(2) AC어뎁터
(3) 밧데리
(4) 충전기
(5) 잭
(6) 충전/CHARGE
점등(적색)에서 소등
(7) 전원/POWER
점등(적색)
잡음이 생길 수 있으므로 텔레비젼이
나 라디오 등의 AV기기에서 2m이상
떨어진 곳에서 충전해 주십시오.
[충전의 확인]
「충전/CHARGE」램프는 밧데리의
충전상태에 따라 표시가 바뀝니다. 램
프가 꺼지면 충전완료입니다.
밧데리가 방전상태에서 충전완료되기
까지 걸리는 시간은 약 4시간입니다.
점등(적색) 점등(적색)
충전
상태
램프표시
전원/POWER 충전/CHARGE
충전
중
충전
완료 점등(적색) 소등

20
English
4. SET UP
4. When charging is completed,
unplug the AC adapter from the
socket, and remove the battery
from the charger.
When removing the battery from the
charger, hold down the charger firmly
with your hand. If you lift up the
battery without holding down the
charger, the charger might slip from
the stand and become damaged.
IMPORTANT
4.충전이 완료되면, AC어뎁터를 콘
센트에서 뽑은 후, 밧데리를 충전기
에서 빼 주십시오.
충전기를 단단히 잡고 밧데리를 빼 주
십시오. 충전기를 잡지 않고 밧데리를
들어올리면 충전기가 떨어져 파손될
우려가 있습니다.
