KEY T O SYMBOLS
2 – English

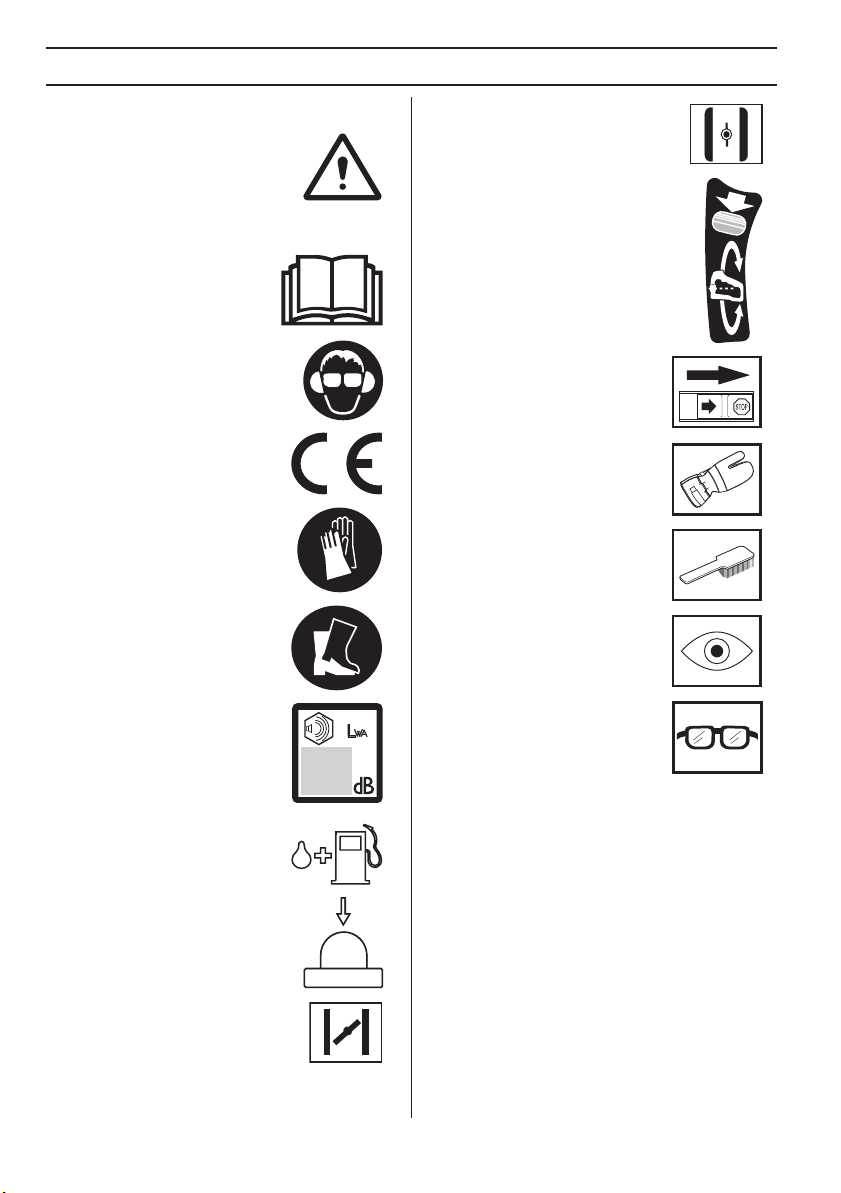

Symbols
W ARNING! Incorrect or careless use of
a hedge trimmer can turn it into a
dangerous tool that can cause serious
or even fatal injury. It is extremely
important that you read and
understand the contents of this
operator's manual.
Please read the operator’s manual
carefully and make sure you
understand the instructions before
using the machine.
Always wear:
• Approved hearing protection
• Approved eye protection
This product is in accordance with
applicable EC directives.
Always wear approved protective
gloves.
Wear sturdy, non-slip boots or shoes.
Noise emission to the environment
according to the European
Community’s Directive. The
machine’s emission is specified in
theTechnical data chapter and on the
label.
Refuelling.
Primer bulb
Set the choke control in the choke
position.
Set the choke control in the RUN
position.
Locking lever, handle adjustment
Other symbols/decals on the mac hine
refer to special certification
requirements for certain markets.
The engine is s witched off by moving
the stop switch to the stop position.
Prevent unintentional starting by
removing the ignition cable from the
spark plug.
Always wear approved protective
gloves.
Regular cleaning is required.
Visual check.
Protective goggles or a visor must be
worn.
H1158984-1.WEST.fm Page 2 Monday, February 11, 2019 9:42 AM

CONTENTS
English – 3
Contents Note the f ollowing before starting:
Please read the oper ator's manual carefully.
KEY TO SYMBOLS
Symbols ................................................................ 2
CONTENTS
Contents ............................................................... 3
Note the following before starting: ........................ 3
INTR ODUCTION
Dear Customer , .................................................... 4
WHA T IS WHAT?
What is what? ....................................................... 5
GENERAL SAFETY PRECA UTIONS
Impor tant .............................................................. 6
Personal protective equipment ............................. 6
Machine ′ s safety equipment ................................. 7
FUEL HANDLING
Fuel saf ety ............................................................ 10
Fuel ...................................................................... 10
Fueling .................................................................. 11
ST ARTING AND STOPPING
Chec k before starting ........................................... 12
Starting and stopping ........................................... 12
W ORKING TECHNIQUES
Gener al working instructions ................................ 14
MAINTENANCE
Carb urettor ........................................................... 16
Muffler .................................................................. 16
Cooling system ..................................................... 17
Spark plug ............................................................ 17
Air filter ................................................................. 17
Fuel filter ............................................................... 17
Gear ..................................................................... 18
Cleaning and lubrication ....................................... 18
Maintenance schedule ......................................... 19
TECHNICAL D ATA
T echnical data ...................................................... 20
EC Declaration of Conformity ............................... 21
!
W ARNING! Long-term exposure to noise
can result in permanent hearing
impairment. So always use approved
hearing protection.
!
W ARNING! Under no circumstances may
the design of the machine be modified
without the permission of the
manufacturer. Always use original
accessories. Non-authorized
modifications and/or accessories can
result in serious personal injury or the
death of the operator or others.
!
W ARNING! Incorrect or careless use of a
hedge trimmer can turn it into a
dangerous tool that can cause serious or
even fatal injury. It is extremely important
that you read and understand the
contents of this operator's manual.
H1158984-1.WEST.fm Page 3 Monday, February 11, 2019 9:42 AM

4 – English
INTR ODUCTION
Dear Customer ,
Cong ratulations on your choice to buy a Zenoah product!
We are convinced that you will appreciate with great satisfaction the quality and performance of our product for a very
long time to come. The purchase of one of our products gives you access to professional help with repairs and service
whenever this may be necessary. If the retailer who sells your machine is not one of our authorized dealers, ask for the
address of your nearest servicing dealer.
It is our wish that you will be satisfied with your product and that it will be your companion for a long time. Think of this
operator ′ s manual as a valuable document. By following its content (usage, service, maintenance, etc), the life span and
the second-hand value of the machine can be extended. If you sell this machine, make sure that the operator
′ s manual
is passed on to the buyer.
Good luck on using your Zenoah machine!
Zenoah has a policy of continuous product development and therefore reserves the right to modify the design and
appearance of products without prior notice.
H1158984-1.WEST.fm Page 4 Monday, February 11, 2019 9:42 AM

English – 5
WHA T IS WHA T?
What is what?
1
16
6
3
11
13
15
22
23
17
14
21
2
18
20
19
7
8
5
4
12
10
9
1 Operator ′ s manual
2 Lubricant filler cap, gear
3 Gear
4 Blades
5 Blade guard
6 Hand guard
7 Front handle
8 Cylinder cover
9 Fuel cap
10 Starter handle
11 Stop switch
12 Throttle trigger lockout
13 Rear handle
14 Throttle trigger
15 Lock for handle
16 Fuel tank
17 Spark plug cap and spark plug
18 Primer bulb
19 Air filter cover
20 Choke control
21 Combination spanner
22 Transport guard
23 Spanner
H1158984-1.WEST.fm Page 5 Monday, February 11, 2019 9:42 AM

GENERAL SAFETY PRECA UTIONS
6 – English
Impor tant

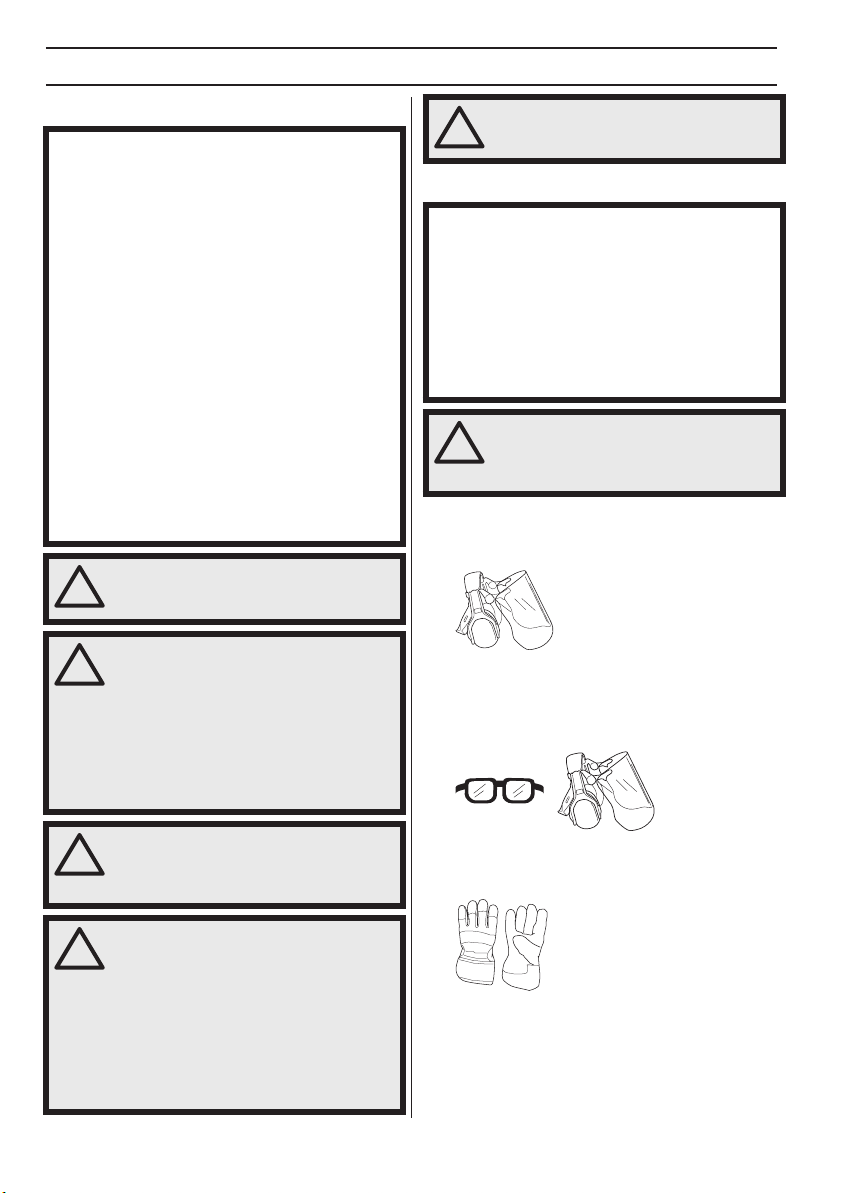

Personal protective equipment
HEARING PR OTECTION
Wear hearing protection that provides adequate noise
reduction.
EYE PROTECTION
Always wear approved eye protection. If you use a visor
then you must also wear approved protective goggles.
Approved protective goggles must comply with the ANSI
Z87.1 standard in the USA or EN 166 in EU countries.
GLOVES
Gloves should be worn when necessary, e.g. when fitting
cutting attachments.
IMPORTANT!
The hedgetrimmer is only designed for cutting branches
and twigs.
Never use a machine that has been modified in any way
from its original specification.
National or local regulations may regulate the use.
Comply to given regulations.
Never use the machine if you are tired, if you have drunk
alcohol, or if you are taking medication that could affect
your vision, your judgement or your co-ordination.
Wear personal protective equipment. See instructions
under the ”Personal protective equipment” heading.
Never use the machine in extreme weather conditions
such as severe cold, very hot and/or humid climates.
Never use a machine that is faulty. Carry out the safety
checks, maintenance and service instructions
described in this manual. Some maintenance and
service measures must be carried out by trained and
qualified specialists. See instructions under the
Maintenance heading.
All covers and guards must be fitted before starting.
Ensure that the spark plug cap and ignition lead are
undamaged to avoid the risk of electric shock.
!
W ARNING:Tampering with the engine
voids the EU type-approval of this
product..
!
W ARNING! This machine produces an
electromagnetic field during operation.
This field may under some
circumstances interfere with active or
passive medical implants.To reduce the
risk of serious or fatal injury, we
recommend persons with medical
implants to consult their physician and
the medical implant manufacturer before
operating this machine.
!
W ARNING! Running an engine in a
confined or badly ventilated area can
result in death due to asphyxiation or
carbon monoxide poisoning.
!
W ARNING! Never allow children to use or
be in the vicinity of the machine. As the
machine is equipped with a spring-loaded
stop switch and can be started by low
speed and force on the starter handle, even
small children under some circumstances
can produce the force necessary to start
the machine.This can mean a risk of
serious personal injury.Therefore remove
the spark plug cap when the machine is not
under close supervision.
!
W ARNING! Faulty blades can increase
the risk of accidents.
IMPOR TANT!
Incorrect or careless use of a hedge trimmer can turn it
into a dangerous tool that can cause serious or even
fatal injury. It is extremely important that you read and
understand the contents of this operator's manual.
You must use approved personal protective equipment
whenever you use the machine. Personal protective
equipment cannot eliminate the risk of injury but it will
reduce the degree of injury if an accident does happen.
Ask your dealer for help in choosing the right equipment.
!
W ARNING! Listen out for warning signals
or shouts when you are wearing hearing
protection. Always remove your hearing
protection as soon as the engine stops.
H1158984-1.WEST.fm Page 6 Monday, February 11, 2019 9:42 AM

GENERAL SAFETY PRECA UTIONS
English – 7
BOO TS
Wear sturdy, non-slip boots or shoes.
CLOTHING
Wear clothes made of a strong fabric and avoid loose
clothing that can catch on twigs and branches. Always
wear heavy, long pants. Do not wear jewellery, shorts
sandals or go barefoot.Secure hair so it is above shoulder
level.
FIRST AID KIT
Always have a first aid kit nearby.
Mac hine ′ s safety equipment
This section descr ibes the machine ′ s safety equipment,
its purpose, and how checks and maintenance should be
carried out to ensure that it operates correctly. See the
”What is what?” section to locate where this equipment is
positioned on your machine.
The life span of the machine can be reduced and the risk
of accidents can increase if machine maintenance is not
carried out correctly and if service and/or repairs are not
carried out professionally. If you need further information
please contact your nearest service workshop.
Thr ottle trigger lockout
The throttle loc kout is designed to prevent accidental
operation of the throttle control. When you press the lock
(A) (i.e.when you grasp the handle) it releases the throttle
control (B). When you release the handle the throttle
control and the throttle lockout both move back to their
original positions. This movement is controlled by two
independent return springs.This arrangement means that
the throttle control is automatically locked at the idle
setting.
Make sure that the throttle trigger is locked at idle setting
when the throttle trigger lockout is released.
Press the throttle lockout and make sure it returns to its
original position when you release it.
Check that the throttle trigger and throttle lockout move
freely and that the return springs work properly.
See instructions under the heading Start. Start the hedge
trimmer and apply full throttle. Release the throttle trigger
and check that the blades stop and remain stationary. If
the blades move when the throttle trigger is in the idle
IMPORTANT!
All servicing and repair work on the machine requires
special training.This is especially true of the machine
′ s
safety equipment. If your machine fails any of the
checks described below you must contact your service
agent.When you buy any of our products we guarantee
the availability of professional repairs and service. If the
retailer who sells your machine is not a servicing dealer,
ask him for the address of your nearest service agent.
!
W ARNING! Never use a machine with
faulty safety equipment.The machine's
safety equipment must be checked and
maintained as described in this section.
If your machine fails any of these checks
contact your service agent to get it
repaired.
H1158984-1.WEST.fm Page 7 Monday, February 11, 2019 9:42 AM

GENERAL SAFETY PRECA UTIONS
8 – English

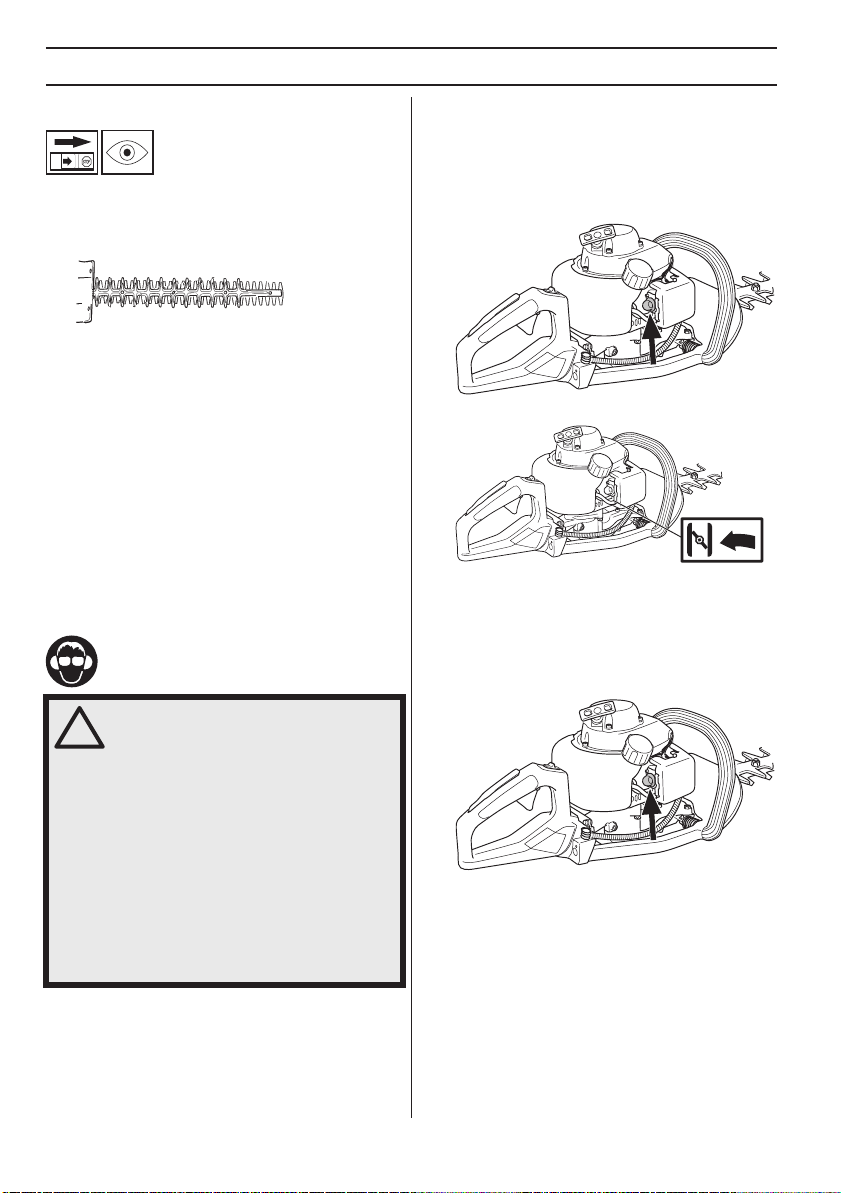

position then the carb urettor idle setting must be adjusted.
See instructions under the heading Maintenance.
Stop s witch
Use the stop s witch to switch off the engine.
Start the engine and make sure the engine stops when
you move the stop switch to the stop setting.
Hand guar d
The hand guard pre vents hands from coming into contact
with the moving blades, for example, if the operator loses
grip on the front handle.
Check that the hand guard is fitted correctly.
Check that the hand guard is undamaged.
Vibration damping system
Y our machine is equipped with a vibration damping
system that is designed to minimize vibration and make
operation easier.
The machine ′ s vibration damping system reduces the
transfer of vibration between the engine unit/cutting
equipment and the machine
′ s handle unit.
The engine body including the blades is suspended on
the handlebar system via a four springs.
Regularly check the vibration damping units for cracks or
deformation. Check that the vibration damping element is
undamaged and securely attached.
Muffl er
The m uffler is designed to keep noise levels to a minimum
and to direct exhaust fumes away from the user.A muffler
fitted with a catalytic converter is also designed to reduce
harmful exhaust gases.
In countries that have a warm and dry climate there is a
significant risk of fire.We therefore fit certain mufflers with
!
W ARNING! Overexposure to vibration
can lead to circulatory damage or nerve
damage in people who have impaired
circulation. Contact your doctor if you
experience symptoms of overexposure
to vibration. Such symptoms include
numbness, loss of feeling, tingling,
pricking, pain, loss of strength, changes
in skin colour or condition.These
symptoms normally appear in the
fingers, hands or wrists. The risk
increases at low temperatures.
H1158984-1.WEST.fm Page 8 Monday, February 11, 2019 9:42 AM

GENERAL SAFETY PRECA UTIONS
English – 9
a spark arrestor mesh. Check whether the muffler on your
machine is fitted with this kind of mesh.
If the muffler on your machine is fitted with a spark
arrestor mesh this must be cleaned regularly. A blocked
mesh will cause the engine to overheat and may lead to
serious damage.
For mufflers it is very important that you follow the
instructions on checking, maintaining and servicing your
machine.
Never use a machine that has a faulty muffler.
Regularly check that the muffler is securely attached to
the machine.
Blade guard

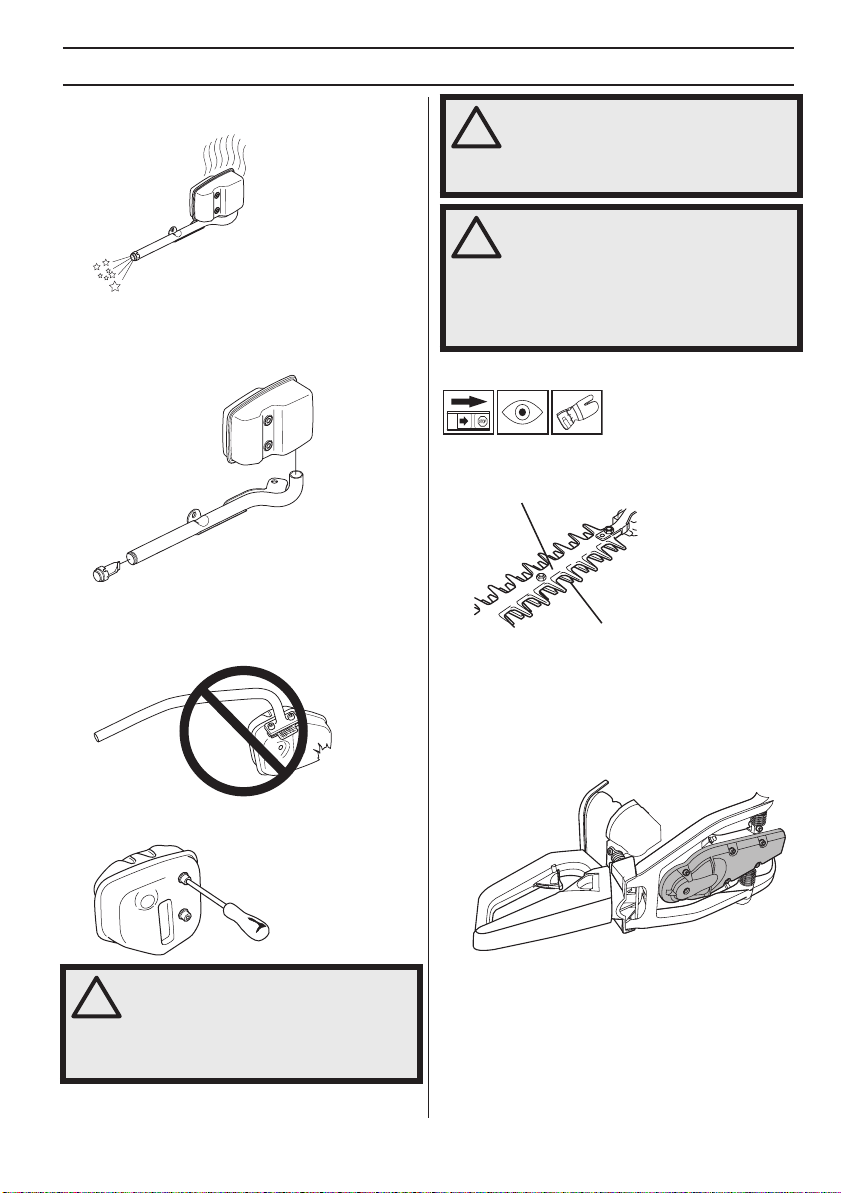

The blade guard (A) is intended to protect against any
part of the body coming into contact with the blades (B).
Check that the blade guard is not damaged or distorted.
Replace the blade guard if it is bent or damaged.
Gear
The gear housing gets hot when the machine has been in
use. To avoid burning yourself do not touch the gear
housing.
!
WARNING! Mufflers fitted with catalytic
converters and exhaust pipes get very
hot during use and remain so for some
time after stopping.This also applies
when idling. Contact can result in burns
to the skin. Remember the risk of fire!
!
WARNING! The inside of the muffler
contain chemicals that may be
carcinogenic. Avoid contact with these
elements in the event of a damaged
muffler.
!
WARNING! Bear in mind that:
The exhaust fumes from the engine are
hot and may contain sparks which can
start a fire. Never start the machine
indoors or near combustible material!
A
B
H1158984-1.WEST.fm Page 9 Monday, February 11, 2019 9:42 AM

FUEL HANDLING
10 – English

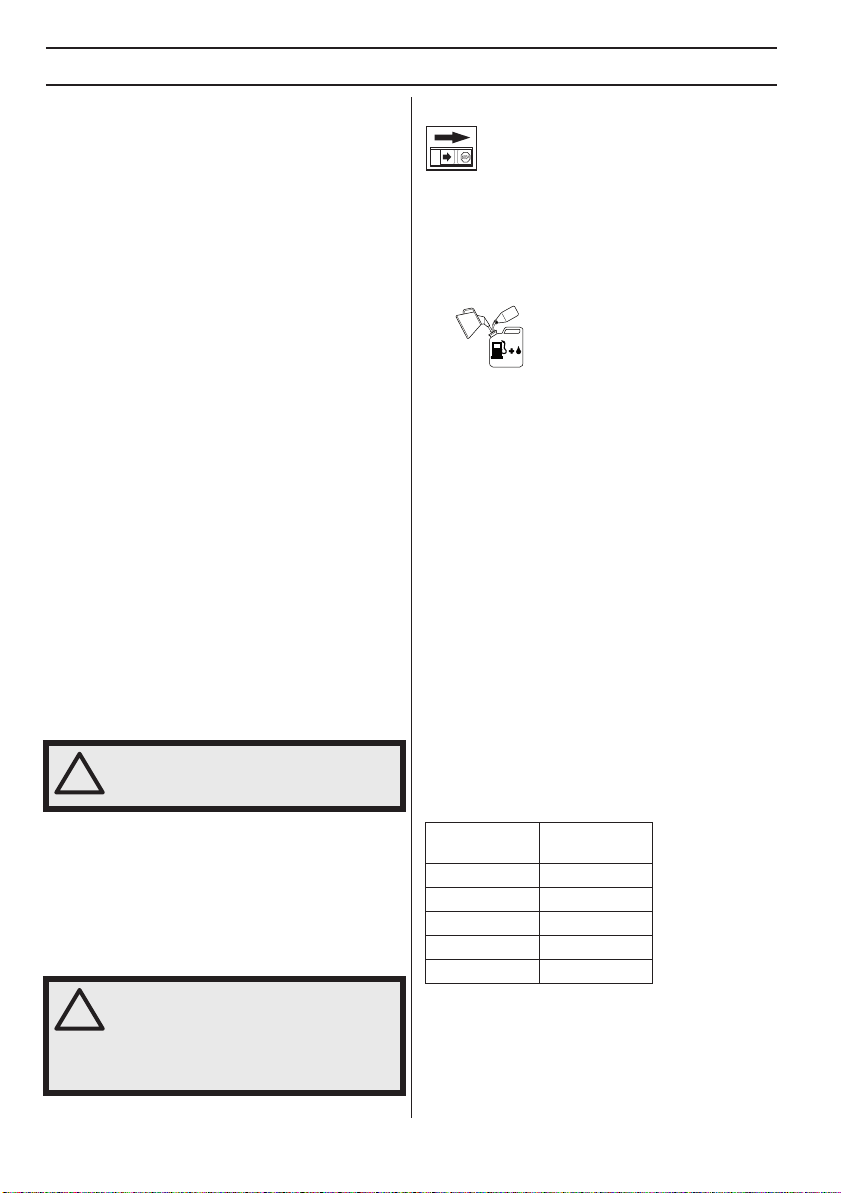

Fuel safety
Never start the machine:
1 If you have spilled fuel on it. Wipe off the spillage and
allow remaining fuel to evaporate.
2 If you have spilled fuel on yourself or your clothes,
change your clothes.Wash any part of your body that
has come in contact with fuel. Use soap and water.
3 If the machine is leaking fuel. Check regularly for
leaks from the fuel cap and fuel lines.
Transport and storage
•Store and transport the machine and fuel so that there
is no risk of any leakage or fumes coming into contact
with sparks or open flames, for example, from
electrical machinery, electric motors, electrical relays/
switches or boilers.
• When storing and transporting fuel always use
approved containers intended for this purpose.
• When storing the machine for long periods the fuel
tank must be emptied. Contact your local petrol
station to find out where to dispose of excess fuel.
Drain off the fuel in an approved container outdoors
and well clear of naked flames.
• Ensure the machine is cleaned and that a complete
service is carried out before long-term storage.
• The transport guard must always be fitted to the
cutting attachment when the machine is being
transported or in storage.
• Secure the machine during transport.
• In order to prevent unintentional starting of the engine,
the spark plug cap must always be removed during
long-term storage, if the machine is not under close
supervision and when performing all service
measures.
Fuel
CAUTION! The machine is equipped with a two-stroke
engine and must always be run using a mixture of petrol
and two-stroke oil. It is important to accurately measure
the amount of oil to be mixed to ensure that the correct
mixture is obtained. When mixing small amounts of fuel,
even small inaccuracies can drastically affect the ratio of
the mixture.
Petrol
CAUTION! Always use a quality petrol/oil mixture at least
90 octane (RON). If your machine is equipped with a
catalytic converter (see chapter on Technical data) always
use a good quality unleaded petrol/oil mixture. Leaded
petrol will destroy the catalytic converter.
Use low-emission petrol, also known as alkylate petrol, if
it is available.
• The lowest octane recommended is 90 (RON). If you
run the engine on a lower octane grade than 90 so-
called knocking can occur. This gives rise to a high
engine temperature, which can result in serious
engine damage.
• When working at continuous high revs a higher octane
rating is recommended.
Two-stroke oil
•For best results and performance use ZENOAH two-
stroke oil, which is specially formulated for our two-
stroke engines. Mixture 1:50 (2%).
• If ZENOAH two-stroke oil is not available, you may use
another two-stroke oil of good quality that is intended
for air cooled engines. Contact your dealer when
selecting an oil.
• Never use two-stroke oil intended for water-cooled
outboard engines, sometimes referred to as outboard
oil.
• Never use oil intended for four-stroke engines.
• A poor oil quality and/or too high oil/fuel ratio may
jeopardise function and decrease the life time of
catalytic converters.
• Mixing ratio
!
WARNING!Take care when handling fuel.
Bear in mind the risk of fire, explosion
and inhaling fumes.
!
WARNING! Fuel and fuel fumes are
highly flammable and can cause serious
injury when inhaled or allowed to come
in contact with the skin. For this reason
observe caution when handling fuel and
make sure there is adequate ventilation.
Petrol, litre Two-stroke oil,
litre
2% (1:50)
50,10
10 0,20
15 0,30
20 0,40
H1158984-1.WEST.fm Page 10 Monday, February 11, 2019 9:42 AM

FUEL HANDLING
English – 11

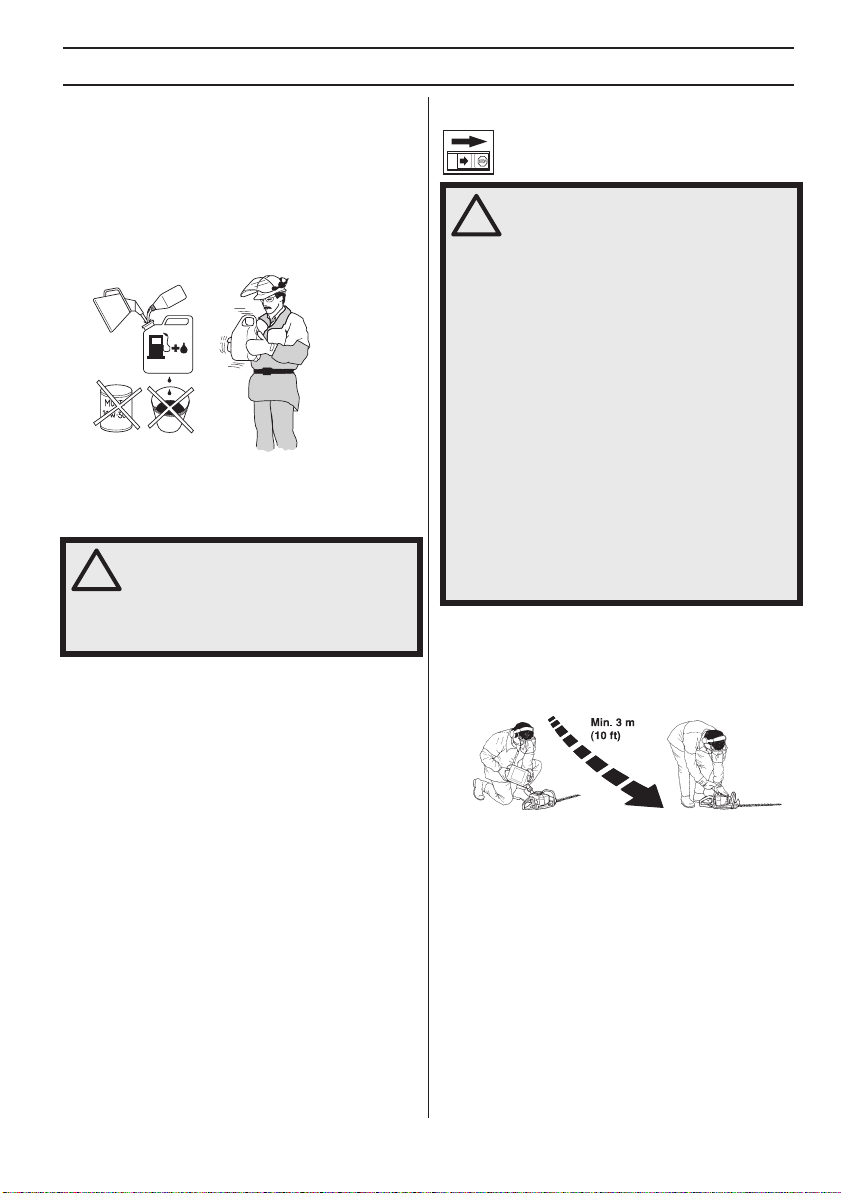

Mixing
•Always mix the petrol and oil in a clean container
intended for fuel.
• Always start by filling half the amount of the petrol to
be used. Then add the entire amount of oil. Mix
(shake) the fuel mixture.Add the remaining amount of
petrol.
• Mix (shake) the fuel mixture thoroughly before filling
the machine’s fuel tank.
• Do not mix more than one month’s supply of fuel at a
time.
• If the machine is not used for some time the fuel tank
should be emptied and cleaned.
Fueling
•Always use a fuel container with an anti-spill valve.
• Clean the area around the fuel cap. Contamination in
the tank can cause operating problems.
• Ensure that the fuel is well mixed by shaking the
container before filling the tank.
!
WARNING! The catalytic converter
muffler gets very hot during and after
use. This also applies during idling. Be
aware of the fire hazard, especially when
working near flammable substances and/
or vapours.
!
WARNING! Taking the following
precautions, will lessen the risk of fire:
Refuel in a well ventilated area. Never
fuel the machine indoors.
Do not smoke or place hot objects near
fuel.
Always shut off the engine before
refuelling.
Always stop the engine and let it cool for
a few minutes before refuelling.
When refuelling, open the fuel cap slowly
so that any excess pressure is released
gently.
Tighten the fuel cap carefully after
refuelling.
Always move the machine away from the
refuelling area and source before
starting.
H1158984-1.WEST.fm Page 11 Monday, February 11, 2019 9:42 AM

STARTING AND STOPPING
12 – English
Check before starting
•Inspect the working area. Remove any objects that
could be thrown out.
• Check the cutting attachment. Never use blades that
are dull, cracked or damaged.
• Check that the machine is in perfect working order.
Check that all nuts and screws are tight.
• Make sure the gear housing is lubricated correctly.
See instructions under the heading Gear housing.
• Check that the cutting attachment always stops when
the engine is idling.
• Only use the machine for the purpose it was intended
for.
• Make sure that the handle and safety features are in
good working order. Never use a machine that lacks a
part or has been modified outside its specifications.
• All covers must be correctly fitted and undamaged
before you start the machine.
Starting and stopping
Cold engine
Ignition: Set the stop switch to the start position. (Run
position)
Primer bulb: Press the air purge repeatedly until fuel
begins to fill the bulb. The bulb need not be completely
filled.
Choke: Set the choke control in the choke position.
Warm engine
Ignition: Set the stop switch to the start position. (Run
position)
Primer bulb: Press the air purge repeatedly until fuel
begins to fill the bulb. The bulb need not be completely
filled.
Starting
Hold the body of the machine on the ground using your
left hand (CAUTION! Not with your foot!). Grip the starter
handle, slowly pull out the cord with your right hand until
you feel some resistance (the starter pawls grip), now
quickly and powerfully pull the cord. Never twist the
starter cord around your hand.
Push the choke control back to its original position as
soon as the engine fires, and continue trying to start until
the engine starts.
!
WARNING! The complete clutch cover
and gear housing must be fitted before
the machine is started, otherwise the
clutch may come loose and cause
personal injury.
Always move the machine about 3
metres from the refuelling position
before starting. Place the machine on a
firm surface. Remember that the blades
may start to move when the engine is
started. Make sure the blades cannot
come into contact with any object. Make
sure that no unauthorised persons are in
the working area, otherwise there is a
risk of serious personal injury.The safety
distance is 15 metres.
H1158984-1.WEST.fm Page 12 Monday, February 11, 2019 9:42 AM

STARTING AND STOPPING
English – 13
CAUTION! Do not pull the starter cord all the way out and
do not let go of the starter handle when the cord is fully
extended.This can damage the machine.
Stopping
The engine is switched off by moving the stop switch to
the stop position.
If the engine does not stop when stop switch is set to the
stop position, set choke to the choke position (choke is
closed). Contact your servicing dealer.
Running-in
During the first 20 hours, do not run the machine at
maximum capacity for longer periods.
H1158984-1.WEST.fm Page 13 Monday, February 11, 2019 9:42 AM

WORKING TECHNIQUES
14 – English

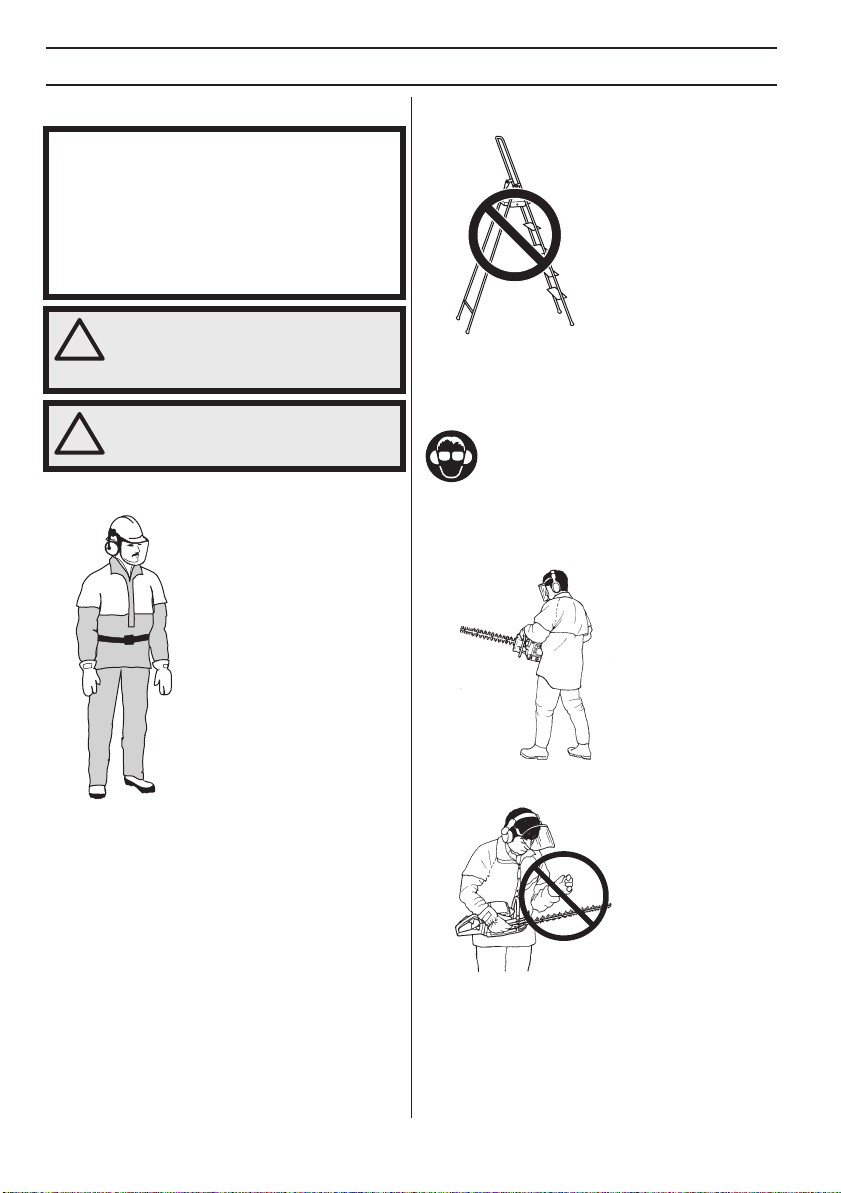

General working instructions
Personal protection
•Wear personal protective equipment. See instructions
under the ”Personal protective equipment” heading.
• Always wear working clothes and heavy-duty long
trousers.
• Never wear loose clothing or jewellery.
• Make sure your hair does not hang below shoulder
level.
Safety instructions regarding the
surroundings
•Never allow children to use the machine.
• Ensure that no-one comes closer than 15 metres
while you are working.
• Never allow anyone else to use the machine without
first ensuring that they have read and understood the
contents of the operator’s manual.
• Never work from a ladder, stool or any other raised
position that is not fully secured.
• Keep in mind that the operator is responsible for
accidents or hazards occurring to other people or their
property.
Safety instructions while working
•Always ensure you have a safe and stable working
position.
• Always use both hands to hold the machine. Hold the
machine in front of your body.
• Make sure that your hands and feet do not come near
the cutting attachment when the engine is running.
• When the engine is switched off, keep your hands and
feet away from the cutting attachment until it has
stopped completely.
• Watch out for stumps of branches that can be thrown
out during cutting.
• Do not cut too close to the ground. Stones and other
objects can be thrown out.
IMPORTANT!
This section takes up the basic safety precautions for
working with a hedge trimmer.
If you encounter a situation where you are uncertain
how to proceed you should ask an expert. Contact your
dealer or your service workshop.
Avoid all usage which you consider to be beyond your
capability.
!
WARNING! The machine can cause
serious personal injury. Read the safety
instructions carefully. Learn how to use
the machine.
!
WARNING! Cutting tool. Do not touch the
tool without first switching off the
engine.
H1158984-1.WEST.fm Page 14 Monday, February 11, 2019 9:42 AM

WORKING TECHNIQUES
English – 15
•Check the working area for foreign objects such as
electricity cables and animals, etc, or other objects
that could damage the cutting attachment, such as
metal items.
• If any foreign object is hit or if vibrations occur stop the
machine immediately. Disconnect the HT lead from
the spark plug. Check that the machine is not
damaged. Repair any damage.
• If anything jams in the blades while you are working,
switch off the engine and wait until it has stopped
completely before cleaning the blades.Disconnect the
spark plug cap from the spark plug.
Safety instructions after completing work
•The transport guard should always be fitted to the
cutting attachment when the machine is not in use.
• Shut off the machine. Never leave the machine
unsupervised with the motor running.
• When the hedge trimmer is stopped for servicing,
inspection or storage, shut off the power source,
disconnect the spark plug wire from the spark plug
and make sure all moving parts have come to stop.
Allow the machine to cool before performing any
actions in the engine compartment.
• Always wear heavy-duty gloves when repairing the
cutting attachment. This is extremely sharp and can
easily cause cuts.
• Store the machine out of reach of children.
• Use only original spare parts for repairs.
Basic working techniques
•Work with a swinging action from the bottom upwards
when trimming sides.
• Adjust the throttle setting to suit the load.
• When trimming a hedge the engine should always
face away from the hedge.
• Hold the machine as close to your body as possible to
get the best balance.
• Make sure that the tip does not touch the ground.
• Do not rush the work, but work steadily until all the
branches have been cut back cleanly.
Rear handle
To reduce the effort when cutting hedges you can rotate
the handle 90 °to the left or right.
• Free the handle by pressing the locking lever.
• Turn the handle until the locking lever click into place.
• When the handle is locked in it’s new position, you can
aplly throttle again.
• While working the handle should always be facing
upwards irrespective of how the hedge trimmer is
directed.
You can swivel the handle even with the engine idling
because the hedge trimmer is equipped with a blade
break that maintains the blade set a standstill.
90｡90｡
H1158984-1.WEST.fm Page 15 Monday, February 11, 2019 9:42 AM

MAINTENANCE
16 – English
Carburettor
Your ZENOAH product has been designed and
manufactured to specifications that reduce harmful
emissions.
Function
•The carburettor governs the engine’s speed via the
throttle control. Air and fuel are mixed in the
carburettor. The air/fuel mixture is adjustable. Correct
adjustment is essential to get the best performance
from the machine.
• Adjusting the carburettor means that the engine is
adapted to local operating conditions, e.g. climate,
altitude, petrol and the type of 2-stroke oil.

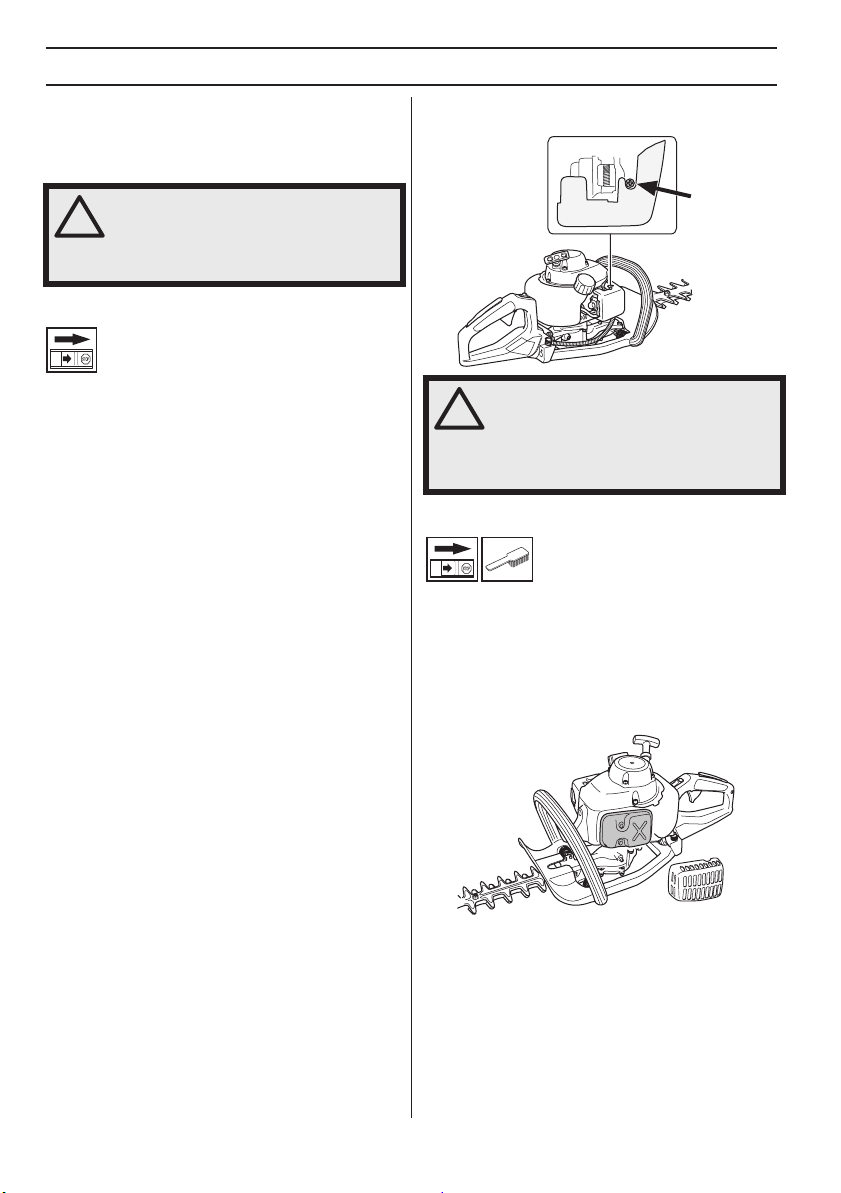

Adjusting the idle speed
The T-screw regulates the throttle setting at idle speed. If
the T-screw is turned clockwise this gives a higher idle
speed; turning it anti-clockwise gives a lower idle speed.
Before any adjustments are made, make sure that the air
filter is clean and the air filter cover is fitted.
Adjust the idle speed with the idle adjustment screw T, if
adjustment is necessary. First turn the idle adjustment
screw T clockwise until the blades start to move.Then
turn the idle adjustment screw T anticlockwise until the
blades stop.The idle speed is correctly adjusted when the
engine runs smoothly in every position.There should also
be a clear margin to the speed at which the blades start
to move. Rec. idle speed: See the Technical data section.
The blades must also remain stationary when the choke
control is in the start throttle position.
Muffler
CAUTION! Some mufflers are fitted with a catalytic
converter. See chapter on Technical data to see whether
your machine is fitted with a catalytic converter.
The muffler is designed to reduce the noise level and to
direct the exhaust gases away from the operator. The
exhaust gases are hot and can contain sparks, which may
cause fire if directed against dry and combustible
material.
Some mufflers are equipped with a special spark arrestor
mesh. If your machine has this type of muffler, you should
clean the mesh at least once a week. This is best done
with a wire brush.
On mufflers without a catalytic converter the mesh should
be cleaned weekly, or replaced if necessary. On mufflers
fitted with a catalytic converter the mesh should be
checked, and if necessary cleaned, monthly. If the mesh
is damaged it should be replaced. If the mesh is
frequently blocked, this can be a sign that the
performance of the catalytic converter is impaired.
!
WARNING! The complete clutch cover
and gear housing must be fitted before
the machine is started, otherwise the
clutch may come loose and cause
personal injury.
!
WARNING! If the idle speed cannot be
adjusted so that the cutting attachment
stops, contact your dealer/service
workshop. Do not use the machine until
it has been correctly adjusted or
repaired.
T
H1158984-1.WEST.fm Page 16 Monday, February 11, 2019 9:42 AM

MAINTENANCE
English – 17
Contact your dealer to inspect the muffler. A blocked
mesh will cause the machine to overheat and result in
damage to the cylinder and piston.
CAUTION! Never use a machine with a defective muffler.
Cooling system
To keep the working temperature as low as possible the
machine is equipped with a cooling system.
The cooling system consists of:
1 Fins on the flywheel.
2 Cooling fins on the cylinder.
3 Cylinder cover (directs cold air over the cylinder).
Clean the cooling system with a brush once a week, more
often in demanding conditions. A dirty or blocked cooling
system results in the machine overheating which causes
damage to the piston and cylinder.

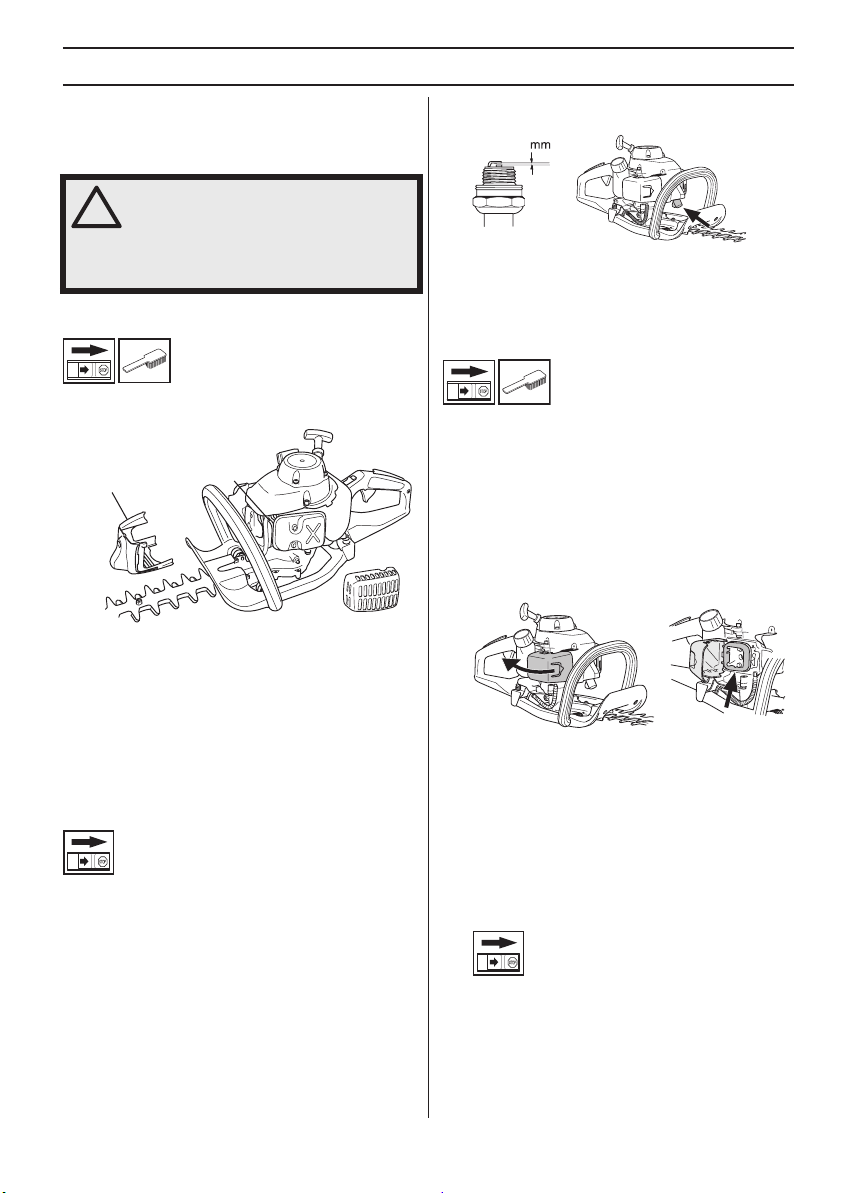

Spark plug
The spark plug condition is influenced by:
• Incorrect carburettor adjustment.
• An incorrect fuel mixture (too much or incorrect type
of oil).
• A dirty air filter.
These factors cause deposits on the spark plug
electrodes, which may result in operating problems and
starting difficulties.
If the machine is low on power, difficult to start or runs
poorly at idle speed: always check the spark plug first
before taking any further action. If the spark plug is dirty,
clean it and check that the electrode gap is 0,9-1,0 mm.
The spark plug should be replaced after about a month in
operation or earlier if necessary.
CAUTION! Always use the recommended spark plug
type! Use of the wrong spark plug can damage the piston/
cylinder. Check that the spark plug is fitted with a
suppressor.
Air filter
The air filter must be regularly cleaned to remove dust
and dirt in order to avoid:
• Carburettor malfunctions.
• Starting problems.
• Loss of engine power.
• Unnecessary wear to engine parts.
• Excessive fuel consumption.
Clean the filter every 25 hours, or more regularly if
conditions are exceptionally dusty.
Cleaning the air filter
Remove the air filter cover and take out the filter. Wash it
clean in warm, soapy water. Ensure that the filter is dry
before refitting it.
An air filter that has been in use for a long time cannot be
cleaned completely. The filter must therefore be replaced
with a new one at regular intervals. A damaged air filter
must always be replaced.
Fuel filter
When the engine runs short of fuel supply, check the fuel
cap and the fuel filter for blockage.
!
WARNING! Mufflers fitted with catalytic
converters get very hot during use and
remain so for some time after stopping.
This also applies at idle speed. Contact
can result in burns to the skin.
Remember the risk of fire!
1
2
0,9-1,0
H1158984-1.WEST.fm Page 17 Monday, February 11, 2019 9:42 AM

MAINTENANCE
18 – English
Gear
There is a grease nipple on the gearbox. Use a grease
gun to top up with grease.This should be carried out after
approximately every 50 working hours. Use Zenoah
special grease.
Pump in grease until clean grease emerges to the blades.
Cleaning and lubrication
Clean any resin and plant residue from the blades using
cleaning agent before and after using the machine.
Lubricate the blade bars with special grease before long
periods of storage.
H1158984-1.WEST.fm Page 18 Monday, February 11, 2019 9:42 AM

English – 19
MAINTENANCE
Maintenance schedule
The following is a list of the maintenance steps that must be performed on the machine. Most of the items are described
in the Maintenance section.The user must only carry out the maintenance and service work described in this Operator's
Manual. More extensive work must be carried out by an authorized service workshop.
Maintenance Daily
maintenance
Weekly
maintenance
Monthly
maintenance
Clean the outside of the machine. X
Make sure the throttle trigger lock and the throttle function
correctly from a safety point of view. X
Check that the stop switch works correctly. X
Check that the blades do not move when the engine is idling or
when the choke is in the start throttle position. X
Check that the blades are undamaged and show no signs of
cracking or other damage. Replace the blades if necessary. X
Check that the blade guard is not damaged or distorted. Replace
the blade guard if it is bent or damaged. X
Clean the air filter. Replace if necessary. X
Check that the hand guard is not damaged. Replace the guard if
damaged. X
Check that nuts and screws are tight. X
Check that there are no fuel leaks from the engine, tank or fuel
lines. X
Check the starter and starter cord. X
Check that the vibration damping elements are not damaged. X
Clean the outside of the spark plug. Remove it and check the
electrode gap.Adjust the gap to 0,9-1,0 mm or replace the spark
plug. Check that the spark plug is fitted with a suppressor.
X
Clean the machine’s cooling system. X
Clean or replace the spark arrestor mesh on the muffler (only
applies to mufflers without a catalytic converter). X
Clean the outside of the carburettor and the space around it. X
Fill the gear housing with grease.This should be carried out
approximately every 60 working hours. X
Check that the screws that hold the blades together are correctly
tightened. X
Clean the fuel tank. X
Check the fuel filter for contamination and the fuel hose for cracks
or other defects. Replace if necessary. X
Check all cables and connections. X
Check the clutch, clutch springs and the clutch drum for wear.
Replace if necessary by an autorized service workshop. X
Replace the spark plug. Check that the spark plug is fitted with a
suppressor. X
Check and clean the spark arrestor mesh on the muffler (only
applies to mufflers fitted with a catalytic converter). X
To reduce the fire hazard, clean dirt, leaves and surplus lubricant,
etc from the muffler and engine. X
H1158984-1.WEST.fm Page 19 Monday, February 11, 2019 9:42 AM

20 – English
TECHNICAL DATA
Technical data
Note 1 Noise emissions in the environment measured as sound power (LWA) in conformity with EC directive 2000/14/
EC. Reported sound power level for the machine has been measured with the original cutting attachment that gives the
highest level.The difference between guaranteed and measured sound power is that the guaranteed sound power also
includes dispersion in the measurement result and the variations between different machines of the same model
according to Directive 2000/14/EC.
Note 2: Reported data for equivalent sound pressure level for the machine has a typical statistical dispersion (standard
deviation) of 1 dB(A).
Note 3: Reported data for equivalent vibration level has a typical statistical dispersion (standard deviation) of 1 m/s2.
Technical data CHTZ2460 CHTZ2460L
Engine
Cylinder displacement, cm323,6 23,6
Cylinder bore, mm 34,0 34,0
Stroke, mm 26 26
Idle speed, rpm 3000±200 3000±200
Max. engine output, acc. to ISO 8893 0,85/8500 0,85/8500
Catalytic converter muffler No No
Speed-regulated ignition system Yes Yes
Ignition system
Spark plug NGK CMR7H-10 NGK CMR7H-10
Electrode gap, mm 0,9-1,0 0,9-1,0
Fuel and lubrication system
Manufacturer/type of carburettor Walbro, Diaphragm Walbro, Diaphragm
Fuel tank capacity, litre 0,47 0,47
Weight
Weight without fuel and grease, kg 5,8 6,0
Noise emissions
(see note 1)
Sound power level, measured dB(A) 100 100
Sound power level, guaranteed LWA dB(A) 102 102
Sound levels
(see note 2)
Equivalent sound pressure level at the operator’s ear,
measured according to EN ISO 10517, dB(A): 91 91
Vibration levels
(see note 3)
Equivalent vibration levels (ahv,eq) at handles,
measured according to EN ISO 10517, m/s2
Front/rear handles: 2,0/2,1<2,5 3,6/5,4
Blades
Type Double sided Double sided
Length, mm 600 750
Pitch, mm 35 35
Gear ratio 5.11 5.11
H1158984-1.WEST.fm Page 20 Monday, February 11, 2019 9:42 AM
