Zhejiang Clean Technology Co. CT-A171 User manual

1/4

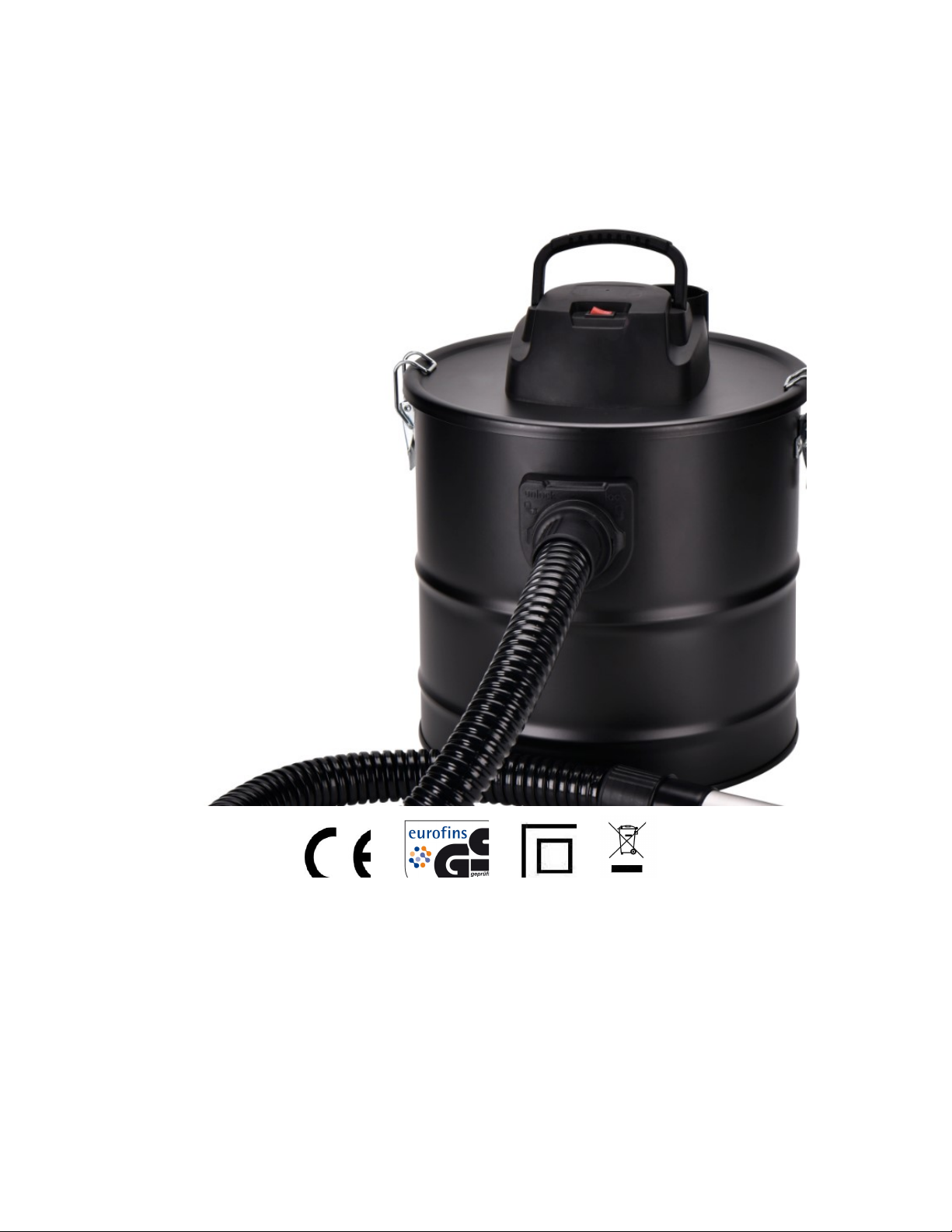

ASH VACUUM CLEANER
Operation instructions
Before operating this appliance, please ensure that you read & understand all the
instructions that apply to it, as failure to comply with these instructions may result in
personal injury to other person, and also increase the risk of fire of electrical shock. Please
ensure that any replacement parts or accessories used with this appliance are correctly
and/or securely fitted before use.
Please retain the instructions for constant reference.
Zhejiang Clean Technology Co., LTD.
301 Room, No. 65 Building, Gongshang Town, JINHUA, Zhejiang, China

2/4
ATTENTION!!
The equipment complies with the safety regulations required for electrical equipment.
Read through the instructions for use before starting up the equipment.
Improper use can lead to personal injury and property damage. Users who are not familiar
with the instructions, may not operate the equipment. Keep the instructions for use in safe
custody.
Children and youths are not permitted to operate the equipment.
Safety Information
 Do not leave the cleaner running without supervision.
 The mains voltage must be the same as the details on the machine’s model plate.
 Do not carry the cleaning by the cable. Only remove the cable from the socket by
pulling the plug. Protect the cable from oil, heat and sharp edges. Damaged cables can
cause an electric shock.
 Ensure that the cable is not damaged by being run over, crushes, torn, etc.
 The plug must be removed before cleaning or maintaining the appliance.
 Keep the nozzles and filters clean and functional to ensure that the cleaner works
better and more safely.
 Do not use to suck up water.
 Do not leave the cleaner out in the rain.
 Do not immerse in water for cleaning.
 Do not use the cleaner to vacuum inflammable or explosive liquids, causticity object,
hot and burning dust or harmful material to human body.
 Ensure the temperature of the ash can not exceed Celsius 50 °C.
 Only use the accessories recommended by the manufacturer.
 Keep the cleaner in a dry room.
 Don't vacuum the objects as follows: liquid, inflammable and explosive dangerous
material, corrosive material and burning ash, match, and cigarette.
 If the supply cord is damaged, it must be replaced by the manufacturer or its service
agent or a similarly qualified person in order to avoid a hazard.
 This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
 Children should be supervised to ensure that they do not play with the appliance.
 Do not use the appliance if the filter is not installed! Do not used other filters except the
ones (fire prevention filter) attached to the appliance by manufacturer.

3/4
CT-A171 exploded diagram
Technical data
CT-A171-**W*-L; **=550,600,800,900,1000,1200,1400,1600; *=10, 12,15,18,20,25,30;
Rated voltage/Rated frequency: 220-240V~50/60Hz
Rated input power: **=550:550W, **=600:600W, **=800:800W, **=900:900W,**=1000:1000W,
**=1200:1200W, **=1400:1400W, **=1600:1600W
Container capacity: =10: 10Litres, *=12: 12Litres,*=15: 15Litres, *=18: 18Litres, *=20: 20Litres,
*=25: 25Litres, *=30: 30Litres
Use instructions
 Fit the fire prevention filter (10) on the bottom of motor base (7). The filter should be took out and
cleaned after every heavy use.
 Connect one end of metal hose (15) with the suction mouth (14) on tank tightly.
 Put aluminum tube into fireplace or stove to vacuum ash.
 Connect the plug to the socket.
 Switch on: set the switch (2) to " I "
 Switch off: set the switch (2) to "O"
1. Handle
2. Switch
3. Top cover
4. Power cable
5. Capacitor
6. Motor block
7. Motor
8. Motor seal ring
9. Motor base
10. Metal barrel cap
11. Cartridge HEPA filter
12. Metal clip
13. Metal tank
14. Suction mouth
15. Hose connector A
16. Hose connector B
17. Metal hose
18. Aluminum tube
19. Cable block

4/4
Move the suction tube with light pressure slowly and evenly over the dirt.
Maintenance and cleaning
 Stop the cleaner.
 Disconnect the mains plug from the power supply.
 Disconnect hose, tube and container.
 Clean connector A (15), connector B (16), metal hose and tube and keep them unblocked.
 Use a damp cloth to clean the plastic parts.
 Empty the dust container, and if necessary, wash it.
 Clean the dust on filter (9) with brush, and if necessary, wash it.
 Do not use cleaning products, solvents or sharp objects for this purpose.
Repairs
Only use accessories and spare parts recommended by the manufacturer. If the equipment fail some
day in spite of our quality controls and your maintenance, only have it repaired by an authorized
electrician.
Correct Disposal of this product
This marking indicates that this product should not be disposed with other household
wastes throughout the EU. To prevent possible harm to the environment or human
health from uncontrolle
d waste disposal, recycle it responsibly to promote the
sustainable reuse of material resources. To return your used device, please use the
return and collection systems or contact the retailer where the product was
purchased. They can take this product for environmental safe recycling.
Warranty Information
The manufacturer provides warranty in accordance with the legislation of the customer's own country of
residence, with a minimum of 1 year (Germany: 2 years), starting from the date on which the appliance is
sold to the end user.
The warranty only covers defects in material or workmanship.
The repairs under warranty may only be carried out by an authorized service centre. When making a
claim under the warranty, the original bill of purchase (with purchase date) must be submitted.
The warranty will not apply in cases of:
- Normal wear and tear
- Incorrect use, e.g. overloading of the appliance, use of non-approved accessories
- Use of force, damage caused by external influences
- Damage caused by non-observance of the user manual, e.g. connection to an unsuitable mains supply
or non-compliance with the installation instructions
- Partially or completely dismantled appliances
