ZIEHL-ABEGG R-DT Series User manual

R-DT-.., RTRD.., RUDT..
Transformer based controllers for variable voltage 3 ~ motors
Operating Instructions
Keep for reference!
L-BAL-E285-GB 1907 Index 002 Part.-No.
english
CZ | D | GB | DK | E | F | I | PL | RU | S | ☞ www.ziehlabegg.com

Content
1 General notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.1 Structure of the operating instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.2 Exclusion of liability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.1 Explanations of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.2 Requirements placed on the personnel / due diligence . . . . . . . . . . . . . . . . . . . . . . . . 4
3 Product overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3.1 Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3.2 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3.3 Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3.4 Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3.5 Disposal / recycling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4.1 General notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4.2 Minimum space requirement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4.3 Mains connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4.4 Motor connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4.5 Operation signalling contacts/voltage output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
5 Enclosure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
5.1 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
5.2 Connection diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5.3 Dimensions [mm] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5.4 Manufacturer reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.5 Service information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Operating Instructions R-DT-.., RTRD.., RUDT..
L-BAL-E285-GB 1907 Index 002 Part.-No.
2/12

1 General notes
Compliance with the following instructions is mandatory to ensure the functionality and safety of the
product. If the following instructions given especially but not limited for general safety, transport,
storage, mounting, operating conditions, start-up, maintenance, repair, cleaning and disposal / recy-
cling are not observed, the product may not operate safely and may cause a hazard to the life and
limb of users and third parties.
Deviations from the following requirements may therefore lead both to the loss of the statutory material
defect liability rights and to the liability of the buyer for the product that has become unsafe due to the
deviation from the specifications.
1.1 Structure of the operating instructions
Before installation and start-up, read this manual carefully to ensure correct use!
We emphasize that these operating instructions apply to specific units only, and are in no way valid for
the complete system!
Use these operating instructions to work safely with and on the device. They contain safety instruc-
tions that must be complied with as well as information that is required for failure-free operation of the
device.
Keep these operating instructions together with the device. It must be ensured that all persons that
are to work on the device can refer to the operating instructions at any time.
1.2 Exclusion of liability
To allow for future developments, construction methods and technical data given are subject to
alteration. We do not accept any liability for possible errors or omissions in the information contained
in data, illustrations or drawings provided.
We accept no liability for damage caused by misuse, incorrect use, improper use or as a consequence
of unauthorized repairs or modifications.
2 Safety instructions
•Installation, electrical connection and commissioning to be carried out by trained service personnel
only. The specifications of the manufacturer or supplier, and instructions relating to the equipment,
should be rigidly adhered to. Failure to comply with these conditions will invalidate the guarantee on
our controllers and accessories!
•The 5 electrical safety rules must be observed!
•It is strictly forbidden for work to be carried out on any components while they are connected to live
voltage. The open equipment is protected to IP00. It is possible to come into direct contact with
dangerous voltages!
•The safe isolation from the supply must be checked using a two-pole voltage detector.
•Cover neighbouring electrical equipment during installation work.
•During operation, the device must be closed or installed in a control cabinet. Fuses may only be
replaced by new ones and must not be repaired or bypassed. The data for the maximum line fuse
are to be considered absolutely (see Technical data). Use only fuses specified in schematic
diagrams.
•Never clean electrical equipment with water or similar liquids.
•The equipment is to be used solely for the purposes specified and confirmed in the order. Other
uses which do not coincide with, or which exceed those specified will be deemed unauthorised
unless contractually agreed. Damages resulting from such unauthorised uses will not be the liability
of the manufacturer. The user will assume sole liability.
•During commissioning, unexpected and hazardous conditions can arise in the entire installation
due to defective adjustments, defective components or incorrect electrical connections. Remove all
persons and objects from the hazardous area.
•Any faults detected in the electric system/modules/operating equipment must be corrected immedi-
ately. If these faults are not corrected, the device/system is potentially very dangerous. The
device/system must therefore not be operated when it is faulty.
•Pay attention to smooth, low vibration running of the motor/fan, the appropriate instructions in the
drive documentation must be observed!
Operating Instructions R-DT-.., RTRD.., RUDT.. General notes
L-BAL-E285-GB 1907 Index 002 Part.-No.
3/12

Attention!
Even after switching off, dangerous temperatures can still occur in and on the device.
Attention!
Automatically restart after a power failure or mains disconnection!
Information
A separate fault and performance monitoring-system with an alarm signal function is necessary in
order to prevent personal injuries and material damages during malfunctions and in case the device
fails. Substitute operation must be taken into consideration!
2.1 Explanations of symbols
Safety instructions are highlighted with warning triangles and are depicted according to the degree of
hazard as follows.
Attention!
General hazardous area. Death or severe injury or significant property damage can occur if the
corresponding precautions are not taken!
Danger due to electric current
Danger by dangerous, electric voltage! Death or severe injury can occur if the corresponding
precautions are not taken!
Information
Important additional information and advice for user.
2.2 Requirements placed on the personnel / due diligence
Persons entrusted with the planning, installation, commissioning and maintenance and servicing in
connection with the frequency inverter must have the corresponding qualifications and skills for these
jobs.
In addition, they must be knowledgeable about the safety regulations, EU/EC directives, rules for the
prevention of accidents and the corresponding national as well as regional and in-house regulations.
Personnel to be trained or instructed and apprentices are only permitted to work on the device under
the supervision of an experienced person. This also applies to personnel undergoing general training.
Comply with the legal minimum age.
3 Product overview
3.1 Function
•Transformer control unit for speed control of voltage-controlled 3 ~ fans.
•In the case of R-DT/RTRD types, steps are manually set via the integrated 5-step switch.
•In the case of RUDT types, steps are manually set via both separate 5-step switches.
Switching between both settings is done via an external contact, e.g. from a time switch:
–Terminals 1-2 bridged Operation with step from switches "A" (left)
–Terminals 2-3 bridged Operation with step from switches "B" (right)
•Integrated operating indicator lamp (goes out in the case of motor fault).
•Remote control (ON/OFF) via potential-free contact (terminals RT - RT). If remote OFF lamp for
power not OFF!
•Switch-off with locking mechanism, e.g. for frost protection thermostat via a potential-free contact (
“FS - FS” terminals). Recommissioning is the same as after a motor fault.
Operating Instructions R-DT-.., RTRD.., RUDT.. Product overview
L-BAL-E285-GB 1907 Index 002 Part.-No.
4/12

•Operation signalling contacts/voltage output (max. load see connection diagram)
–For R-DT/RTRD types, operating message via voltage output and potential-free contacts. For
the RTRD type, additional voltage output for warning light.
–In the case of R-UDT types, operating message via voltage output.
Attention!
Automatically restart after a power failure or mains disconnection!
3.2 Maintenance
The device must be checked for soiling and, if necessary, cleaned in periodic intervals.
3.3 Transport
•The device is packed ex factory to suit the transport method previously agreed.
•Always use the original packaging materials when transporting the device.
•Avoid shocks and impacts to the device during the transport.
•During manual handling the human lifting and carrying restrictions must be observed and adhered
to.
3.4 Storage
•The device must be stored in its original packaging in a dry and weather-proof room.
•Avoid exposure to extreme heat and cold.
•Avoid over-long storage periods (we recommend a maximum of one year).
3.5 Disposal / recycling
Disposal must be carried out professionally and in an environmentally friendly way in accordance with
the respective national legal stipulations.
"Separate the materials by type and in an environmentally friendly way.
"If necessary, commission a specialist company with the waste disposal.
4 Installation
4.1 General notes
Attention!
Mounting, electrical connection, and start-up operation may only be carried out by an electrical
specialist in accordance with electrotechnical regulations (e.g. EN 50110, EN 60204, IEC 364)!
•The 5 electrical safety rules must be observed!
•Cover neighbouring electrical equipment during installation work.
•Before installation remove the device from the packing and check for any possible shipping
damage! Start-up is not allowed in the case of transport damage!
•At a weight greater than 25 kg for men / 10 kg for women, the device should be lifted out by two
persons (according to REFA). The values may differ from country to country.
•Wear safety shoes and gloves for handling!
•Assemble the device on a clean and stable base. Do not distort during assembly! Use the
appropriate mounting devices for proper installation of the unit!
•Do not mount equipment on vibrating base!
•Do not allow drilling chips, screws and other foreign bodies to reach the device interior!
•The device should be installed in a location where it will not be disturbed, but at the same time can
be easily accessed!
•Depending on the housing model use supplied stoppers for cable inlets, cut off necessary cable
inlets respectively to the cable diameter. Or alternative use cable inlet for cable glands. Any cable
ducts openings not used must be sealed!
•The required protective earth connection is established using screws between the housing parts in
metal terminal space covers and housing casings. Commissioning is only permissible after these
screws have been properly attached!
Operating Instructions R-DT-.., RTRD.., RUDT.. Installation
L-BAL-E285-GB 1907 Index 002 Part.-No.
5/12

•Metal screwed-connections are not permitted in plastic housing parts because there is no potential
equalization.
•Care must be taken to avoid direct radiation from the sun!
•The device is designed for vertical installation (bottom cable inlet). A horizontal or reclined installa-
tion is only permissible after technical release of the manufacturer!
•Be sure to observe proper heat dissipation (see Technical data, heat dissipation).
4.2 Minimum space requirement
In order to ensure sufficient ventilation of the device, clearance on all sides of at least 50 mm has to
be maintained to the housing walls, switch cabinet doors, wiring ducts, etc. The same clearance
applies to the installation of several devices next to each other.
When installing several devices on top of each other, the danger of reciprocal heating exists. This
layout is only then permissible when the air suctioned from the upper unit does not become warmer
than the permissible ambient temperature (see Technical data). I.e., a correspondingly larger clear-
ance or thermal shielding is required.
4.3 Mains connection
Power from the mains is connected to terminals: PE, L1, L2, L3 and N (only for 400 V version). Here, it
must be strictly observed that the mains voltage lies within the allowable tolerance specifications (see
Technical data and nameplate affixed to the side).
The mains voltage must comply with the EN 50160 quality characteristics and the defined standard
voltages in IEC 60038!
Danger due to electric current
•The internal transformer is not short-circuit-proof, note: maximum size of line fuse detailed in the
operating instructions. When using automatic circuit breakers, you must use a 3-poled type with “C”
characteristics.
•To prevent transformer overloading, exclude two-phased conductance by taking measures at the
customer location. Alternative to phase monitoring, a motor overload protector with phase-failure
sensitivity can be used as the backup fuse. Set it to the rated current of the transformer-induced
control device.
4.4 Motor connection
The motor leads are connected to the terminals: PE, U, V, W. Several fans can be connected to the
controller-the maximum total current of all motors must not exceed the current rating for the controller.
Motor protection via connection of TB thermostatic switches (not suitable for PTC thermistors). When
the thermostatic switches are triggered (motor fault), the device switches off. Restart is performed
once the drive has cooled down either by switching the mains voltage off and on again (after approx. 2
minutes) or via the switch.
Attention!
If multiple motors are connected, connect thermostatic switches to the TB-TB (TK-TK) terminals in
series.
Operating Instructions R-DT-.., RTRD.., RUDT.. Installation
L-BAL-E285-GB 1907 Index 002 Part.-No.
6/12

4.5 Operation signalling contacts/voltage output
Operating indicator contacts, e.g. for shutter control (for contact load, see connection diagram).
•Potential-free contacts (only available in the case of R-DT.. and RTRD..EK types):
–If the device is switched on when mains voltage is applied (stage 1 - 5), the internal relay is
energised ( > in the case of R-DT.. types, terminals 11 - 14 bridged, in the case of RTRD14EK,
terminals 21 - 24).
–In the case of switch-off via the remote control (RT - RT terminals interrupted) and in the case of
a motor fault (TB-TB / TK-TK terminals interrupted), the relay is de-energised ( > in the case of
R-DT.. types, terminals 11 - 12 bridged, in the case of RTRD14EK, terminals 21 - 22 bridged).
•Voltage output in the case of R-DT.. and RUDT.. types:
–The L↓ and N↓ terminals are directly connected to the mains connection, meaning that there is
continuous voltage when mains voltage is applied, even in the switch position “0”.
–The mains voltage at terminal L' is switched via the internal relay (voltage ON
L' - L↓ terminals
bridged).
•Voltage output in the case of the RTDRD14EK type:
–Terminal 1 (N) is directly connected to the mains connection.
–The mains voltage at terminals 2 and 3 is switched at the same time with the relay for potential-
free contacts.

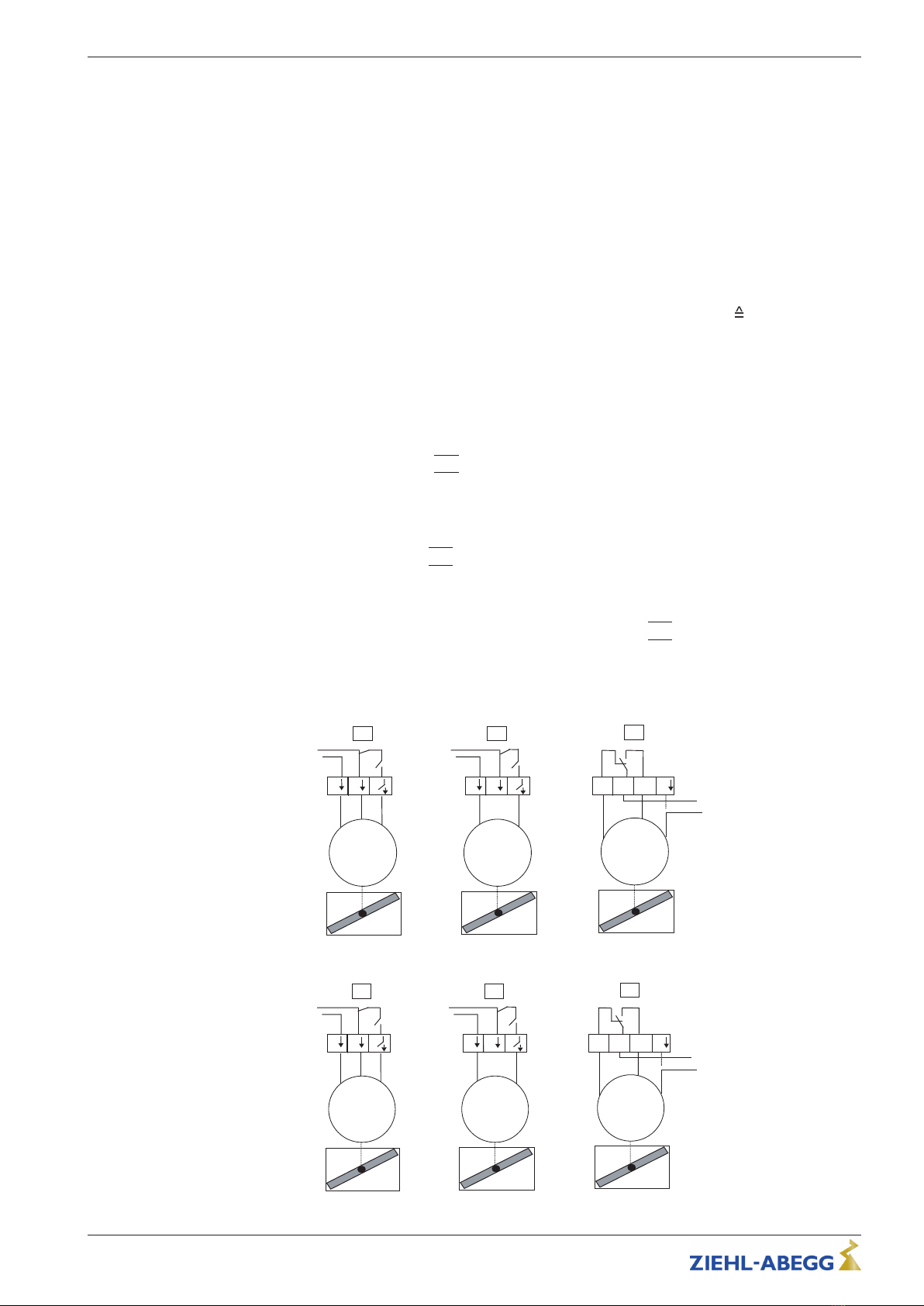

Examples of the connection of throttle actuator motors in the case of R-DT.. and RUDT.. types
•For motors with 1-wire control (see
| 1K | )
–damper “OPEN”: if fan is running, “230 V” at terminal L'
–damper “CLOSE”: constant voltage at terminal L↓, if fan is not running (also in switch position
“0”)
•For motors with spring return (see
| 2K | )
–damper “OPEN”: if fan is running, “230 V” at terminal L'
–damper“CLOSE:”via spring return (if no voltage at) L'
•For motors with 2-wire control only in the case of R-DT.. types (see
| 3K | )
–damper “OPEN”: if fan is running, voltage at terminal 14
–damper “CLOSE”: voltage at terminal 12, if fan is not running (also in switch position “0”)
R-DT.. and RUDT.. 3~ 400 V types
18.04.2008
v_kla_steu_1dra_feder_2dra.VSD
M
AC 230 V
M
1K
M
AC 230 V
M
2K
M
AC 24 V... 230 V
M
3K
L’ L
NL’
L
N11 14
N
12
R-DT.. and RUDT.. 3~ 230 V types
18.04.2008
v_kla_steu_1dra_feder_2dra_2ph.VSD
M
AC 230 V
M
1K
M
AC 230 V
M
2K
M
AC 24 V... 230 V
M
3K
L2’ L2
L1 L2’
L2
L1
11 14
L1
12
Operating Instructions R-DT-.., RTRD.., RUDT.. Installation
L-BAL-E285-GB 1907 Index 002 Part.-No.
7/12

5 Enclosure
5.1 Technical data
3 ~ 400 V types
•Line voltage: 3 ~ 400 V (-15 % / +10 %), 50/60 Hz
•Max. permissible ambient temperature: 40 °C
•Output voltages adjustable via 5-step switch: 95 V - 145 V - 190 V - 240 V - 400 V
Type Part-No. Rated current
[A]
Max. line fuse
[A]
Max. heat dissi-
pation approx.
[W]
Weight
[kg]
Housing
protection
R-DT1KTG 302581 1,0 4 40 4.7 IP54
R-DT2KTG 302582 2.0 4 50 7.4 IP54
R-DT3KTG 302583 3.0 6 60 11 IP54
R-DT4KT 302584 4.0 6 75 11 IP21
R-DT5.2KTG 302585 5.2 13 80 15.6 IP54
R-DT7KT 302586 7.0 16 110 15.6 IP21
RTRD14E 302561 14.0 25 145 30.5 IP21
RTRD14EK 302562 14.0 25 145 30.6 IP21
RUDT2T 302640 2.0 4 50 6.2 IP21
RUDT4T 302641 4.0 6 75 11.2 IP21
RUDT7T 302642 7.0 16 110 15.8 IP21
3 ~ 230 V types
•Line voltage: 3 ~ 230 V (-15 % / +10 %), 50/60 Hz
•Max. permissible ambient temperature: 40 °C
•Output voltages adjustable via 5-stage switch: 65 V - 110 V - 135 V - 170 V - 230 V
R-DT3.5KTG 302592 3.5 6 65 7.4 IP54
R-DT7KT 302593 7.0 16 80 11,0 IP21
R-DT10KT 302594 10.0 16 85 15.6 IP21
RUDT3.5T 302643 3.5 6 65 6.2 IP21
RUDT7T 302644 7.0 16 80 11.2 IP21
RUDT10T 302645 10.0 16 85 15.6 IP21
Operating Instructions R-DT-.., RTRD.., RUDT.. Enclosure
L-BAL-E285-GB 1907 Index 002 Part.-No.
8/12

5.2 Connection diagram
R-DT...KT(G) 400V
12 11 14
7
0 1
Aus / Ein
Off / On
5
1* Wenn Funktion nicht benötigt wird, Klemmen brücken
If function is not needed, terminals must be bridged
1* 1*
L3N L2L1PE
Netz
Line
3 ~ 400 V 50/60 Hz
N L1 L2 L3
q
Aus / Ein (nur über Reset)
Off / On (only by reset)
1*
RT RT
6
Kontaktbelastung
Contact rating
1
3
max.
AC 250 V 2 A
max.
AC 230 V 1 A AC 230 V
4
M
3 ~
UV W PE
TB
Y/Δ
3 ~ Motor
mit eingebauten Thermostatschaltern
with internal thermostats
2
TB
q
UV W N L L
SR171K05
07.09.2017
FS FS TK TK
1 Line 3 ~ 400 V, 50/60 Hz
2 3 ~ Motor with internal thermostats
3 Contact rating 250 V AC max. 2 A
4 Contact rating 230 V AC max. 1 A
5 Off / On
6 Off / On (only via reset)
7 If the function is not required, bridge the terminals
RUDT...KT 400V
1 2 3
7
0 1
Aus / Ein
Off / On
5
1* Wenn Funktion nicht benötigt wird, Klemmen brücken
If function is not needed, terminals must be bridged
1* 1*
L3N L2L1PE
Netz
Line
3 ~ 400 V 50/60 Hz
N L1 L2 L3
q
Aus / Ein (nur über Reset)
Off / On (only by reset)
A B
1*
RT RT
6
Kontaktbelastung
Contact rating
1
3
max.
AC 230 V 1 A
AC 230 V
4
M
3 ~
UV W PE
TB
Y/Δ
3 ~ Motor
mit eingebauten Thermostatschaltern
with internal thermostats
2
TB
q
UV W N L L
RDNT08K1
07.09.2017
Schaltuhr
Time switch
FS FS TB TB
1 Line 3 ~ 400 V, 50/60 Hz
2 3 ~ Motor with internal thermostats
3 Time switch
4 Contact rating 230 V AC max. 1 A
5 Off / On
6 Off / On (only via reset)
7 If the function is not required, bridge the terminals
Operating Instructions R-DT-.., RTRD.., RUDT.. Enclosure
L-BAL-E285-GB 1907 Index 002 Part.-No.
9/12

RTRD14E(K) 400V
22 21 241 2 3
9
8
0 1
Aus / Ein
Off / On
3
1* Wenn Funktion nicht benötigt wird, Klemmen brücken
If function is not needed, terminals must be bridged
1* 1*
L3N L2L1PE
Netz
Line
3 ~ 400 V 50/60 Hz
N L1 L2 L3
q
Aus / Ein
(nur über Reset)
Off / On
(only by reset)
1*
RT RT WL WL
7
Warnlampe
Fault indication lamp
4
max. 1 A
Kontaktbelastung
Contact rating
1
6
max.
AC 250 V 2 A
max.
AC 230 V 1 A
AC 230 V
5
nur / only RTRD...EK
U V W
SR027K01
07.09.2017
M
3 ~
UV W PE
TB
Y/Δ
q
3 ~ Motor
mit eingebauten Thermostatschaltern
with internal thermostats
2
TB
FS FSTK TK
1 Line 3 ~ 400 V, 50/60 Hz
2 3 ~ Motor with internal thermostats
3 Off / On
4 warning light, max. 1A
5 Contact rating 230 V AC max. 1 A
6 Contact rating 250 V AC max. 2 A
7 Off / On (only via reset)
8 only at Type RTRD14EK
R-DT...KT(G) 230V
12 11 14
7
0 1
Aus / Ein
Off / On
5
1* Wenn Funktion nicht benötigt wird, Klemmen brücken
If function is not needed, terminals must be bridged
1* 1*
L3L2L1PE
Netz
Line
3 ~ 230 V 50/60 Hz
L1 L2 L3
q
Aus / Ein (nur über Reset)
Off / On (only by reset)
1*
RT RT
6
Kontaktbelastung
Contact rating
1
3
max.
AC 250 V 2 A
max.
AC 230 V 1 A AC 230 V
4
M
3 ~
UV W PE
TB
Y/Δ
3 ~ Motor
mit eingebauten Thermostatschaltern
with internal thermostats
2
TB
q
UV W L1 L2 L2
SR171K06
07.09.2017
FS FS TK TK
1 Line 3 ~ 230 V, 50/60 Hz
2 3 ~ Motor with internal thermostats
3 Contact rating 250 V AC max. 2 A
4 Contact rating 230 V AC max. 1 A
5 Off / On
6 Off / On (only via reset)
7 If the function is not required, bridge the terminals
Operating Instructions R-DT-.., RTRD.., RUDT.. Enclosure
L-BAL-E285-GB 1907 Index 002 Part.-No.
10/12

RUDT...KT 230V
1 2 3
7
0 1
Aus / Ein
Off / On
5
1* Wenn Funktion nicht benötigt wird, Klemmen brücken
If function is not needed, terminals must be bridged
1* 1*
L3L2L1
PE
Netz
Line
3 ~ 230 V 50/60 Hz
L1 L2 L3
q
Aus / Ein (nur über Reset)
Off / On (only by reset)
A B
1*
RT RT
6
Kontaktbelastung
Contact rating
1
3
max.
AC 230 V 1 A
AC 230 V
4
M
3 ~
UV W PE
TB
Y/Δ
3 ~ Motor
mit eingebauten Thermostatschaltern
with internal thermostats
2
TB
q
UV W L1 L2 L2
RDNT08K2
07.09.2017
Schaltuhr
Time switch
FS FS TB TB
1 Line 3 ~ 230 V, 50/60 Hz
2 3 ~ Motor with internal thermostats
3 Time switch
4 Contact rating 230 V AC max. 1 A
5 Off / On
6 Off / On (only via reset)
7 If the function is not required, bridge the terminals
5.3 Dimensions [mm]
R-DT1/2/3.5
(R-DT3/4/5.2/7/10, RUDT2/3.5/4/7/10) RTRD14E(K)
Operating Instructions R-DT-.., RTRD.., RUDT.. Enclosure
L-BAL-E285-GB 1907 Index 002 Part.-No.
11/12

5.4 Manufacturer reference
Our products are manufactured in accordance with the relevant international regulations. If you have
any questions concerning the use of our products or plan special uses, please contact:
ZIEHL-ABEGG SE
Heinz-Ziehl-Straße
74653 Künzelsau
Telephone: [phone]
Telefax: [phone]
[e-mail]
http://www.ziehl-abegg.de
5.5 Service information
If you have any technical questions while commissioning or regarding malfunctions, please contact
our technical support for control systems - ventilation technology.
phone: [phone]
Email: [e-mail]
Our worldwide contacts are available in our subsidiaries for deliveries outside of Germany, see
www.ziehl-abegg.com.
Operating Instructions R-DT-.., RTRD.., RUDT.. Enclosure
L-BAL-E285-GB 1907 Index 002 Part.-No.
12/12
