ZIGBEE IPC804 User manual

IPC804 Fixed IP Camera
Quick Start Guide

2
Introduction
1
2
The IP Camera allows you to monitor your home anywhere using your
mobile phone. It is designed with a high definition processing chip that
gives high quality, fast loading images day and night.
This guide will provide you with an overview of the product and help you
get through the initial setup.

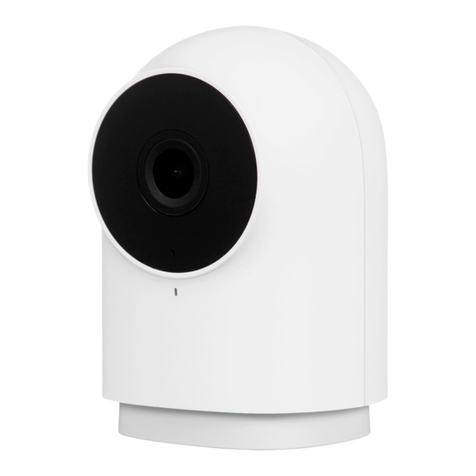

Get to know your device
LED indicator
Camera lens

3
USB
Storage card
3Get Started
3.1 To get started, you will need:
A Gateway.
The mobile app.
3.2 Set up your IP camera
1. Connect your IP camera to the USB power adaptor and apply power.
2. The LED indicator will flash blue after the IP camera is powered on. If not,
reset the camera by pressing the reset button for three seconds.
3. Go to the video module ( ) of the mobile app, tap the QR code icon ( ),
then scan the QR code on the back of the IP camera (you can also manually
input the device ID under the QR code), then tap "Next".
4. For android, the mobile phone will now connect to the IP camera's Wi-Fi
hotspot automatically. For iOS, go to Setting and choose the IP camera's Wi-
Fi and go back to the app.
5. Then you will see a list of available Wi-Fi networks, choose a network
and enter the password on the next screen to connect the IP camera to the
internet.
6. Once connected to the internet, the IP camera will be added to the mobile
app automatically. You should now be able to see live video from the camera.
Reset

4
Power Supply • USB Port DC 5V ±10%
Camera • Lens: 1 megapixel
• Prime lens: 3.6 mm
Storage • Support TF storage (maximum 32G)
Alarm
• Supports motion detection, will
sound an alarm when the network is
disconnected, memory is full, etc.
WiFi • Built-in Wi-Fi connectivity
Network Protocol • TCP/IP, HTTP, DHCP, SSL, DDNS, FTP, NTP,
RTSP, ONVIF
Working Environment • -10~+60 °C (≤95% RH)
Frame rate • 720p @30 fps, 480P @25 fps
Dimensions • 98.2(L) × 80(H) × 77.1(W)mm
4Technical Specifications

5
WARNING: Failure to follow these safety notices could result in fire,
electric shock, other injuries, or damage to the IP camera and other
property. Read all the safety notices below before using the IP camera.
• Avoid high humidity or extreme temperatures.
• Avoid long exposure to direct sunlight or strong ultraviolet light.
• Do not drop or expose the unit to intense vibration.
• Do not disassemble or try to repair the unit yourself.
• Do not expose the unit or its accessories to flammable liquids, gases or
other explosives.
5Safety Notice
