Zigen ZIG-ADM User manual

1
Zigen ZIG-ADM
4K UHD+ Dolby Digital & DTS StereoDecoder
4K 60 Hz 4:4:4
HDCP 2.2
ZigNet, Full Web Interface and System Diagnostics

2
Important Safety Instructions
1. Do not use this product near water.
2. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
3. Do not install or place this product near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that produce heat.
4. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
5. Only use attachments/accessories specified by the manufacturer.
6. To reduce the risk of electric shock and/or damage to this product, never handle or
touch this unit or power cord if your hands are wet or damp. Do not expose this
product to rain or moisture.
7. Unplug this apparatus during lightning storms or when unused for long periods of time.
8. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
9. Batteries that may be included with this product and/or accessories should never be
exposed to open flame or excessive heat. Always dispose of used batteries
according to the instructions.

3
Warranty Information
Powered Product Warranty
Zigen, Inc. warrants its powered products against any defects in materials and
workmanship for a period of three years from the date of invoice. Touchscreen displays
carry a one year parts and labor warranty. If a malfunction occurs during the warranty
period, Zigen, Inc. will repair or replace a product to its original operating condition. A
return authorization number must be obtained from Zigen, Inc. before products are
returned for service.
Non-Powered and Cable Products - Lifetime Limited Performance Warranty
Zigen, Inc. warrants that its non-powered products and cable products will be free from
defects in material and workmanship for as long as you or your customer owns the
product. All Zigen non-powered products and cables are designed and engineered to
meet and exceed performance specifications. If, at anytime, the product fails due to
manufacturer defect, Zigen will repair or replace the product to ensure that it meets
original performance specifications. Reduced performance due to normal wear and tear,
or damages caused by misuse or negligence will not be covered. Zigen will test and
evaluate all non-powered and cable products claimed defective. Products must be
shipped to Zigen, prepaid along with proof of purchase only after obtaining a Return
Merchandise Authorization (RMA) number from the Zigen. This statement of policy is in
lieu of any other policy expressed or implied and no representative or person is
authorized to assume any other liability or adopt any other policy for Zigen without our
written consent.
Return Policy
If you would like to return a Zigen product, it can be done within 30 days of purchase for
a full refund, less shipping and handling. Zigen will not be responsible for shipping and
handling of product returns. Returns will only be accepted of products with proof of
purchase, products in the original packaging with zero to minimal use and a Return
Merchandise Authorization RMA number provided by Zigen.

4
Contacting Zigen
Technical Support
Tel: [phone]
Fax: [phone]
9:00AM - 5:00PM (PST)
Email
[email protected]
Web
www.zigencorp.com
Mailing Address
Zigen Corp.
c/o Customer Service
6934 Canby Avenue
Suite 107
Reseda CA 91335
USA

5
Features
• HDMI input and output with 18Gbps (600MHz) 4K UHD support
• DVI 1.0 compliant with the use of an HDMI-DVI adaptor
• HDCP 1.4 and 2.2 compliant
• Supports HD resolutions up to 3840x2160@60 Hz (YUV 4:4:4, 8-bit) & 4096x2160@60 Hz (YUV
4:4:4, 8-bit)
• Supports 48-bit Deep Color up to 1080p60
• Supports pass-through of LPCM 7.1, bitstream and HDbitstream audio formats over HDMI
• Embedded Dolby Digital Decodertechnology
• Embedded DTS 2.0 + Digital Out Decoder technology
• Integrated digital interpolation filter and Digital-to-Analog Converter (DAC)
• Supports LPCM sampling rates up to 96kHz.
• Supports Dolby Digital sampling rates up to 48kHz.
• Supports DTS sampling rates up to 96kHz.
• Simultaneous audio output via HDMI, analog stereo, Coaxial and Optical.
• Supports coaxial and optical audio sampling rates up to 96kHz.
• Support extracting HDMI audio signal from HDTV’s ARC connection.
• Provides EDID management with EDID bypass and 1 user modifiable EDID
• PC based EDID management tool supported
• Supports RS-232 style control via a Virtual COM port over USB

6
Packing List
The ZIG-ADM is packaged with the following items:
• 1 x 4K UHD+ Dolby Digital & DTS Stereo Decoder
• 1 x 5V/2.6A Power Adaptor
• Operational Manual
If any of these products are not present upon first opening of the package,
please contact Zigen or your reseller.
© 2017 Zigen, Corp. All Rights Reserved.
All trademarks are the property of their respective owners.
Zigen, Corp. reserves the right to make changes in the hardware, packaging,
and any accompanying documentation without prior written notice.

7
Table of Contents
ZIG-ADM Introduction ……………………………………………………………………. 8
Front Panel ............................................................................................................... 9
Back Panel ................................................................................................................ 10
Application Diagram .................................................................................................. 11
Specifications ............................................................................................................ 12
Video Supports Specifications ................................................................................... 13
Video Supports Specifications ................................................................................... 14

8
ZIG-ADM Introduction
This 4K UHD HDMI unit with Dolby® Digital/DTS® Stereo Audio Decoder, supports the
transmission of high bandwidth (18Gbps) video and allows the associated audio signal
to be simultaneously extracted and split to both digital and analog audio outputs,
providing highquality audio extraction and video performance. This unit can decode
standardDolby Digital & DTS formats up to 5.1 and output the audio as stereo (LPCM
2.0) over HDMI, S/PDIF (optical and coaxial) as well as analog RCA connections. It can
also support the pass-through of HD andstandard bitstream formats as well as LPCM
7.1 with audio sampling ratesup to 192 kHz if needed. If the connected display
supports ARC (Audio Return Channel), then this unit can extract the ARC audio and
output via all available audio outputs. Both the input and output HDMI ports support 4K
UHD resolutions up to 4K@60Hz (YUV 4:4:4, 8-bit). Built in EDID management support
allows the usertoselect from multiple EDID’s and, with the use of optional PC software,
to edit, upload and download EDID files.

9
Front Panel
1Power LED
This LED will illuminate to indicate the unit is ONand receiving power.
2PCM LED
This LED will illuminate when LPCM audio is detectedon the HDMI input. If the ARC function
is active, this LED willalsoilluminate when LPCM is detected from the ARC source.
3dts LED
This LED will illuminate when DTS 2.0+Digital audio is detected on the HDMI input. If the ARC
function is active, thisLED will also illuminate when DTS 2.0+Digital audio is detected from the
ARC source.
4Dolby LED
This LED will illuminate when Dolby Digital audio is detected on the HDMI input. If the ARC
function is active, thisLED will also illuminate when Dolby Digital audio is detected from theARC
source.
5ARC LED
Pressing this button will enable/disable the unit’s ARC (Audio Return Channel) functionality. When
the ARC function is enabled, the LED will illuminate and ARC audio sent back from the connected
display will output over all local audio outputs. When the ARC function is not enabled the LED will
remain off.

10

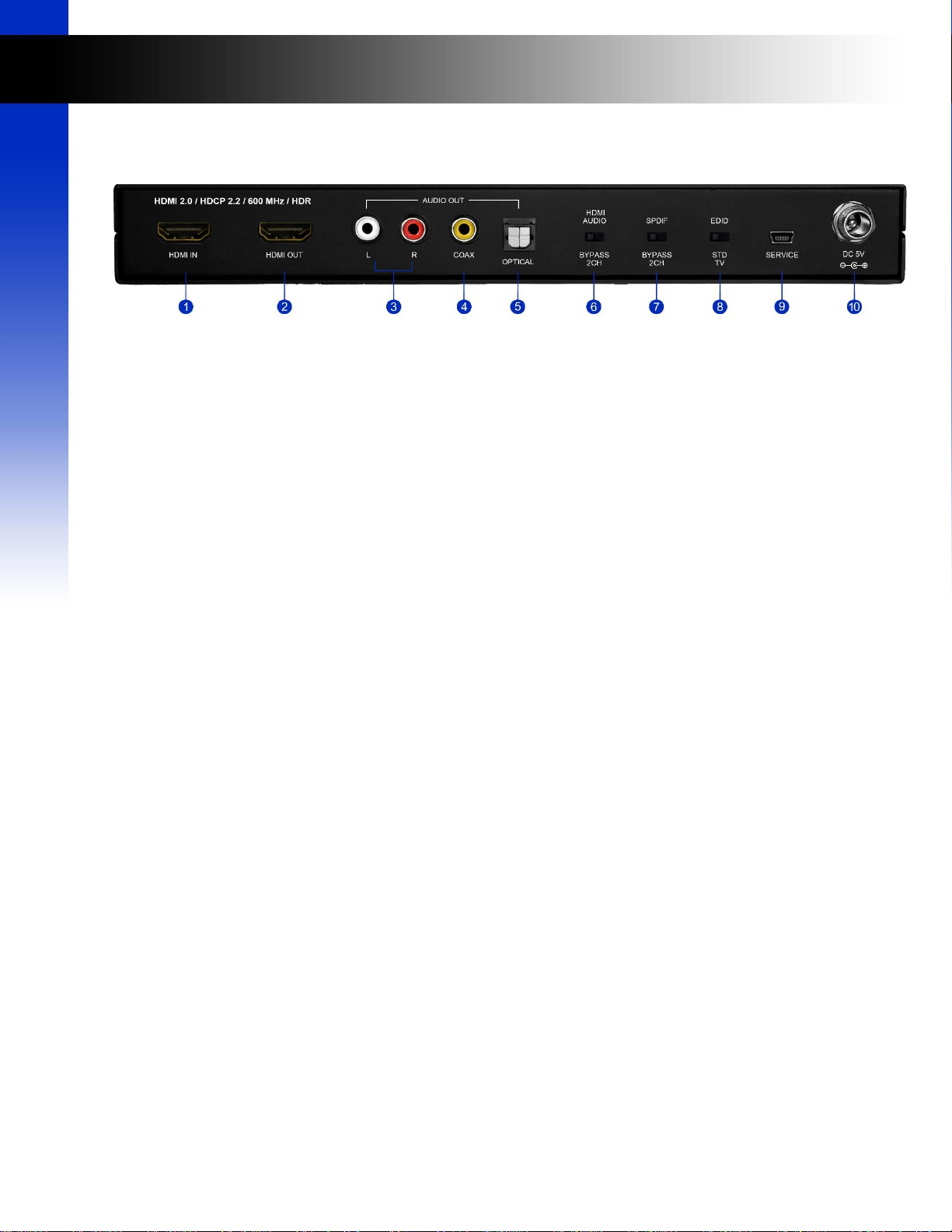

Back Panel
1HDMI IN
Connect to HDMI source equipment such as a media player, game console or set-top box.
2HDMI OUT
Connect to an HDMI TV, monitor or amplifier for digital video and audio output.
3L/R OUT
Connect to power amplifier for stereo analog audio output.
4COAX OUT
Connect to A/V receiver for digital audio output using an appropriate coaxial cable.
5OPTICAL
Connect to A/V receiver for digital audio output using an appropriate optical cable.
6HDMI AUDIO BYPASS / 2CH
This switch controls the audio output format for the HDMI port. Sliding the switch to the left sets
it to “BYPASS” which allows audio to pass unchanged from the HDMI input port. Sliding the
switch to the right sets it to “2CH” which enables decoding Dolby Digital and DTS audio from the
HDMI input and down-mixing it to LPCM 2.0.
7SPDIF BYPASS / 2CH
This switch controls the audio output format for the S/PDIF audio output ports (Optical and
Coaxial). Sliding the switch to the left sets it to “BYPASS” which allows audio to pass unchanged
from the HDMI input port. Sliding the switch to the right sets it to “2CH” which enables decoding
Dolby Digitaland DTS audio from the HDMI input and down-mixing it to LPCM 2.0.
8EDID
Connect to powered amplifier for stereo analog audio output.
9SERVICE
This slot is for EDID management, control and firmware update use. Connect directly to your
PC/laptop using astandard Mini-USB cable to connect using the PC software or to send
commands (via virtual COMport).
10 DC 5V
Plug the 5V DC power adapter into the unit and connect it to an AC wall outlet for power.

11
Application Diagram (sample)

12
Specifications
Video Bandwidth
18Gbps (600Mhz)
Input Ports
1 x HDMI,
1 x Mini-USB (service & control
only)
Output Ports
1 x HDMI
2 × RCA (Analog Audio)
1 x Coaxial S/PDIF (Digital
Audio) 1 x Optical S/PDIF
(Digital Audio)
Power Supply
5V / 2.6A DC ( US/EU standards,
CE/FCC/ UL certified)
ESD Protection
Human body model:
±8kV (air-gap discharge)
±4kV (contact discharge)
Chassis Material :
Metal
Dimensions
180mm x 25mm x 104mm
(W×H×D) [Case Only]
180mm x 25mm x 112.75mm
(W×H×D) [All Inclusive]
Weight
358g / 0.789 lb.
Operating
Temperature
0˚C~40˚C/32˚F~104˚F
Storage
Temperature
−20˚C~60˚C/−4˚F~140˚F
Relative Humidity
20~90% RH(non-condensing)
Power
Consumption
4.8w

13
v
DVI and HDMI Supported Resolutions (Hz)
INPUT
OUTPUT
640x480@60/72/75/85
720x400@85
800x600@56/60/72/75/85
1024x768@60/70/75/85
1280x720@60
1280x768@60/75/85
1280x800@60
1360x768@60
1440x900@60
1600x900@60
1600x1200@60
1920x1080@60
1920x1200@60
1440x576i@50
[email protected]/60
[email protected]/60
720x576p@50
1280x720p@50/59.94/60
1920x1080i@50/59.94/60
[email protected]/24/25/29.97/30/50/59.94/60
3840x2160@24/25/30/50/60 (YUV 4:4:4)
4096x2160@24/25/30/50/60 (YUV 4:4:4)
3840x2160@60 (YUV 4:2:0)
4096x2160@60 (YUV 4:2:0)
Video Supports Specification

14
Input
Level/ Freq.
Output
Output
Level Vrms/
dB±10%
THD+N
(A-Weight)
Frequency
Response
SNR
>90dB
Crosstalk
<-90dB
HDMI
0dB/1kHz
48~96kHz
Analog
2 Vrms
< 0.01%
±1 dBFS
>104dB
<-110dB
Coaxial
0 dB
< 0.00001%
±1 dBFS
>141dB
<-164dB
Optical
0 dB
< 0.00001%
±1 dBFS
>141dB
<-163dB
HDMI
0 dB
< 0.00001%
±1 dBFS
>141dB
<-164dB
Audio
Input
Input
Format
AUDIO OUTPUT
Analog L/R
HDMI
SPDIF
Switch Status
Switch Status
BYPASS
2CH
BYPASS
2CH
HDMI
LPCM
2.0
Analog
2 Chan.
LPCM 2.0
LPCM
2.0
LPCM 2.0
LPCM
2.0
Dolby
Digital
Decoded
Lt/Rt
Bitstream
Pass-through
LPCM
2.0
(Lt/Rt)
Bitstream
Pass-through
LPCM
2.0
(Lt/Rt)
DTS
Decoded
Lo/Ro
Bitstream
Pass-through
LPCM
2.0
(Lo/Ro)
Bitstream
Pass-through
LPCM
2.0
(Lo/Ro)
HDMI
ARC
LPCM
2.0
Analog
2 Chan.
HDMI Pass-through
ARC Bitstream
Pass-through
LPCM 2.0
LPCM
2.0
Dolby
Digital
Decoded
Lt/Rt
LPCM 2.0
(Lt/Rt)
DTS
Decoded
Lo/Ro
LPCM 2.0
(Lo/Ro)
Video Supports Specification
