Zline DWVZ-WM-24-G Assembly instructions

MonuMent Dishwasher
Installation Guide
and Users Manual

ZLINE Kitchen and Bath provides Attainable Luxury, where the kitchen and bath of your
dreams is never out of reach. Through our unique designs and unparalleled quality, we’re
dedicated to providing you an elevated experience in the heart of your home. With an
endless selection of features and finishes, our inspiration is your reality.
ZLINE is fueled by a passion for innovation; A relentless pursuit of bringing the highest
end luxury designs and professional features into everyone’s homes. Because we
continually strive to improve our products, we may change specifications and designs
without prior notice.
REGISTERING YOUR PRODUCT
Please register your ZLINE appliance. Begin the simple registration
process by scanning the QR code.
By registering your appliance, you will have easy and accurate
access to:
• Technical Support
• Warranty Service
• Tracking your support inquiries
WARNING: This product can expose you to chemicals including nickel, which is known to the
State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
SCAN ME

COVERAGE
ZLINE Kitchen and Bath dishwasher parts will be warrantied for one year from the
original purchase date for the original purchaser of the product.
TERMS
This warranty applies only to the original purchaser of the product installed for
normal residential use. This is defined as a single-family, residential dwelling in a
non-commercial setting. Commercial settings include but are not limited to: schools,
churches, hotels, restaurants, vacation rentals such as Airbnb, day care centers,
private clubs, fire stations, common areas in multi-family dwellings, nursing homes,
food service locations, and institutional food service locations such as hospitals or
correction facilities. This warranty is non-transferable and will not be extended based
on the date of installation. The warranty applies only to products installed in the
continental United States and the District of Columbia. Warranty shall not apply and
ZLINE Kitchen and Bath is not responsible for damage resulting from negligence,
improper maintenance, misuse, abuse, alteration of or tampering with the appliance,
accident, natural disaster, improper electric supply, unauthorized service or repair,
improper installation, or installation not in accordance with the instructions contained
in the manual or the local codes.
WHAT IS NOT COVERED
1. Installation or start-up damages or problems caused by improper installation or
use.
2. Damage related to unauthorized service or unauthorized parts.
3. Installation in any commercial or non-residential application.
4. Aesthetic damage, scratches, or natural wear caused by normal use.
5. Second-hand, open box products, or products purchased from an unauthorized
retailer.
WARRANTY
GENERAL SAFETY INSTRUCTIONS 1
BEFORE INSTALLATION 3
INSTALLATION 12
OPERATIONAL SAFETY INSTRUCTIONS 34
OPERATION 37
MAINTENANCE AND CLEANING 51
TROUBLESHOOTING 56
TABLE OF CONTENTS

21
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
This symbol indicates that dangerous voltage constituting a risk of
electric shock is present within your refrigerator.
This symbol indicates that there are important operating and
maintenance instructions in the literature accompanying your
refrigerator.
WARNING
BEFORE YOU BEGIN
Read these instructions completely and carefully.
IMPORTANT
• Observe all governing codes and ordinances.
• Note to Installer – Be sure to leave these instructions for the consumer’s and local
inspector’s use.
• Note to Consumer – Keep these instructions with your User Guide for future
reference.
• Skill Level – Installation of this dishwasher requires basic mechanical and
electrical skills. Proper installation is the responsibility of the installer. Product
failure due to improper installation is not covered under the appliance warranty.
• Completion Time – One to three hours. New installations require more time than
replacement installations.
IMPORTANT
• The dishwasher MUST be installed to allow for future removal from the enclosure
if service is required.
• If you received a damaged dishwasher, you should immediately call customer
service.
IMPORTANT SAFETY INSTRUCTIONS
General Safety
FOR YOUR SAFETY
Read and observe all CAUTIONS and WARNINGS shown throughout these
instructions. While performing installations described in this booklet, gloves and
safety glasses or goggles should be worn.
WARNING
This dishwasher comes with a heating element to heat the water. To avoid the risk of a
serious burn, don’t touch the heating element when the dishwasher is on.
WARNING
To reduce the risk of electrical shock, fire, or injury to persons, the
installer must ensure that the dishwasher is completely enclosed at
the time of installation.
IMPORTANT SAFETY INSTRUCTIONS
General Safety

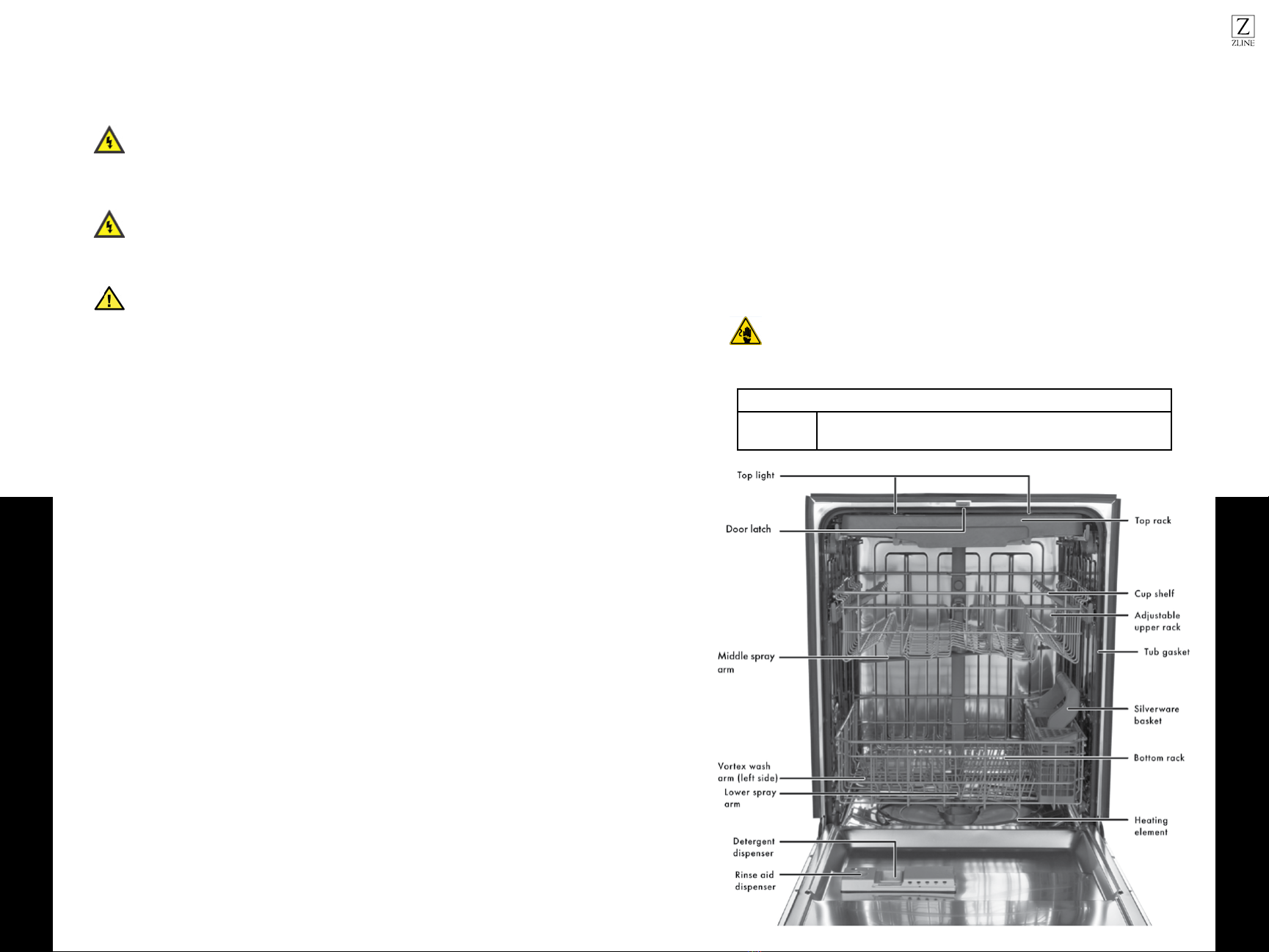

SPECIFICATIONS
Dimensions
(W x D x H)
• Unit with decorated door and handle: 23.9 x 26.5 x 33.7 in.
• Unit without decorated door and handle: 23.9 x 24 x 33.7 in.

43
If you have an installation problem, contact your dealer or installer. You are
responsible for providing adequate electrical, exhausting, and other connecting
facilities.
PREPARING TO INSTALL YOUR DISHWASHER
BEFORE INSTALLATION
Tools Needed
ENCLOSURE REQUIREMENTS
• The dishwasher must be installed so that the drain hose is no more than 10 ft. in
length, for proper drainage.
• This dishwasher is designed to be enclosed on the top and on both sides by a
standard residential kitchen cabinet unit.
• The installation enclosure must be clean and free of any obstructions.
• The enclosure must be at least 24 in. wide, 25 in. deep, and 34 in. high.
• For the front door of the dishwasher to be flush with the front edge of the counter
top, the counter top must be 25 in. deep.
BEFORE INSTALLATION
Enclosure Dimensions
PARTS SUPPLIED
• Screws A - #8, 3/4”, Flat Head sheet
Metal Screw (4)
• Screws B - #8, 1/2”, Flat Head Sheet
Metal Screw (8)
• Screws C - #6, 7/8”, Flat Head Sheet
Metal Screw (2)
• Screws D - #6, 1 3/4”, Flat Head
Sheet Metal Screw (4)
• Top mounting clips (2)
• Hose clamp
• Drain hose
• Brackets (2)
• Top Hook Mounting Seats (2)
TOOLS NEEDED
• Phillips screwdriver
• 1/4” and 5/16” nut driver
• Level
• Flashlight
• Gloves
• Bucket
• Adjustable wrench
• Carpenters square
• Measuring tape
• Safety glasses
MATERIALS NEEDED (KIT PURCHASE SEPARATELY)
• 90° Elbow, ferrule and compression nut. (3/8” NPT external thread on one end. Other
end sized to fit water supply line
• Teflon thread seal tape
• Three wire nuts (UL listed) (two included in kit)
Not included in kit
• Hand shut-off valve
• Waste tee for house plumbing (if applicable)
• Screw-type hose clamps
• Coupler for extending drain line (if applicable)
• Air gap (if required)
If installing into a corner, allow 2 in. min. clearance between dishwasher and
adjacent cabinet, wall, or other appliances. Allow 25.63 in. min. clearance from the
front of the dishwasher for opening the door.
PACKAGE CONTENTS
• Dishwasher
• Hose
• Installation Kits
• User Guide
• Installation Guide

65
DRAIN PREPARATION
The type of drain installation required depends on the answers to the following questions:
• Do local codes or ordinances require an air gap?
• Will the waste tee or garbage disposal connection be less than 18 in.
above the floor?
• Will installation have a drain loop less than 32 in. above the floor?
If the answer to ANY of these questions is YES, Method 1 MUST be used. Otherwise,
either Method 1 or Method 2 may be used.
Install the waste tee or garbage disposal connection and air gap according to
manufacturer’s instructions.
An air gap MUST BE USED if the drain hose is connected to a waste
tee or garbage disposal lower than 18 in. above the floor.
Failure to provide the proper drain connection height with an air
gap or 32 in. (min.) high drain loop will result in improper draining
of the dishwasher.
WARNING
DRAIN REQUIREMENTS
• Follow all local codes and ordinances.
• Do not exceed 10 ft. of drain hose.
• Do not connect the drain lines from other devices to the dishwasher drain hose.
• The dishwasher must be connected to a waste line with an air gap (not provided)
or a 32 in. high (min.) drain loop, depending on local codes and ordinances, to
prevent back flow into the dishwasher.
• An air gap must be used if the waste tee or garbage disposal connection is less
than 18 in. above the floor, to prevent siphoning.
BEFORE INSTALLATION
Drain Requirements
BEFORE INSTALLATION
Drain Preparation

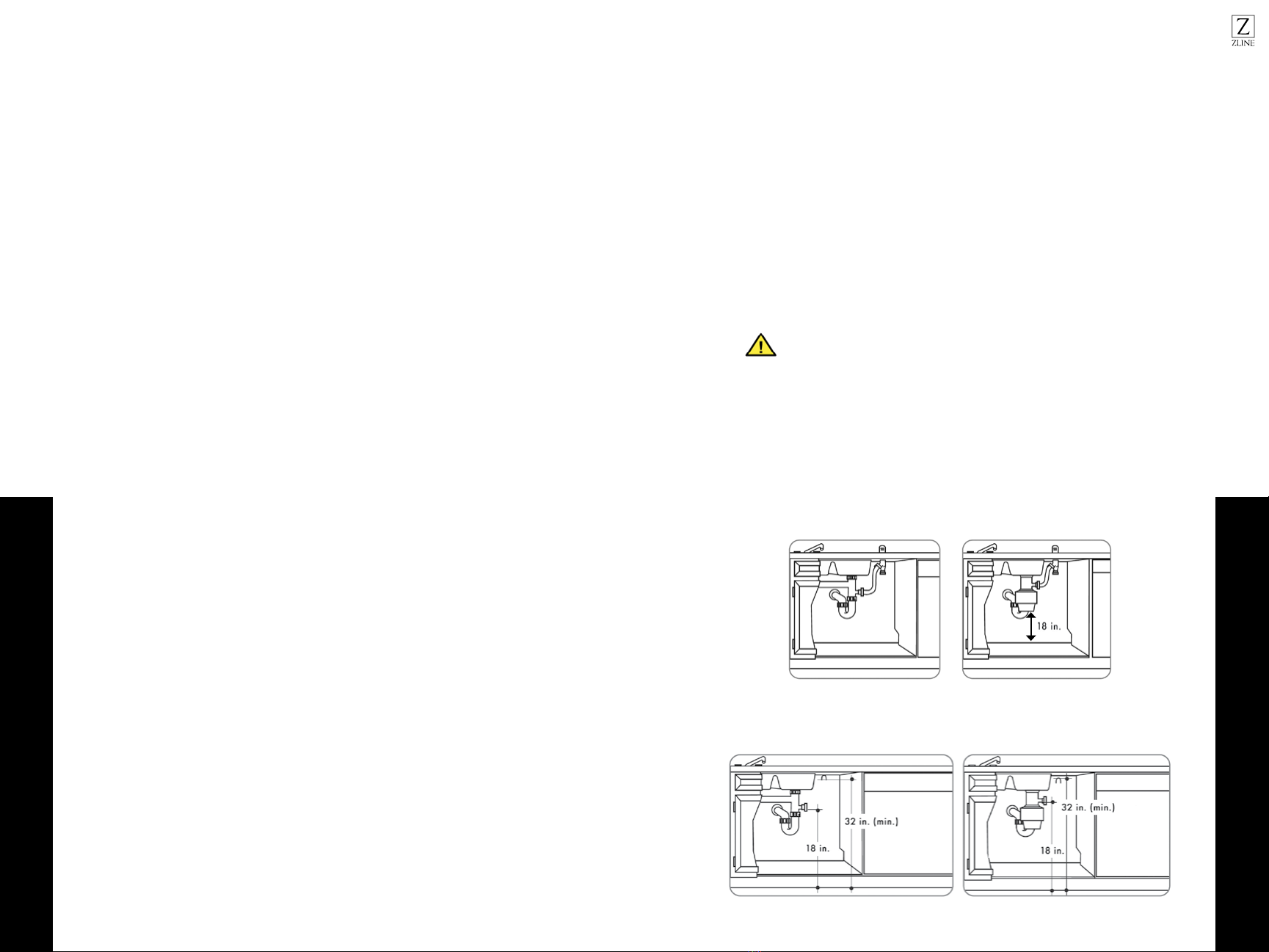

Method 1 - Air gap with a waste tee or garbage disposal connection
Method 2 - High drain with a waste tee or garbage disposal connection
You must provide a method to attach the drain hose to the underside of the countertop.

87
BEFORE INSTALLATION
Electrical Requirements
GROUNDING INSTRUCTIONS
Grounding Instructions – Cable Direct
This appliance must be connected to a grounded metal, permanent wiring system, or
an equipment grounding conductor must be run with the circuit conductors and be
connected to the equipment grounding terminal or lead on the appliance.
Grounding Instructions – Power Cord Models
This appliance must be grounded. In the event of a malfunction or breakdown,
grounding will reduce the risk of electrical shock by providing a path of least
resistance for electric current. The plug must be plugged into an appropriate outlet
that is installed and grounded in accordance with local codes and ordinances.
Direct Wire Method
• The cable must be routed as shown in “Cabinet Preparation and Wire Routing”
on page 9, and extend a minimum of 24 in. from the rear wall.
• Use flexible, armored, or nonmetallic sheathed, copper wire with grounding
wire that meets the wiring requirements for your home and local codes and
ordinances.
• Use a UL Listed/CSA Approved strain relief.
Power Cord Method
• Install a 3-prong grounding type receptacle. The wall outlet can be installed in a
cabinet or on a wall adjacent to the undercounter space in which the dishwasher
is to be installed.
• Use power cord kit (part number 5304504505) under Smart Choice brand
marked with Dishwasher Install Kit With Power Cord, available for purchase
from an authorized store. The power cord and connections must comply with
local codes and ordinances.
• The recommended power cord length is 54 in. min. and 64 in. max.
BEFORE INSTALLATION
Electrical Requirements
WARNING
The improper connection of the equipment grounding conductor can
result in a risk of electric shock. Check with a qualified electrician
or service representative if you are in doubt that the appliance is
properly grounded.
ELECTRICAL REQUIREMENTS
• This appliance must be supplied with 120V, 60 Hz, and it must be connected to
its own, properly grounded branch circuit that is protected by a 15 or 20 ampere
circuit breaker or time delay fuse.
• Wiring must be two wire with ground.
• If the electrical supply does not meet the above requirements, call a licensed
electrician before proceeding.
WARNING
Remove the house fuse or open the circuit breaker before beginning
the installation. Do not use an extension cord or adapter plug with
this appliance.
SPECIFICATIONS
Power requirements 120 V~60 Hz
Current 8.4 A
Water pressure Between 20 and 120 psi
Noise (dB) 45 dB

109
BEFORE INSTALLATION
Electrical Requirements
CABINET PREPARATION AND WIRE ROUTING
• The wiring may enter the opening from either side, the rear, or the floor within the
shaded area.
• The electrical connection is on the front right of the dishwasher.
• Drill a 1.5 in. maximum diameter hole to run the electrical cable through the wall
of the cabinet.
• The hole must be free of sharp edges. If the cabinet wall is metal, the hole edge
must be covered with a bushing or rubber grommet.
• Cable direct connections may pass through the same hole as the drain hose and
hot water line, but power cords with plugs must pass through a separate hole.
BEFORE INSTALLATION
Water Connection
PREPARING THE HOT WATER LINE
• The water connection is on the left side of dishwasher.
• The hot water line may enter the opening from either side, the rear, or the floor
within the shaded area.
• The hot water line may pass through the same hole as the electrical and drain
hose. Or, you can drill an additional 1.5 in. maximum diameter hole for the hot
water line.
• If a power cord with a plug is used, the hot water line may not pass through the
same hole as the power cord.

1211
CONNECTING THE WATER LINE TO THE WATER SUPPLY
1. Turn off the water supply.
2. Install a hand shut-off valve in an accessible location, such as under the sink. This
is optional, but strongly recommended, and may be required by local codes.
3. Install the hot water inlet line, using at least 3/8” tubing. Route the line as shown
in the figure above and extend it forward at least 18 in. from the rear wall of the
enclosure.
4. Adjust the water heater to a temperature of 120° F to 150° F.
5. Flush the water line to clean out any debris.
BEFORE INSTALLATION
Water Connection
Note: The hot water pressure must be between 20 and 120 psi
(138 and 827 kPa).

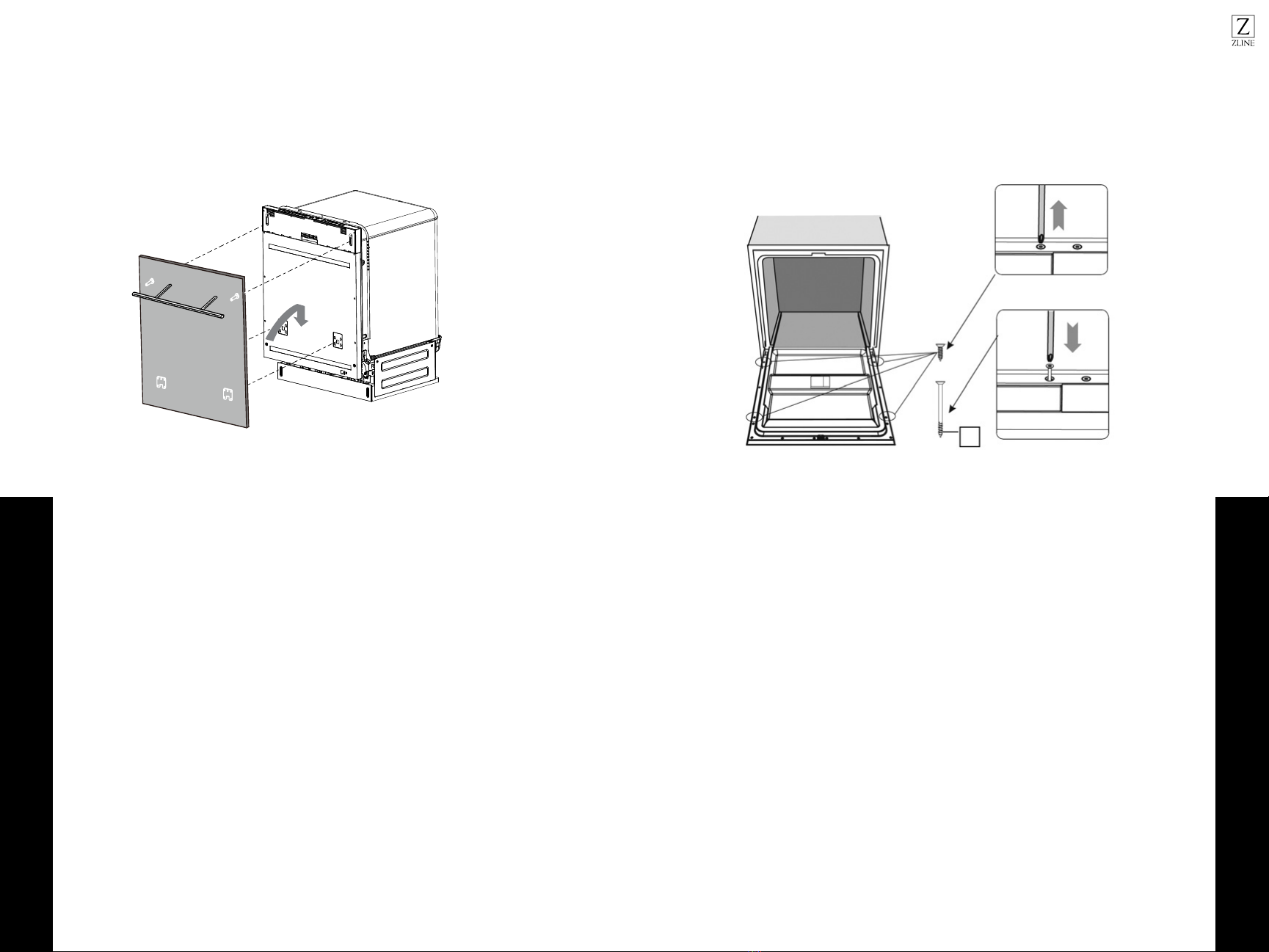

STEP 1: INSTALL THE DECORATION DOOR TO THE OUTER DOOR OF THE
DISHWASHER

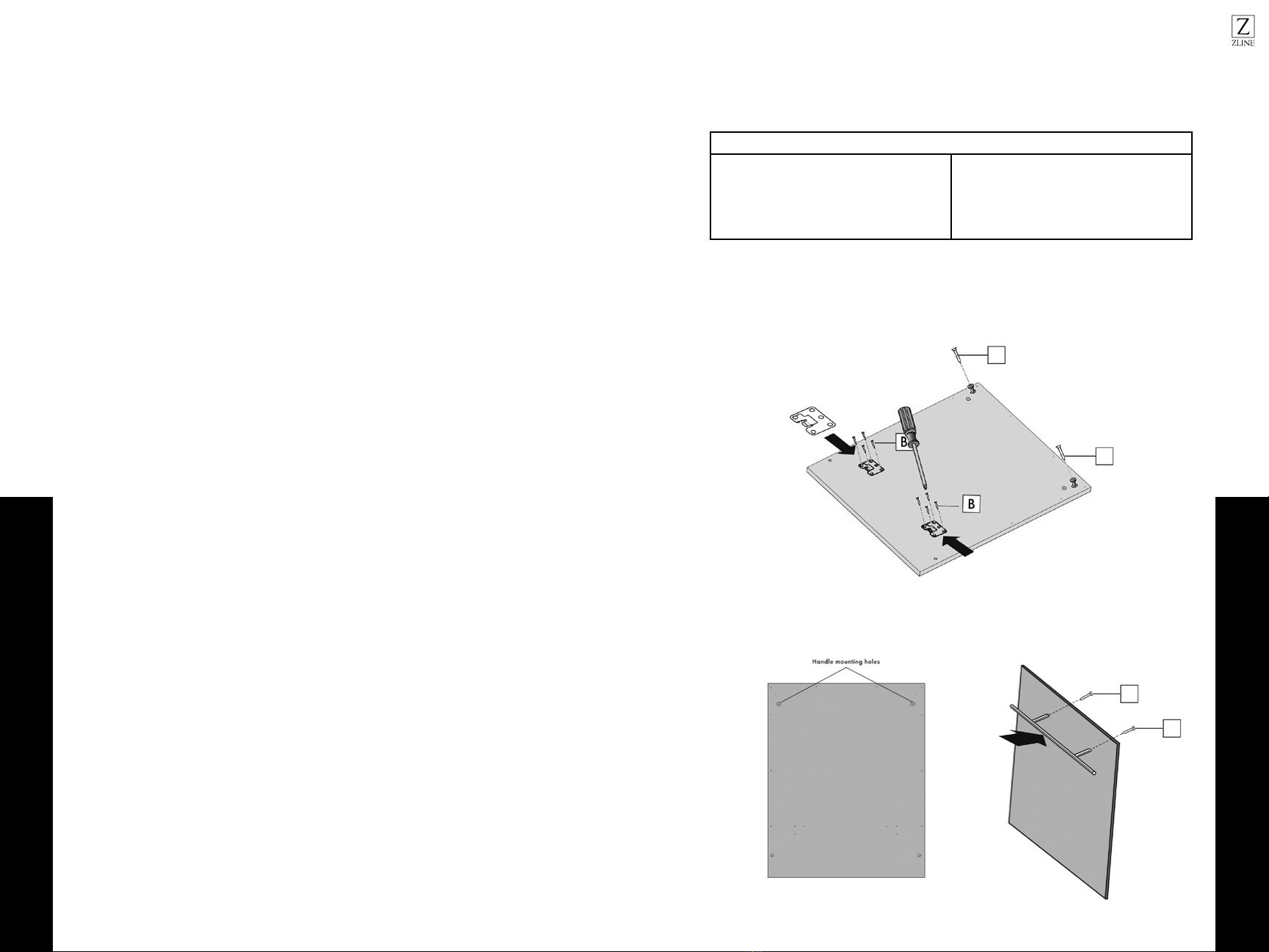

1. Install the hook and brackets on the decoration door.
2. Install the handle to the outer door.
Panel Installation
INSTALLATION
YOU’LL NEED
• Phillips screwdriver
• 1/4” and 5/16” nut driver
• Screws B - ST4 X 14 (8)
• Screws C - ST3.5 X 25 (2)
• Screws D - ST3.5 X 45 (4)
• Brackets (2)
• Top Hook Mounting Seats (2)
• Screws E - 5mm x 80 pitch, Metric
Screw (2)
C
C
E
E

1413
INSTALLATION
Panel Installation
3. Put the hook into the slot of the outer door for the positioning.
Put the hook into the slot of the outer door, for the positioning.
3
Fix the decoration door onto the outer door by screws and bolts.4
You’ll need:
Phillips screwdriver
D
1/4 in. and 5/16 in.
Nut driver
Screws D
ST3.5 x 45 (4)
Screws C
ST3.5 x 25 (2)
Screws B
ST4 x 14 (8)
Top Hook
Mounting Seats (2)
Brackets (2)
11
ATTENTON: you need an assistant to hold the top of the machine to prevent it forward.
Panel Installation
INSTALLATION
4. Fix the decoration door onto the outer door by screws.
D

1615
Door Balance
STEP 2: CHECK THE DOOR BALANCE
CAUTION
Opening the door of your dishwasher before it is installed will cause
it to tip forward. Do not open the door until you are ready to install
your dishwasher.
If it is necessary to open the door, hold the top of the dishwasher
securely with one hand and hold the door with the other hand.
1. Hold the top of the dishwasher firmly.
2. Open the door slowly, then release it. If the door drops, increase the spring
tension. If the door closes, decrease the spring tension.
3. Continue moving the spring pin until the door is balanced. Adjust both springs to
the same tension.
Note: If you choose the wood decoration door (about 8 lbs), you can
choose the fifth groove from the top groove. If you choose the metal
decoration door (about 17 lbs), you need fix the springs to the third
groove in the same method.
INSTALLATION
Adjusting the Legs
INSTALLATION
STEP 3: ADJUST THE LEVELING LEGS
1. Move the dishwasher close to the installation location and lay it on its back.
2. Measure the installation height and the dishwasher height.
3. Extend the leveling legs out from the dishwasher base .25 in. less than the
installation height.
Note: Make sure that the leveling feet are tightened all the way or
removed if trying to tilt the dishwasher.
Adjust to 0.25” less
than the installation
height Adjust to 0.25” less
than the installation
height
or

1817

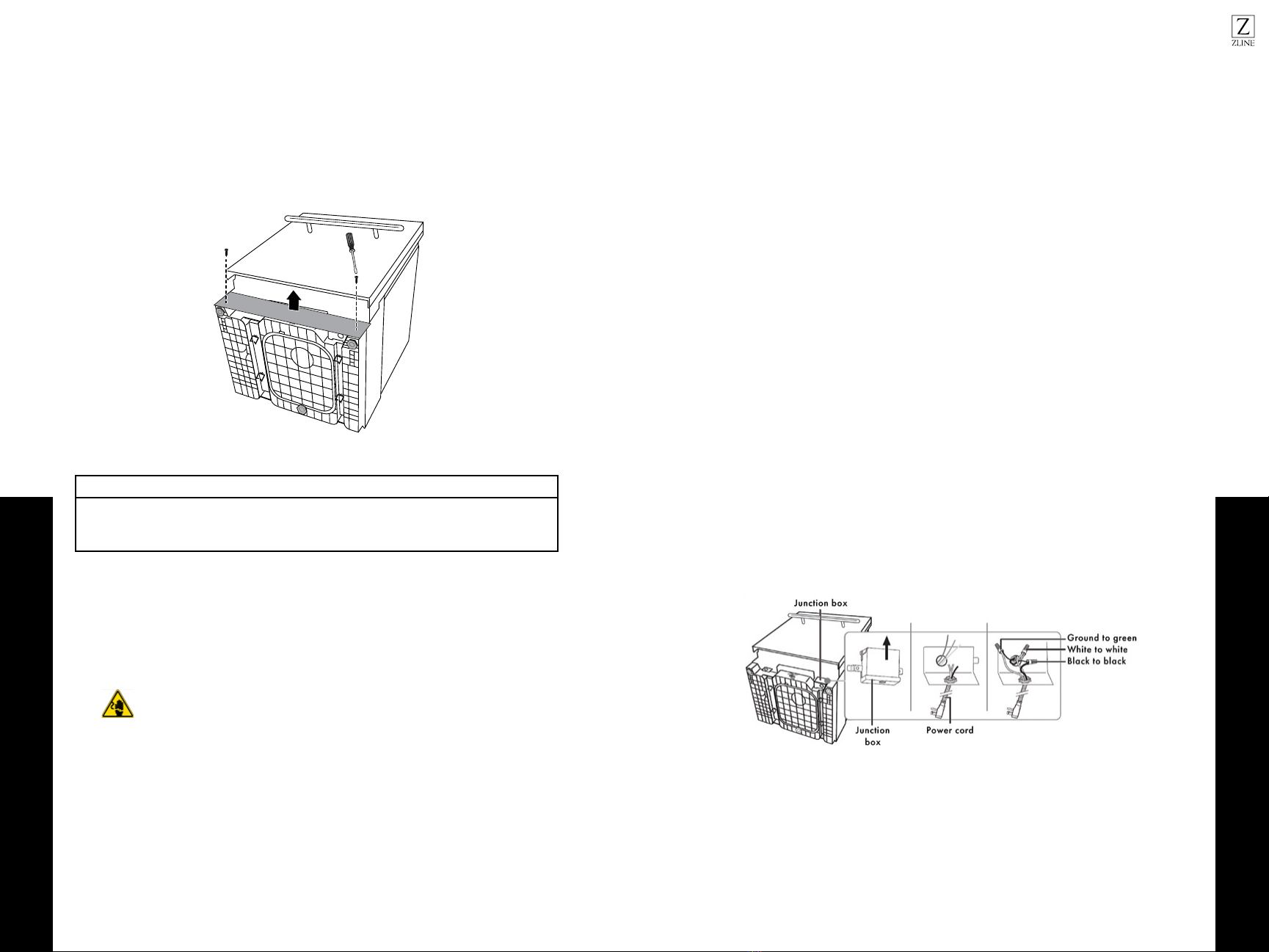

Remove the kick plate
INSTALLATION

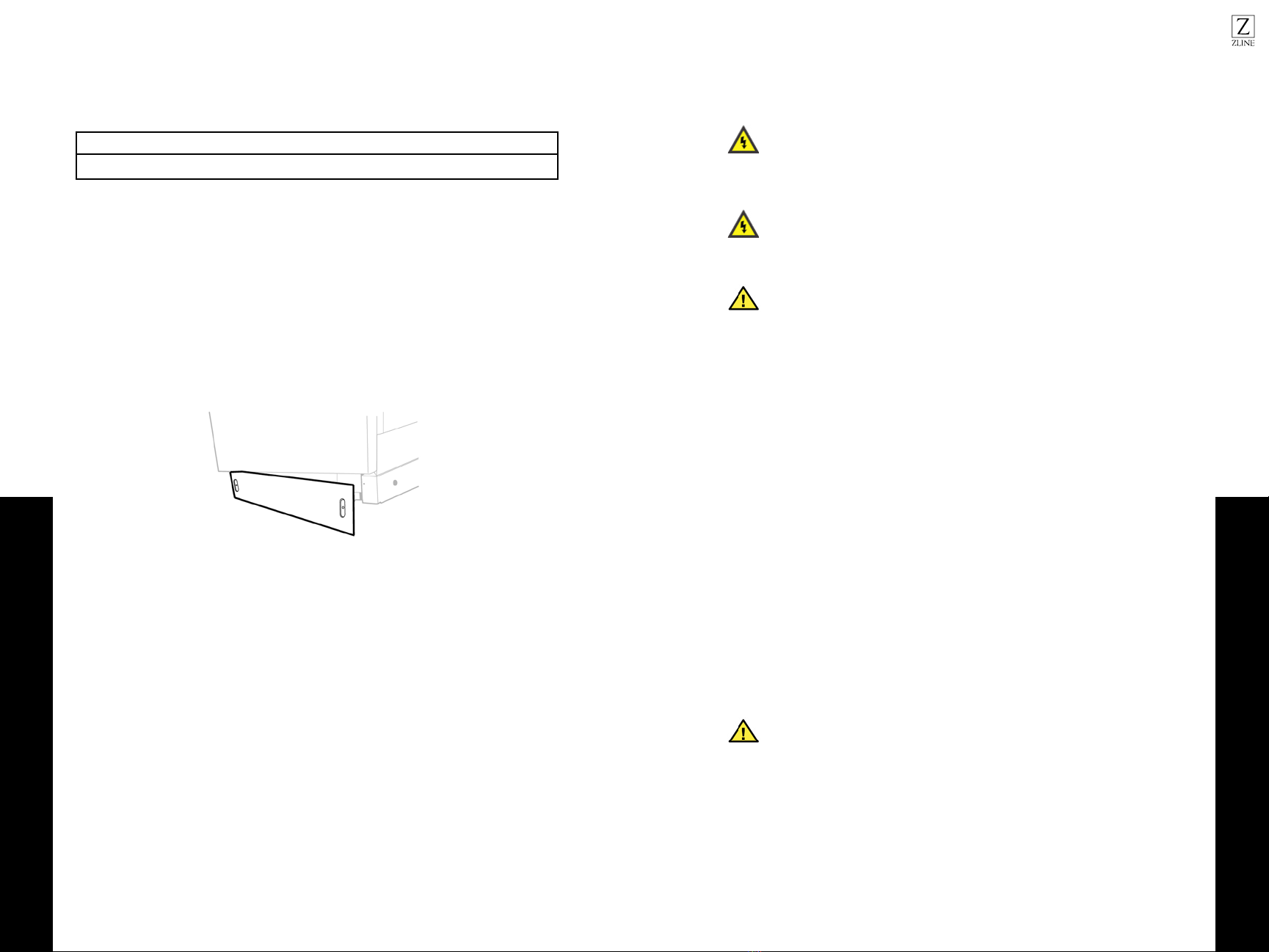

STEP 4: REMOVE THE KICK PLATE
1. Remove the two kick plate screws with a Phillips screwdriver, then remove the
kick plate.
STEP 5: INSTALL TO POWER
Turn off the electricity to the dishwasher’s electrical circuit.
Make sure that the electrical power is turned off at the source.
UP DOWN
13
Step 4: Remove the toekick
•Remove the two toekick screws with a Phillips screwdriver, then remove the toekick.
Step 5: Install to power
Turn off the electricity to the dishwasher’s electrical circuit.
Make sure that the electrical power is turned off at the source.
Power cord
1Remove the junction box cover on the front right of the dishwasher.
2Make sure that the junction box’s electrical wires are pulled inside of the junction box.
3Remove the lock nut from the strain relief, then push the strain relief into the round opening of the junction box.
4Install the lock nut on the strain relief from inside the junction box.
5Insert the ends of the power cord’s electrical wires into the junction box through the strain relief.
6Connect the incoming white (or ribbed) wire to the dishwasher’s white wire, the black (or smooth) wire to the
dishwasher’s black wire, and the ground wire to the dishwasher’s green wire. Use cUL/UL listed wire nuts of the
appropriate size.
7Tighten the strain relief screws and lock nut to stabilize the power cord’s electrical wires, then make sure that all of the
connections are secure.
You’ll need:
Warning:
•If your house wiring is not 2-wire with a ground, a ground must be provided by the installer.
•If your house wiring is aluminum, be sure to use cUL/UL Listed anti-oxidant compound and aluminum-to-copper
connectors.
Phillips screwdriver
Adjustable wrench
WARNING
If your house wiring is not 2-wire with a ground, a ground must be
provided by the installer.
If your house wiring is aluminum, be sure to use cUL/UL Listed anti-
oxidant compound and aluminum-to-copper connectors.
Electrical Connection
INSTALLATION
Power cord
1. Remove the junction box cover on the front right of the dishwasher.
2. Make sure that the junction box’s electrical wires are pulled inside of the junction
box.
3. Remove the lock nut from the strain relief, then push the strain relief into the round
opening of the junction box.
4. Install the lock nut on the strain relief from inside the junction box.
5. Insert the ends of the power cord’s electrical wires into the junction box through
the strain relief.
6. Connect the incoming white (or ribbed) wire to the dishwasher’s white wire, the
black (or smooth) wire to the dishwasher’s black wire, and the ground wire to the
dishwasher’s green wire. Use cUL/UL listed wire nuts of the appropriate size.
7. Tighten the strain relief screws and lock nut to stabilize the power cord’s electrical
wires, then make sure that all of the connections are secure.
8. Replace the junction box cover on the right front of the dishwasher. Be sure that
the wires are not pinched under the cover.
Note: If you have trouble replacing the junction box cover, loosen the
screws on the strain relief.
YOU’LL NEED
• Adjustable wrench
• Philips screwdriver
• Power cord
• Phillips screwdriver
• Strain relief (for electrical connection)
• Three wire nuts (UL listed)

2019
Water Supply
INSTALLATION

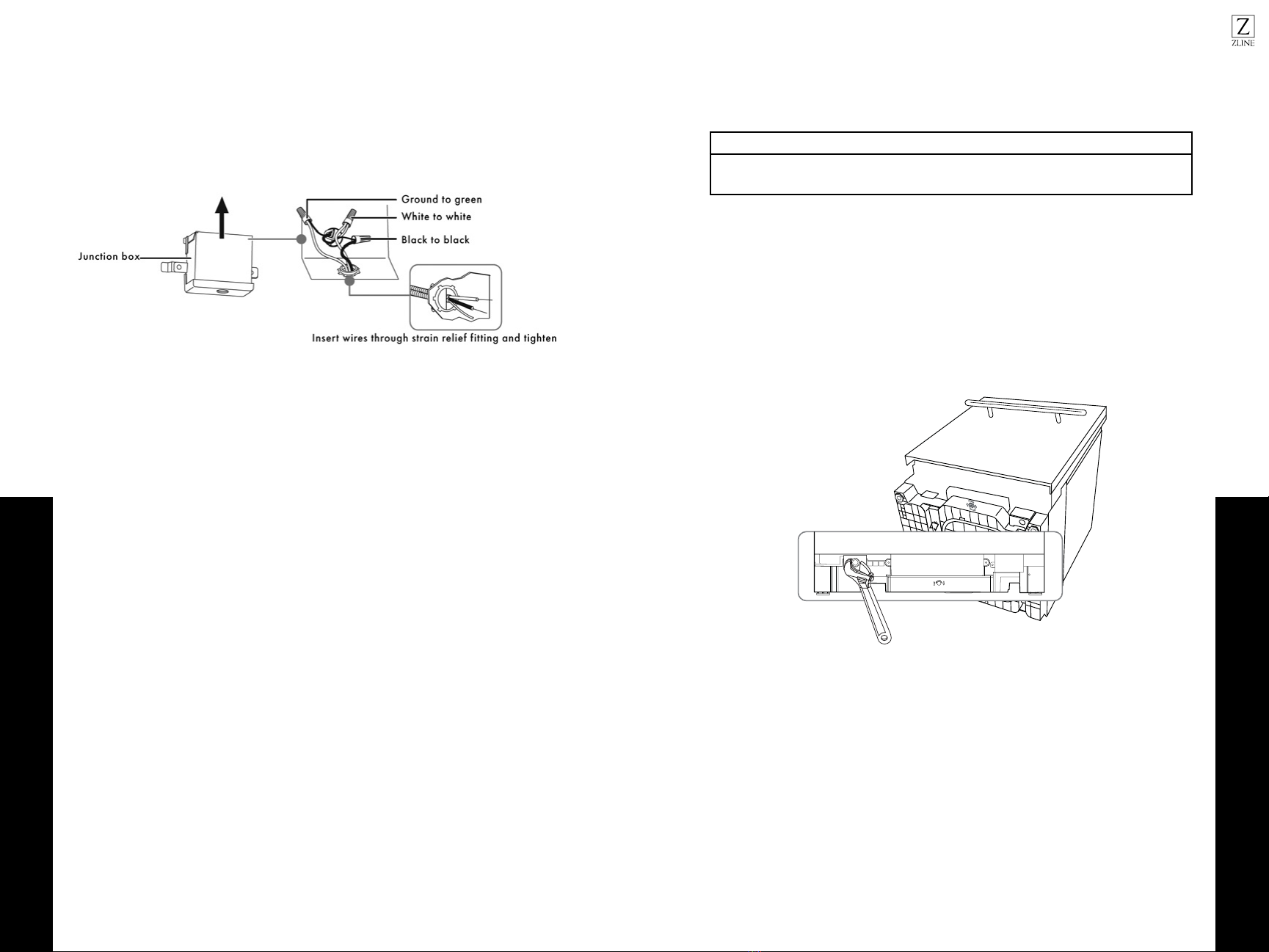

Direct wiring
1. Remove the junction box cover from the power supply junction box on the wall.
2. Locate the three dishwasher wires, (white, black, and green) with stripped ends,
then insert the dishwasher wires through the small hole in the junction box.
3. Secure the house wiring to the bottom of the junction box with a strain relief
fitting.
4. Use wire nuts to connect incoming ground to green, white to white, and black to
black.
5. Replace the junction box cover. Make sure that no wires are pinched under the
cover.
Water Supply
INSTALLATION
STEP 6: INSTALL THE 90° WATER SUPPLY ELBOW
1. Wrap the male thread of the 90° elbow with Teflon thread seal tape twice.
Do not use plumber’s putty.
2. Install the 90° elbow onto the water valve. Do not overtighten the 90° elbow.
The water valve bracket could bend or the water valve fitting could break.
3. Position the end of the elbow to face the floor when the dishwasher is upright.
UP DOWN
15
Step 6: Install the 90° water supply elbow
1Wrap the male thread of the 90° elbow with Teflon thread seal tape twice. Do not use plumber's putty.
2Install the 90° elbow onto the water valve. Do not overtighten the 90° elbow. The water valve bracket could bend or the
water valve fitting could break.
3Position the end of the elbow to face the floor when the dishwasher is upright.
You’ll need:
Adjustable wrench 90° elbow Teflon thread
seal tape
YOU’LL NEED
• Adjustable wrench
• 90°elbow
• Teflon thread seal tape

2221
Drain Hose Installation
INSTALLATION
STEP 7: INSTALL THE DRAIN HOSE
1. Make sure that the leveling feet are loosened before standing the dishwasher
upright. They may be tight from shipping/packaging.
2. Turn the dishwasher upright.
3. Slide a screw-type hose clamp onto the right-angled end of the drain hose.
4. Install the drain hose to the dishwasher drain outlet on the back of the
dishwasher, then tighten the screw-type hose clamp.
YOU’LL NEED
• Phillips screwdriver
• Screw-type hose clamps
• Drain hose

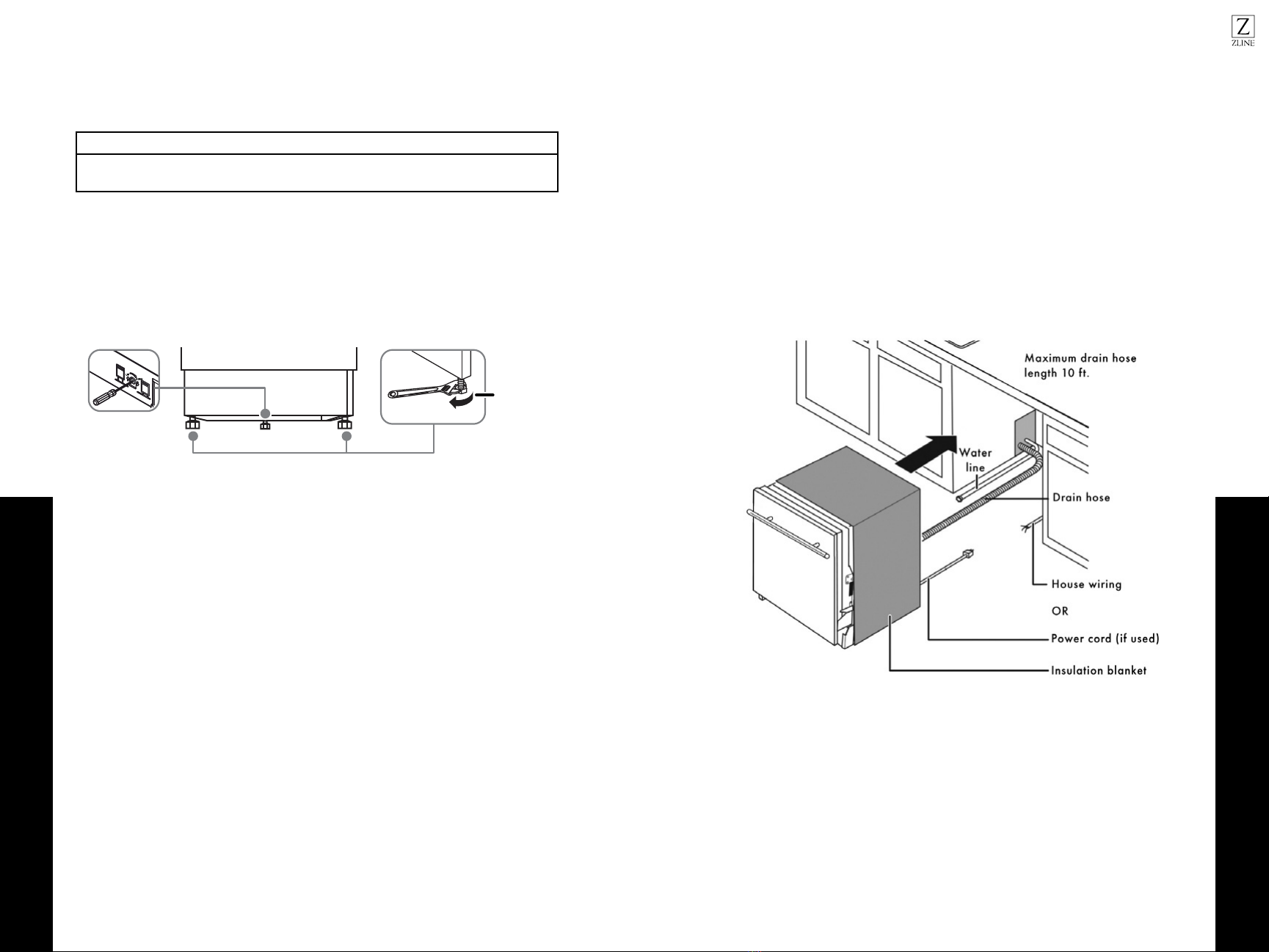

Level the Dishwasher
INSTALLATION
STEP 8: LEVEL THE DISHWASHER
Important: The dishwasher must be level for proper dish rack operation
and wash performance.
1. Open the door, then place a level on the door and on the rack track inside the
tub to make sure that the dishwasher is level.
2. Level the dishwasher by adjusting the three leveling legs individually.
Note: You may need to pull your dishwasher out of the cabinet if major
adjustments to the leveling legs are required.
Tip: Pull the lower rack out about halfway. Make sure that the rack
does not roll forward or back into the dishwasher. If the rack or rolls in
either direction, you must level the dishwasher again.

2423
INSTALLATION INSTRUCTIONS
Level the Dishwasher
3. If the door hits the tub, the dishwasher is not installed correctly. Adjust the leveling
legs to align the door to the tub.
Note: Keep the dishwasher level.
19
3
Note: Keep the dishwasher level.
You’ll need:
Adjustable wrench Level

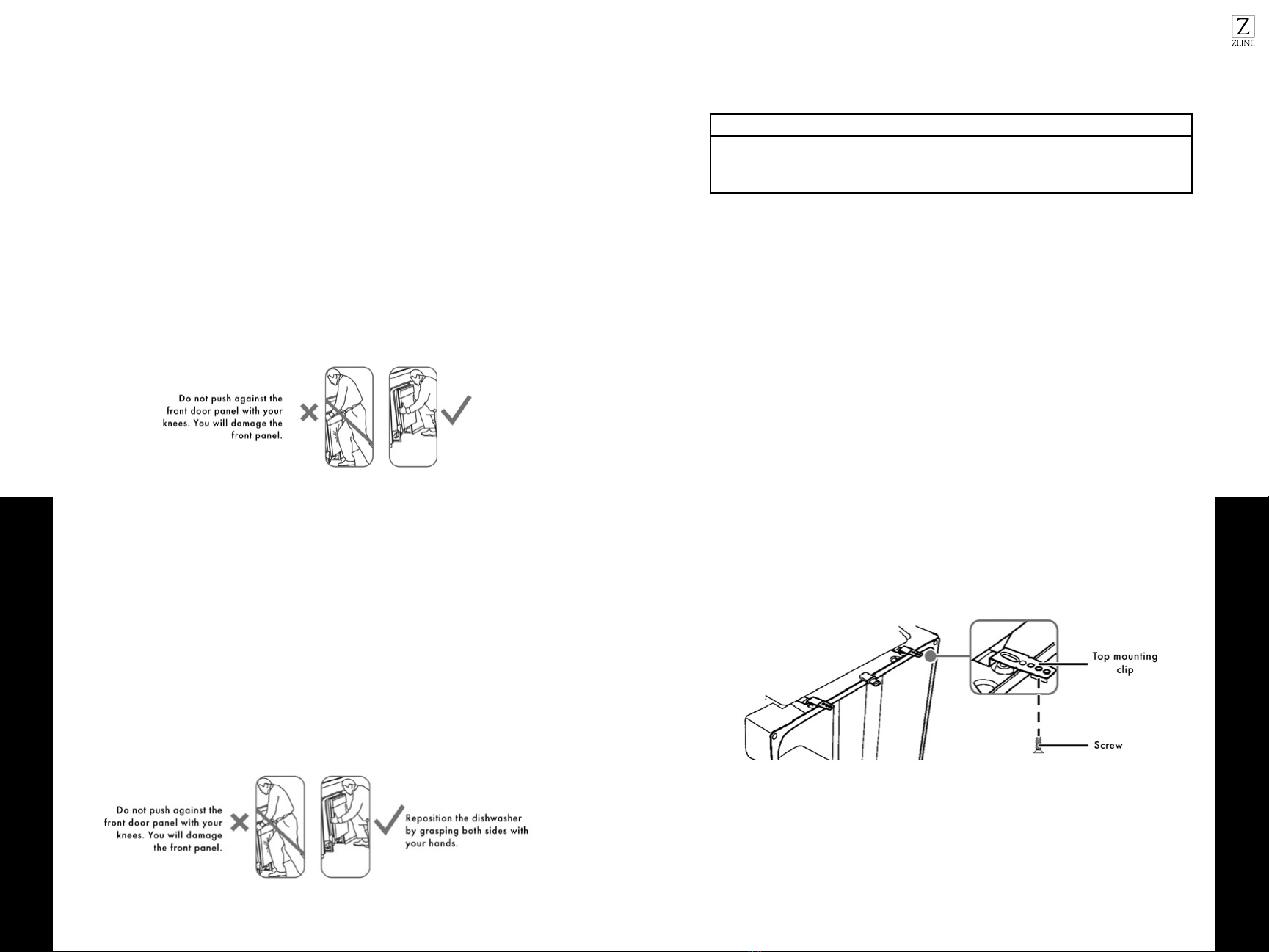

Step 12: Securing the dishwasher to the countertop
•For countertops made of wood or materials that won’t be damaged by drilling, use Method 1.
•For countertops made of granite, marble, or other materials that could be damaged by drilling, use Method 2.
•If the gap between the control panel and the cabinet is less than 0.4 in. (10 mm), use Method 2.
Method 1
1Insert the long top mounting clips into the slot.
2Bend the brackets to secure them to the dishwasher tub.
3Secure the dishwasher to the countertop through the holes in the brackets, using the screws provided.
IMPORTANT: Drive the screws straight and flush. Protruding screw heads will scratch the top of the control panel and interfere with
the door closing.
Top mounting
clip
Screw
Turn the legs
to adjust the
level
If the edge of the door hits the side of the tub, the dishwasher is not installed correctly. Adjust the leveling legs to
align the door to the tub.
Phillips screwdriver
YOU’LL NEED
• Adjustable wrench
• Philips screwdriver
• Level
Drain Hose Installation
INSTALLATION
STEP 9: INSERTING THE DRAIN HOSE THROUGH THE CABINET
• Insert the drain hose into the hole in the cabinet wall. If a power cord is used,
guide the end through a separate hole.
Tip: Position the water line and house wiring on the floor to avoid
interfering with the base of the dishwasher.
Turn the legs
to adjust the
level

2625
INSTALLATION INSTRUCTIONS
Dishwasher Position
STEP 10: SLIDE THE DISHWASHER PARTIALLY INTO THE CABINET
Caution: Do not push against the front panel with your knees. Damage
will occur.
1. Position the dishwasher in front of the opening, then slide the dishwasher into the
opening a few inches at a time.
2. Pull the drain hose through the opening under the sink as you proceed. Stop
when the dishwasher is a few inches in front of the adjacent cabinetry.
3. Make sure that the drain hose is not kinked under the dishwasher and that there
is no interference with the water line, wiring, or any other component.
STEP 11: POSITION THE DISHWASHER UNDER THE COUNTERTOP
1. Make sure that the wires are secure under the dishwasher and not pinched or in
contact with door springs or other dishwasher components.
2. Push the dishwasher into the cabinet. The front corners of the dishwasher door
should be flush with the cabinet doors. Be careful not to dent the front panel with
your knees or damage the countertop or cabinets with dishwasher parts.
Tip: Check tub insulation blanket, if equipped. It should be positioned
so it is not bunched up or interfering with door springs.
Check by opening and closing the door.
Note: You will not have access to the back leveling legs once the
dishwasher is put in place.
INSTALLATION INSTRUCTIONS
STEP 12: SECURING THE DISHWASHER TO THE COUNTERTOP
• For countertops made of wood or materials that won’t be damaged by drilling,
use Method 1.
• For countertops made of granite, marble, or other materials that could be
damaged by drilling, use Method 2.
• If the gap between the control panel and the cabinet is less than 0.4 in.,
use Method 2.
Method 1
1. Insert the long top mounting clips into the slot.
2. Bend the brackets to secure them to the dishwasher tub.
3. Secure the dishwasher to the countertop through the holes in the brackets, using
the screws provided.
Important: Drive the screws straight and flush. Protruding screw heads
will scratch the top of the control panel and interfere with the door
closing.
YOU’LL NEED
• Phillips screwdriver
• Screws A ST4 x 20 (2)
(two for each method)
• Top mounting clips (2)
Securing the Dishwasher

2827
Securing the Dishwasher
Method 2
1. Remove the plastic tub caps from the inside of the dishwasher tub.
2. Drive a wood screw through the hole in the side of the dishwasher into the
cabinet frame.
3. Reinsert the plastic tub caps.
Important: Drive the screws straight and flush. If the screws are too
tight, the sides will bow. Do not over tighten. Protruding screw heads
will scratch the side if the dishwasher. This method is for attaching the
dishwasher to the side of the cabinet and it should be done when the
countertop is made of granite or other breakable materials.
INSTALLATION INSTRUCTIONS
Connecting the Water Supply Line
INSTALLATION INSTRUCTIONS
STEP 13: CONNECTING THE WATER SUPPLY LINE
1. Make sure that you wrapped the 90° elbow with Teflon thread seal tape twice.
2. Slide the compression nut, then the ferrule over the end of the water supply line.
Note: If you use braided stainless steel, you do not need a ferrule or
compression nut.
3. Insert the water supply line into the 90° elbow.
4. Slide the ferrule against the 90° elbow and secure it with the compression nut.
Important: Make sure that the door spring does not rub or contact the
water supply line or drain hose. Test by opening and closing the door.
Reroute the lines if interference occurs.
YOU’LL NEED
• Adjustable wrench
• Hot water line kit
• Teflon thread seal tape

3029
Connecting the Drain Hose
INSTALLATION
STEP 14: CONNECTING THE DRAIN HOSE
Important: Follow all local codes and ordinances.
1. Cut on the marked line as required for your installation. The drain hose’s molded
end will fit 5/8” or 1” diameter connections on the air gap, waste tee, or
garbage disposal.
2. If a longer drain hose is required, you can add up to 42” of length, for a total of
10 ft. to the factory installed hose. Use 5/8” or 7/8” inside diameter hose and
a coupler to connect the two hose ends. Secure the connection with screw-type
hose clamps.
3. Secure the drain hose to the air gap, waste tee, or garbage disposal with a
screw-type clamp, using the appropriate method below. See “Drain Preparation”
on page 6, if you do not know which method to use.
Important: For proper drain operation, the total drain hose length must
not exceed 10 ft.
Connecting the Drain Hose
INSTALLATION
Method 1 - Air gap to a waste tee or garbage disposal.
Method 2 - High drain loop to a waste tee or garbage disposal.
4. If connecting the drain line to a garbage disposal, make sure that the drain plug
has been removed. Your dishwasher will not drain if the plug is left in place.
YOU’LL NEED
• Phillips screwdriver
• Screw-type hose clamps
• Coupler for extending drain line
(if applicable)

3231
Pre-Test Check
INSTALLATION
STEP16: WET TESTING THE DISHWASHER
1. Turn on the power supply (or plug the power cord into the outlet.)
2. Select rinse cycle on dishwasher (refer to the User Guide for instructions).
3. Press START/CANCEL and close door.
4. Make sure that water enters the dishwasher. If water does not enter the
dishwasher, check to be sure that water and power are turned on.
5. Check for leaks under the dishwasher. If a leak is found, turn the power supply
off, then tighten connections. Restore power after the leak is corrected. Then
repeat test, starting at step 1.
6. Check for leaks around the door. A leak around the door could be caused by
door rubbing or hitting against adjacent cabinetry. Reposition the dishwasher
if necessary. See “Step 11: Position the Dishwasher Under the Countertop”on
page 25.
7. When the dishwasher is draining, check the drain lines for leaks. If leaks are
found, turn power off power supply and correct plumbing as necessary.
8. Restore the power after corrections are made. See “Step 13: Connecting the
Water Supply Line” on page 28.
9. Run the dishwasher through another fill and drain cycle. Check for leaks and
correct if required.
10. Open the dishwasher door and make sure that most of the water has drained.
If not, check that the disposer plug has been removed and/or the air gap is not
restricted. See “Step 14: Connecting the Drain Hose” on page 29. Also check
the drain line for kinking.*
*When checking for water, there should be no standing water in the bottom of the
tub, but there will be water in the sump system underneath the filter. This is normal and
is to keep the seals and system from drying out and causing leaks. The water that is
left in the sump is clean water that has not been used to clean dishes.
Pre-Test Check
INSTALLATION
STEP 15: PERFORMING A PRETEST CHECK
Review this list after installing your dishwasher to avoid problems or charges for a
service call not covered by your warranty.
• Make sure that power is turned OFF.
• Make sure all foam and paper packaging is removed.
• Locate the User Guide in the literature package.
• Read the User Guide for operating instructions.
• Check the door opening and closing. If the door does not open and close freely,
or tends to fall open, check the spring adjustments. See “Step 2: Check the door
balance” on page 15.
• Make sure that the wiring is secure under the dishwasher and not pinched or
in contact with door springs or other components. See “Step 11: Position the
dishwasher under the countertop” on page 25.
• Check the door alignment with the tub. If the door hits the tub, level the
dishwasher. See “Step 8: Level the dishwasher” on page 22.
• Check the door alignment with the cabinet. If the door hits the cabinet, reposition
or relevel the dishwasher. See “Step 8: Level the dishwasher” on page 22.
• Pull the lower rack out about half way. Make sure that it does not roll back or
forward on the door. If the rack moves, adjust the leveling legs. See “Step 8:
Level the dishwasher” on page 22.
• Make sure that water supply and drain lines are not kinked or in contact with
other components. Any contact with the motor or dishwasher frame could cause
a noise. “See Step 10: Slide the dishwasher partially into the cabinet” on page
25.
• Turn on the sink hot water faucet and verify the water temperature. Incoming
water temperature must be between 120°F and 150°F. A minimum of 120°F
temperature is required for best wash performance. See “Preparing the hot water
line” on page 10.
• Add a half gallon of water to the bottom of the dishwasher to lubricate the pump
seal.
• Turn on the water supply. Check for leaks. Tighten connections if needed.
• Remove any protective film (if present) from the control panel and door.

3433
Replacing the Toe Kick
INSTALLATION
STEP 17: REPLACING THE KICK PLATE
• Place the kick plate against the legs of the dishwasher. The slots should align with
the kick plate bracket screw holes. Allow the kick plate to touch the floor. Install
the kick plate screws.
Note: Make sure that you install the kick plate in the correct direction.
The kick plate should be aligned correctly with the junction box.
The kick plate can also be installed with magnets.
YOU’LL NEED
• Phillips screwdriver CAUTION
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
This symbol indicates that dangerous voltage constituting a risk of
electric shock is present within your dishwasher.
This symbol indicates that there are important operating and maintenance
instructions in the literature accompanying your dishwasher.
WARNING
WARNING
When using your dishwasher, follow basic safety precautions, including the following:
BEFORE YOU BEGIN
Read these instructions completely and carefully.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Clean only with a damp cloth.
6. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
7. Make sure that the available AC power matches the voltage requirements of this
appliance.
8. Refer all servicing to qualified service personnel. Servicing is required when the
appliance has been damaged in any way or it does not operate normally.
1. WARNING-DANGER Never allow children to play with, operate, or crawl
inside the dishwasher.
2. Turn off the dishwasher before carrying out user maintenance on it.
3. If a component part is damaged, it must be replaced by the manufacturer, its
service agent, or similar qualified persons in order to avoid a hazard.
4. This appliance is intended to be used in household and similar environments.
IMPORTANT SAFETY INSTRUCTIONS
General Safety
Electric Shock Hazard
Failure to follow these instructions can result in electric shock, fire, or death.
WARNING
