Zline Attainable Luxury Tallac Assembly instructions

Tallac Dishwashers
Installation Guide
and Users Manual

WARNING: This product can expose you to chemicals including Diisononyl phthalate
(DINP) which is known to the State of California to cause cancer.
For more information go to www.P65Warnings.ca.gov.
REGISTERING YOUR PRODUCT
Please register your ZLINE appliance. Begin the simple registration process by
scanning the QR code.
By registering your appliance, you will have easy and accurate access to:
• Technical Support
• Warranty Service
• Tracking your support inquiries
• Tracking your support inquiries
SCAN ME

ZLINE Kitchen and Bath provides Attainable Luxury, where the kitchen and bath of your
dreams is never out of reach. Through our unique designs and unparalleled quality, we’re
dedicated to providing you an elevated experience in the heart of your home. With an
endless selection of features and finishes, our inspiration is your reality.
ZLINE is fueled by a passion for innovation; A relentless pursuit of bringing the highest end
luxury designs and professional features into everyone’s homes. Because we continually strive
to improve our products, we may change specifications and designs without prior notice.

COVERAGE
ZLINE Kitchen and Bath dishwashers parts will be warrantied for one year from the
original purchase date for the original purchaser of the product.
TERMS
This warranty applies only to the original purchaser of the product installed for
normal residential use. This is defined as a single-family, residential dwelling in a
non-commercial setting. Commercial settings include but are not limited to: schools,
churches, hotels, restaurants, vacation rentals such as Airbnb, day care centers,
private clubs, fire stations, common areas in multi-family dwellings, nursing homes,
food service locations, and institutional food service locations such as hospitals or
correction facilities. This warranty is non-transferable and will not be extended based
on the date of installation. The warranty applies only to products installed in the
continental United States and the District of Columbia. Warranty shall not apply and
ZLINE Kitchen and Bath is not responsible for damage resulting from negligence,
improper maintenance, misuse, abuse, alteration of or tampering with the appliance,
accident, natural disaster, improper electric supply, unauthorized service or repair,
improper installation, or installation not in accordance with the instructions contained
in the manual or the local codes.
WHAT IS NOT COVERED
1. Installation or start-up damages or problems caused by improper installation or
use.
2. Damage related to unauthorized service or unauthorized parts.
3. Installation in any commercial or non-residential application.
4. Aesthetic damage, scratches, or natural wear caused by normal use.
5. Second-hand, open box products, or products purchased from an unauthorized
retailer.
WARRANTY

TABLE OF CONTENTS
SAFETY INSTRUCTIONS 1
BEFORE INSTALLATION 6
Electric Shock Hazard
Tools and Parts

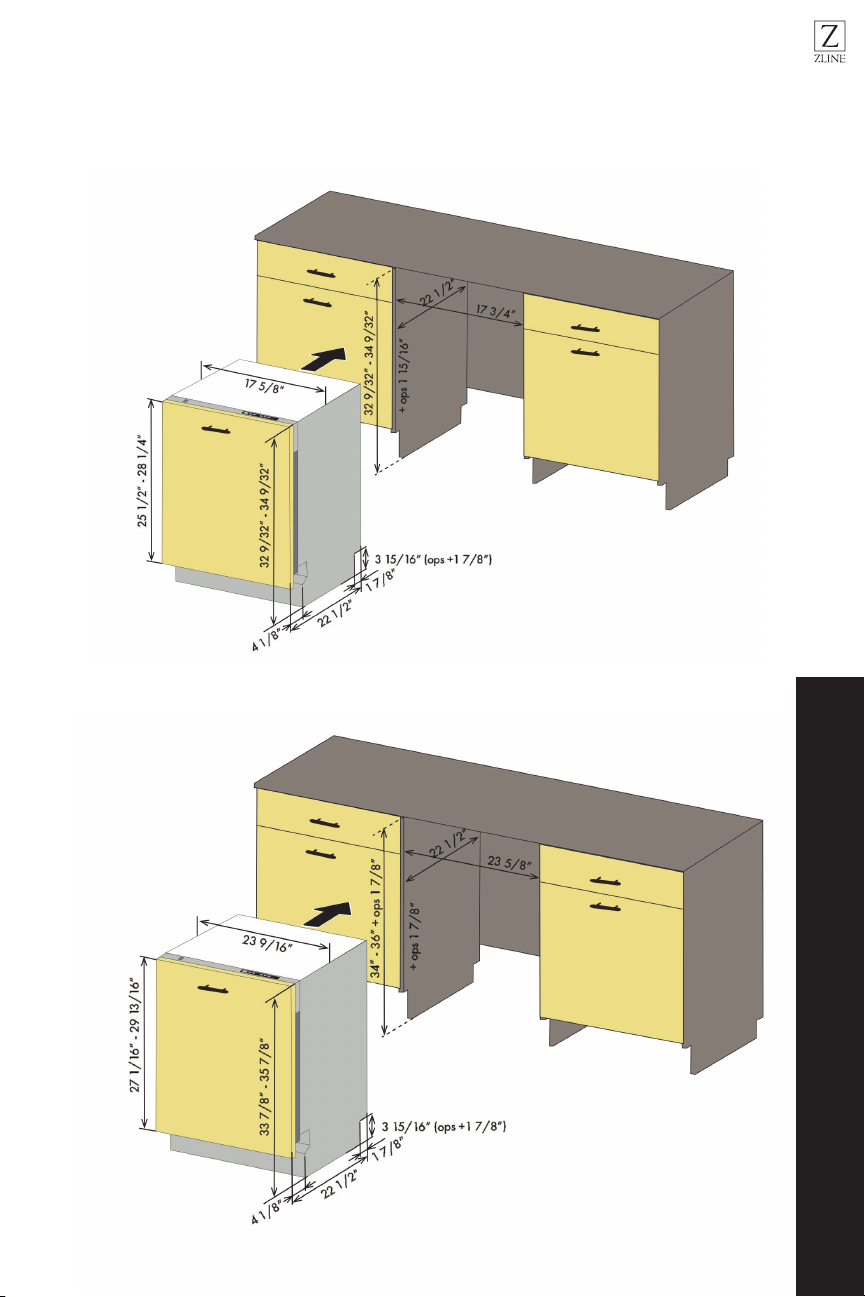

Enclosure Dimensions
INSTALLING THE DISHWASHER 10
Adjusting Height
Water Supply Connection
Steam Protection Foil
Placement of Dishwasher into Enclosure
Drain Hose and Water Supply
Adjusting the Kick Plate
Installation Checklist
Final Instructions
OPERATION 22
Controls and Specifications
Before Using the Appliance
Setting the Water Softener
Detergent Usage
Loading the Dishwasher
Height Setting
Programs
Maintenance and Cleaning
TROUBLESHOOTING 60

1
To prevent accidents, which could cause serious injury or death, as well as
dishwasher damage, read these instructions before installation and/or use.
When using the dishwasher, carefully follow the precautions in this manual. These
are provided in order to save time and effort and to help ensure optimum dishwasher
performance. Be sure to observe all listed warnings and cautions. Look carefully at
WARNING icons with an exclamation mark inside.
WARNING:
Indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION:
Indicates a potentially hazardous situation which, if not avoided, may
result in injury. It may also be used to alert against unsafe practices.
NOTICE:
Indicates a potentially hazardous situation which, if not avoided, may
result in damage to the dishwasher, the tableware, the equipment, or the
environment.
WARNING
CAUTION
NOTICE
SAFETY INSTRUCTIONS
General Safety

2
IMPORTANT SAFETY INSTRUCTIONS
Read these installation instructions completely before installing and follow them
carefully. Save these installation instructions and pass them on to any future user.
• In addition to these instructions, the dishwasher shall be installed:
• In accordance with all local codes or, in absence of a local code,
• In the United States, with the National Electric Code,
• In Canada, with the Canadian Electric Code C22.1-latest edition/
Provincial and Municipal codes and/or local codes.
When installing the dishwasher, follow basic precautions, including the following:
• Please check the standards and local codes for placement of dishwasher.
• The dishwasher can only be converted from cord-connected to permanently
connected by an authorized service representative.
• Installation and repair should be performed by a qualified installer: an insured
licensed plumber, contractor, or trained installer. Installation performed by
persons other than this could result in improper installation and property
damage. Work by unqualified persons could be dangerous and will void the
warranty.
• The information in this user manual must be followed to minimize the risk of fire or
explosion and to prevent property damage, personal injury, or loss of life.
• To reduce the risk of electric shock, fire, or injury to persons, the installer must
ensure that the dishwasher is completely enclosed at the time of installation.
• Never connect the ground wire to gas lines, or hot water pipes, plumbing lines.
• Only connect the dishwasher to the power supply when all installation and
plumbing work is complete.
• Before installation or service, disconnect the power supply to the work area by
unplugging the unit, “tripping” the circuit breaker or removing the fuse.
• If the dishwasher is installed in a location that experiences freezing temperatures
(e.g. in a vacation home, cabin, etc.), drain all the water from the dishwasher’s
interior. Water system ruptures that occur as a result of freezing are not covered
by warranty.
WARNING CAUTION NOTICE
SAFETY INSTRUCTIONS
General Safety

3

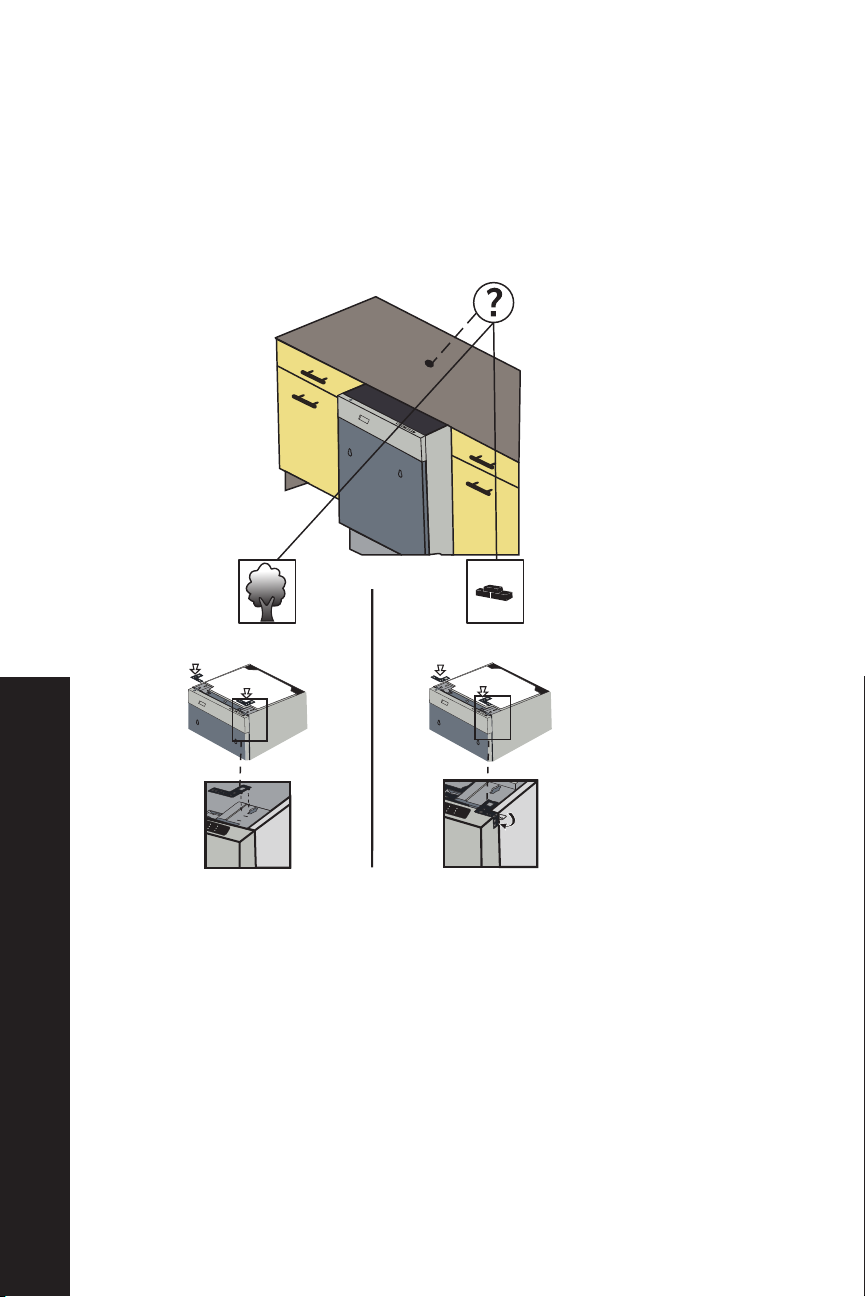

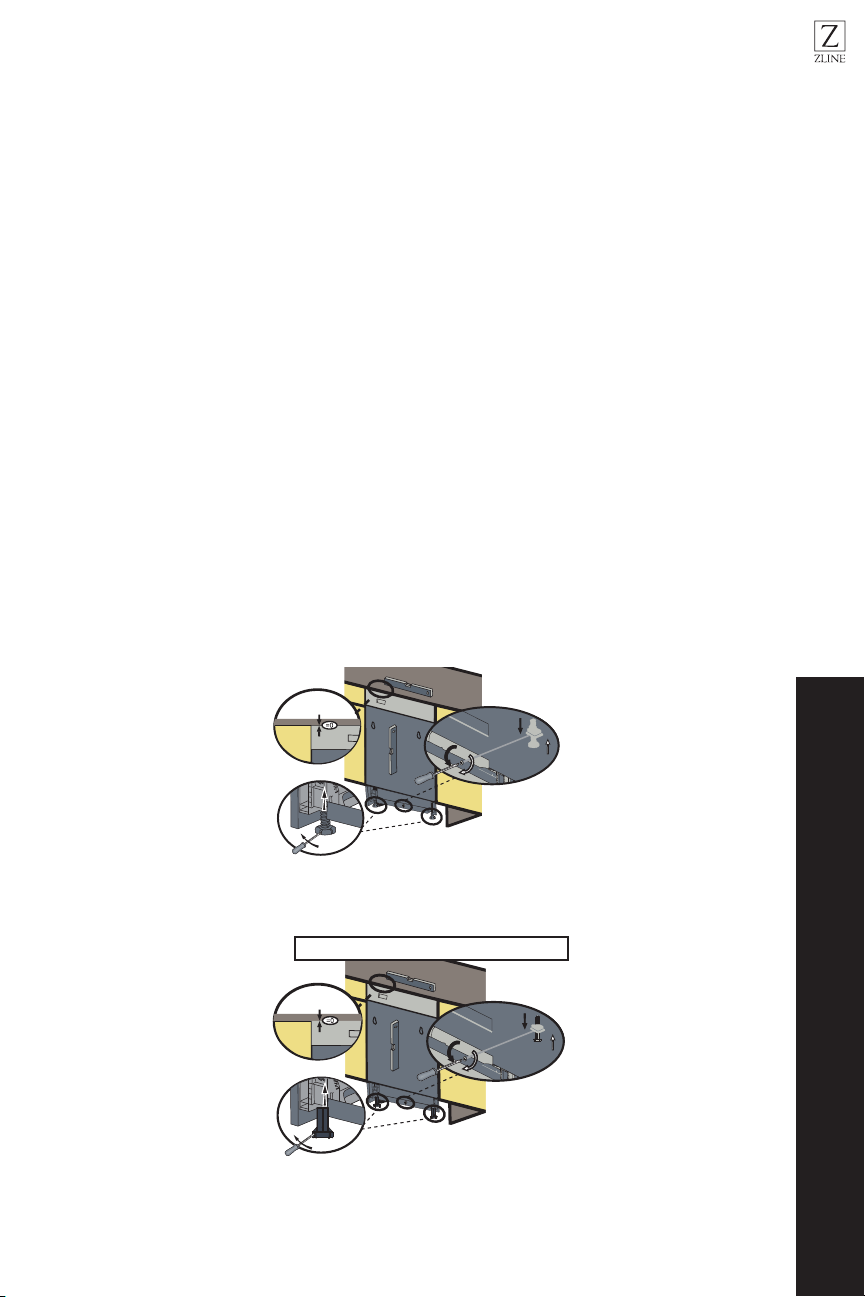

• Dishwasher must be secured to adjacent cabinetry using the brackets provided.
Failure to do this may cause damage to property or bodily injury.
• Ensure that any plastic wrappings, bags, small pieces etc. are disposed of safely
and kept out of the reach of children. Danger of suffocation!
• Remove the door to the washing compartment when removing an old dishwasher
from service or discarding it. Ensure that the appliance presents no danger to
children while being stored for disposal. The dishwasher drain hose must be
installed with a drain loop at least 28” off the cabinet floor. Otherwise the
dishwasher may not drain properly.
• This dishwasher is intended for residential use only and should not be used in
commercial establishments. The manufacturer disclaims responsibility for damage
or injury caused by improper use of this appliance.
• Do not operate the appliance if damaged, malfunctioning, partially
disassembled, or if it has missing or broken parts.
• New installation - If the dishwasher is a new installation, most of the work must
be done before the dishwasher is moved into place.
• Replacement - If the dishwasher is replacing another dishwasher, check the
existing dishwasher connections for compatibility with the new dishwasher, and
replace parts as necessary.
• Old appliances may contain materials that can be recycled. Please contact the
local recycling authority about the possibility of recycling these materials.
• Use only detergents or wetting agents recommended for use in a dishwasher
and keep them out of the reach of children.
• The model and serial number information on the label are located on the right-
hand side of the inner door of the dishwasher.
General Safety
SAFETY INSTRUCTIONS

4
• When loading items to be washed:
• Locate sharp items so that they are not likely to damage the door seal.
• Load sharp knives with the handles up to reduce the risk of type injuries.
• Do not wash plastic items unless they are marked “dishwasher safe”or the
equivalent. For plastic items not marked, check the manufacturer’s recommendations.
• Do not touch the heating element during or immediately after use.
• Do not operate the dishwasher unless all enclosure panels are properly in place.
• Do not tamper with controls.
• Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
• The cup racks are designed to support cups, glasses, and kitchen utensils. When the
cup racks are in the dishwasher, do not lean on or use the cup racks to support your
body weight.
• Some dishwasher detergents are strongly alkaline. They can be extremely
dangerous if swallowed. Avoid contact with the skin and eyes and keep children
away from the dishwasher when the door is open.
• Consult a doctor immediately if detergent has been swallowed or inhaled.
• Do not remove the dishes from the appliance until the program is complete. Some
detergent may remain on the dishes.
• Check that the detergent dispenser is empty after the completion of each wash
program.
• Do not drink and play with the water in the appliance. Harmful residues could be
present.
• To reduce the risk of injury, do not allow children to play in or on the dishwasher.
• Do not leave the appliance with the open door unattended to avoid stepping
accidentally onto it.
• Do not use high pressure water sprays and/or steam to clean the appliance.
• Ensure that there are no visible water leaks during and after the first use of the
appliance.
• To avoid floor damage and possible mold growth, do not allow wet areas to remain
around or under the dishwasher.
• RISK OF INJURY: To avoid risk of injury, always use caution when opening the door
during or following a wash cycle as hot water or steam may escape.
SAFETY INSTRUCTIONS
General Safety

5
• Do not store or use flammable liquids or vapors in the area of the dishwasher,
near or on the appliance.
• Under certain conditions, hydrogen gas may be produced in a hot-water system
that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE.
If the hot-water system has not been used for such a period, before using the
dishwasher, turn on all hot-water faucets and let the water flow from each for
several minutes. This will release any accumulated hydrogen gas. As the gas is
flammable, do not smoke or use an open flame during this time.
• Please check the water supply line periodically. It is susceptible to breakage. It
becomes less flexible as time goes by. Replace it immediately when it is torn, cut,
swollen, or there is water leakage.
• Please keep the dishwasher package out of the reach of children after
unpacking it.
RECYCLING
• Old appliances may contain materials that can be recycled. Please contact the
local recycling authority about the possibility of recycling these materials.
• Remove the door to the washing compartment when removing an old dishwasher
from service or discarding it. Ensure that the appliance presents no danger to
children while being stored for disposal. Before disposing the dishwasher:
• Disconnect the appliance from the main supply.
• Cut off the main cable and discard it.
• Remove the door catch to prevent children and pets from getting
trapped in the appliance.
Recycling
SAFETY INSTRUCTIONS

6
• Connect to a properly rated, protected, and sized power supply circuit to avoid
electrical overload.
• The dishwasher is designed for an electrical supply of 120 V (volts), 60 Hz
(hertz), AC, connected to a dishwasher-dedicated, properly grounded, electrical
circuit with a fuse or breakers rated for 15 amperes.
• Electrical supply conductors shall be a minimum of #16 AWG copper wire
rated at 167° F or higher. These requirements must be met to prevent injury and
dishwasher damage. Consult a qualified electrician if in doubt.
• Do not use any extension cord or portable outlet device to connect the
dishwasher to a power supply.
• This appliance must be electrically grounded. In the event of a malfunction or
breakdown, grounding will reduce the risk of electric shock by providing a path
of least resistance for electric current. This appliance is equipped with a cord
having an equipment-grounding conductor and a grounding plug. The plug
must be plugged into an appropriate outlet that is installed and grounded in
accordance with all local codes and ordinances.
WARNING: Improper connection of the equipment-grounding
conductor can result in a risk of electric shock. Check with a qualified
electrician or service representative if there is doubt whether the
appliance is properly grounded. Do not modify the plug provided with
the appliance. If it will not fit the outlet, have a proper outlet installed by
a qualified electrician.
WARNING
General Safety
BEFORE INSTALLATION
WARNING

7
Tools which may be needed:
Materials which may be needed:
(Additional materials may be required to comply with local codes)
Hot Water Supply Line - Minimum 3/4” O.D. copper tubing or
metal braided dishwasher supply line.
UL listed conduit connector or strain relief.
Teflon tape or other pipe thread compound to seal plumbing
connections.
Shut-off valve and fittings appropriate for hot water supply line
(copper tubing/compression fitting, or braided hose).
Silicone
Glue
BEFORE INSTALLATION
Tools and Materials
Pipe Wrench Wire Cutter Drill
Hole Saw Hammer Wire Stripper
Tape Measure Torx Screwdriver Philips Screwdriver
Adjustable Wrench Flathead Screwdriver Scissors
Level Brush Pencil

8
MANUAL BAG
The dishwasher comes with a manual bag containing the product manual.
DISHWASHER PARTS BAG 1
a. Test Strip
b. Hose Clamp
DISHWASHER PARTS BAG 2
c. Mounted plan
d. Steam Protection Foil
e. Side Trim Strips (Left)
f. Side Trim Strips (Right)
g. Door Fixing Strips
h. Hole Covers
DISHWASHER PARTS BAG 3
i. Screws Ø 5/32” x 53/32”
j. Screws Ø 5/32” x 19/32”
k. Mounting Bracket Left
l. Mounting Bracket Right
m. Screws Ø 5/32” x 27/32”
DISHWASHER PARTS BAG 4
n. Kick Plate Bracket
o. Screws Ø 5/32” x 7/32”
p. Plinth Fixing Metals
q. Adjustable Plinth
r. Adjustable Plinth Metal
s. Plinth Locking
The parts required for positioning the dishwasher are in plastic bags. Check that all of the
following parts are contained in plastic bags.
Included Parts
BEFORE INSTALLATION
a.
b.
c.
d.
e.
f.
g.
h.
i.
j.
k.
l.
m.
n.
o.
p.
q.
r.
s.

9
Enclosure Dimensions
BEFORE INSTALLATION
18 ”
24”

10
The mounting brackets in the plastic bag should be used when the dishwasher is
installed in the cabinetry. Use of any parts other than mounting brackets may result in
damage to property or bodily injury.
General Safety
INSTALLATION
Mounting BracketsMounting Brackets
Place the two mounting
brackets into the top
corner of the dishwasher.
If countertop material is ceramic, etc.If countertop material is wooden, etc.
If necessary (depending
on countertop material),
bend sides of mounting
brackets.

11
ADJUSTING HEIGHT
1. Before the dishwasher is placed into the cabinetry, the front legs will be
completely retracted. Place into the cabinetry.
2. Adjust the leg level with a flathead screwdriver to stabilize the dishwasher and
raise it to the enclosure height.
3. Adjust the back leg level with a Philips screwdriver to balance and raise the
dishwasher to the enclosure height.
4. Make sure the dishwasher is plumb. The dishwasher can be positioned with a
small clearance under the counter top.
• For front legs, turn the legs in the direction of the black arrows with a flathead
screwdriver to allow for the dishwasher to move downwards.
• For rear legs, turn the feet in the direction of the black arrows with a flathead
screwdriver to take the dishwasher feet down.
18 ”
If the height of the enclosure is 32 9/32” to 34 9/32”, use short supports as shown
in the figure.
If the height of the enclosure is above 32 9/32", use long supports as shown in the
figure.
installing the dishwasher
INSTALLATION
Adjusting Height
ops.(+50) H=32 9/32” to 34 9/32”

12
24”
If the height of the enclosure is 33 7/8” to 35 7/8”, use short supports as shown in
the figure.
If the height of the enclosure is above 35 7/8”, use long supports as shown in the
figure.
INSTALLATION
Adjusting Height
ops.(+50) H=35 7/8” to 37 3/4”

13
WATER SUPPLY CONNECTION
Water supply may be connected to the dishwasher in one of two ways:
• With metal braided hose.
• With copper tubing
Braided Hose/Copper Tubing
• After connections are made, turn on the water supply to check for leaks.
• Hot water supply line: Use minimum 3/4” O.D. copper tubing or metal braided
dishwasher supply line.
• Water Inlet valve of dishwasher has 3/4”-11.5NH inlet coupling thread
dimension according to ASME B1.20.7-1991.
• When buying a water inlet hose for the dishwasher, please choose the thread
dimension of the inlet hose that is compatible with the indicated water inlet valve
inlet coupling thread dimension (3/4”-11.5NH) of the dishwasher.
• Temperatures required for soldering and sweating will damage the dishwasher’s
water inlet valve, so if any such operation is needed, keep the heat source min.
77/8” away from the dishwasher’s water inlet valve.
• There should not be any sharp bends in the water line that may restrict the water
flow.
• Teflon tape or pipe thread compound must be used for sealing the connection.
Before connecting the copper water supply line to the dishwasher, flush it with
hot water to clear any foreign material.
installing the dishwasher
INSTALLATION
Water Supply Connection

14
STEAM PROTECTION FOIL
Steam will be output when the dishwasher door is opened during the operation of
the dishwasher and after completion of the working cycle. In order to prevent the
resulting steam from collecting and damaging at the underside of the counter top, use
a steam protection foil included in the plastic bag.
Fitting the Protection Foil
Clean the surface with a damp cloth before applying steam protection to the
underside of the countertop.
Clean the surface with a damp cloth
before applying steam protection to the
underside of the counter top.
CAUTION: Steam protection foil must be
applied where the steam escapes when
door is first opened. Failure to install the
steam protection foil during installation
can lead to damage to the cabinets and
countertop.
INSTALLATION
Steam Protection Foil
CAUTION
