Zline MWD-1 User manual

MICROWAVE DRAWER
www.zlinekitchen.com
Installation Manual

ZLINE Kitchen and Bath provides Attainable Luxury, where the kitchen and bath of your
dreams is never out of reach. Through our unique designs and unparalleled quality, we’re
dedicated to providing you an elevated experience in the heart of your home. With an
endless selection of features and finishes, our inspiration is your reality.
ZLINE is fueled by a passion for innovation; A relentless pursuit of bringing the highest end
luxury designs and professional features into everyone’s homes. Because we continually strive
to improve our products, we may change specifications and designs without prior notice.
WARNING: This product can expose you to chemicals including nickel, which is known to the
State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

WARRANTY
COVERAGE
ZLINE Kitchen and Bath microwave parts will be warrantied for two years from the original
purchase date for the original purchaser of the product.
TERMS
This warranty applies only to the original purchaser of the product installed for normal
residential use. This is defined as a single-family, residential dwelling in a non-commercial
setting. Commercial settings include but are not limited to: schools, churches, hotels,
restaurants, vacation rentals such as Airbnb, day care centers, private clubs, fire stations,
common areas in multi-family dwellings, nursing homes, food service locations, and
institutional food service locations such as hospitals or correction facilities. This warranty
is non-transferable and will not be extended based on the date of installation. The
warranty applies only to products installed in the contiguous United States and the District
of Columbia. Warranty shall not apply and ZLINE Kitchen and Bath is not responsible
for damage resulting from negligence, improper maintenance, misuse, abuse, alteration
of or tampering with the appliance, accident, natural disaster, improper electric supply,
unauthorized service or repair, improper installation, or installation not in accordance with
the instructions contained in the manual or the local codes.
WHAT IS NOT COVERED
1. Installation or start-up damages or problems caused by improper installation or use.
2. Damage related to unauthorized service or unauthorized parts.
3. Installation in any commercial or non-residential application.
4. Aesthetic damage, scratches, or natural wear caused by normal use.
5. Second-hand, open box products, or products purchased from an unauthorized retailer.

TABLE OF CONTENTS
SAFETY INSTRUCTIONS 1
BEFORE INSTALLATION 5
INSTALLATION 10
TRIM KIT INSTALLATION 13
24” OPERATION 20
30” OPERATION 26
TROUBLESHOOTING 32

1
• Installation and service must be performed by a qualified
installer. The oven should not be adjusted or repaired by
anyone except properly qualified service personnel.
• IMPORTANT: Save this installation manual for local
electrical inspector’s use.
• Read and save these instructions for future reference.
• This device complies with part 18 of the FCC Rules
• Do not attempt to operate this oven with the door open
since open-door operation can result in harmful exposure
to microwave energy. It is important not to defeat or
tamper with the safety interlocks.
• Do not place any object between the oven front face and
the door or allows soil or cleaner residue to accumulate on
sealing surfaces.
• Do not operate the oven if it is damaged. It is particularly
important that the oven door closes properly and that there
is no damage to the:
• Door (bent)
• Hinges and latches (broken or loosened)
• Door seals and sealing surfaces
• When using electrical appliances, basic safety precautions
should be followed.
• To reduce the risk of burns, electric shock, fire, personal
injury, or exposure to excessive microwave energy, read
all instructions before using the appliance.
• This appliance must be grounded or connected to a
properly grounded outlet.
• Install this appliance only in accordance with the provided
installation instructions.
• Some products such as whole eggs and sealed containers
(i.e. closed glass jars) should not be heated in this oven.
SAFETY INSTRUCTIONS
WARNING
General Safety

2
SAFETY INSTRUCTIONS
• Use this appliance only for its intended use as described
in the manual. Do not use corrosive chemicals or
vapors in this appliance. This type of oven is specifically
designed to heat, cook, or dry food.
• As with any appliance, close supervision is necessary
when used by children.
• Do not operate this appliance if it has a damaged cord or
plug, if it is not working properly, or if the entire unit has
been damaged.
• Do not cover or block any openings on the appliance.
• Do not immerse cord or plug in water.
• Keep cord away from heated surface.
• Do not let cord hang over edge of table or counter.
• Do not use paper products when appliance is operated in
the toaster mode.
• Do not store this appliance outdoors. Do not use this
product near water - for example, near a kitchen sink,
in a wet basement, near a swimming pool, or similar
locations.
• When cleaning surfaces of door and oven that comes
together on closing the door, use only mild, nonabrasive
soaps, or detergents applied with a sponge or soft cloth.
Do not clean with metal scouring pads. Pieces can burn
off the pad and touch electrical parts involving a risk of
electric shock.
General Safety

3
• To reduce the risk of fire in the oven cavity:
• Do not overcook food. Carefully attend appliance
when paper, plastic, or other combustible
materials are placed inside the oven to facilitate
cooking.
• Remove wire twist-ties from paper or plastic bag
before placing bag in oven.
• If material inside of the oven ignites, keep oven
door closed, turn oven off, and disconnect the
power cord, or shut off power at the fuse or circuit
breaker panel.
• Do not use the cavity for storage purposes. Do not
leave paper products, cooking utensils, or food
in the cavity when not in use. Do not store any
materials, other than manufacturer’s recommended
accessories, in this oven when not in use.
• Liquids, such as water, coffee, or tea are able to be
overheated beyond the boiling point without appearing to
be boiling.
• Visible bubbling or boiling when the container is removed
from the microwave oven is not always present. This could
result in very hot liquid suddenly boiling over when the
container is disturbed.
General Safety
SAFETY INSTRUCTIONS

4
• To reduce the risk of injury to persons:
• Do not overheat liquid.
• Stir the liquid before and halfway through
heating it.
• Do not use straight sided containers with narrow
necks.
• After heating, allow the container to stand in the
microwave oven for a short time before removing
the container.
• Use extreme care when inserting a spoon or
other utensils into the container.
• Oversized food or oversized metal utensils should not be
inserted in a microwave oven as they may create a fire or
risk of electric shock.
• Do not cover racks or any other part of the oven with
metal foil. This will cause over-heating of the oven.
• Do not use the microwave if the cavity is empty.
General Safety
SAFETY INSTRUCTIONS

5
A) Control atc
h
B) Control Box
C) RightMount
ing Plate
D) Cavity
E) Handle
F) Windows
G) Door Frame
SETTING UP YOUR OVEN
Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
A
BC
DE
F
G
H
I
J
K
H) Automatic putter
I) Drawer
J) Hinge Joint Board
K) Left Mounting Plate
P
and do not use for cooking. Do not use without food )
Defrosting Rack( Only be used in defrosting function
8
5
A
BC
DE
F
G
H
I
J
K
BEFROE
AFTER
Remove the oven and all materials from the carton and oven cavity. Your oven comes
with the following accessories:
NOTE: Defrosting Rack should only be used in
defrosting function and not used for cooking.
Do not use without food.
BEFORE INSTALLATION
Product Specifications
5
A
BC
DE
F
G
H
I
J
K
BEFROE
AFTER
Control box
Control box
Right
mounting
plate
Right
mounting
plate
Handle
Handle
Window
Window
Drawer front
Drawer front
Drawer
Drawer
Drawer
glide
Drawer
glide
Left
mounting
plate
Left
mounting
plate
Slide rail
Slide rail
Touch pad
Touch pad
Cavity
Cavity
24” Microwaves (MWD-1 and MWD-1-BS)
30” Microwaves

6
BEFORE INSTALLATION
Product Specifications
24” 30”
Rated Voltage 120V, 60 Hz, 13A 120V, 60 Hz, 13A
Rated Input Power 1500W 1500W
Rated Output Power 1000W 1000W
Oven Capacity 1.2 Cu. Ft. 1.2 Cu. Ft.
External Dimensions 23 1/2”W x 14 7/8”H x 23 5/8”D 29 7/8”W x 15 15/16”H x 24 3/16”D
Internal Dimensions 16”W x 7”H x 16 D” 16”W x 7”H x 16 D”
Net Weight Approx 69.9 Lbs. Approx 76.2 Lbs.
The maximum weight of food placed in the microwave should not exceed 11 lbs
and the height should not exceed 5.7”
MODEL AND SERIAL NUMBER LOCATION
To locate the model and serial number, open the microwave drawer fully. The label can
be found beyond the back wall of the microwave cavity, facing up from the flat surface.
Product Specifications

7
ELECTRICAL CONNECTION
• This appliance must be grounded. In the event of an electrical short circuit,
grounding reduces the risk of electric shock by providing an escape wire
for the electric current. This appliance is equipped with a cord having a
grounding wire with a grounding plug. The plug must be plugged into an
outlet that is properly installed and grounded.
• Improper use of the grounding can result in a risk of electric shock.
• Consult a qualified electrician or serviceman if the grounding instructions
are not completely understood, or if doubt exists as to whether the
appliance is properly grounded. If it is necessary to use an extension cord,
use only a 3-wire extension cord that has a 3-blade grounded plug, and
3-slot receptacle that will accept the plug on the appliance. The marked
rating of the extension cord shall be equal to or greater than the electrical
rating of the appliance.
• Touching some of the internal components can cause serious personal
injury or death. Do not disassemble this appliance. Improper use of the
grounding can result in electric shock. Do not plug into an outlet until
appliance is properly installed and grounded.
• A short power-supply cord is provided to reduce the risks resulting from
becoming entangled in or tripping over a longer cord.
• Longer cord sets or extension cords may be used if care is exercised in their
use. We do not recommend using one.
• If a long cord or extension cord is used:
• The marked electrical rating of the cord set or extension
cord should be at least as great as the electrical rating of the
appliance.
• The extension cord must be a ground-type-3-wire cord.
• The longer cord should be arranged so that it will not drape over
the counter top or tabletop where it can be pulled on by children
or tripped over unintentionally.
WARNING
BEFORE INSTALLATION
Electrical Connection
7

8

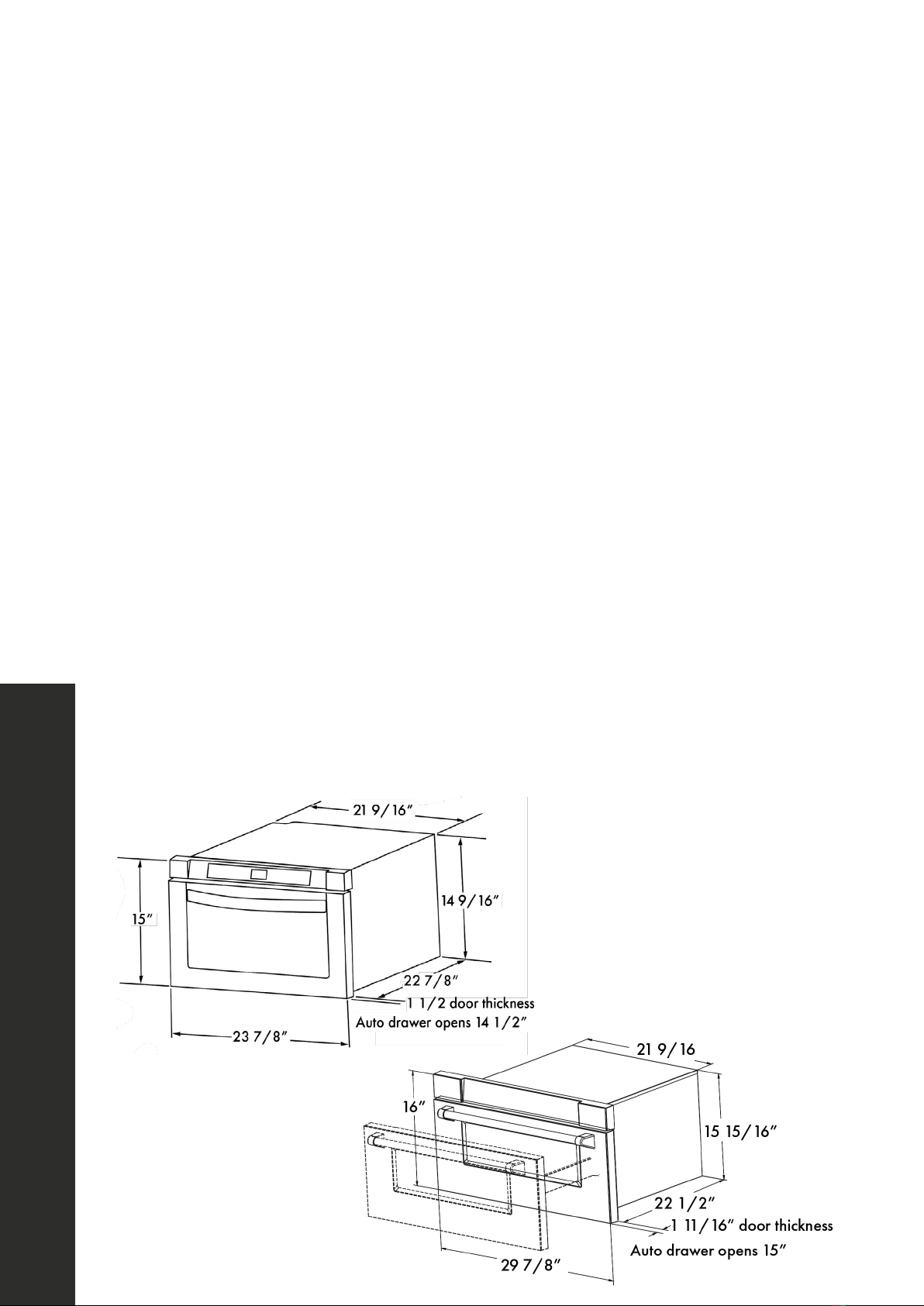

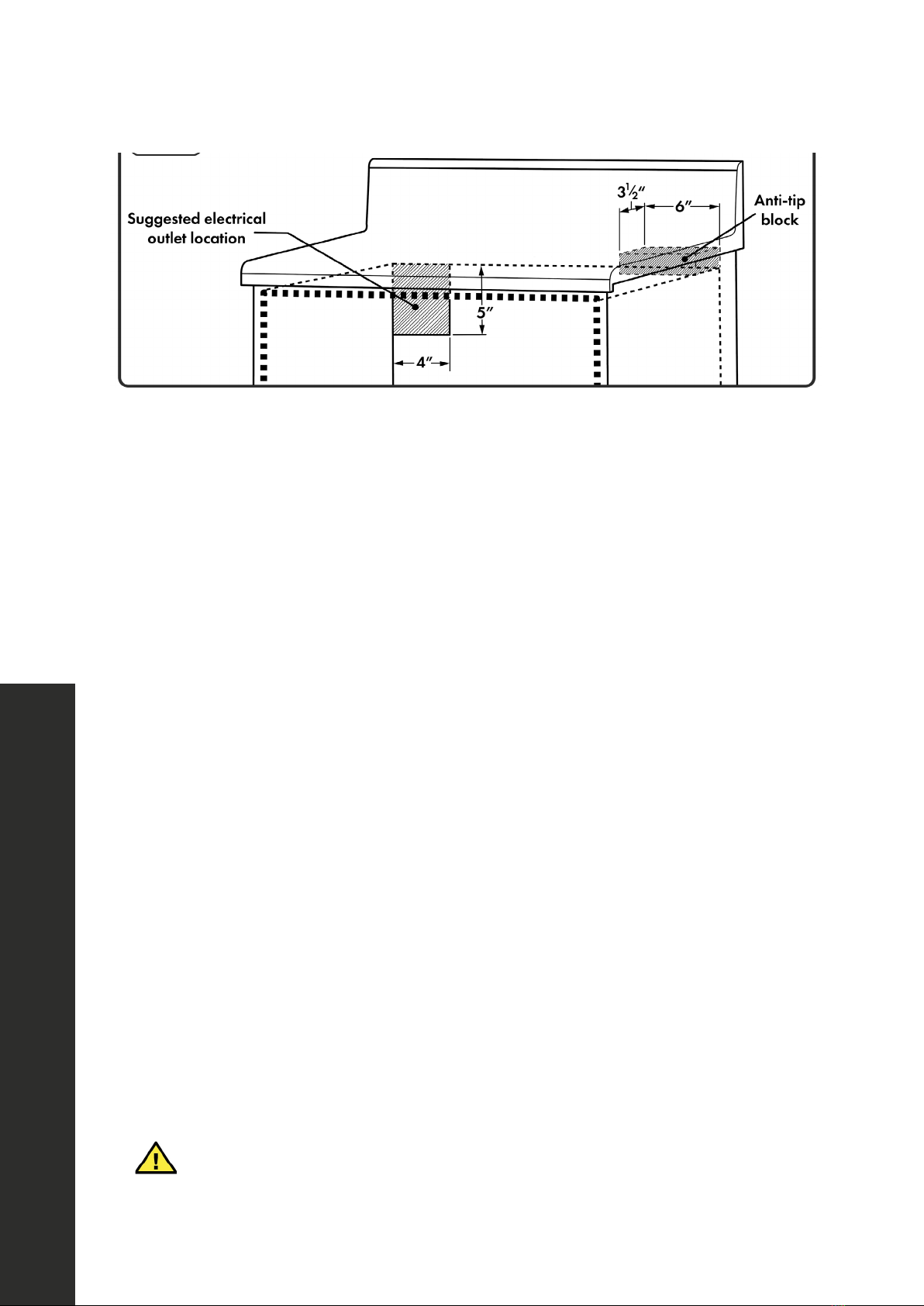

CLEARANCES AND DIMENSIONS NOTICE
For safety considerations, do not install drawer in any combustible cabinetry,
which is not in accordance with the stated clearances.
UNPACKING YOUR MICROWAVE DRAWER
Remove all packing materials from inside the microwave drawer. DO NOT
REMOVE THE WAVEGUIDE COVER, located on the top of the microwave
drawer. Remove the feature sticker, if there is one. Check the drawer for any
damage, such as misaligned or bent drawer, damaged drawer seals and
sealing surfaces, broken or loose drawer guides, and dents inside the cavity
or on the front side of the drawer. If there is any damage, do not operate the
microwave drawer and contact your dealer or ZLINE.
IMPORTANT NOTES TO THE INSTALLER
Read the entire installation portion of the manual before installing the
microwave drawer. Remove all packing materials before connecting the
electrical supply. Observe all governing codes and ordinances. Be sure to
leave these instructions with the consumer.
IMPORTANT NOTES TO THE CONSUMER
Keep this manual for the future reference. With use of any heat generating
microwave oven, there are certain safety precautions you should follow. These
are listed in the operation portion of the manual. Read all and follow carefully.
Be sure your microwave drawer is installed and grounded properly by a
qualified installer or service technician.
IMPORTANT SAFETY INSTRUCTIONS
Fire or electrical shock resulting in property damage, personal injury or death
may occur if the information in this manual is not followed exactly. To reduce
the risk of tipping, the microwave drawer must be secured with a properly
installed Anti-Tip block. This microwave drawer must be electrically grounded
in accordance with local codes. Make sure any wall coverings and/or
cabinets around the microwave drawer can withstand the heat generated by
the microwave drawer. Never leave the drawer open when the microwave is
unattended. Stepping, leaning, or sitting on the drawer may result in serious
injuries and may also cause damage to the microwave.
BEFORE INSTALLATION
WARNING
Installation Notices
8

9
INSTALLATION
INSTALLATION NOTICES
Dimensions that are shown in the figures must be used. Given dimensions provide
minimum clearance. Locate electrical outlet in the shaded area in the upper left-hand
corner of the cutout.
• Contact surface must be solid and level. Pay special attention to the floor on which
the Microwave Drawer will sit. The floor of the opening should be constructed of
plywood strong enough to support the weight of the oven (about 100 pounds).
• Check location where the Microwave Drawer will be installed for proper electrical
supply
• Your oven can be built into a cabinet or wall by itself or under a gas or electric
wall oven.
• Be sure that the clearance of the floor between the wall oven and the microwave
drawer is a minimum of 2”.
• This microwave drawer can be installed below any electric or gas wall oven.
• It can be installed using an electrical outlet in an adjacent cabinet within the area
where the provided electrical cord can reach.
• The power cord access hole inside the cabinet should have a minimum diameter of
1 1/2” and be free of all sharp edges. ALWAYS allow for sufficient power cord
length to the electrical outlet in order to prevent tension.
Installation Notices
24” Microwaves
(MWD-1 and MWD-1-BS)
30” Microwaves
9

10
INSTALLATION
Clearances
24” Microwaves
30” Microwaves
10

11
ELECTRICAL OUTLET AND ANTI-TIP BLOCK
To reduce the risk of tipping the drawer, the anti-tip block must be properly located
14 13/16” above the floor on which the microwave drawer will sit. The 6” anti-tip
block must be provided by the installer. The anti-tip block prevents serious injury that
might result from spilled hot liquids. If the microwave drawer is ever moved to a different
location, the anti-tip block must also be moved and installed. When secured to the wall,
make sure that the screws completely penetrate the dry wall and are secured in wood
or metal so that the block is totally stable. When fastening, be sure that the screws do
not penetrate electrical wiring or plumbing. The electrical requirements are 120 volt,
60 Hz, AC only, 13 amp. It is recommended that a separate circuit serving only this
appliance be provided. The drawer is equipped with a 3-prong grounding plug and
must be plugged into a wall receptacle that is properly installed and grounded. Should
you only have a 2-prong outlet, have a qualified electrician install a correct wall
receptacle.
NOTE: If you have any questions about the grounding or electrical instructions, consult
a qualified electrician or service person. The microwave drawer can also be installed
using an electrical outlet in an adjacent cabinet within the area where the provided
electrical cord can reach. ALWAYS check electrical cord can reach.
GROUNDING INSTRUCTIONS
This appliance must be grounded. The microwave drawer must be plugged into a wall
receptacle that is properly installed and grounded in accordance with the National
Electrical Code along with local codes and ordinances. In the event of an electrical
short circuit, grounding reduces risk of electrical shock by providing an escape wire for
the electrical current.
WARNING
WARNING: Improper use of the grounding plug can result in the risk
of electric shock. Do not use an extension cord. If the power supply
cord is too short, have a qualified electrician or serviceman install an
outlet near the appliance.
INSTALLATION
Electrical Outlet & Anti-Tip Block

12
1. Place the drawer adjacent to the wall or cabinet opening.Plug the power supply cord into the electrical outlet.
2. Carefully guide the drawer into the prepared opening. Avoid pinching the cord between the oven and the wall.
3. Slide the drawer all the way until the mounting
flange is flush with the face of the cabinet.
See Figure 5.
4. Open the drawer. Using the 4 holes on
the drawer as a template , pre drill the cabinet
using a 1/16" bit. See Figure 5.
5. Secure the drawer with the 4 screws supplied.
See Figure 6.
The name plate includes model and serial number. Open the Microwave Drawer fully. The label is beyond the
back wall of the microwave cavity facing up from the flat surface.
Refer to the Operation Manual for cleaning instructions.
4 Screws
4 Sc rews
Figure 6
MODEL AND SERIAL NUMBER LOCATION
CARE,CLEANING AND MAINTENANCE
DRAWER INSTALLATION
Figure 5
12
installation instructions
4
DRAWER INSTALL ATION
MODEL & SERIAL NUMBER LOCATION
CARE, CLEANING & MAINTENANCE
Figure 4
Figure 5
1. Place the drawer adjacent to the wall or cabinet opening.
Plug the power supply cord into the electrical outlet.
2. Carefully guide the drawer into the prepared opening.
Avoid pinching the cord between the oven and wall.
3. Slide the drawer all the way until the mounting flange
is flush with the face of the cabinet.
4. Open t
4. Open the drawer. Using the 4 holes on the drawer as
a template, pre-drill the cabinet using a 1/16” bit.
5. Secure the drawer with the 4 screws supplied (Figure 5).
To locate the model and serial number, open the microwave drawer fully. The label can be found beyond
the back wall of the microwave cavity, facing up from the flat surface.
Refer to the Operation Manual for cleaning and care instructions.
4
DRAWER INSTALL ATION
MODEL & SERIAL NUMBER LOCATION
CARE, CLEANING & MAINTENANCE
Figure 4
Figure 5
1. Place the drawer adjacent to the wall or cabinet opening.
Plug the power supply cord into the electrical outlet.
2. Carefully guide the drawer into the prepared opening.
Avoid pinching the cord between the oven and wall.
3. Slide the drawer all the way until the mounting flange
is flush with the face of the cabinet.
4. Open t
4. Open the drawer. Using the 4 holes on the drawer as
a template, pre-drill the cabinet using a 1/16” bit.
5. Secure the drawer with the 4 screws supplied (Figure 5).
To locate the model and serial number, open the microwave drawer fully. The label can be found beyond
the back wall of the microwave cavity, facing up from the flat surface.
Refer to the Operation Manual for cleaning and care instructions.
4
DRAWER INSTALL ATION
MODEL & SERIAL NUMBER LOCATION
CARE, CLEANING & MAINTENANCE
Figure 4
Figure 5
1. Place the drawer adjacent to the wall or cabinet opening.
Plug the power supply cord into the electrical outlet.
2. Carefully guide the drawer into the prepared opening.
Avoid pinching the cord between the oven and wall.
3. Slide the drawer all the way until the mounting flange
is flush with the face of the cabinet.
4. Open t
4. Open the drawer. Using the 4 holes on the drawer as
a template, pre-drill the cabinet using a 1/16” bit.
5. Secure the drawer with the 4 screws supplied (Figure 5).
To locate the model and serial number, open the microwave drawer fully. The label can be found beyond
the back wall of the microwave cavity, facing up from the flat surface.
Refer to the Operation Manual for cleaning and care instructions.
4
DRAWER INSTALL ATION
MODEL & SERIAL NUMBER LOCATION
CARE, CLEANING & MAINTENANCE
Figure 4
Figure 5
1. Place the drawer adjacent to the wall or cabinet opening.
Plug the power supply cord into the electrical outlet.
2. Carefully guide the drawer into the prepared opening.
Avoid pinching the cord between the oven and wall.
3. Slide the drawer all the way until the mounting flange
is flush with the face of the cabinet.
4. Open t
4. Open the drawer. Using the 4 holes on the drawer as
a template, pre-drill the cabinet using a 1/16” bit.
5. Secure the drawer with the 4 screws supplied (Figure 5).
To locate the model and serial number, open the microwave drawer fully. The label can be found beyond
the back wall of the microwave cavity, facing up from the flat surface.
Refer to the Operation Manual for cleaning and care instructions.
INSTALLATION
DRAWER INSTALLATION
1. Place the drawer adjacent to the wall or cabinet opening. Plug the power supply
cord into the electrical outlet.
2. Carefully guide the drawer into the prepared opening. Avoid pinching the cord
between the oven and wall.
3. Slide the drawer all the way until the mounting flange is flush with the face of the
cabinet.
4. Open the drawer. Using the four holes on the drawer as a template, pre-drill the
cabinet using a 1/16” bit.
5. Secure the drawer with the four screws supplied.
24” Microwaves
(MWD-1 & MWD-1-BS)
30” Microwaves
Drawer Installation
Mounting Screws
Mounting Flange
Mounting Flange
Mounting Screws

13
TRIM KIT INSTALLATION
• The trim kit is available for purchase as a separate accessory for the MWD-1 in
stainless only (TK-MWD). The trim kit is only available for the MWD-1.
• The trim kit is included with MWD-TK-30.
• Not available in black stainless.
TOOLS NEEDED:
• Air screwdriver
• Marker
TOOLS INCLUDED:
Support beam
Buckle seat
#1 Screw
Front bracket
Buckle
#2 Screw
Rear bracket
Trim kit
#3 Screw
Trim Kit Tools
INSTALLATION Trim Kit

14

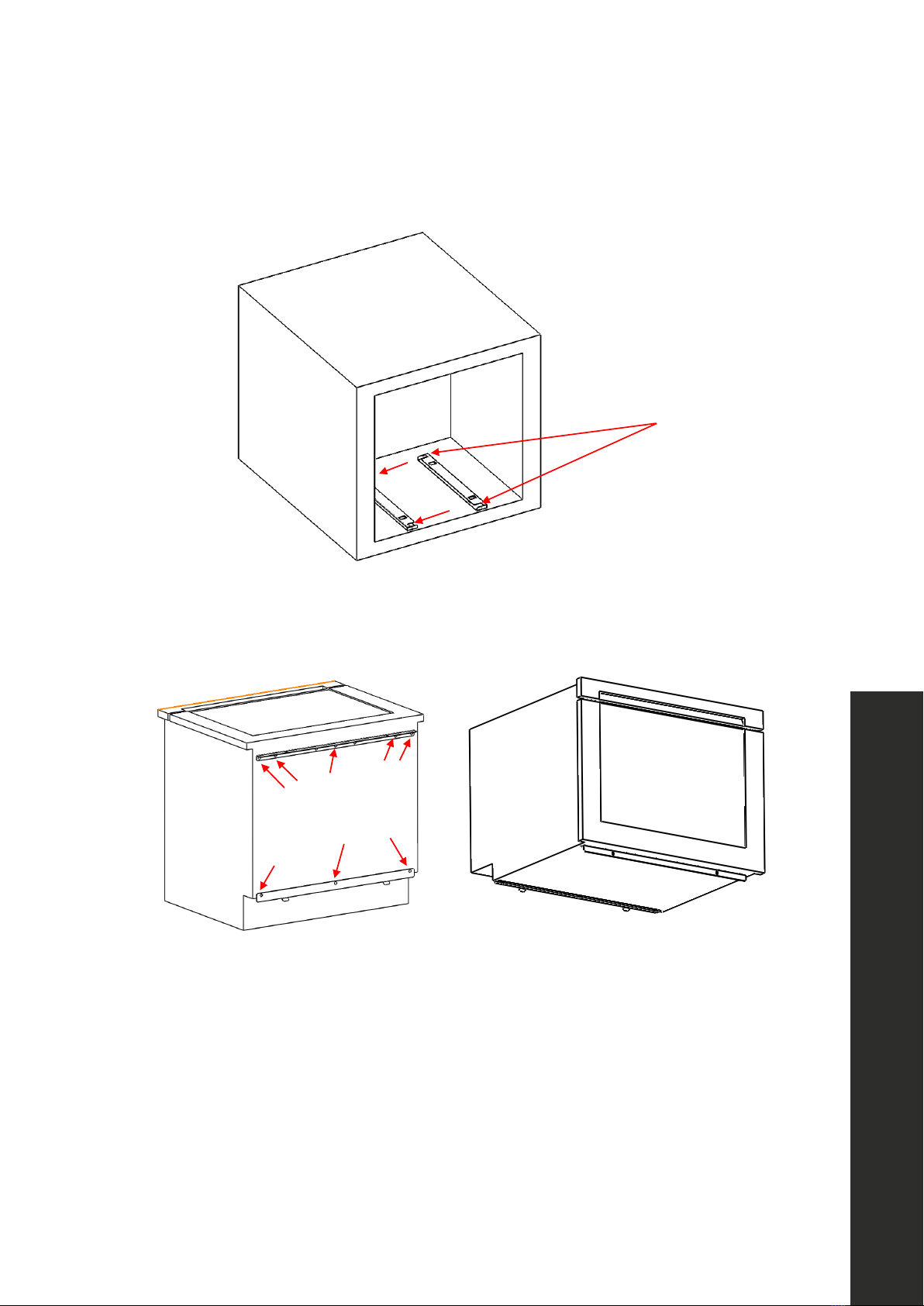

1. Install the support beams using the holes in the front bracket as a guide. Use the
#1 screw.
2.
②
三、Install step 安装步骤
①
according to front bracket fixing hole marker the support
beam position.用记号笔根据前支架安装孔比对出支撑
横梁安装位置
②Use 1# Screw fi
xing support beam 使用长螺丝垂直安装
①
Remove the screw of microwave oven; Install the
front bracket and rear bracket 将微波炉原有螺丝
拆卸；将前支架、后支架安装上去
Complete chart 完成图
Remove the screws holding the microwave in place in order to install the front
bracket and rear bracket.
1
②
三、
Install step
安装步骤
①
according to front bracket fixing hole marker the support
beam position.用记号笔根据前支架安装孔比对出支撑
横梁安装位置
②Use 1# Screw fixing support beam 使用长螺丝垂直安装
①
Remove the screw of microwave oven; Install the
front bracket and rear bracket 将微波炉原有螺丝
拆卸；将前支架、后支架安装上去
Complete chart 完成图
②
三、
Install step
安装步骤
①
according to front bracket fixing hole marker the support
beam position.用记号笔根据前支架安装孔比对出支撑
横梁安装位置
②Use 1# Screw fixing support beam 使用长螺丝垂直安装
①
Remove the screw of microwave oven; Install the
front bracket and rear bracket 将微波炉原有螺丝
拆卸；将前支架、后支架安装上去
Complete chart 完成图
Trim Kit Installation
INSTALLATION Trim Kit

15
3. Use #2 screws to install the four buckles on the corresponding mounting holes
around the trim kit.
4. Line up the trim kit with the buckle seats.
Trim Kit Installation
①将安装好卡扣的外观框放在橱柜上作出比对；用记号笔画上安
装位置
②用1#螺丝将卡座安装在对应安装位置上
①
Use 2# screws to install the four buckles on the corresponding mounting
holes around the trim kit 使用 2#螺丝将四个卡扣安装在外观框四周对
应的安装孔上
Place the trim kit which install buckle on the cabinet for
contrast, then use marker strokes to draw the mounting
position
①将安装好卡扣的外观框放在橱柜上作出比对；用记号笔画上安
装位置
②用1#螺丝将卡座安装在对应安装位置上
①
Use 2# screws to install the four buckles on the corresponding mounting
holes around the trim kit 使用 2#螺丝将四个卡扣安装在外观框四周对
应的安装孔上
Place the trim kit which install buckle on the cabinet for
contrast, then use marker strokes to draw the mounting
position
①将安装好卡扣的外观框放在橱柜上作出比对；用记号笔画上安
装位置
②用1#螺丝将卡座安装在对应安装位置上
①
Use 2# screws to install the four buckles on the corresponding mounting
holes around the trim kit 使用 2#螺丝将四个卡扣安装在外观框四周对
应的安装孔上
Place the trim kit which install buckle on the cabinet for
contrast, then use marker strokes to draw the mounting
position
①将安装好卡扣的外观框放在橱柜上作出比对；用记号笔画上安
装位置
②用1#螺丝将卡座安装在对应安装位置上
①
Use 2# screws to install the four buckles on the corresponding mounting
holes around the trim kit 使用 2#螺丝将四个卡扣安装在外观框四周对
应的安装孔上
Place the trim kit which install buckle on the cabinet for
contrast, then use marker strokes to draw the mounting
position
INSTALLATION Trim Kit
