Zline RV-2400S Assembly instructions

Microwave oven
Installation Guide
and Users Manual

CONTENTS
PRODUCT SPECIFICATIONS 1
PRECAUTIONS 2
IMPORTANT SAFETY INSTRUCTIONS 3
GROUNDING INSTRUCTIONS 9

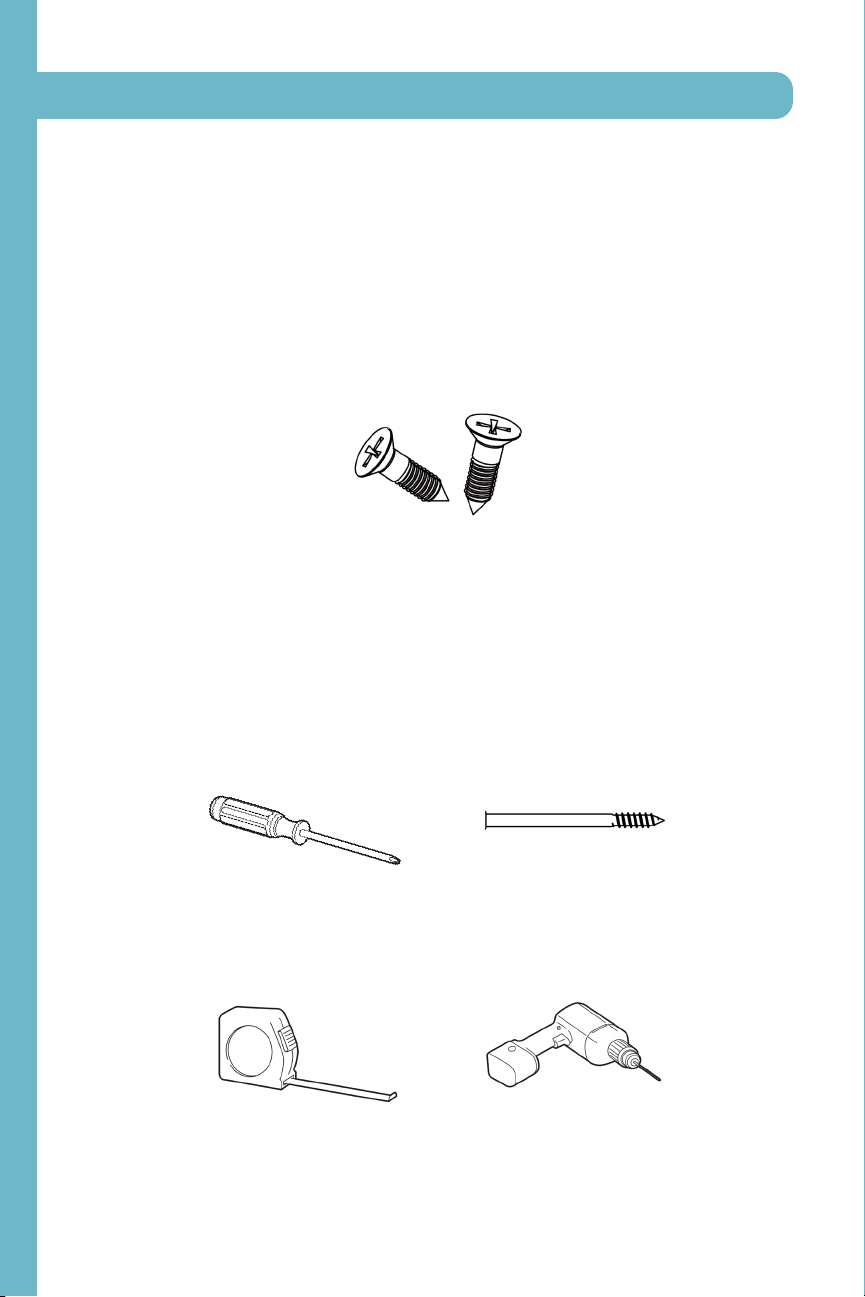

PARTS AND TOOLS 10

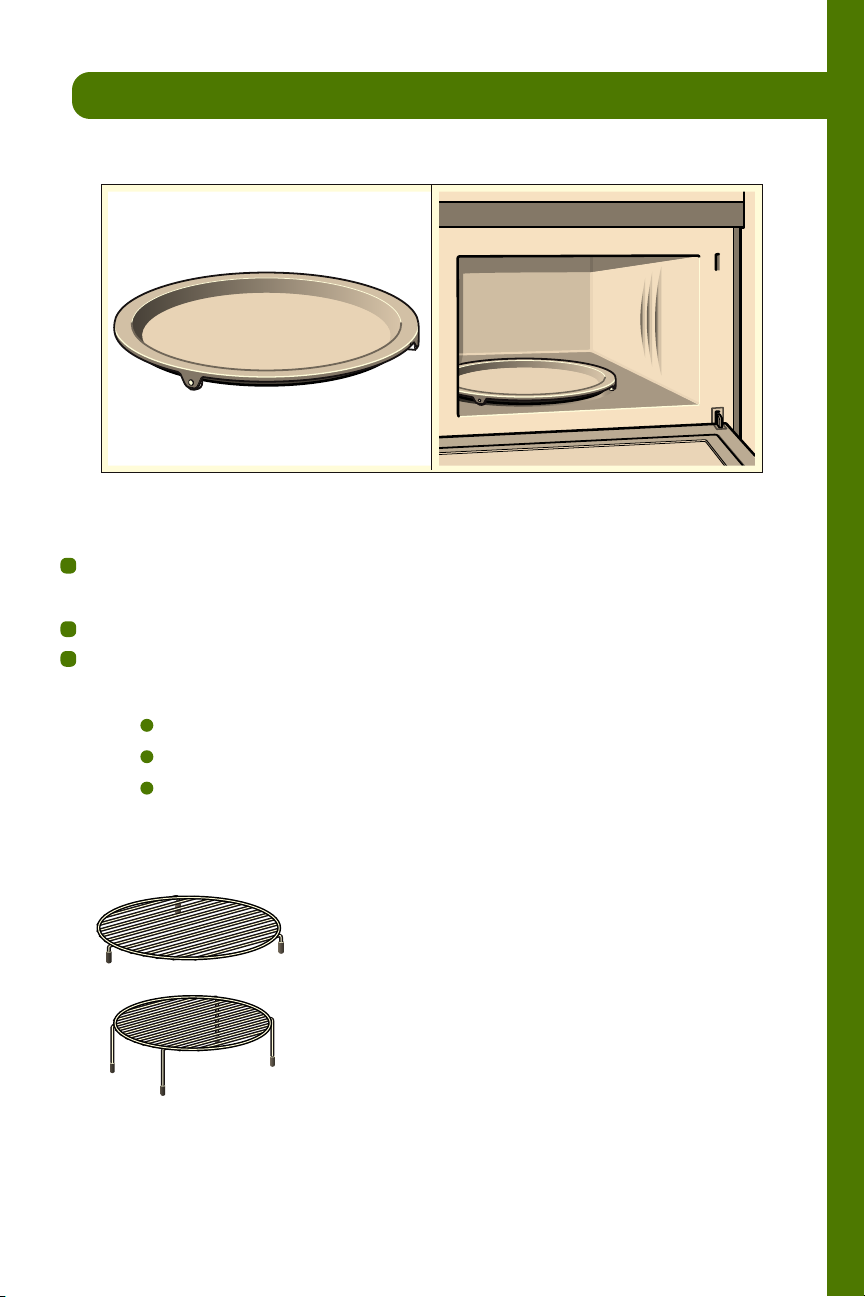

ACCESSORIES 11

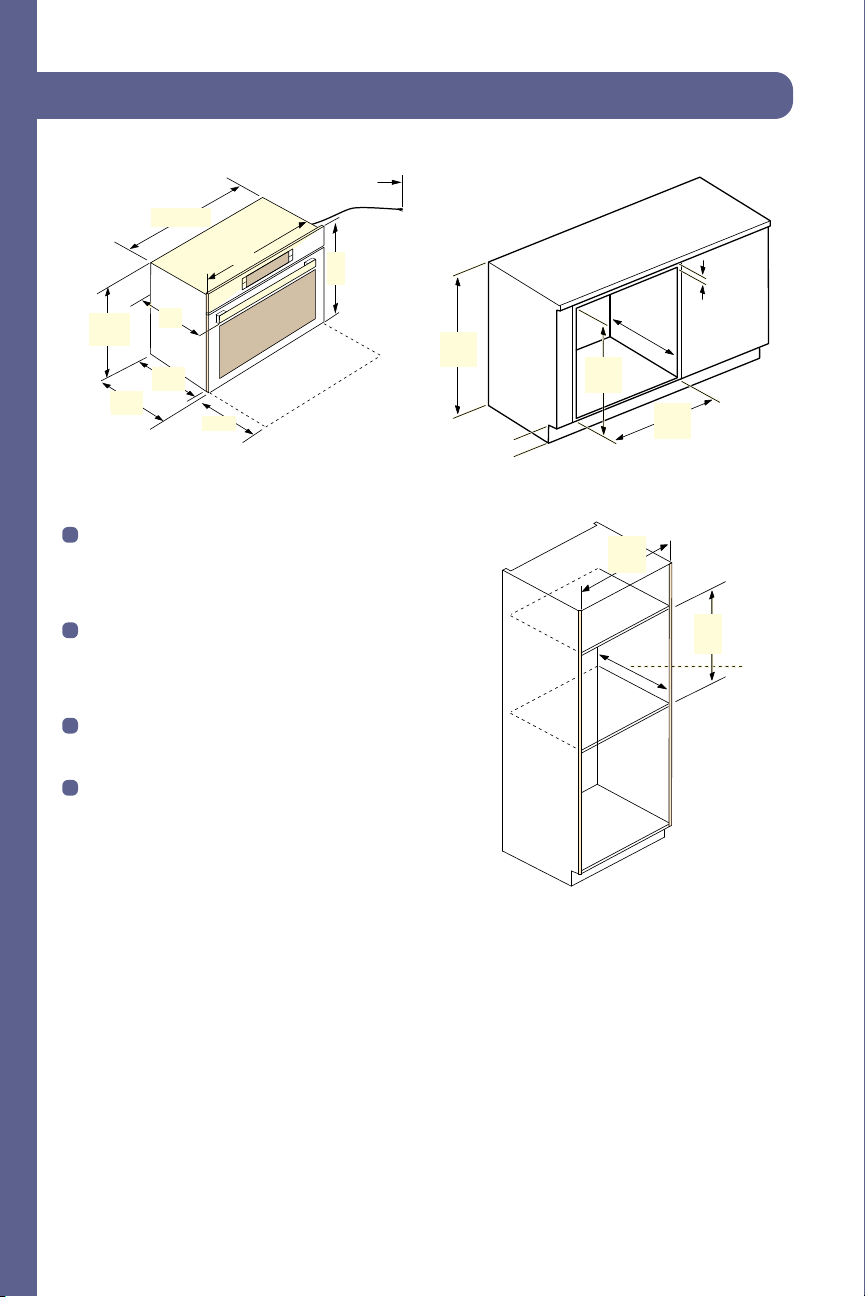

INSTALLATION REQUIREMENTS 12
OPERATION 19
EXPERT COOKING GUIDE 36
MAINTENANCE 41
TROUBLESHOOTING 43

1
The data plate shows the model and serial number. Refer to the data plate on the
appliance when requesting service. The data plate can be found on the inside of the
appliance door.
Important Appliance Information
Model Number
Serial Number
Date of Purchase
Date Installed
Installer
PRODUCT SPECIFICATIONS
Rated Voltage: 120V - 60Hz
Rated Output Power: 1000W
External Dimensions: 23.4”W x 17.9”H x 22.4”D
Net Weight: Approx 78 lbs
8
TTeessttiinngg OOppeerraattiioonn
1. Turn on power at the breaker.
2. Test the oven mode:
Select the CONVECTION mode. See the Use and
Care Manual for detailed operation instructions.
3. Verify that the oven light comes on and the oven
begins to preheat.
4. Test the microwave:
Place a cup of water into the oven cavity. Follow
The instructions in the Use and Care Manual on
how to heat a beverage.
5. Verify that the oven light comes on and the
water is heated.
6. If any of the tests do not result as explained
above, contact Service for assistance. Otherwise,
the installation is complete at this time.
Before Calling Service
See the Use and Care Manual for troubleshooting
information. Refer to the “Statement of Limited
Product Warranty” in the Use and Care Manual.
To reach a service representative, see the contact
information at the front of the manual or in the
following section. Please be prepared with the
information printed on your product data plate
prior to calling.
Data Plate
The data plate shows the model and serial number.
Refer to the data plate on the appliance when
requesting service.
The data plate can be found on the inside of the
appliance door.
To avoid having to search for each piece of
information when calling, you can enter the four
items needed in the spaces provided below.
Model No.
Serial-No.
Date of Purchase
Customer Service O

2
PRECAUTIONS
Do not attempt to operate this oven with the door open since open-door operation can
result in harmful exposure to microwave energy. It is important not to defeat or tamper with
the safety interlocks.
Do not place any object between the oven front face and the door or allow soil or
cleaner residue to accumulate on sealing surfaces.
Do not operate the oven if it is damaged. It is particularly important that the oven door
closes properly and that there is no damage to the:
Door (bent or not closing)
Hinges and Latches (broken or loosened)
Door seals and sealing surfaces (wear and tear)
Before turning on microwave power for any service test or inspection within the
microwave generating compartments, check the magnetron, wave guide or transmission
line, and cavity for proper alignment, integrity, and connection.
Unit is heavy and requires at least two people or proper equipment to move.
Do not carry or hold the appliance by the door handle. The door handle cannot support
the weight of the appliance and could break.
Hidden surfaces may have sharp edges. Use caution when reaching behind or under
appliance.
To reduce the risk of fire, use only metal ductwork.
Never modify or alter the construction of the appliance. For example, do not remove
leveling legs, panels, wire covers or anti-tip brackets/screws.
Testing Operation
Turn on power at the breaker.
Test the oven mode: Select the CONVECTION mode.
Verify that the oven light comes on and the oven begins to preheat.
Test the microwave: Place a cup of water into the oven cavity.
If any of the tests do not result as explained above, contact customer service at
1-614-777-5004 for assistance. Otherwise, the installation is complete at this
time.

3
important safety instructions
To reduce the risk of burns, electric shock, fire, personal injury, or exposure to excessive
microwave energy, read all instructions before using the appliance.
This appliance must be grounded or connected to a properly grounded outlet.
Install this appliance only in accordance with the provided installation instructions.
Some products such as whole eggs and sealed containers (i.e. closed glass jars) should
not be heated in this oven.
Use this appliance only for its intended use as described in the manual. Do not use
corrosive chemicals or vapors in this appliance. This type of oven is specifically designed
to heat, cook, or dry food.
Close supervision is necessary when used by children.
Do not operate this appliance if it has a damaged cord or plug, if it is not working
properly, or if the entire unit has been damaged.
This appliance should be serviced only by qualified service personnel.
Do not cover or block any openings on the appliance.
Do not store this appliance outdoors. Do not use this product near water - for example,
near a kitchen sink, in a wet basement, near a swimming pool, or similar locations.
Do not immerse cord or plug in water.
Keep cord away from heated surface.
Do not let cord hang over edge of table or counter.
When cleaning surfaces of door and oven that comes together on closing the door, use
only mild, nonabrasive soaps, or detergents applied with a sponge or soft cloth.
To reduce the risk of fire in the oven cavity:
Do not overcook food. Carefully attend appliance when paper, plastic, or other
combustible materials are placed inside the oven to facilitate cooking.
Remove wire twist-ties from paper or plastic bag before placing bag in oven.
If material inside of the oven ignite, keep oven door closed, turn oven off, and
disconnect the power cord, or shut off power at the fuse or circuit breaker panel.
Do not use the cavity for storage purposes. Do not leave paper products,
cooking utensils, or food in the cavity when not in use.
Liquids and other foods must not be heated in sealed containers since they are
liable to explode.
When using electrical appliances basic safety
precautions should be followed, including the following:

4
When heating food in plastic or paper containers, keep an eye on the oven due to the
possibility of ignition.
Only use utensils that are suitable for use in microwave ovens.
If smoke is emitted, switch off or unplug the appliance and keep the door closed in order
to stifle any flames.
Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point
without appearing to be boiling. Microwave heating of beverages can result in delayed
eruptive boiling, therefore care must be taken when handling the container.
The contents of feeding bottles and baby food jars shall be stirred or shaken and the
temperature checked before consumption, in order to avoid burns.
Eggs in their shell and whole hard- boiled eggs should not be heated in microwave ovens
since they may explode, even after microwave heating has ended.
The oven should be cleaned regularly and any food deposits removed. Failure to maintain
the oven in a clean condition could lead to deterioration of the surface that could
adversely affect the life of the appliance and possibly result in a hazardous situation.
This appliance is intended for household use.
Care should be taken not to displace the turntable when removing containers from the
appliance.
Ensure that the appliance is switched off before replacing the lamp to avoid the possibility
of electric shock.
Accessible parts may become hot during use. Surface of a storage drawer can get hot.
Young children should be kept away.
The microwave oven is intended for heating food and beverages. Drying of food or
clothing and heating of warming pads, slippers, sponges, damp cloth and similar may
lead to risk of injury, ignition or fire.
Metallic containers for food and beverages are not allowed during microwave cooking.
Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass
since they can scratch the surface, which may result in shattering of the glass.
The appliance is intended to be used built-in.
The appliance must not be installed behind a decorative door in order to avoid
overheating.
Do not use the appliance to store food. This can lead to corrosion.
important safety instructions

5
important safety instructions
Creation of sparks: Metal e.g. a spoon in a glass must be kept at least 2 cm from the oven
walls and the inside of the door. Sparks could irreparably damage the glass on the inside
of the door.
Water in the hot cooking compartment: Never pour water into the hot cooking
compartment. This will cause steam. The temperature change can cause damage.
Moist food: Do not store moist food in the closed cooking compartment for long periods.
Cooling with the appliance door open: Only leave the cooking compartment to cool with
the door closed. Do not trap anything in the appliance door.
Heavily soiled seal: If the seal is very dirty, the appliance door will no longer close
properly during operation. Always keep the seal clean.
Operating the microwave without food: Operating the appliance without food in the
cooking compartment may lead to overloading. Never switch on the appliance unless
there is food in the cooking compartment.
Using the appliance door for standing on or placing objects on: Do not stand or place
anything on the open appliance door. Do not place ovenware or accessories on the
appliance door.
Microwave popcorn: Never set the microwave power too high. Use a power setting no
higher than 600 watts. Always place the popcorn bag on a glass plate. The disc may
jump if overloaded.
Liquid that has boiled over must not be allowed to run through the turntable drive into the
interior of the appliance. Monitor the cooking process. Choose a shorter cooking time
initially, and increase the cooking time as required.
To reduce the risk of injury to persons:
Do not overheat liquid.
Stir the liquid before and halfway through heating it.
Do not use straight sided containers with narrow necks.
After heating, allow the container to stand in the microwave oven for a short
time before removing the container.
Use extreme care when inserting a spoon or other utensils into the container.
WARNING
Visible bubbling or boiling when the container is removed from
the microwave oven is not always present. This could result in very
hot liquid suddenly boiling over when the container is disturbed.

6
important safety instructions
Oversized food or oversized metal utensils should not be inserted in a microwave oven
as they may create a fire or risk of electric shock.
Do not clean with metal scouring pads. Pieces can burn off the pad and touch electrical
parts involving a risk of electric shock.
Do not use paper products when appliance is operated in the toaster mode.
Do not store any materials, other than manufacturer’s recommended accessories, in this
oven when not in use.
Do not cover racks or any other part of the oven with metal foil. This will cause over-
heating of the oven.

USERS MANUAL

8
Electric Shock Hazard
Improper grounding can result in a risk of electric shock. Consult a qualified
electrician if the grounding instructions are not completely understood, or if doubt
exists as to whether the appliance is properly grounded.
Do not use an extension cord. If the power supply cord is too short, have a qualified
electrician install an outlet near the appliance.
Do not cut or remove the ground prong. It must be plugged into a matching
grounding type receptacle to avoid electrical shock. If there is any doubt as to
whether the wall receptacle is properly grounded, the check with a qualified
electrician.
Before installing, turn power OFF at the service panel. Lock service panel to prevent
power from being turned ON accidentally.
Be sure your appliance is properly installed and grounded by a qualified technician.
Installation, electrical connections and grounding must comply with all applicable
codes.
GROUND INSTRUCTIONS
Before you plug in an electrical cord or turn on power supply,
make sure all controls are in the OFF position.
WARNING

9
grounding instructions
This appliance must be grounded. In the event of an electrical short circuit, grounding
reduces the risk of electric shock by providing an escape wire for the electric current. This
appliance is equipped with a cord having a grounding wire with a grounding plug. The
plug must be plugged into an outlet that is properly installed and grounded.
WARNING:
Improper use of the grounding can result in a risk of electric shock.
Consult a qualified electrician or serviceman if the grounding instructions are not
completely understood, or if doubt exists as to whether the appliance is properly
grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord
that has a 3-blade grounded plug, and 3-slot receptacle that will accept the plug on the
appliance. The marked rating of the extension cord shall be equal to or greater than the
electrical rating of the appliance.
DANGER:
Electric Shock Hazard
Touching some of the internal components can cause serious personal injury or death.
Do not disassemble this appliance. Improper use of the grounding can result in electric
shock. Do not plug into an outlet until appliance is properly installed and grounded.
A short power-supply cord is provided to reduce the risks resulting from becoming
entangled in or tripping over a longer cord.
Longer cord sets or extension cords are available and may be used if care is exercised
in their use.
If a long cord or extension cord is used:
The marked electrical rating of the cord set or extension cord should be at least
as great as the electrical rating of the appliance.
The extension cord must be a grounding-type 3-wire cord.
The longer cord should be arranged so that it will not drape over the counter
top or tabletop where it can be pulled on by children or tripped over
unintentionally.

10
Before starting on the installation, prepare all the necessary tools and parts required
to install the microwave. This will save installation time and simplify the installation
process.
PARTS AND TOOLS
Philips head screws
1/8” drill bitPhillips screwdriver
Tape measure
Included
Not Included
Electric drill

11
Turntable
Food which particularly requires a lot of heat from underneath can be prepared directly
on the turntable.
The turntable can turn clockwise or anti-clockwise.
Place the turntable on the drive in the centre of the cooking compartment. Ensure that it is
properly fitted.
Never use the microwave without the turntable.
The turntable can withstand max. 5 kg.
The turntable must turn when using all types of heating.
Lower wire rack
For the microwave and for baking and roasting in the oven.
Higher wire rack
For grilling, e.g. steaks, sausages and for toasting bread. As a
support for shallow dishes.
Accessories
Before using the appliance for the first time
Here you will find everything you need to do before using your
oven to prepare food for the first time. First read the section on
Safety information .
Setting the clock
Heating up the oven
Cleaning the accessories
Before you use the accessories for the first time, clean them
thoroughly with hot soapy water and a soft dish cloth.
Setting the oven
There are various ways in which you can set your oven. Here we
will explain how you can select the desired type of heating and
temperature or grill setting. You can also select the oven cooking
time for your dish. Please refer to the section on
Setting the time-
setting options
.
Setting Convection mode
Turntable
As a surface for the wire rack.
Food which particularly requires a lot of heat from underneath can be
prepared directly on the turntable.
The turntable can turn clockwise or anti-clockwise.
Place the turntable on the drive in the centre of the cooking
compartment. Ensure that it is properly fitted.
■Never use the microwave without the turntable.
■The turntable can withstand max. 5 kg.
■The turntable must turn when using all types of heating.
Lower wire rack
For the microwave and for baking and roasting in the oven.
Higher wire rack
For grilling, e.g. steaks, sausages and for toasting bread.
As a support for shallow dishes.
Once the appliance is connected, "12:00" will be displayed as
Opening the oven door during operation
Operation is suspended. After closing the door, touch the
key. Operation continues.
Cancelling operation
Note:
Type and quantity of accessories is subject to actual demand.
the time of day. To set the correct time, proceed as follows:
1. Touch Clock.
2. Enter the correct time using the number keys.
Example: To set the clock to 12:41 type in 1 2 4 1.
3. Touch Start/Enter to confirm.
To remove the new oven smell, heat up the appliance
when it is empty and closed. One hour with Convection
at 350° F (180 °C) is ideal. Ensure that no packaging
remnants have been left in the oven cavity.
1. Touch Convection
Example: roast 350 for 20 minutes
°F
twice to enter roast mode.
2. Enter the numbers 3 5 0 with the number keys.
3.
Touch
to adjust cooking time.
TEMP./ WEIGHT
Enter the numbers 2 0 with the number keys. 4.
Touch Start/Enter to start cooking.
5.
1. Touch Convection
2. Enter the numbers 3 5 0 with the number keys.
3.
Touch
to adjust cooking time.
TEMP./ WEIGHT
Enter the numbers 60 with the number keys. 4.
Touch Start/Enter to start cooking.
5.
once to enter bake mode.
The oven light turns on and the appliance starts
heating.
Start/Enter
Touch Clear/Off to cancel the active oven mode. The
appliance turns off and the clock is displayed.
The cooling fans may continue to run for awhile and then
switch off automatically.
9
Accessories
Before using the appliance for the first time
Here you will find everything you need to do before using your
oven to prepare food for the first time. First read the section on
Safety information .
Setting the clock
Heating up the oven
Cleaning the accessories
Before you use the accessories for the first time, clean them
thoroughly with hot soapy water and a soft dish cloth.
Setting the oven
There are various ways in which you can set your oven. Here we
will explain how you can select the desired type of heating and
temperature or grill setting. You can also select the oven cooking
time for your dish. Please refer to the section on
Setting the time-
setting options
.
Setting Convection mode
Turntable
As a surface for the wire rack.
Food which particularly requires a lot of heat from underneath can be
prepared directly on the turntable.
The turntable can turn clockwise or anti-clockwise.
Place the turntable on the drive in the centre of the cooking
compartment. Ensure that it is properly fitted.
■Never use the microwave without the turntable.
■The turntable can withstand max. 5 kg.
■The turntable must turn when using all types of heating.
Lower wire rack
For the microwave and for baking and roasting in the oven.
Higher wire rack
For grilling, e.g. steaks, sausages and for toasting bread.
As a support for shallow dishes.
Once the appliance is connected, "12:00" will be displayed as
Opening the oven door during operation
Operation is suspended. After closing the door, touch the
key. Operation continues.
Cancelling operation
Note:
Type and quantity of accessories is subject to actual demand.
the time of day. To set the correct time, proceed as follows:
1. Touch Clock.
2. Enter the correct time using the number keys.
Example: To set the clock to 12:41 type in 1 2 4 1.
3. Touch Start/Enter to confirm.
To remove the new oven smell, heat up the appliance
when it is empty and closed. One hour with Convection
at 350° F (180 °C) is ideal. Ensure that no packaging
remnants have been left in the oven cavity.
1. Touch Convection
Example: roast 350 for 20 minutes
°F
twice to enter roast mode.
2. Enter the numbers 3 5 0 with the number keys.
3.
Touch
to adjust cooking time.
TEMP./ WEIGHT
Enter the numbers 2 0 with the number keys. 4.
Touch Start/Enter to start cooking. 5.
1. Touch Convection
2. Enter the numbers 3 5 0 with the number keys.
3.
Touch
to adjust cooking time.
TEMP./ WEIGHT
Enter the numbers 60 with the number keys. 4.
Touch Start/Enter to start cooking.
5.
once to enter bake mode.
The oven light turns on and the appliance starts
heating.
Start/Enter
Touch Clear/Off to cancel the active oven mode. The
appliance turns off and the clock is displayed.
The cooling fans may continue to run for awhile and then
switch off automatically.
9
ACCESSORIES

12
General cabinet requirements:
1⁄4” (6.4 mm) space between the side of the
appliance and an adjacent wall or cabinet
door when installed at the end of a cabinet run.
The cabinet base must be flat and capable of
supporting the weight of your appliance when
in use. Figure 3
The appliance door will overlap the furniture
below by approx 3/16” (5 mm) when opened.
There must be an air gap of at least 0.24” (6
mm) between the appliance and the cabinet
walls when the appliance is installed, i.e. 0.12”
(3 mm) each side. Figure 2
6
DDiimmeennssiioonnss aanndd CCaabbiinneett RReeqquuiirreemmeennttss
General Cabinet Requirements
▯¼" (6.4 mm) space between the side of the appliance
and an adjacent wall or cabinet door when installed
at the end of a cabinet run.
▯The cabinet base must be flat and capable of
supporting the weight of your appliance when in use.
See section Cabinet Dimensions.
▯The appliance door will overlap the furniture below
by approx 3/16" (5 mm) when opened.
9 WARNING
There must be an air gap of at least ]" (6 mm)
between the appliance and the cabinet walls when
the appliance is installed, i.e. X" (3 mm) each side.

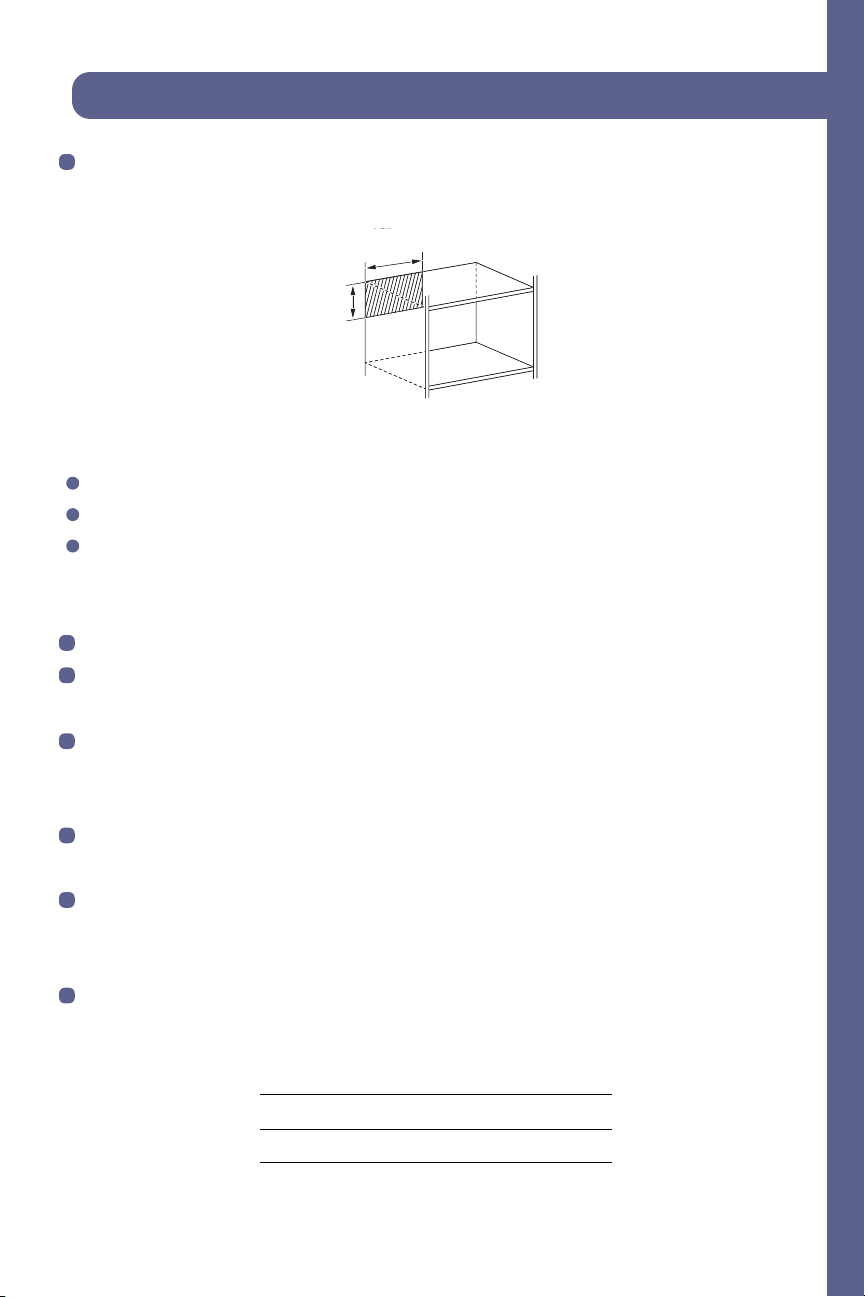

Outlet Area
The outlet can be located anywhere within the
shaded area. Anywhere within the shaded area,
the minimal distance between the appliance and
the wall is 1¾ in (45 mm).
Appliance Dimensions
Cabinet Dimensions
NOTICE: The cabinet base must be flat and
capable of supporting a weight of at least 142 lbs
(64.1 kg).
Under counter dimensions



ê
 PP








ê



 PP




 PP


ç¼ʚ


ʎ¼ʚ

è¼ʚ


ʎ¼ʓʘ

ç¼ʓʘ


ç¼ʓʘ

è¼ʓʘ
ë
 PP

ë


ʌ¼ʓʘ





ë




 PP
ëé


ʌ¼ʓʘ
6
DDiimmeennssiioonnss aanndd CCaabbiinneett RReeqquuiirreemmeennttss
General Cabinet Requirements
▯¼" (6.4 mm) space between the side of the appliance
and an adjacent wall or cabinet door when installed
at the end of a cabinet run.
▯The cabinet base must be flat and capable of
supporting the weight of your appliance when in use.
See section Cabinet Dimensions.
▯The appliance door will overlap the furniture below
by approx 3/16" (5 mm) when opened.
9 WARNING
There must be an air gap of at least ]" (6 mm)
between the appliance and the cabinet walls when
the appliance is installed, i.e. X" (3 mm) each side.
Outlet Area
The outlet can be located anywhere within the
shaded area. Anywhere within the shaded area,
the minimal distance between the appliance and
the wall is 1¾ in (45 mm).
Appliance Dimensions
Cabinet Dimensions
NOTICE: The cabinet base must be flat and
capable of supporting a weight of at least 142 lbs
(64.1 kg).
Under counter dimensions



ê
 PP








ê



 PP




 PP


ç¼ʚ


ʎ¼ʚ

è¼ʚ


ʎ¼ʓʘ

ç¼ʓʘ


ç¼ʓʘ

è¼ʓʘ
ë
 PP

ë


ʌ¼ʓʘ





ë




 PP
ëé


ʌ¼ʓʘ
6
DDiimmeennssiioonnss aanndd CCaabbiinneett RReeqquuiirreemmeennttss
General Cabinet Requirements
▯¼" (6.4 mm) space between the side of the appliance
and an adjacent wall or cabinet door when installed
at the end of a cabinet run.
▯The cabinet base must be flat and capable of
supporting the weight of your appliance when in use.
See section Cabinet Dimensions.
▯The appliance door will overlap the furniture below
by approx 3/16" (5 mm) when opened.
9 WARNING
There must be an air gap of at least ]" (6 mm)
between the appliance and the cabinet walls when
the appliance is installed, i.e. X" (3 mm) each side.
Outlet Area
The outlet can be located anywhere within the
shaded area. Anywhere within the shaded area,
the minimal distance between the appliance and
the wall is 1¾ in (45 mm).
Appliance Dimensions
Cabinet Dimensions
NOTICE: The cabinet base must be flat and
capable of supporting a weight of at least 142 lbs
(64.1 kg).
Under counter dimensions



ê
 PP








ê



 PP




 PP


ç¼ʚ


ʎ¼ʚ

è¼ʚ


ʎ¼ʓʘ

ç¼ʓʘ


ç¼ʓʘ

è¼ʓʘ
ë
 PP

ë


ʌ¼ʓʘ





ë




 PP
ëé


ʌ¼ʓʘ
Installation Requirements
Figure 1 Figure 2
Figure 3

Flush installation also requires:
Two side cleats to be attached inside the cabinet frame, recessed from the front
A 5/16” (8 mm) baseplate underneath the unit body.
Installation Requirements
7
Flush installation Flush installation also requires:
▯two side cleats to be attached inside the
cabinet frame, recessed from the front
▯a 5/16" (8 mm) baseplate underneath the unit
body.
Electrical Installation
The model stated on the front cover is rated at 120V
AC, 60 Hz and uses a NEMA 5-20 plug to connect to
a dedicated 120 V microwave circuit.
Electrical Requirements:
▯a three prong grounded outlet
▯120 V, 60 Hz, AC only
▯20 Amp electrical supply with a fuse or a
circuit breaker
This product must be connected to a supply circuit
of the proper voltage and frequency. Wire size must
conform to the requirements of the National
Electric Code or the prevailing local code for this
rating. The power supply cord and plug should be
brought to a separate 20-amp branch circuit single
grounded outlet. The outlet box should be located
inside the cabinet above the appliance (see section
Location Requirements). The outlet box and supply
circuit should be installed by a qualified electrician
and conform to the National Electrical Code or the
prevailing local code.
The voltage used must be the same as specified on
this microwave oven. Using a higher voltage is
dangerous and may result in a fire or oven damage.
Using a lower voltage will cause slow cooking. The
manufacturer is not responsible for any damages
resulting from the use of the oven with any voltage
other than specified.
Install Appliance
Note: The appliance is heavy. It is advisable to install
it with a second person.
NOTICE: Before installing the appliance, be sure to
verify the cabinet dimensions and electrical
connections.
Mount to Cabinet
1. Fully insert the appliance and center it. Do not kink
the electrical cable.
2. Screw the appliance into place.
PHDVXUHPHQWVLQLQFKHVPP
7RSYLHZ
6LGHYLHZ

ê



)OXVKLQVHW
GHSWK


ë


&OHDWV   &OHDWV 

 
è¼ʓʘ  
FOHDWV
ê 
ë

RSHQLQJ
FXWRXW
KHLJKW
ʎ¼ʓʘ

IOXVK
FXWRXW
KHLJKW
EDVHSODWH
ʌ¼ʓʘ 
èç¼ʓʘ
ë


èç¼ʓʘ
Model Connection Circuit
Requirements
RV-2400S NEMA 5-20 120 V,
60 Hz
20 Amps

14
This appliance is not designed to be used as a tabletop appliance or inside a cupboard.
The fitted cabinet must not have a back wall behind the appliance.
A gap of at least 45 mm must be maintained between the wall and the base or back
panel of the unit above.
The fitted cabinet must have a ventilation opening of 250 cm² on the front. To achieve this,
cut back the base panel or fit a ventilation grille.
Ventilation slots and intakes must not be covered.
The safe operation of this appliance can only be guaranteed if it has been installed in
accordance with these installation instructions.
The units into which the appliance is fitted must be heat-resistant up 90°C.
Causes of damage
Caution!
■Creation of sparks: Metal  e.g. a spoon in a glass  must be
kept at least 2 cm from the oven walls and the inside of the
door. Sparks could irreparably damage the glass on the inside
of the door.
■Water in the hot cooking compartment: Never pour water into
the hot cooking compartment. This will cause steam. The
temperature change can cause damage.
■Moist food: Do not store moist food in the closed cooking
compartment for long periods.
Do not use the appliance to store food. This can lead to
corrosion.
■Cooling with the appliance door open: Only leave the cooking
compartment to cool with the door closed. Do not trap anything
in the appliance door. Even if the door is only slightly ajar, the
fronts of adjacent units may be damaged over time.
■Heavily soiled seal: If the seal is very dirty, the appliance door
will no longer close properly during operation. The fronts of
adjacent units could be damaged. Always keep the seal clean.
■Operating the microwave without food: Operating the appliance
without food in the cooking compartment may lead to
overloading. Never switch on the appliance unless there is food
in the cooking compartment. An exception to this rule is a short
crockery test (see the section "Microwave, suitable crockery").
■Using the appliance door for standing on or placing objects on:
Do not stand or place anything on the open appliance door. Do
not place ovenware or accessories on the appliance door.
■Transporting the appliance: Do not carry or hold the appliance
by the door handle. The door handle cannot support the weight
of the appliance and could break.
■Microwave popcorn: Never set the microwave power too high.
Use a power setting no higher than 600 watts. Always place the
popcorn bag on a glass plate. The disc may jump if overloaded.
■Liquid that has boiled over must not be allowed to run through
the turntable drive into the interior of the appliance. Monitor the
cooking process. Choose a shorter cooking time initially, and
increase the cooking time as required.
■The oven should be cleaned regularly and any food deposits
removed since they may explode, even after microwave heating
has ended.
■Failure to maintain the oven in a clean condition could lead to
deterioration of the surface that could adversely affect the life of
the appliance and possibly result in a hazardous situation.
Installation
Fitted units
■This appliance is only intended to be fully fitted in a kitchen.
■This appliance is not designed to be used as a tabletop
appliance or inside a cupboard.
The fitted cabinet must not have a back wall behind the
■
appliance.
■
■The fitted cabinet must have a ventilation opening of 250 cm
A gap of at least 45 mm must be maintained between the
wall and the base or back panel of the unit above.
2
on the front. To achieve this, cut back the base panel or fit a
ventilation grille.
■
■The safe operation of this appliance can only be guaranteed
■
■
Ventilation slots and intakes must not be covered.
if it has been installed in accordance with these installation
instructions.
The fitter is liable for any damage resulting from incorrect
installation.
The units into which the appliance is fitted must be heat-
resistant up 90 C.
o
Note: There should be gap above the oven.

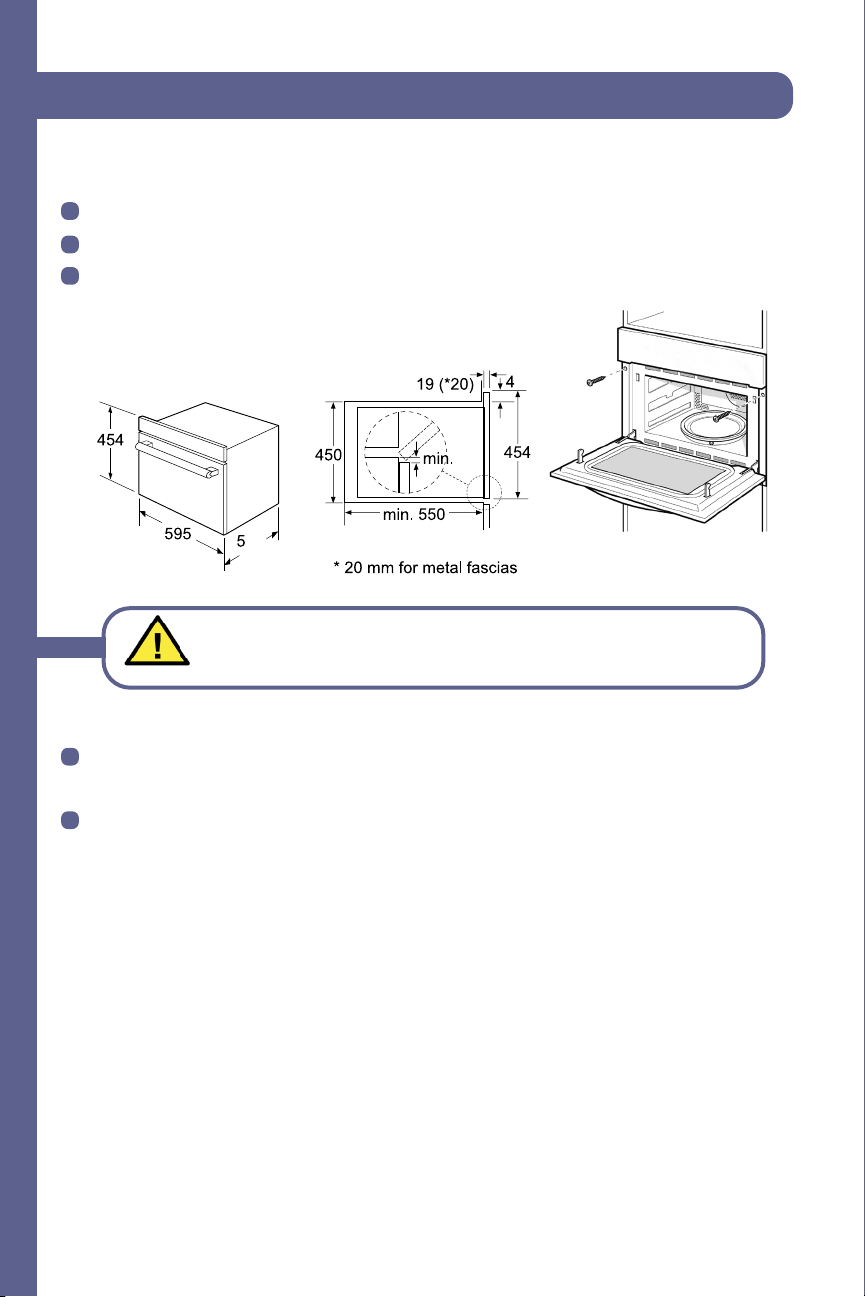

Installation dimensions
min 45
Cupboard feet Ventilation grid
min 45
50
460
250
6
WARNING:
Note: There should be a gap above the oven.
Installation Requirements

15
The outlet can be located anywhere within the shaded area. Anywhere within the shaded
area, the minimal distance between the appliance and the wall is 13⁄4 in (45 mm).
Electrical Requirements:
A three prong grounded outlet
120 V, 60 Hz, AC only
20 Amp electrical supply with a fuse or a circuit breaker
Electric Installation
This product must be connected to a supply circuit of the proper voltage and frequency.
Wire size must conform to the requirements of the National Electric Code or the prevailing
local code for this rating.
The power supply cord and plug should be brought to a separate 20-amp branch circuit
single grounded outlet. The outlet box should be located inside the cabinet above the
appliance.
The outlet box and supply circuit should be installed by a qualified electrician and
conform to the National Electrical Code or the prevailing local code.
The voltage used must be the same as specified on this microwave oven. Using a higher
voltage is dangerous and may result in a fire or oven damage. Using a lower voltage will
cause slow cooking.
The manufacturer is not responsible for any damages resulting from the use of the oven
with any voltage other than specified.
6
DDiimmeennssiioonnss aanndd CCaabbiinneett RReeqquuiirreemmeennttss
General Cabinet Requirements
▯¼" (6.4 mm) space between the side of the appliance
and an adjacent wall or cabinet door when installed
at the end of a cabinet run.
▯The cabinet base must be flat and capable of
supporting the weight of your appliance when in use.
See section Cabinet Dimensions.
▯The appliance door will overlap the furniture below
by approx 3/16" (5 mm) when opened.
9 WARNING
There must be an air gap of at least ]" (6 mm)
between the appliance and the cabinet walls when
the appliance is installed, i.e. X" (3 mm) each side.
Outlet Area
The outlet can be located anywhere within the
shaded area. Anywhere within the shaded area,
the minimal distance between the appliance and
the wall is 1¾ in (45 mm).
Appliance Dimensions
Cabinet Dimensions
NOTICE: The cabinet base must be flat and
capable of supporting a weight of at least 142 lbs
(64.1 kg).
Under counter dimensions



ê
 PP








ê



 PP




 PP


ç¼ʚ


ʎ¼ʚ

è¼ʚ


ʎ¼ʓʘ

ç¼ʓʘ


ç¼ʓʘ

è¼ʓʘ
ë
 PP

ë


ʌ¼ʓʘ





ë




 PP
ëé


ʌ¼ʓʘ
7
Flush installation Flush installation also requires:
▯two side cleats to be attached inside the
cabinet frame, recessed from the front
▯a 5/16" (8 mm) baseplate underneath the unit
body.
Electrical Installation
The model stated on the front cover is rated at 120V
AC, 60 Hz and uses a NEMA 5-20 plug to connect to
a dedicated 120 V microwave circuit.
Electrical Requirements:
▯a three prong grounded outlet
▯120 V, 60 Hz, AC only
▯20 Amp electrical supply with a fuse or a
circuit breaker
This product must be connected to a supply circuit
of the proper voltage and frequency. Wire size must
conform to the requirements of the National
Electric Code or the prevailing local code for this
rating. The power supply cord and plug should be
brought to a separate 20-amp branch circuit single
grounded outlet. The outlet box should be located
inside the cabinet above the appliance (see section
Location Requirements). The outlet box and supply
circuit should be installed by a qualified electrician
and conform to the National Electrical Code or the
prevailing local code.
The voltage used must be the same as specified on
this microwave oven. Using a higher voltage is
dangerous and may result in a fire or oven damage.
Using a lower voltage will cause slow cooking. The
manufacturer is not responsible for any damages
resulting from the use of the oven with any voltage
other than specified.
Install Appliance
Note: The appliance is heavy. It is advisable to install
it with a second person.
NOTICE: Before installing the appliance, be sure to
verify the cabinet dimensions and electrical
connections.
Mount to Cabinet
1. Fully insert the appliance and center it. Do not kink
the electrical cable.
2. Screw the appliance into place.
PHDVXUHPHQWVLQLQFKHVPP
7RSYLHZ 6LGHYLHZ

ê



)OXVKLQVHW
GHSWK


ë

&OHDWV   &OHDWV 

 
è¼ʓʘ  
FOHDWV
ê 
ë

RSHQLQJ
FXWRXW
KHLJKW
ʎ¼ʓʘ

IOXVK
FXWRXW
KHLJKW

EDVHSODWH ʌ¼ʓʘ 
èç¼ʓʘ
ë


èç¼ʓʘ
Model Connection Circuit
Requirements
RV-2400S NEMA 5-20 120 V,
60 Hz
20 Amps
Installation Requirements

Building In
Carefully push the microwave into the cabinetry, making sure that it is in the center.
Do not kink the connecting cable.
Open the door and fasten the microwave with the screws that were supplied.
Electrical connection
The appliance is fitted with a plug and must only be connected to a properly installed
grounded socket.
Only a qualified electrician who takes the appropriate regulations into account may
install the socket or replace the connecting cable. If the plug is no longer accessible
following installation, an all-pole isolating switch must be present on the installation
side with a contact gap of at least 3 mm. Contact protection must be ensured by the
installation.
• Do not hold or carry the appliance by the door handle. The door handle cannot hold
the weight of the appliance and may break off.
1. Carefully push the microwave into the box, making sure that it is in the centre.
2. Open the door and fasten the microwave with the screws that were supplied.
Building in



Fully insert the appliance and centre it.
Do not kink the connecting cable.
Screw the appliance into place.
The gap between the worktop and the appliance must not be closed by
additional battens.
10
68
,PSRUWDQWLQIRUPDWLRQ
Electrical connection
The appliance is fitted with a plug and must only be connected to a properly installed earthed socket.
Only a qualified electrician who takes the approriate regulations into account may install the socket
or replace the connecting cable. If the plug is no longer accessible following installation, an all-pole
isolating switch must be present on the installation side with a contact gap of at least 3 mm. Contact
protection must be ensured by the installation.
Fuse protection: see instructions for use-technical data.
7
WARNING:
The gap between the worktop and the appliance must not be closed
by additional battens.
Installation Requirements
