Zline ATTAINABLE LUXURY RABZ-24-CB Assembly instructions

DUAL FUEL RANGE
Installation Guide and User Manual

ZLINE Kitchen and Bath provides Attainable Luxury, where the kitchen and bath of your
dreams is never out of reach. Through our unique designs and unparalleled quality, we’re
dedicated to providing you an elevated experience in the heart of your home. With an
endless selection of features and finishes, our inspiration is your reality.
ZLINE is fueled by a passion for innovation; A relentless pursuit of bringing the highest end
luxury designs and professional features into everyone’s homes. Because we continually strive
to improve our products, we may change specifications and designs without prior notice.
REGISTERING YOUR PRODUCT
Please register your ZLINE appliance to activate your warranty.
Begin the simple registration process by scanning the QR code.
By registering your appliance, you will have access to:
• Technical Support
• Warranty Service
• Tracking your support inquiries
• Tracking your support inquiries
WARNING: This product can expose you to chemicals including nickel, which is known to the
State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
SCAN ME

WARRANTY
WHAT IS NOT COVERED
1. Installation or start-up, damages or problems caused by improper installation or
use.
2. Improper liquid propane conversion or damage related to improper liquid
propane conversion.
3. Cook top burner flame adjustments or related complaints.
4. Service by an unauthorized service providers or damage related to unauthorized
service or unauthorized parts.
5. Installation in any commercial or non-residential application.
6. Corrections regarding normal adjustments or settings, or local gas supply issues
resulting in low gas pressure or other issues.
7. Removal or re-installation cost.
8. Aesthetic damage, scratches, or natural wear caused by normal use.
9. Second-hand, open box products or products purchased from an unauthorized
retailer.
10. Service for gas pressure issues related to installation at high altitudes. A high-
altitude pressure regulator must be sourced by the customer.
NOTE: In the event that service is dispatched, and it is discovered that the reported
issue is not covered under warranty based on the disclaimers above, the customer will
be responsible for all service fees. Failure to pay these fees will result in the forfeiture
of remaining warranty coverage.
WARRANTY
COVERAGE
ZLINE Kitchen and Bath range products will be warrantied for one year from the original
purchase date for the original purchaser of the product. This warranty covers all parts and
labor for necessary repairs if any part of the product proves to be defective in materials
or workmanship. The product must be deemed serviceable via troubleshooting with the
ZLINE Kitchen and Bath service team. All service on ZLINE Kitchen and Bath range
products under the above warranty must be performed by ZLINE approved and certified
service, unless otherwise specified by ZLINE Kitchen and Bath. Service will be provided
during normal business hours.
TERMS
This warranty applies only to the original purchaser of a range product installed for
normal residential use. This is defined as a single-family, residential dwelling in a non-
commercial setting. Commercial settings include but are not limited to: schools, churches,
hotels, restaurants, vacation rentals such as Airbnb, day care centers, private clubs, fire
stations, common areas in multi-family dwellings, nursing homes, food service locations,
and institutional food service locations such as hospitals or correction facilities. This
warranty is non-transferable and will not be extended based on the date of installation.
The warranty applies only to products installed in the continental United States and the
District of Columbia.
Failure to secure certified warranty service per these terms will result in a forfeiture of
the remaining warranty. Out of pocket payments will not be reimbursed unless prior
approval is received from ZLINE Kitchen and Bath and/or our service contract partner.
Unapproved out of pocket payments for service will not be reimbursed. All warranty
procedures must be followed to maintain warranty coverage.
Warranty shall not apply and ZLINE Kitchen and Bath is not responsible for damage
resulting from negligence, improper maintenance, misuse, abuse, alteration of or
tampering with the appliance, accident, natural disaster, improper electric supply,
flare-up fires, unauthorized service or repair, improper installation, or installation not in
accordance with the instructions contained in the manual, or the local codes.

TABLE OF CONTENTS TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS 1
WARRANTY AND SERVICE 3
PRODUCT DIMENSIONS 4
BEFORE INSTALLATION 5

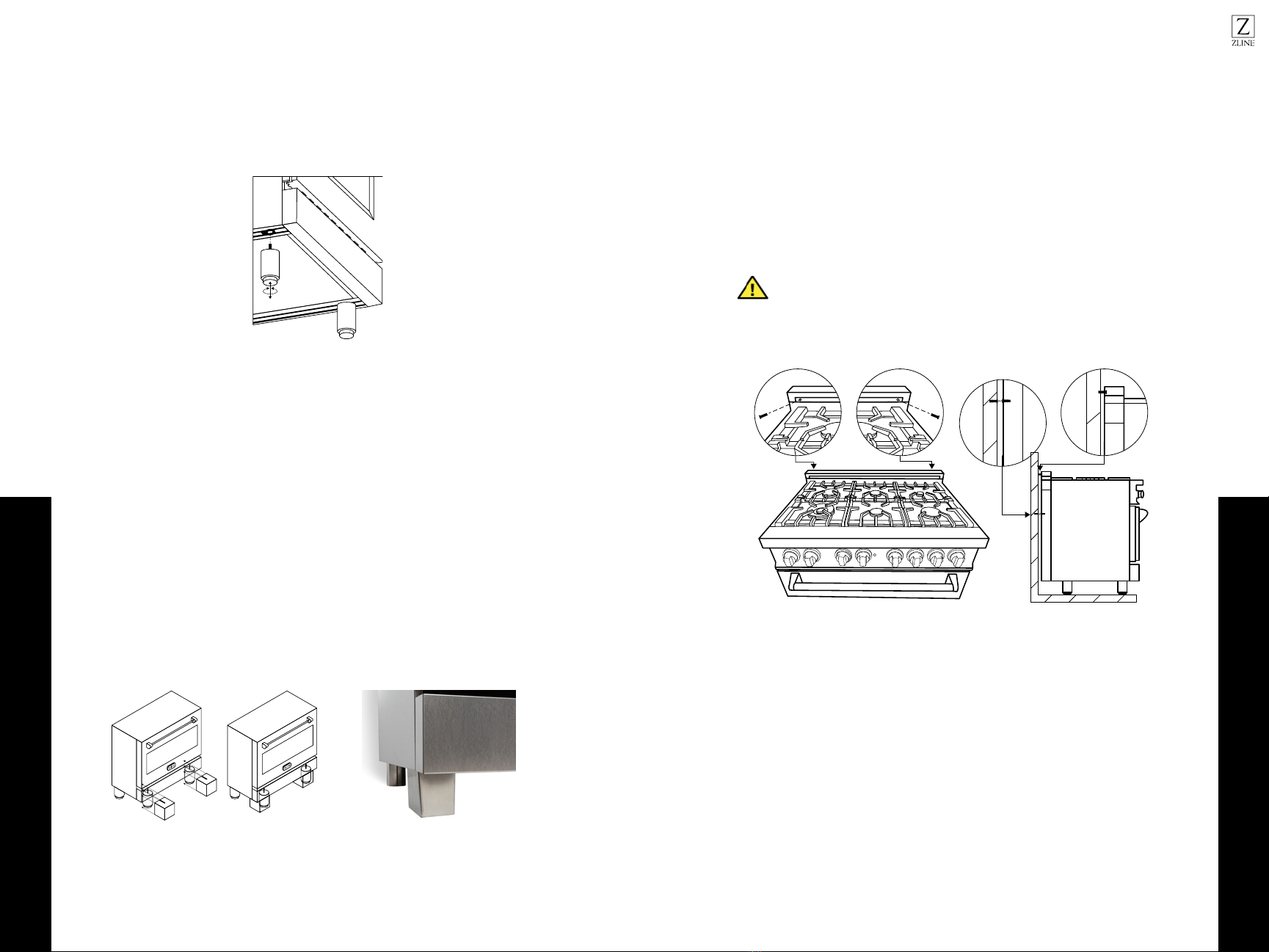

INSTALLING THE LEGS 7
INSTALLING THE CHAINS 8
INSTALLATION REQUIREMENTS 9
POWER RATING & ELECTRICAL CONNECTION 11
GAS CONNECTION 13
GAS CONVERSION PROCEDURE 16
INSTALLATION CHECKLIST 23
FINAL PREPARATION 23
ROOM VENTILATION 24
COOKTOP COOKING 24
USING THE OVEN 28
MAINTAINING YOUR RANGE 32
CHANGING DOORS 33
TROUBLESHOOTING 34

21
WARNING
An air curtain or other overhead range/cooktop hood, which
operates by blowing downward airflow onto the range, shall not be
used/installed in conjunction with this gas range.
• The manufacturer will not be responsible for any damage to property or to
persons caused by incorrect installation, improper use of the appliance, or
failure to heed the warnings listed.
• The manufacturer reserves the right to make changes to its products when
considered necessary and useful, without affecting the essential safety and
operating characteristics.
• This appliance has been designed for non-professional, domestic use only.
• Do not place any pot or pan on the open oven door. The door is made of glass
and can break under the weight.
• Before beginning installation, please read these instructions completely and
carefully.
• Please observe all local, state and national codes and ordinances. Please ensure
the range is properly grounded. The installer should leave these instructions with
the consumer who should retain for local inspectors use and for future reference.
The plug should always be accessible. Installation must conform with local codes
or in the absence of codes, the National Fuel Gas Code NSIZ223. 1/NFPA54.
Electrical installation must be in accordance with the National electrical code
ANSI/NPA70-latest edition and/or local codes. In Massachusetts: Installation
must be performed by a “Massachusetts” licensed plumber or gasfitter. A “T”
handle type manual gas valve must be installed in the gas line connected to
this appliance. In Canada: Installation must be in accordance with the current
CAN/CGA-fe 149.1 National gas installation code or CAN/CGA-B 149.2,
Propane installation code and/or local codes. Electrical installation must be in
accordance with the current CSA C22.1 Canadian electrical codes Part 1 and/
or local codes.
• The installation of appliance designed for manufactured (mobile) home
installation must conform with the Manufactured Home Construction and Safety
Standard,Title 24CFR,Part 3280 [formerly the Federal Standard for Mobile
Home Construction and Safety,Title 24,HUD(Part280)] or with local codes
where applicable.
IMPORTANT SAFETY INSTRUCTIONS
• Installation of any gas-fired equipment should be made by a licensed plumber.
A manual gas shut-off valve must be installed in the gas supply line ahead of the
oven in the gas flow for safety and ease of service.
• Please ensure that the altitude of your home is conducive for the use of gas
cooking products. If the product is installed at higher altitudes above sea
level, you may experience issues with gas pressure that will affect product
performance. Please consult your local gas company for recommendations
before purchasing or installing
• Please read and follow these important instructions for the safety of your home
and the people living in it.
• Do not store or use gasoline or any other flammable substances in the vicinity of
this or any other appliance.
• NEVER cover any slots, holes, or passages in the oven bottom or cover an entire
rack with materials such as aluminum foil. Doing so blocks air flow through the
oven and may cause carbon monoxide poisoning. Aluminum foil linings may
also trap heat, causing a fire hazard.
WHAT TO DO IF YOU SMELL GAS
• DO NOT light any appliance.
• DO NOT touch any electrical switch.
• DO NOT use any phone in your building.
• DO NOT use any aerosol cans or combustibles.
• Move a safe distance away from the area and call the gas supplier. Follow the
gas supplier’s instructions.
• In the case you cannot reach the gas supplier, call the fire department.
• Installation and service must be conducted by a qualified installer, service
agency, or the gas supplier.
WARNING
If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury, or
death.
WARNING
Never use this appliance as a space heater to heat or warm the room.
Doing so may result in carbon monoxide poisoning and overheating of
the oven.
IMPORTANT SAFETY INSTRUCTIONS
General Safety
Gas Safety

43

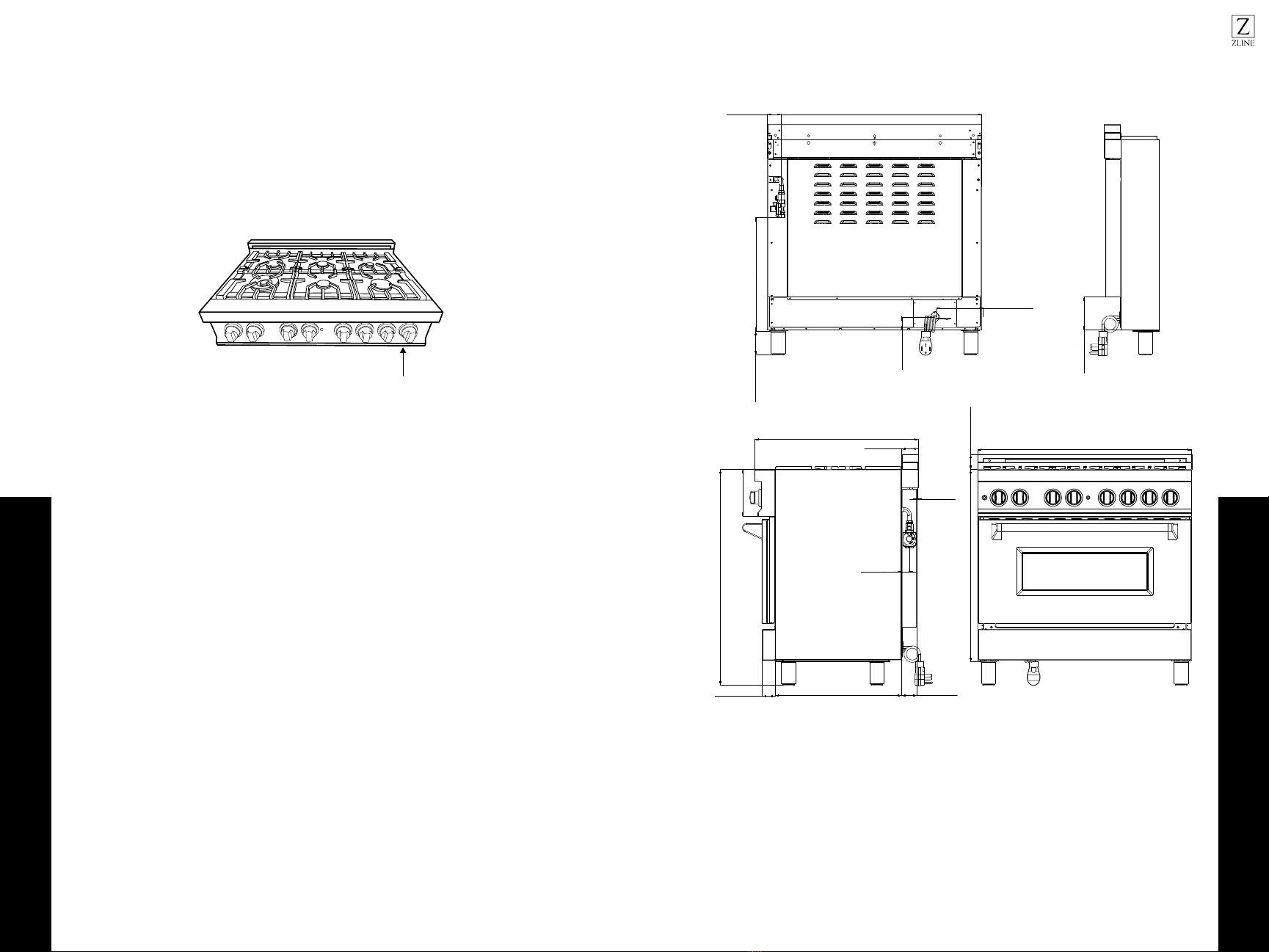

“A” will change with size of range (24”-60”).
BEFORE INSTALLATION
2"8/16（63.5）
A
32"1/8 (816)
7"7/8（200）
36"（916）
2"3/4（70）
27"7/16（695）
1"1/4（33）
3/16"（5）
2"3/16（54.5） 21"1/8（537） 2"9/16（65）
32 “
1
/8
A
2“
1
/8
“
3
/16
2“
9
/16
2“
3
/4
27 “
7
/16
7“
7
/8
36”
2“
3
/16 21 “
1
/8
1“
1
/4
5"9/16 (140)
7"13/16(198.5)
2"3/16 (55)
18"13/16（480）
3"15/16（100）
2"5/16（59） A
3 “
15
/
16
2 “
5
/
16
18 “
13
/
16
5“
9
/
16
7“
13/
16
2“
3
/
16
Please keep this manual for future use.
The rating tag shows the model and serial number of your range. The tag is located under
the front edge of the range cooktop. The tag is visible when the oven door is open. Do not
remove permanently affixed labels, warnings, or plates from the product. This will void the
warranty.
WARRANTY AND SERVICE
All range products carry a one year parts warranty and includes service, if required.
Service on all products shall be carried out by industry professionals only. For warranty
service, please call customer service.
REPLACEMENT PARTS
Only authorized replacement parts may be used in performing service on this appliance.
Replacement parts are available from ZLINE. Call 1-614-777-5004.
WARRANTY AND SERVICE
Appliance Tag Here
Warranty and Service
Product Dimensions

65
ROOM VENTILATION
An exhaust fan may be used with the appliance; in each case it shall be installed
in conformity with the appropriate national and local standards. Exhaust hood
operation may affect other vented appliances; in each case it shall be installed in
conformity with the appropriate national and local standards.

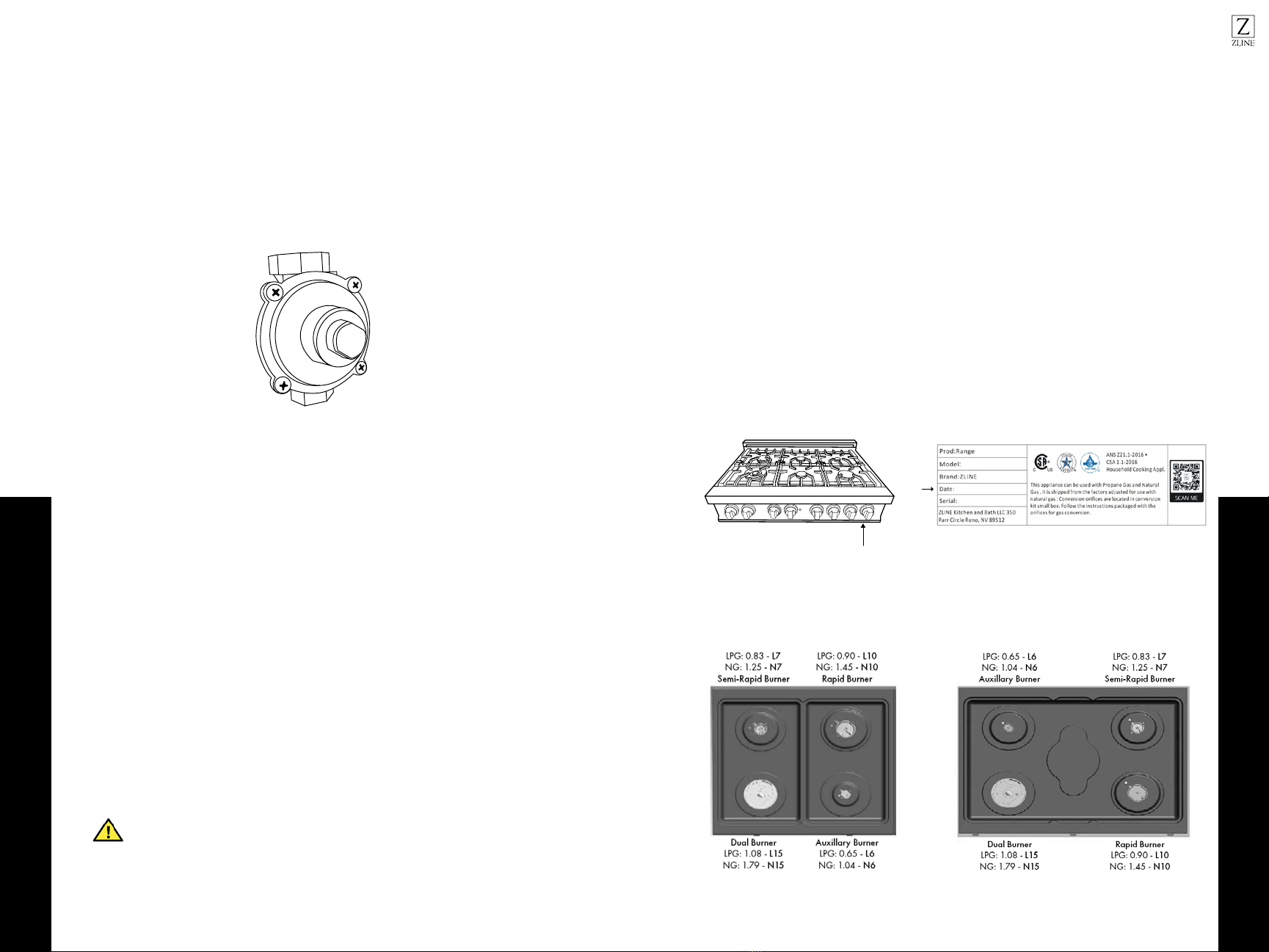

TYPE OF GAS
This appliance is shipped from the factory for use with natural gas. For use with
propane LP gas, please follow the conversion procedure described on page 18. A
step by step conversion procedure is also included with each set of LP gas nozzles.
GAS PRESSURE
• The maximum inlet gas supply pressure incoming to the gas appliance pressure
regulator is 1/2 PSI.
• The minimum gas supply pressure for checking the regulator setting shall be
at least 1˝ w.c (249 Pa) above the inlet specified manifold pressure to the
appliance (This operating pressure is 4˝ w.c. (1.00kPa) for Natural gas and 11˝
w.c. (2.75 kPa) for LP gas.
• Gas cooktop requires 1”- 6” side wall spacing above the counter height for
proper combustion. Please review specific model installation instructions for
required dimensions. 30 inches between the cooktop and bottom of the cabinet
above. 0.25 inches for sides below countertop height.
NOTE: Please consult your local building codes for variations with installation.
BEFORE INSTALLATION
Gas Supply
• This appliance shall only be installed by an authorized professional.
• The appliance shall be installed in accordance with the standards of the country
where it will be installed. The installation of this appliance must conform to local
codes and ordinances. In the absence of local codes installation must conform
to American National Standards, National fuel Gas code ANSI Z223.1-Latest
edition/NFPA 54 or B 149.1.
• The appliance, when installed, must be electrically grounded in accordance with
local codes or, in the absence of local codes, with the National Electrical code,
ANSI/NFPA 70.
• In Canada: Installation must be in accordance with the current The Natural Gas
and Propane Installation code, CAS B149.1. and/or local codes. Electrical
installation must be in accordance with the current CSA C22.1 Canadian
Electrical Codes Part 1 and/or local codes.
• If local codes permit, a flexible metal appliance connections with the new AGA
or CGA certified design, 3/4˝, is recommended for connecting this appliance
to the gas supply line. DO NOT bend or damage the flexible connector when
moving the appliance.
• This appliance must be used with the pressure regulator provided. The regulator
must be properly installed in order to be accessible when the appliance is
installed in its final location. The pressure regulator must be set for the type of gas
to be used. The pressure regulator has 1/2” connection female pipe thread. The
appropriate fitting must be determined based on the size of your gas supply line,
the flexible metal connector and the shut-off valve.
• The appliance must be isolated from the gas supply piping system by closing its
individual manual shut-off valve during any pressure testing of the gas supply
piping system at test pressures equal to or less than 1/2 PSI.
• All opening holes in the wall and floor, back and under the appliance shall be
sealed before installation of the appliance.
• A manual valve shall be installed in an accessible location in the gas line
external to the appliance for the purpose of turning on and shutting off the gas to
the appliance.
Do not use aerosol sprays in the vicinity of this appliance
while it is hot.
WARNING
BEFORE INSTALLATION
Gas Supply

87
INSTALLING THE CHAINS
The chains shipped with the range must be properly secured to the rear wall. The
height of the bracket from the floor must be determined after the range legs have
been adjusted to the desired height and after the range has been leveled. If the chain
length is too short to properly secure the range to the rear wall, ask the installer to
lengthen it.
1. Measure the distance from the floor to the where the chains connect on the back
of the appliance.
2. Position the ends of the chains on the wall at the desired height plus 1/8 (0.32
cm). The chains must be placed at 2 5/16” (6.0 cm) from the side of the range.
The distance between the two chains is 25 1/4 “(64.1 cm).
3. Secure the ends of the chains to the wall with appropriate hardware.
4. Slide the range against the wall.
5. Check to see that the chains are connected properly. Then grasp the top rear
edge of the range and carefully attempt to tilt it forward. Verify that the chains
are engaged.
6. Or tighten the chains up with fixed screws on the wall. If the wall is not suitable
for installation, then the chains should be fixed to the cabinet structure.
A child or adult can tip the range and be fatally injured; Adjust the
chains if the range is moved. Failure to do so can result in death or
serious injury.
WARNING
Installing the Anti-Tip
Stability Device
INSTALLATION
Installing the Chains
The ranges must be used with the legs properly installed. Height-adjustable legs are
shipped with the range in a foam container above the range.
1. Before installing the legs, position the appliance near its final location, as the
legs are not suitable for moving the appliance over long distances.
2. After unpacking the range, raise it enough to insert the legs in the appropriate
receptacles situated on the lower part of the appliance. Lower the range gently
to keep any undue strain from legs and mounting hardware.
3. Adjust leg height to the desired level by twisting the inside portion of the leg
assembly until the proper height is reached. Check with a level that the cooktop
is perfectly level.
INSTALLING THE SQUARE COVERS
Some ranges come with attachable square leg covers. To install, loosen the round leg
from the range to accommodate for the square leg. Align the top of the square leg (with
the slit) to the top of the round legs and slide in. Adjust the square leg and the round leg
until they are flushed with the ground.
Installing the Legs
NOTE: If the range is not level, the cooking will be uneven. When adjusting the legs,
ensure they are the same height.
INSTALLATION
Installing the Legs

109
INSTALLATION
Installation Requirements
Cooking Range
13 ”
location of gas
and electrical
extends on floor
36-38”
to cooking
surface
35” to 40”
to bottom of
ventilation hood
W
opening width
18 ”
6”
Front View
Side View
2 ³/₄”
3.23”
3.23”
5 ³/₄”
9 ³/₄”
12”
gas
5”
gas
2”
27 ¹/₂”
EXTERNAL DIMENSIONS:
24” Model: 24”W x 27.4”D x 36”H
30” Model: 30”W x 27.4”D x 36”H
36” Model: 36”W x 27.4”D x 36”H
48” Model: 48”W x 27.4”D x 36”H
60” Model: 60”W x 27.4”D x 36”H
INTERNAL DIMENSIONS
24” Model: 18.5”W x 18.5” D x 14”H
30” Model: 26.5”W x 18.5”D x 14”H
36” Model: 30.5”W x 18.5”D x 14”H
48” Model: 26.5”W/12.5”W x 18.5”D x 14”H
60” Model: 30.5”W/18.5”W x 18.5”D x 14”H
A properly grounded and horizontally-mounted electrical receptacle type NEMA 14-
50P should be installed no higher than 3” above the floor, no less than 2” and not more
than 8” from the left side (facing product); refer to electrical connection section.
GAS
• An agency-approved, properly-sized manual shut-off valve should be installed no
higher than 3” above the floor and no less than 2” and no more than 8” from the
right side (facing product).
• To connect gas between shut-off valve and regulator, use agency-approved,
properly sized flexible or rigid pipe. Check all local code requirements.
INSTALLATION ADJACENT TO KITCHEN CABINETS
• The range may be installed directly adjacent to existing countertop height cabinets
(36”) from the floor.
• For the best look, the worktop should be level with the cabinet countertop. This can
be accomplished by raising the unit using the adjustment spindles on the legs.
• ATTENTION: The range CANNOT be installed directly adjacent to kitchen walls, tall
cabinets, tall appliances, or other vertical surfaces above 36˝ high. The minimum
side clearance in such cases is 6”.
• Wall cabinets with minimum side clearance must be installed 18˝ above the
countertop with countertop height between 35.5” and 37.25”. The maximum depth
of wall cabinets above the range shall be 13”.
WARNING
WARNING: Do not install ranges in an island configuration. Exposed areas
of the range may become hot and can cause injury.
INSTALLATION
Installation Requirements

1211
Electrical Connection
INSTALLATIONINSTALLATION
Power Rating & Electrical Connection
L2 (red)
N (white)
G (green)
L1 (black)
L2 (red)
N (white)
G (green)
L1 (black)
cable from
power supply
Four-Wire Connection
Receptacle
NEMA 14-50R
ELECTRICAL GROUNDING
Our oven is equipped with a four-prong plug for your protection against shock
hazard and should be plugged directly into a properly grounded receptacle. Do not
cut or remove the prong from this plug.
Disconnect electrical power at the circuit breaker box or fuse box
before installing the appliance.
Provide appropriate ground for the appliance. Use copper conductors
only.
No attempt should be made to operate the appliance during power
failure.
WARNING
ELECTRIC POWER RATING
24”
240 VAC
NEMA 14-50P (50 AMP plug)
20A
30”-36”
240 VAC
NEMA 14-50P (50 AMP plug)
15 A
48”
240 VAC
NEMA 14-50P (50 AMP plug)
30A
60”
240 VAC
NEMA 14-50P (50 AMP plug)
40A

1413
MANUAL SHUTOFF VALVE
• This valve is not shipped with the appliance and must be provided by the
installer.
• The manual shut-off valve must be installed in the gas service line between the
gas hook-up on the wall and the appliance inlet, in position where it can be
reached quickly in the event of an emergency.
• In Massachusetts: A T handle type manual gas shut-off valve must be installed in
the gas supply line to this appliance.
FLEXIBLE CONNECTIONS
• In case of installation with flexible couplings and/or quick-disconnect
fittings, the installer must use a heavy duty, AGA design-certified commercial
flexible connector of at least ½˝ (1.3cm) IF NPT (with a suitable strain relief in
compliance with ANSI Z21.41 and Z21.69 standards.
• In Massachusetts: The unit must be installed with a 36˝ (3 foot long) flexible gas
connector.
• In Canada: Use CAN 1-6. 10-88 metal connectors for gas appliances and
CAN 1-6.9 M79 quick disconnect device for use with gas fuel.
PRESSURE TEST POINT STOPPER VALVE
To avoid gas leaks, the pressure test-point stopper valve and gasket supplied with the
range must be installed on the gas fitting at the back of the range according to the
diagram below.
INSTALLATION
GAS CONNECTION
• All gas connections must comply with national and local codes. The gas supply
line (service) must be the same size or greater than the inlet line of the appliance.
This range uses a ½˝ NPT inlet. Use appropriate sealant on all pipe joints that
are resistant to gas.
• This range can be used with Natural or LP/propane gas. The range is shipped
from the factory for use with natural gas.
• For LP/Propane household installation, the appliance must be converted by the
dealer, factory-trained professional, or qualified licensed plumber or gas service
company.
• Gas conversion is important for safe and effective use of the appliance. It
is the responsibility of the dealer and the owner of the range to perform the
appropriate gas conversion following the directions of the manufacturer.
• The gas conversion procedure is described in this manual and in the package
containing the conversion nozzles shipped with every range.
• Please provide the service person with this manual before work is started on the
range.
Leak testing of the appliance shall be conducted according to the manufacturer’s
instructions. Before placing the oven into operation, always check for leaks with
soapy water solution or other acceptable method. Check for gas leakage with soapy
water solutions on all gas connections between inlet gas pipes of the appliance, the
gas regulator and, the manual shut-off valve. Bubbles will form with a soapy water
solution if there is a leak.
DO NOT use an open flame when checking for leaks.
WARNING
INSTALLATION
Gas Connection

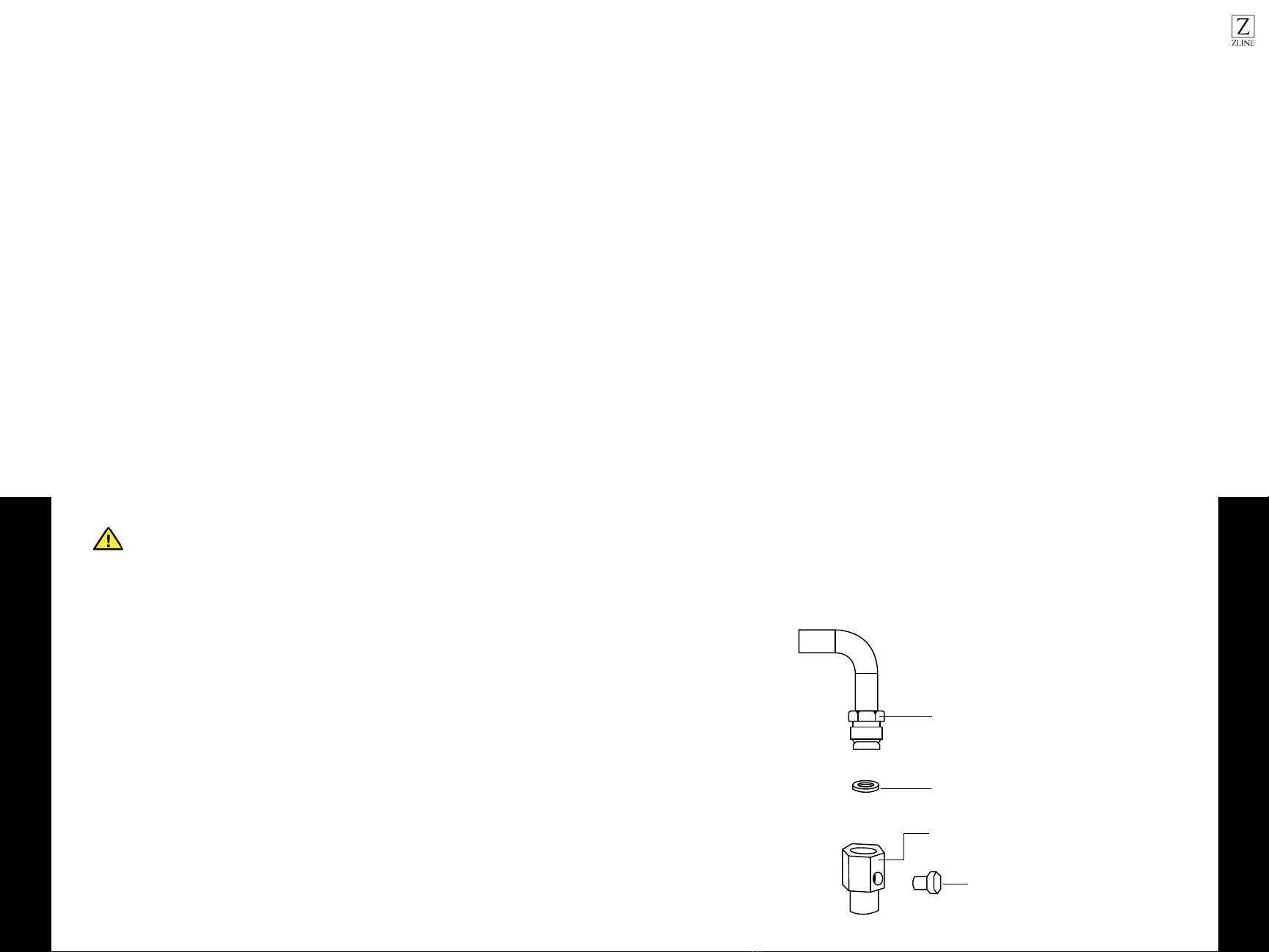

Gas Connection
Gas pipe
Gasket
Gas connection adaptor 1/2” NPT with
pressure test point 1/8” NPT (to be fixed
toward external side of the appliance)
Pressure test-point stopper

1615
The gas conversion procedure for this range includes:
1. Pressure Regulator
2. Surface Burners
3. Flame Adjustment
The conversion is not finished if all steps are not completed.

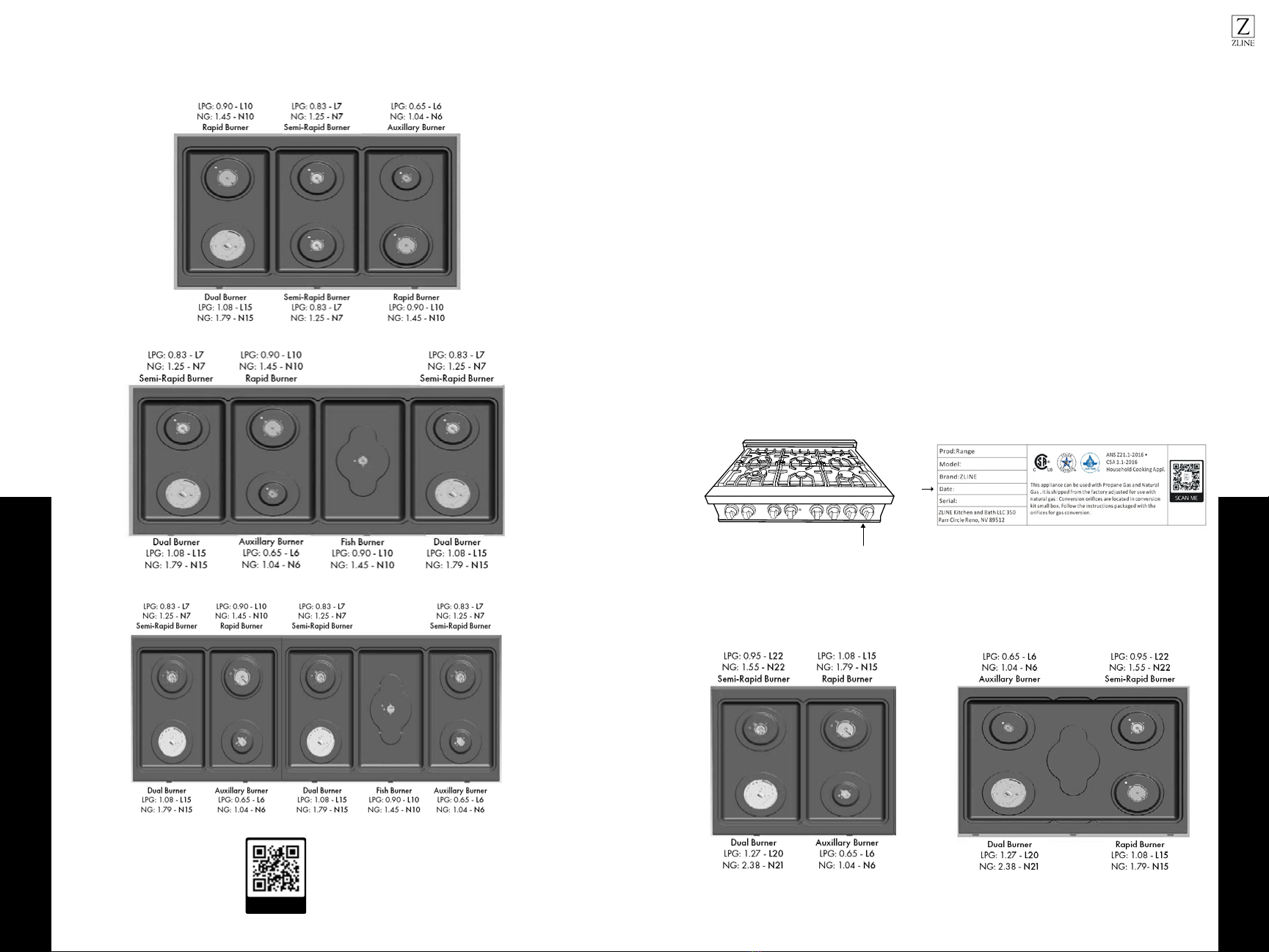

Before performing the gas conversion, locate the package containing the
replacement nozzles, which has a number indicating its flow diameter printed on the
body. Consult the table below for matching nozzles to burners.
Save the nozzles removed from the range for future use.
Reference the diagrams below if your range was manufactured before May 2021.
To check, reference the rating label under the front edge of the range.
LPG: Liquid Propane Gas
NG: Natural Gas
INSTALLATION
PRESSURE REGULATOR
Since service pressure may fluctuate with local demand, every gas cooking
appliance must be equipped with a pressure regulator on the incoming service line
for safe and efficient operation.
• The pressure regulator shipped with the appliance has two female threads 1/2”
NPT. The regulator shall be installed properly in order to be accessible when the
appliance is installed in its final position.
• Manifold pressure should be checked with a manometer and comply with the
values indicated below.
Natural Gas->4.0”W.c.P
L P/Propane-> 10.0” W.c.P
• Incoming line pressure upstream from the regulator must be 1˝ W.C.P. higher
than the manifold pressure in order to check the regulator.
• The regulator used on this range can withstand a maximum input pressure of ½
PSI (13.8˝ W.C or 3.5kPa) If the line pressure exceeds that amount, a step down
regulator is required.
• The appliance, its individual shut-off valve, and the pressure regulator must be
disconnected from the gas line during any pressure testing of that system at
pressures in excess of ½ PSI (13.8˝ W.c or 3.5kPa).
Pressure Regulator
Before carrying out this operation, disconnect the appliance from gas
and electricity.
Gas conversion shall be conducted by a factory-trained professional.
WARNING
INSTALLATION
Gas Connection
Gas Connection
Appliance Tag Here

1817
INSTALLATION
Gas Connection
Propane
Conversion
Video
SCAN ME
SCAN ME
Gas Connection
The gas conversion procedure for this range includes:
1. Pressure Regulator
2. Surface Burners
3. Flame Adjustment
The conversion is not finished if all steps are not completed.
Before performing the gas conversion, locate the package containing the
replacement nozzles, which has a number indicating its flow diameter printed on the
body. Consult the table below for matching nozzles to burners.
Save the nozzles removed from the range for future use.
Reference the diagrams below if your range was manufactured after May 2021. To
check, reference the rating label under the front edge of the range.
LPG: Liquid Propane Gas
NG: Natural Gas
INSTALLATION
Appliance Tag Here

2019

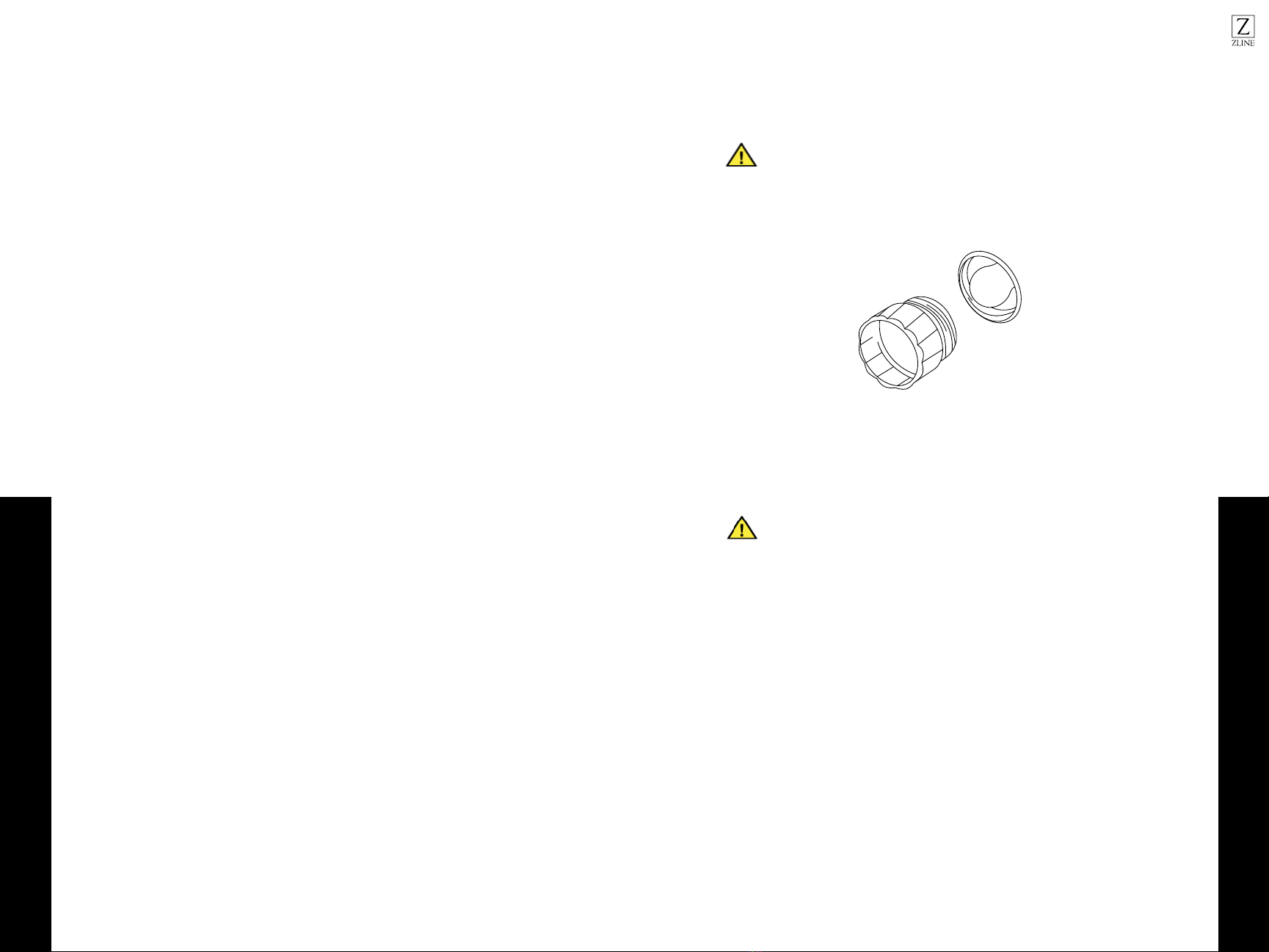

STEP 1: PRESSURE REGULATOR
The pressure regulator supplied with the appliance is a convertible type pressure
regulator for use with Natural Gas at a nominal outlet pressure of 4˝ w.c. or LP gas
at a nominal outlet pressure of 11” w.c. and it is pre-assembled from the factory
to operate with one of these gas pressure as indicated in the labels affixed on the
appliance, package, and instruction booklet.
To convert the regulator for use with other liquid propane LP gas:
1. Unscrew the front cap of the regulator (as seen below.) Inside the cap is a screw.
By hand, remove the screw to reveal a spring. Reapply the screw to the cap with
the spring revealed.
2. With the spring sticking out of the cap, reapply back to the regulator.
3. Using a manometer, double check pressure is at 11w.c. If you need to adjust the
pressure, screw or unscrew the black spacer where the spring is located.
Any issues related to improper propane conversion are NOT covered
under warranty.
WARNING
5/8
Reverse regulator
screw and spring.
Gas Conversion Procedure
PropaneNatural Gas
INSTALLATION
Gas Conversion Procedure
Gas Connection
INSTALLATION
Propane
Conversion
Video
SCAN ME
SCAN ME

2221

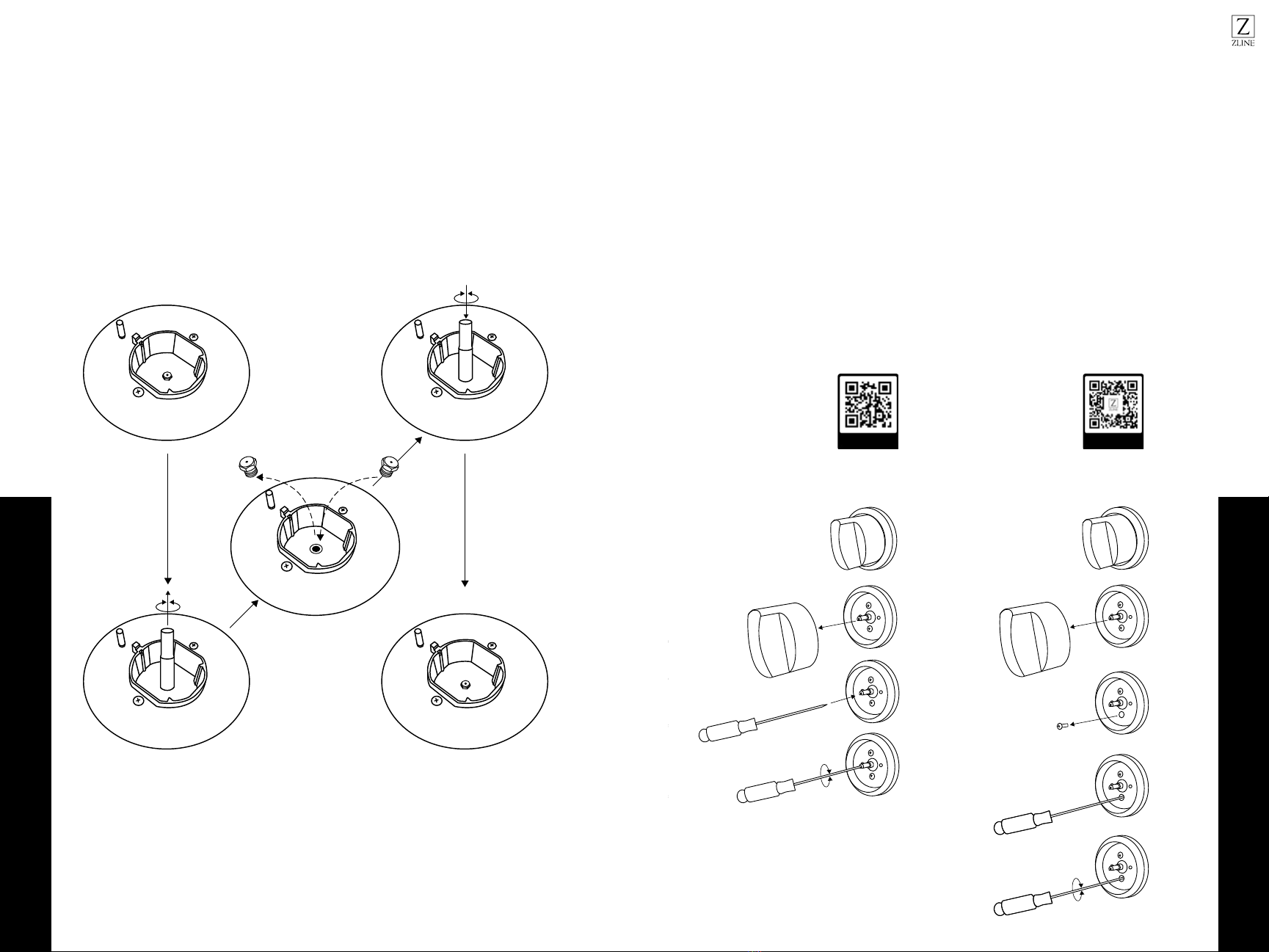

STEP 2: SURFACE BURNERS
1. To replace the nozzles of the surface burners, lift up the burners and unscrew the
nozzles shipped with the range using a 7 mm (socket wrench).
2. Replace nozzles using the conversion set supplied with the range. Each nozzle
has a number indicating its flow diameter printed on the body. Consult the table
on page 16 for matching nozzles to burners.
INSTALLATION
NG = Natural Gas
LPG = Liquid Propane Gas
NG LPG
9/32
9/32
Step1
Step 2
Step 3
Step 4
Step 5
Gas Conversion Procedure
STEP 3: FLAME ADJUSTMENT
1. Light one burner at a time and set it to the MINIMUM position (small flame).
2. Remove the knob.
3. The range is equipped with a safety valve. Using a small-size flathead
screwdriver, locate the choke screw (see diagram below) and turn to the right or
left until the burner flame is adjusted to desired minimum.
4. Make sure that the flame does not go out when switching quickly from the
MAXIMUM to the MINIMUM position.
The high flame setting cannot be adjusted to be lower. If the height is too high, revisit
the conversion set up. A step may have been missed.
INSTALLATION
2.0 x 50 mm
2.0 x 50 mm
Flame Adjustment
Flame Adjustment

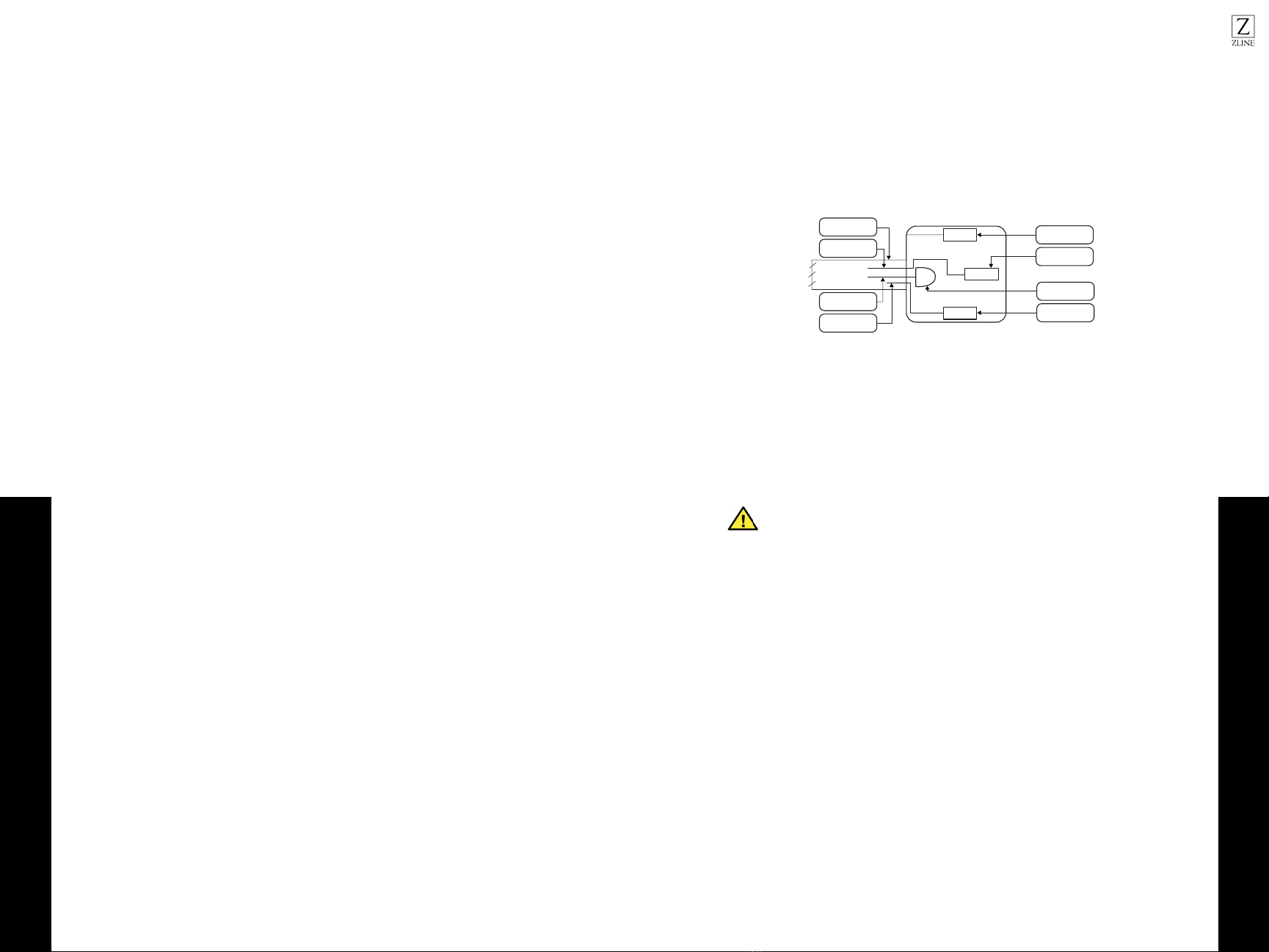

WIRING DIAGRAM
DW7714-18 & DW7713-24
18” & 24“ Panel-Ready Dishwasher
0.0.0.
FLAME ADJUSTMENT
Germania
RA series, RG series
zlinekitchen.com 1-614-777-5004 0.0.0.zlinekitchen.com 1-614-777-5004
2.0 x 50 mm
2.0 x 50 mm
If the customer flame control valve looks like this (left), then they will not be able to adjust the
flame without removing one of the screws. These new ranges are already fielded, so please
do not process returns for this issue. The valves are different from the previous ones and are
not interchangeable.
2.0 x 50 mm
2.0 x 50 mm
Flame Adjustment
SCAN ME
SCAN ME SCAN ME

2423
ROOM VENTILATION
The use of a gas cooking appliance generates heat and humidity in the room where
it is installed. Proper ventilation in the room is needed. Make sure the kitchen is
equipped with a range hood of appropriate power (400 CFM minimum). Activate
the exhaust fan/range hood when possible. Intensive and continuous use of the
appliance may require additional ventilation, for example, by opening a window.
COOKTOP COOKING
Never pour cold water onto hot surfaces in a hot oven. The steam created could
cause serious burns or scalding and the sudden change in temperature can damage
the enamel in the oven.
We recommend that before you cook in your new range you heat the oven to 380°F
for 2 hours to run in BAKE mode. After the oven cools, wipe it out with hot water and
a mild detergent. We also recommend cleaning the racks and shelves before use.
When using the range for the first time you may notice the following:
1. There may be a smell. This is quite normal when the range is first heated as
residual oil from production of parts will be burnt off quickly.
2. There may be noises. This is also quite normal as new parts move and settle into
place during the initial heating process.
• This product is intended for the cooking of food and must not be used for other
purposes.
• Unstable or deformed pans should not be placed on the burners or hot plates in
order to avoid accidents caused by spill over.
• Particular care should be taken when cooking with oil or fat.
• Always ensure that the knobs are in the “O” Off or Stop position when the
appliance is not in use.
• Before maintenance and cleaning, disconnect the appliance and allow cooling
down. For reasons of hygiene and safety this appliance must always be kept
clean.
• Take care when using cleaning products in spray form: never direct the spray
onto the electrical wiring, thermostat and bulb.
OPERATION
INSTALLATION CHECKLIST
1. Is the range mounted on its legs?
2. Is the back guard securely connected?
3. Have the chains been properly installed?
4. Does the clearance from the side cabinets comply with the manufacturers’
direction?
5. Is the electricity properly grounded?
6. Is the gas service line connected following the directions of the manufacturer?
7. Have all the proper valves, stoppers, and gaskets been installed between the
range and the service line?
8. Has the gas connection been checked for leaks?
9. Has the range been setup for the type of gas available in the household?
(propane or natural gas)
10. Does the flame appear sharp blue with no yellow tipping?
11 . Has the minimum setting for all burners been adjusted?
12. Have the cooktop flames been adjusted to customer preference?
13. Are the oven burners/elements installed properly and functioning?
FINAL PREPARATION
• All stainless steel body parts should be wiped with hot, soapy water and with a
stainless steel cleanser.
• If build-up occurs, do not use steel wool, abrasive cloths, cleaners, or powders.
If it is necessary to scrape stainless steel to remove encrusted materials, soak with
hot, wet cloths to loosen the material, and then use a wood or nylon scraper.
DO NOT use a metal knife, or any other metal tool to scrape stainless steel!
Scratches are almost impossible to remove.
• Before using the oven for food preparation, clean thoroughly with a warm
soap and water solution to remove film residues and any dust or debris from
installation, then rinse and wipe dry.
INSTALLATION
Room Ventilation
Installation Checklist

2625
OPERATION
SURFACE BURNER OPERATION  ELECTRIC IGNITION
To activate the electric ignition, simply turn the control knob counter-clockwise to
maximum power, then press the knob in to start the flow of gas and the ignition spark.
The spark will be released at the metal tip of the white ceramic pin located on the side
of the burner. Once the flame is on, release the control knob gently. If the flame turns
off, simply repeat the above procedure.
MANUAL IGNITION
Manual ignition is always possible even when the power is cut off or in the event of
a power failure. Turn the control knob counter-clockwise to the MAXIMUM position;
light the flame with a kitchen lighter or with a match.

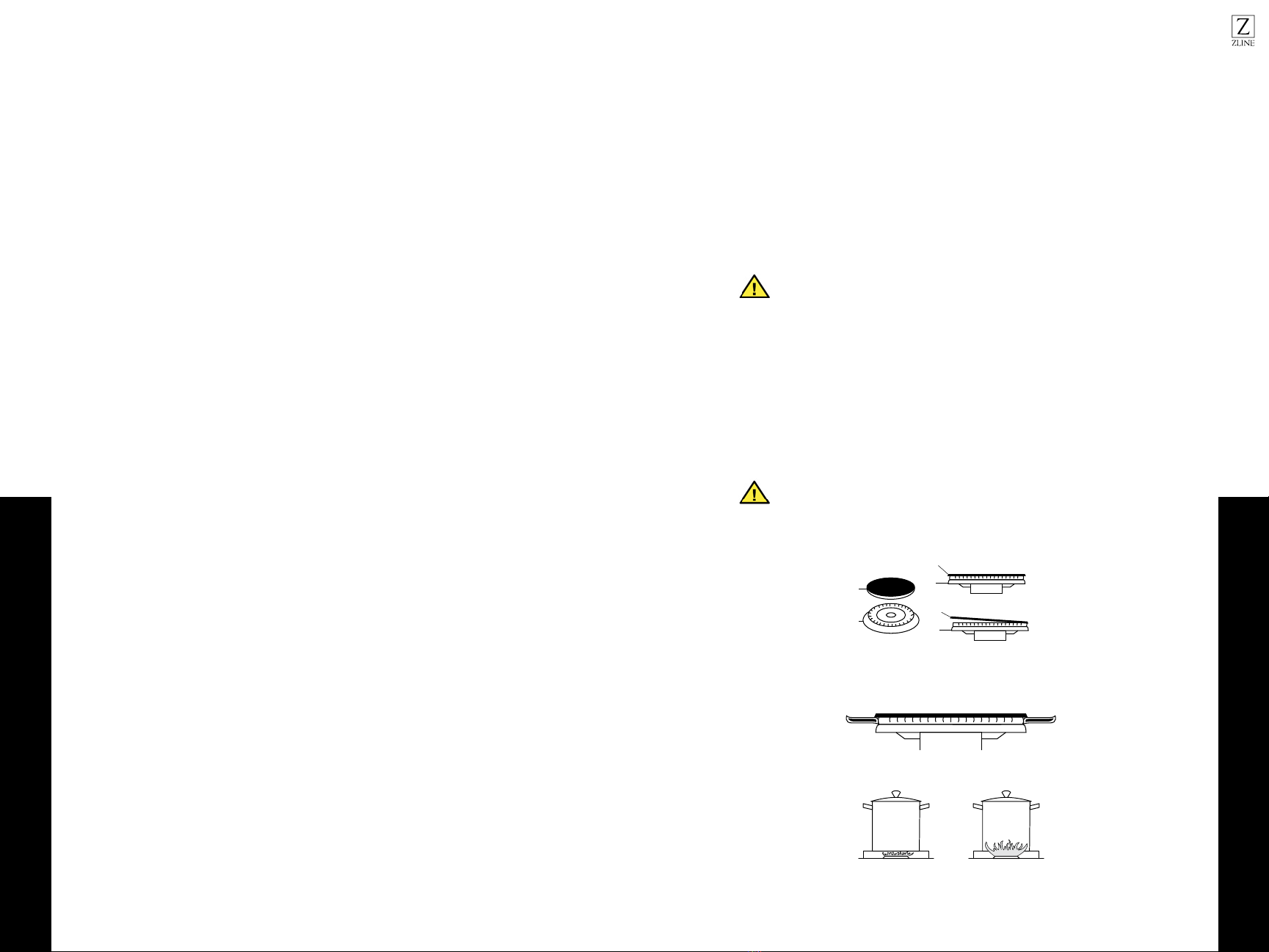

USING THE BURNERS CORRECTLY
1. Always check that the burner caps are properly installed before operation:
2. Verify that the flame of the worktop burners is completely blue and with a regular
aspect as shown below:
3. Never let flames wrap around cookware.
ZLINE cast iron griddle (only available on 48” size) comes pre-seasoned. Regularly
seasoning the griddle is recommended.
DO NOT ignite the burners if the black burner cap is not installed or
not centered, the flame will be irregular.
Keep children at a safe distance from the appliance during
operation. DO NOT allow children to operate the appliance!
A
B
A
B
Correct
Incorrect
Correct Incorrect
A
B
A
B
A
B
Correct
Incorrect
Correct Incorrect
A
B
A
B
A
B
Correcte
Incorrecte
Correcte Incorrecte
A
B
WARNING
WARNING
• Any food or liquid spills in the bottom of the oven must be cleaned up before
cooking in order to avoid unpleasant smoke and/or the possibility of fire.
• Ensure that air can circulate around the gas appliance. Poor ventilation can result
in lack of oxygen and extinguish the flame.
• The use of a gas cooking appliance produces heat and humidity in the room
where it is installed.
• Ensure good ventilation of the room, keep adequate natural ventilation or install
an extractor hood with a discharge tube.
• In case of doubt, ask installer for advice.
• Supply the appliance with the type of gas stamped on the relevant label situated
in the immediate vicinity of the gas connection tube.
• The appliance is heavy, move it carefully.
• To facilitate ignition, light the burners before placing pans on the grid.
• Check that the flame is regular.
• Always lower the flame or turn it off before removing the pan
OPERATION
Cooktop Cooking
Cooktop Cooking

2827
OPERATION

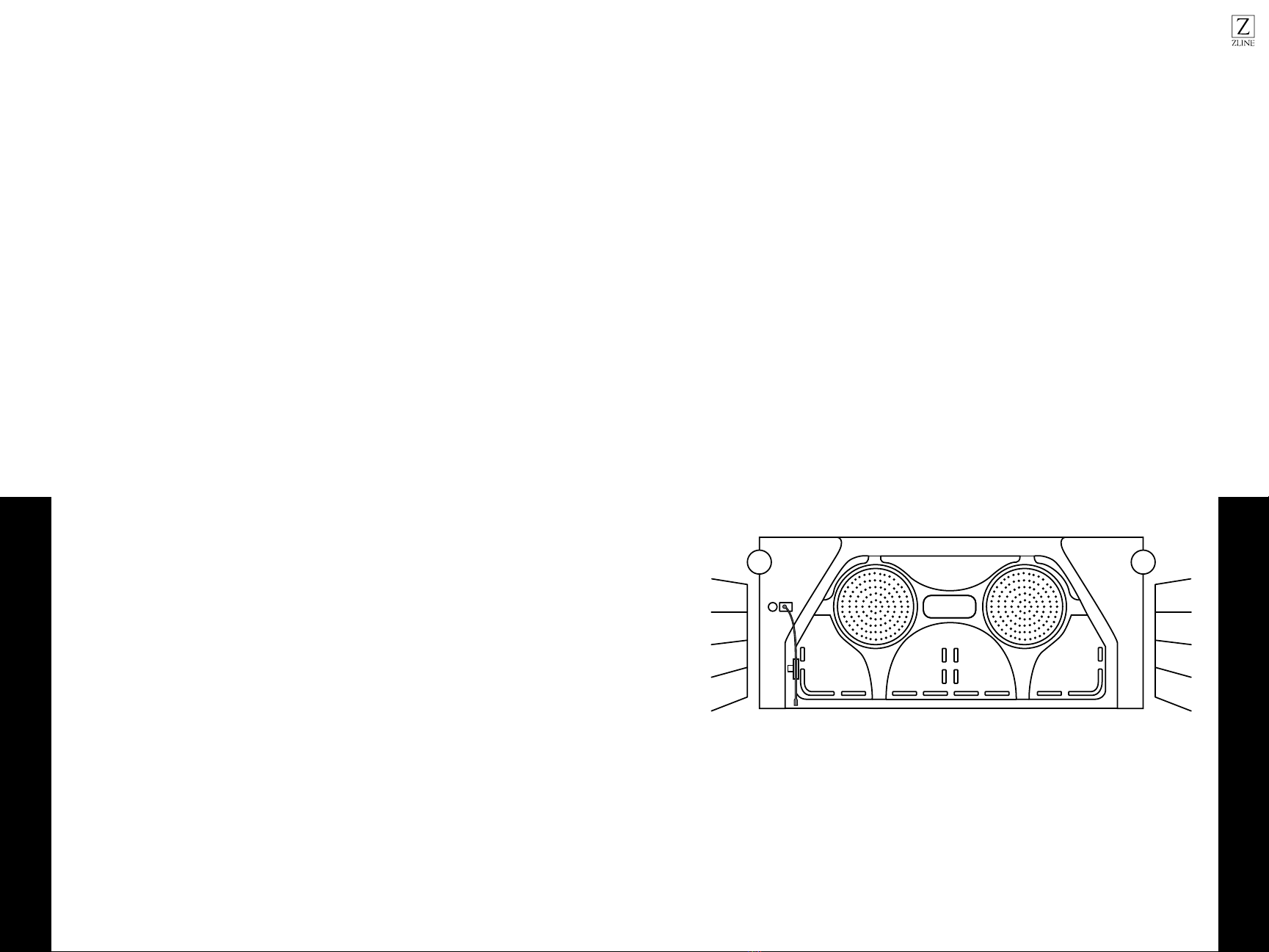

OVEN FUNCTION SELECTORS  RA/RAB/RAS MODELS
The temperature dial must be set to the preferred temperature and the baking dial
must be set to the preferred cooking function.
OFF
Max
250
300 350
400
450
Symbols:
Oven Functions Selector
OFF
Conv.
Broil
High
Bake
Broil
Low
Bake
Conv.
Bake
Symbols:
Oven Functions Selector
OPERATION
Be sure to set all worktop/oven/broiler burner controls to the OFF position after each
use of the appliance.
Maximum temperature setting/recommended control knob position for burner
ignition.
The regulating knobs should be turned in anti-clockwise direction until the small flame
symbol, vice-versa for the larger flame symbol. To light up the burner, keep pushing
the knob and turn it anti-clockwise to maximum, and hold it for 3 to 5 seconds.
The ignition will spark and ignite the burner. At this position, the gas supply is at
the maximum and the flame also at its maximum. You can reduce the flame size by
turning the knob in anti-clockwise direction. Should the burner fail to light up, turn the
knob to its original position and try again. Your burner flame should be blue in color.
NOTE: When igniting a burner, all burners will spark, but only the burner’s knob you
are using will ignite the flame.
NOTE: When first used, the gas burner will not ignite immediately. Time is required for
the LPG to fully fill the operating system.
NOTE: System cooling fan will run on all oven settings when it is in use.
OFF
OFF
OFF
The flame color should always be blue. Flickers of orange and yellow
are acceptable. If flames appear orange or yellow and stay that
way, check the surrounding area. Candles, cleaning products, and
other changes in atmosphere can affect the flame color.
Maximum Flame Height
Minimum Flame Height
WARNING
Using the Oven
Cooktop Cooking

3029
OPERATION
PLACEMENT OF OVEN RACKS CONTINUED
5. DO NOT TOUCH HEATING ELEMENTS OR INTERIOR SURFACE OF OVEN.
Heating elements may be hot even though they are dark in color. Interior
surfaces of an oven become hot enough to cause burns. During and after use,
do not touch, or let clothing or other flammable materials come into contact with
the heating elements or interior surfaces of the oven until they have had sufficient
time to cool. Other surfaces of the appliance may become hot enough to cause
burns, for example, oven vent openings and surfaces near these openings, oven
doors, and oven glass window.
6. Take care to reset all worktop/oven/broiler burner controls to the OFF position
after use of the appliance.
The ranges are equipped with commercial grade shelves and an enamel cooking
tray. Shelves are mounted on the appropriate guides situated on the sides of the
oven compartment. Insert the shelf between the top and bottom guide in any of the 5
positions available.
To keep the oven as clean as possible, cook on the tray.
When available, always follow recipe book directions. Personal experience will help
to determine any variation in the values. In any case, it is recommended to follow the
instructions of the specific recipe being used.
NOTE: If you have a griddle, you may want to clean it, but it does not need to be
seasoned before use.
OPERATION
USING PANS CORRECTLY
1. Always ensure that the bottom and handles of pans do not protrude over the
worktop.
2. When cooking with flammable fat, such as oil, do not leave the range
unattended.
3. Use pots of the appropriate size on each burner.
4. To avoid overflow when boiling liquids, turn knob to the minimum heat.
5. Always use pots with matching lids.
6. Dry the bottoms of pans before operation.
OVEN COOKING
1. Use care when opening door. Let hot air or steam escape before removing or
placing food.
2. DO NOT heat unopened food containers. Pressure build-up may cause
container to burst and result in injury.
3. Keep oven vent ducts unobstructed.
PLACEMENT OF OVEN RACKS
1. Always place oven racks in desired location while oven is cool. If rack must
be moved while oven is hot, DO NOT let potholder make contact with heating
element in oven.
2. DO NOT CLEAN DOOR GASKETS. The door gasket is essential for a good seal.
Care should be taken not to rub, damage, or move the gasket.
3. DO NOT USE ABRASIVE OVEN CLEANERS. No commercial oven cleaner
or liner protective coating of and kind should be used in or around any part of
the oven. Clean only the parts listed in the manual, before cleaning the oven,
remove broiler pan and other utensils.
4. In case of electric power failure reset oven/broiler controls to the OFF position,
do not attempt to use oven/ broiler until the power has been restored.
Using the Oven
Using the Oven

3231
MAINTENANCE AND CLEANING
REPLACING THE OVEN BULBS
To replace the oven light bulb, unscrew the protection cap that projects out inside the
oven.
NOTE: Touching the bulb with your fingers may cause the bulb to burn out. Always
use protective gloves or a clean cloth to remove the bulb.
CLEANING YOUR RANGE
• Cleaning after Installation: Use a stainless steel cleaning product or wipe to
eliminate the glue residues of the protection film after removal.
• Cleaning the Worktop: Periodically clean the burner heads, the cast iron pan
supports, and the burner caps using warm water. Remove burner food and fat
residues with a rubber spatula.
• Cleaning Stainless Steel: Use a stainless steel cleaner product with a soft sponge
or cloth with a warm soap and water solution. Never use abrasive powders or
liquids.
• Cleaning the Burner Caps: Lift the burner caps from the burner heads and wash
them in a warm soap and water solution. Dry thoroughly before using them
again. Before reinstalling them on the burner head, check that the gas flow holes
are not clogged with food residues or cleaning products.
During cleaning operation, never move the appliance from its original
installation position. Never use abrasive cleaners! Scratches on the stainless
steel surfaces are permanent. Do NOT clean the range when hot!
WARNING
Disconnect the power before servicing the unit.
WARNING
OVEN OPERATION GUIDE
• Preheat/High Bake: Use this setting for preheating the oven. This setting utilizes
the center ring on the top heating element, the bottom heating element, and the
convection fans.
• Bake/Low Bake: This setting uses only the bottom heating element. This setting is
best for non-convection cooking.
• Convection Bake: This setting uses both the bottom heating element and
convection fans.
• Broil: This setting uses only the top heating element.
• Convection Broil: This setting uses both the top heating element and the
convection fans.
Maintaining the Range
Using the Oven
