Installation Manual
SINGLE WALL OVEN

ZLINE Kitchen and Bath provides Attainable Luxury, where the kitchen and bath of your dreams
is never out of reach. Through our unique designs and unparalleled quality, we’re dedicated to
providing you an elevated experience in the heart of your home. With an endless selection of
features and finishes, our inspiration is your reality.

WARNING: This product can expose you to chemicals including nickel, which is known to the
State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
ZLINE is fueled by a passion for innovation; A relentless pursuit of bringing the highest end luxury
designs and professional features into everyone’s homes. Because we continually strive to improve
our products, we may change specifications and designs without prior notice.

1
Proper Installation
WARNING
If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury,
or death.
Before beginning installation, please read and follow these important instructions for
the safety of your home and the people living in it. Always read and obey all safety
measures. To reduce the risk of fire, electrical shock, injury to persons, or damage
when using the oven, follow basic precautions, including the following:
PROPER INSTALLATION
This appliance must be properly installed and electrically grounded by a qualified
technician. Connect only to a properly grounded outlet. See the “Electrical
Grounding Instructions” section in the Installation Guide for this product.
• This appliance should be serviced only by a qualified service technician. Contact
the nearest authorized service center for examination, repair, or adjustment.
• Do not repair or replace any part of the oven unless specifically recommended
by a professional. Refer service to an authorized servicer.
• Do not operate this appliance if it is not working properly or if it has been
damaged until an authorized servicer has examined it.
• Install this appliance only in accordance with the installation instructions.
• Use this oven only as intended by the manufacturer. If you have any questions,
contact ZLINE at 1-614-777-5004.
• Do not cover or block any openings on this appliance.
• Do not use corrosive chemicals, vapors, or nonfood products in this appliance.
This type of oven is specifically designed to heat or cook. It is not designed for
industrial or laboratory use. The use of corrosive chemicals in heating or cleaning
will damage the appliance.
• The manufacturer will not be responsible for any damage to property or to
persons caused by incorrect installation, improper use of the appliance, or failure
to heed the warnings listed, and the warranty will be voided.
SAFETY INSTRUCTIONS

2
Personal Safety
SAFETY INSTRUCTIONS
• Do not overcook food. Carefully attend oven if paper, plastic or other
combustible materials are placed inside the oven.
• Do not use the cavity for storage purposes. Do not leave paper products,
cooking utensils or food in the cavity when not being used.
TO REDUCE THE RISK OF FIRE INSIDE THE OVEN
• Do not store flammable materials in or near the oven.
• Do not use water on a grease fire. Smother fire or use a dry chemical or foam-
type extinguisher.
• It is highly recommended that a fire extinguisher be readily available and highly
visible next to any cooking appliance.
• Do not overcook food. Carefully oversee oven if paper, plastic, or other
combustible materials are placed inside the oven.
• Do not use the oven for storage purposes. Do not leave paper products, cooking
utensils, or food in the oven when not being used.
• If materials inside the oven should ignite, keep the door closed. Turn oven off and
disconnect the circuit at the circuit breaker box.
• Be sure the cooling fan runs whenever the oven is in operation. If the fan does
not operate, do not use the oven. Call an authorized service provider.
• NEVER use this appliance as a space heater to heat or warm the room. Doing so
may result in carbon monoxide poisoning.
PERSONAL SAFETY
• Do not allow children to use this appliance unless closely supervised by an adult.
Children and pets should not be left alone or unattended in the area where the
appliance is in use. Never allow children to sit or stand on any part of the oven.
• For personal safety, wear proper clothing. Loose-fitting clothes or garments with
hanging sleeves should never be worn while using this appliance.
• Tie long hair so that it doesn’t hang loose.
• Do not touch heating elements or interior surfaces of oven.
• The heating elements may be hot even though they are dark in color. Interior
surfaces of an oven become hot enough to cause burns.

3
Personal Safety
SAFETY INSTRUCTIONS
• During and after use, do not touch or let clothing or other flammable materials
contact the heating elements or the interior surfaces of the oven until they have
had sufficient time to cool.
• Please note that the trim on the top and sides of the oven door may become hot
enough to cause burns.
• Use care when opening the door. Open the door slightly to let hot air or steam
escape before removing or replacing food.
• Do not heat unopened food containers. Build-up of pressure may cause the
container to burst and cause injury.
• Always place oven racks in desired location while oven is cool. If a rack must be
moved while oven is hot, do not let potholder contact the hot heating elements.
• Use only dry potholders or oven mitts. Moist or damp potholders on hot surfaces
may result in burns from steam. Do not use a towel or other bulky cloth.

4
Self-Cleaning Safety
SAFETY INSTRUCTIONS
SELF CLEANING OVEN SAFETY
• Before self-cleaning the oven, remove the broiler pan, oven racks, other utensils, and
excess soft spillage.
• Confirm that the door locks and will not open once the Self Clean option is selected
and the door lock icon appears. If the door does not lock, turn the cook mode selector
to OFF and do not run Self Clean. Call ZLINE at 1-614-777-5004 or an authorized
service provider.
• Do not clean the door gasket. It is essential for a good seal. Care should be taken not
to rub, damage, or remove the door gasket.
• Do not use commercial oven cleaners or oven liner protective coatings of any kind in
or around any part of the oven.
• Clean only oven parts listed in this manual.
• Other surfaces of the appliance may become hot enough to cause burns, including
oven vent openings and surfaces near these openings, oven doors, and windows of
oven doors.
• Turn to the Maintenance and Cleaning section in the User Manual for Self Clean mode
operation and other cleaning advice.
• The manufacturer reserves the right to make changes to its products when considered
necessary and useful, without affecting the essential safety and operating
characteristics.
• IMPORTANT: The installer should leave these instructions with the consumer who
should retain for local inspectors’ use and for future reference.

5

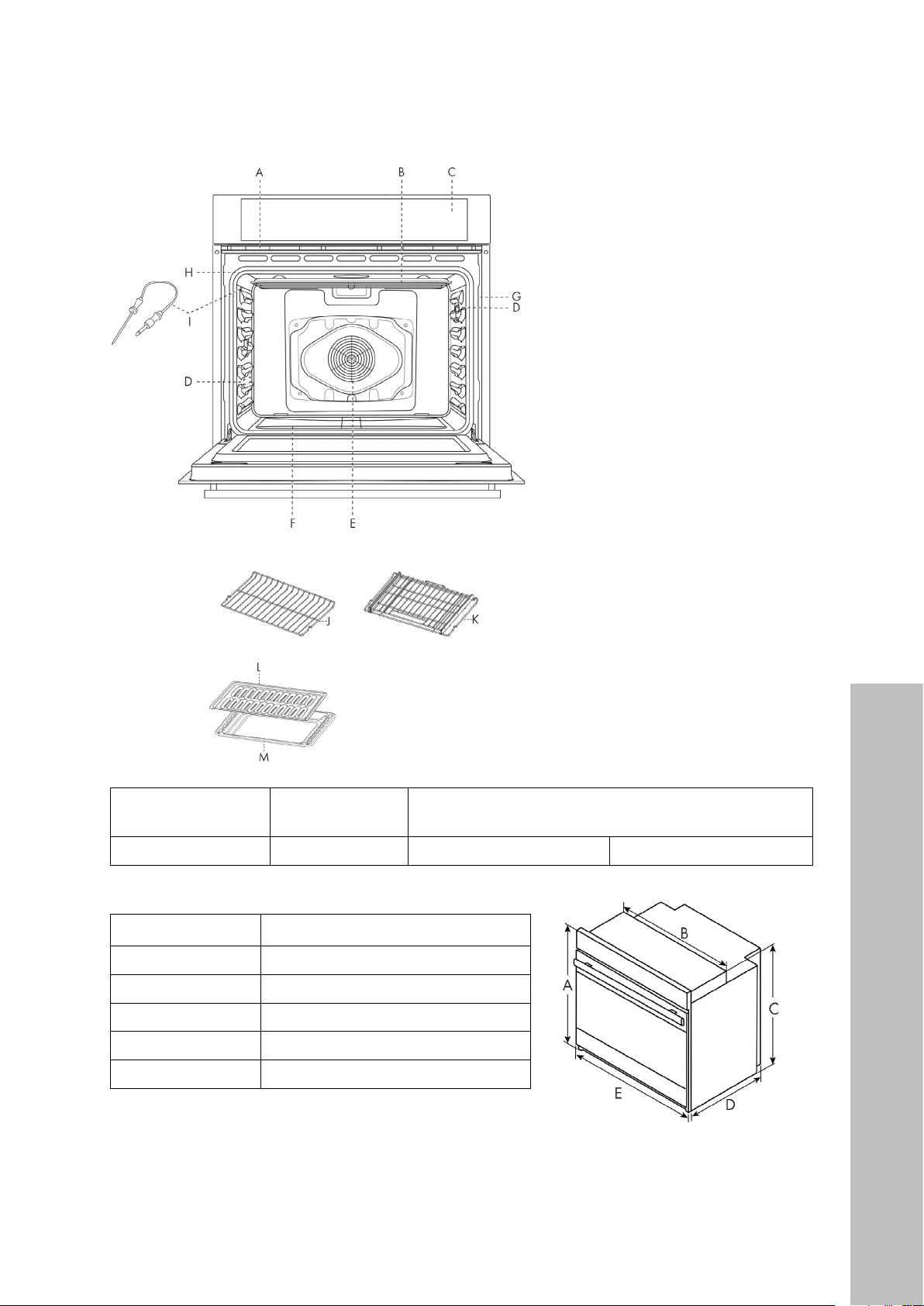

Product Specifications
BEFORE INSTALLATION
A. Cooling Vents
B. Broil Element
C. Control Panel
D. Halogen Light
E. Convection Fan and
Element
F. Bottom Element (not visible)
G. Appliance Tag Location
H. Door Gasket
I. Temperature Probe
J. Oven Rack (1)
K. Telescoping Oven Rack (1)
L. Broiler Pan
M. Broiler Pan Tray
OVEN DIMENSION
ELECTRICAL RATING AND MAXIMUM CONNECTED
LOAD AT 240 VOLTS 60 HZ
Single Built-In Oven 30” (76 cm) wide 20.0 Amp 4800 Watts
LETTER SINGLE OVEN DIMENSIONS
A 28 7/16” (72.2 cm) Height (overall)
B 28 1/2” (72.4 cm) Width (recessed)
C 27 3/16 (69 cm) Height (recessed)
D* 23 1/2” (59.7 cm) Depth (recessed)
E 29 7/8” (75.9 cm) Width (overall)
*From back of unit to cabinet face.

6
Tools
BEFORE INSTALLATION
Gather the required tools before starting installation. Read and follow the instructions provided
with any tools listed here.
TOOLS NEEDED
• Measuring Tape
• Straightedge
• Pencil or Marker
• Phillips-head Screwdriver
• Level
• Wire Cutters and Wire Stripper
• Hand or Sabre Saw
• 1” Hole Saw
• Cordless Drill and 1/8” Drill Bit
• Safety Gloves and Goggles
• Volt Meter (0-250VAC)
PARTS NEEDED
• UL Listed Conduit Connector
• UL Listed Wire Connectors
PARTS PROVIDED
• #8-14 x 1” Screws (2)

7
Electrical Connection
BEFORE INSTALLATION
ELECTRIC SHOCK HAZARD
If codes permit and a separate ground wire is used, it is recommended that a qualified
electrical installer determine the ground path is adequate and wire gauge is in accordance
with local codes. Do not use an extension cord with this appliance; doing so may void the
warranty.
IN U.S.A.
Be sure the electrical connection and wire sizes are adequate and in conformance with the
National Electrical Code ANSI/NPA70-latest edition and all local codes and ordinances. A
hard copy of the above code standards can be obtained from:
National Fire Protection Association
One Batterymarch Park
Quincy, MA 02269
IN CANADA
Be sure the electrical connection and wire size are adequate and in conformance with
Canadian Electrical Code CSA standard C22.1, Part 1-latest edition, and all local codes and
ordinances. A hard copy of the above code standards can be obtained from:
Canadian Standards Association
178 Rexdale Blvd.
Toronto, ON M9W 1R3 CANADA
• The electrical power to the oven branch circuit must be shut off while line connections are
being made.
• A proper electrical ground is required on this appliance. The free end of the green wire
(the ground wire) must be connected to a suitable ground. This wire must remain grounded
to the oven.
• If a cold water pipe is interrupted by plastic, non-metallic gaskets, union connections, or
other insulating materials, DO NOT use for grounding.

8
Electrical Connection
BEFORE INSTALLATION
• DO NOT ground to a gas pipe.
• DO NOT have a fuse in the NEUTRAL or GROUNDING circuit. A fuse in the NEUTRAL or
GROUNDING circuit could result in an electrical shock.
• Check with a qualified electrician if you are in doubt as to whether the appliance is
properly grounded. Failure to do so could result in death, fire, or electric shock.
• To properly install your oven, a qualified installer must determine the type of electrical
connection you will be using and follow the instructions provided for it here.
• The oven must be connected to the proper electrical voltage and frequency as specified on
the model number rating plate. The model number rating plate is located on the appliance
tag under the control panel on the oven. All models are dual rated, and designed to be
connected to 240VAC, 60HZ, 3-wire or 4-wire, single-phase power supply.
• Install a suitable conduit box (not furnished). An appropriately sized UL conduit connector
must be used to correctly attach the conduit to the junction box.
• IMPORTANT: Local codes may vary; installation electrical connections and grounding
must comply with all applicable local codes.
• If local codes permit grounding through the neutral electrical supply, connect both the
white neutral wire and the green ground wire from the oven to the white neutral electrical
supply wire.
• When only a 4-wire, single-phase, 240VAC, 60HZ-only electrical supply is available, a
25-amp maximum circuit protection is required.
VOLTAGE AND FREQUENCY AMPS CIRCUIT REQUIRED
240VAC, 60HZ 20.0A 25 Amp Circuit

9
Installation
BEFORE INSTALLATION
WARNING
This appliance shall be installed only by authorized persons and in accordance with the
manufacturer’s installation instructions, local gas fitting regulations, municipal building codes,
electrical wiring regulations, and/or local water supply regulations.
• Observe all governing codes and ordinances.
• Cabinet opening dimensions that are shown must be used. Given dimensions provide
minimum clearance with oven.
• Recessed installation area must provide complete enclosure around the recessed portion
of the oven.
• The oven support surface must be solid, level, and flush with the bottom of the cabinet
cutout.
• The oven must be able to support the weight of 130 lbs (59 kg) plus 30 lbs (14 kg) food
load
• NOTE: For undercounter installation, it is recommended that the electrical junction box be
located in the adjacent right or left cabinet.
• To avoid damage to your cabinets, check with your builder or cabinet supplier to make
sure that the materials used will not discolor, delaminate, or sustain other damage. This
oven has been designed in accordance with the requirements of UL and CSA International
and complies with the maximum allowable wood cabinet temperatures of 194°F.

10
Unpack the Oven
INSTALLATION
Electrical Junction Box Location
NOTE: Junction box may be located in
adjacent cabinet
LETTER DESCRIPTIONS UNDERCOUNTER WITHOUT COOKTOP OVEN IN CABINET
A Width (cutout) 28 5/8” (72.7 cm) 28 5/8” (72.7 cm)
B Height (cutout) 27 1/2” (70.0 cm) 27 1/2” (70.0 cm)
C Depth (cutout) 24” (61.0 cm) 24” (61.0 cm)
D Top of Cutout to Bottom of Upper Cabinet Door N/A 1 1/2” (3.8 cm)
E Bottom of Cutout to Floor (recommended)* 5 1/4” (13.3 cm) 32” (81.3 cm)
F Bottom of Cutout to Top of Cabinet Door N/A 1 1/2” (3.8 cm)
STEP 1 - UNPACK THE OVEN
EXCESSIVE WEIGHT HAZARD: Use two or more people to move and install the oven, which
weighs roughly 130 pounds. Failure to do so can may result in injury.
1. Using two or more people, remove the oven and set it on cardboard to avoid floor
damage. NOTE: Do not use the handle or any portion of the front frame for lifting.
2. Remove the shipping materials and tape from the oven.
3. Remove the hardware package from inside the bag containing this manual.
4. Remove and set aside racks and other parts from inside the oven.
5. Move the oven on the cardboard near where it will be installed.

11
Removing the Oven Door
INSTALLATION
WARNING
The oven doors are heavy and fragile, and the door front is glass. To avoid oven
door glass breakage, use both hands and grasp only the sides of the oven door to
remove.
STEP 2 - REMOVE THE OVEN DOOR
1. Open the oven door.
2. Locate the door latches in both corners of the oven door and rotate the latches forward
from the locked position (below left) to the unlocked position (below right).
6E
INSTALLATION INSTRUCTIONS
IMPORTA NT: This appliance shall be installed only by authorized
persons and in accordance with the manufacturer’s installation
instructions, local gas tting regulations, municipal building codes,
electrical wiring regulations, local water supply regulations.
STEP 1 - UNPACK THE OVEN
WARNING
EXCESSIVE WEIGHT HAZARD
Use two or more people to move and install oven.
Failure to do so can result in back or other injury.
1 Using two or more people, remove the oven and set it on cardboard
to avoid oor damage.
NOTE: Do not use the handle or any portion of the front frame
for lifting.
2 Remove the shipping materials and tape from the oven.
3 Remove the hardware package from inside the bag containing
literature.
4 Remove and set aside racks and other parts from inside the oven.
5 Move the oven on the cardboard near where it will be installed.
STEP 2 - REMOVE THE OVEN DOOR
IMPORTANT: The oven door is heavy and fragile, and the door
front is glass. To avoid oven door glass breakage, use both hands,
and grasp only the sides of the oven door to remove.
1 Open the oven door.
2 Locate the door latches in both corners of the oven door, and rotate
the latches forward to the unlocked position.
Locked
Unlocked
3 Grasp the edges of the oven door with both hands and push the
oven door fully closed. Lift up and pull oven door toward you to
remove. Set the oven door(s) aside on a covered work surface.
STEP 3 - INSTALL OVEN
WARNING
EXCESSIVE WEIGHT HAZARD
Use two or more people to move and install oven.
Failure to do so can result in back or other injury.
1 Using two or more people, grasp the ceiling of the oven cavity and
lift the oven onto a table or platform even with the cutout opening.
NOTE: The surface must be able to support the following weight:
• Single Oven: 160 lb (73 kg)
• Double Oven: 290 lb (132 kg)
2 Feed the exible electrical supply conduit from the oven to the
junction box.
6E
INSTALLATION INSTRUCTIONS
IMPORTA NT: This appliance shall be installed only by authorized
persons and in accordance with the manufacturer’s installation
instructions, local gas tting regulations, municipal building codes,
electrical wiring regulations, local water supply regulations.
STEP 1 - UNPACK THE OVEN
WARNING
EXCESSIVE WEIGHT HAZARD
Use two or more people to move and install oven.
Failure to do so can result in back or other injury.
1 Using two or more people, remove the oven and set it on cardboard
to avoid oor damage.
NOTE: Do not use the handle or any portion of the front frame
for lifting.
2 Remove the shipping materials and tape from the oven.
3 Remove the hardware package from inside the bag containing
literature.
4 Remove and set aside racks and other parts from inside the oven.
5 Move the oven on the cardboard near where it will be installed.
STEP 2 - REMOVE THE OVEN DOOR
IMPORTANT: The oven door is heavy and fragile, and the door
front is glass. To avoid oven door glass breakage, use both hands,
and grasp only the sides of the oven door to remove.
1 Open the oven door.
2 Locate the door latches in both corners of the oven door, and rotate
the latches forward to the unlocked position.
Locked
Unlocked
3 Grasp the edges of the oven door with both hands and push the
oven door fully closed. Lift up and pull oven door toward you to
remove. Set the oven door(s) aside on a covered work surface.
STEP 3 - INSTALL OVEN
WARNING
EXCESSIVE WEIGHT HAZARD
Use two or more people to move and install oven.
Failure to do so can result in back or other injury.
1 Using two or more people, grasp the ceiling of the oven cavity and
lift the oven onto a table or platform even with the cutout opening.
NOTE: The surface must be able to support the following weight:
• Single Oven: 160 lb (73 kg)
• Double Oven: 290 lb (132 kg)
2 Feed the exible electrical supply conduit from the oven to the
junction box.
Unlocked
Locked
3. Grasp the edges of the oven door with both hands and push the oven door fully closed.
Lift up and pull the door toward you to remove. Set the oven door aside on a covered
work surface.
6E
INSTALLATION INSTRUCTIONS
IMPORTANT: This appliance shall be installed only by authorized
persons and in accordance with the manufacturer’s installation
instructions, local gas tting regulations, municipal building codes,
electrical wiring regulations, local water supply regulations.
STEP 1 - UNPACK THE OVEN
WARNING
EXCESSIVE WEIGHT HAZARD
Use two or more people to move and install oven.
Failure to do so can result in back or other injury.
1 Using two or more people, remove the oven and set it on cardboard
to avoid oor damage.
NOTE: Do not use the handle or any portion of the front frame
for lifting.
2 Remove the shipping materials and tape from the oven.
3 Remove the hardware package from inside the bag containing
literature.
4 Remove and set aside racks and other parts from inside the oven.
5 Move the oven on the cardboard near where it will be installed.
STEP 2 - REMOVE THE OVEN DOOR
IMPORTANT: The oven door is heavy and fragile, and the door
front is glass. To avoid oven door glass breakage, use both hands,
and grasp only the sides of the oven door to remove.
1 Open the oven door.
2 Locate the door latches in both corners of the oven door, and rotate
the latches forward to the unlocked position.
Locked
Unlocked
3 Grasp the edges of the oven door with both hands and push the
oven door fully closed. Lift up and pull oven door toward you to
remove. Set the oven door(s) aside on a covered work surface.
STEP 3 - INSTALL OVEN
WARNING
EXCESSIVE WEIGHT HAZARD
Use two or more people to move and install oven.
Failure to do so can result in back or other injury.
1 Using two or more people, grasp the ceiling of the oven cavity and
lift the oven onto a table or platform even with the cutout opening.
NOTE: The surface must be able to support the following weight:
• Single Oven: 160 lb (73 kg)
• Double Oven: 290 lb (132 kg)
2 Feed the exible electrical supply conduit from the oven to the
junction box.
Scan to follow along with a video.

12
Installing the Oven
INSTALLATION
STEP 3 - INSTALL OVEN
1. Using two or more people, grasp the ceiling of the oven cavity and lift the oven onto a
table or platform even with the cutout opening. NOTE: The surface must be able to support
up to 160 lbs (73 kg).
2. By hand, feed the flexible electrical supply conduit from the oven to the junction box
(Figure 1).
Figure 1
WARNING
STEP 4 - ELECTRICAL GROUNDING INSTRUCTIONS
To properly install your oven, a qualified professional must determine the type of electrical
connection you will be using and follow the instructions provided for it here.
DIRECT WIRE
• Disconnect power before servicing.
• Improper connection of aluminum house wiring and copper appliance leads can result in
an electrical hazard or fire. If the home has aluminum wiring, only use UL listed conduit
connectors and wire connectors for joining copper to aluminum and precisely follow the
manufacturer’s recommended procedure. Aluminum-to-copper connections must conform
with local codes.
• Use 10-gauge copper or aluminum wire.

13
Electrical Connection
INSTALLATION
• Be sure your appliance is properly installed and grounded by a qualified technician;
failure to do so may result in death or electrical shock. Ask your dealer to recommend a
qualified technician or an authorized service provider.
• This oven is manufactured with a neutral (white) power supply wire and a cabinet
connected green (or bare) ground wire twisted together.
• After making sure that the power has been turned off, connect the flexible conduit from
the oven to the junction box using a UL listed conduit connector. The Grounded Neutral
and Ungrounded Neutral graphics on the following pages, along with the instructions
provided, present the most common way of connecting ovens. Your local codes and
ordinances, of course, take precedence over these instructions. Complete electrical
connections according to local codes and ordinances.
1. Disconnect power.
2. Remove junction box cover.
3. Install a UL listed or CSA approved conduit connector to the junction box.
E7
STEP 4 - MAKE ELECTRICAL
CONNECTION
To properly install your oven, you must determine the type of
electrical connection you will be using and follow the instructions
provided for it here.
DIRECT WIRE
WARNING
ELECTRICAL SHOCK HAZARD
Disconnect power before servicing.
Improper connection of aluminum house wiring and copper
appliance leads can result in an electrical hazard or re. If the
home has aluminum wiring, only use connectors designed and
UL listed for joining copper to aluminum and precisely follow
the manufacturer's recommended procedure. Aluminum-to-
Copper connections must conform with local codes.
For Single Oven, use 10 gauge copper or aluminum wire.
For Double Oven, use 8 gauge copper or aluminum wire.
Electrically ground oven.
Failure to do so can result in death, re or electrical shock.
Be sure your appliance is properly installed and grounded by a
technician or an authorized repair service.
This oven is manufactured with a neutral (white) power supply wire
and a cabinetconnected green (or bare) ground wire twisted together.
After making sure that the power has been turned off, connect
listed conduit connector. The Grounded Neutral and Ungrounded
Neutral Graphics on the following pages and the instructions
provided, present the most common way of connecting ovens. Your
local codes and ordinances, of course, take precedence over these
instructions. Complete electrical connections according to local
codes and ordinances.
1 Disconnect power.
2 Remove junction box cover.
3 Install a UL listed or CSA approved conduit connector to the
junction box.

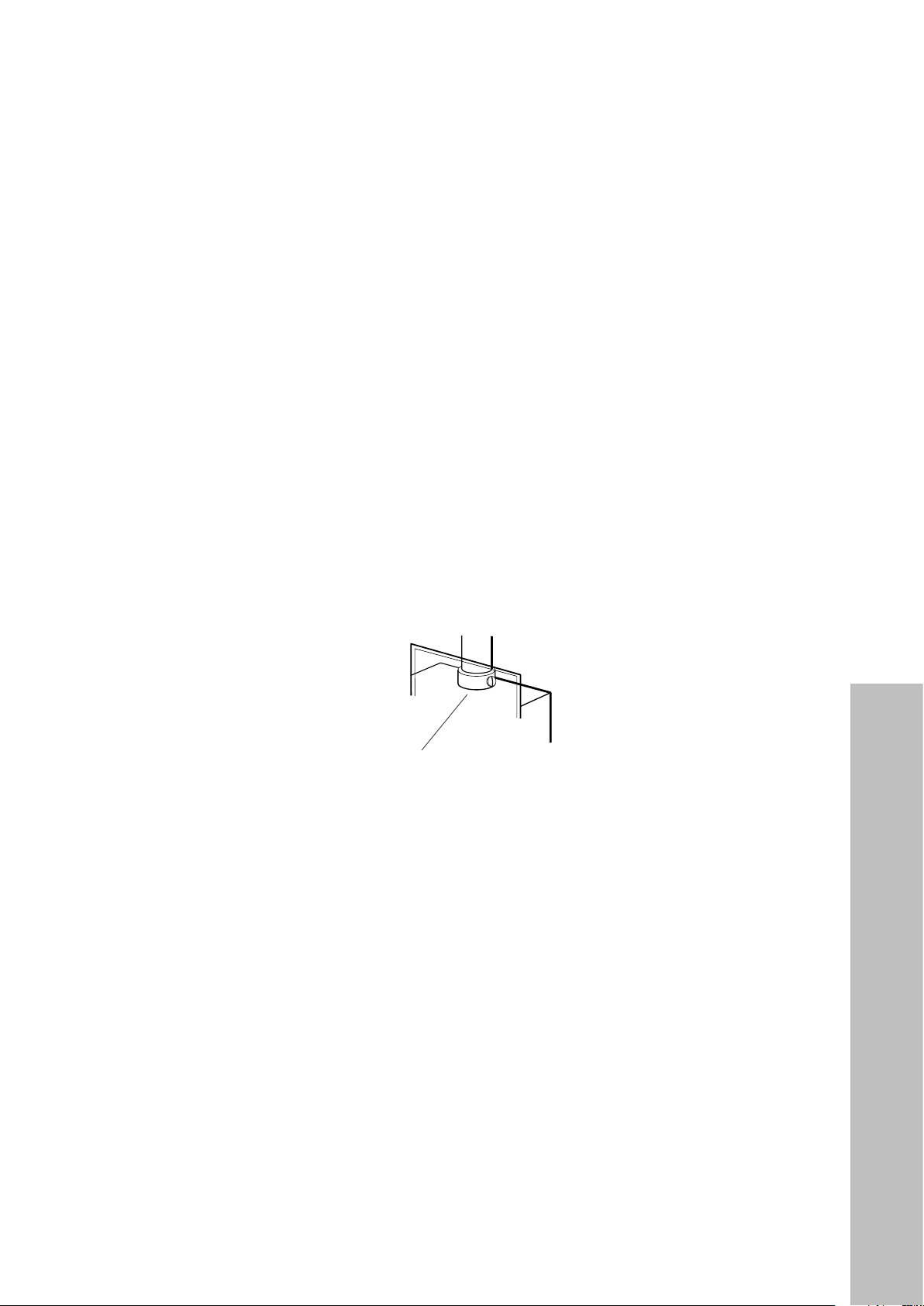

UL or CSA Listed C onduit Connector
4
the junction box through a UL listed or CSA approved conduit
connector.
5 Tighten screws on conduit connector.
3-WIRE CONNECTION (GROUNDED NEUTRAL) -
U.S.A. ONLY
WARNING
ELECTRICAL SHOCK HAZARD
Grounding through the neutral conductor is prohibited for
new branch-circuit installations (1996 NEC); mobile homes;
and recreational vehicles, or in an area where local codes pro-
hibit grounding through the neutral conductor. For installations
where grounding through the neutral conductor is prohibited,
see the Ungrounded Neutral graphic.
Use grounding terminal or lead to ground unit.
Connect neutral terminal or lead to branch circuit neutral in
usual manner.
3-WIRE CABLE FROM HOME POWER SUPPLY
IMPORTANT: Use the 3-wire cable from home power supply where
local codes permit a 3-wire connection.
1 Disconnect power.
Grounded Neutra l
E
I
G
H
F
A
B
C
D
A. Junction Box
B. Black Wires
C. Neutral (White) Wires
D. Ground (Green or
Bare) Wire
E. Cable from Oven
F. UL Listed Conduit
Connector
G. Red Wires
H. UL Listed Wire
Connectors
I. House Electrical
Supply
2 Connect the two black wires B together using a UL listed wire
connector.
3 Connect the two neutral (white) wires C and the ground (green or
bare) wire d (of the oven cable) using a UL listed wire connector.
4 Connect the two red wires G together using a UL listed wire
connector.
5 Install junction box cover.
UL or CSA Listed Conduit Connector
4. Route the flexible electrical supply conduit from the oven to the junction box through a UL
listed or CSA approved conduit connector.
5. Tighten screws on conduit connector.

14
3- Wire Connection
INSTALLATION
3-WIRE CONNECTION (GROUNDED NEUTRAL) - U.S.A. ONLY
• Grounding through the neutral conductor is prohibited for new branch-circuit installations
(1996 NEC); mobile or manufactured homes; and recreational vehicles, or in an area
where local codes prohibit grounding through the neutral conductor. For installations
where grounding through the neutral conductor is prohibited, see the Ungrounded Neutral
graphic on the next page.
• Use a grounding terminal or lead to ground unit. Connect neutral terminal or lead to
neutral branch circuit in usual manner.
• Failure to follow these directions could result in death, fire, or electric shock.
3-WIRE CABLE FROM HOME ELECTRICAL SUPPLY
WARNING
Only use the 3-wire cable from home electrical supply where local codes permit a
3-wire connection.
1.
E7
STEP 4 - MAKE ELECTRICAL
CONNECTION
To properly install your oven, you must determine the type of
electrical connection you will be using and follow the instructions
provided for it here.
DIRECT WIRE
WARNING
ELECTRICAL SHOCK HAZARD
Disconnect power before servicing.
Improper connection of aluminum house wiring and copper
appliance leads can result in an electrical hazard or re. If the
home has aluminum wiring, only use connectors designed and
UL listed for joining copper to aluminum and precisely follow
the manufacturer's recommended procedure. Aluminum-to-
Copper connections must conform with local codes.
For Single Oven, use 10 gauge copper or aluminum wire.
For Double Oven, use 8 gauge copper or aluminum wire.
Electrically ground oven.
Failure to do so can result in death, re or electrical shock.
Be sure your appliance is properly installed and grounded by a
technician or an authorized repair service.
This oven is manufactured with a neutral (white) power supply wire
and a cabinetconnected green (or bare) ground wire twisted together.
After making sure that the power has been turned off, connect
listed conduit connector. The Grounded Neutral and Ungrounded
Neutral Graphics on the following pages and the instructions
provided, present the most common way of connecting ovens. Your
local codes and ordinances, of course, take precedence over these
instructions. Complete electrical connections according to local
codes and ordinances.
1 Disconnect power.
2 Remove junction box cover.
3 Install a UL listed or CSA approved conduit connector to the
junction box.
UL or CSA Listed C onduit Connector
4
the junction box through a UL listed or CSA approved conduit
connector.
5 Tighten screws on conduit connector.
3-WIRE CONNECTION (GROUNDED NEUTRAL) -
U.S.A. ONLY
WARNING
ELECTRICAL SHOCK HAZARD
Grounding through the neutral conductor is prohibited for
new branch-circuit installations (1996 NEC); mobile homes;
and recreational vehicles, or in an area where local codes pro-
hibit grounding through the neutral conductor. For installations
where grounding through the neutral conductor is prohibited,
see the Ungrounded Neutral graphic.
Use grounding terminal or lead to ground unit.
Connect neutral terminal or lead to branch circuit neutral in
usual manner.
3-WIRE CABLE FROM HOME POWER SUPPLY
IMPORTANT: Use the 3-wire cable from home power supply where
local codes permit a 3-wire connection.
1 Disconnect power.
Grounded Neutra l
E
I
G
H
F
A
B
C
D
A. Junction Box
B. Black Wires
C. Neutral (White) Wires
D. Ground (Green or
Bare) Wire
E. Cable from Oven
F. UL Listed Conduit
Connector
G. Red Wires
H. UL Listed Wire
Connectors
I. House Electrical
Supply
2 Connect the two black wires B together using a UL listed wire
connector.
3 Connect the two neutral (white) wires C and the ground (green or
bare) wire d (of the oven cable) using a UL listed wire connector.
4 Connect the two red wires G together using a UL listed wire
connector.
5 Install junction box cover.
A. Junction Box
B. Black Wires
C. Neutral (White) Wires
D. Ground (Green or Bare) Wire
E. Cable from Oven
F. UL Listed Conduit Connector
G. Red Wires
H. UL Listed Wire Connectors
I. Home Electrical Supply
Grounded Neutral
A
B
C
DEF
H
I
G
Disconnect power.
2. Connect the two black wires (B) together using a UL listed wire connector.
3. Connect the two neutral (white) wires (C) and the ground (green or bare) wire (D) (of the
oven cable) using a UL listed wire connector.
4. Connect the two red wires (G) together using a UL listed wire connector.
5. Install junction box cover.

15
4-Wire Connection
INSTALLATION
4-WIRE CONNECTION (UNGROUNDED NEUTRAL) - U.S.A. AND CANADA
4-WIRE CABLE FROM HOME ELECTRICAL SUPPLY
WARNING
Use the 4-wire cable from home electrical supply in the U.S. where local codes do
not allow grounding through neutral, new branch circuit installations (1996 NEC),
mobile and manufactured and recreational vehicles, new construction, and in
Canada.
1.
8E
4-WIRE CONNECTION (UNGROUNDED NEUTRAL) -
U.S.A. AND CANADA
4-WIRE CABLE FROM HOME POWER SUPPLY
IMPORTANT: Use the 4-wire cable from home power supply in
the U.S. where local codes do not allow grounding through neutral,
New Branch circuit installations (1996 NEC), mobile homes and
recreational vehicles, new construction and in Canada.
1 Disconnect power.
I
A. Junction Box
B. Black Wires
C. Red Wires
D. Cable from Oven
E. UL listed or CSA
Approved Conduit
Connector
F. Ground (Green or
Bare) Wires
G. UL Listed Wire
Connector
H. Neutral (White) Wires
I. House Electrical
Supply
Ungrounded Neutral
B
C
D
G
F
E
H
A
2 Connect the 2 black wires B together using a UL listed wire
connector.
3 Connect the 2 red wires C together using a UL listed wire
connector.
4 Untwist white wire from green (or bare) ground wire coming
from the oven.
5 Connect the 2 neutral (white) wires H together using a UL listed
wire connector.
6 Connect the ground (green or bare) wire FA from the oven cable
to the ground (green or bare) wire (in the junction box) using a
UL listed wire connector.
7 Install junction box cover.
STEP 5 - MOUNT THE OVEN
1 Slide the oven completely into the cabinet until the back surface
of the front frame touches the front wall of the cabinet. Center
the oven within the cabinet cutout.
NOTE: Push against seal area of the oven front frame when push-
ing the oven into the cabinet. Do not push against the outside edges.
Mounting Frame
Mounting Frame Hole
2 There are two holes, one on each side of the front frame that sur-
rounds the oven cavity. Drill 1/8" (3.18 mm) pilot holes through
the holes, and into the front wall of the cabinet.
NOTE: The double oven has four mounting holes, two on each
side.
3 Insert the # 8–14 x 1" screws (provided) through the pilot holes to
securely fasten the oven to the cabinet. Do not overtighten screws.
4 Replace the oven racks.
NOTE: Ensure all plastic and foam packaging are removed from
the oven racks before reinserting them.
5 Reconnect power to the oven.
STEP 6 - REPLACE THE DOOR
IMPORTANT: The oven door is heavy and fragile, and the door
front is glass. To avoid oven door glass breakage, use both hands,
and grasp only the sides of the oven door to remove.
1 Verify that the door hinge latches are forward, and then insert the
oven door hinges into the openings.
2 Lower the oven door to engage the hinges.
3 Press the hinge latches down to lock.
STEP 7 - COMPLETE INSTALLATION
1 Check that all parts are now installed. If there is an extra part, go
back through the steps to see which step was skipped.
2 Dispose of/recycle all packaging materials.
3 Check Operation of Oven.
• Turn on power.
• Press BROIL.
• Set the temperature.
• Press START.
NOTE: If oven(s) does not operate, check the following:
• Household fuse is intact and tight; or circuit breaker has not
tripped.
• Electrical supply is connected.
• See “Troubleshooting” section in the Operation Manual.
4 When oven has been on for 5 minutes, feel for heat. If you do not
feel heat or if an error message appears in the display, turn off
5 Press STOP/CLEAR to turn off the oven.
IMPORTANT: For oven use and cleaning, read the User Manual.
Ungrounded Neutral A. Junction Box
B. Black Wires
C. Red Wires
D. Cable from Oven
E. UL Listed or CSA Approved
Conduit Connector
F. Ground (Green or Bare) Wires
G. UL Listed Wire Connector
H. Neutral (White) Wires
I. Home Electrical Supply
A
B
C
D
E
F
H
I
G
Disconnect power.
2. Connect the 2 black wires (B) together using a UL listed wire connector.
3. Connect the 2 red wires (C) together using a UL listed wire connector.
4. Untwist white wire (H) from green (or bare) ground wire (F) coming from the oven.
5. Connect the 2 neutral (white) wires (H) together using a UL listed wire connector.
6. Connect the ground (green or bare) wire (F) from the oven cable to the ground (green or
bare) wire (in the junction box) using a UL listed wire connector.
7. Install junction box cover.

16
Mount the Oven
INSTALLATION
STEP 5 - MOUNT THE OVEN
1. Slide the unit completely into the cabinet until the back surface of the front frame touches
the front wall of the cabinet. Center the oven within the cabinet cutout. NOTE: Push against
the seal of the oven’s front frame when pushing the unit into the cabinet. Do not push
against the outside edges.
2. There are two holes, one on each side of the front frame that surrounds the oven. Drill
1/8” pilot holes through the holes and into the front wall of the cabinet. There are two
mounting holes, one on each side.
3. Insert the #8–14 x 1” screws (provided) through the pilot holes to securely fasten the oven
to the cabinet (Figure 1). Do not overtighten screws.
A
B
C
Mounting frame
Figure 1
Mounting frame hole
4. Replace the oven racks. NOTE: Ensure all plastic and foam packaging is removed from the
oven racks before reinserting them.
5. Reconnect power to the oven.
STEP 6 - REPLACE THE DOOR
1. Verify that the door hinge latches are forward, and then insert the oven door hinges into
the openings.
2. Lower the oven door to engage the hinges.
3. Press the hinge latches down to lock.
Scan to follow along with a video.
Table of contents
Other Zline Oven manuals
