INSTRUCTION MANUAL
Model TT-CV10
www.zline-world.com

2
Read the instruction manual carefully before using the appliance!
Description
1.Hose
2.Dust tank
3.Dust tank release button
4.Handle
5.On/off switch
6.Tube
7.Cord rewinder button
8.Brush
9.Air outlet filter
10.Big wheel
1
2
3
4
5
6
7
8
9
10

3
Safety Instructions
For household use only!
When using your vacuum, basic safety precautions should always be observed, including
the following
1. Do not leave vacuum cleaner unattended when it is plugged in. Unplug from outlet
when not in use and before pulling filters out.
2. To reduce the risk of electric shock-do not use outdoors or on wet surfaces.
3. Do not allow children to use as a toy. Close attention is necessary when used near
children.
4. Use only as described in this manual. Use only manufacturer’s recommended
attachments.
5. Do not use with damaged cord or plug. Do not use vacuum cleaner if it has been
dropped 、damaged、left outdoor、or dropped into water. Return appliance to the
appliance customer service for examination repair or adjustment.
6. Do not pull or carry by cord. Do not use cord as a handle. Close a door on cord, or pull
cord around sharp edges or corners. Do not run appliance over cord. Keep cord away
from heated surfaces.
7. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
8. Do not handle plug or vacuum cleaner with wet hands. Dot not use outdoors or on wet
surfaces.
9. Do not put any objects into openings. Do not use with any openings blocked and do
not restrict airflow. Keep all opening free of dust, lint, hair, and anything that may
reduce airflow.
10. Keep hair, loose clothing, fingers, and all parts of body away from openings and
moving parts.
11. Do not pick up hard or sharp objects such as glass nails, screws, coins, etc.
12. Do not pick up hot coals, cigarette, matches or any hot, smoking, or burning objects.
13. Do not use without filters in place.
14. Turn off all controls before plugging or unplugging vacuum cleaner.
15. Use extra care when vacuuming on stairs.
16. Do not pick up flammable or combustible materials (lighter fluid, gasoline, etc.) or use
in the presence of explosive liquids or vapor.
17. Do not pick up toxic material (chlorine bleach, ammonia, drain cleaner, etc.)
18. Do not in an enclosed space filled with vapors given off by oil based paints, paint
thinner, moth proofing, flammable dust, or other explosive or toxic vapors.
19. Always unplug this appliance before connecting or disconnecting vacuum hose. Do
not allow plug to whip when rewinding.
20. Use only on dry, indoor surfaces.
21. Do not use for any purpose other than described in this user’s guide.
22. Store your appliance indoor in a cool, dry area.
23. Keep your work area well dry.
24. Do not immerse the hand vacuum into water or other liquids.

4
25. Keep end of hose, wands and other openings away from your face and body.
26. Do not use the cleaner to clean your pets or any animal.
27. Keep the head (eyes, ear, mouth, etc.) away from the openings, when the cleaner is
working or plugging.
WARNING:
Important:
If the suction openings of the unit, the hose or the chrome telescopic tube are blocked,
switch off the vacuum clearer and remove the blocking substance before you start the unit
again.
1. Do not operate the vacuum cleaner too close to hearter or radiators.
2. Before inserting the power plug into the wall outlet, make sure that your hands are dry.
3. Before you start the unit, make sure to remove large or sharp objects that might
damage the dust tank and hose.
4. When pulling out the power plug from the wall outlet, pull the plug not the power cord.
5. Do not use without all filters in place.
6. When using, if you learn of squeak from the cleaner, it must be suction appears to be
reduced, so you must stop (make sure the cleaner is not plugging), then clean the all
air filter.
Note:
If the supply cord is damaged, it must be replaced by manufacture, its service agent or
similarly qualified person in order to avoid a hazard.
WARNING:
Hold the plug when rewinding the cord. Do not allow the cord to whip when rewinding.

5
Use and Function
Assembling vacuum cleaner
Note:
Always remove the power plug from the wall outlet before assembling or removing
accessories.
1. Attaching the Flexible Hose into the vacuum connect the flexible hose into the air
intake duct, push in until you hear a “click”, indicating it is in its locked position.
2. Fitting the Stainless steel telescopic tube to the curved wand/hose extension. Push
the stainless steel telescopic tube into the curved wand/hose extension.
3. Extending the stainless steel telescopic tube. Push forward on the plastic button and
pull the inner stainless steel telescopic tube outward.
4. Fitting the Floor Brush to the telescopic tube. Push the telescopic tube into the floor
brush. Adjust the tube to the desired length.
Variable Suction Control
Note:

6
Once all attachments are in place, unwind a sufficient length of cable and insert the plug
into the wall outlet. A yellow mark on the power cord shows the ideal cable lenghth. Do not
pull the power cord beyond the red mark..
1. Insert the power plug into the wall outlet.
2. Press the power on/off button located the unit to turn the vacuum cleaner “on”.
3. To rewind the power cord, press the cord rewind button with one hand and guide the
power cord with the other hand to ensure that it dose not whip causing damage or
injury.
4. To adjust the suction, rotate the speed control button to control the suction power of
the vacuum cleaner.
Clean the dust tank and filters
1. Press the knob on the dust cup arm.
2. Lift dust tank up.
3. Press release button to open the dust tank bottom cover.
4. Take out of the inside filter and wash
5. Take out of the air inlet HEPA filter and wash
Note:Please ensure that the filters are totally dry when you assemble them back.
Rewind button
On/off button
Speed control

7

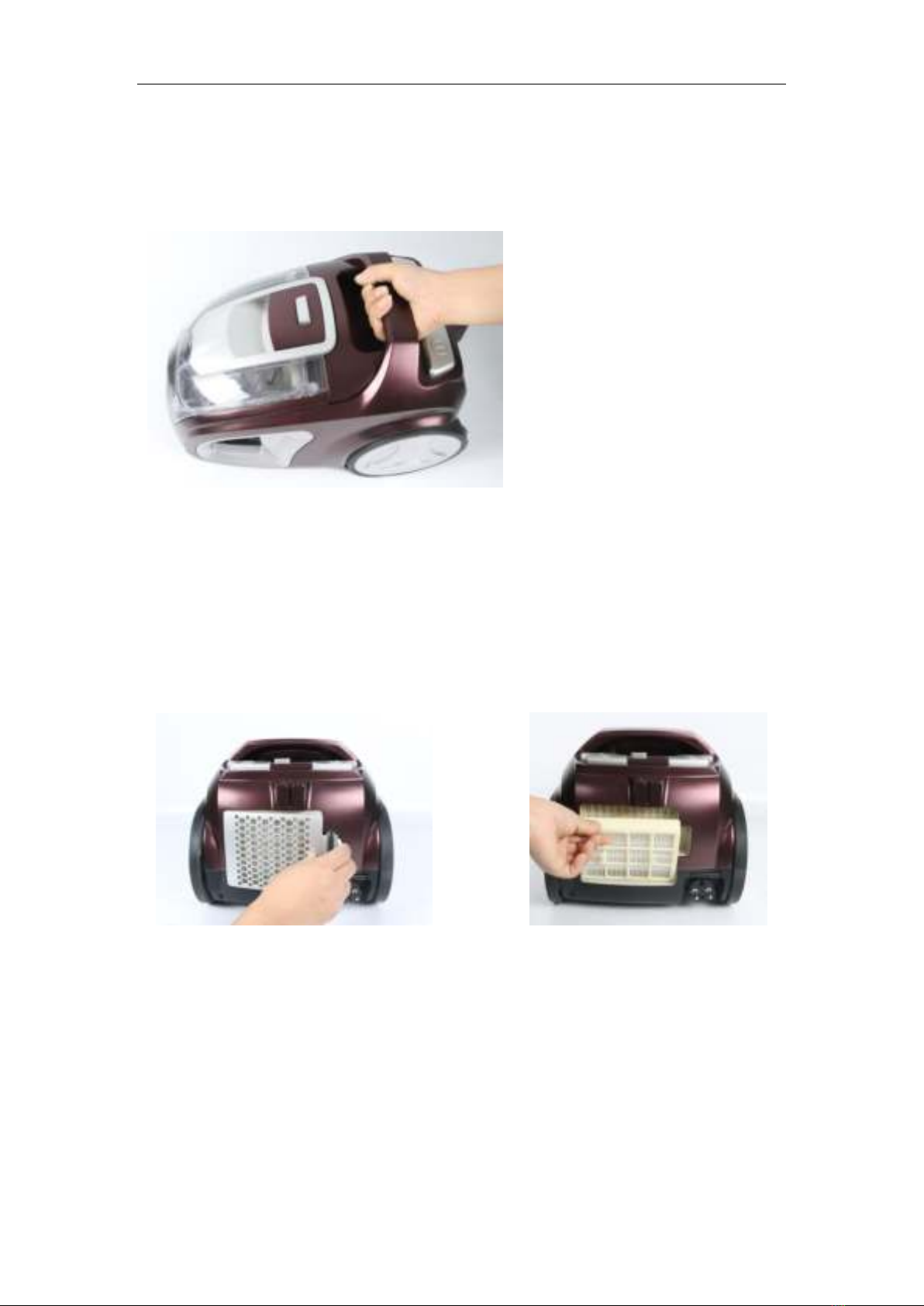

Carry and move away the cleaner:
Note:
There is a handle on the top. You could use it to conveniently carry the cleaner .
Cleaning air outlet filters
Warning:
Always unplug the unit from electrical outlet before getting out the dust barrel.
1. Open the gird
2. Take out the air outlet filter for cleaning or changing.

8
Please note:
The sponge or HEPA filter material in the cleaner will became dusty over time. This is
normal and will not affect the performance of the filter. If the sponge filter is so dusty that
suction does not return to 100%, then we suggest that the filter be removed then rinsed
under the faucet and allowed to dry for 24 hours by airing not near the fire or some high
temperature objects before refitting into the vacuum. This should be done once six months
or when suction appears to be reduced obviously.
Important:
Please note that there is a safety switch inside the vacuum to prevent the unit from being
run with high vacuum rate. If the vacuum is too high ,the safety switch will be turned on. In
this case, it can minish the vacuum rate and protect the motor from being broken.
Note:
The suction hole must be open, free of any obstructions at all times. Otherwise, the motor
will overheat and could become damaged.
Important:
All filters should be checked regularly for signs of damage, preferably after each cleaning
task. The filters must be replaced immediately if they become damaged. Always
disconnect the vacuum from the electrical outlet when checking the filters.
