ZMODO CM-S38901SV User manual

540 TVL IR Long Range camera User’s Guide
1201-1205 ,Sangda Mansion, High Technology Park,
ShenZhen, Guangdong, China
Fax: Tel: [phone] 0755-3363-1639
CM-S38901SV

1201-1205 ,Sangda Mansion, High Technology Park,
ShenZhen, Guangdong, China
Fax: Tel: [phone] 0755-3363-1639
SAFETY PRECAUTIONS
CAUTION
1. Do not drop objects on the product or apply strong
shock to it. Keep away from a location subject to
excessive vibration or magnetic interference.
2. Do not install in a location subject to high
temperature (over 120F), low temperature (below
-5F), or high humidity. Doing so may cause fire or
electric shock.
3. If you want to relocate the already installed
product, be sure to turn off the power and then
move or reinstall it.
4. Remove the power plug from the outlet when then
there is a lightning. Neglecting to do so may cause
fire or damage to the product.
5. Keep out of direct sunlight and heat radiation
sources. It may cause fire.
6. Install it in a place with good ventilation.
7. Avoid aiming the camera directly towards
extremely bright objects such as sun, as this may
damage the CCD image sensor.
8. Apparatus shall not be exposed to dripping or
splashing and no objects filled with liquids, such as
vases, shall be placed on the apparatus.
9. The Mains plug is used as a disconnect device and
shall stay readily operable at any time.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE REAR COVER. NO USER SERVICEABLE PARTS
INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC
SHOCK DO NOT OPEN
This symbol indicates high voltage is present inside. It is
dangerous to make any kind of contact with any inside part
of this product.
This symbol alerts you that important literature concerning
operation and maintenance has been included with this
product.
WARNING
1. Be sure to use only the standard adapter that is
specified in the specification sheet. Using any
other adapter could cause fire, electrical shock, or
damage to the product
2. Incorrectly connecting the power supply or
replacing battery may cause explosion, fire,
electric shock, or damage to the product.
3. Do not connect multiple cameras to a single
adapter. Exceeding the capacity may cause
abnormal heat generation or fire.
4. Securely plug the power cord into the power
receptacle. Insecure connection may cause fire.
5. When installing the camera, fasten it securely and
firmly. A falling camera may cause personal injury
6. Do not place conductive objects (e.g.screwdrivers,
coins, metal things, etc.) or containers filled with
water on top of the camera. Doing so may cause
personal injury due to fire, electric shock, or falling
objects.
7. Do not install the unit in humid, dusty, or sooty
locations. Doing so may cause fire or electric
shock.
8. If any unusual smells or smoke come from the unit,
stop using the product. In such case, immediately
disconnect the power source and contact the
service center. Continued use in such a condition
may cause fire or electric shock.
9. If this product fails to operate normally, contact the
nearest service center. Never attempt to modify
this product in any way. (ZMODO is not liable for
problems caused by unauthorized modifications or
attempted repair.)
10. When cleaning, do not spray water directly onto
parts of the product. Doing so may cause fire or
electric shock.
1

PRODUCT OVERVIEW
Product Overview
Main Features
1/3" Sony Color CCD Image Sensor
540 TV Lines, Horizontal
12mm Lens
Weatherproof: Yes
Signal: NTSC
Iris: Auto
Night Vision Min. Light: 0 Lux (IR On)
IR Irradiation Distance: 330' (100m)
Operation Temperature: -5F ~ 120F
Mount: Ceiling or Wall
Video Connector: BNC
Power Connector: RCA 12V DC
Keep an eye on the people and places you care
about most with this color CCD bullet camera.
Featuring imaging provided by a 1/3” Sony Color
CCD, it delivers great video quality at 540 TV Lines
of high resolution, reliable operation, a long
operating life, and premium performance at an
affordable price. With Infrared 2* LED Array built in,
this camera can capture video in night vision mode
up to 330’ away. This bullet camera is designed for
indoor or outdoor use, and can easily be mounted
for the perfect viewing angle. BNC and RCA
connections are used for video and power. Installation
is easy and hassle free, just plug and play.
1) CM-S38901SV High Resolution Long Range IR
Night Vision Camera
1) A Card
4) Screws
1) Package Box

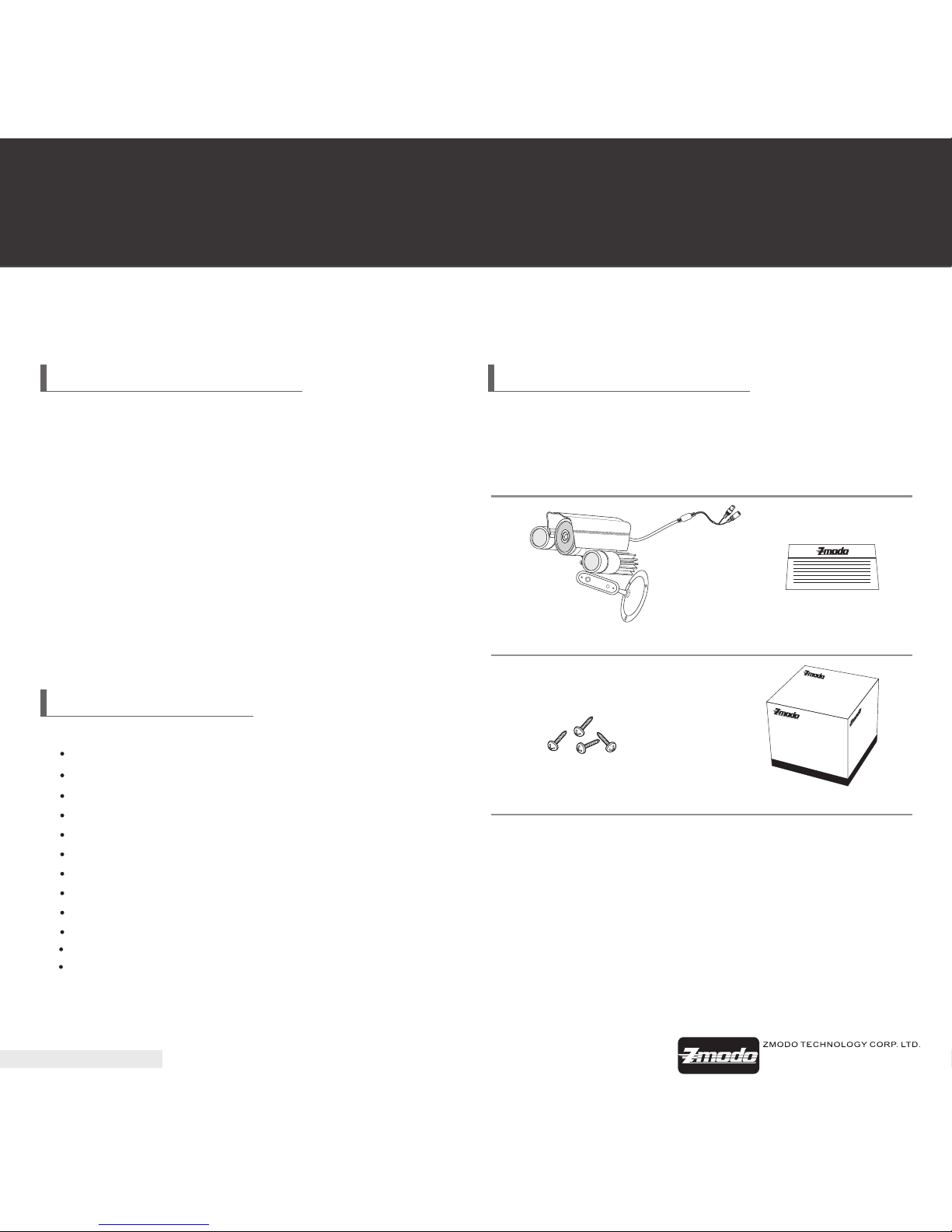

Package includes
Please check your camera and accessories
included in the package. Those components are
as shown below:
2
1201-1205 ,Sangda Mansion, High Technology Park,
ShenZhen, Guangdong, China
Fax: Tel: [phone] 0755-3363-1639
WWW.ZMODO.COM
CCD CAMERA
CCD CAMERA
WWW.ZMODO.COM
CCD CAM ERA
Camera Card
Screws Package Box

SCHEMATIC DIAGRAM
3
1201-1205 ,Sangda Mansion, High Technology Park,
ShenZhen, Guangdong, China
Fax: Tel: [phone] 0755-3363-1639
4
1
Mount Bracket
LEDs
2
Main Body
3
Lens
5
LEDs

CONNECTING CABLES
4
To connect cables
1. Connect the BNC cable to the video connector attached on your camera
2. Connect the BNC cable to the Video Input on a monitor, DVR or Video Balun.
3. Connect the power adapter to the RCA Power connector attached on your camera. When the
monitor is turned on, the camera image appears.
It is very important that you identify these ends before installing the cable so that you have the correct
ends at the correct location.
Note
1201-1205 ,Sangda Mansion, High Technology Park,
ShenZhen, Guangdong, China
Fax: Tel: [phone] 0755-3363-1639
BNC Cable
Monitor
RCA Cable DVR
Video Balun

HOW TO INSTALL
Before installation
Please read the following instructions before installing your camera:
You have to check whether the location (ceiling or wall) can bear five times the weight of your
camera.
Do not allow the cable to be caught in a pinched area, otherwise the electric line cover may be
damaged. This may cause cable breakdown or fire.
When installing your camera, don't allow anyone to walk or stand under your installation site,
and remove all valuable items. A dropped camera may cause injury to bystanders or harm to
valuable items.
Installation procedure
To install your camera
installation.
Rotate the Mount Bracket counterclockwise until it gets off the camera. Now you are ready for
1
step
5
1201-1205 ,Sangda Mansion, High Technology Park,
ShenZhen, Guangdong, China
Fax: Tel: [phone] 0755-3363-1639

HOW TO INSTALL
6
1201-1205 ,Sangda Mansion, High Technology Park,
ShenZhen, Guangdong, China
Fax: Tel: [phone] 0755-3363-1639

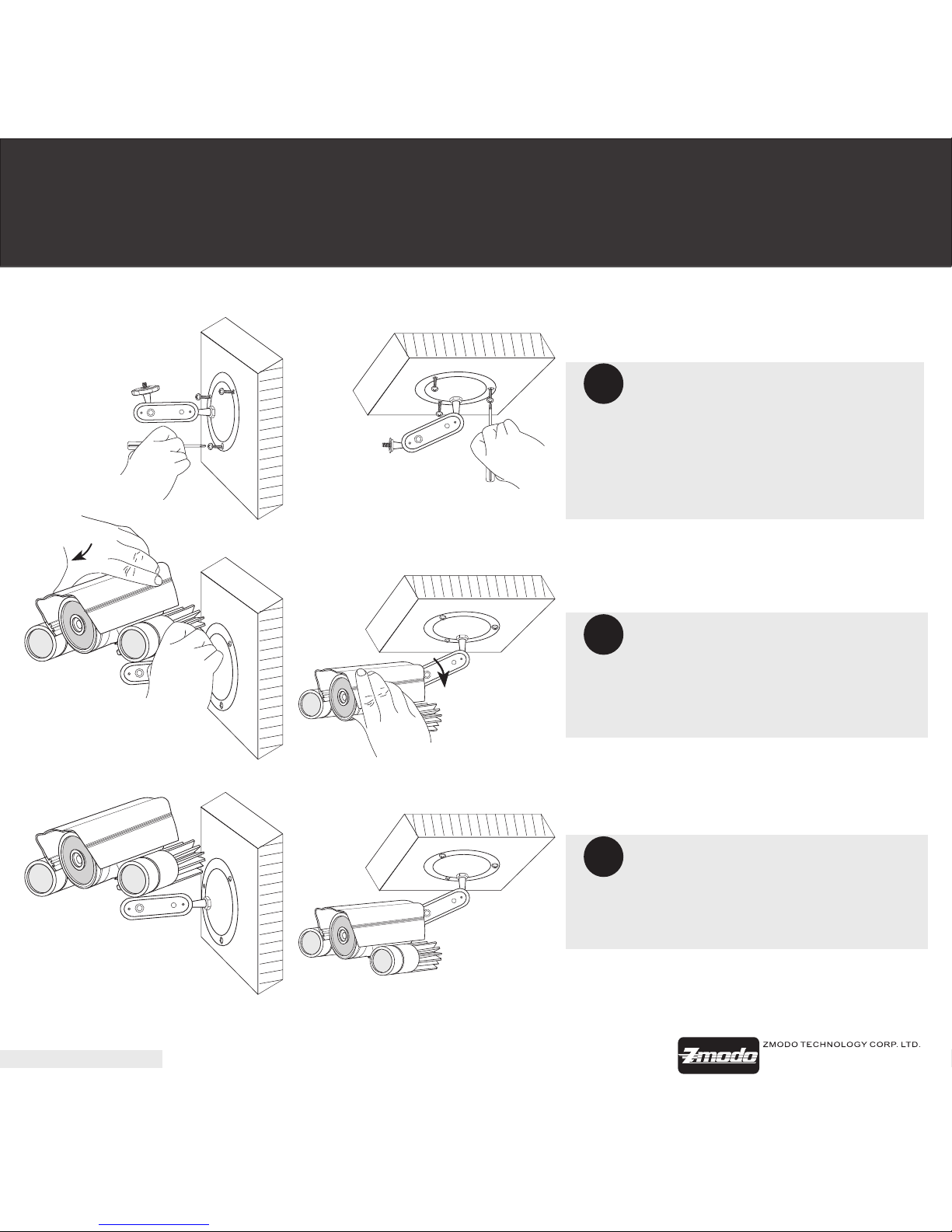

Attach the Mount Bracket to the
mounting location(wall or ceiling)
using the 4 screws supplied in your
package. As shown in the picture, push
the 3 screws into the 3 holes on the Mount
Bracket, then twist the 3 screws into the
holes using screwdriver.
2
step
Attach the Main Body of the
camera to the Mount Bracket. There
are two screws for your installation. One is
in the rear of the camera, the other one is
at the bottom of the camera. Twist the
Mount Bracket into the screws to fix it.
3
step
Last, adjust the slope of the lens
by twirling the cameras up and
down, left and right to make sure that the
front of the Main Body is facing the
camera’s monitoring area.
4
step

CAMERA SPECIFICATION
Item Details
High Resolution IR Long Range Camera
DC 12V
NTSC Standard color system PAL Standard color system
(525 Lines, 60 Fields) (625 Lines, 50 Fields)
Approx. 670mA
1/3 inch SONY Color CCD
510(H) x 492(V), 250,920 pixels
NTSC Standard PAL Standard
525 Lines 625 Lines
Internal Synchronization
540 TV Lines
0.0Lux (IR Lamps on)
Infrared 2* LED Array
Visible up to 100m(330')
1.0Vp-p, 75ohms
Focal Length Zone Limit of Viewing Angle
12 mm Horizontal
Vertical
28°
23°
> 48dB
Auto Iris
Auto Gain Control
Auto Back Light Compensation
Auto Switching between Color and B&W by day and night change(D/N)
Silver
-5F—120F
6.26"x5.27”x2.92”
2.07 lbs
Product type
Power input
Broadcast type
Power Consumption
Image device
Effective Pixels
Scanning mode
Synchronization mode
Horizontal resolution
Minimum illumination
IR Lamps
IR Distance
Signal output
Lens
S/N Ratio
Controls
Product color
Operation temperature
Size
Weight
Mounting Wall or Ceiling
Specifications for NTSC & PAL Standard
7
1201-1205 ,Sangda Mansion, High Technology Park,
ShenZhen, Guangdong, China
Fax: Tel: [phone] 0755-3363-1639

8
1201-1205 ,Sangda Mansion, High Technology Park,
ShenZhen, Guangdong, China
Fax: Tel: [phone] 0755-3363-1639
This device complies with part 15of the FCC
Rules. Operation is subject to the following
two conditions:
1) This device may not cause harmful
interference.
2) This device must accept any interference
received including interference that may cause
undesired operation.
This equipment has been tested and found to
comply with the limits for a Class A digital device,
pursuant to part 1 5 of FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference when the equipment
is operated in a commercial environment. This
equipment generates, uses, and can radiate
radio frequency energy and, if not installed and
used in accordance with the instruction manual,
may cause harmful interference to radio
communications. Operation of this equipment in
a residential area is likely to cause harmful
interference in which case the user will be
required to correct the interference at his own
expense.
Note
FCC Statement
(Waste Electrical & Electronic
Equipment) (Applicable in the
European Union and other
European countries with
separate collection systems)
This marking shown on the product
or its literature, indicates that it shouldnot be
disposed with other household wastes at the end of
its working life. To prevent possible harm to the
environment or human health from uncontrolled
waste disposal, please separate this from other
types of wastes and recycle it responsibly to
promote the sustainable reuse of material
resources.
Household users should contact either the retailer
where they purchased this product, or their local
government office, for details of where and how they
can take this item for environmentally safe recycling.
Business users should contact their supplier and
check the terms and conditions of the purchase
contract. This product should not be mixed with
other commercial wastes for disposal.
Correct Disposal of This Product
8 34 6 6 5 5 0 0 1 6 2
SKU: CM-S38901SV
