ZMODO CM-T1001BG User manual

Weatherproof Pan & Tilt Camera User’s Guide
CM-T1001BG
1201-1205 ,Sangda Mansion, High Technology Park,
ShenZhen, Guangdong, China
Fax: Tel: [phone] 0755-3363-1639

1201-1205 ,Sangda Mansion, High Technology Park,
ShenZhen, Guangdong, China
Fax: Tel: [phone] 0755-3363-1639
SAFETY PRECAUTIONS
CAUTION
1. Do not drop objects on the product or apply strong
shock to it. Keep away from a location subject to
excessive vibration or magnetic interference.
2. Do not install in a location subject to high
temperature (over 120F), low temperature (below
-5F), or high humidity. Doing so may cause fire or
electric shock.
3. If you want to relocate the already installed
product, be sure to turn off the power and then
move or reinstall it.
4. Remove the power plug from the outlet when then
there is a lightning. Neglecting to do so may cause
fire or damage to the product.
5. Keep out of direct sunlight and heat radiation
sources. It may cause fire.
6. Install it in a place with good ventilation.
7. Avoid aiming the camera directly towards
extremely bright objects such as sun, as this may
damage the CCD image sensor.
8. Apparatus shall not be exposed to dripping or
splashing and no objects filled with liquids, such as
vases, shall be placed on the apparatus.
9. The Mains plug is used as a disconnect device and
shall stay readily operable at any time.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE REAR COVER. NO USER SERVICEABLE PARTS
INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC
SHOCK DO NOT OPEN
This symbol indicates high voltage is present inside. It is
dangerous to make any kind of contact with any inside part
of this product.
This symbol alerts you that important literature concerning
operation and maintenance has been included with this
product.
WARNING
1. Be sure to use only the standard adapter that is
specified in the specification sheet. Using any
other adapter could cause fire, electrical shock, or
damage to the product
2. Incorrectly connecting the power supply or
replacing battery may cause explosion, fire,
electric shock, or damage to the product.
3. Do not connect multiple cameras to a single
adapter. Exceeding the capacity may cause
abnormal heat generation or fire.
4. Securely plug the power cord into the power
receptacle. Insecure connection may cause fire.
5. When installing the camera, fasten it securely and
firmly. A falling camera may cause personal injury
6. Do not place conductive objects (e.g.screwdrivers,
coins, metal things, etc.) or containers filled with
water on top of the camera. Doing so may cause
personal injury due to fire, electric shock, or falling
objects.
7. Do not install the unit in humid, dusty, or sooty
locations. Doing so may cause fire or electric
shock.
8. If any unusual smells or smoke come from the unit,
stop using the product. In such case, immediately
disconnect the power source and contact the
service center. Continued use in such a condition
may cause fire or electric shock.
9. If this product fails to operate normally, contact the
nearest service center. Never attempt to modify
this product in any way. (ZMODO is not liable for
problems caused by unauthorized modifications or
attempted repair.)
10. When cleaning, do not spray water directly onto
parts of the product. Doing so may cause fire or
electric shock.
1

PRODUCT OVERVIEW
Product Overview
Main Features
1/3" Sony Color CCD Image Sensor
420 TV Lines, Horizontal
8mm Lens
Signal: NTSC
Weatherproof: Indoor or Outdoor
Pan Rotation: 0°~360° (Endless)
Tilt Rotation: 0°~90°
Pan/Tilt Speed: 80°/sec (Max.)
Baud Rate: 1200~9600 bps
32 Presets
Communication: Rs485
Protocols: PELCO-D, PELCO-P
Video Connector: BNC
Power Connector: RCA 12V DC
See in all directions and keep an eye on the
people and places you care about most with
this color CCD pan/tilt camera. With a full
360° of endless pan and 90° of tilt rotation,
monitoring large areas is no challenge for this
camera. Featuring imaging provided by a 1/3”
Sony Color CCD, it delivers great video quality,
reliable operation, a long operating life, and
good value. This pan/tilt camera is designed for
indoor and outdoor use, and can easily be mounted
for the perfect viewing angle. BNC and RCA
connections are used for video and power and a
RS485 connection for PT control. Installation is
easy and hassle free, just plug and play.
1) CM-T1001BG Weatherproof Pan Tilt Camera
2) Mount Brackets
1) Cable
6) Screws
1) Package Box

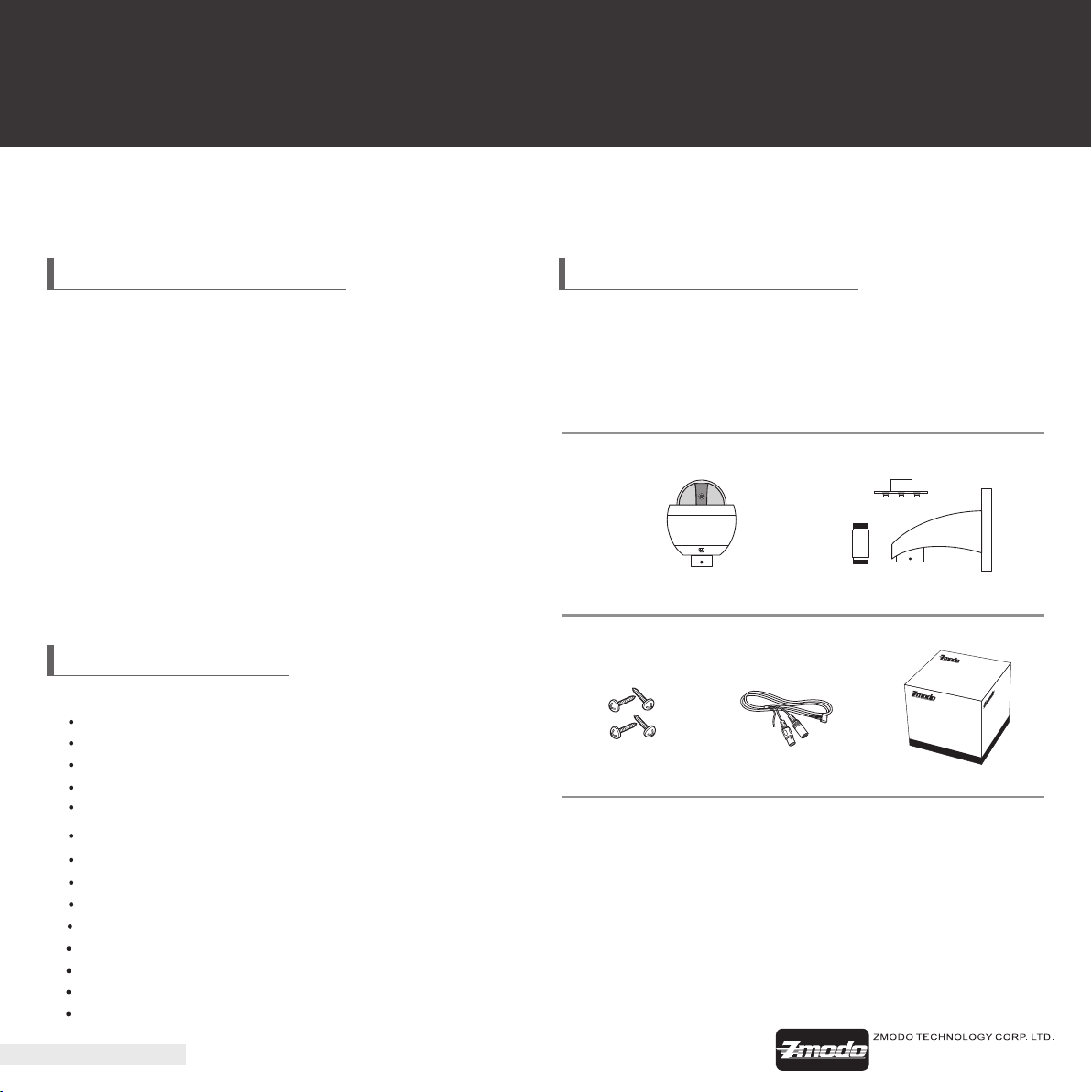

Package includes
Please check your camera and accessories
included in the package. Those components are
as shown below:
Camera Mount Bracket
Screws
WWW.ZMODO.COM
CCD CAMERA
CCD CAME RA
WWW.ZMODO.COM
CCD CAM ERA
Package Box
2
1201-1205 ,Sangda Mansion, High Technology Park,
ShenZhen, Guangdong, China
Fax: Tel: [phone] 0755-3363-1639
Screws

SCHEMATIC DIAGRAM
3
1201-1205 ,Sangda Mansion, High Technology Park,
ShenZhen, Guangdong, China
Fax: Tel: [phone] 0755-3363-1639
Main Body
1
Mount Bracket
3
2
Lens
4
Mount Bracket
Ceiling Mounting Wall Mounting

CONNECTING CABLES
4
To connect cables
1. Connect the BNC cable to the video connector attached on your camera
2. Connect the BNC cable to the Video Input on a DVR or Video Balun.
3. Connect the power adapter to the RCA Power connector attached on your camera. And then connect the
power adapter to a power source nearby.
4. Run an 18 gauge power wire for the RS-485 (Control Wire) and connect it to the DVR and the Camera
using the above guide.
It is very important that you identify these ends before installing the cable so that you have the correct
ends at the correct location.
Note
1201-1205 ,Sangda Mansion, High Technology Park,
ShenZhen, Guangdong, China
Fax: Tel: [phone] 0755-3363-1639
BNC Cable
RCA Cable
DVR
Video Balun
- [phone]
RS 485 S ENS OR A L ARA M
Connect to DVR RS-485
18 Gauge Power Wire
RS-485 Wire
Purple = Positive
Grey = Negative

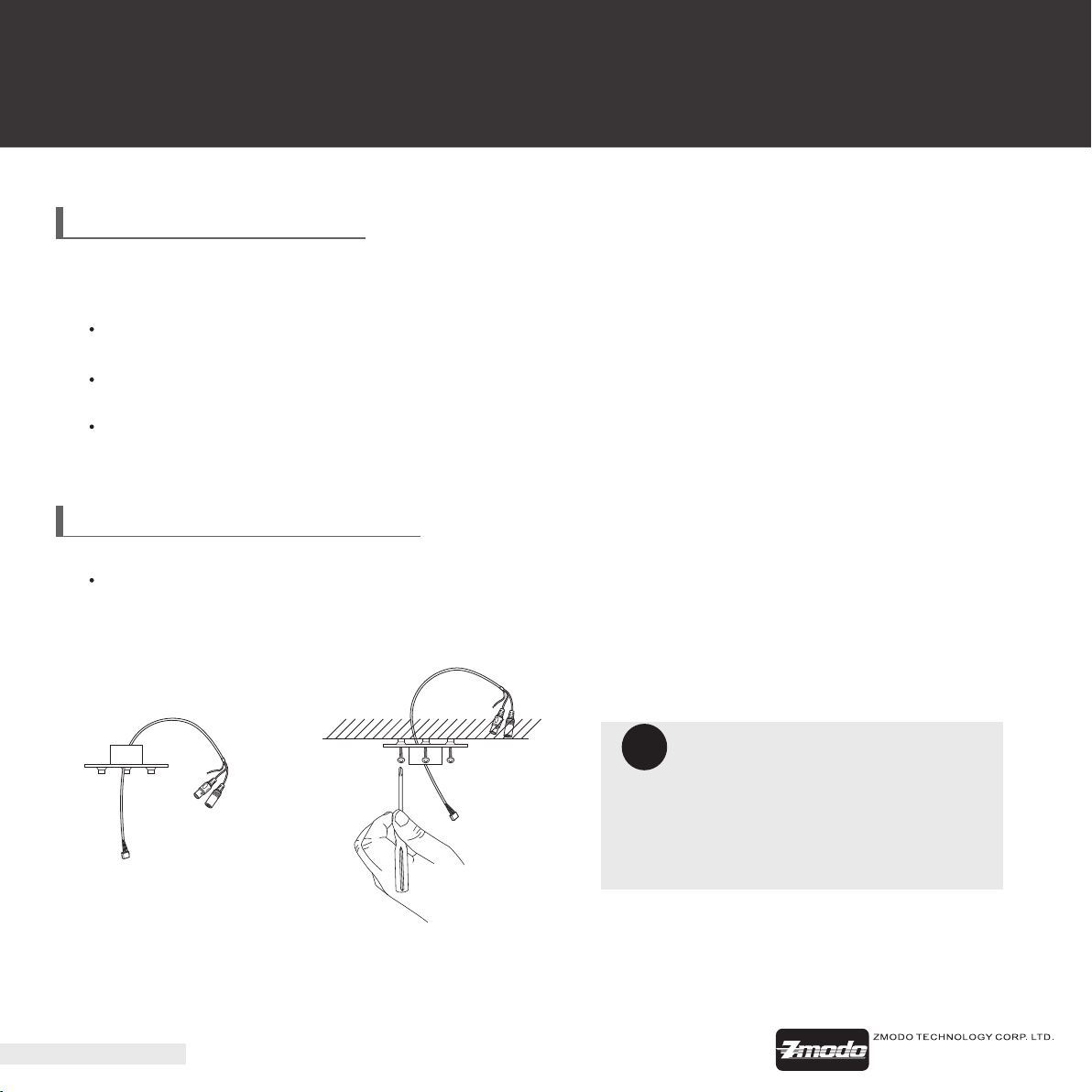

Go through the short cable that
supplied in the package from the
Ceiling Mount Bracket. Fix the Mount
Bracket on the ceiling with the screws
supplied in the package.
1
step
HOW TO INSTALL
5
1201-1205 ,Sangda Mansion, High Technology Park,
ShenZhen, Guangdong, China
Fax: Tel: [phone] 0755-3363-1639
Before installation
Please read the following instructions before installing your camera:
You have to check whether the location (ceiling or wall) can bear five times the weight of your
camera.
Do not allow the cable to be caught in a pinched area, otherwise the electric line cover may be
damaged. This may cause cable breakdown or fire.
When installing your camera, don't allow anyone to walk or stand under your installation site,
and remove all valuable items. A dropped camera may cause injury to bystanders or harm to
valuable items.
Installation procedure
To install your camera

HOW TO INSTALL
Rotate the Loop on clockwise
until it is attached to the Mount
Bracket. Then attach the Main Body to
the Mount Bracket by rotating it on
clockwise until it is fixed. The camera is
now installed on the ceiling.
2
step
Also you can install the camera
on the wall. The same as before,
go through the short cable supplied in the
package from the Wall Mount Bracket. Fix
the Mount Bracket onto the wall with the
screws supplied in the package.
3
step
Last, attach the Main Body to the
Mount Bracket by twisting in the
two screws using a screwdriver. The
camera is now installed on the wall.
4
step
6
1201-1205 ,Sangda Mansion, High Technology Park,
ShenZhen, Guangdong, China
Fax: Tel: [phone] 0755-3363-1639

CAMERA SPECIFICATION
1.0Vp-p, 75ohms
Lens
Indoor/ Outdoor Pan Tilt Camera
DC 12V
NTSC Standard color system PAL Standard color system
(525 Lines, 60 Fields) (625 Lines, 50 Fields)
Approx. 600mA
1/3 inch SONY Color CCD
510(H) x 492(V), 250,920 pixels
NTSC Standard PAL Standard
525 Lines 625 Lines
Internal Synchronization
420 TV Lines
1.5 Lux
Product type
Power input
Broadcast type
Power Consumption
Image device
Effective Pixels
Scanning mode
Synchronization mode
Horizontal resolution
Minimum illumination
Signal output
80°/ sec
1/50 to 1/120,000
Auto Back Light Compensation
Auto Switching between Color and B&W by day and night change(D/N)
RS-485
-5F—120F
Number. of Presets
P/T Speed
Controls
Communication
Operation temperature
Specifications for NTSC & PAL Standard
7
1201-1205 ,Sangda Mansion, High Technology Park,
ShenZhen, Guangdong, China
Fax: Tel: [phone] 0755-3363-1639
Item Details
Weatherproof Yes
8mm
32
0°~90°
Pan Rotation
Tilt Rotation
0°~360° (Endless)
Electronic Shutter
S/N Ratio > 48dB
PTZ Control PELCO-D, PELCO-P
2.2 lbs
Weight
9.1”x 7.7"x 7.3”
Size (package)
Baud Rate 1200~9600 selectable

8
1201-1205 ,Sangda Mansion, High Technology Park,
ShenZhen, Guangdong, China
Fax: Tel: [phone] 0755-3363-1639
This device complies with part 15of the FCC
Rules. Operation is subject to the following
two conditions:
1) This device may not cause harmful
interference.
2) This device must accept any interference
received including interference that may cause
undesired operation.
This equipment has been tested and found to
comply with the limits for a Class A digital device,
pursuant to part 1 5 of FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference when the equipment
is operated in a commercial environment. This
equipment generates, uses, and can radiate
radio frequency energy and, if not installed and
used in accordance with the instruction manual,
may cause harmful interference to radio
communications. Operation of this equipment in
a residential area is likely to cause harmful
interference in which case the user will be
required to correct the interference at his own
expense.
Note
FCC Statement

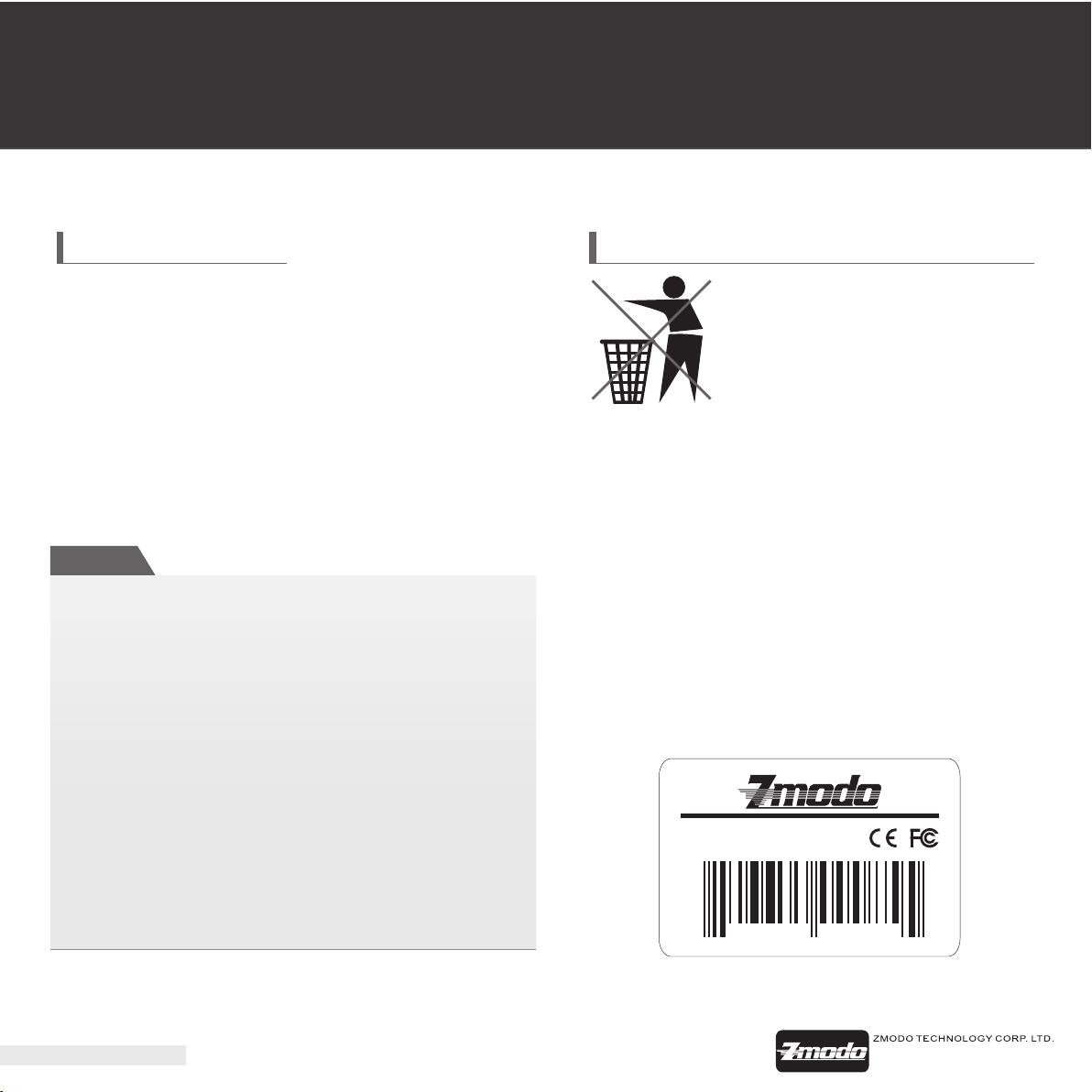

(Waste Electrical & Electronic
Equipment) (Applicable in the
European Union and other
European countries with
separate collection systems)
This marking shown on the product
or its literature, indicates that it shouldnot be
disposed with other household wastes at the end of
its working life. To prevent possible harm to the
environment or human health from uncontrolled
waste disposal, please separate this from other
types of wastes and recycle it responsibly to
promote the sustainable reuse of material
resources.
Household users should contact either the retailer
where they purchased this product, or their local
government office, for details of where and how they
can take this item for environmentally safe recycling.
Business users should contact their supplier and
check the terms and conditions of the purchase
contract. This product should not be mixed with
other commercial wastes for disposal.
Correct Disposal of This Product
SKU: CM-T1001BG
8 54 6 6 5 5 0 0 0 8 5
