ZOIT Z-BIKE User manual

www.zoit.co.kr
www.zo-m.com
Z-BIKESmart Fitness BIKE

2
Z-BIKE
Contents
Smart Fitness Bike
Z-BIKE Hardware
Z-BIKE App : Fitness Manager ZOM
Z-BIKE App : Exercise Game App
Z-BIKE
Z-BIKE Application

3
01 Z-BIKE
※ This Smart Fitness Bike System can provide “Real-time exercise coaching” through Fitness Manager App(ZOM).

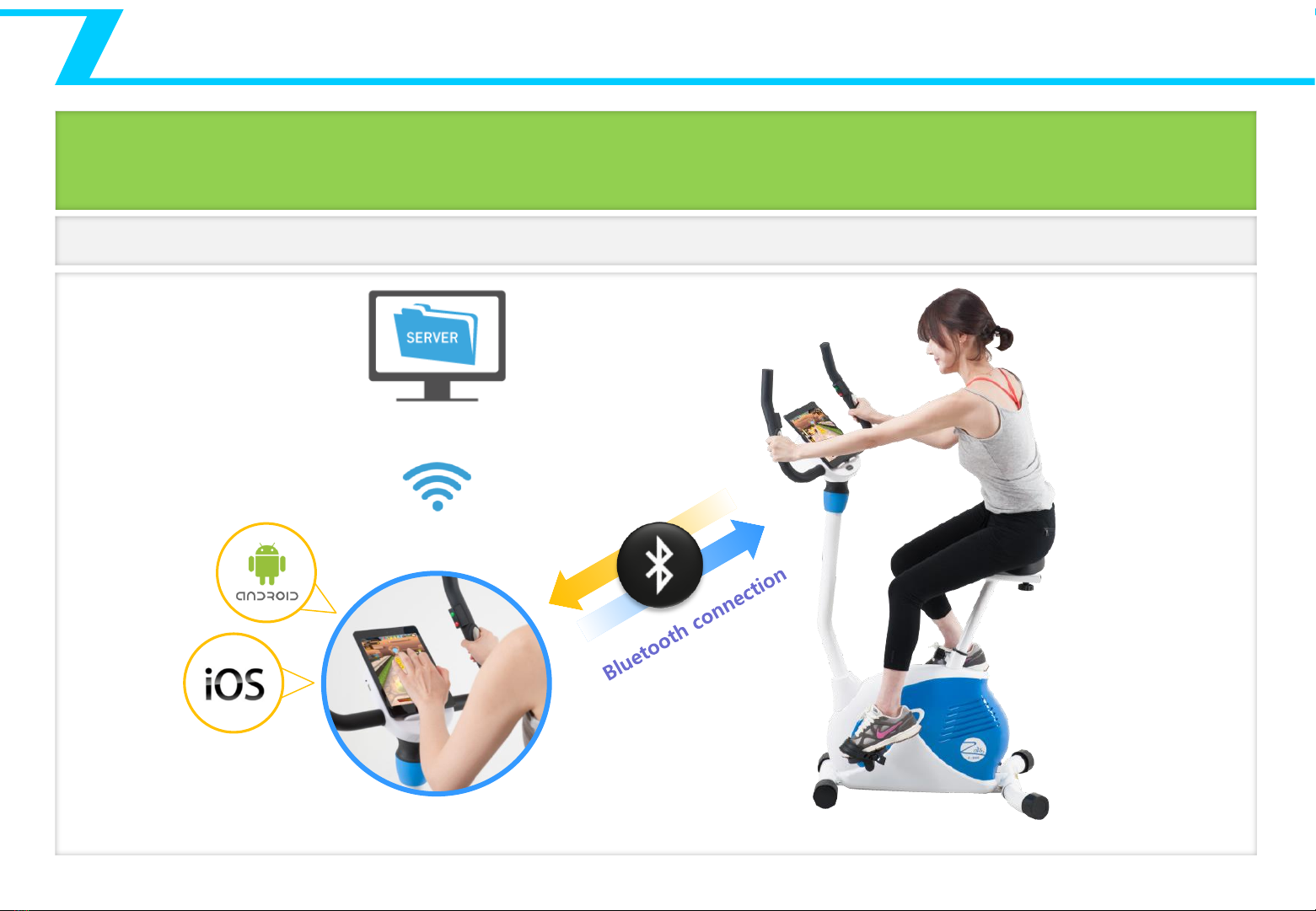

Z-BIKE Smart Fitness Bike System
A home exercise bike system that can interact with smart devices(Phone, Pad, etc.).
Exercise History Management
Wi-Fi
Z-BIKE
Smart Phone/Pad
(Exercise function App)
Smart Fitness Bike

4
02 Z-BIKE Hardware
Item
Z-BIKE
Data
Product
name
Carton
Complete
Color
Material
Etc
W:580mm x L:280mm x H:750mm |23.5kg
W:730mm x L:540mm x H:1,400mm |21kg
Blue, White
Steel Pipe / PP / Silicone
Weight limits : 120kg / Manufacturer: ZOIT CO.,LTD / Made in China (OEM)
Z-BIKE Hardware Keynotes
Linked with the smart App, the pedal load(intensity) is controlled automatically, real-time, without any maneuvers.
Automatic Pedal-load control system : Electromagnet
Free from the messy cables, Z-BIKE can wirelessly connect and interact to various smart devices(phones, tablets).
Bluetooth Connection
Smart contents(Apps) can be controlled with gyro sensor(Incline sensor) and handle maneuver.
Gyro sensor & Free-movement handle
Enables body state monitoring during exercises.
Pulse sensor
Z-BIKE senses the pedal’s front/back direction as well as the real-time speed, interacting with the app accordingly .
Real-time speed and direction sensing
Smart Fitness Bike

5
Smart Fitness Bike
02 Z-BIKE Hardware

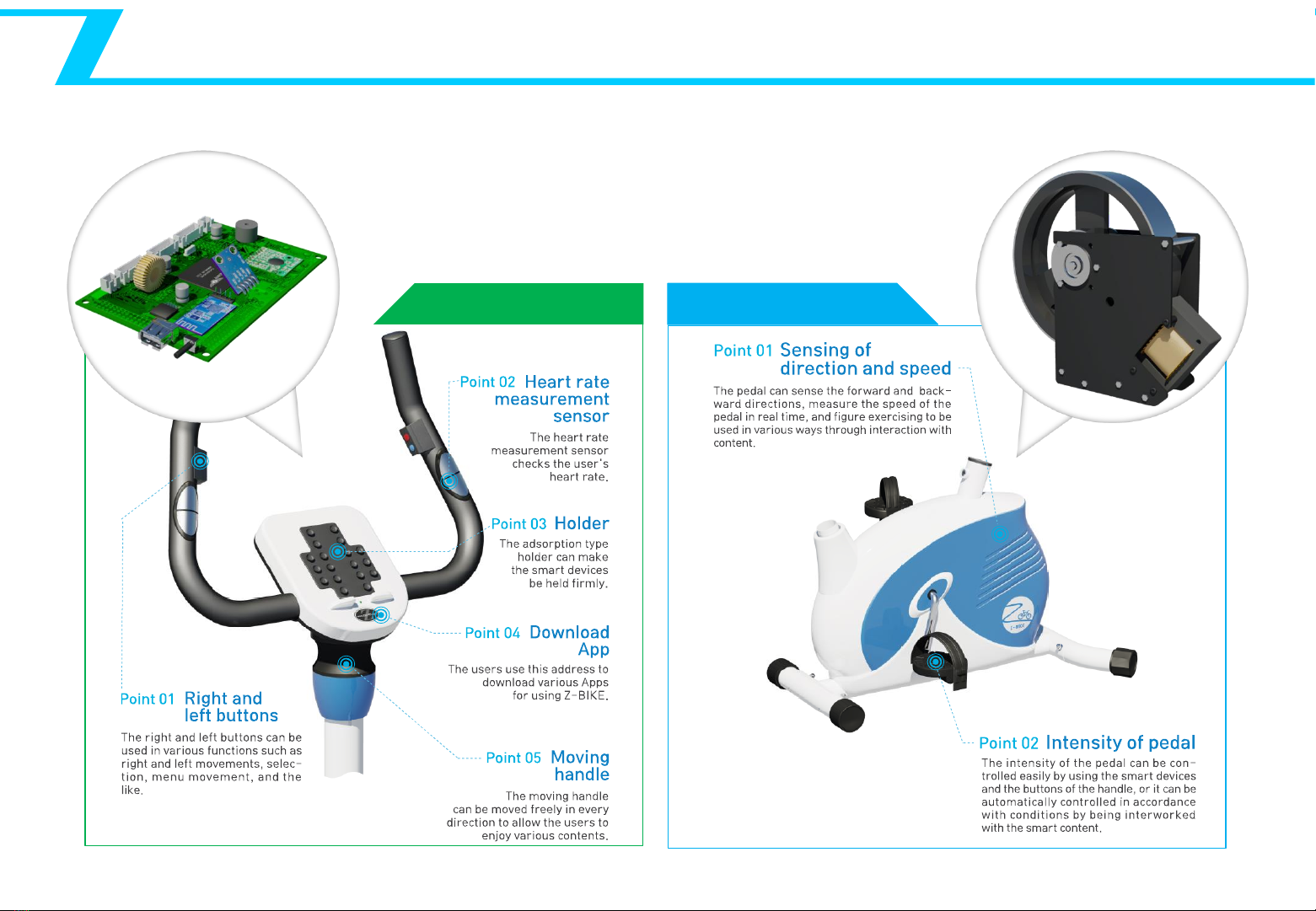

Main Body PartHandle Part
Control Board Electromagnet

6
02
Smart fitness device with weight load function
No. 10-1441575
No. 10-1246826
No. 10-1248767
No. 10-1190692
Bicycle simulation system with reverse movement and pedal load functions
Vibration bicycle system
Exercise apparatus with variable weigh load function
TitlePatent No.
Z-BIKE Hardware : Related Patent(in Korea) Smart Fitness Bike

7
03 Z-BIKE App : Fitness Manager ZOM
※ Zom is a Fitness Manager App that is required for using Z-BIKE
※ By default, it provides Free-Exercise mode and 10 different bicycle exercise programs.
This professional Fitness App also includes exercise history management , which shows the
exercise history in various forms such as daily, monthly, and graphs. In addition, there is
a trainer function. It recommends specific training through individual exercise ability assessments ,
and it also provides in-exercise coaching .

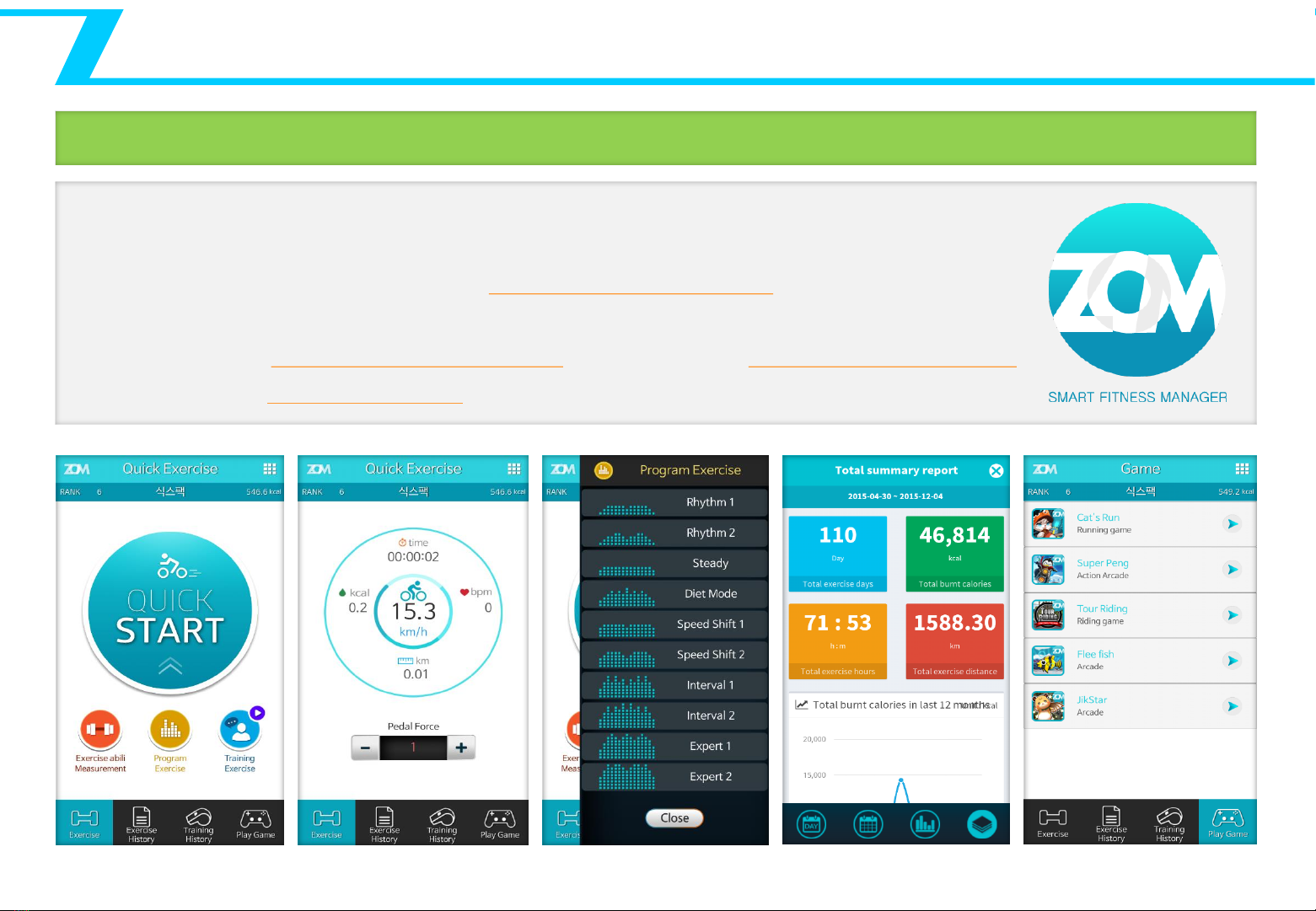

ZOIT Fitness Manager : ZOM
Smart Fitness Bike

8
03 Z-BIKE App : Fitness Manager ZOM
※ ZOM trainer functions as a real-time personal trainer during exercises.
It adjusts the exercise program to fit the selected exercise objectives.
It carefully controls the exercise intensity and speeds to provide maximum exercise output.
Further more, ZOM trainer helps the users to keep their exercise schedules.
It also reports the training results in various forms.
ZOM Trainer
Smart Fitness Bike

9
03 Z-BIKE App : Fitness Manager ZOM
Main Menu

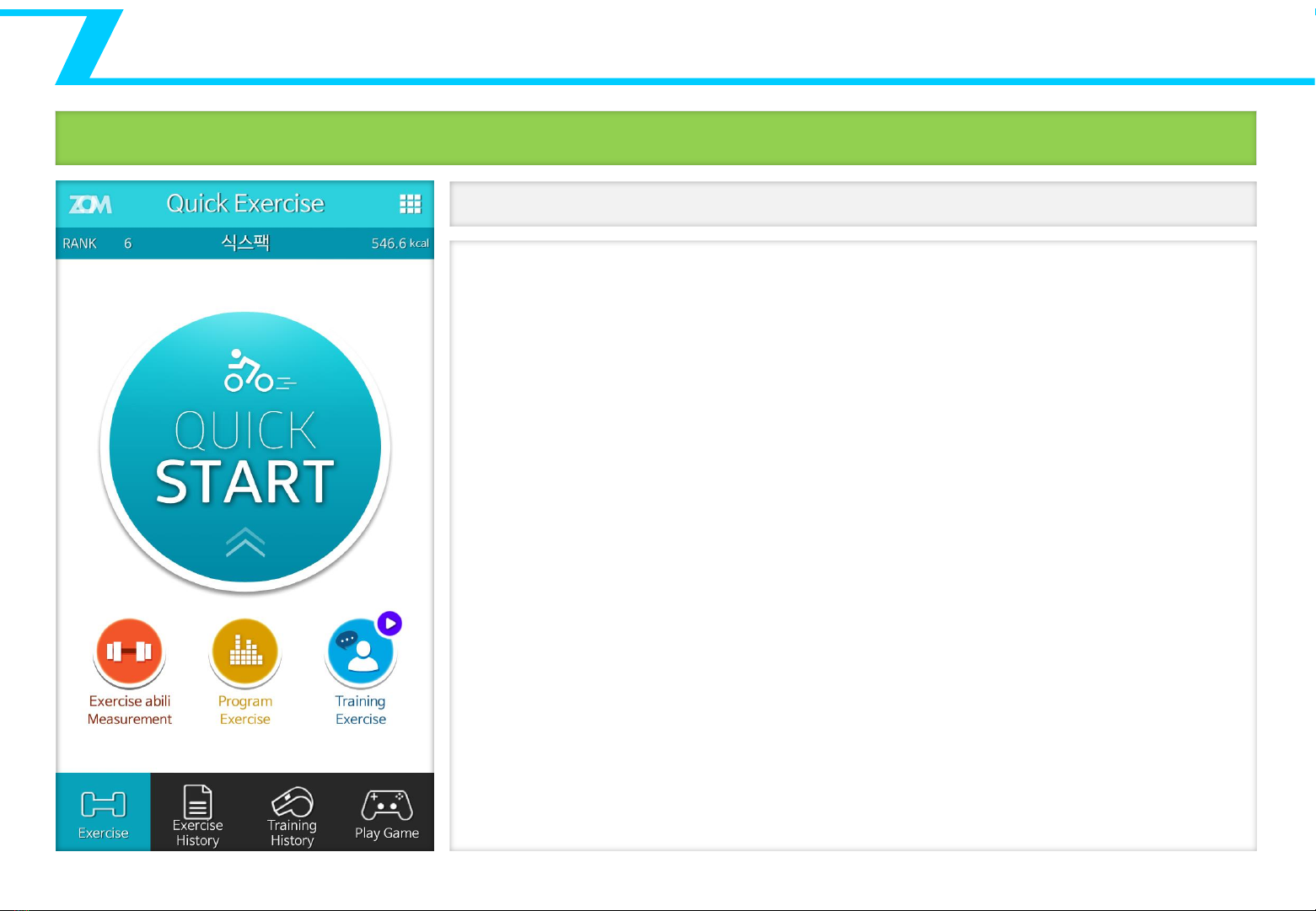

※ This is ZOM’s Main Menu, Exercise page.
■Contents
RANK : An user ranking based on the weekly exercise amounts.
QUICK START : Start Free-Exercise
Exercise ability measurement
Program Exercise : Bicycle exercise program
Training Exercise : Training exercise based on exercise objectives
■Bottom menu bar
Exercise : Current page
Exercise History : Move to exercise history page
Training History : Move to training history page
Play Game : Move to Z-BIKE exclusive exercise game lists
Smart Fitness Bike

10
03 Z-BIKE App : Fitness Manager ZOM
Main Menu > RANK
※ RANK
■RANK(Weekly ranking)
Displays the ZOM user ranking based on weekly exercise
amounts(Spent calories).
Personal ranking is displayed on top, reset ranking is from 1st to last.
ZOM resets the rank every week.
Display items: Rank / User icon / Nickname / Calories / Exercise time
Smart Fitness Bike

11
03 Z-BIKE App : Fitness Manager ZOM
Main Menu > QUICK START

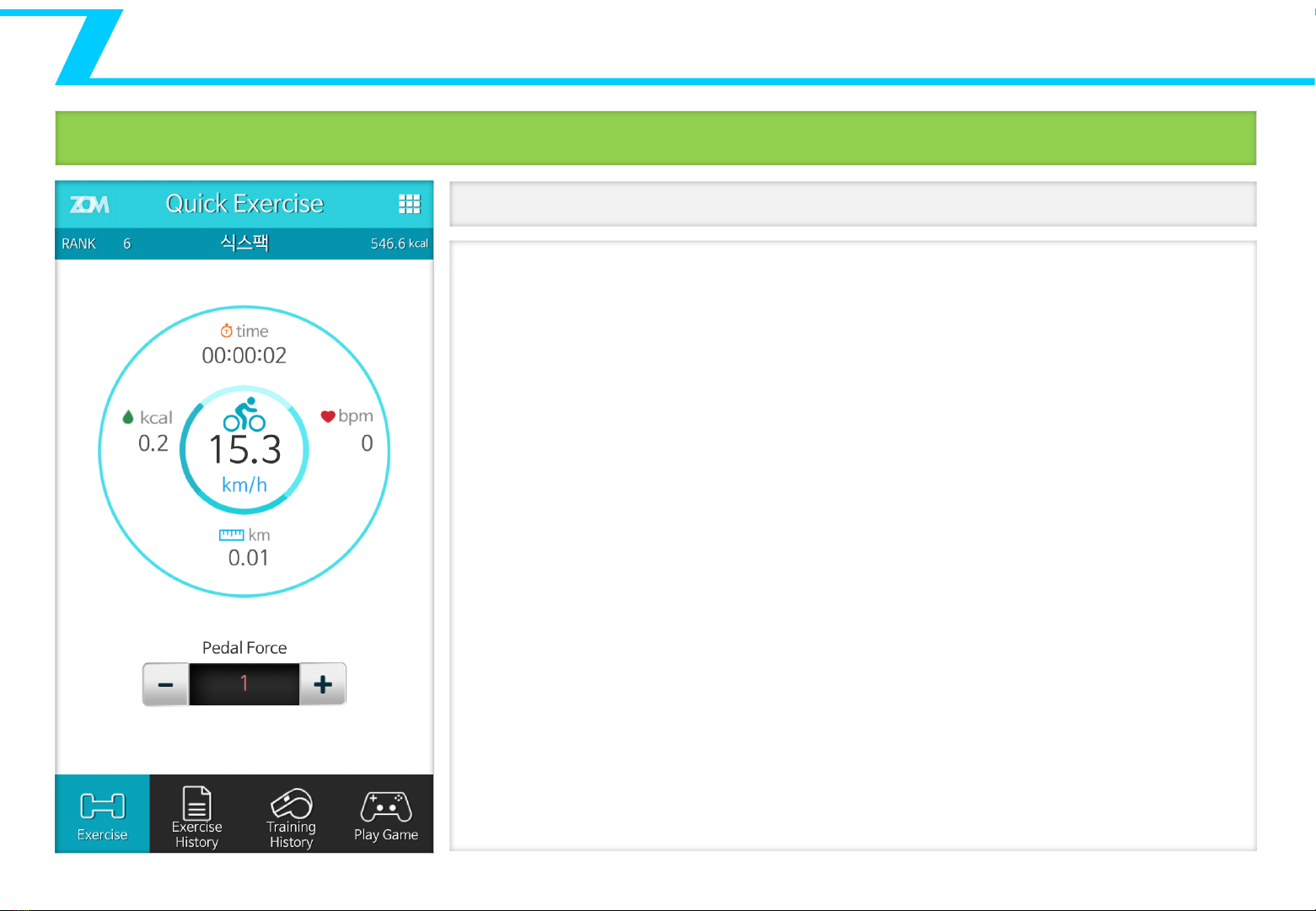

※ QUICK START(Free-Exercise mode)
■QUICK START
A fully customizable exercise function.
User’s can decide pedal intensity, speed, and exercise time freely.
This exercise does not contain recommended speed nor trainers.
■Info.
time : Exercise time
kcal : Burned calorie
bpm : Heart rate(beats per minute)
km : Exercise distance
km/h : Current speed
Pedal Force : users can choose from level 1~8
Smart Fitness Bike

12
03 Z-BIKE App : Fitness Manager ZOM

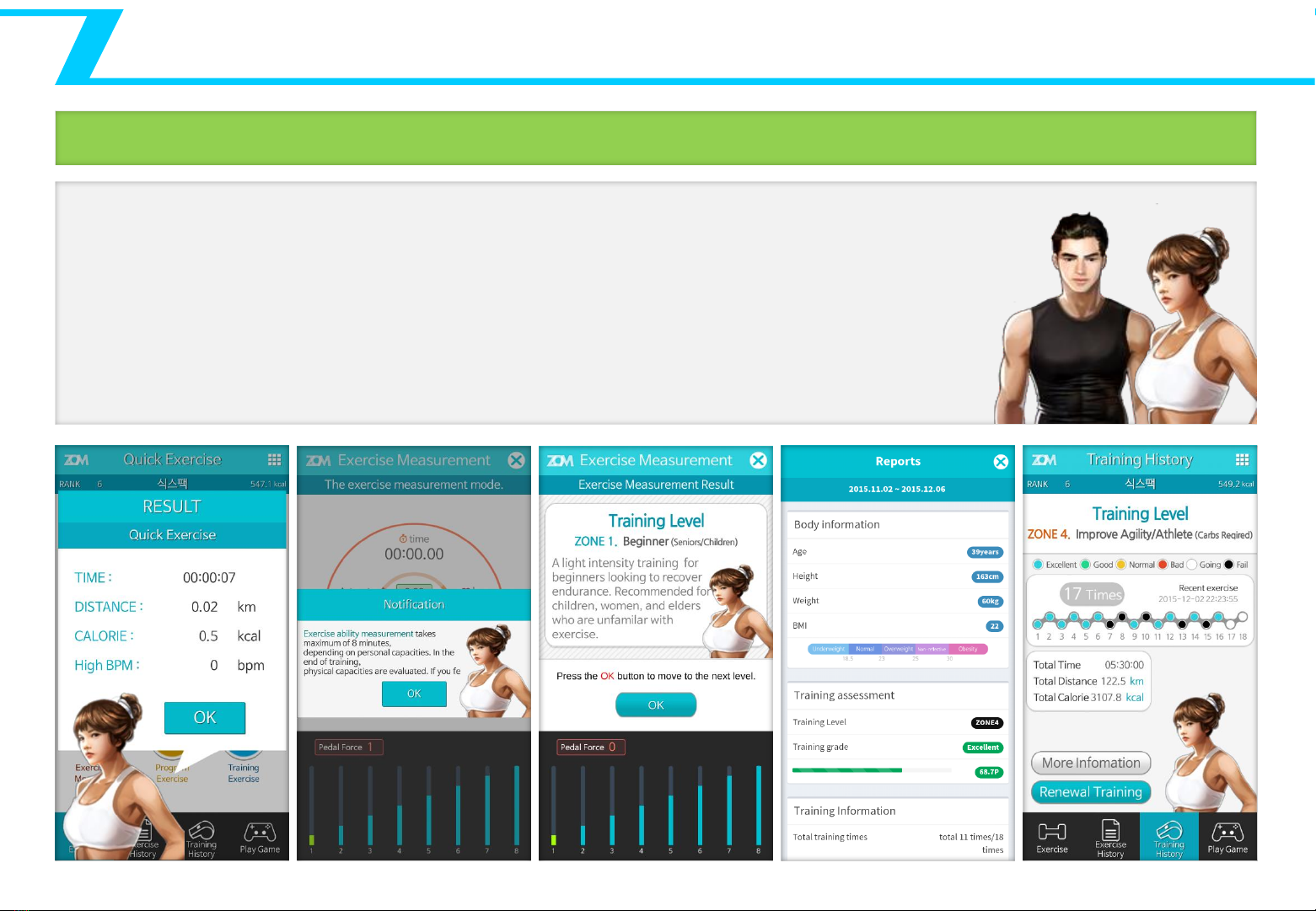

Main Menu > Exercise ability measurement
※ Exercise ability measurement
■Exercise ability measurement
Measures personal exercise abilities.
Recommends adequate exercise according to the results, or you can
build you own exercise based on the measurement results.
Users can choose from recommended training or desired exercises
Smart Fitness Bike

13
03 Z-BIKE App : Fitness Manager ZOM

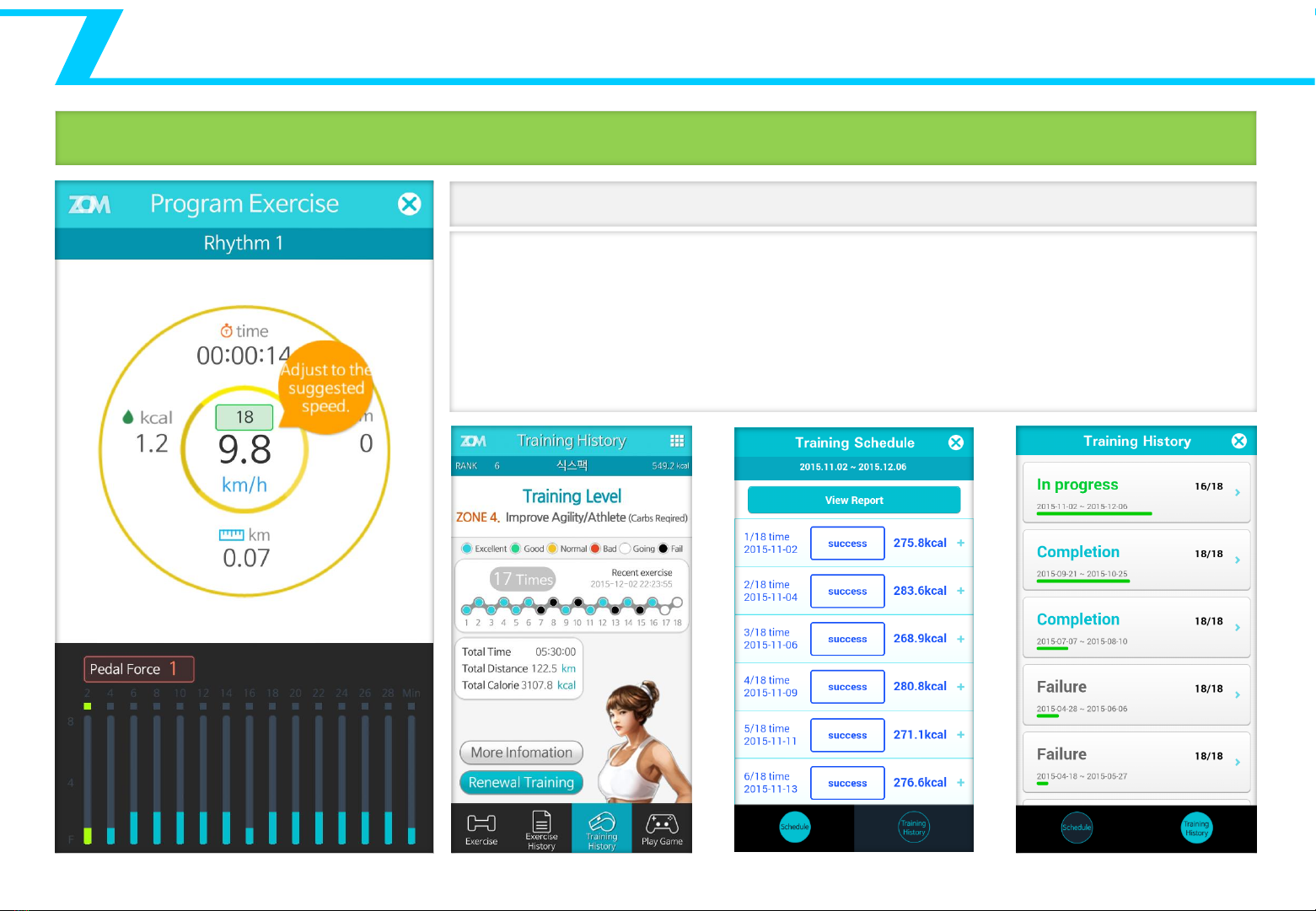

Main Menu > Program exercise
※ Program exercise
■This program provides 10 different Bicycle exercises.
■Each program's pedal load and speed are set according to the exercise
objectives.
rhythm : Low-intensity exercise for beginners.
Steady(Endurance) : Exercise for building endurance.
Diet : Exercise for obesity control and weigh loss.
Speed shift : Exercise for building stamina and strength.
Interval : Exercise for building cardiovascular endurance.
Expert : High-intensity exercise for experts.
Smart Fitness Bike

14
03 Z-BIKE App : Fitness Manager ZOM
Main Menu > Training Mode
※ Training Mode
■Proceed the schedule that is set according to the exercise objectives.
Proceed the scheduled trainings.
There are 18 training schedules in total, with each one of them
evaluated and recorded.
Training results can be reviewed at the trainer’s report.
Smart Fitness Bike

15
03 Z-BIKE App : Fitness Manager ZOM

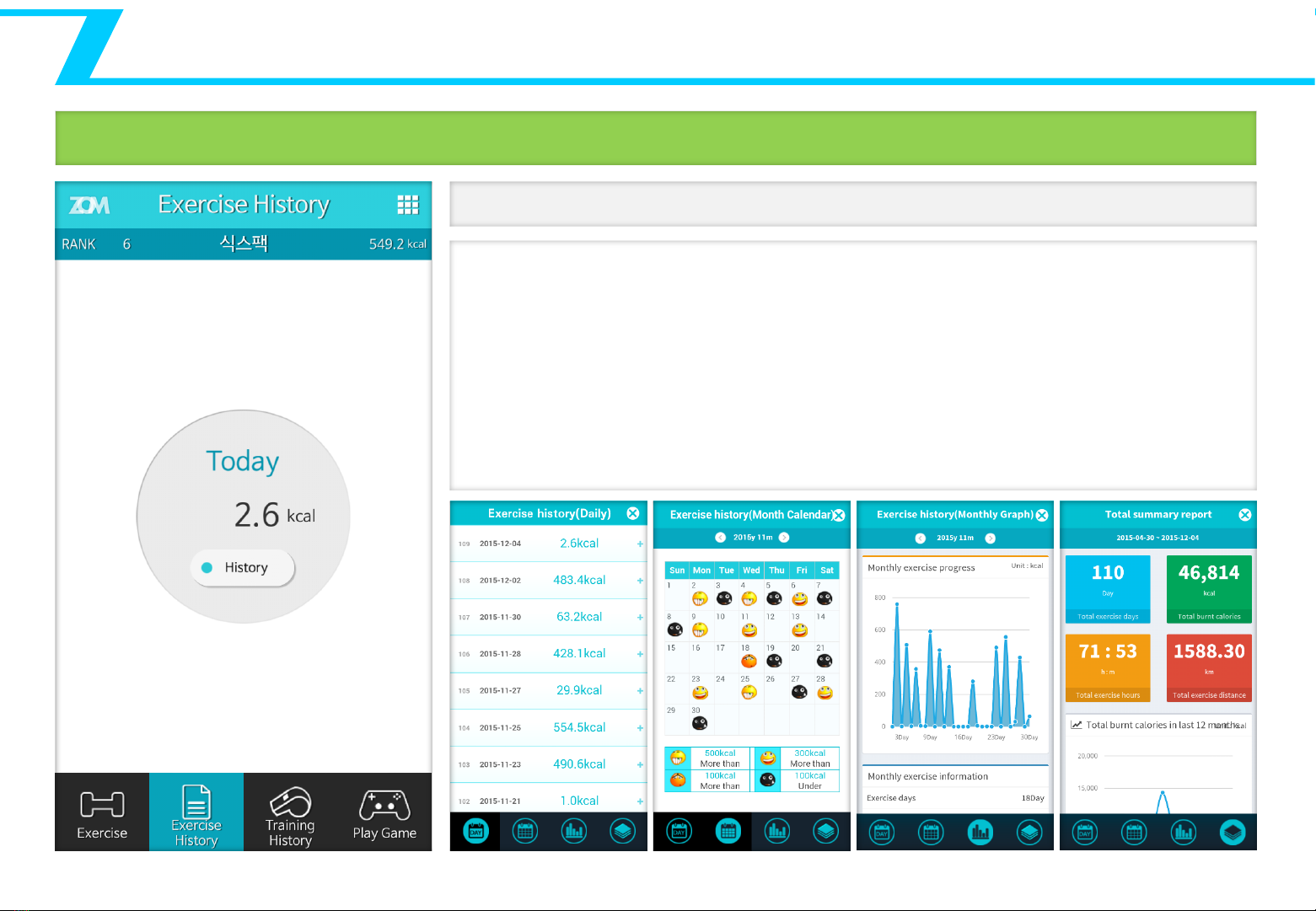

Exercise History
※ Exercise History
■Displays every exercise history, except training exercise history.
The Z-BIKE based exercise history(including games) and the smart d
evice based step counter history is displayed separately.
Uses various formats such as daily, monthly, graph, and total
accumulation to display exercise history.
Personal exercise patterns like exercise time and exercise frequency
can also be reviewed.
Smart Fitness Bike

16
03 Z-BIKE App : Fitness Manager ZOM
Training History
※ Training History
■Training exercise history is managed separately.
Displays the grades of each trainings, as well as the entire schedule.
The progress of each training can be viewed at the details tab.
You can quit the current training and add a new one at the change
training menu. However, it’s better to finish what you have started.
Smart Fitness Bike

17
03 Z-BIKE App : Fitness Manager ZOM
Play games
※ Play games
■Now You can workout while playing games.
Displays the list of Z-BIKE exclusive exercise games.
Various game apps that are perfect for bike exercise is available.
Currently, there are 5 games.
Press the button on the right (after installation) to play the game.
These apps can be downloaded at www.zo-m.com or Android /
Apple app store.
※ These apps require ZOM and Z-BIKE.
Smart Fitness Bike

18
04 Z-BIKE App : Exercise Game App
※ Developed exclusively for Z-BIKE, these exercise game apps automatically
adjusts the pedal speed and intensity, providing both exercise efficiency and entertainments.
More exercise games are scheduled for release. (At www.zo-m.com, Android & iOS app store)
Various exercise game apps to keep you entertained during workout.
Smart Fitness Bike

19
04 Z-BIKE App : Exercise Game App
Cat’s RUN
※ Cat’s RUN
Action Running Game
■A cat that runs through alleys!
A running game that uses pedal and handle buttons for controls.
Use the obtained coins to buy characters and items.
With various cat characters and special items, run faster, go farther.
Compete with ZOM users in rankings, see who exercises the hardest!
Smart Fitness Bike

20
04 Z-BIKE App : Exercise Game App
Tour Riding
※ Tour Riding
Long distance cycling race.
■Compete with multiple opponents in a cycling race!
Use pedal and handle to test the limit of speed.
With changing pedal intensity in various road conditions like uphill
and downhill, exercise is done naturally.
Down fall behind, outrun as much opponents as possible to rank
higher.
Smart Fitness Bike
