ZOOM Blowers XLT User manual

ZOOM BLOWERS.COM
1
XLT
Instructions
ZOOMBLOWERS.COM
[phone]
ZOOM
BLOWERS
1.0 HP XLT-1
1.5 HP XLT-15
2.0 HP XLT-2
3.0 HP XLT-3
ZOOM Blowers
Powerful, Reliable, Safe and Innovative. You will be Blown Away! Whether you are choosing
equipment for commercial, rental, event, or home use, ZOOM blowers offers an extensive line
of top performing, high quality, safe air moving equipment. ZOOM quality, Rugged Roto and
Blow Mold Technology for producing the strongest fan housings. ZOOM design, Zoom blowers
is committed to design standards that focus on efficiency and ease of use. ZOOM efficiency,
all our motors are designed for high performance, low amperage continuous use.
To Our Customer
We have designed this product with safety in mind—now that it is part of your equipment
roster, we encourage you handle safely and observe proper usage instructions.
Since weather is unpredictable, the customer must incorporate their own good judgment,
common sense when using this product outdoors. Make sure to observe the blower through
out the time of use—checking intake grill, alignment and keeping individuals clear of
blower area.

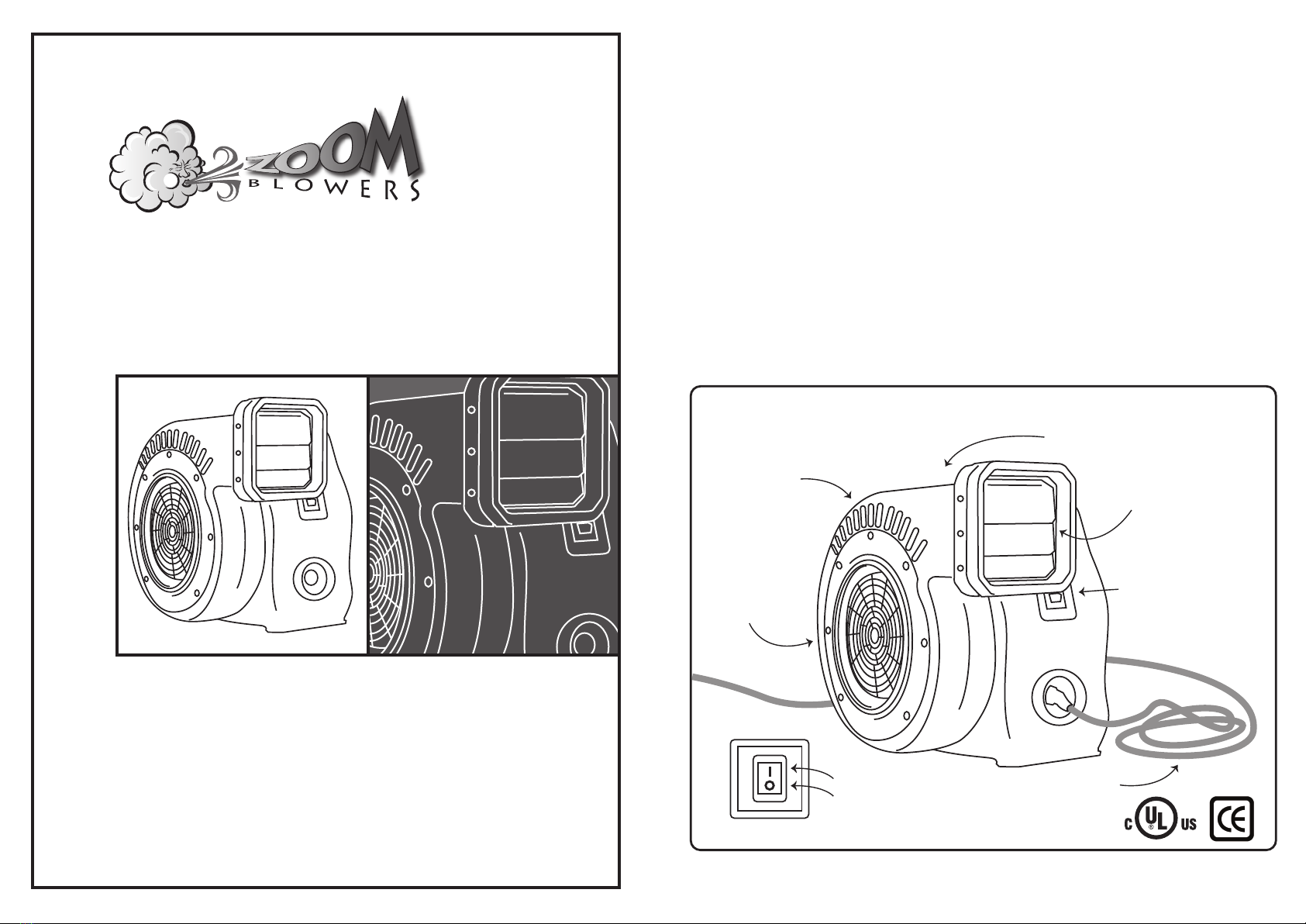

Air Intake Grill
PVC Housing
On
Off
Air Chute - Exhaust
(and flaps)
Handle for transport (not shown)
Power Cord
On/Off Switch
(located on front of
motor casing)
XLT Overview
[phone]

3
ZOOM BLOWERS.COM
2
ZOOM BLOWERS.COM
BLOWER ALIGNMENT
Intake tube
from inflatable
AREA SURROUNDING BLOWER
SET-UP WARNINGS:
• Adult set-up and supervision required. Keep children away from the blower, at all times.
• Place on firm, dry, level ground, for safe use.
• Align blower with inflation tube (for inflatable games, see illustration).
• Do not use a 3-prong adapter of any kind.
• Improper installation of grounding plug can result in a risk of electrical shock.
• Do not modify the plug provided—if it will not fit the outlet have the proper outlet installed
by a qualified electrician.
• The plug must be plugged into a GFCI outlet that is properly installed and grounded in
accordance with all local codes.
• Do not use in rain, strong wind conditions—if blower gets wet, unplug and completely dry
it out.
• Do not put fingers or any objects in blower when plugged in.
• Do not use blower if damaged or not running correctly.
• Keep children away from blower and electrical cords, at all times.
• Make sure ground is free of any debris, in the immediate area of blower.
• Do not place blower on wet surface. If the blower gets wet, allow it to dry before use.
• Leave blower running the entire time inflatable unit is being used (inflatable use).
• To reduce the risk of shock, do not use this blower with any solid-state speed control device.
• For best performance, outside temperature should be between 34ºF and 90ºF.
• Long exposure to direct sun and extremely high temperatures can shorten the life of blower.
• Do not remove safety guards or grill, to prevent damage or injury.
• Clear any debris, grass or dust
from blower area and keep
clear for the duration of use—
a gust of wind might easily
push debris into blower intake
• A blocked air intake could result
in overheating, a electrical
hazard or a fire
• Also, do not operate blower
near explosive gases, flames
or heaters
OPERATION SAFETY WARNINGS:
• Adult supervision required, at all times.
• This blower is configured for use with a nominal 120-volt circuit and has a grounding plug—
make sure to use a proper outlet with same configuration (see page 4).
• Back pressure needed to avoid damaging blower, do this by attaching to an inflatable or duct.
• Keep unit grounded—blower MUST be connected to a GFCI (ground fault circuit interrupter)
rated outlet.
• Prevent sharp and small hard objects from getting into the blower.
• During use make sure liquid does not come in contact with blower—if it starts to rain, to off
blower and place under shelter.
• Clear any debris, grass or dust from air intake grill and keep clear for the duration of use.
• If blower malfunction occurs, tighten blower tube and vents and evacuate unit (inflatable use).
• Air leaking from the inflatable, even seeing bubbles in wet landing zone is normal.
• No loud chattering noises or burning smell should be coming from blower.
• In the rare case an extension cord is needed, only use a 3-wire cord that has a grounding wire
— SJTW, 14AWGX3C, 300V, 105ºC, maximum length 50ft.
MAINTENANCE:
• Store blower in a dry, indoor space—to ensure top performance for years to come.
• Do not wash the blower water or any liquid—after unplugging unit, you can then wipe with
a dry or damp cloth.
• After 4 to 6 months of use, service the blower—remove any dust or dirt that has collected
in the air intake zone.
• Unplug from power source before maintenance begins.
• If the power cord is damaged, it must be replaced by manufacturer, a service professional or
qualified individual—cord must be the same type of amperage rating.
• The direction of the blower is
important
• Align blower in the same direction
as the intake tube, coming from
the inflatable—this will allow
maximum airflow to the unit
• Basic blower use with inflatable
games: connect to the longest
inflation tube and close or tie
other tube and close outlet vents
— constant air pressure required.
[phone](716) 566-5807

4
ZOOM BLOWERS.COM
TROUBLE SHOOTING:
Motor not running
Motor runs but, makes a
scraping noise
Low or weak air flow
Motor is unable to run
normally
• Switch not turned to ‘on’ position
• No power to outlet
• Electric capacitor is damaged
• Faulty switch or cord
• The screws located on the wheel
are loose, resulting in out of alignment
• There are foreign objects in the air-take
or inside blower
• Obstructed intake vents
• The voltage is unstable
• Motor being affected by dampness
• The fan is loose
• Turn switch ON
• Check circuit breaker
• Call ZoomBlowers
• Call ZoomBlowers
• Call ZoomBlowers
• Call ZoomBlowers
• Clean out vents
• Call ZoomBlowers
• Set aside to dry out
• Call ZoomBlowers
PROBLEM CAUSE SOLUTION
5
ZOOM BLOWERS.COM
SPECIFICATIONS:
POWER W/O BP (w)
HORSE POWER
AMPS W/O BP(A)
POWER WITH BP (w) with tube
AMPS WITH BP(A) with tube
STATIC PRESSURE WITH BP (pa)
MAX STATIC PRESSURE (pa)
MAX AIR FLOW SPEED (m/s)
MAX AIR VOLUME (m3/h)
MAX AIR VOLUME (cfm)
WHEEL SPEED (rpm) / (m/s)
NOISE (db) / 1m distance
NW (kg / lbs)
GW (kg / lbs)
ZM-XLT-1
1105
1 HP
10
778
6.99
1645
1675
33
571
994
3282
93
10.0 / 22.0
10.9 / 24.0
ZM-XLT-15
1102
1.5 HP
9.5
892
7.8
1938
1968
32.8
612
1065
3058
90
14.6 / 32.1
15.8 / 34.8
ZM-XLT-2
1517
2 HP
13
1140
9.88
2254
2284
35.8
670
1166
3050
93
15.2 / 33.5
16.5 / 36.3
ZM-XLT-3
2100
3 HP
18
1293
11.3
2530
2560
36.4
760
1323
3165
95
21.8 / 48.0
23.1 / 50.8
PS: Atmospheric pressure: 101.5 hpax10 / Temperature: 28.5°C
LIMITED WARRANTY:
PROOF OF PURCHASE IS REQUIRED ON ALL WARRANTY CLAIMS
Warranty covers defects in material and craftsmanship—when used under normal
intended use to original purchaser for a term of (1) one year from date of
purchase—including parts, labor and one- way shipping.
IMPORTANT: Warranty may become void if there are signs of misuse—including,
but not limited to rough handling, abuse, tampering, improper voltage use and
unauthorized maintenance or repairs.
GROUNDING INSTRUCTIONS:
This product must be grounded—the grounding pin provides an
escape route for the electrical current. If electrical short circuit occurs,
grounding reduces the risk of shock. This cord attached blower is
equipped with a grounding wire and grounding pin. When using
blower, plug into an outlet that is properly grounded, in accordance
with all local codes— GFCI (ground fault circuit interrupter)
rated outlet is the proper choice.
WARNING: Incorrect installation of the grounding plug may result in
electrical shock. Check with a qualified electrician if the grounding
instructions are not completely understood or if you have any doubts
about grounding set-up. Do not modify the plug provided (have an
electrician replace outlet, with proper outlet). Blower is compatible
for use with a nominal 120-V circuit.
Do not use an adapter with this blower’s plug.
Grounding Pin
GFCI Outlet
[phone](716) 566-5807

6
ZOOM BLOWERS.COM
ZOOMBLOWERS.COM
[phone]
FAN (1)
AIR INTAKE GRILL (1)
LOUVER ASSEMBLY (1)
EXHAUST WIRE MESH SCREEN (1)
SWITCH (1)
RUBBER FEET (4)
SKU: ZM-XF
SKU: ZM-XG
SKU: ZM-XL
SKU: ZM-XS
SKU: ZM-XSW
SKU: ZM-XFT
[phone]
PARTS LIST:
