Zoombak A-GPS Universal Locator User manual

Universal A-GPS Locator
User Guide

Zoombak Services
Universal A-GPS Locator
www.zoombak.com
COPYRIGHTS
© 2008 Zoombak. All rights reserved.
Zoombak is a trademark of Zoombak, LLC.
NOTICES
This document neither grants any license nor conveys any rights with
respect to the subject matter hereof or otherwise. Zoombak expressly
retains all intellectual and other property rights with respect to this
document and all matters set forth herein. This document is neither
an offer nor an acceptance. Neither party will be obligated with
respect to the subject matter hereof unless and until such party has
entered into a denitive agreement, and then only in accordance with
the terms of such agreement. Some technical assertions of capability
included herein are estimates based on limited information gathered
from past experience. Terms and conditions apply to the purchase,
activation and use of the Zoombak Universal A-GPS Locator (see
www.zoombak.com for further information).
TRADEMARKS
Zoombak™ and the Zoombak logo are trademarks owned by Zoombak,
LLC and protected in the United States and other countries.
This document is published by Zoombak, LLC without any warranty.
Zoombak, LLC may amend this document from time time without
providing you notice to correct any typographical, technical or other
inaccuracies.
Zoombak Universal Locator V.1.0CLA

Table of Contents
Introduction ................................................................................................... 1
Getting Started ............................................................................................ 2
Key Functions ............................................................................................... 2
Zoombak Universal Locator Package Contents..................................... 3
Using the Universal Locator......................................................................4
Charging the Battery ..................................................................................4
Battery Life................................................................................................... 5
Powering the Universal Locator ON/OFF................................................ 6
Monitoring the Universal Locator Status................................................ 6
General Usage Tips...................................................................................... 7
Placing the Locator on Your Dog..............................................................8
Placing the Locator in Your Car................................................................ 9
Safety and Warranty Information ............................................................10
Safety Information .....................................................................................10
FCC Regulations...........................................................................................11
Zoombak Locator Disposal and Recycling.............................................12
Reduction of Hazardous Materials (RoHS) ............................................12
Specic Absorption Rate (SAR)...............................................................12
Limited Warranty ........................................................................................13
What This Warranty Does Cover ..............................................................13
What This Warranty Does Not Cover ......................................................13
How To Obtain Service...............................................................................13
Out of Warranty Repairs............................................................................14
Limitations of Liability...............................................................................14
Water Resistance........................................................................................15
Contacting Customer Care .......................................................................15
Specications and Certications ............................................................16
Universal Locator Specications ............................................................16
Certications...............................................................................................17
AC Wall Charger Specications ...............................................................17
Car Charger Specications.......................................................................17
AC Wall Charger Safety Information.......................................................17
Important Coverage Information.............................................................18

Introduction
Thank you for purchasing the ZoombakTM Universal A-GPS
Locator. Zoombak is focused on the development and marketing of
breakthrough mobile communications solutions that leverage the
power of wireless technology and location-based services to provide
people with new ways to connect to each other and their world.
This Guide will introduce you to all of the features of your Zoombak
Universal Locator device. If you have any questions, please contact
Zoombak Customer Care at 1-877-4ZOOMBAK or visit our website at
www.zoombak.com.
In addition to this Zoombak Universal Locator User Guide, the
Zoombak Universal Locator Quick Start Guide, along with other
detailed instructions on how to activate and use your Zoombak
service, can be found on our website at www.zoombak.com. The Quick
Start Guide will briey walk you through activating and using your
service, and setting up your safety zones and alerts.
Please read this Zoombak Universal Locator User Guide and the Quick
Start Guide before setting up your account prior to use. Activation
and use of the Zoombak Locator are subject to Zoombak’s customer
agreement, plans, terms and conditions, which can be found at
www.zoombak.com.
The Zoombak Universal Locator User Guide is divided into ve main
sections:
• Section 1. Getting Started
• Section 2. Using the Universal Locator
• Section 3. Safety and Warranty Information
• Section 4. Contacting Customer Care
• Section 5. Specications and Certications
zoombak.com
1

Getting Started
This section addresses two primary areas:
• Zoombak Universal Locator Features
• Zoombak Universal Locator Package Contents

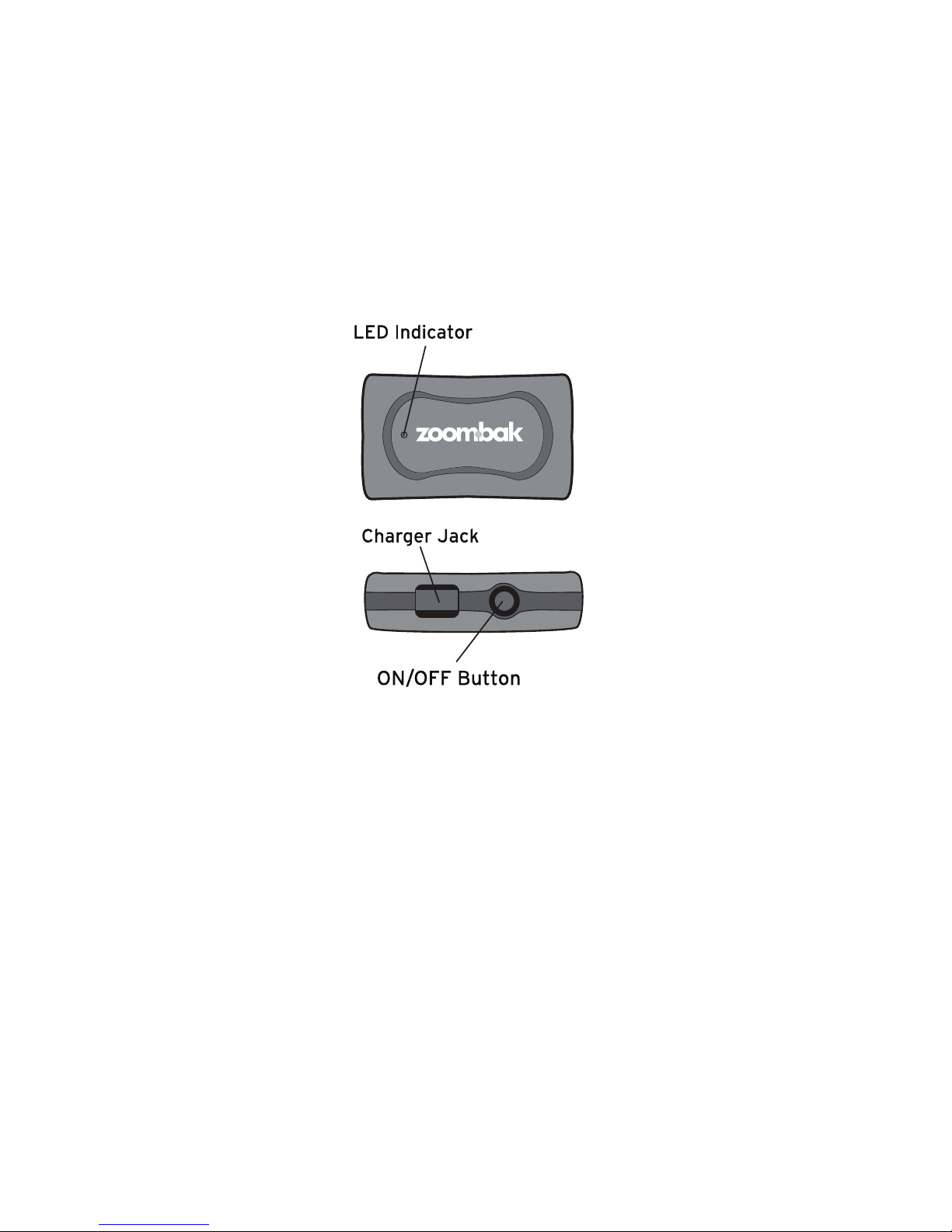

Front/Aerial View of Locator
Key Functions
• Charger Jack—Connects the Zoombak Universal Locator to
the AC Wall Charger (included)
• Locator Status LED Indicator—Allows you to monitor
(at a glance) the power and battery status of your
Zoombak Universal Locator
zoombak.com 2

Zoombak Universal Locator Package Contents
When you purchase the Zoombak Universal Locator,
the package should contain the following:
• Zoombak Universal Locator
• Zoombak Universal Locator Pouch
• AC Wall Charger
• Car Charger
• Zoombak Universal Locator User Guide and Quick Start Guide
If any of these items are missing from your package, please contact
Zoombak Customer Care at 1-877-4ZOOMBAK.
zoombak.com
3
Zoombak Universal Locator
Car Charger
AC Wall Charger
Universal Pouch

Using the Universal Locator
This section addresses seven primary areas:
• Charging the Battery
• Battery Life
• Powering the Universal Locator ON/OFF
• Monitoring the Universal Locator Status
• General Usage Tips
• Placing the Locator on Your Dog
• Placing the Locator in Your Car
Charging the Battery
Before activating and using the Zoombak Universal Locator for the
rst time, you will need to fully charge the battery. Follow these simple
instructions to charge the battery. The initial battery charge time will
be 6 hours; each subsequent battery charge will be approximately 4
hours.

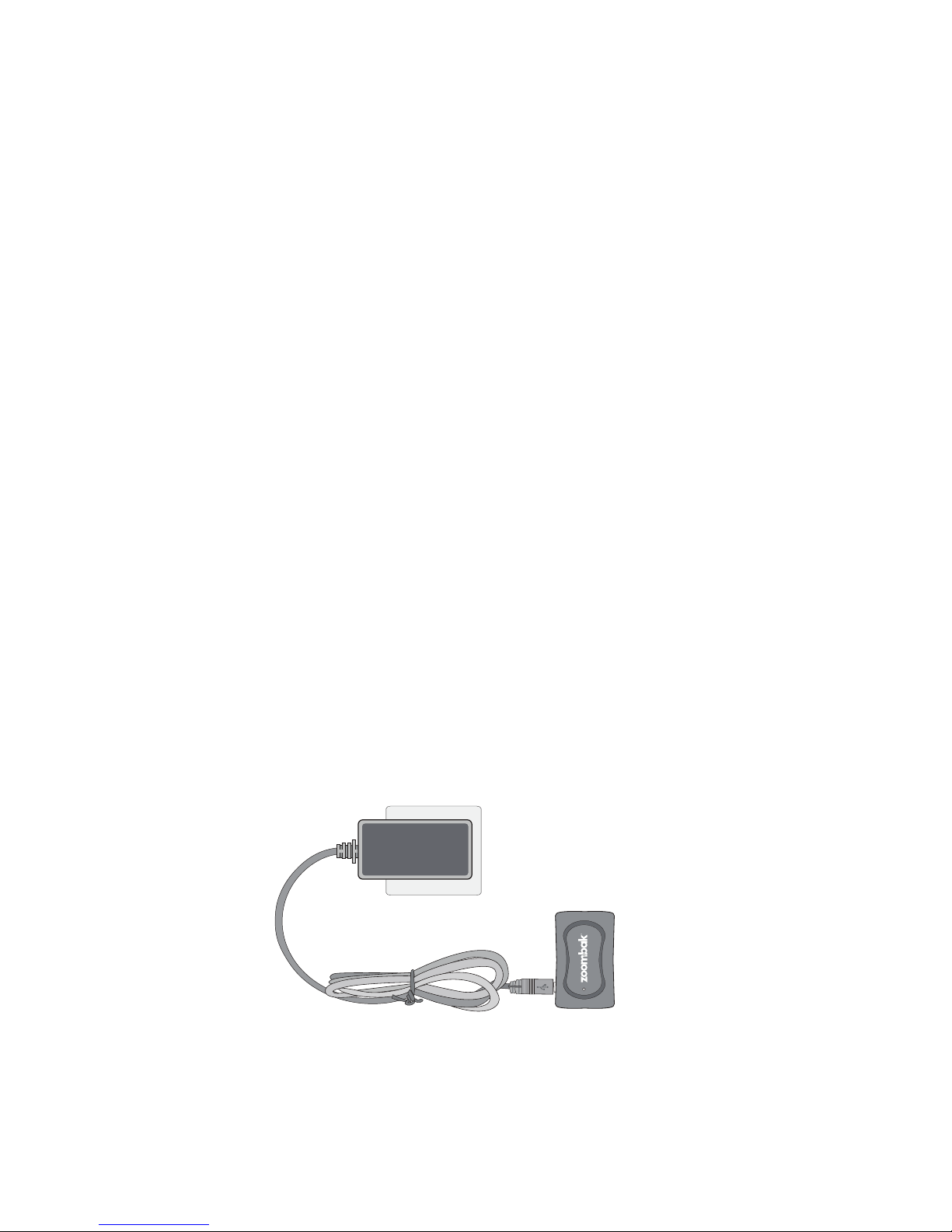

1. Remove the Zoombak Universal Locator and AC Wall Charger
from the Zoombak Universal Locator package.
2. Plug the AC Wall Charger into a wall outlet.
3. Attach the Zoombak Universal Locator to the AC Wall
Charger via the USB Charger Jack on the Zoombak Universal
Locator.
4. The Locator Status LED Indicator will glow amber (yellow-orange),
indicating that the Zoombak Universal Locator is charging.
5. Once the Locator Status LED Indicator glows green, this will
signal that the Zoombak Universal Locator is fully charged.
zoombak.com 4

Battery Life
Mode Battery Life
Standby Up to 120 hours or 5 days
Active Locator Service Up to 150 Location Requests
Battery life depends on several factors including temperature,
network, signal strength and Locator service features used.
Location requests include the following Zoombak Locator
service features: “Find Now,” “Safety Zones” mode and
“Continuous Tracking” mode. When your Zoombak Locator indicates
low battery (blinking amber LED), recharge your battery as dened in
the previous section titled “Charging the Battery.”
Rechargeable batteries have a limited number of charge cycles and
may eventually need to be replaced. The Zoombak Locator battery is
not user replaceable; it can only be replaced by an authorized
service provider. For more information on battery replacement, please
contact Zoombak Customer Care at 1-877-4ZOOMBAK .
zoombak.com
5

Powering the Universal Locator ON/OFF
In order to power the Zoombak Universal Locator ON or OFF,
follow these simple instructions:
1. Power ON—Press and hold the Power Button until the Locator
Status LED Indicator begins to glow (approximately two seconds).
Blinking green indicates operation OK.
2. Power OFF—Press and hold the Power Button until the
Locator Status LED Indicator begins to ash quickly (approximately
two seconds). Locator Status LED Indicator will shut OFF when
the Locator has properly shut down. A key feature of your
Zoombak Universal Locator during the power OFF process is that
the Locator will determine its current location and send a power
OFF notication via email and/or mobile text message with its
current location and time/date information (see the Zoombak
Universal Locator Quick Start Guide for details on setting up your
alerts). The Locator Status LED Indicator will continue to blink
during the power OFF process, which may take up to 2 minutes
to complete this important notication feature.
Monitoring the Universal Locator Status
Refer to the following list in order to determine the status of your
Zoombak Universal Locator LED Indicator at any time.
BLINKING GREEN Indicates Power ON
BLINKING AMBER (YELLOW-ORANGE) Indicates Low Battery
GREEN Indicates Fully Charged (When Charging)
AMBER (YELLOW-ORANGE) Indicates Charging
NO COLOR Indicates Power OFF
or Battery Needs to Be Charged
zoombak.com 6

General Usage Tips
GPS devices work by receiving satellite signals from the open sky.
For optimal operating conditions, your Zoombak Universal Locator
needs to be in clear, unobstructed view of the sky in order to have a
line of sight to a group of satellites.
When placing the Locator in an item such as a briefcase, luggage,
or backpack, please ensure as far as possible that there is no solid
material (eg. metal objects) above or surrounding the Locator which
may block or weaken the signal it receives from the sky.
GPS satellites are in constant motion, rising and setting. Under certain
conditions this means a location position that was obtainable fteen
minutes ago in a specic location may not be obtainable in the next
try. In this instance there is no fault with the device. Please wait a
while before trying to obtain a new location.
7zoombak.com
