zoomion Genesis 200 EQ User manual

1
Instruction Manual
Genesis 200 EQ
English version 8.2014 Rev A

2
The Zoomion® Genesis 200 EQ
Congratulations on the purchase of the new Zoomion®Genesis 200 EQ. This advanced telescope will
give you hours of fun, with its all optical glass lens and light gathering ability, it is the ideal
companion deep sky observation. With this telescope you will be able to see the craters on the Moon,
star clusters, nebulae the Jupiter disc features and its Galilean moons and the rings of Saturn. We
have included many accessories so it will be easy to use this telescope.
1. Included parts
we have included several accessories that will make the use of the telescope easier and fun, please
take a look at the list of the parts so you can identify them in the future.
1. 6x Finderscope;
2, 3 & 4. Three eyepieces 1.25” (31.75mm); a PL25mm, PL 12mm and a PL6m eyepiece;
5. One Moon Filter.
2. Getting Started
It is very simple to get started. Here is how the
telescope works. The telescope main lens should
point to the object being observed. The mirror
on the back of the tube will gather the light
coming from the object and reflects it to the
secondary mirror that brings it to the eyepiece.
The focuser tube moves up and down to get a
precise focused image. At the focuser one can
use the supplied accessories. Different
accessories combinations give different results,
such as different image magnifications or correct
image. But all this will be explained in detail in
the next pages.
3. Assembly
Start by setting the tripod. Open the tripod legs as shown (figure 2). Place the supplied accessory
tray (figure 3). The accessory tray can be used to place the telescope accessories such as the
eyepieces, filters etc. Next place the equatorial mount on top of the tripod (figure 4), the mount will
bear all the weight of the telescope so it is important to thread it securely. Thread the counterweight
shaft as shown (figure 5), it fits the threaded hole on the Right Ascension (R.A.) axis. Remove the
foot-saver (the screw and washer –figure 6) from the shaft’s end and slide in a Counterweight. Make
sure to use the counterweight’s locking knob so that it is securely fasten. You can leave it at half the
shaft length for now.
ATTENTION! Never look at the Sun through a
telescope. Concentrated Sun light may cause serious
eye injury. Children should use only with adult
supervision
Figure 1. Parts List

3

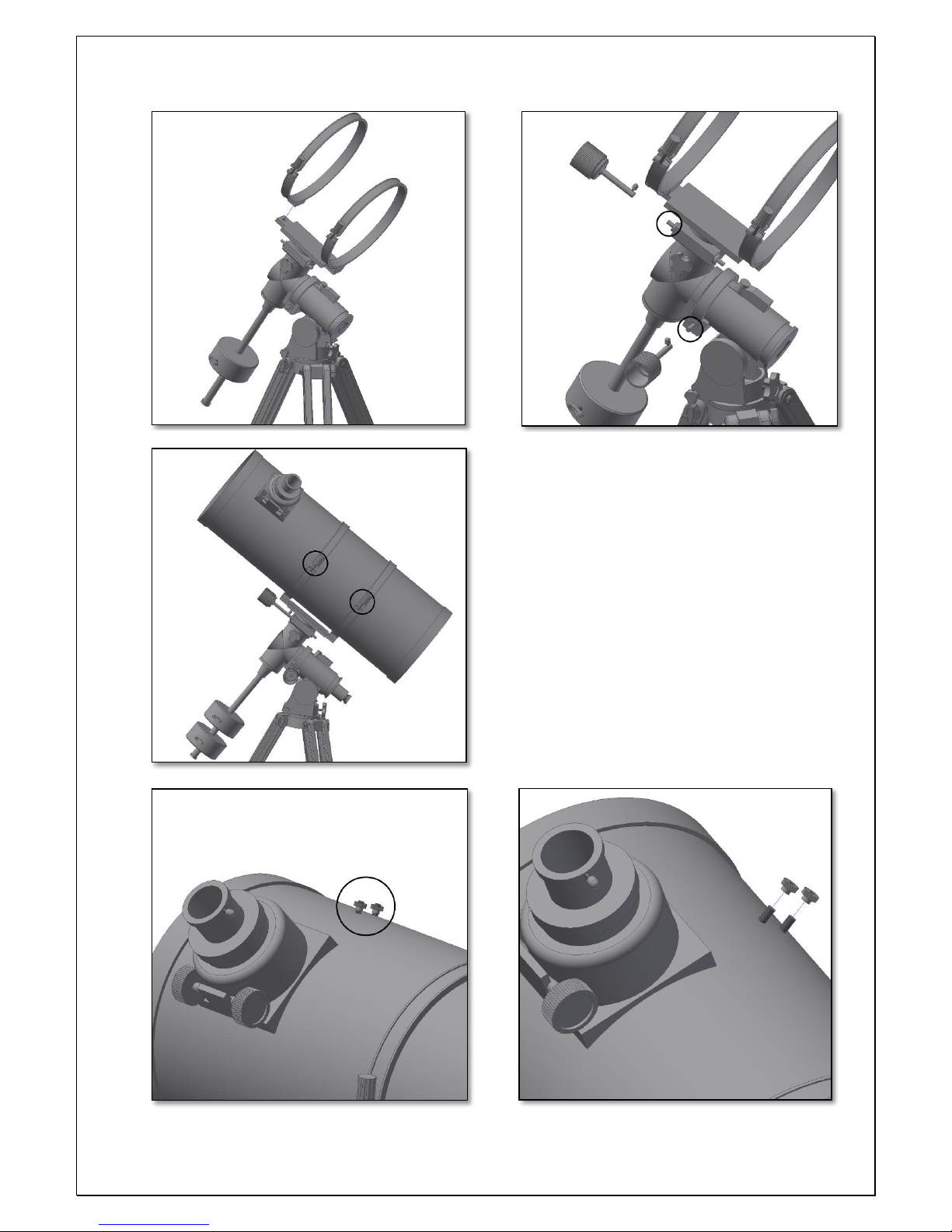

Place the tube rings (figure 7) on the mount
platform and make sure both clamp knobs at
facing the same side, they will be used to
place and remove the optical tube when
necessary. It is important that they are well
tightened and don’t rotate. Next, insert the
fine adjustment knobs on each axis (figure
8). These knobs allow to make small
movements on both axis of the telescope.
Use the included thumbscrew on each. Make
sure they fit the slotted surface on the
protruding axis shaft. Open the tube rings
that were previously fitted to the telescope
and insert the tube (figure 9). .Close the
Figure 3. Tray placement.
Figure 2. Set the tripod.
Figure 5. Thread the counterweight shaft.
Figure 4. Place the Equatorial mount.
Figure 6. Slide counterweight and thread the foot-saver.

4
rings and clamp the two knobs. Slide the tube
so that the focuser is pointing up and more or
less centred. Depending on the telescope tube
weight you might find useful to use two
counterweights. The finderscope is place next
to focuser, remove the two thumbscrews as
shown in figure 11 and place the finderscope.
Make sure the finderscope (figure 12) is
pointing in the same direction as the
telescope’s aperture so when you point the
telescope to an object you also point the
finderscope.
Figure 7. Place the tube rings.
Figure 8. Place fine adjustment knobs.
Figure 9. Slide tube and thread the ring knobs.
Figure 10. Finderscope thumbscrews.
Figure 11. Remove the finderscope thumbscrews.

5

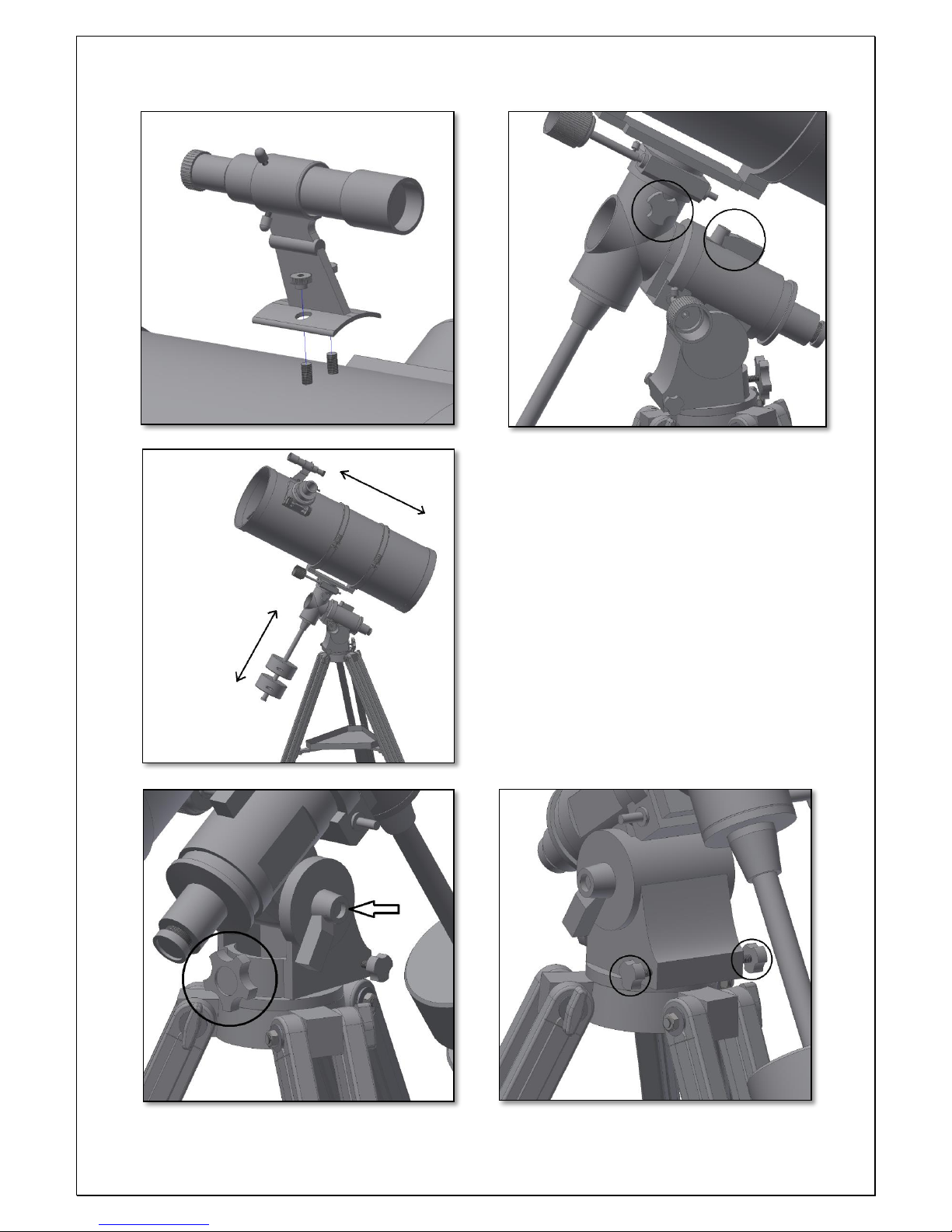

Note the two locking handknobs (fgure 13).
When released they work as clutches and allow
free movement in both axis. When fully
tightened you can use the fine adjustment knobs
(figure 8). For easy operation the telescope still
needs to be balanced. Adjust the counterweights
(figure 14) so that when you release the locking
handknobs and the telescope moves freely. The
telescope is balanced when neither the tube nor
the shaft axis tilt to any side. To adjust the R.A.
axis inclination release the locker (arrow in figure
15) and rotate slowly the altitude handknob
(circle in figure 15). When ready lock again. To
adjust the azimuth use the two side hand knobs
as shown in figure 16.
Figure 12. Place finderscope..
Figure 13. Locking handknobs.
Figure 14. Balance the telescope.
Figure 15. Adjust the altitude axis.
Figure 16. Adjust the azimuth axis.

6
4. Alignment of the optics and collimation.
Telescopes require periodical checking for the alignment of the optics. The optics should be
aligned (or collimated) so that the telescope can achieve a good performance and deliver a
sharp image. This is especially important for Reflector telescopes (that use mirrors). First
let’s start by checking collimation.
Look for a bright star in the evening sky and centre it in the eyepiece field of view. Some
power is required to check alignment, make sure the star is focused. Now use the focuser
knobs and rotate so that the star comes out of focus (defocused). You will be able to see a
defocused star. It will appear as a series of rings. These are called diffraction rings and they
will be important to determine how good (or how bad is the alignment –figure 19). If the
optics are well aligned you will be able to see a defocused
star similar to a series of concentric rings (1 in figure 19), a
poorly aligned telescopes will show a series of eccentric
rings (2 in figure 19).

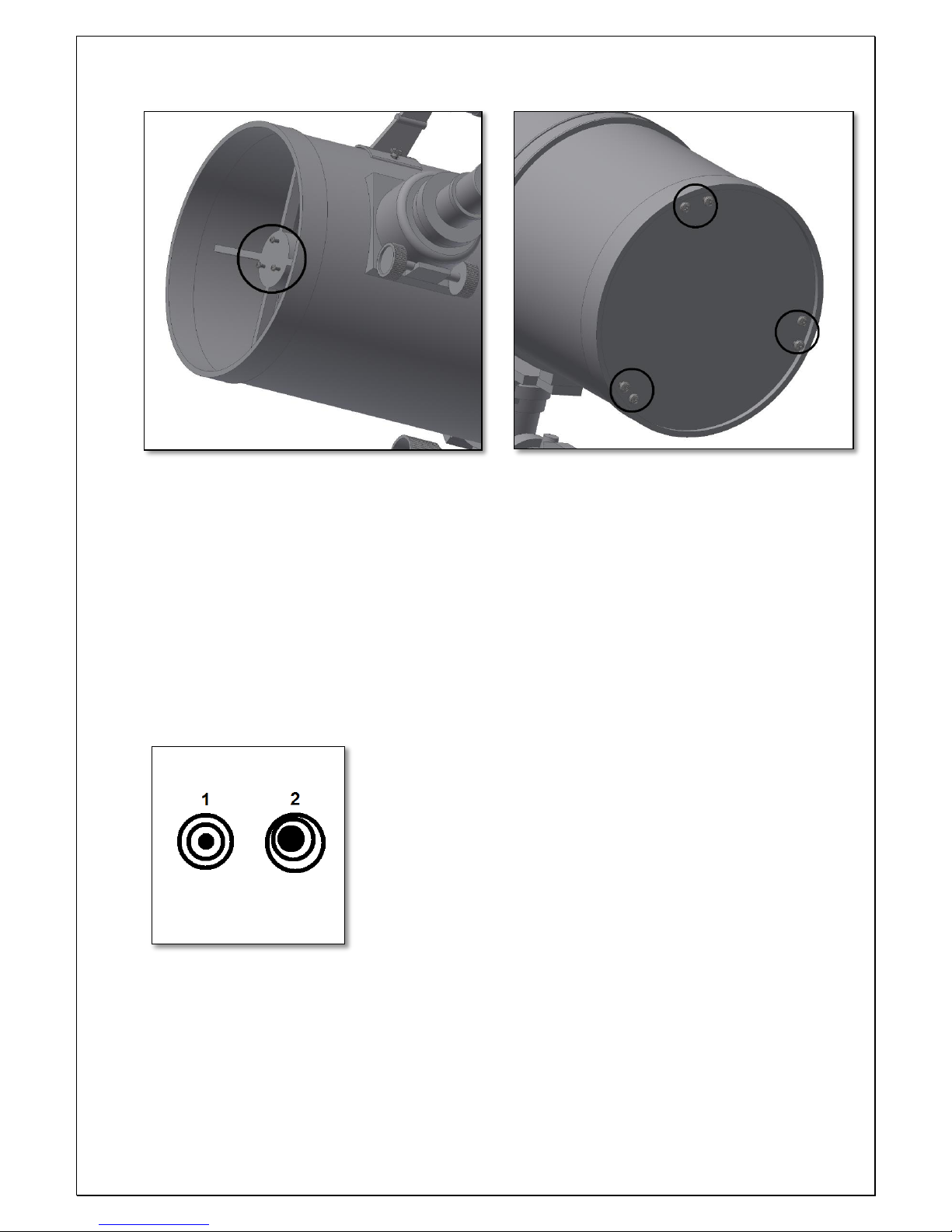

The telescope is equipped with a set of collimation screws
for both the secondary mirror (figure 17) and for the primary
mirror (figure 18). They can be used to adjust the tilt of both
mirrors and to achieve alignment. This information is for
your reference.
Figure 17. Adjust the secondary mirror.
Figure 18. Adjust the primary mirror.
Figure 19. Diffraction Rings: 1. good
alignment and 2. Poorly aligned

7
4.1. Collimate the optics.
Remove the eyepiece from the telescope’s focuser. If look directly to the secondary mirror
will see a reflection of your eye. The light is being reflected from the secondary mirror to the
primary and back.

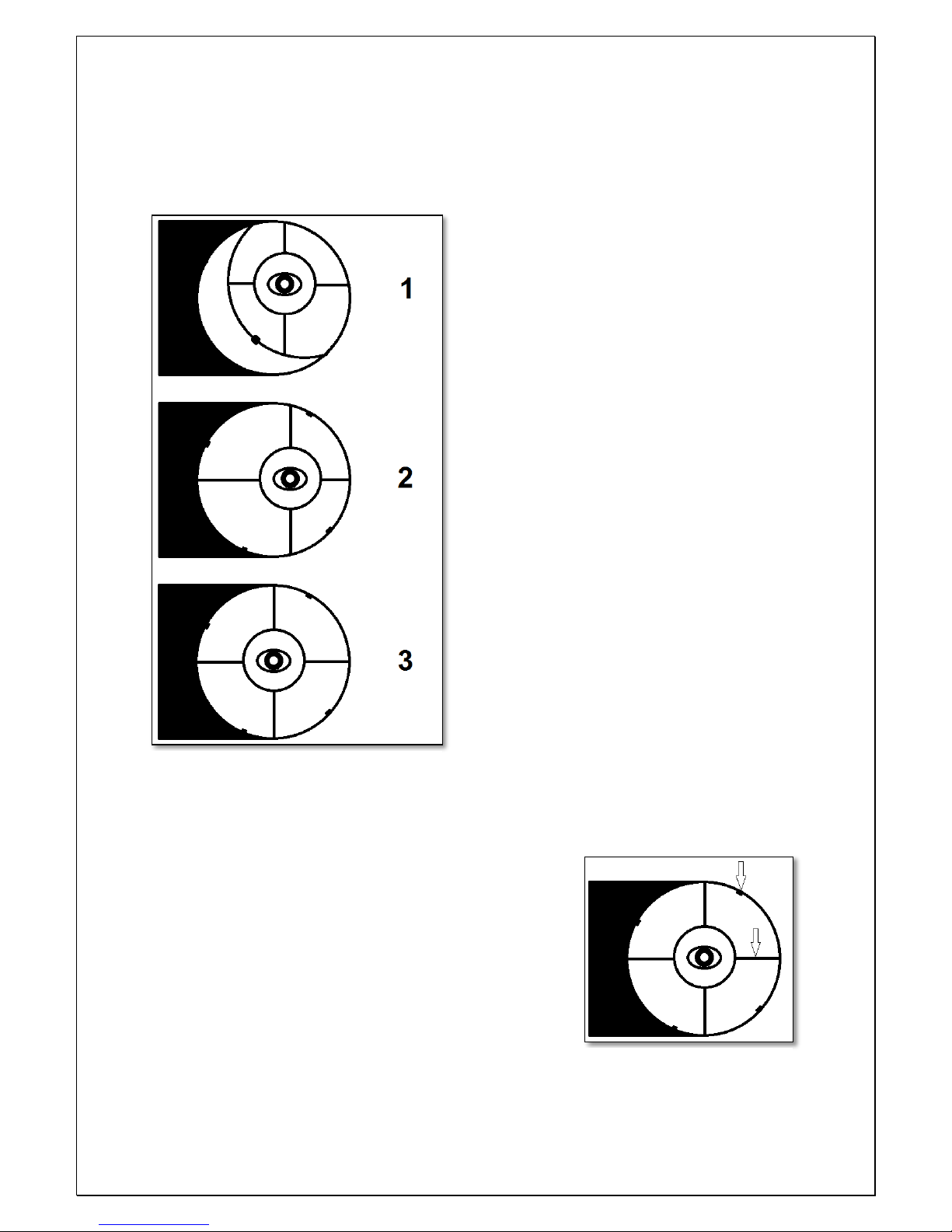

Figure 20 shows the different stages of
collimation.
1- Telescope optics completely out of
collimation. Adjustment is necessary both in
the secondary as in the primary mirror.
2- Secondary mirror is aligned but primary
mirror needs adjustments.
3- Telescope´s optics are aligned and star test
should show concentric rings. The telescope
will perform at its best.
4.2. So how to get to good alignment?
4.2.1. Let’s start with the secondary mirror.
Peeking at the focuser without the eyepiece
and looking at the secondary mirror one can
see the reflected eye. One can also see the
telescope secondary spider vanes (4 vanes
cross shaped) and the primary mirror’s holding
pads (figure 21).
The secondary mirror can be adjusted by using
the 3 screws (figure 17). Releasing it can make
the secondary mirror support to rotate. So
make sure you only adjust a screw at a time to
avoid it. The secondary mirror should always
show up as a circle and not an ellipse. Please make sure this is the case.
As soon as you get the primary mirror and the primary mirror pads centred (figure 20 –2)
you are good to go to the next step.
4.2.2. The primary mirror needs to be adjusted. Adjusting
the primary mirror will move the secondary mirror
reflection to the center. Use the 6 screws on the back of
the telescope. Notice that 3 screws are used to adjust the
tilt of the primary mirror while the three others are used
to hold the tilt position. Adjust the primary mirror so that
you get all reflections centred (figure 19 –3). Your
telescope is now collimated. Check the diffraction rings
(figure 19) and repeat it necessary.
Figure 20. Different stages of collimation.
Figure 21. Vanes and primary pads.

8
4. Start using your Zoomion Genesis 200 EQ telescope. Point the telescope to a distant object
during the day. It is important to do his during daylight so that you get familiarized with the
telescope operation. A good target is a church tower a chimney or a distant mountain peak. Rotate
the focuser knob so that the focuser tube moves in and out. Do this slowly. We suggest that you
start by racking the focuser all the way in and slowly move it out. With the PL25mm eyepiece you
should be able to get a focused image easily.
Make sure to use the locking hand knobs (figure 13) and use the fine adjustment knobs (figure 8) to
point the telescope to and object.
ATTENTION! Never use the altitude and azimuth knobs to point to the
telescope. The altitude knob bear all telescope weight and continuous use
can damage it permanently!
5. The Finderscope. Before we mentioned the Finderscope as a valuable tool to point the
telescope at an object. To operate properly, the telescope and the finderscope, should be aligned.
The image obtained through the finderscope has a much broader field of view than that of the
telescope. Aligning means matching the telescope image to the image of the center of the
finderscope. This way when looking through the finderscope one know the telescope is pointing
exactly to the same point making looking at objects much more easier.
5.2. How to align de finderscope?
You have the house chimney (example mentioned before) centered at the telescope eyepiece field of
view. Now look through the finderscope. The small cross (recticle) at the center of the finderscope
field of view should match the center of the telescope field of view. Adjust the three finderscope
screws to get the cross pointing to the same object as the telescope (as shown in Figure).
Questions? Please visit our website and drop us a line www.astroshop.de
nimax Gmbh
Otto-Lilienthal Str. 9
D-86899 Landsberg am Lech

9
5.2.1. A distant object is centered at the telescope’s
field of view. In this example we have a house with a
chimney. The chimney is the reference point to place
at the center of the field of view. We first look
through the telescope with the lowest magnification
possible (PL25mmm should be preferrable). So we
have the widest field of view.
5.2.2. Looking through the finderscope we see the
same building but in this case the chimney is not
centered. We adjust the finderscope using the three
thumbscrews so that the finderscope moves slightly.
This is enough to correct the objects position in the
finderscope. Trial and error is required to get a
satisfactory result. Make sure to tighten the 3 screws
after finishing so that the finderscope tube does not
move.
5.2.3. After playing with the three findercope
thumbscrews and some trial and error we get the
finderscope recticle close to the center (in this case
the chimney). The Finderscope is now ready to use!

10
6. Using the accessories, a bit of math to
understand how all it works.
Using the accessories is easy and fun. To
change magnification simple swap eyepieces.
To get more magnification simply use the
barlow lens. But how all of this work?
6.1. Power (magnification)
Your telescope as a focal length of 800mm.
This is approximately the distance between
the telescope lens to its focal point (very
similar to the distance between the focus
point of a loupe and the loupe lens). This is a
very important feature that allows to
determine several interesting facts such as
magnification.
The magnification is determined by the
telescopes focal length and the used
eyepiece. You probably noticed that the three
supplied eyepieces are PL25mm, PL12mm and
PL6mm. This means that the PL25mm is a
25mm focal length eyepiece while the PL6mm
is a 6mm focal length eyepiece.
To determine the magnification just devide
the telescope focal length by the eyepiece
focal length. Lets give an example for our
telescope and the supplied eyepieces:
Telescope focal length is 800mm
PL25 eyepiece focal length is 25 mm
800𝑚𝑚
25𝑚𝑚 =32 𝑝𝑜𝑤𝑒𝑟
This means that the PL25mm eyepiece
provides a 32x power (magnification). This
seems low but try it, you will see a a bright
image with some very good detail.
6.2. Barlow Lens (not included)
The barlow lens is a very interesting device. It
is a negative lens that multiplies the
telescopes focal length. So a 2x
Barlow multiplies the original focal
length by 2x, in this case
800𝑚𝑚 𝑥 2 = 1600𝑚𝑚.
A 3x Barlow lens multiplies by 3x.
When used with the PL25mm
eyepiece you get 3x the power
obtained before
32 𝑝𝑜𝑤𝑒𝑟 𝑋 3𝑥 𝐵𝑎𝑟𝑙𝑜𝑤 = 96 𝑝𝑜𝑤𝑒𝑟
6.3. Erecting lens (not included)
The erecting lens gets you a upright image
view with the telescope. It also adds some
power like the barlow lens. The supplied
Erecting Lens provides and extra 1.5x power.
6.4. Diagonal Mirror (does not apply to
this telescope model)
This diverts the light coming from the
telescope to an angle of 45 or 90 degrees. It is
useful because it provides a more confortable
position when observing.
Here are some examples on how to use the
accessories.
Some possible accessory combinations
Terrestrial
View
Moon
Deep Sky
Jupiter and
Saturn
Barlow Lens 2x
PL6mm Eyepiece
Yes
PL12mm Eyepiece
Yes
PL25mm Eyepiece
Yes
Power
Not suitable
67x
32x
133x
