ZPA S10-BT Manual


The communication sensor S10-BT is designed primarily for the creation of the
communication channel between the devices equipped with optical interface
according to the standard ČSN EN 62056-21 and DLMS/COSEM on one side
and software application on the other side. Optical interface according to the
standard ČSN EN 62056-21 is provided by various devices from the ZPA Smart
Energy portfolio (electricity meters, ripple control receivers, communication
modules, …).
The sensor S10-BT transfers optical signals in the infrared spectrum (modulated
by serial interface) to the virtual serial port Bluetooth (SPP). It enables wireless
communication with galvanic separation. It includes optoelectronic transmitter,
receiver, accumulator, Bluetooth module and microprocessor for communication
control.
Integrated toroid magnet enables to attach the sensor S10-BT to the surface of
the device in a way that enables removal and, at the same time, centre optical
interfaces.
The equipment could be delivered with following accessories: a cover of the
optical interface, USB cable for charging the accumulator, neck cord with a
snap hook, loop for connection of the sensor and cover to the snap hook. As
optional accessories can be ordered mains charger (230 V) - must be specied in
order. For reliable sticking of the communication sensor to the optical port of the
electricity meter the cover of the optical interface connected with the neck cord
with a snap hook must be removed from the communication sensor.
The sensor S10-BT is charged through a micro USB connector (5 V=); therefore,
it is possible to charge the accumulator from any PC or other standardized
equipment with USB connector.
The sensor S10-BT is activated by pressing the push-button. If the sensor is
idle for a longer period of time (no communication takes place), it goes to the
sleep mode again. Length of the period depends on the level of charging of the
accumulator; in case of full charging for approximately 5 minutes.
The sensor S10-BT is equipped with a set of indication LEDs:
Orange – charging of the accumulator.●
Lit – charging of the accumulator via USB interface.●
Fast ashing – zero voltage or disconnected accumulator.●
Green – the device is ON (ashing).●
Blue – signalling of active communication (ashing).●
Red – discharged accumulator and other failure conditions. ●
Flashing – low level of voltage of the accumulator (in case of critically ●
discharged accumulator, the sensor is switched o󰀨 immediately).
Lit – error mode.●



 
Technical Data
Maximum communication speed of optical interface: 19.200 Bd
Bluetooth Class Class 2
Operating / Storage Temperature –20 to +60 °C
Basic Dimensions Diameter: 32 mm
Height: 68 mm1
Ingress Protection IP30 (not intended for use in aggressive conditions)
Battery
Li-pol (charge time: PC USB 3 hours; mains charger (230 V) 1 hour)
Capacity 320 mAh
Nominal Battery voltage: 3.7 V
Current Consumption of the Device While Charging: Max. 100 mA
Current Consumption of the Device While Reading: 20 – 80 mA (depending on the operating mode)
Number of readings of one charging cycle of the communication head depends on the quantity of the transferred data
and conditions of the accumulator (operating time 8 hours)
Orientation of Built-in Toroid Magnet North on the side of the equipment being connected.
Non-specied parameters are identied in the following documents:
EN 62056-21 Electricity metering – Data exchange for meter reading, tari󰀨 and load control - Part 21: Direct local data exchange
IEEE 802.15 standard – Specication of WPAN (wireless personal area network)
ETSI EN 300 328 v1.8.1 Electromagnetic compatibility and radio spectrum matters (ERM) – Wideband transmission systems – Data transmission
equipment operating in the 2.4 GHz ISM band and using wide band modulation techniques; Harmonized EN covering the essential requirements
of article 3.2 of the R&TTE Directive
EN 62479:2010 Assessment of the compliance of low power electronic and electrical equipment with the basic restrictions related to human
exposure to electromagnetic elds (10 MHz to 300 GHz)
Connection to PC or PDA equipment:
Switch on the sensor and pair it with the required equipment (initial PIN is 1234) ●
In the equipment a new serial port appears, through which it is possible to communicate with the head ●
Communication speed between the equipment and the head is congurable ●
Communication parameters are 8 data bits, no parity, one stop bit (8N1)●
Block diagram
1 This dimension does not comply with the specication EN 62056-21
Dimensional Drawing

 3

For possible cleaning of the outside surface from dust and other impurities, the manufacturer does not recommend using organic solvents,
aggressive chemicals and abrasive cleaning agents. It is necessary to comply with the required storage temperatures; a failure to comply with
them can result in shortening the service-life of the electronic components. Furthermore, the electricity device shall be protected against wet and
humid conditions. Precipitations, humidity and liquids including minerals cause corrosion of electric circuits if the device becomes wet. The device
may not be placed on and dried by placement on a source of heat or inserted into a source of heat (e.g. microwave oven, classic oven or radiator
/ heater). The device can be overheated and some of its parts could explode. It may not be exposed to excessive heat; it can result in deformation
of covers. The device is not kept in cold premises, especially with the follow-up repeated warming (to the nominal operation temperature). Humidity
can condensate in the device and damage electronic components or isolation properties of the device can deteriorate.

The service shall be ensured by the company: ZPA Smart Energy a.s., Komenského 821, 541 01 Trutnov, Czech Republic, Trademark Smart
Energy, Tel. + 420 499 907 111, E-mail [email protected], www.zpa.cz .

For the preparation, the device shall be packed either in the original package, in which it was delivered by the manufacturer, or in such package,
which cannot cause damage resulting from handling or transport.


The product is capable of safe operation. The manufacturer has issued the EU Declaration of Conformity as per Act 90/2016 Coll.
Despite this fact, the manufacturer warns of the risk of possible danger resulting from incorrect handling or incorrect use of the product as
follows:
Plexiglass damage (scratches, chipping) of the optical interface may result in malfunction.●
The product contains a powerful permanent magnet, which may a󰀨ect the operation of other devices occurring close to the communication ●
head.
Installation and maintenance must be performed by a competent person with the applicable electrotechnical qualication that shall acquaint ●
the operator with the conditions of safe operation.
The product may not be used for other purposes that it is produced for.●
The product may not be wilfully modied contrary to the type design.●
The product can not be repaired neither device components can be replaced without the permission of the manufacturer.●
The product may not be operated with di󰀨erent voltage, current than it was produced or expertly modied for. ●
The product must be located and secured so that manipulation by persons without electrotechnical qualication, especially children, is hindered ●
or, as the case may be, disabled.
During the operation, it is necessary to ensure that in the area where the product is installed there is no danger of re or explosion in case of ●
creation of gases, vapours of ammable liquids and occurrence of ammable dust.
The product may not be operated in the conditions and environment, which do not guarantee safe operation (e.g. location on ammable base, ●
cover from ammable material, imperfect Ingress Protection against penetration of foreign particles or, as the case may be, against water or
other liquids).
The product may not be operated in the premises with bigger oscillation and vibrations that it is specied in this Service and technical ●
manual.
Failure of the user to observe any of the aforesaid warnings renders the manufacturer not being liable for a defect occurring as an incidental
consequence of this failure. Non-observance of storage and operation conditions recommended in article Care And Maintenance can have an
adverse e󰀨ect on the device service life.

The owner of the device is responsible for ensuring that all persons engaged in working and handling the product:
Are knowledgeable and qualied as per national regulations;●
Have read and understood corresponding parts of this document;●
Strictly observe safety regulations and operation data stipulated in its individual articles.●
The owner of the device is further responsible for:
Protection of persons;●
Prevention of damage to material;●
Personnel training.●

The following safety instructions shall be observed under all circumstances:
Local safety regulations shall be observed. The device installation shall be executed solely by qualied and trained personnel;●
During installation, the product shall be rmly held or secured against falling and causing injury;●
Dropped device shall not be installed even if showing no visible signs of damage. It shall be returned for inspection either to designated repair ●
o󰀩ce or directly to manufacturer. Internal damage can cause functional failures or a short circuit;
The product shall by no means be cleaned under running water or by high-pressure equipment. Water penetration can cause a short circuit.●
It is necessary to respect ingress protection of the device.






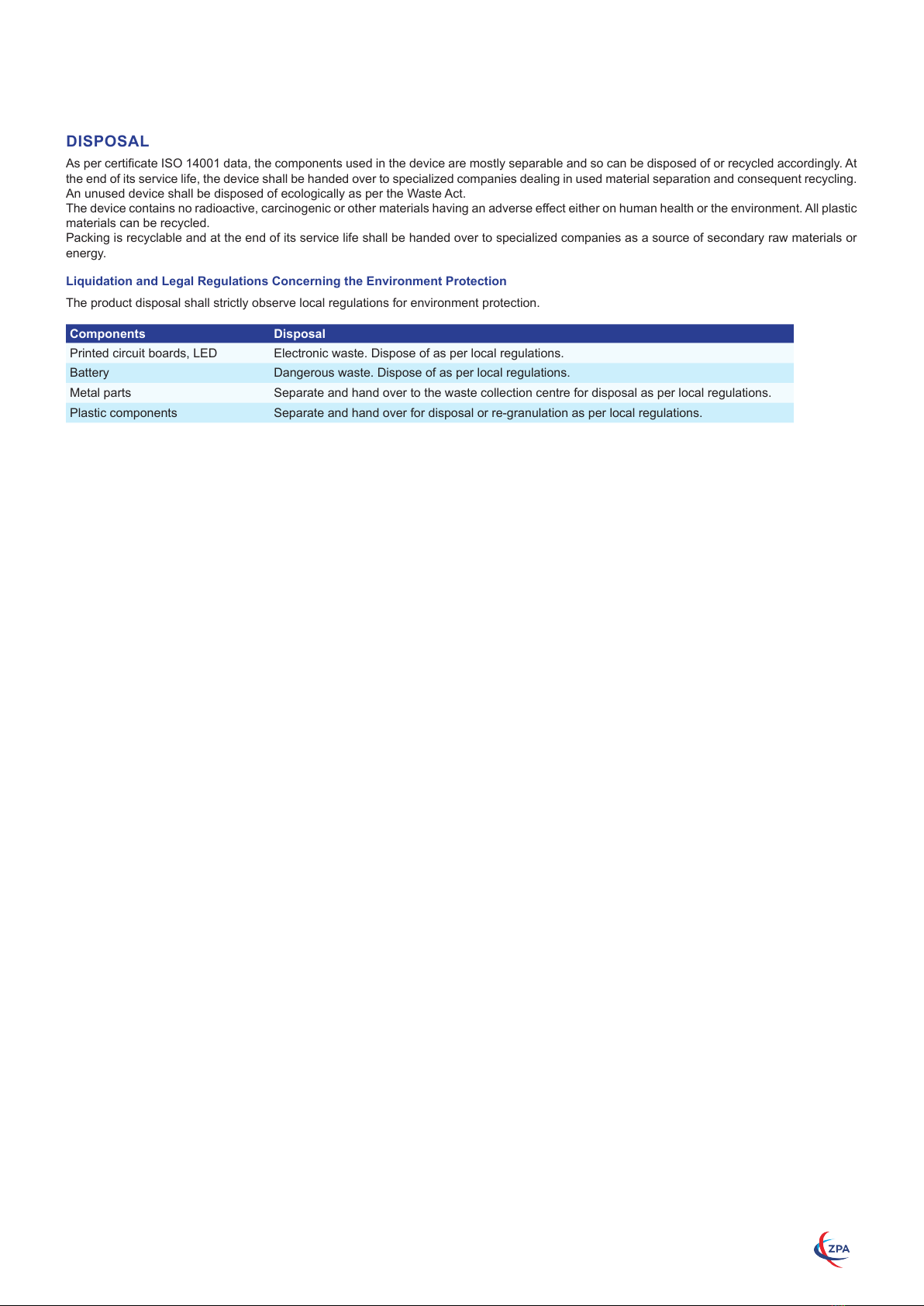

DISPOSAL
As per certicate ISO 14001 data, the components used in the device are mostly separable and so can be disposed of or recycled accordingly. At
the end of its service life, the device shall be handed over to specialized companies dealing in used material separation and consequent recycling.
An unused device shall be disposed of ecologically as per the Waste Act.
The device contains no radioactive, carcinogenic or other materials having an adverse e󰀨ect either on human health or the environment. All plastic
materials can be recycled.
Packing is recyclable and at the end of its service life shall be handed over to specialized companies as a source of secondary raw materials or
energy.
Liquidation and Legal Regulations Concerning the Environment Protection
The product disposal shall strictly observe local regulations for environment protection.
Components Disposal
Printed circuit boards, LED Electronic waste. Dispose of as per local regulations.
Battery Dangerous waste. Dispose of as per local regulations.
Metal parts Separate and hand over to the waste collection centre for disposal as per local regulations.
Plastic components Separate and hand over for disposal or re-granulation as per local regulations.
