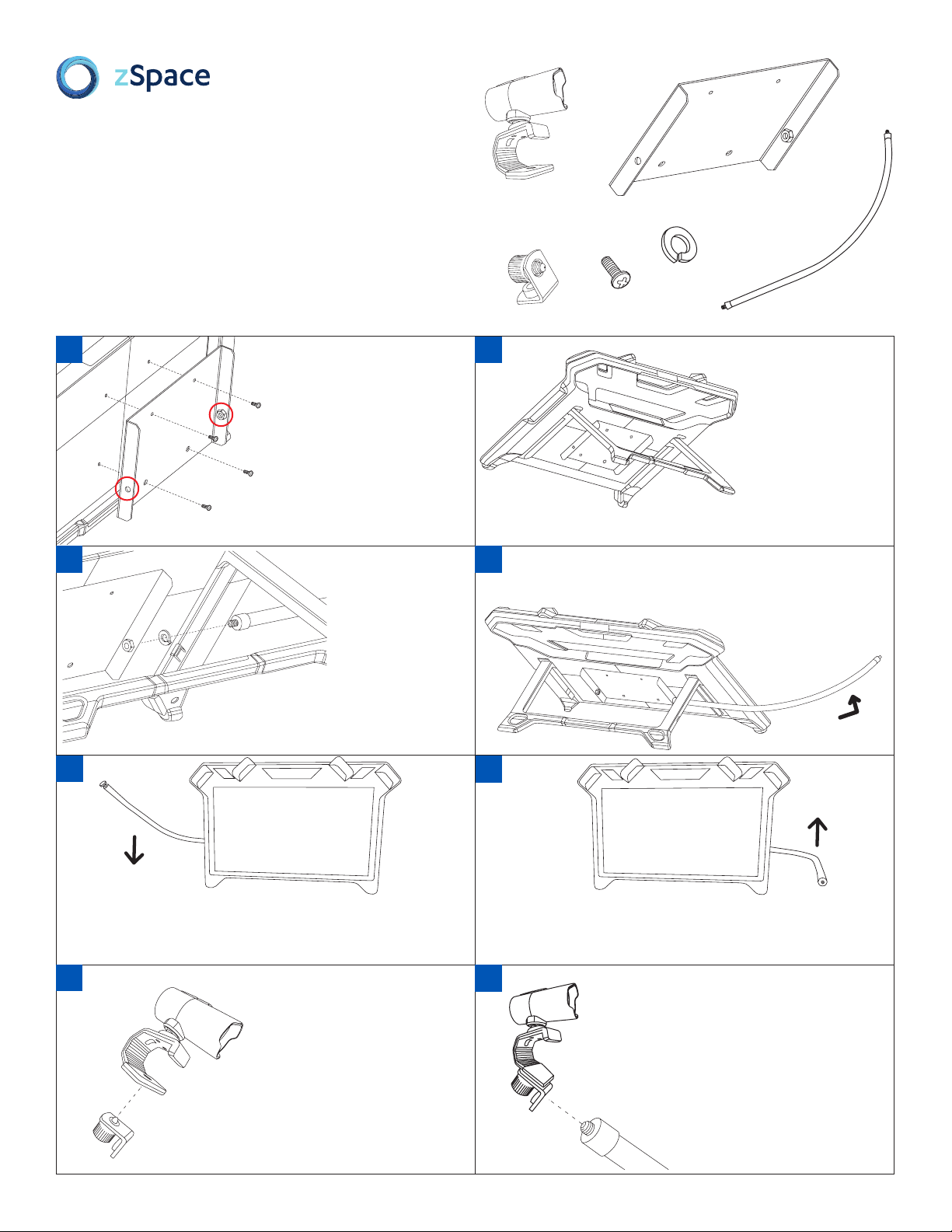

zView Assembly Instructions
for zSpace 200
1x
4x
1x
1x
770-00018-01 GUIDE, QUICK START, ZVIEW II REV G
1
Align bracket over the
4 threaded holes.
Insert and ghten the
4 M4 screws.
When aligning, make sure
threads are on lower half.
2
3 4
Pull U stand out
before threading in
the exible tubing.
Pull out to one of the
3 locking posions.
Preferably the 30
degree viewing angle
Thread knurled nut
unl hand ght
56
7
Bend exible housing to posion that will allow web
cam to have clear view of user’s hand and the screen.
8
Insert exible tubing and lock washer
between the back panel and U stand.
Thread tubing into the bracket.
For le side mount, have hose biased low. Once webcam and
L-bracket are installed, hose will be brought down to ne tune
viewing locaon. In doing so, hose will further ghten on to
knurled nut.
For right side mount, have hose biased low. Once webcam and
L-brakcet are installed, hose will be brought up to ne tune
viewing locaon. In doing so, hose will further ghten on to
knurled nut.
1x
1x
Thread webcam onto L-bracket.
Thread L Bracket onto threaded
stud. May take several tries to
ensure camera viewing angle of
screen is good.

9Disclaimer: If you connue to readjust the bend and viewing posion of the camera, threaded joint may loosen.
Straighten the exible tubing and reghten the hose’s threads onto the bracket before rebending/posioning.
Connect the webcam’s USB cable into the PC’s USB 2.0 port. For access to necessary zView Soware, please go to zspace.
com/login and register for a zSpace account. Upon compleon of registraon, please send your username to orders@
zspace.com to authorize that account for access
to zView.
