zSpace 200 User manual

zspace.com zSpace 200 User’s Guide
770-00010-01 Rev A
zSpace 200
User’s Guide

zSpace is a registered trademark of zSpace, Inc. All other trademarks are the property of their respective
owners.
© zSpace, Inc. 2015

visit us online at zpace.com
Contents
The zSpace 200 System 1
Contents of the zSpace System Box 1
Parts of Your zSpace System 2
Side Panel 3
Rear Panel 4
How zSpace Works 5
Head-Tracked Stereoscopic Display 5
Stylus Interaction 5
System Requirements 6
Minimum 6
Recommended 6
zSpace Graphic Card (GPU) Requirements 6
Application Graphics Requirements 7
Monitor Stands8
Setting Up your zSpace System 10
Upgrading from a zSpace 100 10
Hardware 10
Software and Firmware 11
Verifying Setup 13
Software for your zSpace System 15
Safety Instructions 16
Usage 16
Basic Operation 17
Environment 17
Physiological Effects 17
Caring for zSpace 18
Recycling (WEEE) and RoHS 19
Appendix A: Specifications 20
Appendix B: Certifications 21
FCC Certification 21
FCC Class B Notice 21
Appendix C: Limited Warranty 22

zspace.com
The zSpace 200 System
Congratulations on your purchase of the zSpace system! This guide reviews the features, requirements to run
the system, the setup process, and basic usage information.
Contents of the zSpace System Box
zSpace display
Stylus
1 Pair tracked polarized glasses
1 Pair tracked polarized clip-ons
1 Pair non-tracked 2D glasses (for observers)
1 Power supply for zSpace display
Integrated DisplayPort and USB Type A to Type B cable for connecting the zSpace display to the PC
1 Quickstart guide

zspace.com
Parts of Your zSpace System
zSpace System Components
Eyewear
In order to use your zSpace system in stereoscopic mode (3D), you need to wear the tracked eyewear. This
eyewear includes polarized lenses and small reflectors to tell the system where your eyes are located.
Your zSpace system includes another pair of glasses without the reflectors. An observer can wear these and
share your experience without interfering with the tracking.
Stylus
The stylus is used to control the system, enabling six degrees of freedom of motion. You use the stylus buttons
to select UI controls and objects in the scene.

zspace.com
Tracking Cameras
The tracking cameras are necessary for the stylus and tracking to work. Please do not block the cameras.
Integrated Stand
To adjust the angle, pull down to unsnap, pull to desired angle, then pull down to lock in place. To release, push
it upwards from the base, then readjust to any of the preset angles (30°, 45°, 60°).
Side Panel
The Side of the zSpace 200

zspace.com
Rear Panel
The Back of the zSpace 200

zspace.com
How zSpace Works
zSpace has many features to enable a compelling user experience.
Head-Tracked Stereoscopic Display
The head-tracked display enables the zSpace system to display the left and right images for a stereoscopic
display. The images adjust as your eyes move within the tracking zone. This capability ensures a comfortable
virtual experience.
Stylus Interaction
The tracking cameras enable the stylus to interact with virtual items anywhere within the tracking zone.
zSpace Tracking Zone

zspace.com
System Requirements
Minimum
Intel Core i3 processor, 4 GB RAM, Radeon R9 265 GPU
Recommended
Intel Core i5 Processor, 8 GB RAM, FirePro W5000 GPU
zSpace Graphic Card (GPU) Requirements
NVIDIA Quadro series, AMD FirePro series, or AMD Radeon R9 or better desktop or mobile GPU with the
following support:
OpenGL quad buffer stereo
DisplayPort output connection
2GB of on-board memory or better
Note: Some applications require Windowed Stereo support. If you are running one, make sure your GPU
includes this support as well.
Vendor & Model
Quad Buffer Stereo
OpenGL Driver
Windowed Stereo
NVIDIA Quadro
Yes
Yes
Yes
NVIDIA GeForce
No
No
No
AMD FirePro
Yes
Yes
Yes
AMD Radeon
Yes
Yes
Yes (Windows 8.1 only)

zspace.com
AMD APU
Yes
Yes
No
Intel Integrated GPU
No
No
No
Note: The AMD APU graphics cards are not recommended for performance reasons.
Application Graphics Requirements
Independent of GPU and CPU capabilities, some applications are certified on only certain brands of graphics
cards due to testing constraints. The following applications have known restrictions:
EON Software: Requires NVIDIA Quadro
EchoPixel: Requires NVIDIA Quadro or AMD FirePro
Most other applications will work in full screen mode across all specified Radeon, FirePro, and Quadro GPUs,
with varying performance.
For specific recommendations on hardware for a given application, please check the application’s download
page on the zSpace website.

zspace.com
Monitor Stands

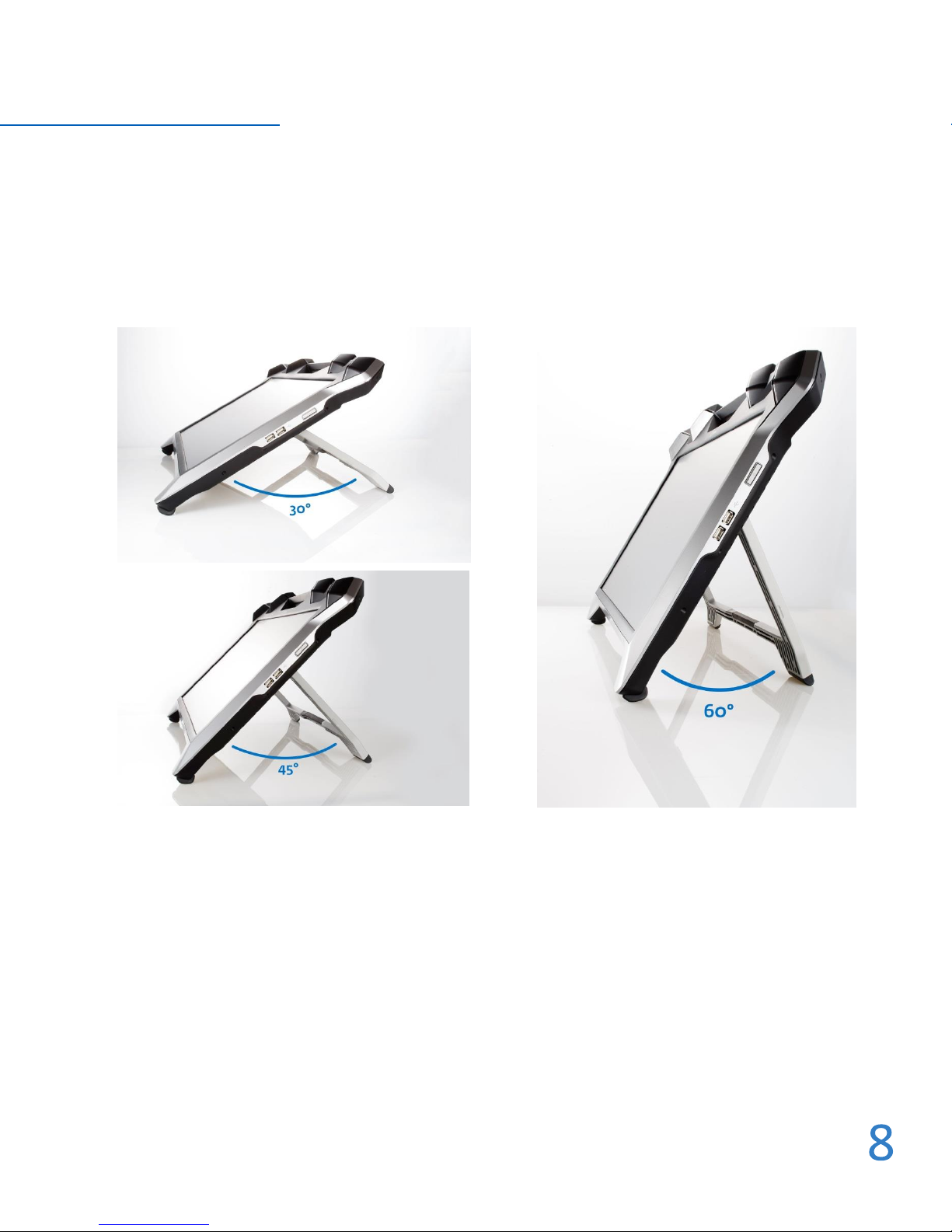

zSpace 200 has an integrated stand that supports 30, 45 and 60 degree viewing angles.
zSpace 200 Adjustable Angles

zspace.com
The following table gives the dimensions of the zSpace 200 at different angles.
Angle
Height
Width
Depth
30 degrees
10.5”
23.5” at base, 27.5” at top
17”
45 degrees
13.75”
23.5” at base, 27.5” at top
14”
60 degrees
16.5”
23.5” at base, 27.5” at top
10”
In addition, zSpace includes a 100*100 mm VESA mount for attachment to a monitor stand. You can mount the
zSpace display to a flexible monitor arm or stand that can support any angle.
Make sure your monitor stand can support the weight of the zSpace display, as it is slightly heavier than a
conventional monitor of the same diagonal width (24”). The zSpace display weighs 8.8 kg (17 lbs). The addition
of a zView armature may also impact weight or angle, so be sure to verify stability when using peripherals.
Mounting the zSpace 200

zspace.com
Setting Up your zSpace System
Upgrading from a zSpace 100
If you are upgrading from a zSpace 100 to a zSpace 200, you will need to update the zSpace System Software,
described in Software and Firmware on page 11.
Important Note: If you have the zSpace STEM applications already installed on your PC, make sure you back up
your application data before you uninstall the zSpace System Software version 3. Follow these steps:
1. Make a backup copy of the following folders:
oC:\ProgramData\zSpace\Edu Server
oC:\ProgramData\zSpace\Franklin’s Lab
oC:\ProgramData\zSpace\Newton’s Park
oC:\ProgramData\zSpace\Studio
2. After you uninstall the zSpace System Software, copy the folders back to their original location.
Hardware
1. Confirm that you have all the hardware components. For each zSpace 200, your system includes the
following components:
ozSpace display
ozSpace eyewear with markers (regular glasses and clip-ons)
ozSpace eyewear without the markers
ozSpace stylus with cable
oPower supply for the zSpace display with corresponding cable
oIntegrated DisplayPort and USB Type A to Type B cable
Depending on the hardware package you ordered, your system may include the PC.

zspace.com
2. Plug in all the cables. Refer to the illustrated Quickstart Guide that comes in the box with your zSpace
system. You can also download a copy from http://zspace.com/setup.
Note: You may see warning or error messages that the USB drivers are not installed yet. This will
automatically correct itself once the drivers install.
3. When you finish connecting the zSpace system hardware, download the zSpace software and firmware
and install them as described in the next section.
Software and Firmware
To check for updates to the System Software, you will need an Internet connection. Follow these steps:
1. In the Windows Start menu, select the zSpace folder, then choose zSpace Control Panel.
Note: If this is the first time opening the zSpace Control Panel, then the System Check will automatically
start. You can exit the System Check, as long as you complete it later.
2. Check the version number on the zSpace Control Panel.
Checking the Version Number
3. In a browser window, go to http://zspace.com/downloads and click on the zSpace 200 System Software
link.
4. If the latest version is newer than the one on your zSpace Control Panel, click on the download link.

zspace.com
5. Before you install the new version, uninstall the current version of the System Software.
Important Note: If you are upgrading from a zSpace 100, make sure you back up the
C:\ProgramData\zSpace application folders before you uninstall the System Software version 3.
a. Open the Windows Control Panel and select Programs, then select Uninstall Program.
b. Scroll down the list to select the zSpace System.
c. Right click on zSpace System and select Uninstall.
6. Next, run the downloaded installer and follow the on-screen prompts.
If you install a newer version of the System Software, you will automatically get the latest firmware. Otherwise,
please make sure you have the correct firmware version. To do so:
1. On the zSpace Control Panel, click on the Check for Updates link.
Checking Firmware Version
An article on the zSpace Support Site appears.
2. Follow the instructions in this article to check your firmware version and install an update if necessary.

zspace.com
Verifying Setup
To verify that the zSpace display, glasses, stylus, and system software are working correctly, run the zSpace
System Check. Follow these steps:
1. Select the zSpace Control Panel from the Windows Start Menu.
Note: If you updated the system software, the zSpace System Check starts automatically after
installation.
2. On the Support tab, click on Run zSpace System Check.
Running the System Check
3. Follow the instructions on screen. Pay close attention to the icons on screen that tell you whether to
wear the glasses or use the stylus for each test.
If a test fails, the System Check ends, and a message box displays a link to the zSpace support site for
further information.
If any part of the test is unclear, refer to the detailed steps below:
1. The first test checks the display. You will see a shaded rectangle. Click on the button indicating the color
of the rectangle.
Important Note: On systems with an AMD graphics card, you will see a red rectangle. Click on the
purple button to advance, so that you can continue. Your applications will work correctly.

zspace.com
2. The second test checks the stereo in the system. Put on the zSpace eyewear and indicate if the panel on
the right has depth and dimension. If so, click on Yes. If not, click on No.
3. The third test checks the zSpace eyewear. Put on the eyewear with markers, and click on Next. When
the crosshairs appear on screen, move your head to move the crosshairs into all of the circles, one by
one.
oIf you are successful touching all circles, your eyewear tracking mechanism is functioning
properly.
oIf you are unable to complete the exercise, indicate that a problem has occurred by pressing the
spacebar. As with all error conditions, a message directs you to the technical support site for
further information.
4. The fourth test checks the stylus buttons. As you click on each stylus button, confirm it lights up in the
System Check picture. Once all three buttons are recognized, use the mouse to click on Next.
5. The fifth test checks the stylus LED and vibration. If the LED lights on the stylus match the lights in the
System Check picture, click on Yes with the mouse.
6. If the stylus vibrates when indicated by the System Check picture, click on Vibration with the mouse.
7. The sixth test checks that stylus tracking works correctly. This is very similar to the eyewear tracking
test.
Click on Next to begin the test. Move the crosshairs into each circle with the stylus. If the test is
successful, you have completed setting up your zSpace system. Click on Finish with the mouse.

zspace.com
Software for your zSpace System
A purchase of a zSpace system includes the purchase of a license to zSpace’s Core software. This Core software
enables a PC to control the zSpace hardware, along with providing various base applications that enable you to
use zSpace effectively.
The Core software consists of:
zSpace System –Display and tracking drivers
zSpace Zone –Virtual Reality desktop interface
zSpace Studio –A model viewing tool that allows the import and publishing of 3D models from many
environments
zSpace Gallery –A large volume of curated models for use in the zSpace Studio application
zSpace Online Marketplace –Coming soon
In addition to these applications, there are many zSpace and partner applications that can be downloaded
and/or purchased for use with your zSpace system.
Please visit http://zspace.com to find additional software titles for use in the zSpace system.

zspace.com
Safety Instructions
Please carefully review the safety instructions described in the following section. This information is provided to
help you experience the best features of your zSpace system and prevent problems that may decrease
performance.
Failure to follow the instructions might void the limited warranty agreement, in which case zSpace will not be
responsible for replacing or repairing the product. Disregarding specific safety instructions may also cause injury
and serious damage to health.
Usage
Only use the power adapter provided with the zSpace system. Using a different type of power adapter
may cause damage with the risk of fire. Be sure to use a grounded power source.
When moving or adjusting the zSpace display, be careful when grasping the upper plastic enclosure.
Excessive pressure could misalign or damage the sensors.
Mishandling or dropping the zSpace display may cause alignment problems with the tracking device.
Do not open or disassemble the zSpace display or any hardware components associated with zSpace. In
some cases, there is risk of electrical shock. Opening the system or damaging components will void the
warranty.
Avoid placing sharp or heavy objects on the zSpace monitor to prevent scratching the display surface or
causing breakage.
Avoid dropping the stylus or catching the cable on immovable objects.
When using zSpace eyewear, be careful not to remove or damage the markers, which are critical to head
tracking.
If the zSpace display’s screen is damaged for any reason, do not touch any liquid emanating from the
unit. In case of contact with skin, rinse or flush any affected surfaces immediately with running water.
Please consult a physician in all cases.

zspace.com
Basic Operation
The zSpace display works best in moderate lighting conditions. Sunlight and bright lights within the view
of the sensors can affect overall performance of the tracking mechanisms. Avoid bright lights for best
results.
Be careful when connecting the cables on the back of the zSpace display. It is possible to inadvertently
plug the USB cable into the RJ-11 port, which could cause a short circuit and render the product
inoperable.
The power button on the zSpace display is multi-functional:
oTo turn on the display, tap the power button.
oTo turn the backlight off and on, tap the power button off and on.
oTo turn off the display, hold the power button for about 4 seconds.
Environment
Temperature : 10 - 40 degrees C (50 - 104 degrees F)
Humidity : 10 - 80 %, non-condensing (dry location)
Do not operate or store zSpace hardware in any location where temperature changes are severe.
Physiological Effects
Avoid long hours of prolonged use of 3D applications which may cause eyestrain, mild fatigue, and in
extreme cases, illness and seizures. Do not engage in operating vehicles or machinery when feeling any
of the described effects as a result of using the system.
zSpace disclaims any and all liability to users for any dizziness, nausea, headaches and/or other
sensations of physical discomfort or illness that a user may experience as a result of use of the zSpace
system.
In some cases, viewing objects in 3D stereo may cause disorientation and the objects may appear blurry.
One possible reason is the reversal in the detection of the left and right frames in the specific
application. Depending on the application, toggling the zSpace display’s backlight by tapping the power
button off and on may correct the problem.
